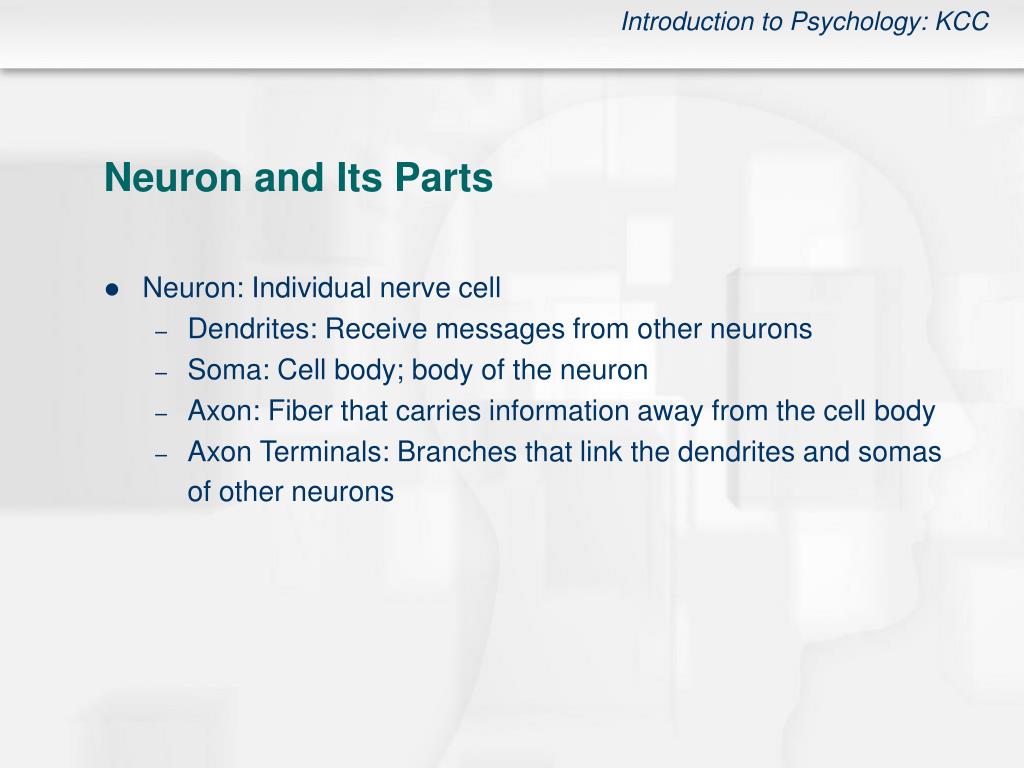

Chapter 2 Brain and Behavior. Neuron and Its Parts. Neuron: Individual nerve cell Dendrites: Receive messages from other neurons Soma: Cell body; body of the neuron Axon: Fiber that carries information away from the cell body

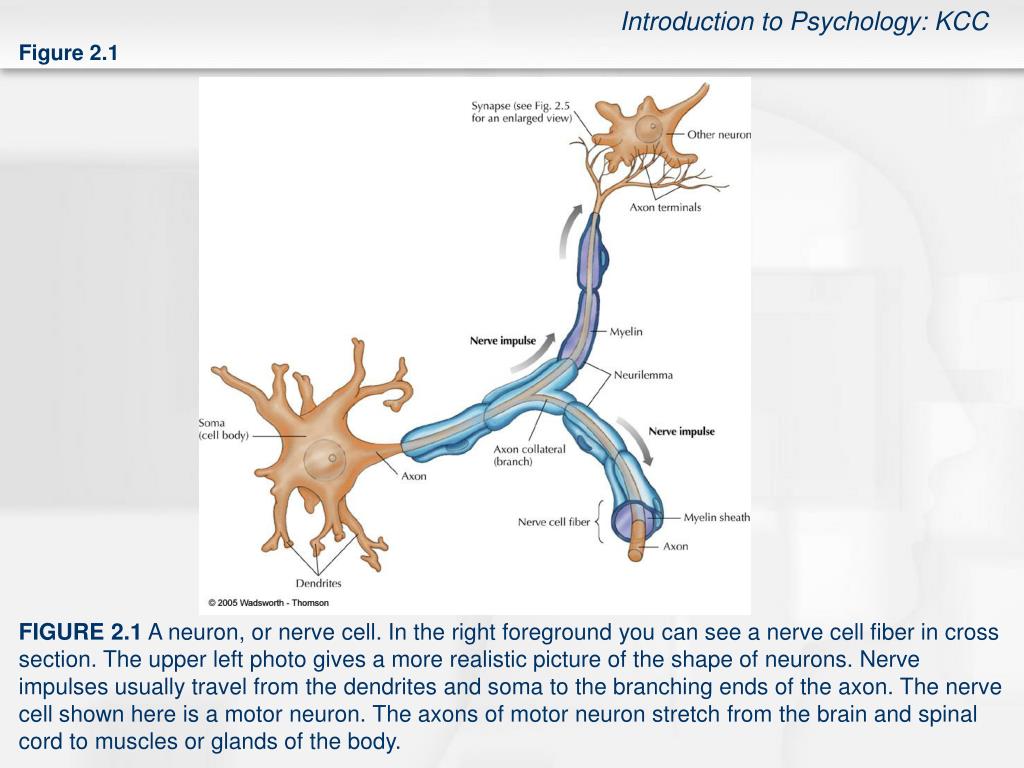

FIGURE 2.1 A neuron, or nerve cell. In the right foreground you can see a nerve cell fiber in cross section. The upper left photo gives a more realistic picture of the shape of neurons. Nerve impulses usually travel from the dendrites and soma to the branching ends of the axon. The nerve cell shown here is a motor neuron. The axons of motor neuron stretch from the brain and spinal cord to muscles or glands of the body.
FIGURE 2.5 A highly magnified view of a synapse. Neurotransmitters are stored in tiny sacs called synaptic vesicles (VES-ihkels). When a nerve impulse reaches the end of an axon, the vesicles move to the surface and release neurotransmitters. These molecules cross the synaptic gap to affect the next neuron. The size of the gap is exaggerated here; it is actually only about one millionth of an inch. Some transmitter molecules excite the next neuron, and some inhibit its activity.
• Receptor Site: Areas on the surface of neurons and other cells that are sensitive to neurotransmitters

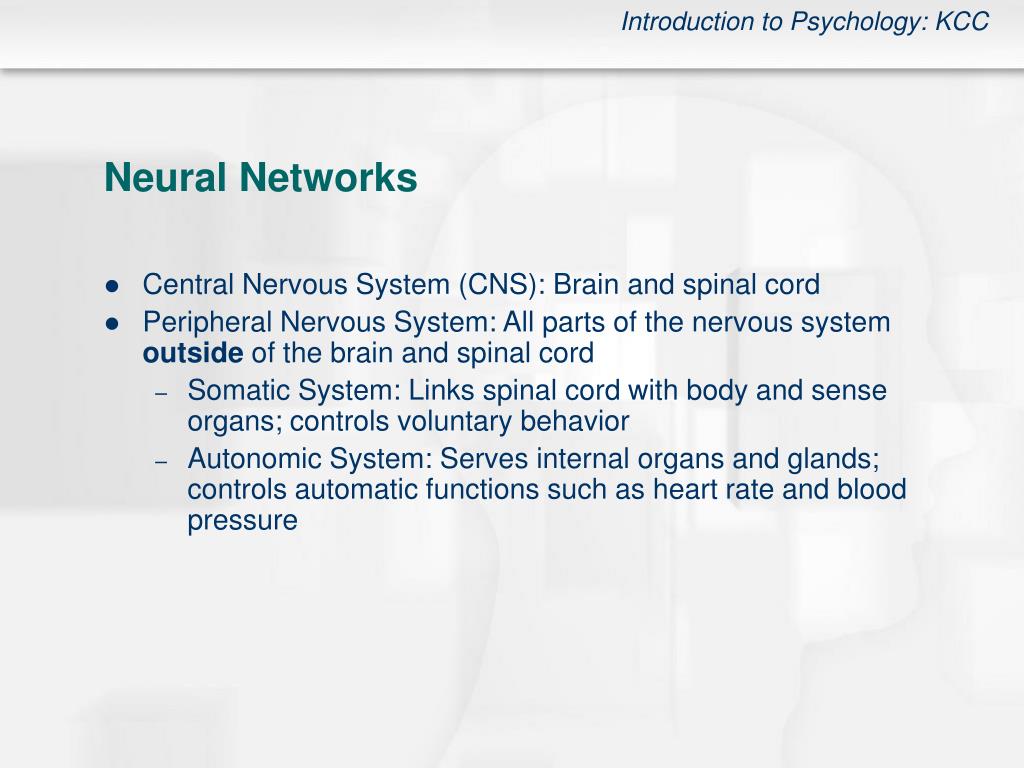

FIGURE 2.6 (a) Central and peripheral nervous systems. (b) Spinal nerves, cranial nerves, and the autonomic nervous system.
FIGURE 2.8 Sympathetic and parasympathetic branches of the autonomic nervous system. Both branches control involuntary actions. The sympathetic system generally activates the body. The parasympathetic system generally quiets it. The sympathetic branch relays its messages through clusters of nerve cells outside the spinal cord.
FIGURE 2.7 Subparts of the nervous system.
FIGURE 2.19 Basic nerve pathways of vision. Notice that the left portion of each eye connects only to the left half of the brain; likewise, the right portion of each eye connects to the right brain. When the corpus callosum is cut, a “split brain” results. Then visual information can be sent to just one hemisphere by flashing it in the right or left visual field as the person stares straight ahead.
Spatial neglect resulting from a right hemisphere stroke. Notice the neglect of the left side of the pictures which were being reproduced.
FIGURE 2.25 This simplified drawing shows the main structures of the human brain and describes some of their most important features. (You can use the color code in the foreground to identify which areas are part of the forebrain, midbrain, and hindbrain.)

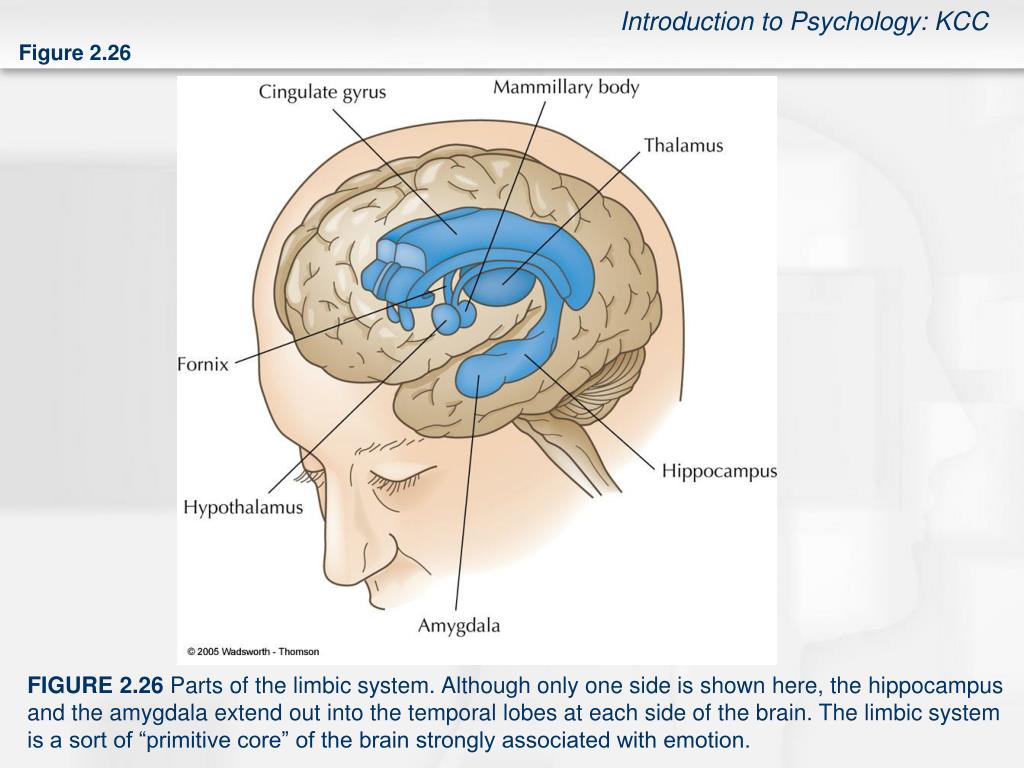

FIGURE 2.26 Parts of the limbic system. Although only one side is shown here, the hippocampus and the amygdala extend out into the temporal lobes at each side of the brain. The limbic system is a sort of “primitive core” of the brain strongly associated with emotion.
