Presentation Transcript
slide2

Objectives

  • Describe the experiments of Thomson and Rutherford explain how they contributed to our present understanding of atomic structure.
  • Describe the mass and charge differences among electrons, protons and neutrons.
  • Define atomic number, mass number and isotopes in terms of the number of electrons, protons and neutrons.
slide10

The Modern Atom

  • Today we define the atom as the smallest particle of an element that retains the chemical properties of that element.
  • All atoms consist of two regions:
  • The nucleus is a very small region located near the center of an atom and contains positively charged particles called protons.
slide11

Surrounding the nucleus is a region occupied by negatively charged particles called electrons.

  • This region is very large compared to the size of the nucleus.
  • Protons, electrons and neutrons are called subatomic particles.
slide28

Atomic Nucleus

  • Except for the hydrogen atom, all atomic nuclei are made up of two kinds of particles, protons and neutrons.
  • A proton has a positive charge equal in magnitude to the negative charge of an electron. Atoms are electrically neutral.
  • A neutron which has no charge.
slide29

Atomic Number

Atomic Number (Z) – represents the number of protons in the nucleus of each atom of that element.

Atoms of the same element have the same number of protons.

Atoms of different elements have different number of protons.

slide30

Atomic Number

On the periodic table, the elements are placed in order of increasing atomic number.

At the top left of the table is hydrogen, H, which has an atomic number of 1.

All atoms of the element hydrogen have one proton in the nucleus.

slide31

Next is helium, which has two protons, and therefore an atomic number of two.

  • This is followed by lithium with an atomic number of three – three proton in the nucleus.
  • The atomic number for each element is listed on the periodic table above the elements symbol.
slide32

The atomic number identifies an element.

Because all atoms are neutral (no charge), we know the atomic number is equal to the number of electrons.

# of protons = # of electrons

Example: Silver (Ag) has an atomic number of 47. Therefore, silver has 47 protons and 47 electrons in each silver atom.

slide33

Isotopes

The simplest atoms are those of hydrogen. All hydrogen atoms contain one proton.

However, hydrogen atoms can contain different number of neutrons.

Three types of hydrogen atoms are known with a neutron count of 0, 1 or 2.

slide34

Isotopes

The most common type of hydrogen atom is called protium. It accounts for 99.985% of the hydrogen atoms found on earth.

The nucleus of protium consist of one proton and zero neutrons.

slide35

Isotopes

Another type of hydrogen atom is deuterium. This accounts for 0.015% of hydrogen atoms.

The nucleus of deuterium consist of one proton and one neutron.

slide36

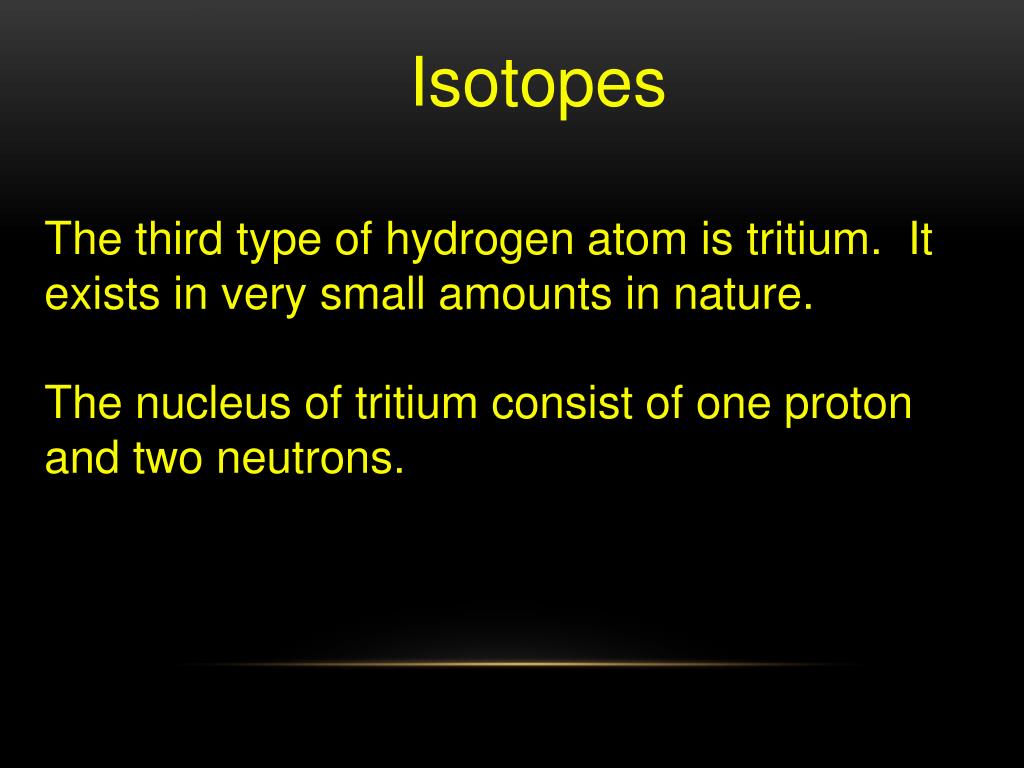

Isotopes

The third type of hydrogen atom is tritium. It exists in very small amounts in nature.

The nucleus of tritium consist of one proton and two neutrons.

slide37

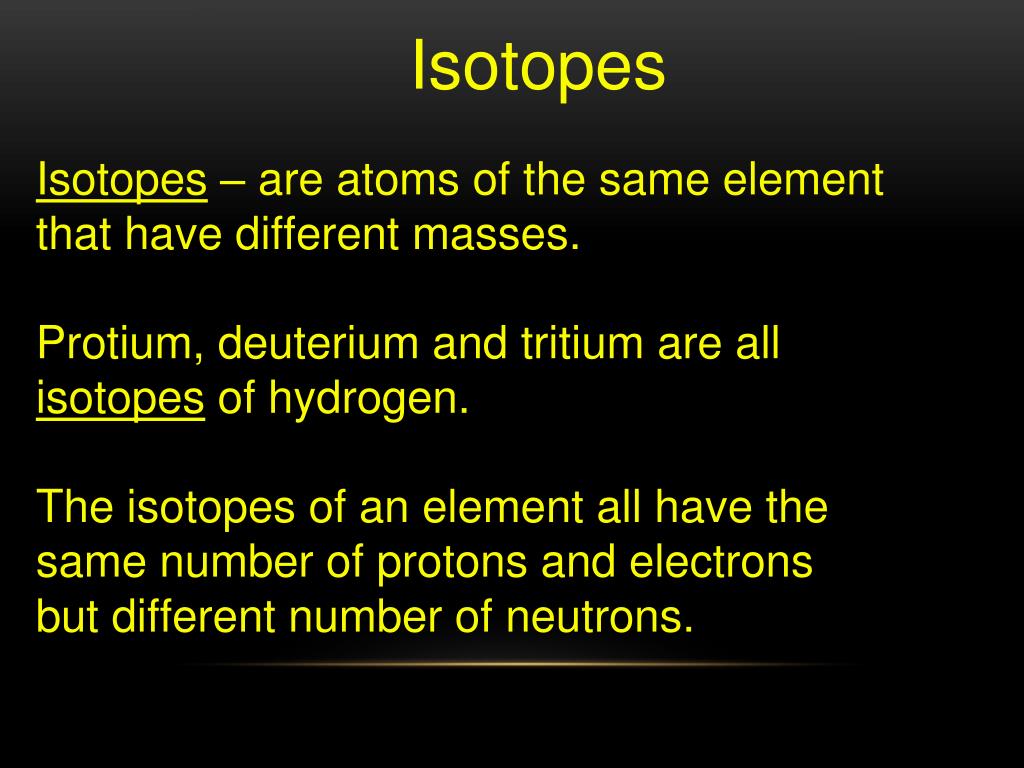

Isotopes

Isotopes – are atoms of the same element that have different masses.

Protium, deuterium and tritium are all isotopes of hydrogen.

The isotopes of an element all have the same number of protons and electrons but different number of neutrons.

slide38

Mass Number

Mass Number – represents the total number of protons and neutrons in the nucleus of an isotope.

Identifying an isotope requires knowing both the atomic number and mass number of the element.

slide39

Mass Number

Calculating the mass number:

Mass number = atomic number + number of neutrons

Tritium:

Atomic # = 1 (1 proton)

# of neutrons = 2

Mass number = 3

slide41

Homework

  • Worksheet: Atomic Number (B7)
slide42

Isotopes

Isotopes of an element are usually identified by specifying their mass number.

There are two common methods:

The mass number is written with a hyphen after the name of the element.

hydrogen-3 represents tritium

slide43

Isotopes

2) The second method shows the elements symbol written with the atomic and mass numbers.

hydrogen-3 represents tritium is written as:

H

3

1

slide44

Isotopes

  • Example:
  • Uranium-235 contains 92 protons and 143 neutrons.
  • Mass number = atomic number + number of neutrons
  • 235 (protons + neutrons) = 92 protons + 143 neutrons
slide45

Isotopes

Examples of hydrogen and helium:

slide46

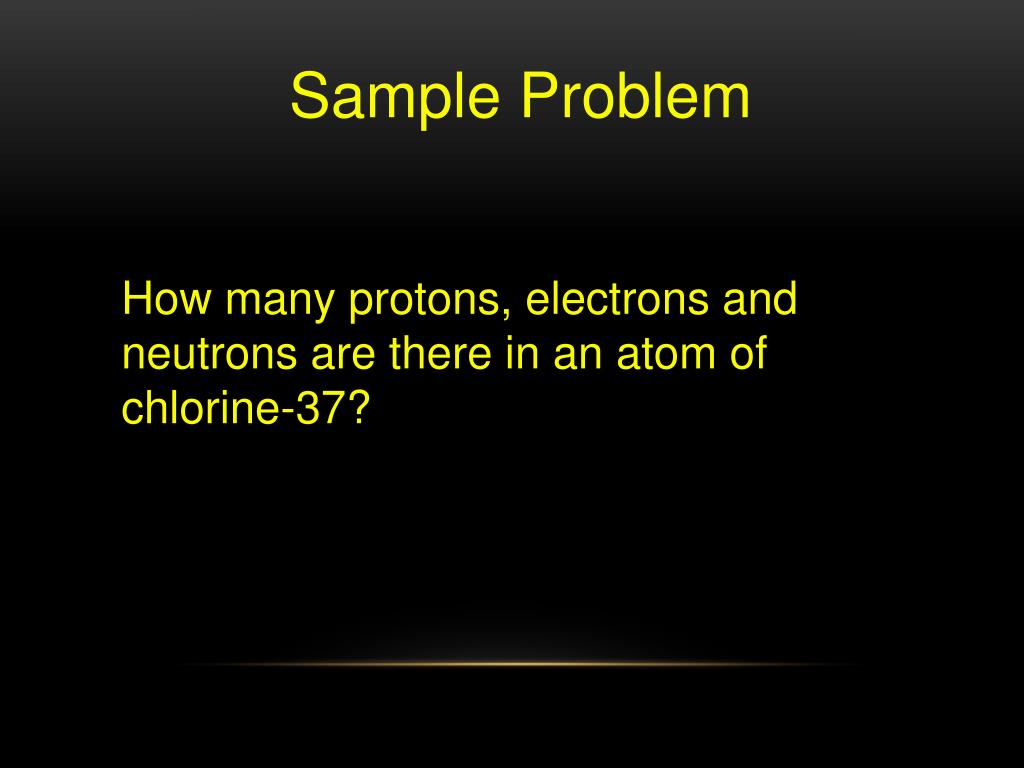

Sample Problem

How many protons, electrons and neutrons are there in an atom of chlorine-37?

slide47

Sample Problems

Classwork:

Problems 1-3, page 78

slide48

Homework

  • Worksheet:
  • Atomic Structure
