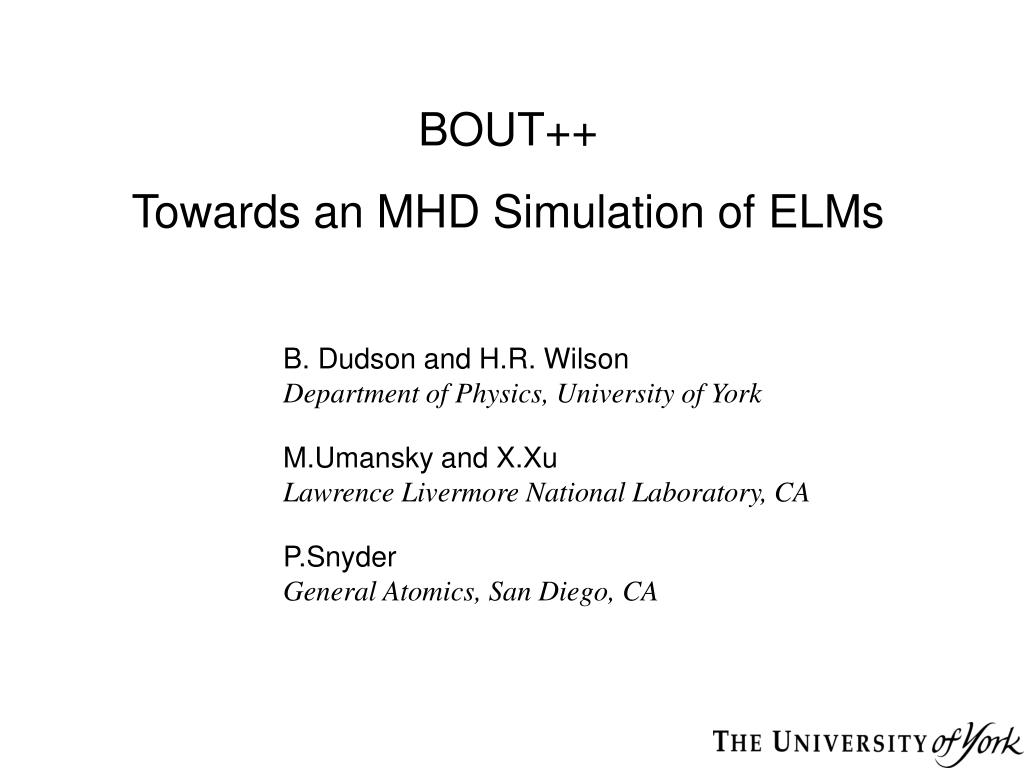

  1. BOUT++ Towards an MHD Simulation of ELMs • B. Dudson and H.R. Wilson • Department of Physics, University of York • M.Umansky and X.Xu • Lawrence Livermore National Laboratory, CA • P.Snyder • General Atomics, San Diego, CA

  2. Outline • BOUT++: motivation and philosophy • ELM modelling: the approach and objectives • Initial benchmarking results (work in progress), and future aims

  3. BOUT++: Philosophy • BOUT++ is a collaborative project between University of York and LLNL • The code provides a framework for developing plasma fluid codes: • user defined magnetic geometry (in terms of metrics) • user-defined plasma model: • Flexible, user-friendly code (small compromise on speed) • easy to adjust plasma physics model, and explore implications

  4. Example of the code: Ideal MHD equations dndt = -n*Div(v) – V_dot_Grad(v,n) dpdt = –V_dot_Grad(v,p) - gamma*p*Div(v) dvdt = –V_dot_Grad(v,v) + ((Curl(B)^B) - Grad(p))/n dBdt = Curl(v^B)

  5. Physics Objectives • There are two main objectives: • Edge turbulence modelling • Edge MHD and ELMs • focus on the ELM modelling here

  6. ELM modelling- the approach • Two complementary approaches to tackle the ELM problem • Full non-ideal MHD code, towards a model for the ELM crash • A range of codes being used: NIMROD, BOUT, JOREK, M3D, etc • Advantage: well-developed codes, some with 2-fluid effects • Disadvantage: difficult to pull out and and study the impact of specific physics elements without a detailed knowledge of the code; making contact with analytic theory is not easy • Building up from simple ideal MHD model • Basic ideal MHD model eases comparison with analytic theory and linear codes (eg ELITE and non-linear ballooning theory) • The model can then be slowly built up, monitoring the impact of different physics effects • BOUT++ is ideally suited to exploring the second approach • permits the user to add and subtract physics in a clear way

  7. Initial benchmark studies (in progress) • The Orszag-Tang vortex provides a “standard” test of 2D ideal MHD solvers: looks good, qualitatively • Tests the ability to treat shocks (possibly important for ELMs) Athena, Roe solver BOUT++, ideal MHD

  8. Quantitative Benchmark: linear ideal MHD • We have begun to test the code against ELITE • For initial tests, we have implemented a reduced ideal MHD model into BOUT++ • Valid for high-n ballooning modes • Initial case: strong instability, with significant peeling component: • OK for intermediate n, but unable to reproduce higher n (yet) • Points to a problem with the kink/peeling drive (sensitive to plasma-vacuum boundary)

  9. Produces “fingers” in non-linear regime n=10 • Mode propagates radially • Filamentary structures are produced in the non-linear regime • Cannot take too seriously while there is disagreement in the linear regime • but encouraging first signs!

  10. New equilibrium to minimise coupling to vacuum • Presently exploring a more ballooning case, with reduced coupling to vacuum (ELITE requires some edge interaction) • ELITE predicts close to marginal stability: g/wA=0.01 Equilibrium mesh ELITE

  11. The challenges of marginal stability • Agreement has not yet been achieved (the BOUT++ runs take 12 hours, while ELITE is ~3 minutes, so comparisons are not trivial) • It is necessary to work close to linear marginal stability • it is the experimentally relevant situation (p‘ increases slowly through marginal stability • modes that are strongly unstable linearly are likely to have different dynamics • existing non-linear theories are based on proximity to marginal stability • One issue with proximity to marginal stability is resolution of fine-scale structures near rational surfaces • makes sense to use nq as the radial variable to improve resolution around rational surfaces (pack mesh there): presently exploring this • When we go non-linear, an additional challenge will be the time taken to get into the non-linear regime • will need to make use of scaling of mode structure during linear phase to speed code up here

  12. Future plans: the strategy • Work to find a mesh and formalism that gives agreement with ELITE close to marginal stability with weak coupling to vacuum • Extend/return to linear tests where mode couples to vacuum • Extend to non-linear regime • compare non-linear evolution with and without kink-component • Extend to include non-ideal physics (care: unphysical modes can be introduced when dissipation is introduced…diamagnetic effects will be an important first effect to include).
