inpo update operational excellence outcomes and configuration management

INPO UpdateOperational Excellence Outcomes and Configuration Management

Glenn J. Neises, INPO Sr. Evaluator

June 2004 CMBG

session content
Session Content
  • INPO Mission and Cornerstones
  • Operational Excellence Outcomes Overview
  • Configuration Management Overview
  • INPO Perspectives
  • Configuration Management Current Themes
  • Future
inpo s mission
INPO’s Mission

To promote the highest levels of safety and reliability – to promote excellence –

in the operation of nuclear electric generating plants

inpo cornerstones

Accreditation and Training

Analysis

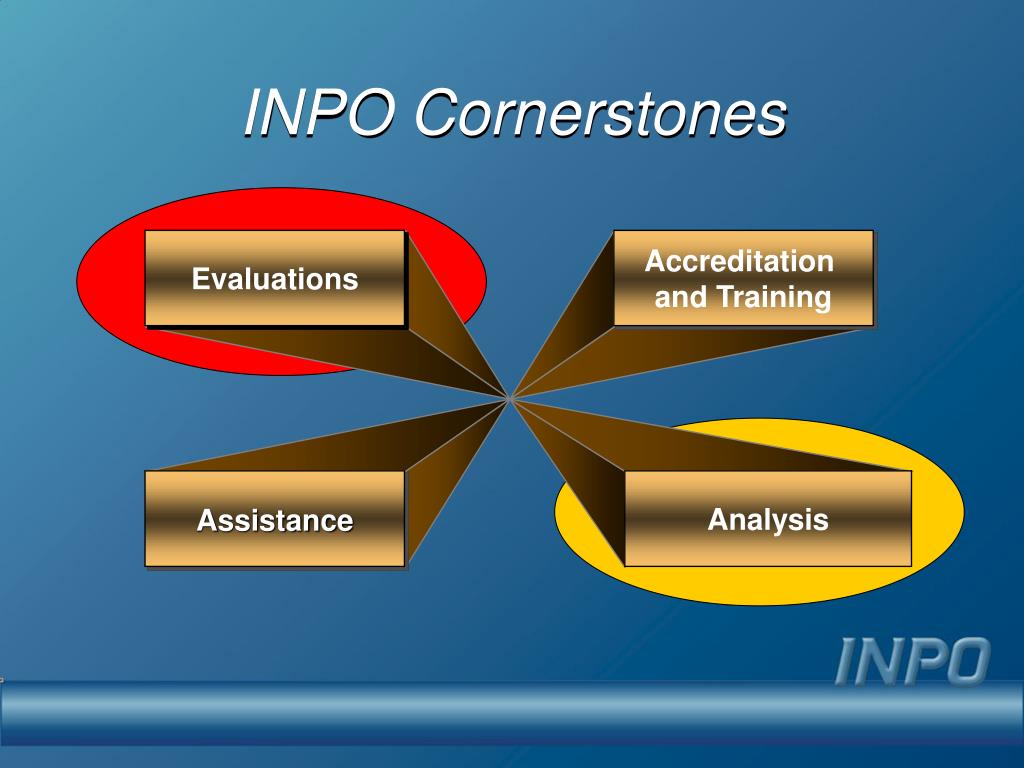

INPO Cornerstones

Evaluations

Assistance

plant evaluation areas

Evaluations

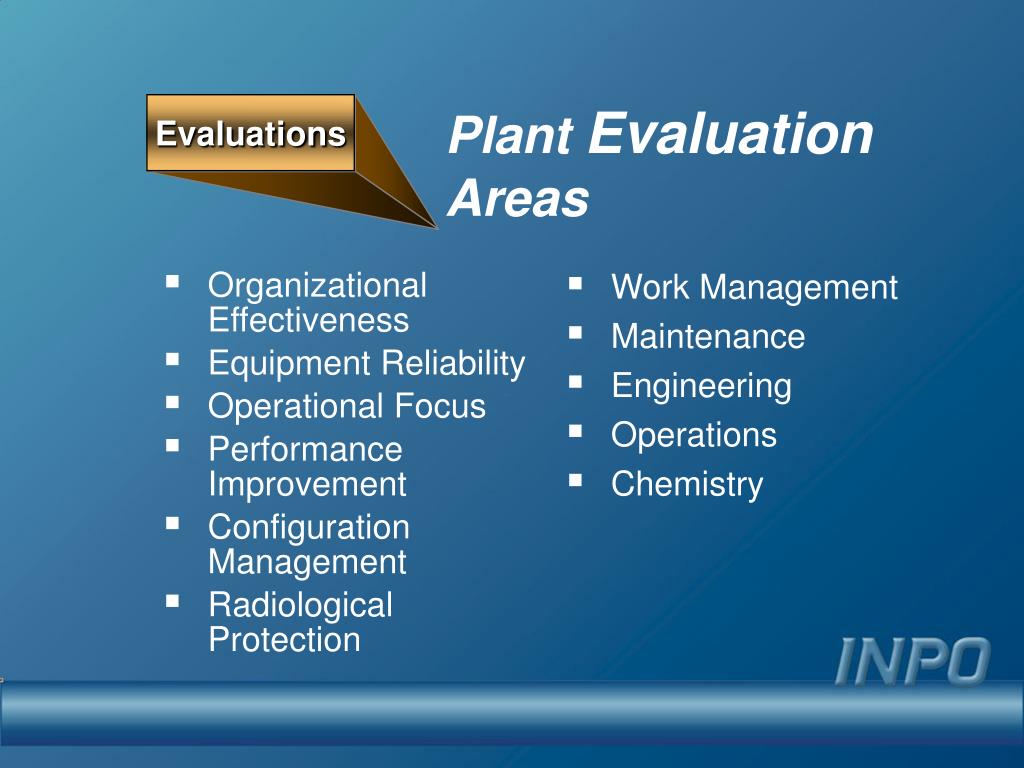

Plant Evaluation Areas
  • Organizational Effectiveness
  • Equipment Reliability
  • Operational Focus
  • Performance Improvement
  • Configuration Management
  • Radiological Protection
  • Work Management
  • Maintenance
  • Engineering
  • Operations
  • Chemistry
analysis

Analysis

Analysis
  • Analysis of industry trends and data
  • Detect emerging industry trends
  • Predict future performance issues
  • Evaluation focus areas
why oeo
Why OEO?
  • Changed industry
  • High levels of safety and reliability
  • A few stations unable to keep pace
  • Events revealed increased effort needed in several areas
  • A few activities important to operational excellence not evaluated
  • Robust self-assessment and corrective action programs
slide9

Sustainable, Event-Free Operations

Sustainable, High Levels of Plant Performance

Avoidance of Unplanned, Long-Duration Shutdowns

Operational Excellence

Well-Managed and Understood Safety, Design, and Operational

Margins

Highly-Skilled, Knowledgeable, and Collaborative Workforce

High Levels of Plant Worker Safety

slide10

CM.1

Maintaining Margins Consistent with Design Requirements

Well-Managed and Understood Safety, Design, and Operational Margins

CM.2

Operational Configuration Control

CM.3

Design Change Processes

why configuration management
Why Configuration Management?
  • Plant safety degraded, long-term shutdowns caused by problems with:
    • Operating and design margins
    • Design basis validity
    • Plant status and configuration control
    • Design product quality
    • Quality and oversight of engineering programs
slide13

Evaluating Configuration Management

CM.5

Reactor Cores Designed

& Operated within

Performance Limits

CM.3

CM Processes Clearly Defined & Implemented

CM.1

Performance & Configuration

Consistent with Design Requirements

Well Managed

Margins

CM.2

Activities Maintain

Configuration, Operating & Design Margins

CM.4

Engineering Provides

Technical Information

& Support

evaluating configuration management
Evaluating Configuration Management

Approved Programs

For Fuel Movement &

Storage

Quality Design

Requirements Documented

& Retrievable

Rigorous Programs

For Core Design,

Reactivity Mgmt,

& Core Monitoring

Design

Authority

is Clear

Sound

Engineering

Programs

Personnel Trained

On Plant Changes

Defect Free

Fuel Operation

FME

Controls

Infrequently

Performed T&E

Controlled

Reactor Engineers

Provide Support

Written Guidance

Controls

CM Functions

Degraded

Conditions

Evaluated

Design Interfaces

Effective

Good Craft

Workmanship

CM.5

Reactor Cores Designed

& Operated within

Performance Limits

SSCs

Meet

Requirements

Temp Mods

Controlled

CM.3

CM Processes

Clearly Defined &

Implemented

Design Control

Is Rigorous

CM.1

Performance & Configuration

Consistent

with Design Requirements

Margins Verified

Thru

Testing

Field Changes

Evaluated

Safety Evaluations

Are Thorough

Well Managed

Margins

PM & PdM

Validates Margins

CM.4

Engineering Provides

Technical Information

& Support

Physical

Plant Matches

Documentation

EOP and AOP

Bases Documented

Design &Operating Margins

Documented

CM.2

Activities Maintain

Configuration, Operating, & Design Margins

Design Authority is Clear

Process Controls

Maintain D &L Limits

Vulnerabilities

Identified

Proper

Vendor

Oversight

OP and MA

Maintain

Status Plant

Training

Addresses

Roles

Degraded Conditions

Resolved Aggressively

Sound Parts

Evaluations

Contingencies Planned

Comprehensive

Testing & Engineering

Programs

Extent of

Condition

Investigated

Quality Engineering

Products

Emergent Issues

Promptly Investigated

evaluating configuration management15
Evaluating Configuration Management
  • Advance Screening (analysis)
    • Historical or present issues and initiatives
  • Preliminary Evaluation Plan (3-4 weeks prior)
    • General focus areas
    • Specific document reviews
  • Refined Evaluation Plan (1 week prior)
    • Interview schedule
    • Specific focus areas
  • In-field activities / observations (on-site weeks)
    • dialogue on impacts, causes, extent of condition
performance indicator index
Performance Indicator Index

*2004 values as of March 31, 2004

performance indicator index18
Performance Indicator Index

All components of the index have declinedslightly

  • Unit capability factor
  • Forced loss rate
  • Unplanned automatic scrams
  • Safety system performance
  • Fuel reliability
  • Chemistry performance
  • Collective radiation exposure
  • Industrial safety
slide19
Why?
  • Equipment performance has declined
  • Grid and switchyard problems are challenging operations
  • Non-station personnel not well trained or supervised
  • Senior managers are less focused on operations
  • Short-term and long-term needs are out of balance
engineering product quality
Engineering Product Quality
  • Examples:
    • Engineering results not supported with rigorous documentation
    • Modification delays
    • Vendor errors
    • Temporary modification control
    • Calculation errors
engineering product quality25
Engineering Product Quality
  • Causes:
    • Supervisor engagement
    • Lack of operating experience use
    • Preparation & verification not thorough
    • Lack of human performance tool use
    • Inadequate modification review meetings
    • Inadequate vendor oversight
    • Insufficient verification or testing for vendor-supplied designs
operational configuration control
Operational Configuration Control
  • Examples:
    • Changes to the plant without approved engineering documents
    • Uncontrolled temp power / temp mods
    • Long term open operability determinations
    • Mispositionings resulting in equipment damage
    • Uncontrolled equipment and setpoint changes
    • Blocking of protective equipment trips
    • Protective doors locked open
operational configuration control27
Operational Configuration Control
  • Causes:
    • Personnel lack an understanding of the design change process
    • Indicators limited to component mispositionings
    • Human performance weaknesses
    • Inadequate engineering management oversight
    • Tolerance of temporary, unauthorized changes
    • CM viewed by station personnel as a design engineering role as opposed to a station role
margin management
Margin Management
  • Examples:
    • Low operational margin on safety-related components
    • Safety-related heat exchanger tube blockage
    • Design documents & calcs not updated
    • Errors in operability determinations
    • Modifications don’t consider all operating regimes
    • Modifications cause significantly reduced operational margins
margin management29
Margin Management
  • Causes:
    • Lack of operating margin focus
    • Inadequate testing and monitoring programs
    • Insufficient understanding of design information
    • Station management did not challenge and question power uprate evaluations
    • Power uprate was a fast-track project, and time pressure contributed to insufficient reviews
reactor engineering fuel

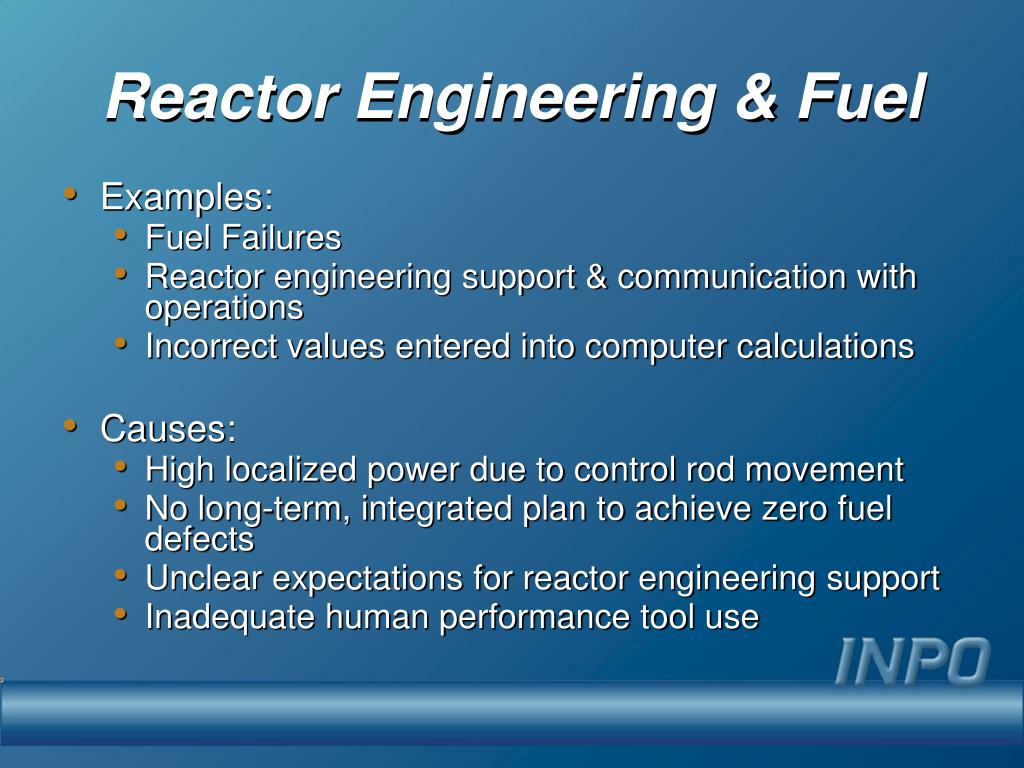

Reactor Engineering & Fuel
  • Examples:
    • Fuel Failures
    • Reactor engineering support & communication with operations
    • Incorrect values entered into computer calculations
  • Causes:
    • High localized power due to control rod movement
    • No long-term, integrated plan to achieve zero fuel defects
    • Unclear expectations for reactor engineering support
    • Inadequate human performance tool use
engineering programs
Engineering Programs
  • Examples:
    • Program results not verified or in error
    • Testing not adequately performed
  • Causes:
    • Inadequate management oversight
    • Insufficient coordination between modification & testing program
    • Inadequate program and component health monitoring
    • Turnover of program engineers
recurring causes

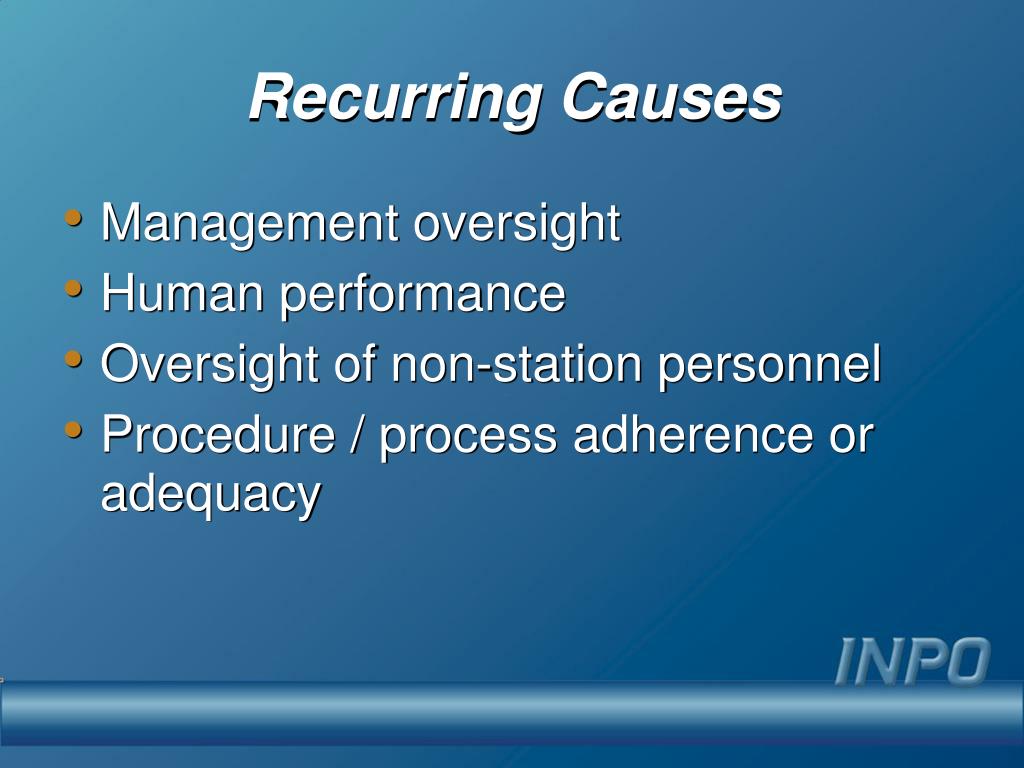

Recurring Causes
  • Management oversight
  • Human performance
  • Oversight of non-station personnel
  • Procedure / process adherence or adequacy
future

Future

What else is out there

slide34

Transformers

Grid

Margins /

Power Uprate

Fuel

Emerging

slide35

Actions

  • Evaluations
    • Margin Focus
    • Programs Review
      • Engineering Program Excellence Guidelines
  • Initiatives
    • Nuclear Fuel
    • Engineering Work Management
    • Non-station Personnel
    • Transformers and Switchyards
good news
Good News!
  • Many strengths continue to be written (31)
    • CM steering committee used to raise awareness on low margin components
    • Improved procurement process for critical station components
    • Calculation simplification to reduce the probability design errors
    • Benchmarking to improve configuration management activities
    • Effective fleet communications to implement notable CM improvements
    • Operation without fuel defects for ten years
good news37

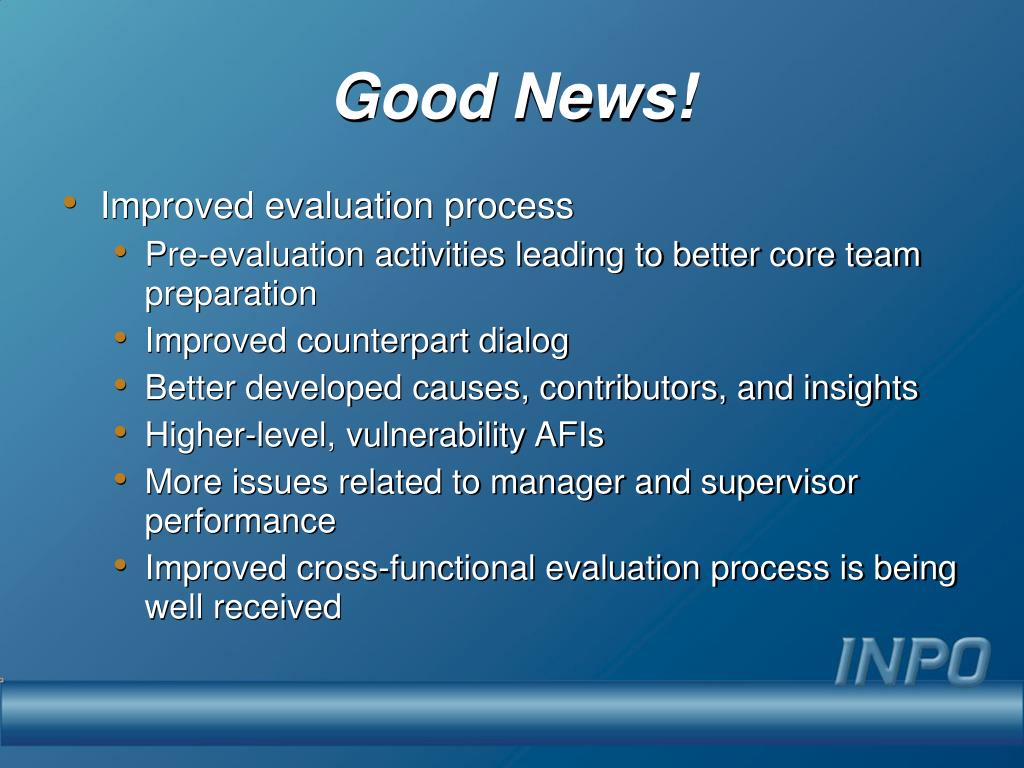

Good News!
  • Improved evaluation process
    • Pre-evaluation activities leading to better core team preparation
    • Improved counterpart dialog
    • Better developed causes, contributors, and insights
    • Higher-level, vulnerability AFIs
    • More issues related to manager and supervisor performance
    • Improved cross-functional evaluation process is being well received
margins
Margins
  • “By decreasing our margins, we are relying more and more heavily on our operators, engineers, and managers to make the right decisions, and to make them in a timely manner.”

Zack T. Pate

WANO Biennial General Meeting March 2002
