CARIOCA Stability

8 channels. e. f. f. in. in. out. a. a. Preamplifier. Open loop Gain. CARIOCA Stability. One Channel. CARIOCA chip. Cdet. CARIOCA Stability. open loop gain simulation with hspice all transistors parameters 3 poles system dominant pole : input non dominant pole : n2

ankti
Download Presentation

CARIOCA Stability

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 8 channels e f f in in out a a Preamplifier Open loop Gain CARIOCA Stability One Channel CARIOCA chip

  2. Cdet CARIOCA Stability • open loop gain simulation • with hspice • all transistors parameters • 3 poles system • dominant pole : input • non dominant pole : n2 • compensation capacitance of 400 fF Detector capacitance : 50 pF to 220 pF

  3. Negative polarity preamplifier Cdet = 50 pF PM = 79 deg Cdet = 220 pF PM = 59 deg Positive polarity preamplifier Cdet = 50 pF PM = 72 deg Cdet = 220 pF PM = 50 deg Phase margins…

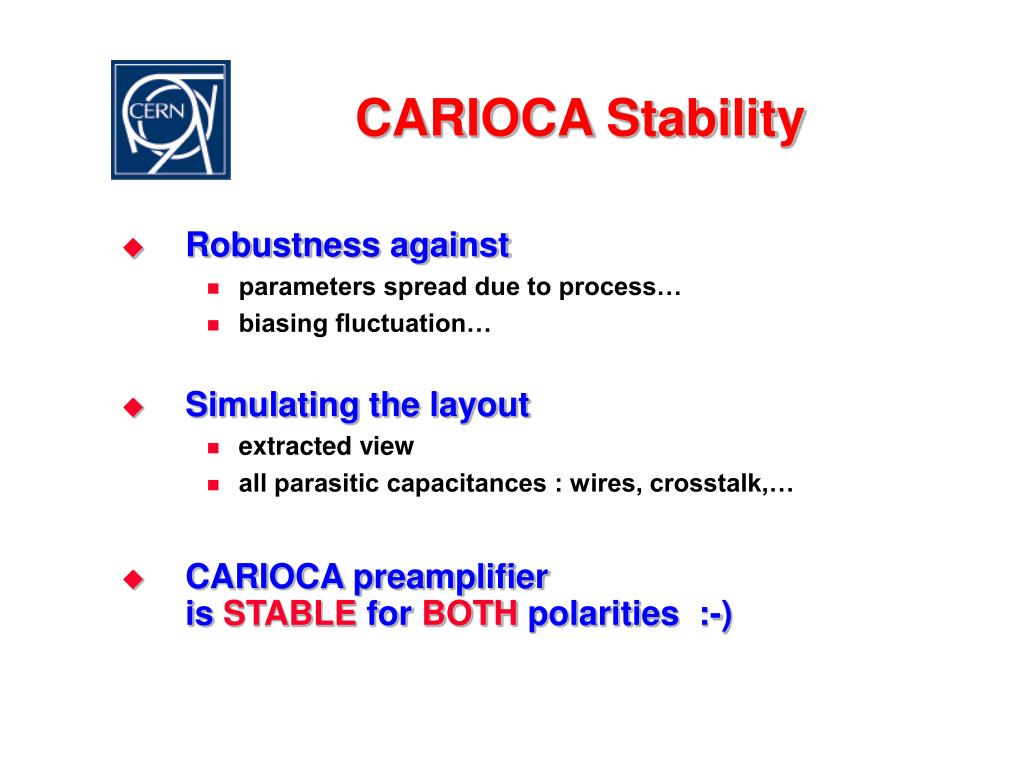

  4. CARIOCA Stability • Robustness against • parameters spread due to process… • biasing fluctuation… • Simulating the layout • extracted view • all parasitic capacitances : wires, crosstalk,… • CARIOCA preamplifier is STABLE for BOTH polarities :-)
