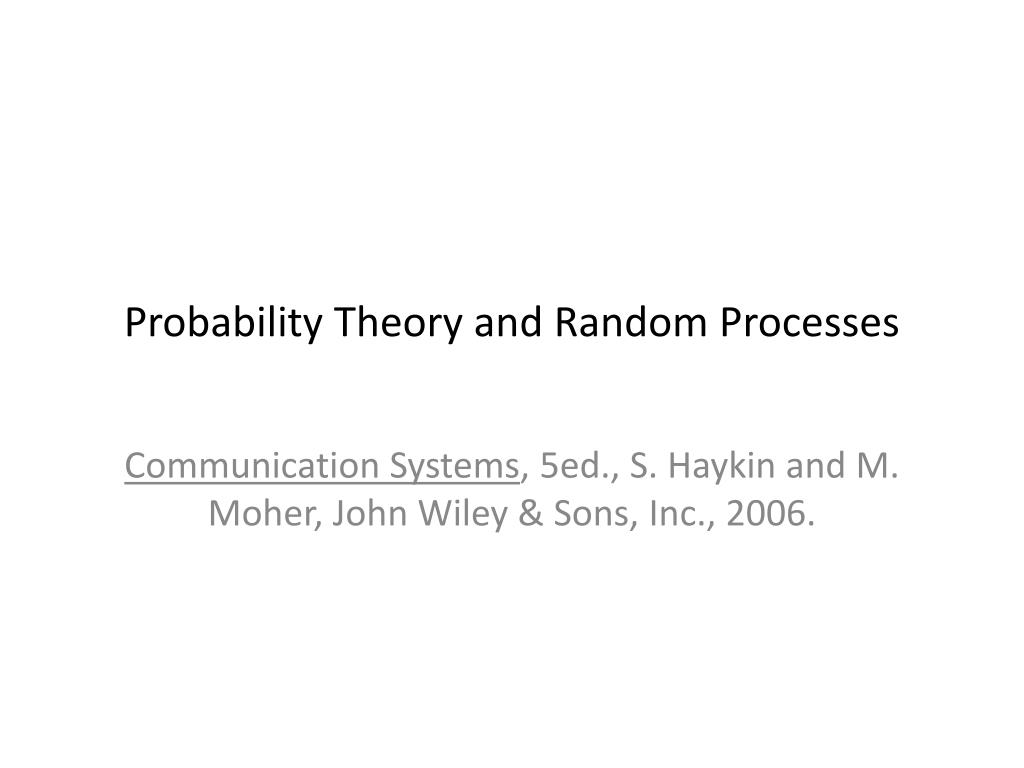

  1. Probability Theory and Random Processes Communication Systems, 5ed., S. Haykin and M. Moher, John Wiley & Sons, Inc., 2006.

  2. Probability • Probability theory is based on the phenomena that can be modeled by an experiment with an outcome that is subject to chance. • Definition: A random experiment is repeated n time (n trials) and the event A is observed m times (m occurrences). The probability is the relative frequency of occurrence m/n.

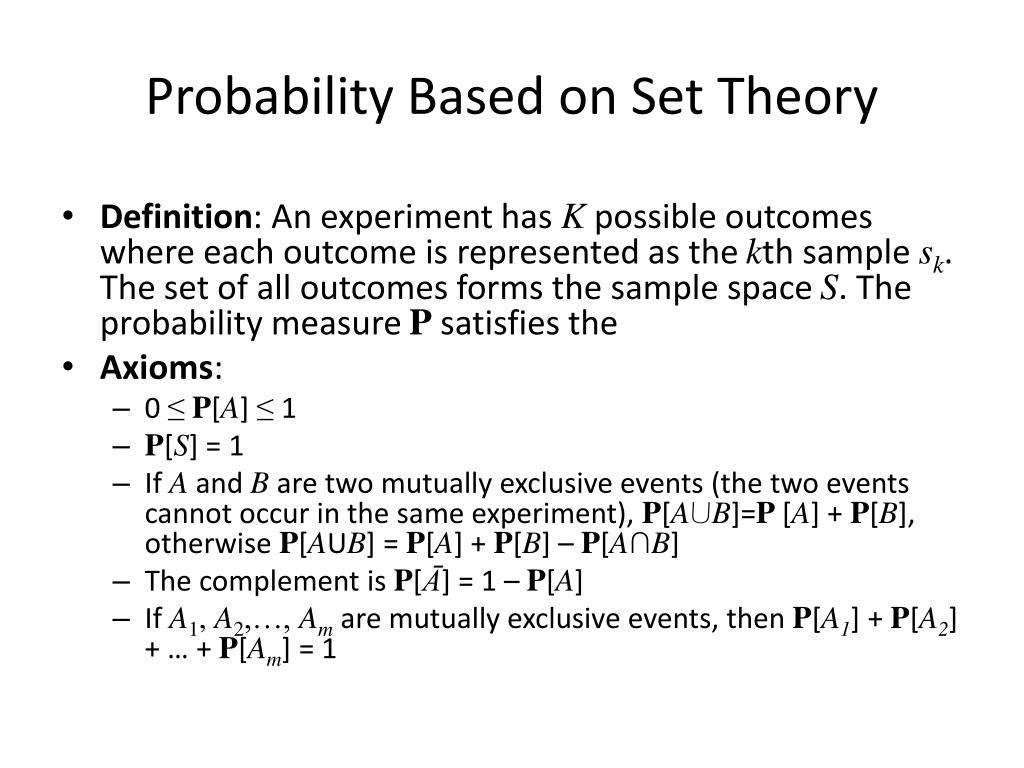

  3. Probability Based on Set Theory • Definition: An experiment has K possible outcomes where each outcome is represented as the kth sample sk. The set of all outcomes forms the sample space S. The probability measure Psatisfies the • Axioms: • 0 ≤P[A] ≤ 1 • P[S] = 1 • If A and B are two mutually exclusive events (the two events cannot occur in the same experiment), P[AUB]=P [A] + P[B], otherwise P[AUB] = P[A] + P[B] – P[A∩B] • The complement is P[Ā] = 1 – P[A] • If A1, A2,…, Am are mutually exclusive events, then P[A1] + P[A2] + … + P[Am] = 1

  4. Venn Diagrams sk Sample can only come from A, B, or neither. S A B Sample can only come from both A andB. Events A and B that are mutually exclusive events in the sample space S. sk S A B Events A and B are not mutually exclusive events in the sample space S.

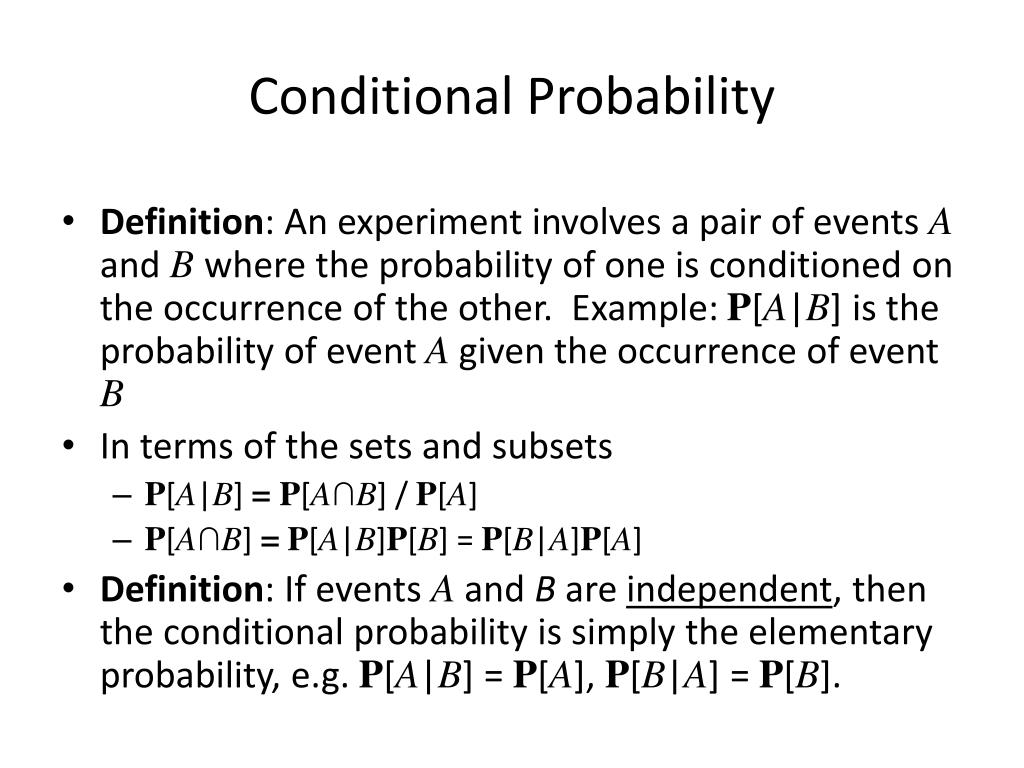

  5. Conditional Probability • Definition: An experiment involves a pair of events A and B where the probability of one is conditioned on the occurrence of the other. Example: P[A|B] is the probability of event A given the occurrence of event B • In terms of the sets and subsets • P[A|B] = P[A∩B] / P[A] • P[A∩B] =P[A|B]P[B] = P[B|A]P[A] • Definition: If events A and B are independent, then the conditional probability is simply the elementary probability, e.g. P[A|B] = P[A], P[B|A] = P[B].

  6. Random Variables • Definition: A random variable is the assignment of a variable to represent a random experiment. X(s) denotes a numerical value for the event s. • When the sample space is a number line, x = s. • Definition: The cumulative distribution function (cdf) assigns a probability value for the occurrence of x within a specified range such that FX(x) = P[X ≤x]. • Properties: • 0 ≤ FX(x) ≤ 1 • FX(x1) ≤ FX(x2), if x1 ≤ x2

  7. Random Variables • Definition: The probability density function (pdf) is an alternative description of the probability of the random variable X: fX(x) = d/dx FX(x) • P[x1 ≤ X ≤x2] = P[X ≤x2] - P[X ≤x1] = FX(x2) - FX(x1) =fX(x)dx over the interval [x1,x2]

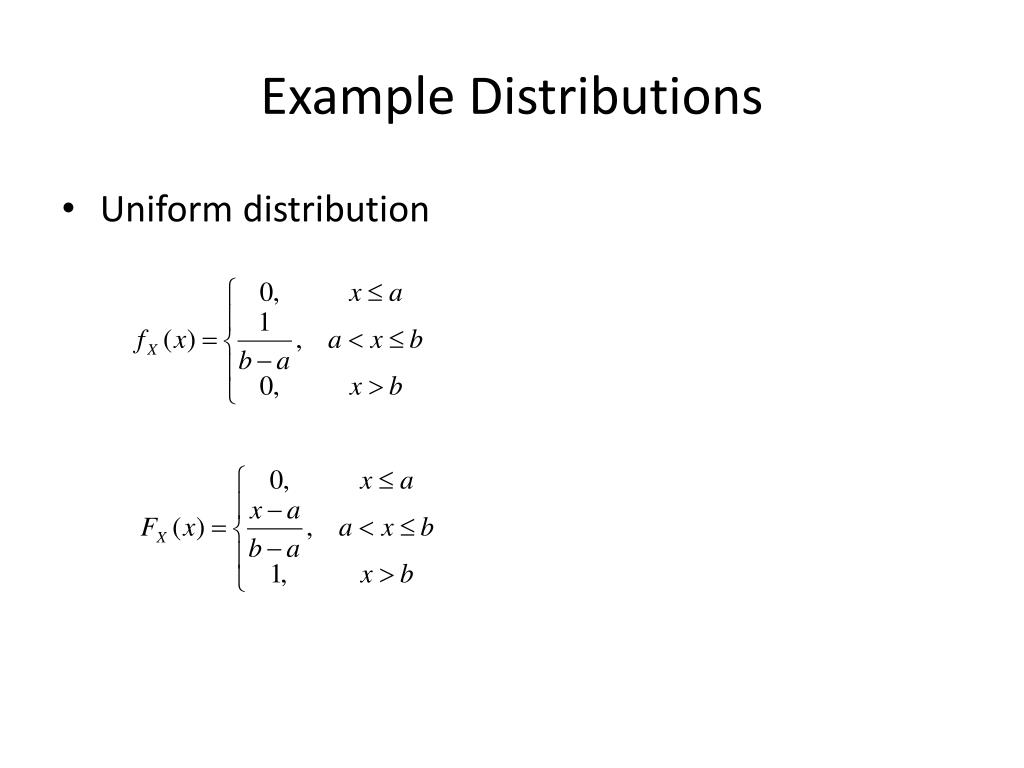

  8. Example Distributions • Uniform distribution

  9. Several Random Variables • CDF: • Marginal cdf: • PDF: • Marginal pdf: • Conditional pdf:

  10. Statistical Averages • Expected value: • Function of a random variable: • Text Example 5.4

  11. Statistical Averages • nth moments: • Central moments: Mean-square value of X Variance of X

  12. Joint Moments • Correlation: • Covariance: • Correlation coefficient: Expected value of the product - Also seen as a weighted inner product Correlation of the central moment

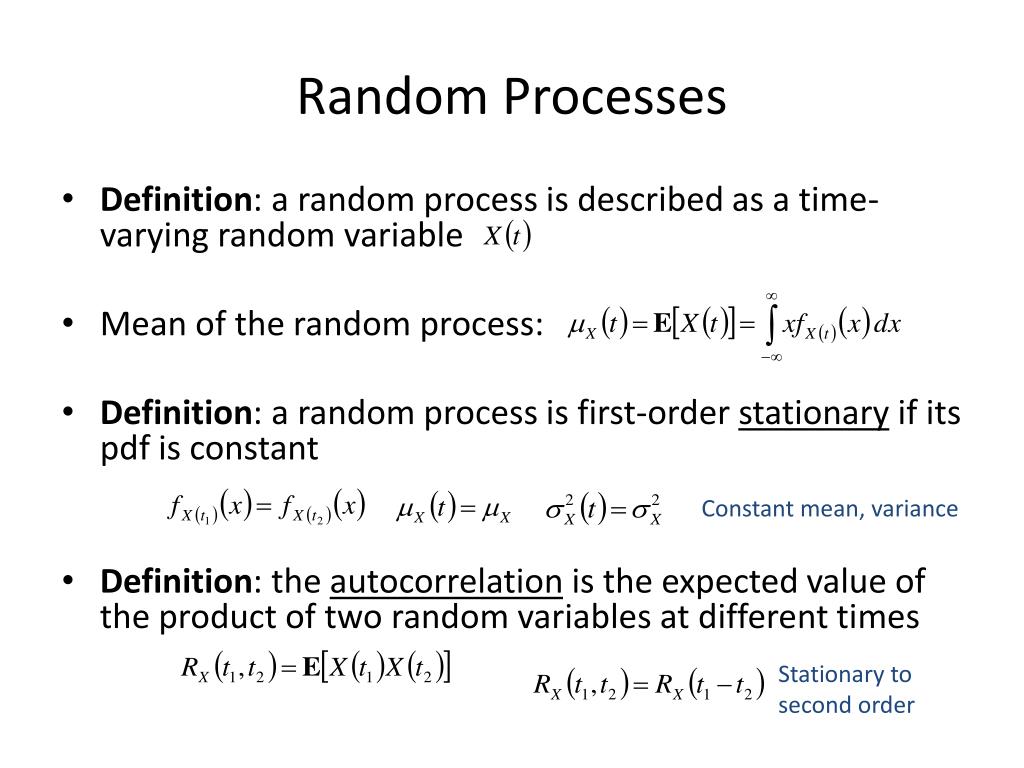

  13. Random Processes • Definition: a random process is described as a time-varying random variable • Mean of the random process: • Definition: a random process is first-order stationary if its pdf is constant • Definition: the autocorrelation is the expected value of the product of two random variables at different times Constant mean, variance Stationary to second order

  14. Random Processes • Definition: the autocorrelation is the expected value of the product of two random variables at different times • Definition: the autocovariance of a stationary random process is Stationary to second order

  15. Properties of Autocorrelation • Definition: autocorrelation of a stationary process only depends on the time differences • Mean-square value: • Autocorrelation is an even function: • Autocorrelation has maximum at zero:

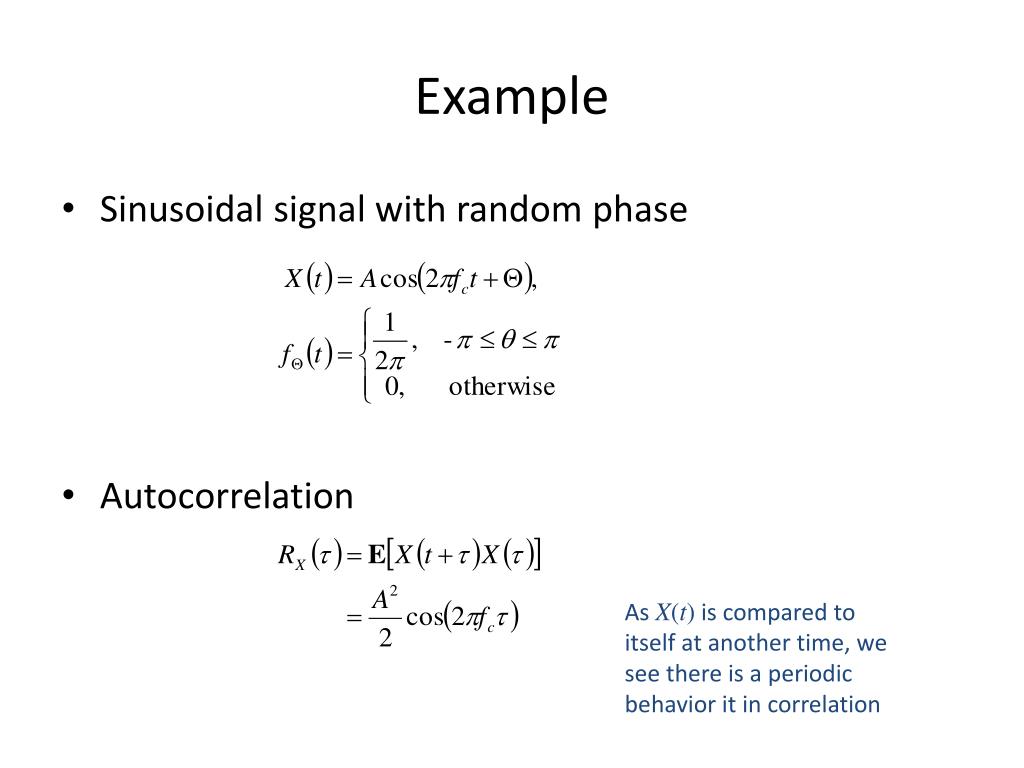

  16. Example • Sinusoidal signal with random phase • Autocorrelation As X(t) is compared to itself at another time, we see there is a periodic behavior it in correlation

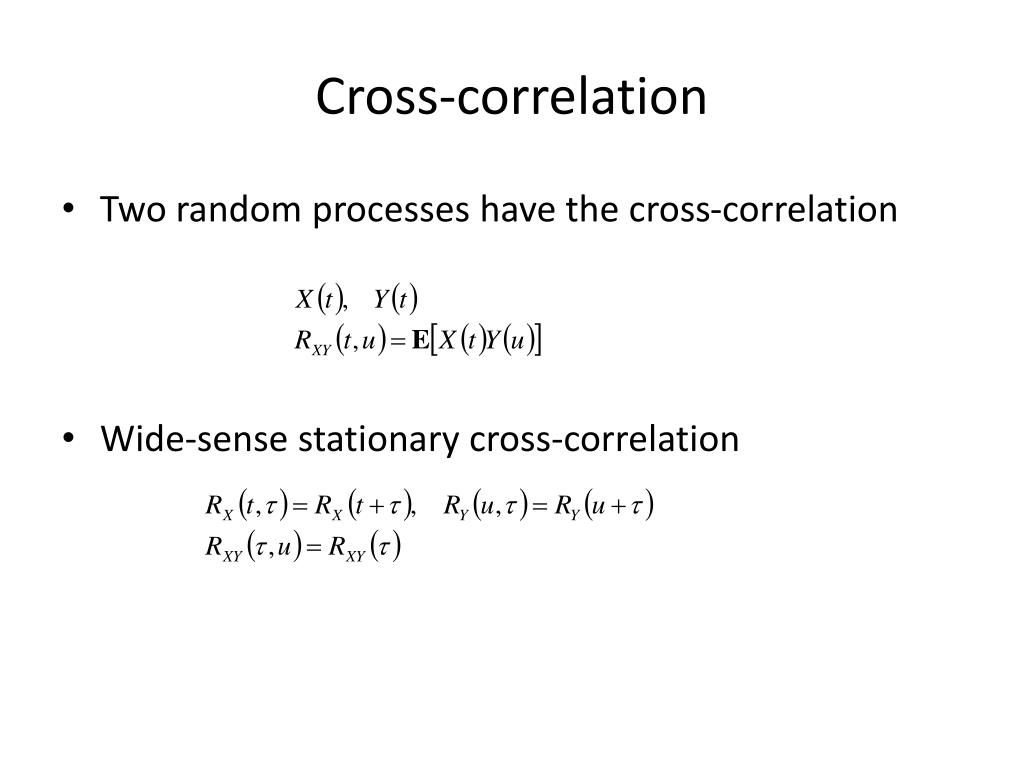

  17. Cross-correlation • Two random processes have the cross-correlation • Wide-sense stationary cross-correlation

  18. Example • Output of an LTI system when the input is a RP • Text 5.7

  19. Power Spectral Density • Definition: Fourier transform of autocorrelation function is called power spectral density • Consider the units of X(t) Volts or Amperes • Autocorrelation is the projection of X(t) onto itself • Resulting units of Watts (normalized to 1 Ohm)

  20. Properties of PSD • Zero-frequency of PSD • Mean-square value • PSD is non-negative • PSD of a real-valued RP Which theorem does this property resemble?

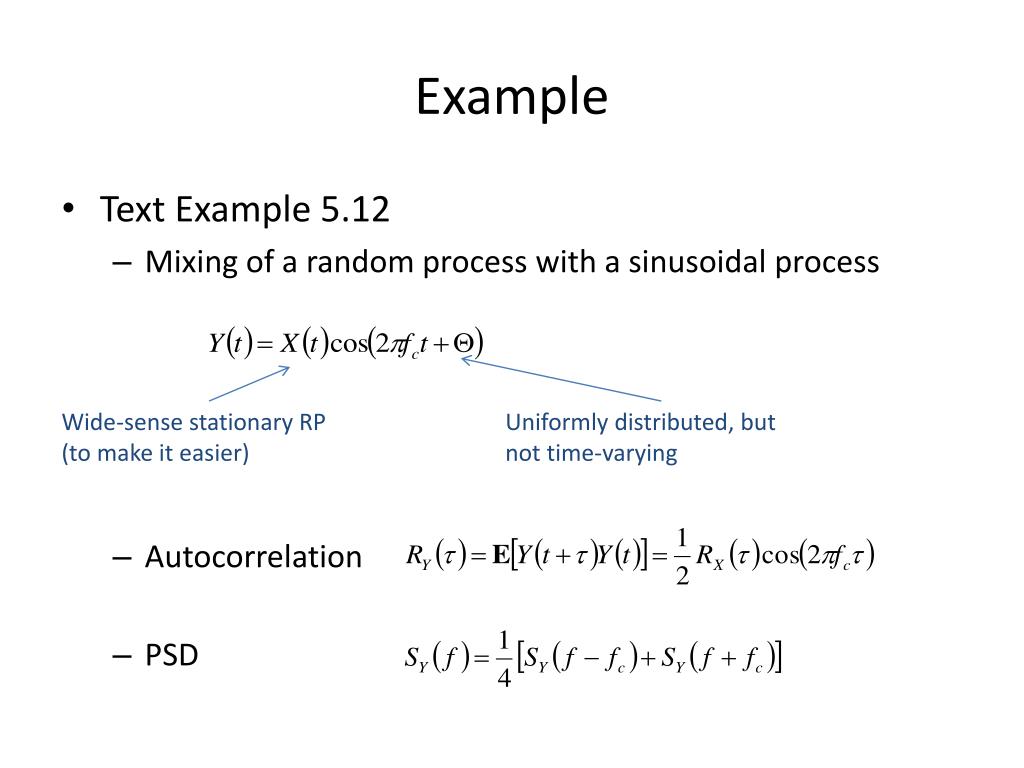

  21. Example • Text Example 5.12 • Mixing of a random process with a sinusoidal process • Autocorrelation • PSD Wide-sense stationary RP (to make it easier) Uniformly distributed, but not time-varying

  22. PSD of LTI System • Start with what you know and work the math

  23. PSD of LTI System • The PSD reduces to System shapes power spectrum of input as expected from a filtering like operation

  24. Gaussian Process • The Gaussian probability density function for a single variable is • When the distribution has zero mean and unit variance • The random variable Yis said to be normally distributed as N(0,1)

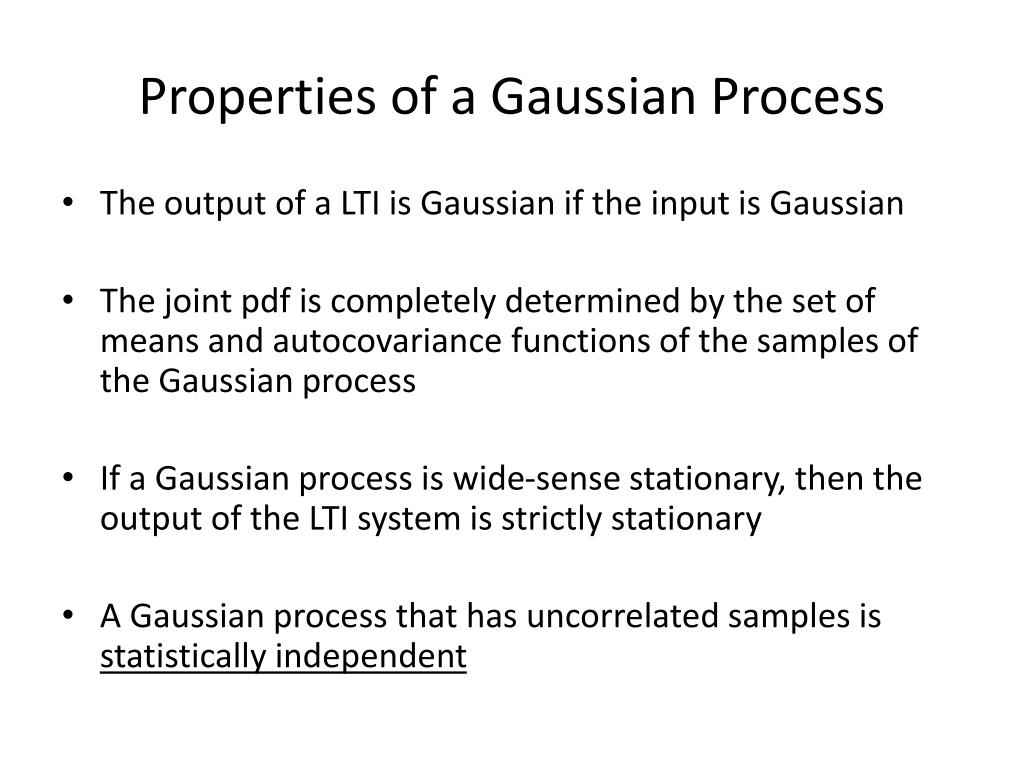

  25. Properties of a Gaussian Process • The output of a LTI is Gaussian if the input is Gaussian • The joint pdf is completely determined by the set of means and autocovariance functions of the samples of the Gaussian process • If a Gaussian process is wide-sense stationary, then the output of the LTI system is strictly stationary • A Gaussian process that has uncorrelated samples is statistically independent

  26. Noise • Shot noise • Thermal noise • White noise • Narrow
