Presentation Transcript

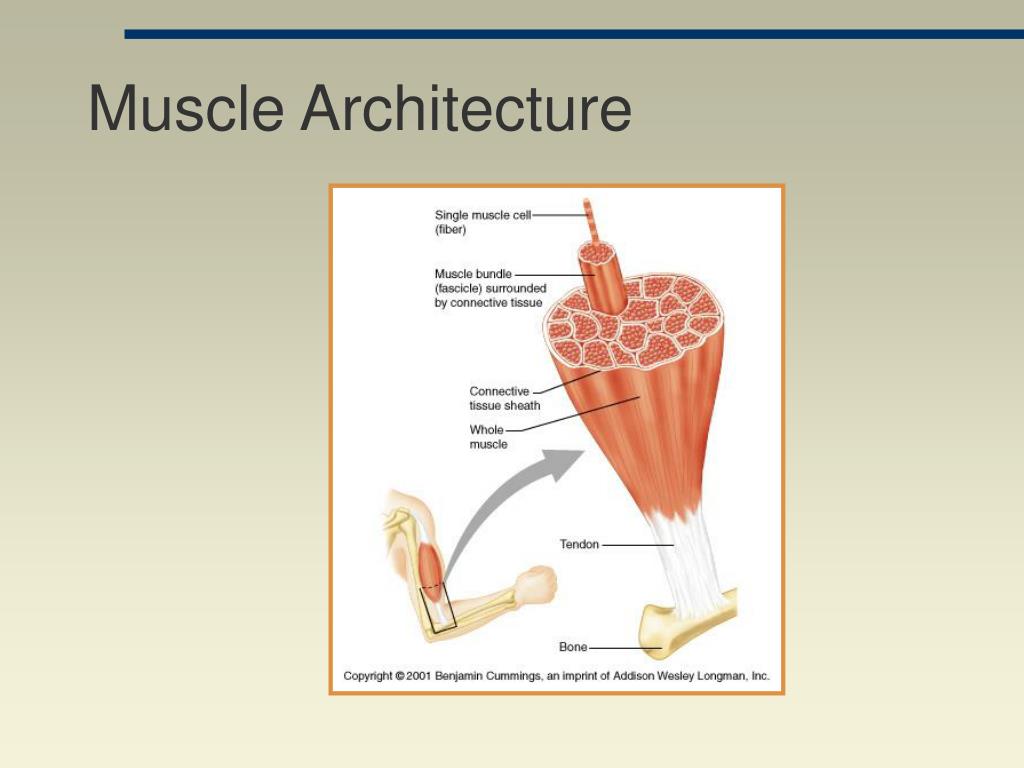

muscle architecture3
Muscle Architecture
  • Sections
  • Deepest section contains two proteins
    • Myosin (thick)
    • Actin (thin)
  • Myosin is surrounded by actin

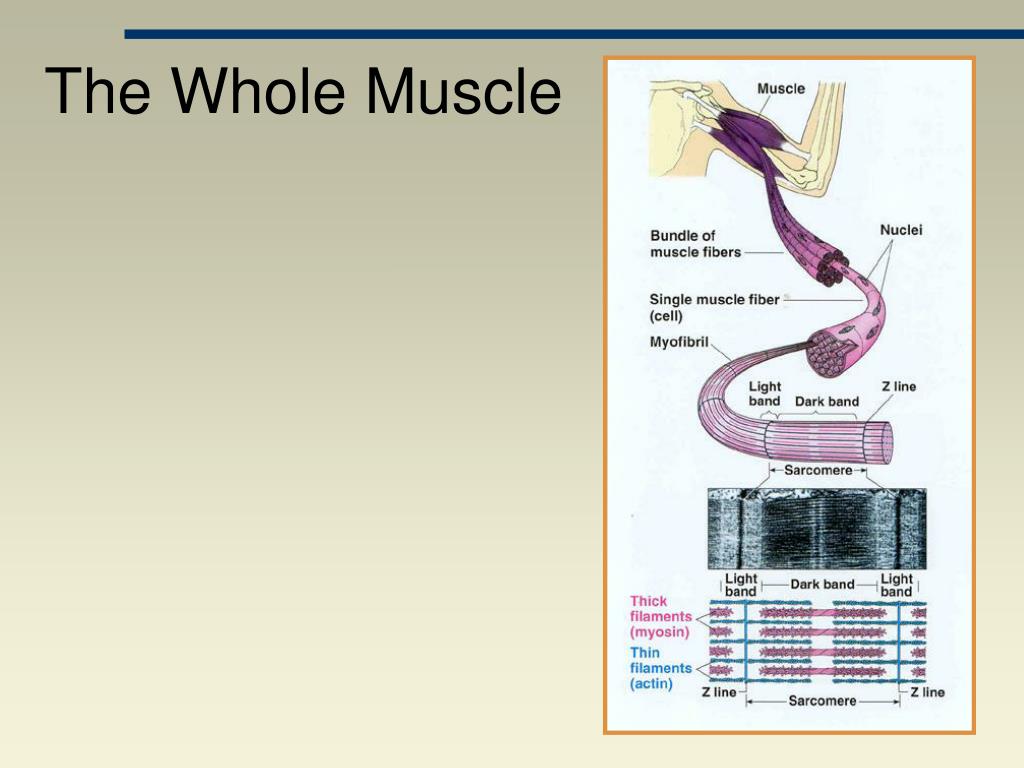

muscle architecture4
Muscle Architecture
  • Myofibrils
  • Bundles of actin and myosin
muscle architecture6
Muscle Architecture
  • Muscle fiber
  • Among others things, a muscle fiber contains many groups of myofibrils

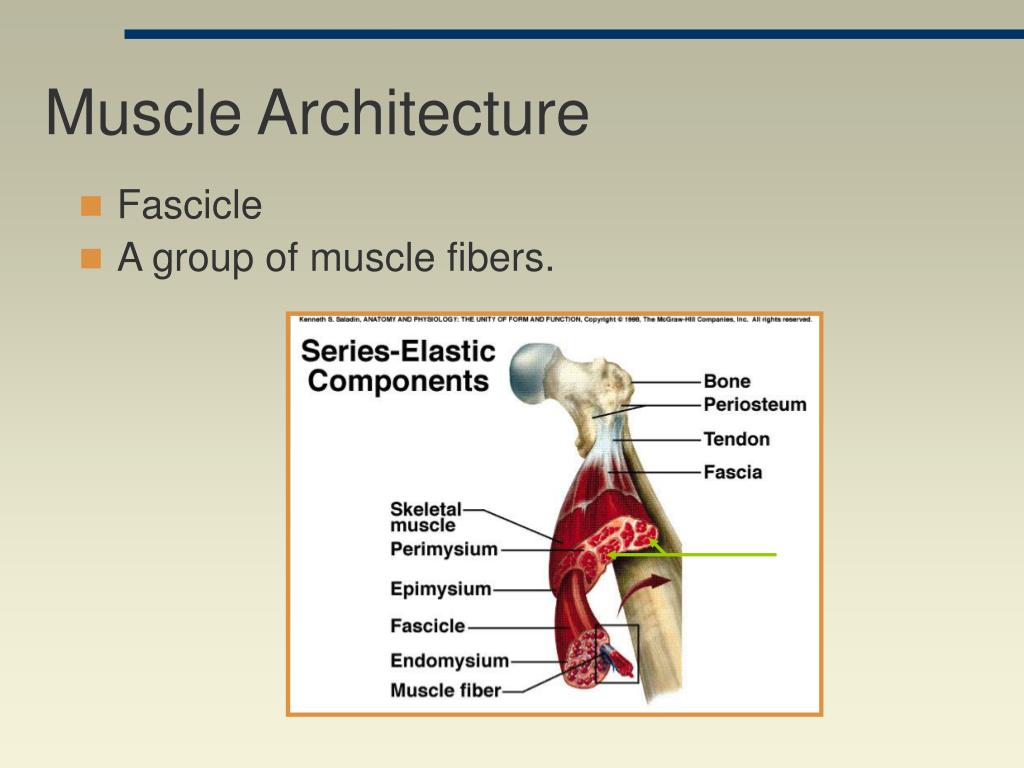

muscle architecture9
Muscle Architecture
  • Fascicle
  • A group of muscle fibers.

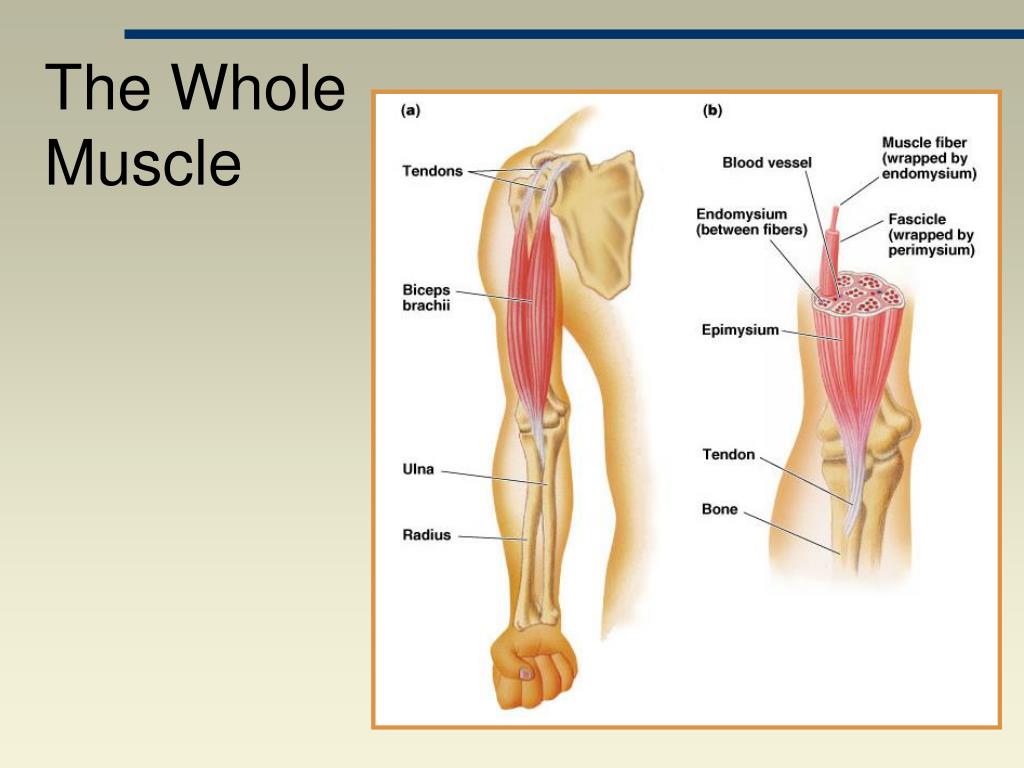

tendons
Tendons
  • Three membranes converge to form a tendon which connects the muscle to the bone

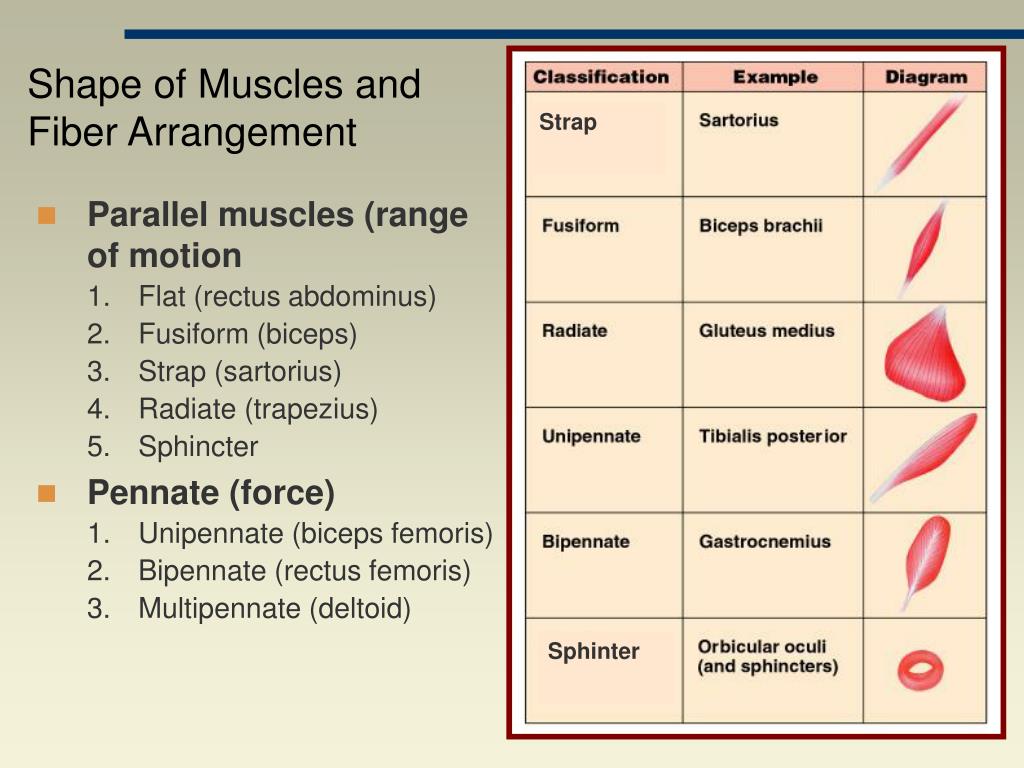

slide13

Shape of Muscles and Fiber Arrangement

Strap

  • Parallel muscles (range of motion
    • Flat (rectus abdominus)
    • Fusiform (biceps)
    • Strap (sartorius)
    • Radiate (trapezius)
    • Sphincter
  • Pennate (force)
    • Unipennate (biceps femoris)
    • Bipennate (rectus femoris)
    • Multipennate (deltoid)

Sphinter

muscle tissue properties
Muscle Tissue Properties
  • Irritability or Excitability
  • …to be stimulated
  • Contractility
  • …to contract (shorten)
  • Extensibility
  • …to be stretched
  • Elasticity
  • …return to original position after being stretched
muscle terminology
Muscle Terminology
  • Origin
    • proximal attachment
    • least moveable end
    • closest to the midline of the body
  • Insertion
    • distal attachment
    • most moveable end
    • furthest from the midline of the body
  • Action
    • The movement at the joint when the muscle(s) contract

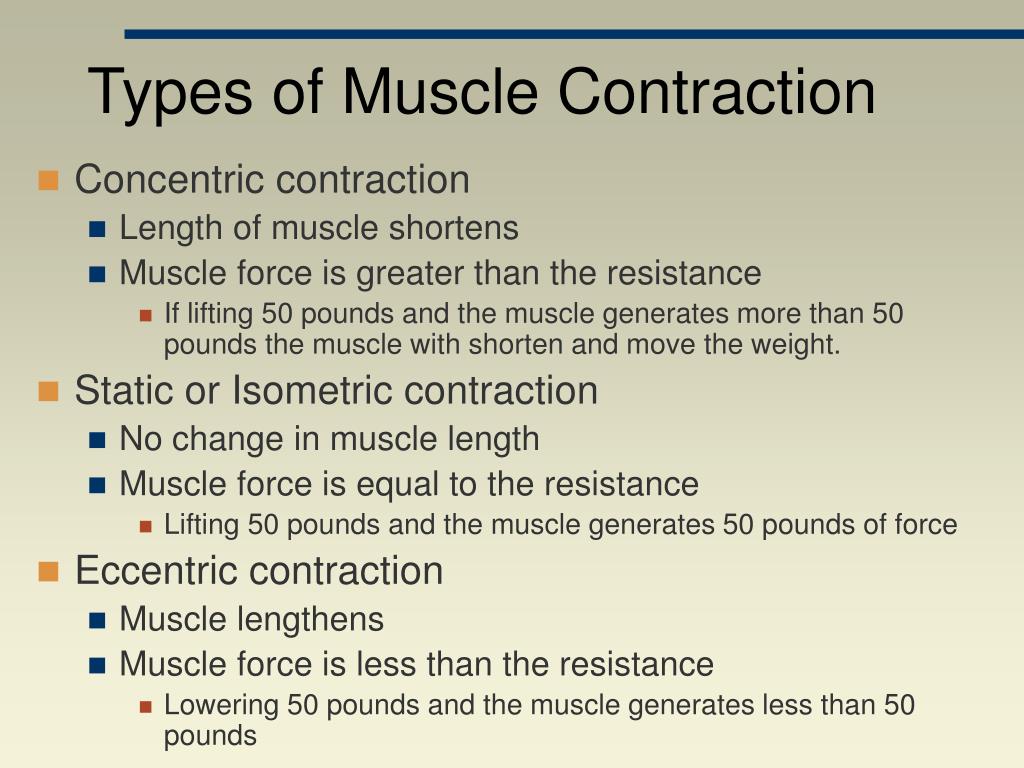

types of muscle contraction19
Types of Muscle Contraction
  • Concentric contraction
    • Length of muscle shortens
    • Muscle force is greater than the resistance
      • If lifting 50 pounds and the muscle generates more than 50 pounds the muscle with shorten and move the weight.
  • Static or Isometric contraction
    • No change in muscle length
    • Muscle force is equal to the resistance
      • Lifting 50 pounds and the muscle generates 50 pounds of force
  • Eccentric contraction
    • Muscle lengthens
    • Muscle force is less than the resistance
      • Lowering 50 pounds and the muscle generates less than 50 pounds
slide21

Concentric

Concentric

Lengthens

Lengthens

Eccentric

Eccentric

eccentric contraction
Eccentric Contraction
  • Used to control agonist and prevent over lengthening of the antagonist.
  • Example: triceps lowers dumbbell while biceps ’controls’ the triceps activity (action).
  • Causes more damage than other types
  • Greater repair required…
  • …producing a stronger muscle
  • Also, results in more muscle soreness.
role of muscles
ROLE OF MUSCLES
  • Agonist
    • prime mover
  • Antagonist
    • action opposite to the agonist
  • Stabilizers
    • fixate or stabilize the joint
  • Synergists
    • assist or guiding
agonist and antagonist
Agonist and Antagonist

Agonist

Agonist

Antagonist

Antagonist

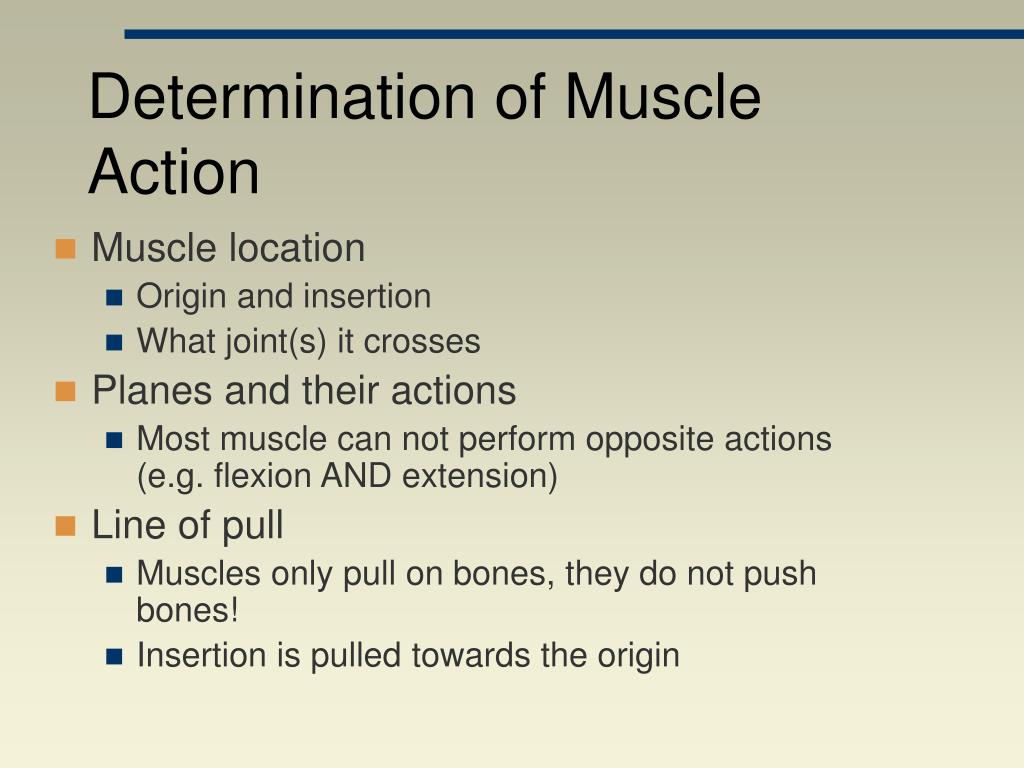

determination of muscle action
Determination of Muscle Action
  • Muscle location
    • Origin and insertion
    • What joint(s) it crosses
  • Planes and their actions
    • Most muscle can not perform opposite actions (e.g. flexion AND extension)
  • Line of pull
    • Muscles only pull on bones, they do not push bones!
    • Insertion is pulled towards the origin
joint actions
Joint Actions
  • What joint does the muscle cross?
  • Where does the muscle cross the joint e.g. anterior, lateral, etc.
  • If the insertion end of the muscle is pulled towards the origin end, what action would result at the joint?
