Maximum Likelihood Estimates and the EM Algorithms I

1. Maximum Likelihood Estimates and the EM Algorithms I Henry Horng-Shing Lu Institute of Statistics National Chiao Tung University hslu@stat.nctu.edu.tw

2. Part 1Computation Tools

3. Computation Tools • R (http://www.r-project.org/): good for statistical computing • C/C++: good for fast computation and large data sets • More: http://www.stat.nctu.edu.tw/subhtml/source/teachers/hslu/course/statcomp/links.htm

4. The R Project • R is a free software environment for statistical computing and graphics. It compiles and runs on a wide variety of UNIX platforms, Windows and MacOS. • Similar to the commercial software of Splus. • C/C++, Fortran and other codes can be linked and called at run time. • More: http://www.r-project.org/

5. Download R from http://www.r-project.org/

6. Choose one Mirror Site of R

7. Choose the OS System

8. Select the Base of R

9. Download the Setup Program

10. Install R Double click R-icon to install R

11. Execute R Interactive command window

12. Download Add-on Packages

13. Choose a Mirror Site Choose a mirror site close to you 1. 2.

14. Select One Package to Download Choose one package to download, like rgl. 1. 2.

15. Load Packages • There are two methods to load packages: Method 1: Click from the menu bar Method 2: Type “library(rgl)” in the command window

16. Help in R (1) • What is the loaded library? • help(rgl)

17. Help in R (2) • How to search functions for key words? • help.search(“key words”) It will show all functions has the key words. • help.search(“3D plot”) Function name (belong to which package) description

18. Help in R (3) • How to find the illustration of function? • ?function name It will show the usage, arguments, author, reference, related functions, and examples. • ?plot3d

19. R Operators (1) • Mathematic operators: • +, -, *, /, ^ • Mod: %% • Sqrt, exp, log, log10, sin, cos, tan, …

20. R Operators (2) • Other operators: • : sequence operator • %*% matrix algebra • <, >, <=, >= inequality • ==, != comparison • &, &&, |, || and, or • ~ formulas • <-, = assignment

21. Algebra, Operators and Functions > 1+2 [1] 3 > 1>2 [1] FALSE > 1>2|2>1 [1] TRUE > A=1:3 > A [1] 1 2 3 > A*6 [1] 6 12 18 > A/10 [1] 0.1 0.2 0.3 > A%%2 [1] 1 0 1 > B=4:6 > A*B [1] 4 10 18 > t(A)%*%B [1] [1] 32 > A%*%t(B) [1] [2] [3] [1] 4 5 6 [2] 8 10 12 [3] 12 15 18 > sqrt(A) [1] 1.000 1.1414 1.7320 > log(A) [1] 0.000 0.6931 1.0986 > round(sqrt(A),2) [1] 1.00 1.14 1.73 > ceiling(sqrt(A)) [1] 1 2 2 > floor(sqrt(A)) [1] 1 1 1 > eigen(A%*%t(B)) $values [1] 3.20e+01 5.83e-16 2.48e-16 $vectors [1] [2] [3] [1] 0.2672 0.3273 -0.8890 [2] 0.5345 -0.5217 0.2530 [3] 0.8017 0.4665 0.3810

22. Variable Types

23. Define Your Own Function (1) • Use “fix(myfunction)” # a window will show up • function (parameter){ statements; return (object); # if you want to return some values } • Save the document • Use “myfunction(parameter)” in R

24. 2. 3. 1. Define Your Own Function (2) • Example: Find all the factors of an integer

25. Define Your Own Function (3) • When you leave the program, remember to save the work space for the next use, or the function you defined will disappear after you close R project.

26. Read and Write Files • Write Data to a CSV File • Write Data to a TXT File • Read TXT and CSV Files • Demo

27. Write Data to a TXT File • Usage: write(x,file,…) > X=matrix(1:6,2,3) > X [,1] [,2] [,3] [1,] 1 3 5 [2,] 2 4 6 > write(t(X),file=“d:/out2.txt”,ncolumns=3) > write(X,file=“d:/out3.txt”,ncolumns=3) d:/out2.txt 1 3 5 2 4 6 d:/out3.txt 1 2 3 4 5 6

28. Write Data to a CSV File • Usage: write.table(x,file=“foo.csv”,sep=“,”,…) > X=matrix(1:6,2,3) > X [,1] [,2] [,3] [1,] 1 3 5 [2,] 2 4 6 >write.table(t(X),file=“d:/out4.txt”,sep=“,”,col.names=FALSE,row.names=FALSE) >write.table(X,file=“d:/out5.txt”,sep=“,”,col.names=FALSE,row.names=FALSE) d:/out4.txt 1,2 3,4 5,6 d:/out5.txt 1,3,5 2,4,6

29. Read TXT and CSV Files • Usage: read.table(file,...) > X=read.table(file="d:/out2.txt") > X v1 v2 v3 1 1 3 5 2 2 4 6 > Y=read.table(file="d:/out5.txt",sep=",",header=FALSE) > Y V1 V2 1 1 2 2 3 4 3 5 6

30. Demo > Data=read.table(file="d:/01.csv",header=TRUE,sep=",") >Data Y X1 X2 1 2.651680 13.808990 26.75896 2 1.875039 17.734520 37.89857 3 1.523964 19.891030 26.03624 4 2.984314 15.574260 30.21754 5 10.423090 9.293612 28.91459 6 0.840065 8.830160 30.38578 7 8.126936 9.615875 32.69579 >mean(Data$Y) [1] 4.060727 >boxplot(Data$Y) 01.csv

31. Part 2Motivation Examples

32. A a b B A b a A a A a b B B B b Example 1 in Genetics (1) • Two linked loci with alleles A and a, and B and b • A, B: dominant • a, b: recessive • A double heterozygote AaBb will produce gametes of four types: AB, Ab, aB, ab F ( Female) 1- r’ r’ (female recombination fraction) M (Male) 1-r r (male recombination fraction)

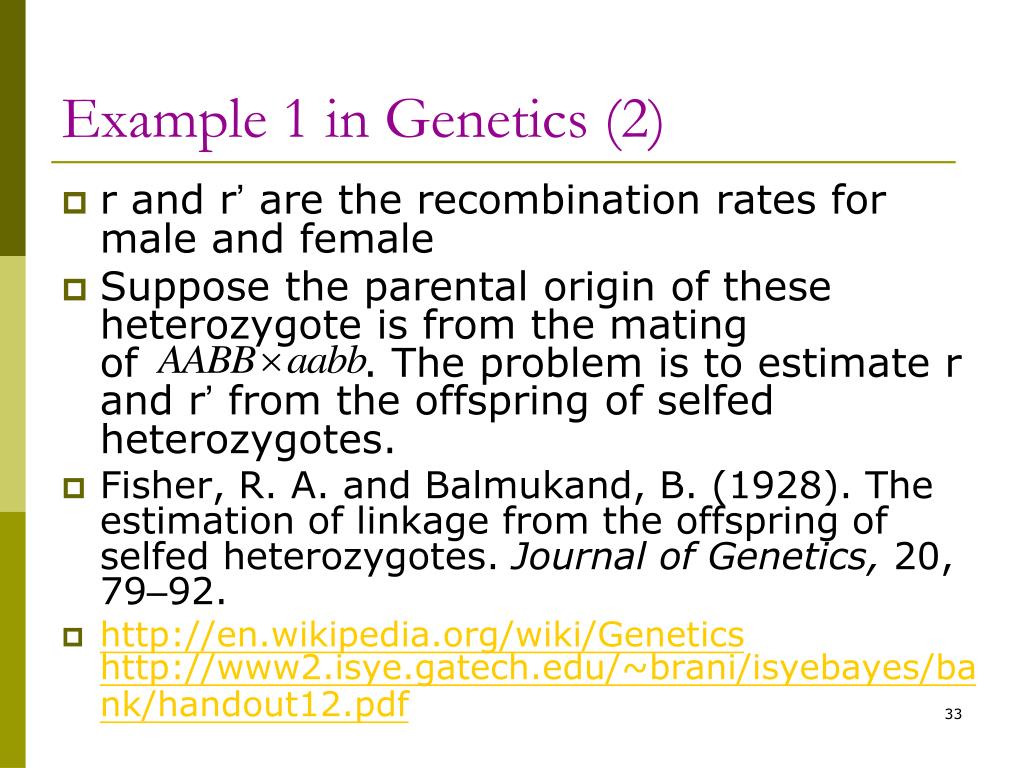

33. Example 1 in Genetics (2) • r and r’ are the recombination rates for male and female • Suppose the parental origin of these heterozygote is from the mating of . The problem is to estimate r and r’ from the offspring of selfed heterozygotes. • Fisher, R. A. and Balmukand, B. (1928). The estimation of linkage from the offspring of selfed heterozygotes. Journal of Genetics, 20, 79–92. • http://en.wikipedia.org/wiki/Geneticshttp://www2.isye.gatech.edu/~brani/isyebayes/bank/handout12.pdf

34. A a b B 1/2 1/2 1/2 1/2 a A a a A A b B b b B B A A a a A a A a b b B b b B B B Example 1 in Genetics (3)

35. Example 1 in Genetics (4)

36. Example 1 in Genetics (5) • Four distinct phenotypes: A*B*, A*b*, a*B* and a*b*. • A*: the dominant phenotype from (Aa, AA, aA). • a*: the recessive phenotype from aa. • B*: the dominant phenotype from (Bb, BB, bB). • b* : the recessive phenotype from bb. • A*B*: 9 gametic combinations. • A*b*: 3 gametic combinations. • a*B*: 3 gametic combinations. • a*b*: 1 gametic combination. • Total: 16 combinations.

37. Example 1 in Genetics (6)

38. Example 1 in Genetics (7) Hence, the random sample of n from the offspring of selfed heterozygotes will follow a multinomial distribution:

39. Example 1 in Genetics (8) Suppose that we observe the data of y = (y1, y2, y3, y4) = (125, 18, 20, 24), which is a random sample from Then the probability mass function is

40. Estimation Methods • Frequentist Approaches: http://en.wikipedia.org/wiki/Frequency_probability Method of Moments Estimate (MME) http://en.wikipedia.org/wiki/Method_of_moments_%28statistics%29 Maximum Likelihood Estimate (MLE) http://en.wikipedia.org/wiki/Maximum_likelihood • Bayesian Approaches: http://en.wikipedia.org/wiki/Bayesian_probability

41. Method of Moments Estimate (MME) • Solve the equations when population means are equal to sample means: for k = 1, 2, …, t, where t is the number of parameters to be estimated. • MME is simple. • Under regular conditions, the MME is consistent! • More: http://en.wikipedia.org/wiki/Method_of_moments_%28statistics%29

42. MME for Example 1 Note: MME can’t assure

43. MME by R

44. MME by C/C++

45. Maximum Likelihood Estimate (MLE) • Likelihood: • Maximize likelihood: Solve the score equations, which are setting the first derivates of likelihood to be zeros. • Under regular conditions, the MLE is consistent, asymptotic efficient and normal! • More: http://en.wikipedia.org/wiki/Maximum_likelihood

46. Example 2 (1) We toss an unfair coin 3 times and the random variable is If p is the probability of tossing head, then

47. Example 2 (2) Suppose we observe the toss of 1 heads and 2 tails, the likelihood function becomes One way to maximize this likelihood function is by solving the score equation, which sets the first derivative to be zero:

48. Example 2 (3) • The solution of p for the score equation is 1/3 or 1. • One can check that p=1/3 is the maximum point. (How?) • Hence, the MLE of p is 1/3 for this example.

49. A B C MLE for Example 1 (1) • Likelihood • MLE:

50. MLE for Example 1 (2) • Checking: (1) (2) (3)
