1. Alternative Energy Solar PV Comparisons

2. Solar Intensity vs Light emitted by the hot photosphere is reduced by light absorbed or scattered by the solar corona, atmospheric molecules, dust, and clouds. This includes the climate changing effects (absorption/re-emission) by carbon dioxide, methane, and water vapor.

3. Solar Power Available • Top of the Atmosphere 1366 W/m2 • Peak Surface Insolation 1000 W/m2 • Typical average 6 kWh/m2 /day(latitude, weather, hours of sunlight) • 1 kWh/day requires 0.17 m2 • Allowing for PV efficiency 0.85 m2(20% Si PV)

4. Satisfying Total US Electric Needs • Total Electric energy consumed 15 Quad 4.3x1012 kWh/yr 1.1x1010 kWh/day • Avg power needed 490 GW • The avg US home uses energy at the rate of 750 W 18 kWh/day • This would require 1.9x109 m2 • Area covered by solar panels 1900 mi2 • Percent of total US Land area 0.05 % • Percent of Mojave Desert 6 %

5. Costs • Annual Electric energy 4.3x1012 kWh/yr • Electric Power capacity avg 490 GW • A plant averaging 1 GW will produce 8760 GWh/yr • Cost to build new 1 GW plant $ per W CF $ investment • Solar $3.0 21%$14 billion • Wind $1.8 30% $6 billion • Natural Gas-fired Turbine $1.0 85%$1 billion • Nuclear $6.0 85%$7 billion (US GNP = $13 Trillion / yr) • Cost to produce $ per kWh Annual Cost • Solar$0.012 $51 billion • Natural Gas Turbine$0.075 $320 billion • Nuclear$0.023 $100 billion • Wind $0.045 $190 billion

6. Key Energy Surprises • Gasoline delivers 15 times the energy of an equal weight of TNT. • Coal is 20 times cheaper than gasoline, for the same energy. • A square mile of sunlight at midday could provide a gigawatt of electric power – the same as a large coal, electric, or nuclear power plant. • A square meter of sunlight delivers about a horsepower (746 W) when it hits the ground, the same as the average electric power used by a US household. • Gasoline has 1000 times as much energy as an equal weight of flashlight batteries, and 100 times as much as an equal weight of expensive computer batteries. • Liquid hydrogen, the key fuel for a future “hydrogen economy,” has 4.5 times less energy per gallon than gasoline has. “Physics for Future Presidents” by Richard A. Muller

7. Energy Content per poundcompared to Gasoline & Electricity Fuel x Gas Energy content $ Elec Gasoline 1 8.0 kWh/lb $1.01 Choc chip cookie 0.5 4.0 $0.50 TNT0.070.5 $0.06 Natural Gas 1.3 10 $1.26 Hydrogen2.621 $2.64 Uranium2M1.6x106 $200K Fusion6M4.7x1010 $600K Antimatter2B1.6x109 $200M (Average cost of energy in SLO = $0.126/kWh)

8. “Should solar photovoltaics be deployed sooner because of long operating life at low, predictable cost?” By Ken Zweibel Solar Institute, The George Washington University Fig. 4, The switch in year 20 emphasizes the level of capital cost in each option. The steady-state costs afterward are just fuel and operating costs.

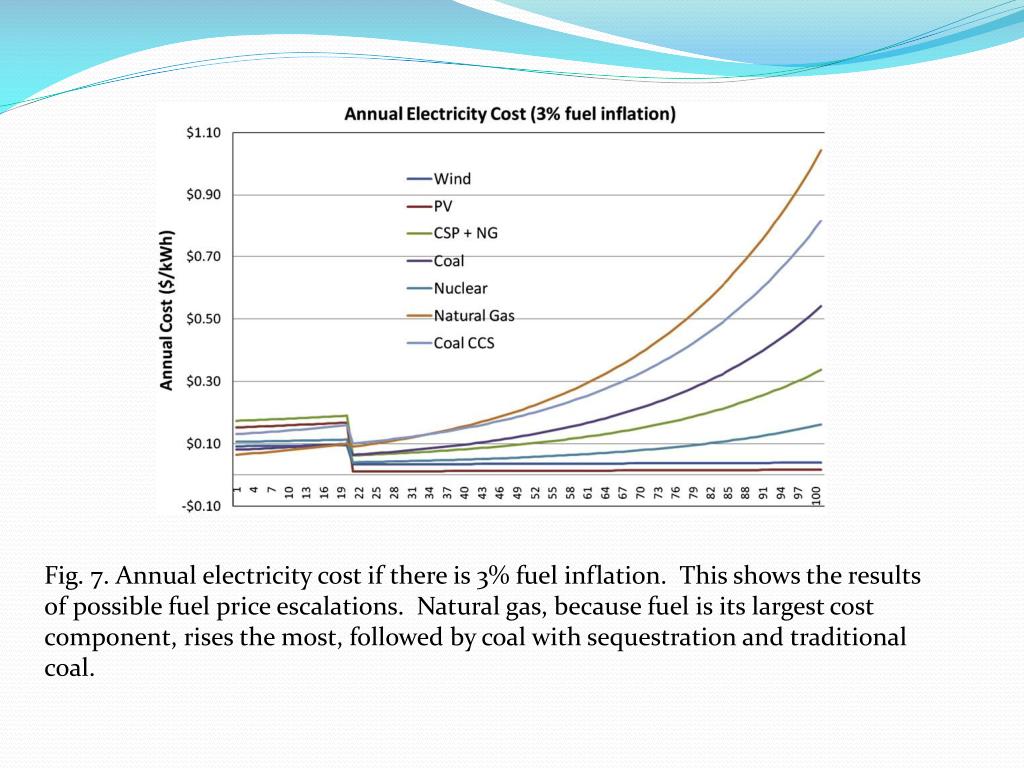

9. Fig. 7. Annual electricity cost if there is 3% fuel inflation. This shows the results of possible fuel price escalations. Natural gas, because fuel is its largest cost component, rises the most, followed by coal with sequestration and traditional coal.

10. Fig. 8. The levelized cost of electricity of these options assuming 3% fuel inflation and a zero discount rate. Once again, wind and PV retain excellent prices throughout the 100 year period while everything else becomes expensive.

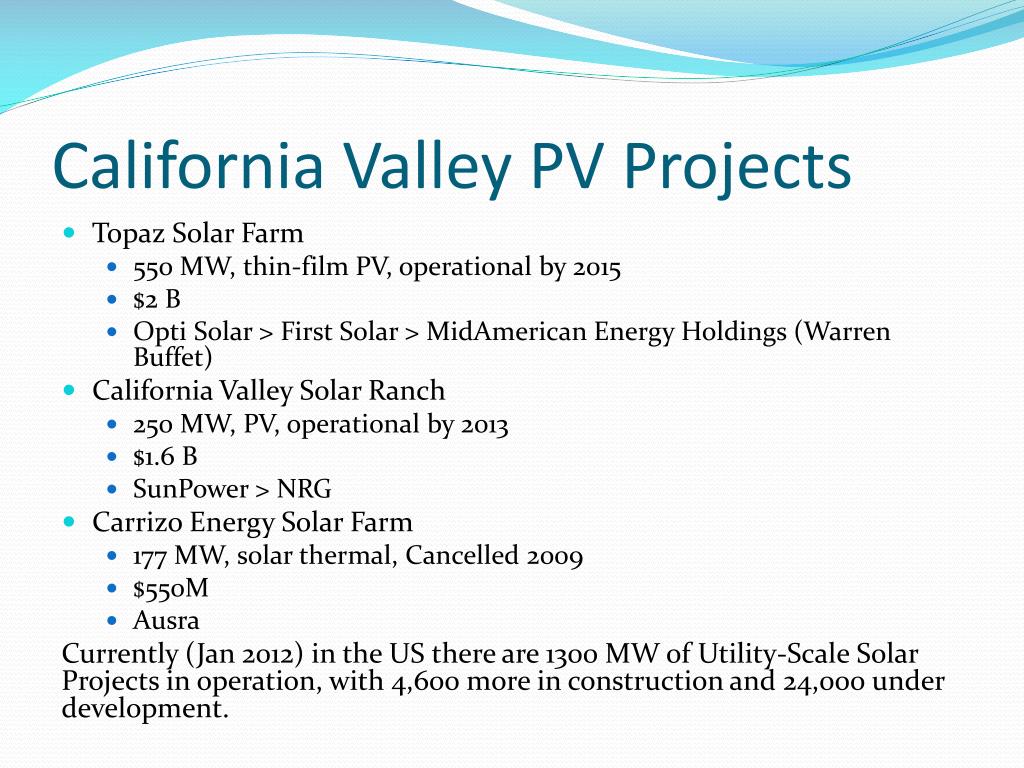

11. California Valley PV Projects • Topaz Solar Farm • 550 MW, thin-film PV, operational by 2015 • $2 B • Opti Solar > First Solar > MidAmerican Energy Holdings (Warren Buffet) • California Valley Solar Ranch • 250 MW, PV, operational by 2013 • $1.6 B • SunPower > NRG • Carrizo Energy Solar Farm • 177 MW, solar thermal, Cancelled 2009 • $550M • Ausra Currently (Jan 2012) in the US there are 1300 MW of Utility-Scale Solar Projects in operation, with 4,600 more in construction and 24,000 under development.
