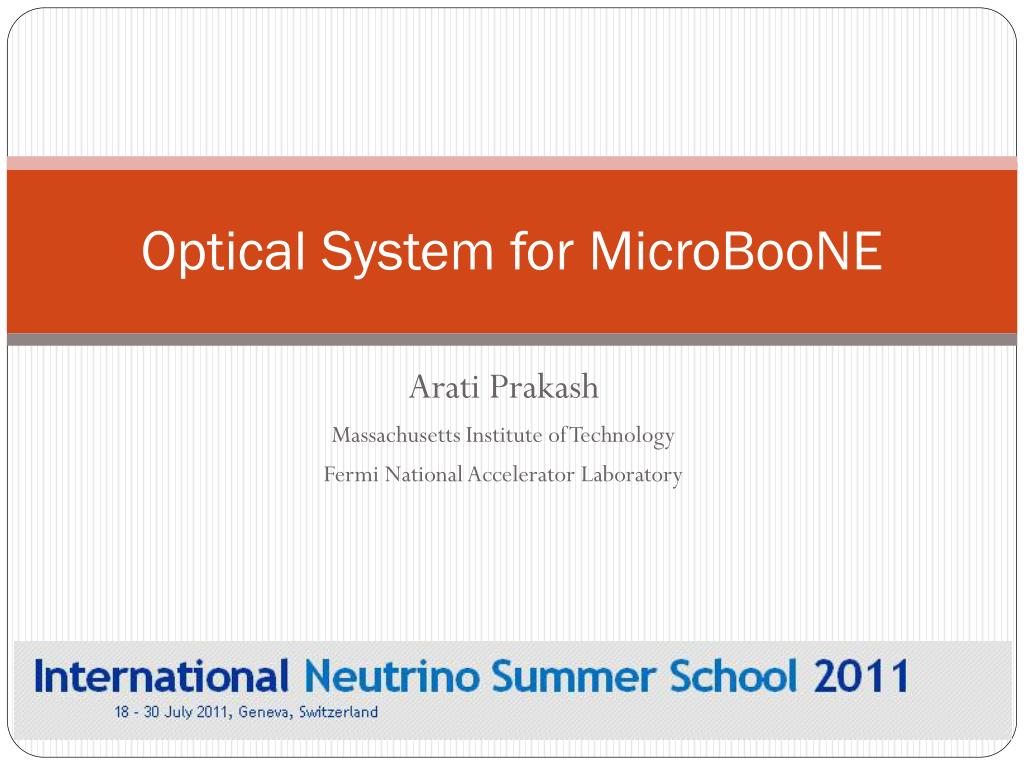

optical system for microboone

Optical System for MicroBooNE

Arati Prakash

Massachusetts Institute of Technology

Fermi National Accelerator Laboratory

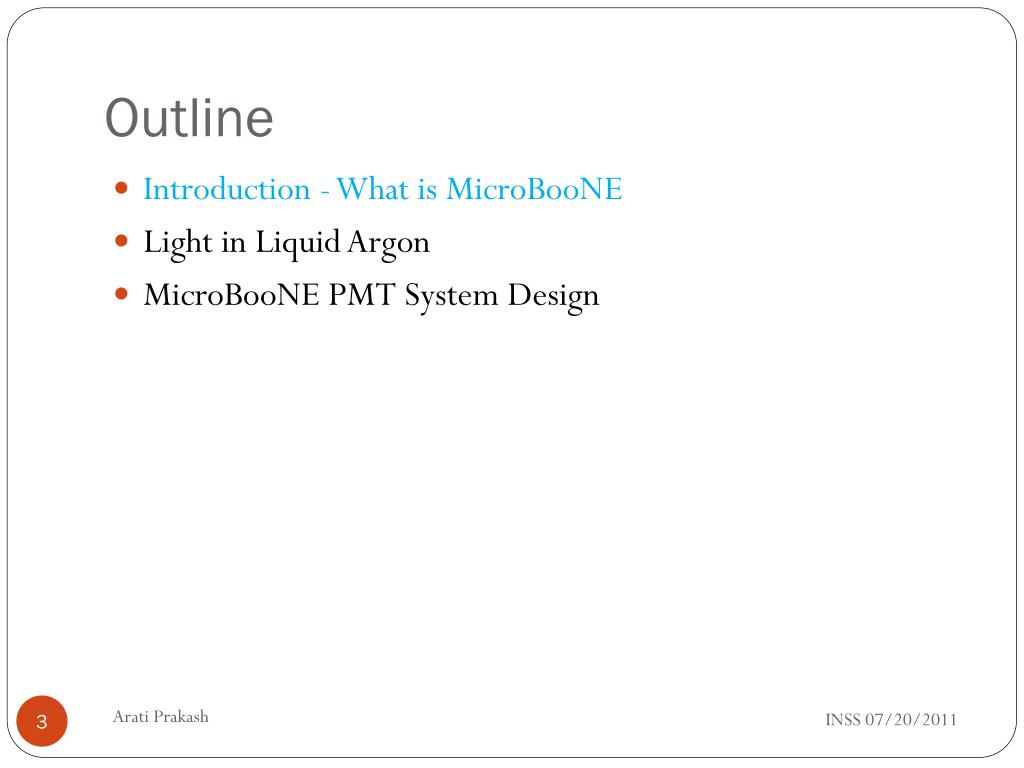

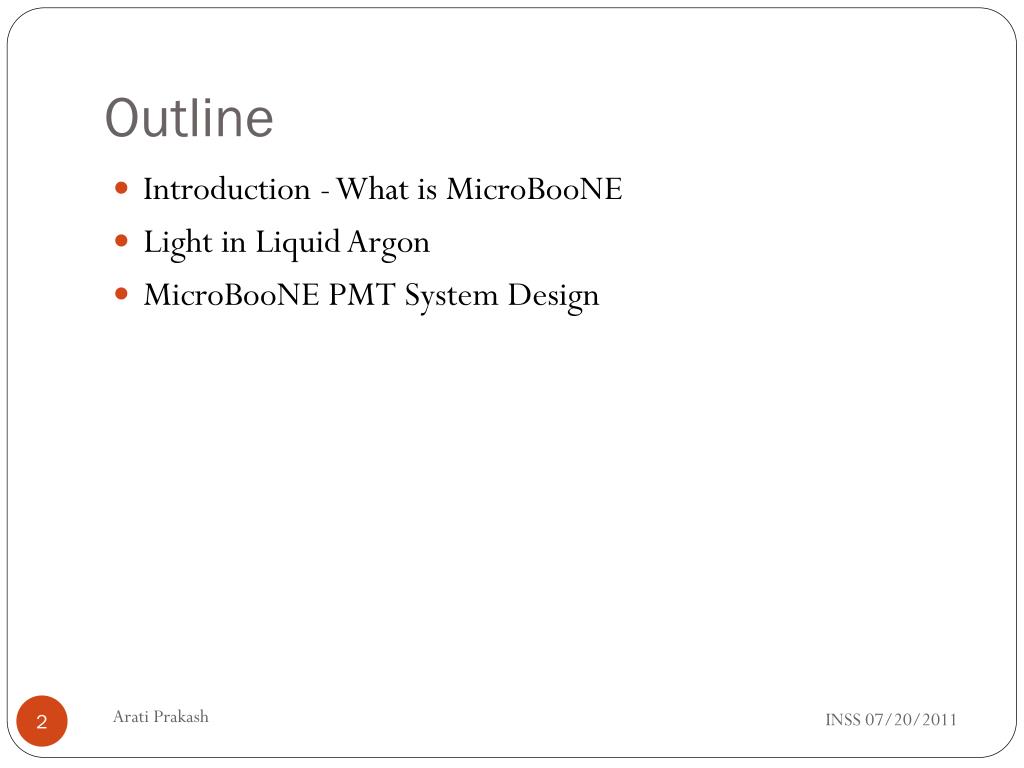

outline
Outline
  • Introduction - What is MicroBooNE
  • Light in Liquid Argon
  • MicroBooNE PMT System Design

Arati Prakash

outline1
Outline
  • Introduction - What is MicroBooNE
  • Light in Liquid Argon
  • MicroBooNE PMT System Design

Arati Prakash

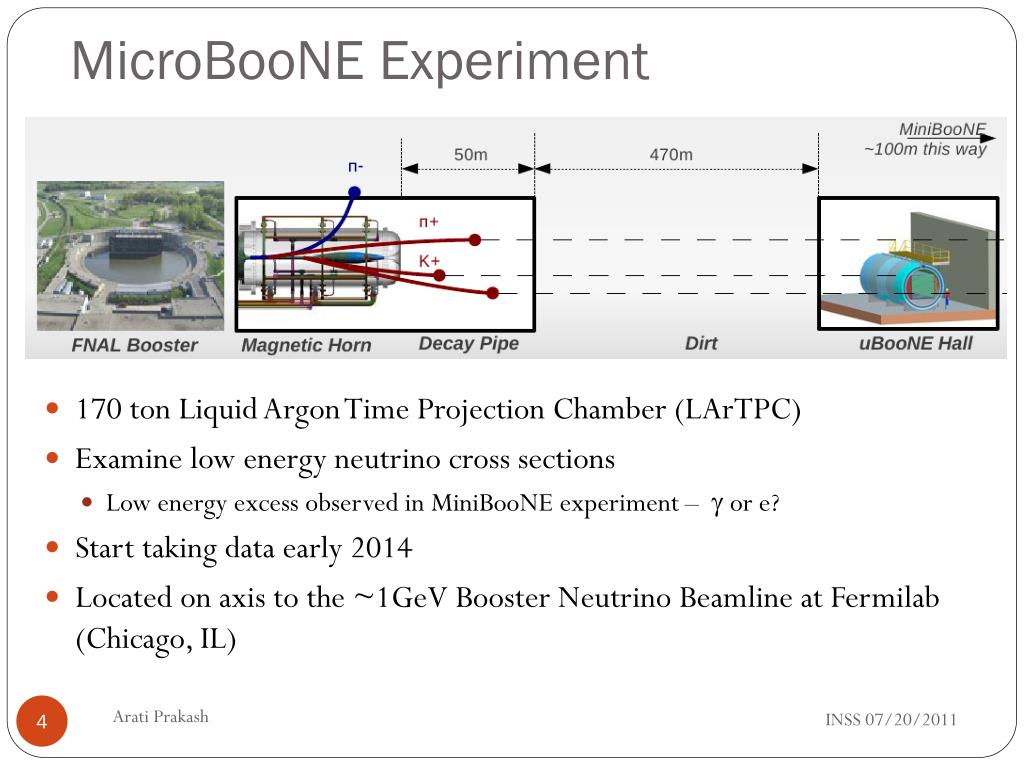

microboone experiment
MicroBooNE Experiment
  • 170 ton Liquid Argon Time Projection Chamber (LArTPC)
  • Examine low energy neutrino cross sections
    • Low energy excess observed in MiniBooNE experiment –  or e?
  • Start taking data early 2014
  • Located on axis to the ~1GeV Booster Neutrino Beamline at Fermilab (Chicago, IL)

Arati Prakash

microboone detector design
MicroBooNE Detector Design
  • LArTPC: 3 wire planes with 2.5m drift in 170 tons of LAr
  • Located in a cylindrical cryostat vessel: 4m radius x 12 m length
  • PMT system sits along the wall behind the TPC
    • Charge drifts to the TPC planes T~ms
    • PMT scintillation light detected T ~ns
    • So, the PMT system in principle can trigger the TPC

Arati Prakash

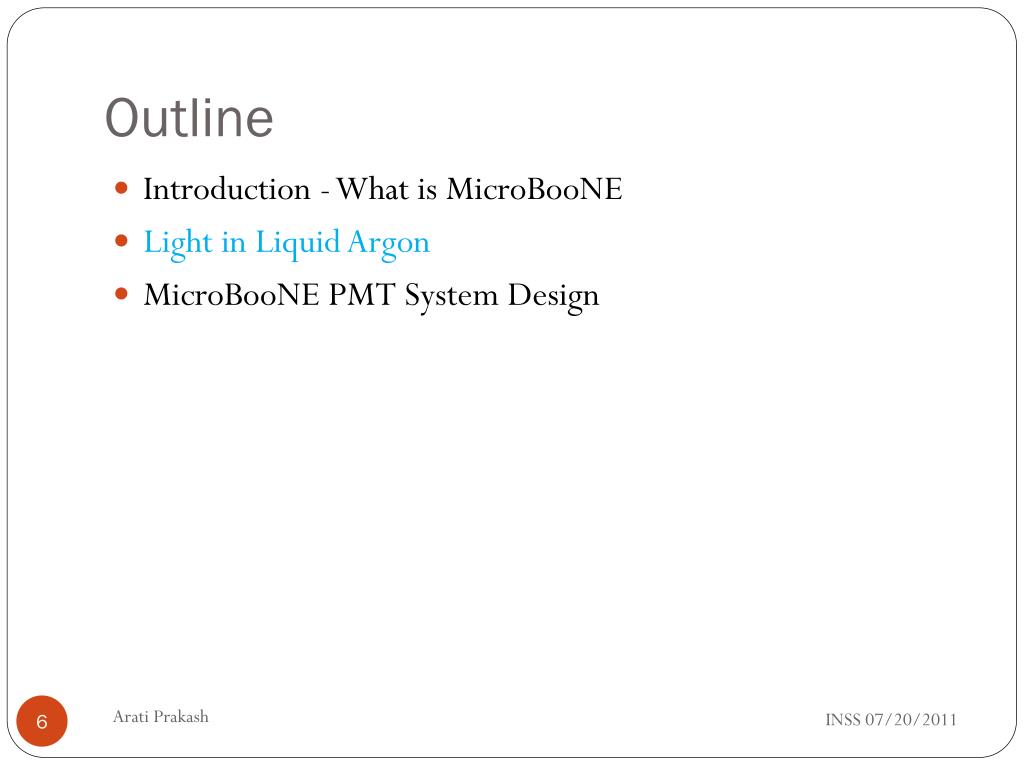

outline2
Outline
  • Introduction - What is MicroBooNE
  • Light in Liquid Argon
  • MicroBooNE PMT System Design

Arati Prakash

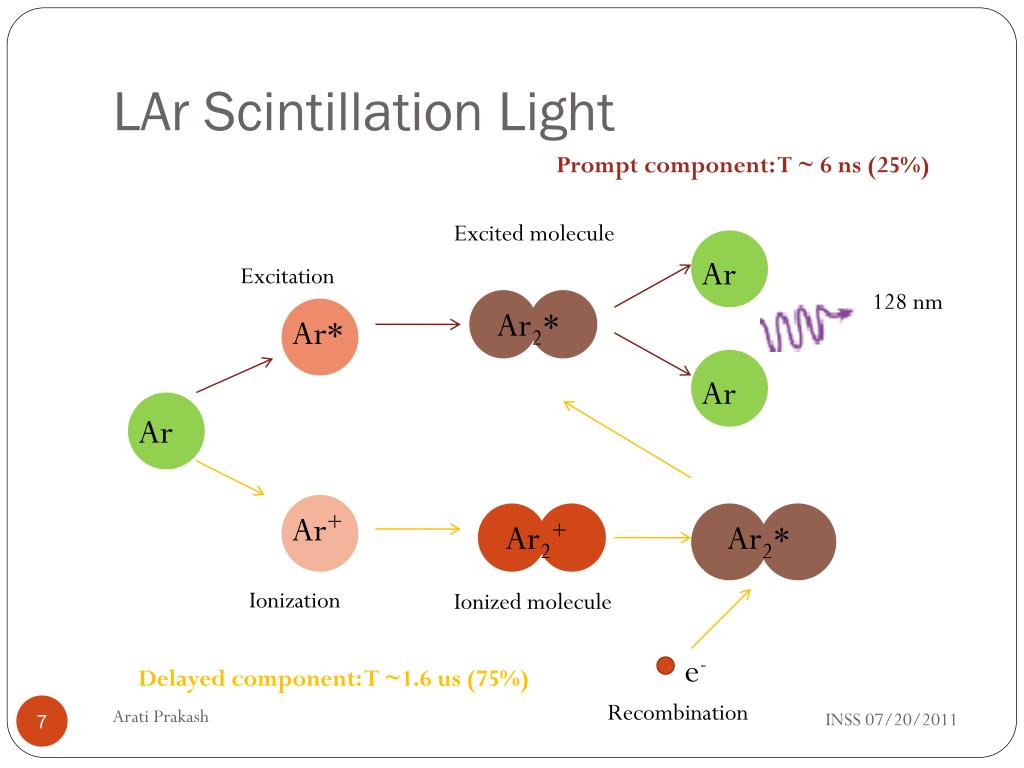

lar scintillation light
LAr Scintillation Light

Prompt component: T ~ 6 ns (25%)

Excited molecule

Ar

Excitation

128 nm

Ar2*

Ar*

Ar

Ar

Ar+

Ar2+

Ar2*

Ionization

Ionized molecule

e-

Delayed component: T ~1.6 us (75%)

Arati Prakash

Recombination

outline3
Outline
  • Introduction - What is MicroBooNE
  • Light in Liquid Argon
  • MicroBooNE PMT System Design

Arati Prakash

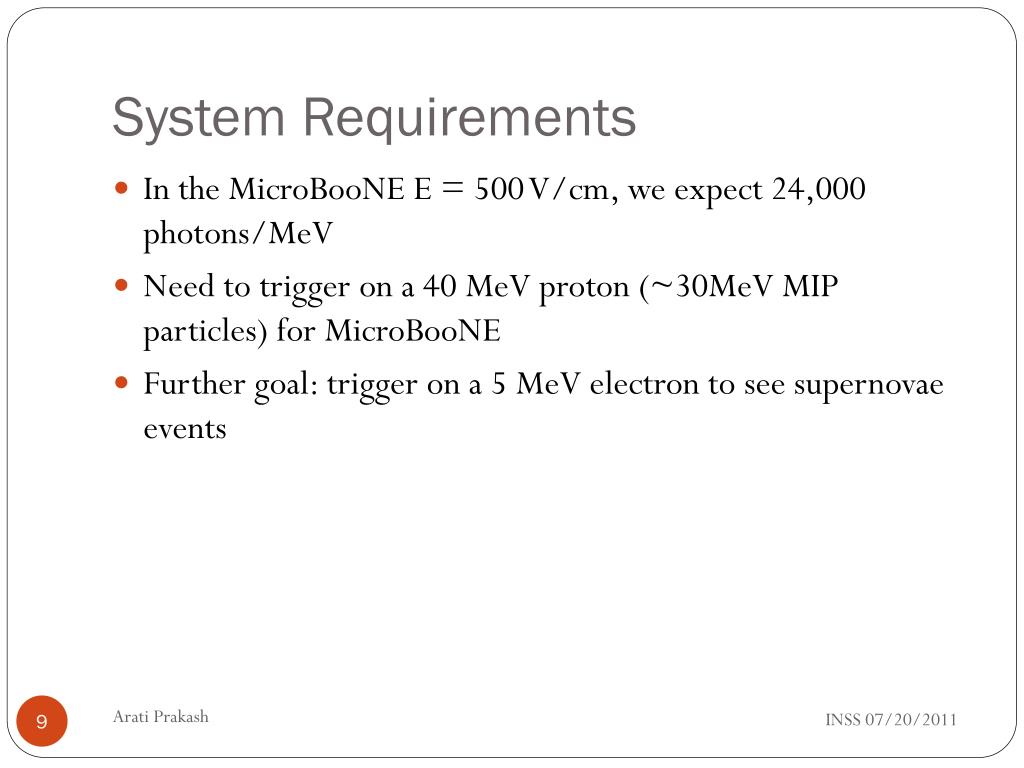

system requirements
System Requirements
  • In the MicroBooNE E = 500 V/cm, we expect 24,000 photons/MeV
  • Need to trigger on a 40 MeV proton (~30MeV MIP particles) for MicroBooNE
  • Further goal: trigger on a 5 MeV electron to see supernovae events

Arati Prakash

design constraints
Design Constraints
  • PMTs must work efficiently at cryogenic temp (87K)
  • UV light does not pass through glass - Scintillation light (128nm) must be made visible to PMTs
  • Optimize Cost vs. coverage
  • Maintain LAr purity
  • Allow enough space for TPC
  • Longevity of the System

Arati Prakash

choice of pmt
Choice of PMT
  • 30 x 8-inch, 14-stage Hamamatsu cryogenic PMT
  • Gain ~10^9

Arati Prakash

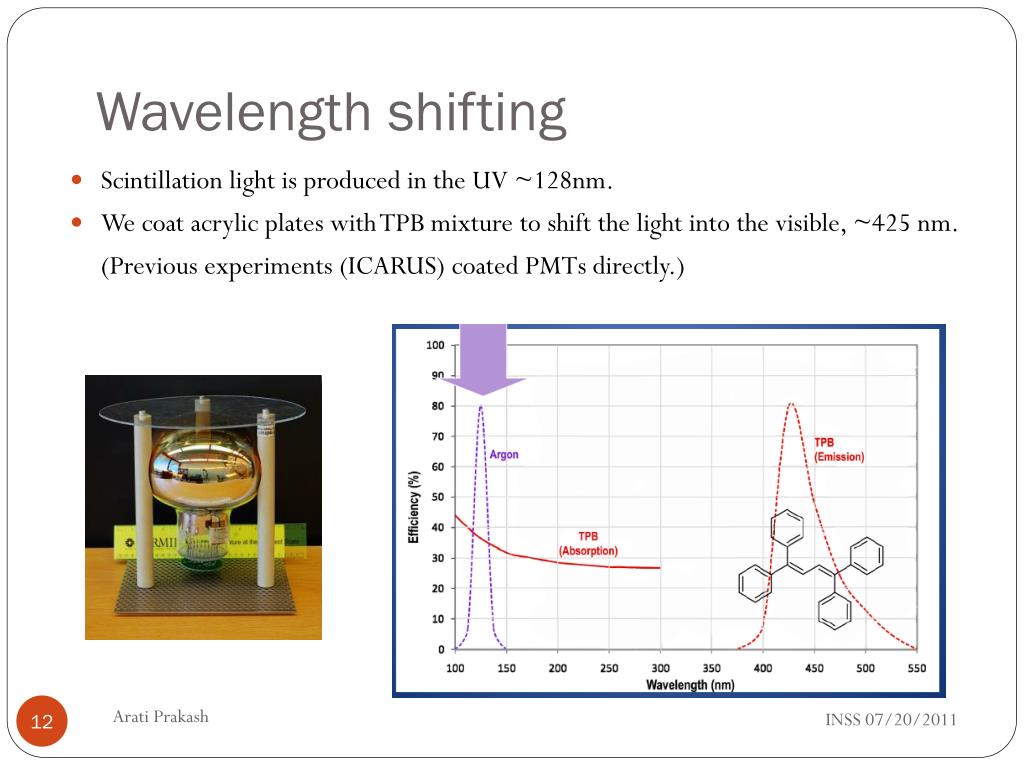

wavelength shifting
Wavelength shifting
  • Scintillation light is produced in the UV ~128nm.
  • We coat acrylic plates with TPB mixture to shift the light into the visible, ~425 nm.

(Previous experiments (ICARUS) coated PMTs directly.)

Arati Prakash

conclusion
Conclusion
  • MicroBooNE will hopefully provide valuable information for LArTPC detector R&D, as well as data that will be informative for understanding the MiniBooNE observed excess etc.
  • Come see my poster!

Thank You
