Fig. 10-1, p.259

Overshooting into stratosphere. Entrainment of air into side of cloud. tropopause. Downburst/microburst. Downdraft cuts off the updraft and “kills” the convective cell. Lifetime about 1 h. Fig. 10-1, p.259. anvil. tropopause. Wind direction. rain. Fig. 10-2, p.260.

amalie
Download Presentation

Fig. 10-1, p.259

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Overshooting into stratosphere Entrainment of air into side of cloud tropopause Downburst/microburst Downdraft cuts off the updraft and “kills” the convective cell Lifetime about 1 h Fig. 10-1, p.259

  2. anvil tropopause Wind direction rain Fig. 10-2, p.260

  3. Three cells in one storm mature stage cumulus congestus stage cumulus stage rain Fig. 10-4, p.261

  4. Tilted updraft is not cut off by downdraft Fig. 10-6, p.263

  5. Fig. 10-7, p.264

  6. Roll cloud Base of thunderstorm Shelf cloud Fig. 10-8, p.264

  7. 30 seconds 300 mph = 8 km/min Fig. 10-10, p.265

  8. Fig. 10-9, p.265

  9. Fig. 10-13, p.266

  10. Fig. 10-12, p.266

  11. Fig. 10-11, p.266

  12. Fig. 10-14, p.267

  13. Fig. 10-15, p.267

  14. Fig. 10-17, p.270

  15. Fig. 10-18, p.270

  16. Mainly positive charge at cloud top Large, “warm” hailstone becomes -ve Mainly negative charge, except at down draft flow of +ve charge Small, “cold” ice crystal becomes +ve Negative charge induces positive charge at/near Earth’s surface Fig. 10-19, p.272

  17. -ve Example of a negative cloud-to-ground stroke (90% of all lighting) initiated by a flow of electrons from cloud base e - • “break down” electric field strength in air = 50,000 V/in • For comparison, household voltage = 120 V. • 10 ion pairs formed per sec per cu. cm naturally (cosmic rays, radioactivity), which eventually help to transmit current (about 100,000 amps). + +ve Fig. 10-20, p.273

  18. Fig. 10-22, p.274

  19. Fig. 10-21, p.273

  20. Fig. 10-23, p.275

  21. p.276

  22. Vaisala's U.S. National Lightning Detection Network founded in Tucson, AZ. http://www.vaisala.com/page.asp?Section=32531 https://thunderstorm.vaisala.com/tux/jsp/explorer/explorer.jsp Fig. 10-24, p.275

  23. Fig. 10-5, p.262

  24. downdraft Recall tornado video Fig. 10-33, p.284

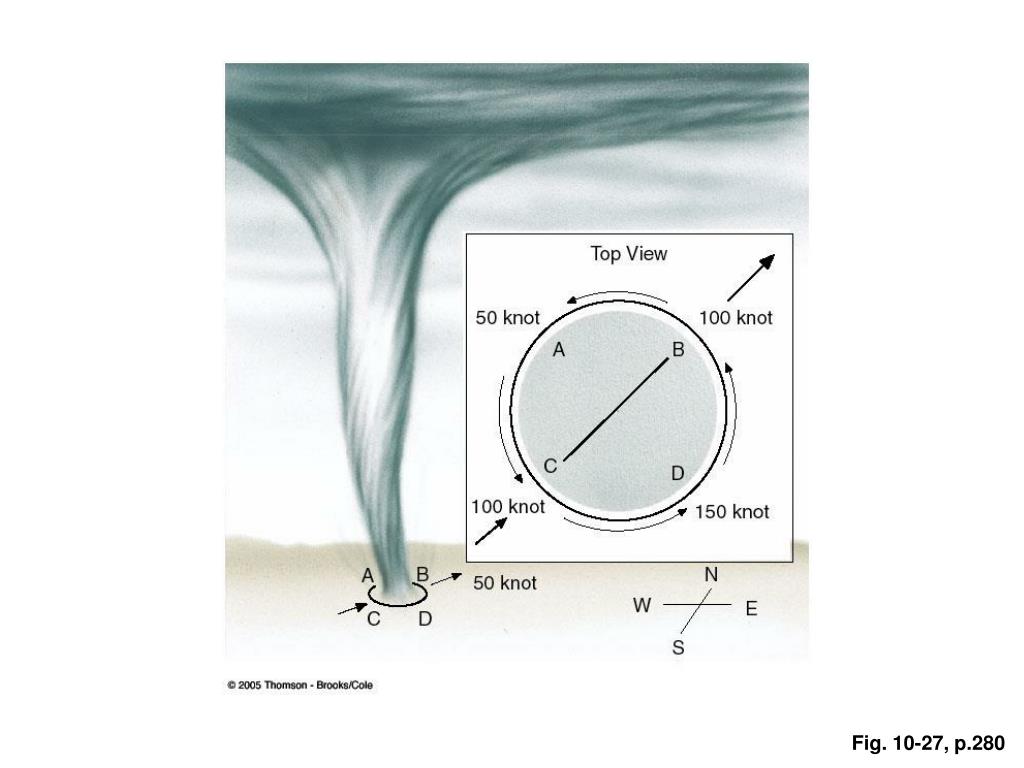

  25. Fig. 10-27, p.280

  26. Fig. 10-31, p.283

  27. Fig. 10-32, p.283

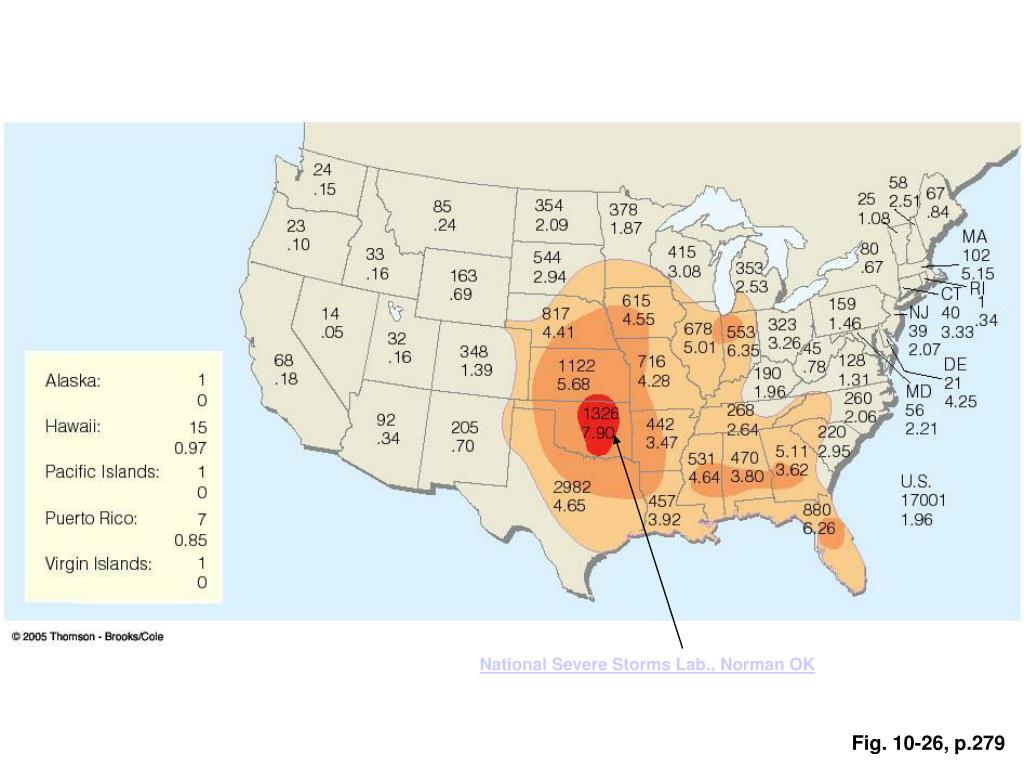

  28. National Severe Storms Lab., Norman OK Fig. 10-26, p.279

  29. In spring/early summer the air aloft (e.g., 500 mb) is still very cold, which combined with just a little surface solar heating, is enough to create a very unstable atmosphere (recall “instability recipe”: heat from below and/or cool from above). This is fundamentally why severe storm/tornado season is April-June in the south. DALR cold Altitude unstable warm T Table 10-1, p.281

  30. Table 10-2, p.281

  31. Fig. 10-29, p.282

  32. Fig. 10-30, p.282

  33. Fig. 10-34, p.284

  34. Fig. 10-35, p.285

  35. Fig. 10-36, p.286

  36. Fig. 10-28, p.280

  37. Fig. 10-37, p.287

  38. Fig. 10-40, p.289

  39. Fig. 10-CO, p.256
