tables graphs and diagrams

Tables, graphs, and diagrams

Barbara SchimmerJurmala, Latvia, 2006

Based on EPIET material

contents
Contents
  • Use of tables, graphs and graphics
  • Graphics in descriptive epidemiology
    • describe
  • Graphics in analytical epidemiology
    • compare
  • Designing graphics

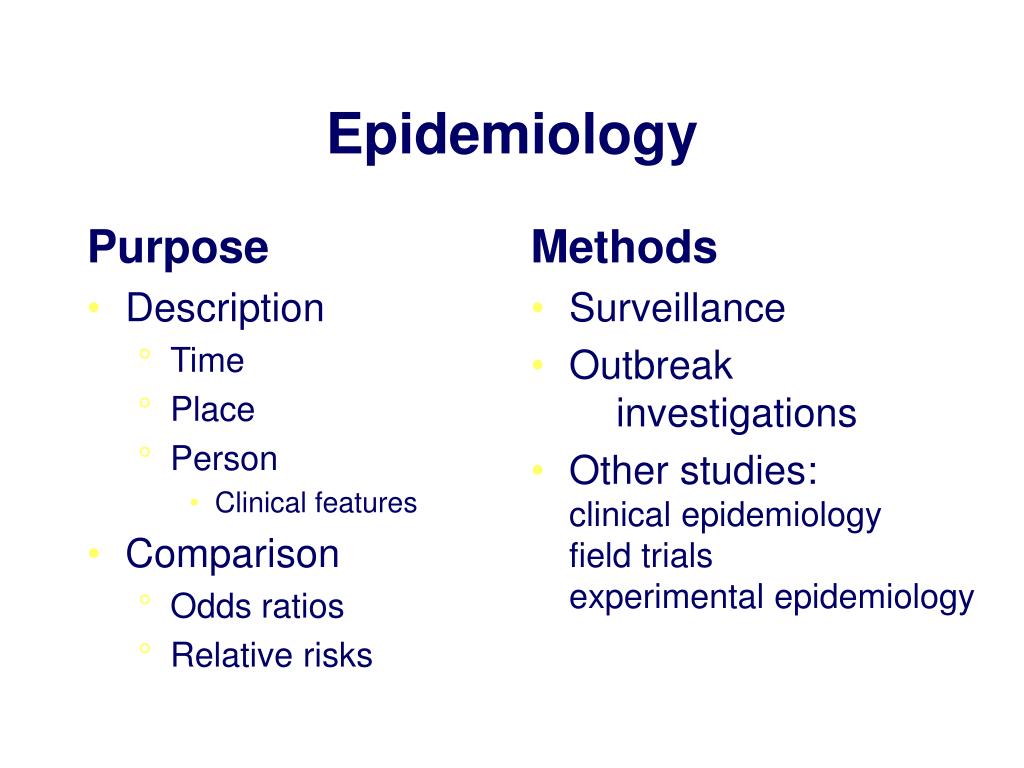

epidemiology
Purpose

Description

Time

Place

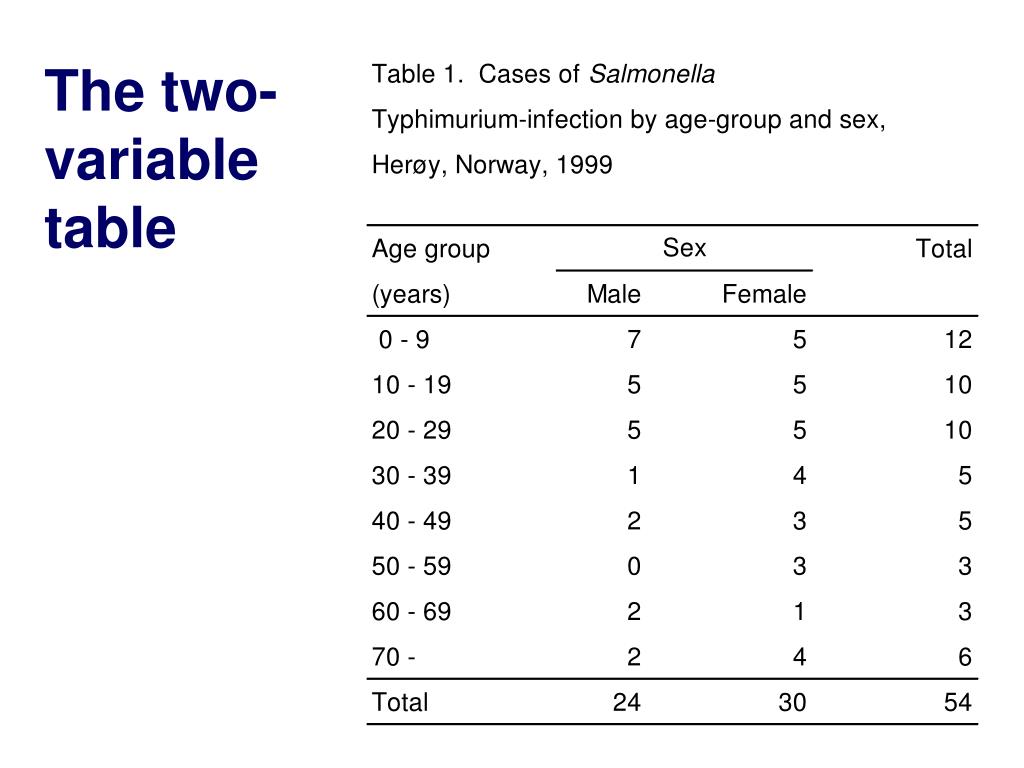

Person

Clinical features

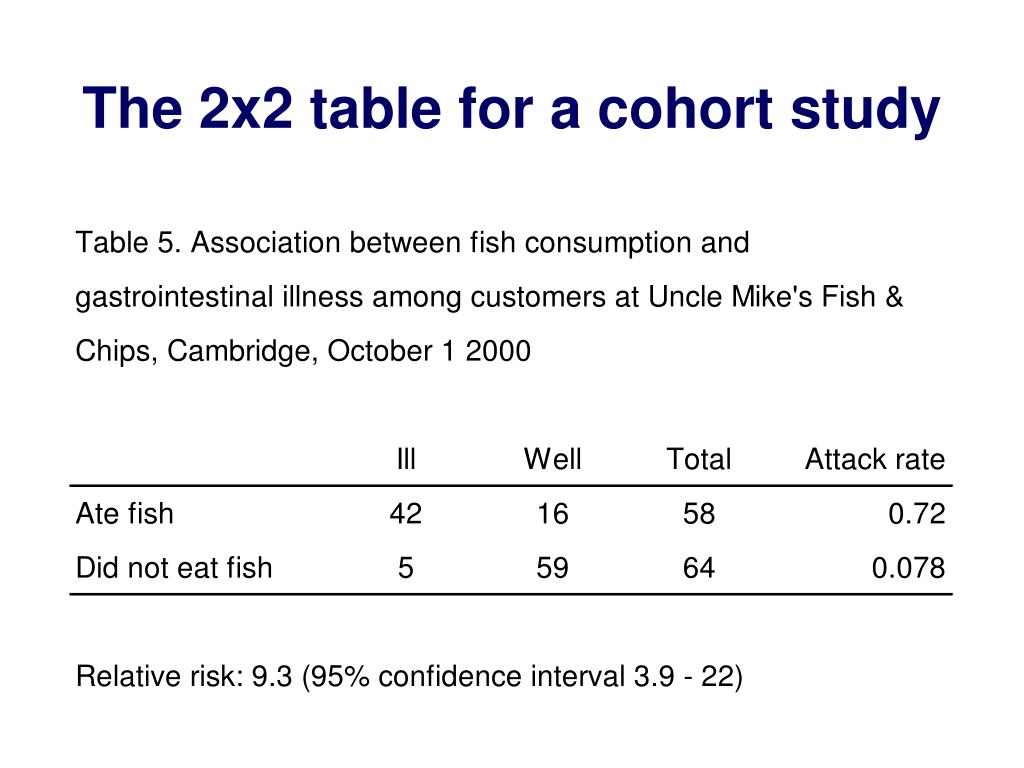

Comparison

Odds ratios

Relative risks

Methods

Surveillance

Outbreakinvestigations

Other studies:clinical epidemiologyfield trialsexperimental epidemiology

Epidemiology

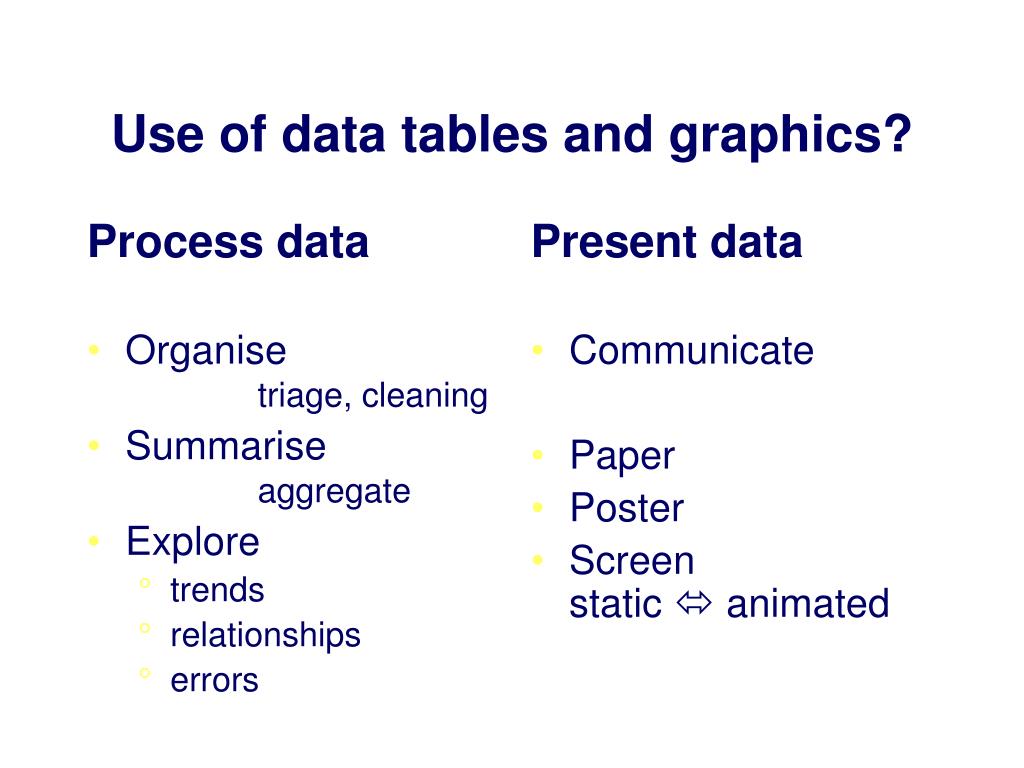

use of data tables and graphics
Process data

Organisetriage, cleaning

Summariseaggregate

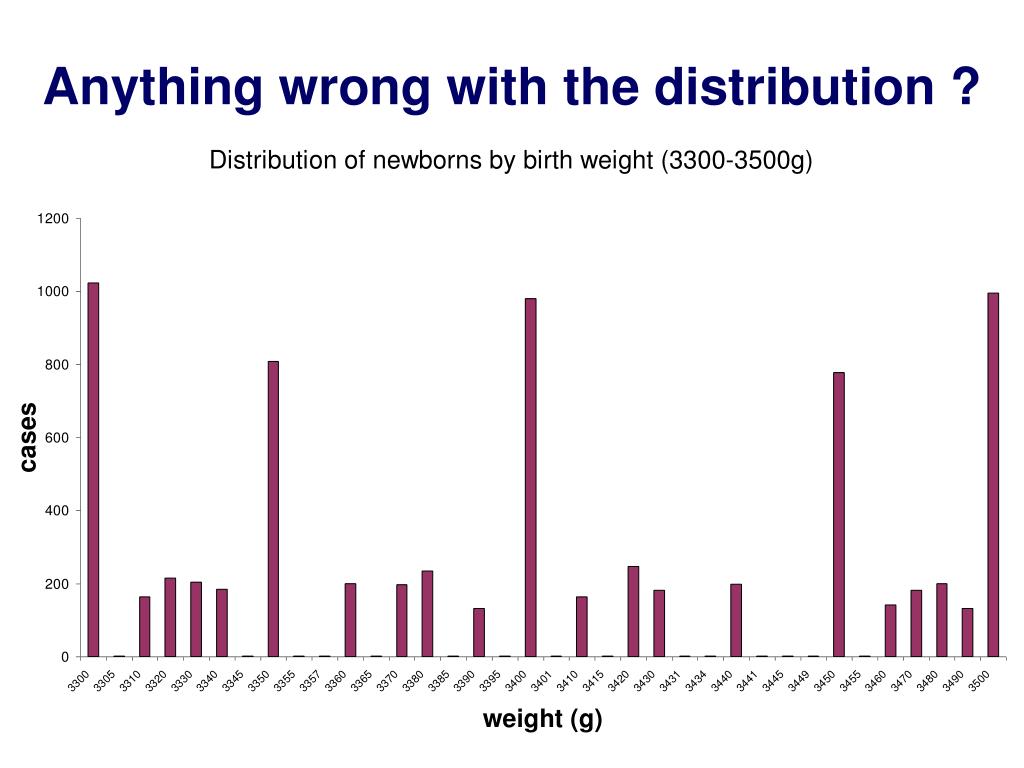

Explore

trends

relationships

errors

Present data

Communicate

Paper

Poster

Screenstatic  animated

Use of data tables and graphics?
paper vs screen
Paper

Time unlimited

Repetition

Details notes?

White, grey and black

Screen

Time < 1 min

No repetition

Less details

Colours possible

Paper vs. screen
tables graphics and diagrams
Tables, graphics, and diagrams
  • Self-explanatory
  • Simple!
  • Title

(what, who, where, when)

  • Define abbreviations and symbols
  • Note data exclusions
  • Reference the source

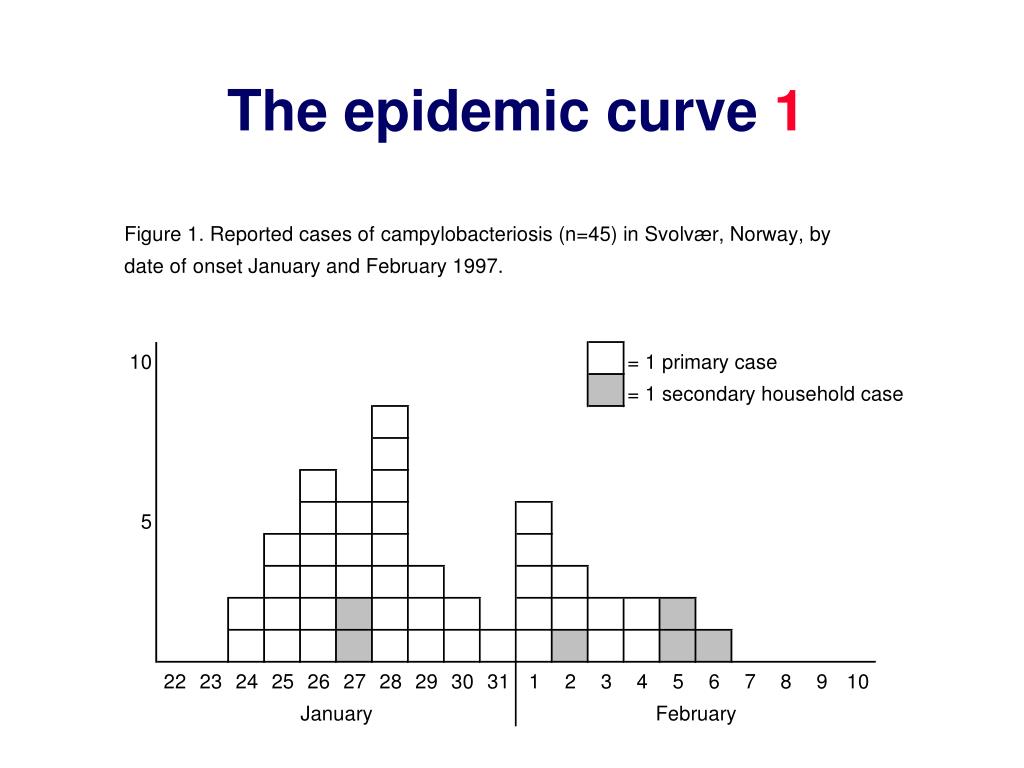

the epidemic curve 2

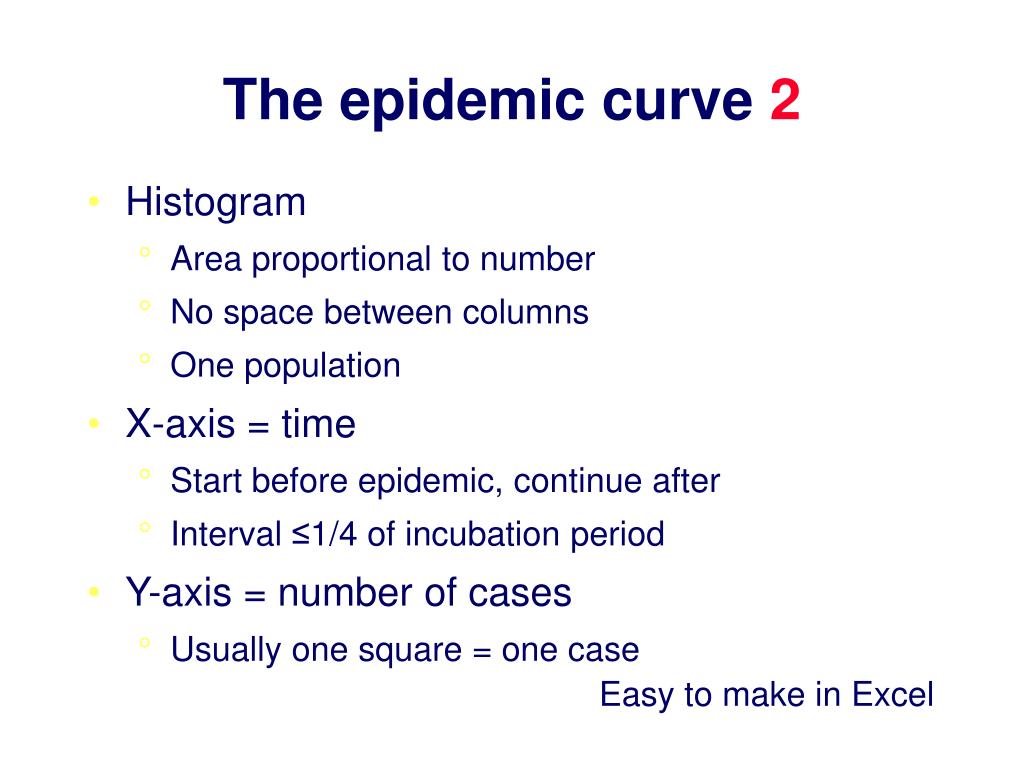

The epidemic curve 2
  • Histogram
    • Area proportional to number
    • No space between columns
    • One population
  • X-axis = time
    • Start before epidemic, continue after
    • Interval ≤1/4 of incubation period
  • Y-axis = number of cases
    • Usually one square = one caseEasy to make in Excel
the arithmetic scale line graph 2
The arithmetic-scale line graph 2
  • For time series
  • Show actual changes in magnitude
  • X-axis = time
  • Y-axis = rate (or number) of cases
    • Start at 0
    • Breaks possible, clearly marked
the semilogaritmic scale line graph 2
The semilogaritmic-scale line graph 2
  • For time series when
    • interested in rate of change
  • X-axis = time arithmetic
  • Y-axis = rate (or number) of cases, logarithmic
    • Straight slope = constant rate of change
    • Steep slope = constant rapid change
    • Parallell lines = same rate of change
    • Change in slope = acceleration  deceleration of rate
    • Start at lowest cycle, e.g. 0.1-1 or 1-10
    • No breaks
in graphs
In graphs...
  • Labels for axes, scales and legends
  • Legends or keys if >1 variable
  • Scale divison, appropriate scale
  • Units of measurements in title
  • No grid, no numbers
  • No 3D

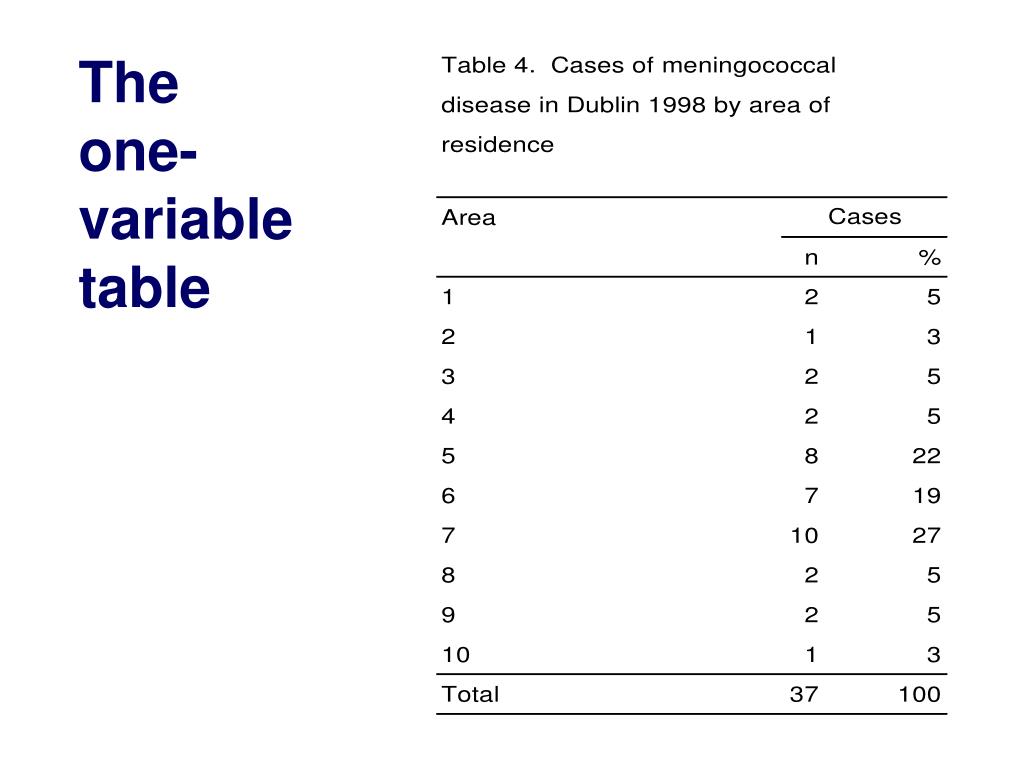

the spot map

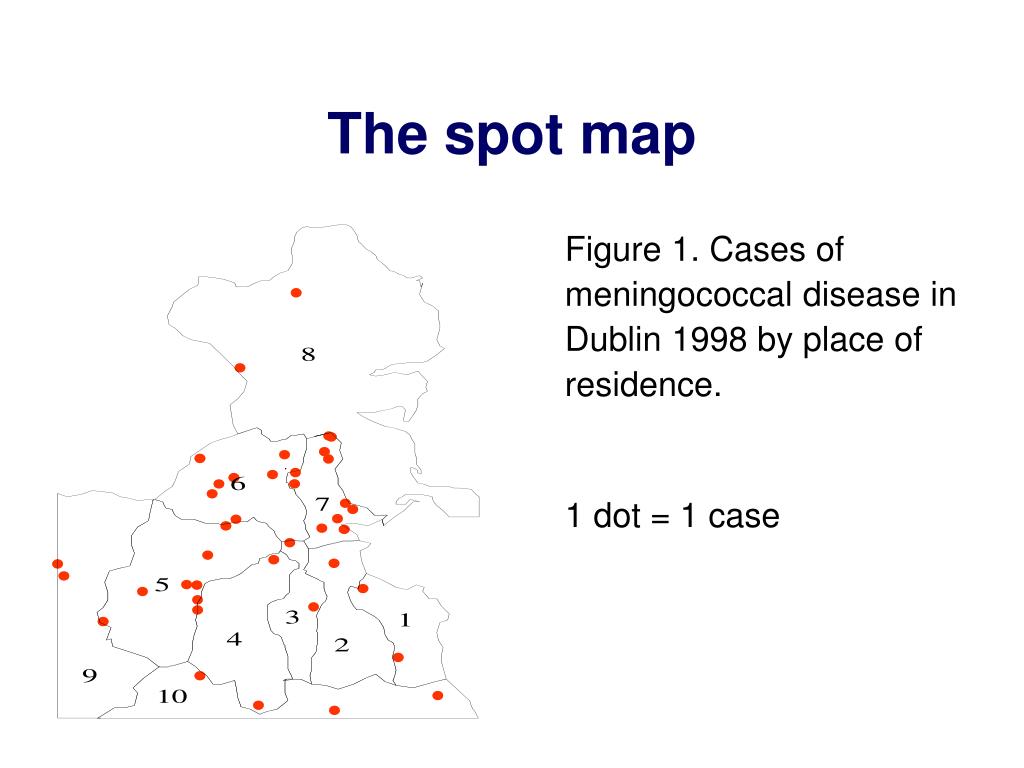

The spot map

Figure 1. Cases of meningococcal disease in Dublin 1998 by place of residence.

1 dot = 1 case

the area dot or dot density map

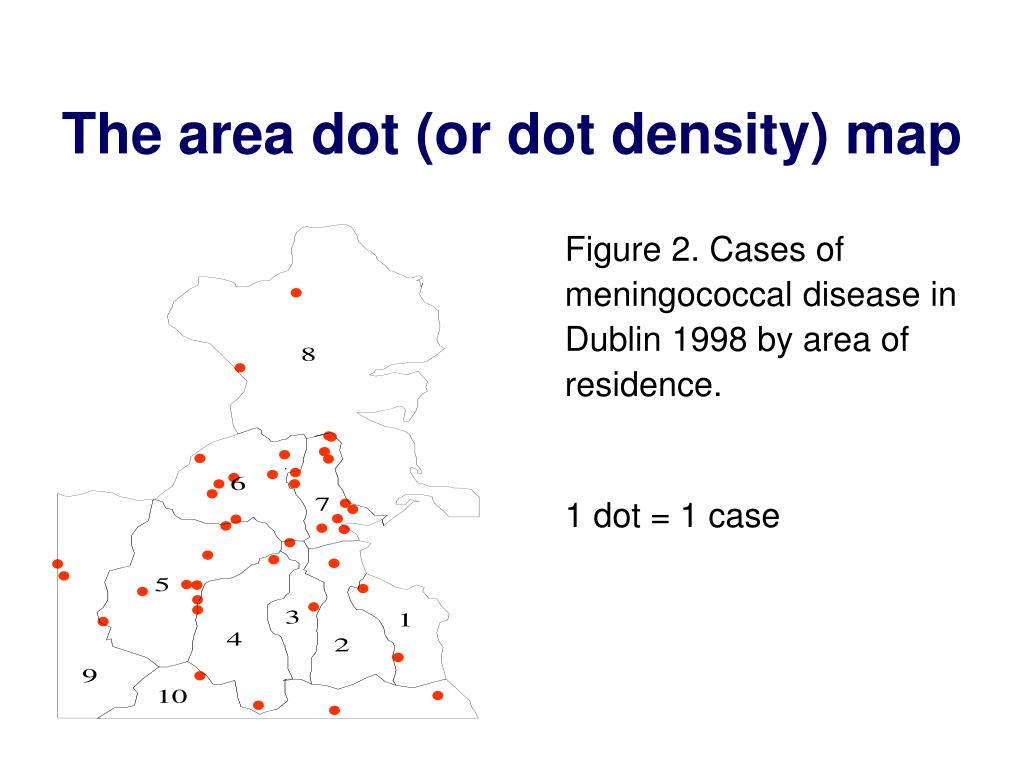

The area dot (or dot density) map

Figure 2. Cases of meningococcal disease in Dublin 1998 by area of residence.

1 dot = 1 case

the area map
The area map

Figure 3. Incidence rate (per 100,000) of meningococcal disease in Dublin 1998 by area of residence.

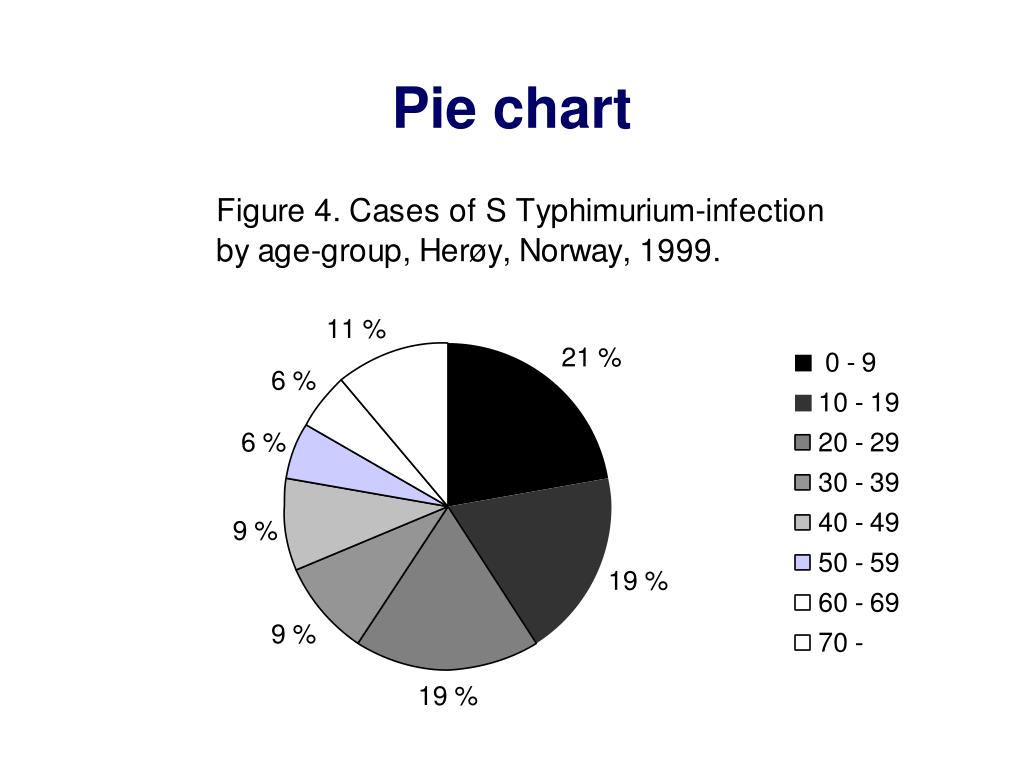

bar charts

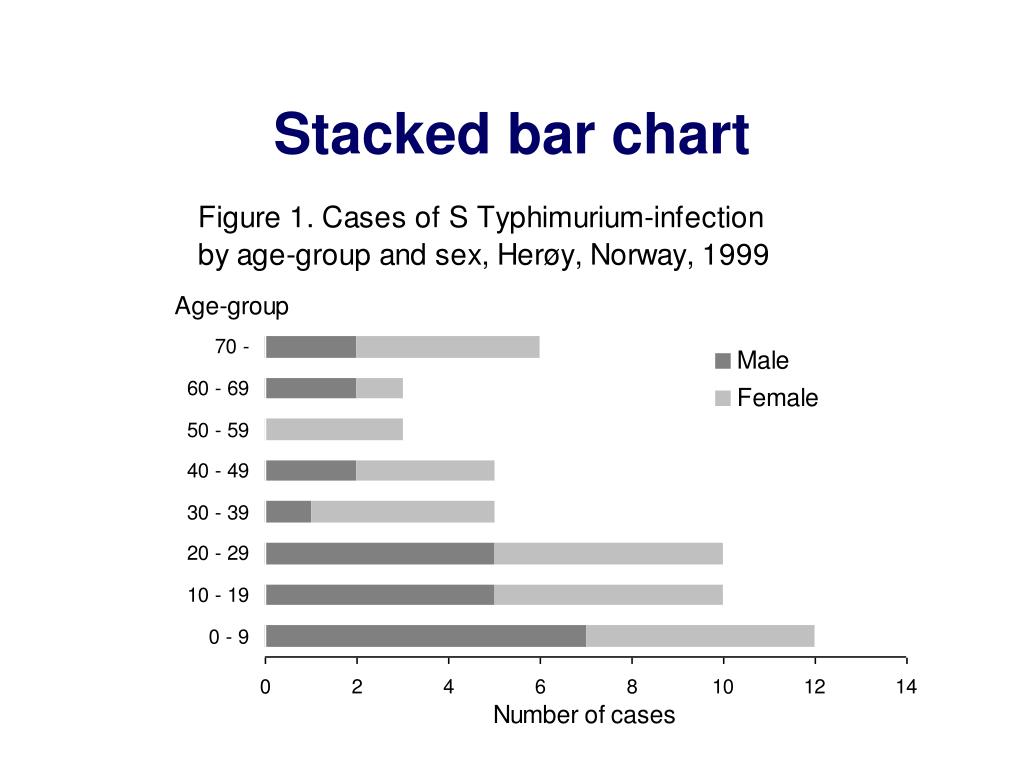

Bar charts
  • Order
    • Natural
    • Decreasing or increasing
  • Vertical or horizontal
  • Same width of bars
  • Length = frequency
  • Space between bars and groups, but not within groups
  • Tables are often better
think data ink
Think data-ink

Every bit of ink should have a reason

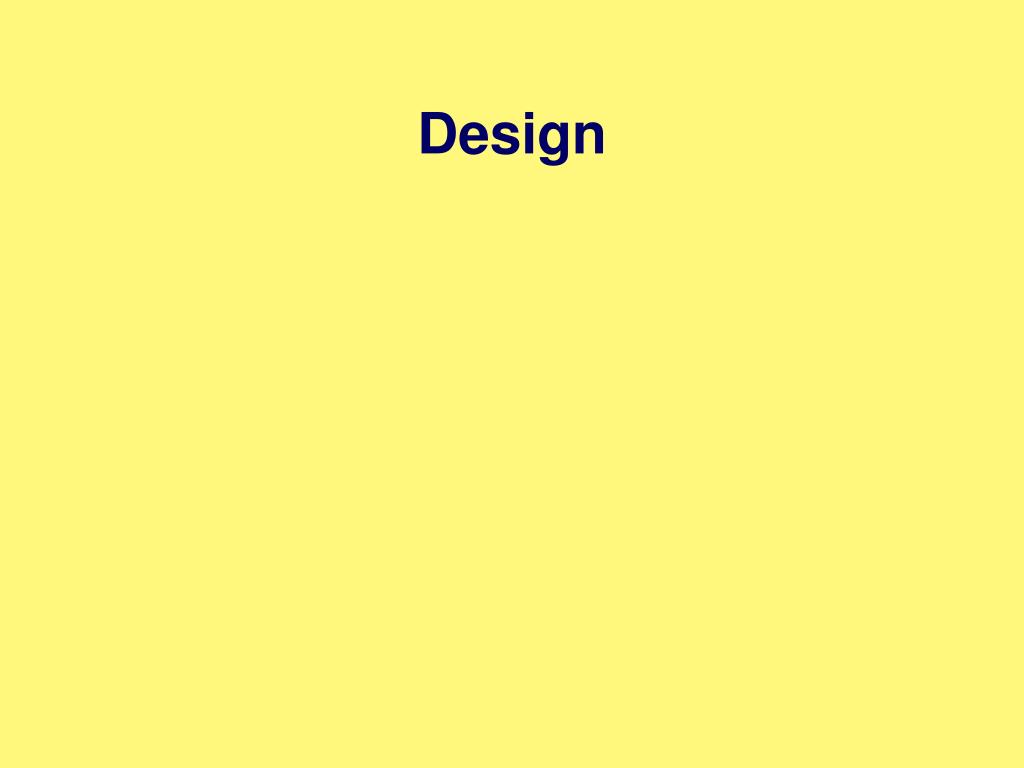

designing graphics
Designing graphics
  • Show the data
  • Use ink for the data
  • Remove unnecessary ink
  • Remove gimmicks
  • No 3D
  • Careful with colours
summary

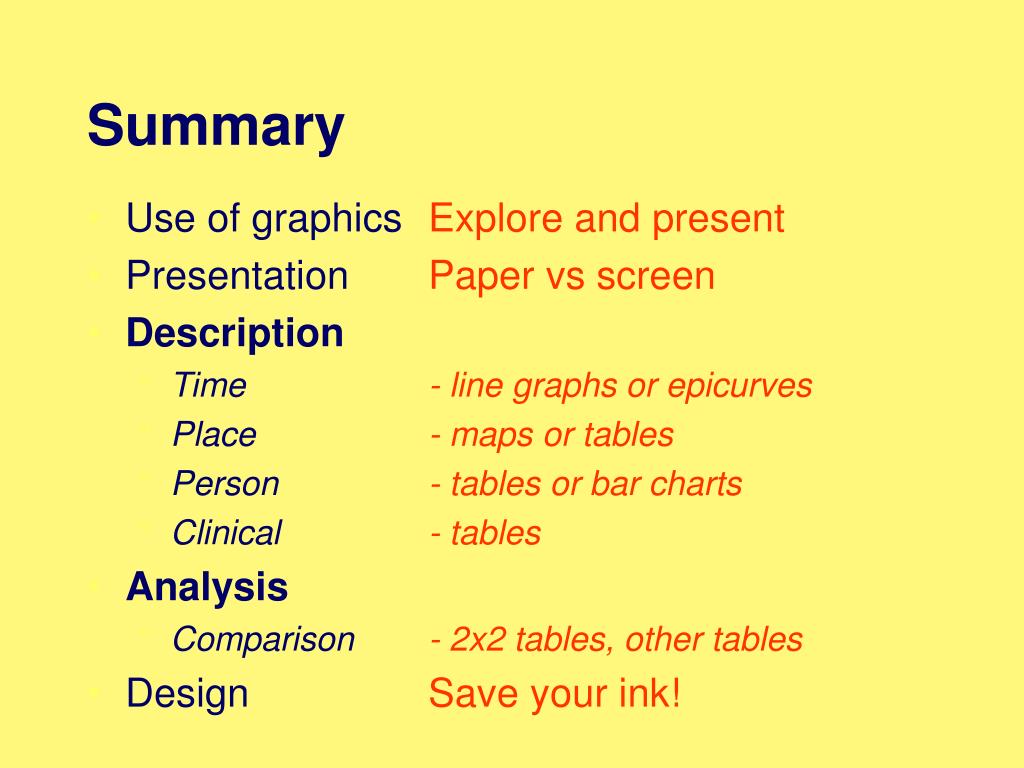

Summary
  • Use of graphics Explore and present
  • PresentationPaper vs screen
  • Description
    • Time - line graphs or epicurves
    • Place - maps or tables
    • Person - tables or bar charts
    • Clinical - tables
  • Analysis
    • Comparison - 2x2 tables, other tables
  • Design Save your ink!
