Optimizing Particle Bunch Compression in Gaussian Stacking Scenario

This study explores optimizing particle bunch compression using stacked Gaussians. Four Gaussians with σ=2.3 ps and 1.4 ps separation result in FWHM of 13.0 ps, RMS of 4.3 ps, and spot size of 1.2 mm RMS. The scenario achieves 3.5E-6 emittance, ±3.2% dp/p (FW), and RMS bunch length of 320 µm post-compression without a 3rd harmonic cavity. Additionally, four Gaussians with σ=2.3 ps and 2.3 ps separation achieve FWHM of 20.8 ps and RMS of 6.4 ps. The use of an Irised Gaussian with σ=2.85 mm and iris of 4.8 mm diameter reduces intensity by 30% while resulting in a phase space density variation of ±17.5%.

allegra-hatfield
Download Presentation

Optimizing Particle Bunch Compression in Gaussian Stacking Scenario

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

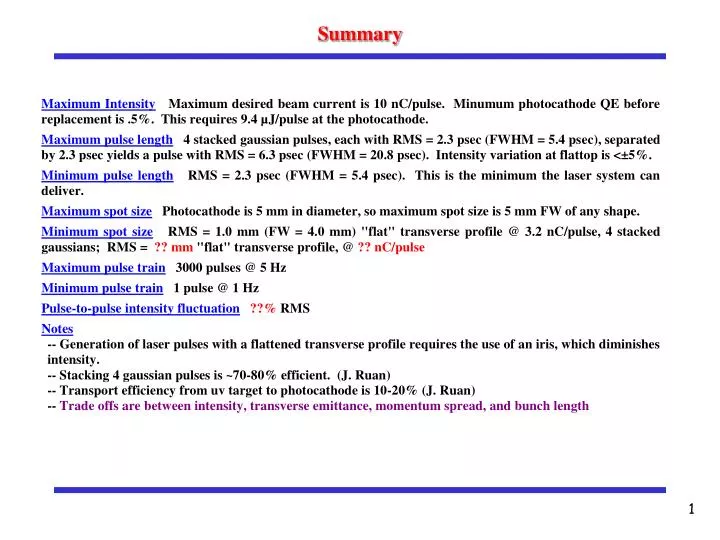

  1. Summary

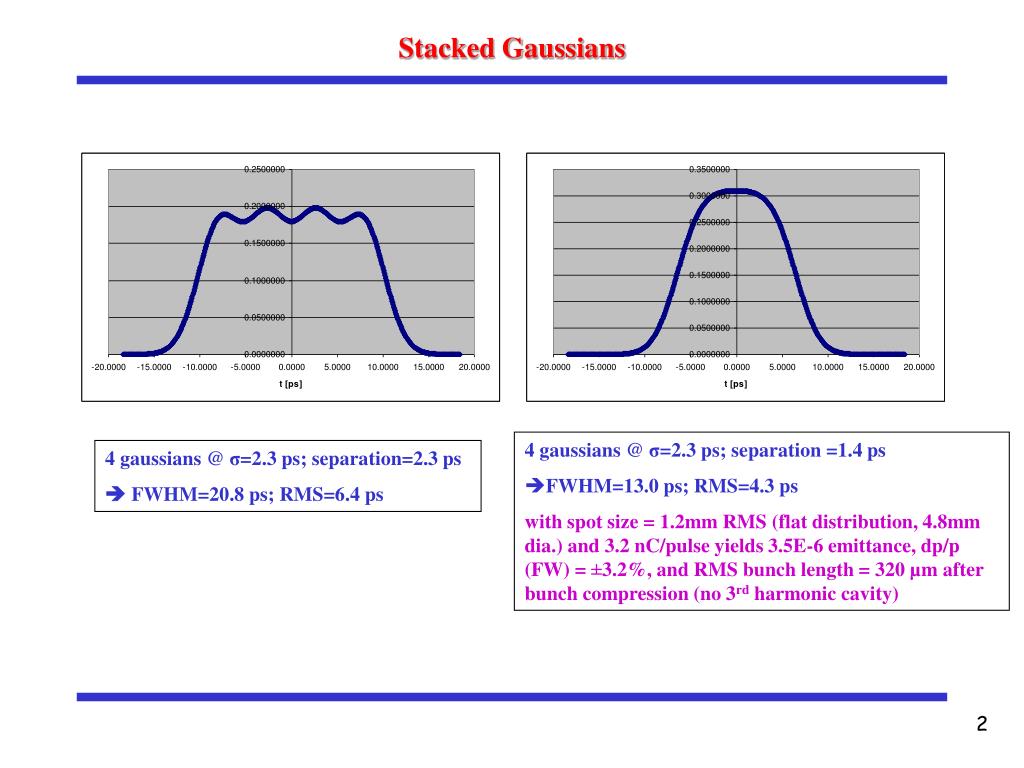

  2. Stacked Gaussians • 4 gaussians @ σ=2.3 ps; separation =1.4 ps • FWHM=13.0 ps; RMS=4.3 ps with spot size = 1.2mm RMS (flat distribution, 4.8mm dia.) and 3.2 nC/pulse yields 3.5E-6 emittance, dp/p (FW) = ±3.2%, and RMS bunch length = 320 µm after bunch compression (no 3rd harmonic cavity) 4 gaussians @ σ=2.3 ps; separation=2.3 ps  FWHM=20.8 ps; RMS=6.4 ps

  3. Irised Gaussian σ = 2.85mm; iris = 4.8mm dia  intensity reduced to 30%; phase space density variation of ±17.5%
