Presentation Transcript

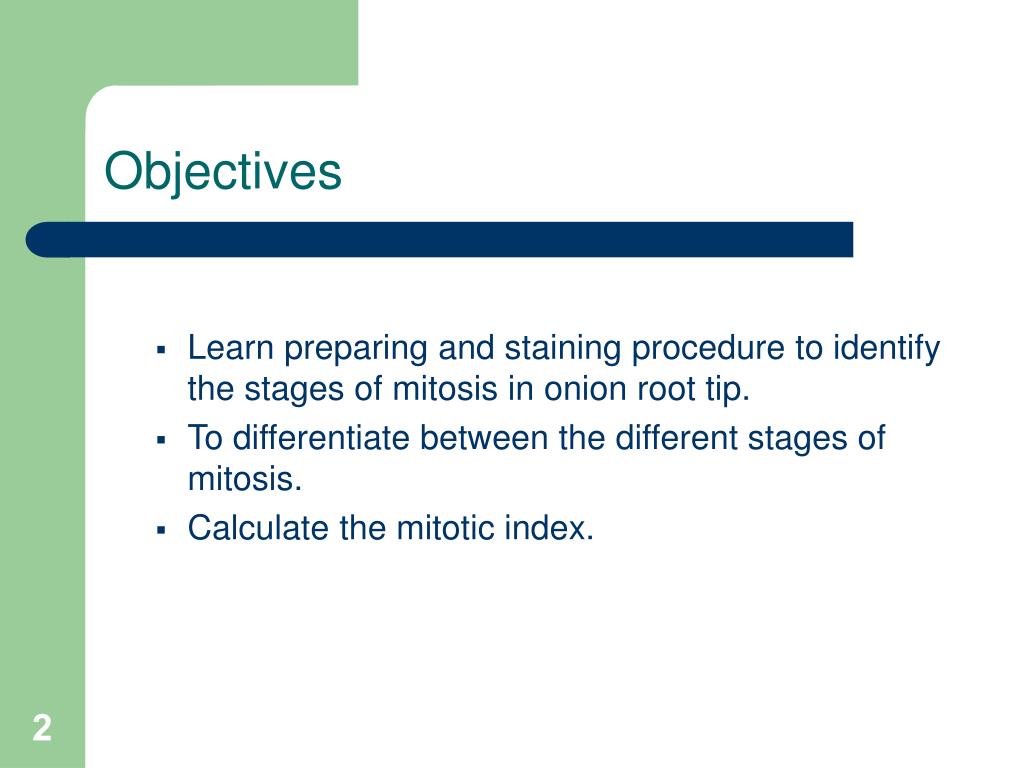

  • Learn preparing and staining procedure to identify the stages of mitosis in onion root tip.
  • To differentiate between the different stages of mitosis.
  • Calculate the mitotic index.
types of cell division

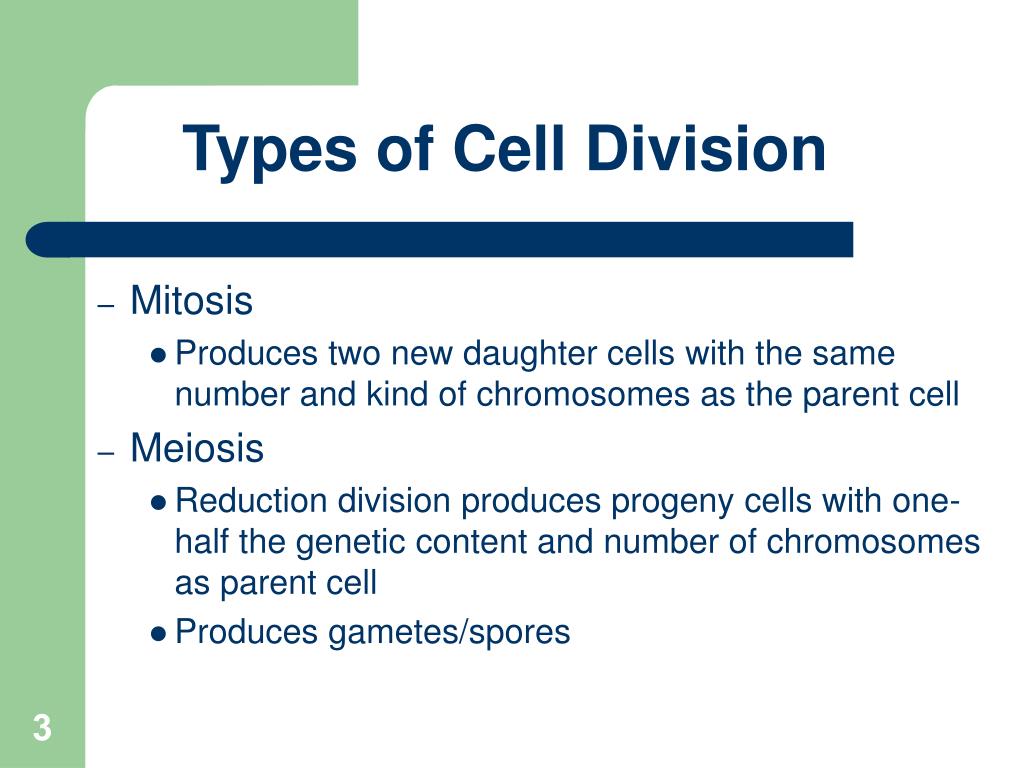

Types of Cell Division
  • Mitosis
    • Produces two new daughter cells with the same number and kind of chromosomes as the parent cell
  • Meiosis
    • Reduction division produces progeny cells with one-half the genetic content and number of chromosomes as parent cell
    • Produces gametes/spores

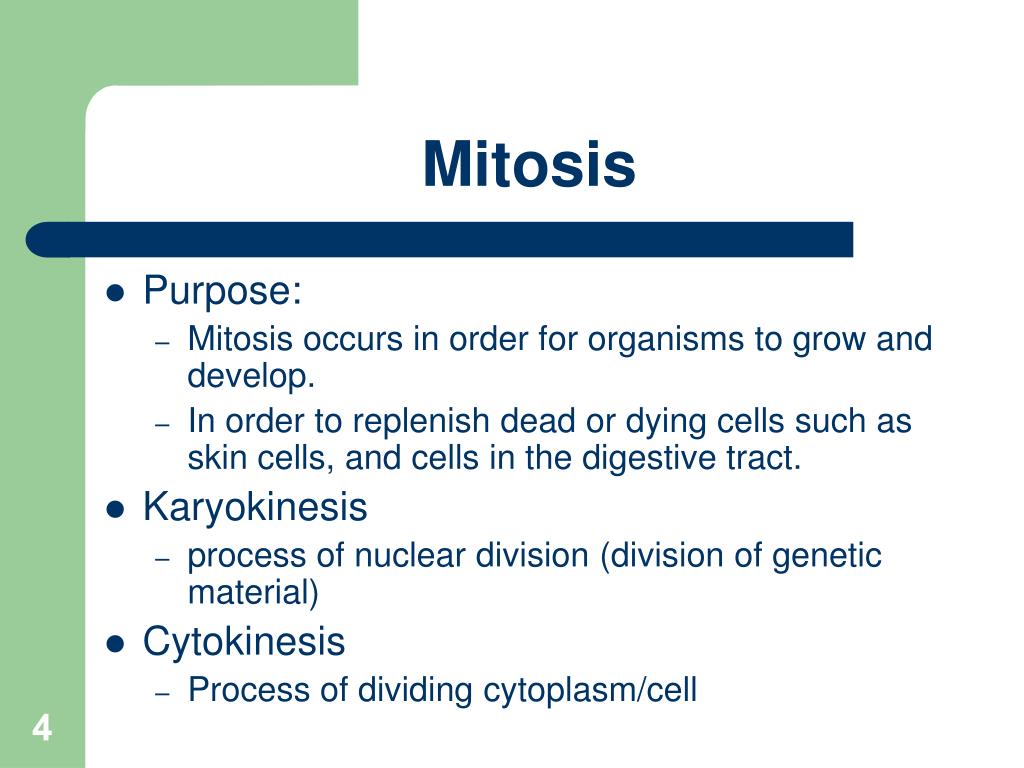

  • Purpose:
    • Mitosis occurs in order for organisms to grow and develop.
    • In order to replenish dead or dying cells such as skin cells, and cells in the digestive tract.
  • Karyokinesis
    • process of nuclear division (division of genetic material)
  • Cytokinesis
    • Process of dividing cytoplasm/cell
the cell cycle

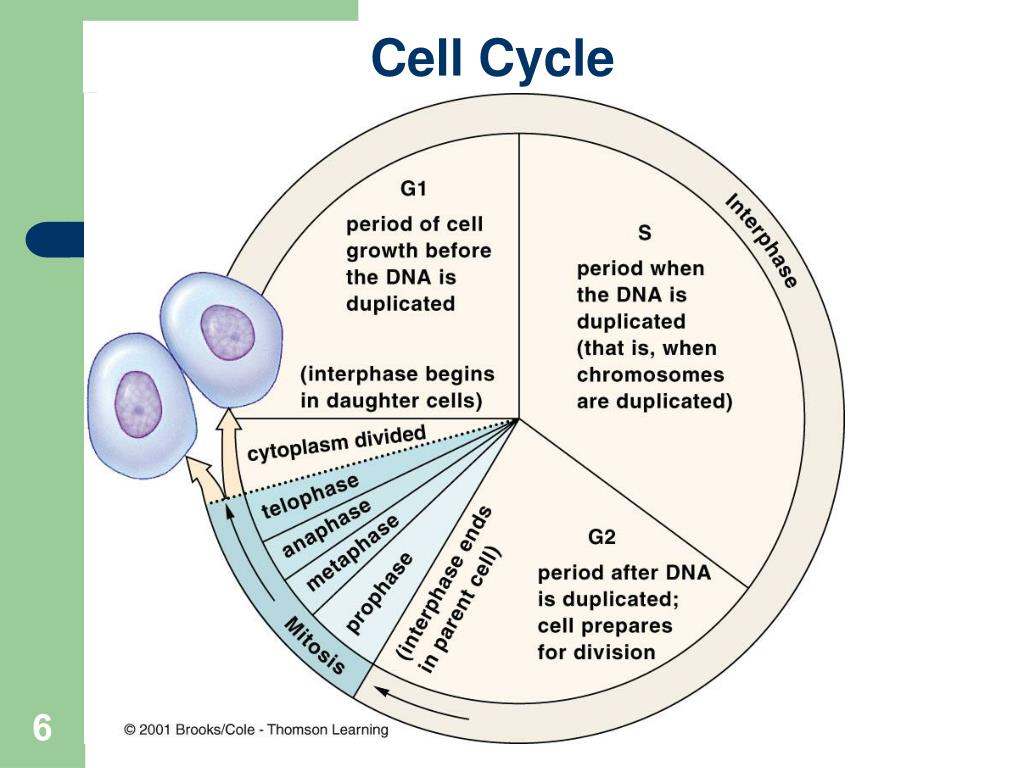

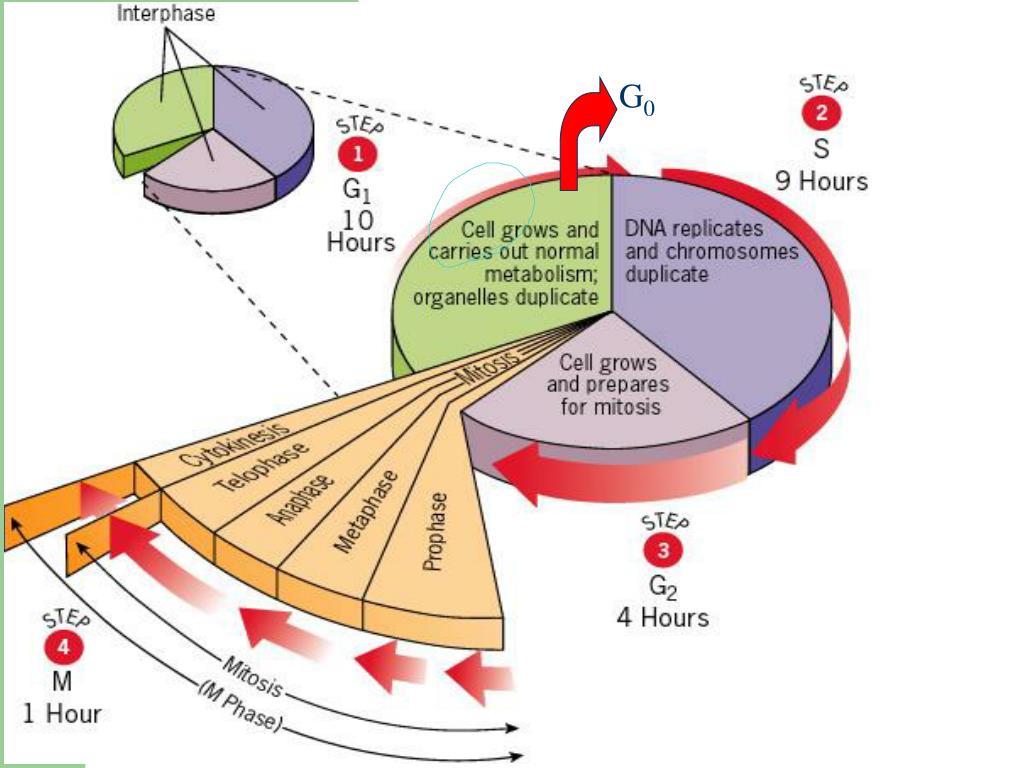

The Cell Cycle
  • The life of a cell is divided into three stages known as the cell cycle:

1. Interphase:

cell carries out normal functions and prepares to divide

2. Mitosis:

nucleus divides splits into two

3. Cytokinesis:

cell and contents divide into two daughter cells.

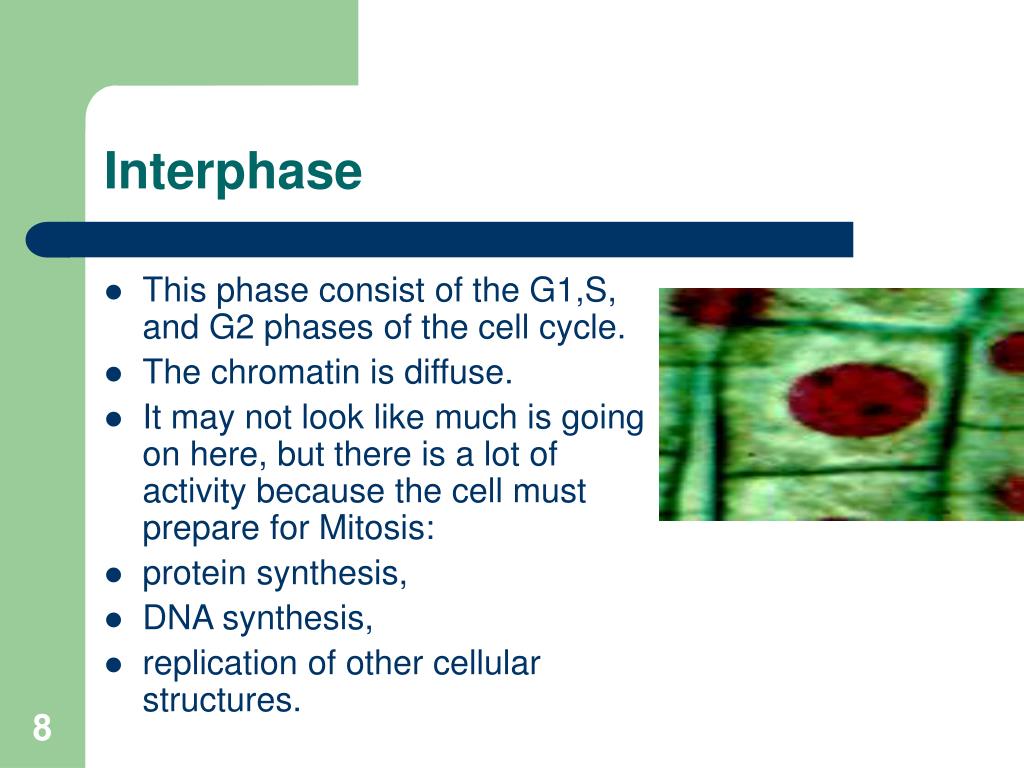

  • This phase consist of the G1,S, and G2 phases of the cell cycle.
  • The chromatin is diffuse.
  • It may not look like much is going on here, but there is a lot of activity because the cell must prepare for Mitosis:
  • protein synthesis,
  • DNA synthesis,
  • replication of other cellular structures.

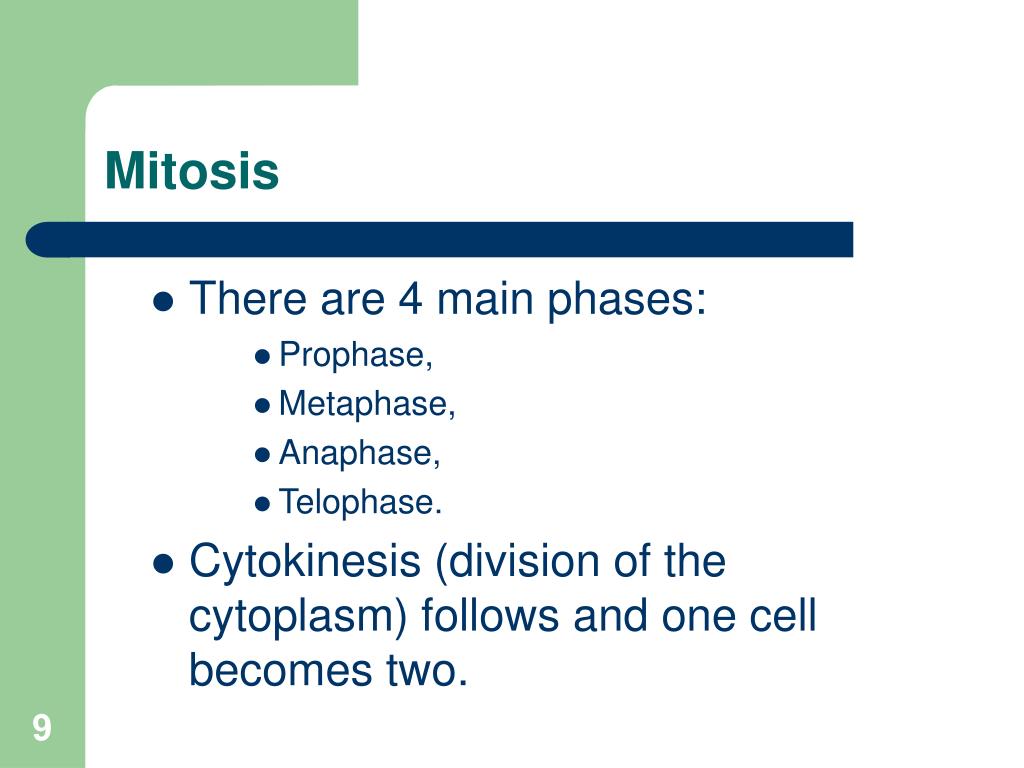

  • There are 4 main phases:
      • Prophase,
      • Metaphase,
      • Anaphase,
      • Telophase.
  • Cytokinesis (division of the cytoplasm) follows and one cell becomes two.
mitosis prophase

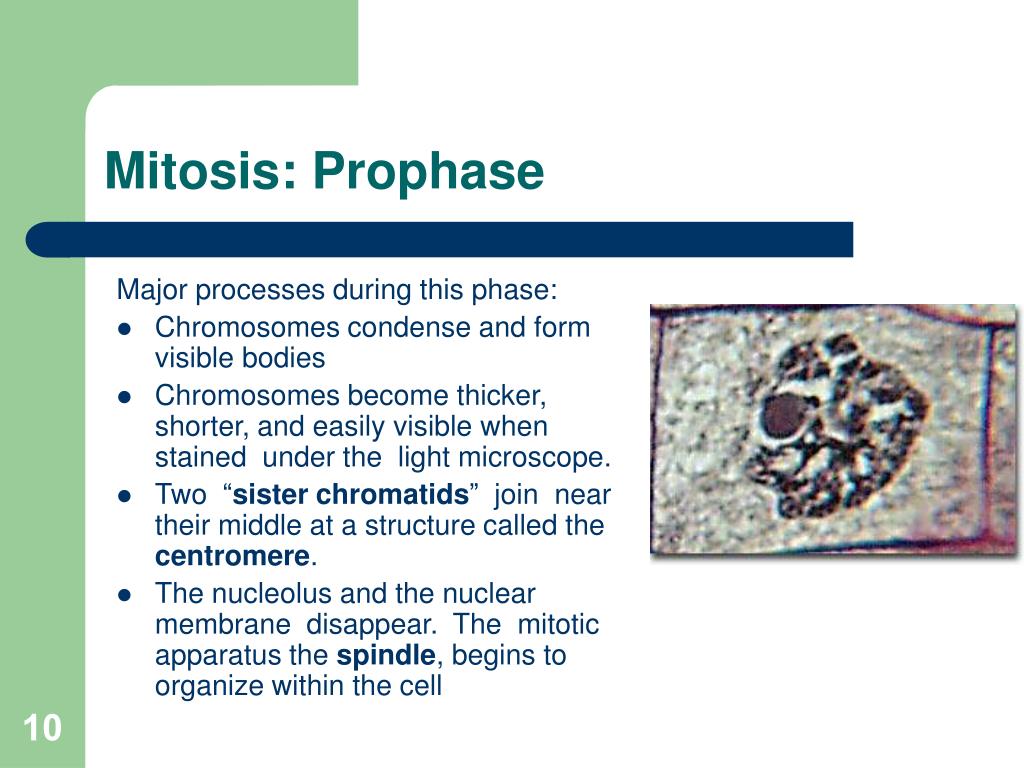

Mitosis: Prophase

Major processes during this phase:

  • Chromosomes condense and form visible bodies
  • Chromosomes become thicker, shorter, and easily visible when stained under the light microscope.
  • Two “sister chromatids” join near their middle at a structure called the centromere.
  • The nucleolus and the nuclear membrane disappear. The mitotic apparatus the spindle, begins to organize within the cell
mitosis metaphase

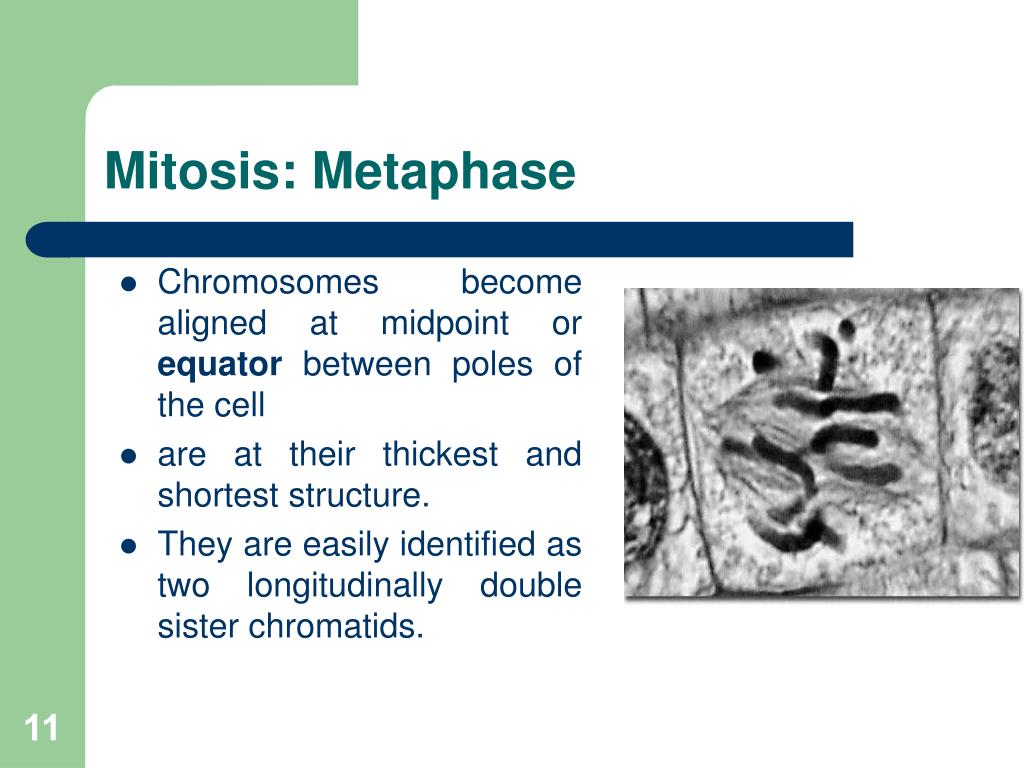

Mitosis: Metaphase
  • Chromosomes become aligned at midpoint or equator between poles of the cell
  • are at their thickest and shortest structure.
  • They are easily identified as two longitudinally double sister chromatids.
mitosis anaphase
Mitosis: Anaphase
  • The centromere replicates and splits
  • The sister chromatids separate and are pulled to opposite sides of the cell
mitosis telophase

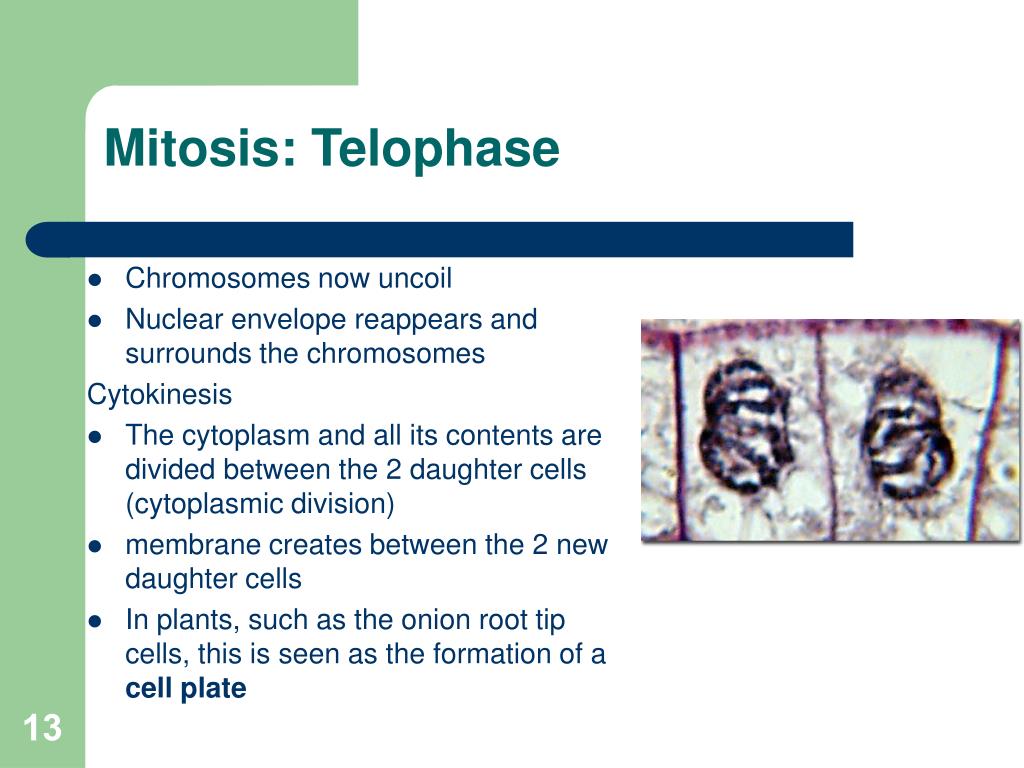

Mitosis: Telophase
  • Chromosomes now uncoil
  • Nuclear envelope reappears and surrounds the chromosomes


  • The cytoplasm and all its contents are divided between the 2 daughter cells (cytoplasmic division)
  • membrane creates between the 2 new daughter cells
  • In plants, such as the onion root tip cells, this is seen as the formation of a cell plate
mitosis in root tip

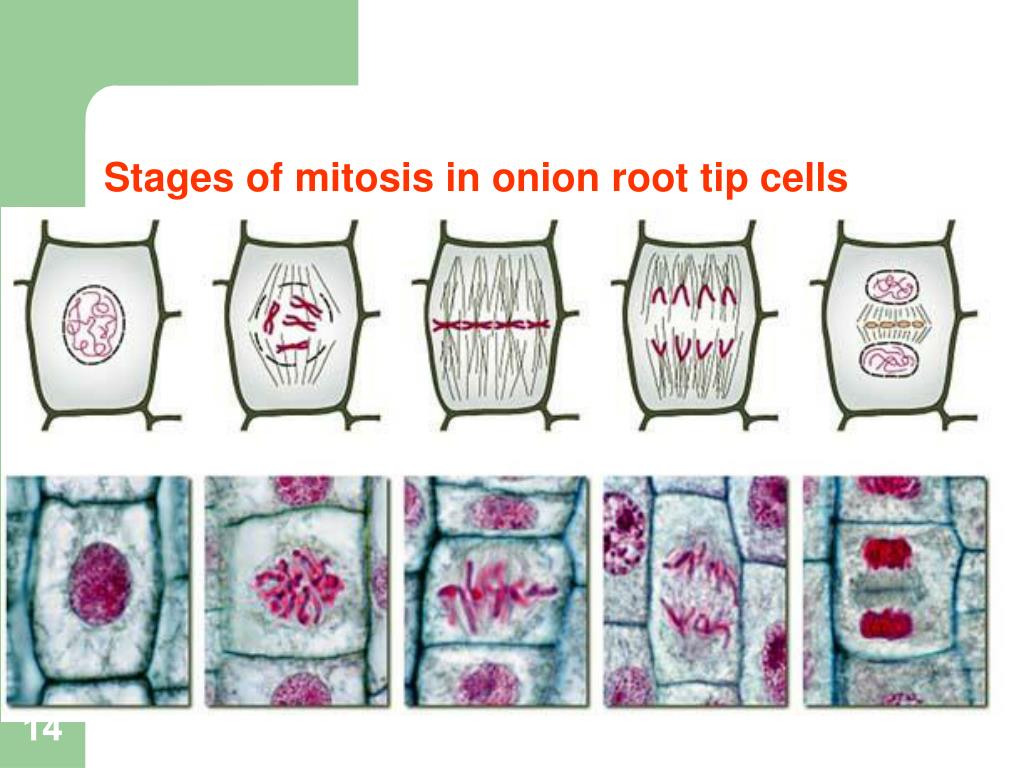

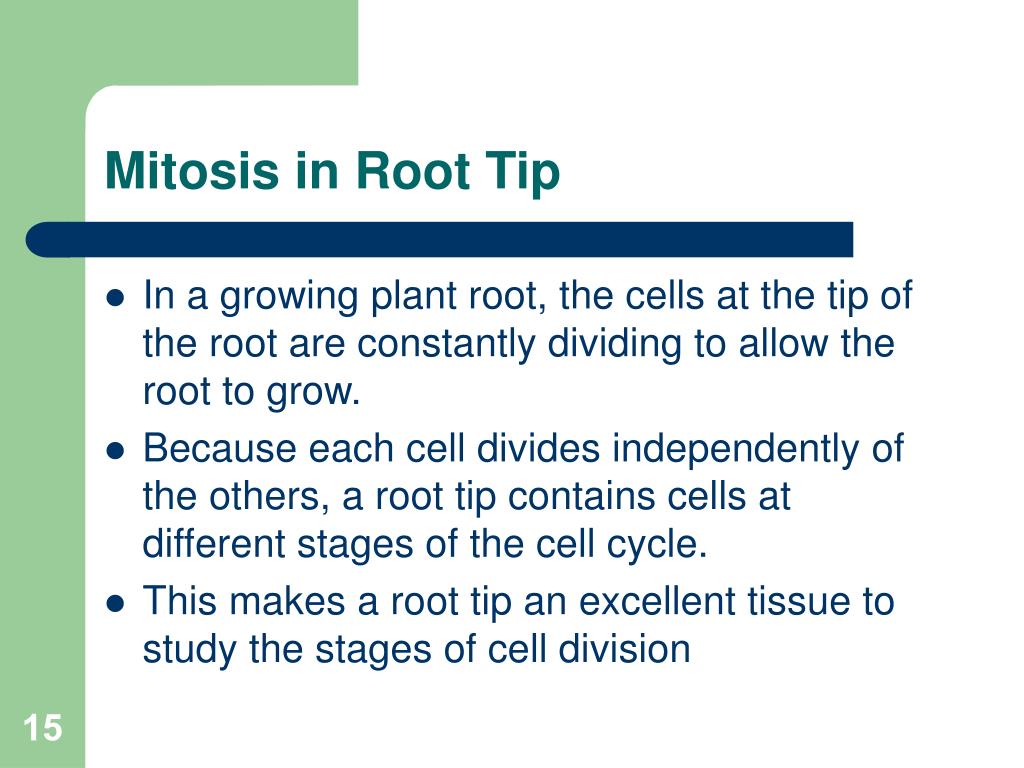

Mitosis in Root Tip
  • In a growing plant root, the cells at the tip of the root are constantly dividing to allow the root to grow.
  • Because each cell divides independently of the others, a root tip contains cells at different stages of the cell cycle.
  • This makes a root tip an excellent tissue to study the stages of cell division

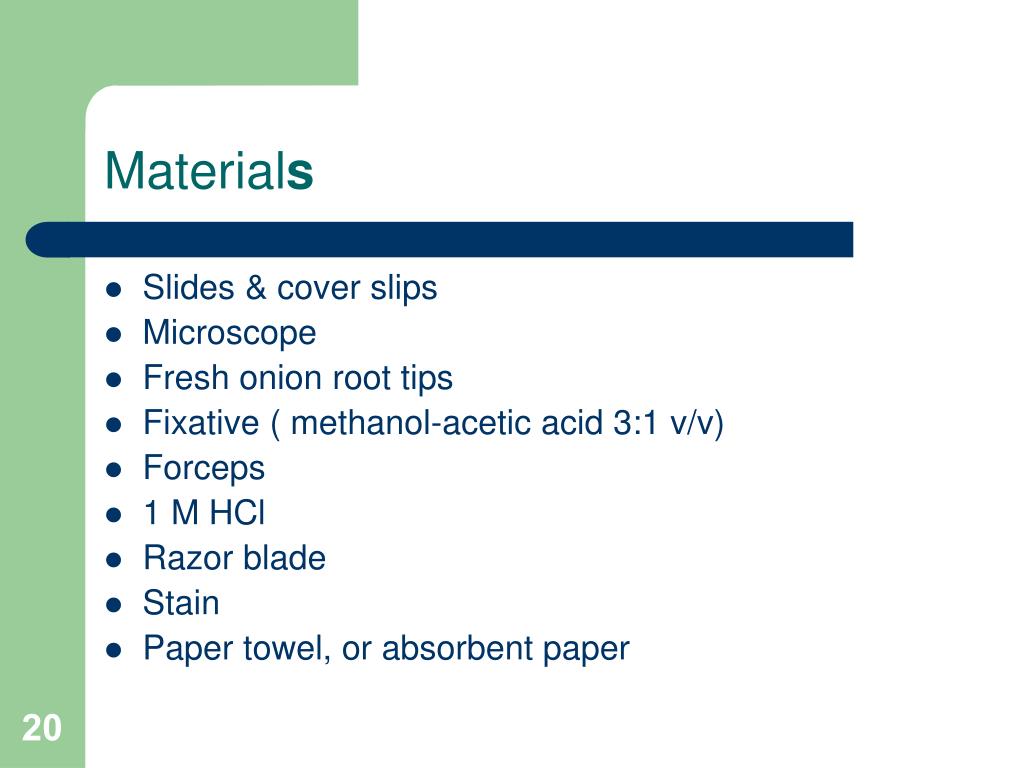

material s
  • Slides & cover slips
  • Microscope
  • Fresh onion root tips
  • Fixative ( methanol-acetic acid 3:1 v/v)
  • Forceps
  • 1 M HCl
  • Razor blade
  • Stain
  • Paper towel, or absorbent paper

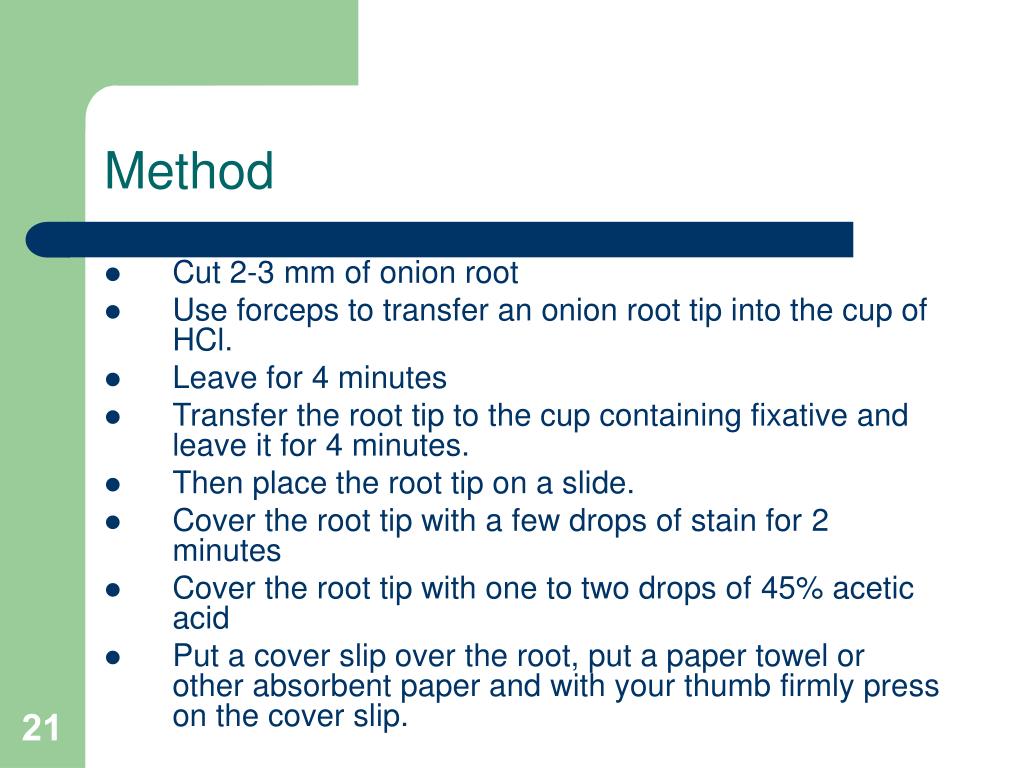

  • Cut 2-3 mm of onion root
  • Use forceps to transfer an onion root tip into the cup of HCl.
  • Leave for 4 minutes
  • Transfer the root tip to the cup containing fixative and leave it for 4 minutes.
  • Then place the root tip on a slide.
  • Cover the root tip with a few drops of stain for 2 minutes
  • Cover the root tip with one to two drops of 45% acetic acid
  • Put a cover slip over the root, put a paper towel or other absorbent paper and with your thumb firmly press on the cover slip.
Observe your preparation under the low power (X10) of a microscope

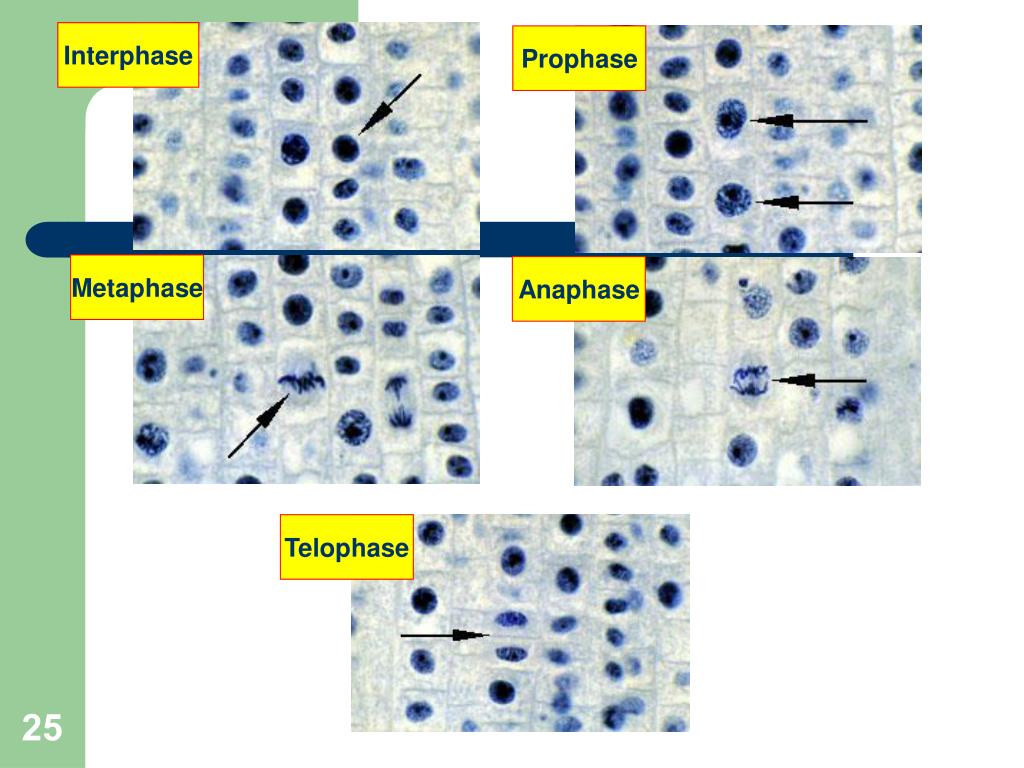

  • Search the slide to find cells in various stages of cell division, once you have located cells in division, change to high power (X40) & try to observe several stages of division.
  • Record the number of cells in each stage. Count at least three full fields of view. You should have counted over 200 cells.
  • Record your data in the table
  • Calculate the percentage of cells in each phase and record in the table
mitotic index
Mitotic index
  • A measure for the proliferation status of a cell population.
  • It is defined as the ratio between the number ofcellsinmitosisand the total number of cells.
