4 Bit Serial to Parallel Data Stream Converter. Vinaya Anne Kristy Lypen Michael Scheel Victor Zavaleta. Design Specifications . Convert a serial data stream every 4 clock cycles to a 4 bit parallel stream Operate at the positive edge of the clock Drive a 10pF load at 25MHz

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about '4 Bit Serial to Parallel Data Stream Converter' - alika


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
4 bit serial to parallel data stream converter

4 Bit Serial to Parallel Data Stream Converter

Vinaya Anne

Kristy Lypen

Michael Scheel

Victor Zavaleta

design specifications
Design Specifications
  • Convert a serial data stream every 4 clock cycles to a 4 bit parallel stream
  • Operate at the positive edge of the clock
  • Drive a 10pF load at 25MHz
  • Minimize skew
  • Area less than 40mil2
parameters
Parameters

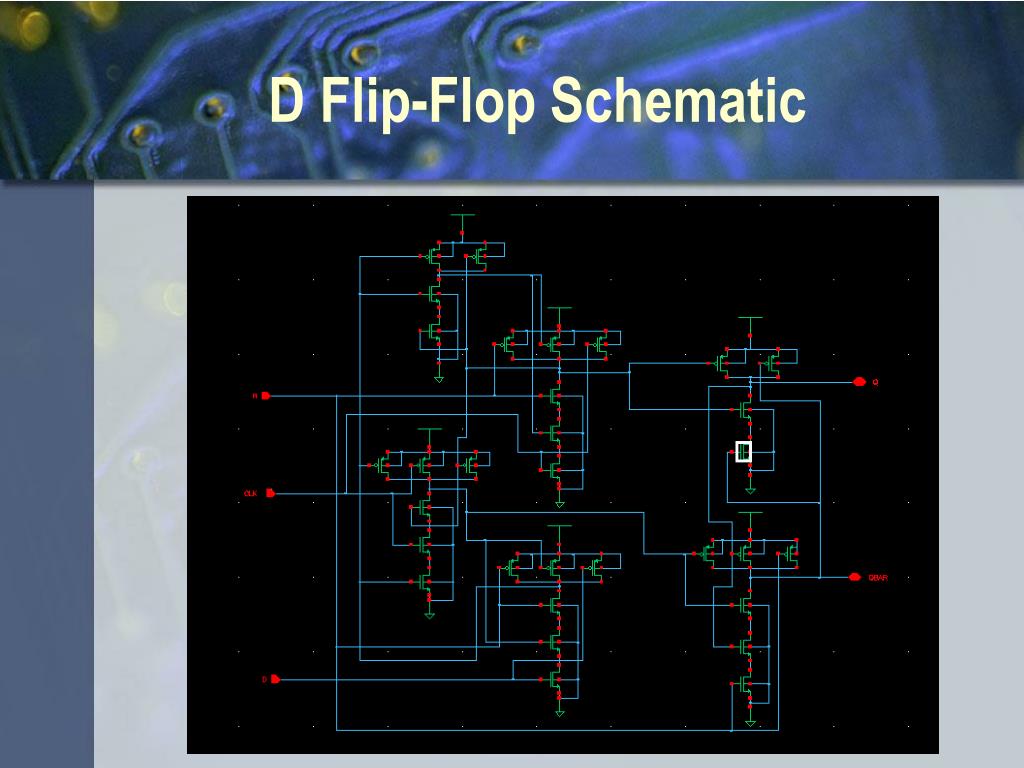

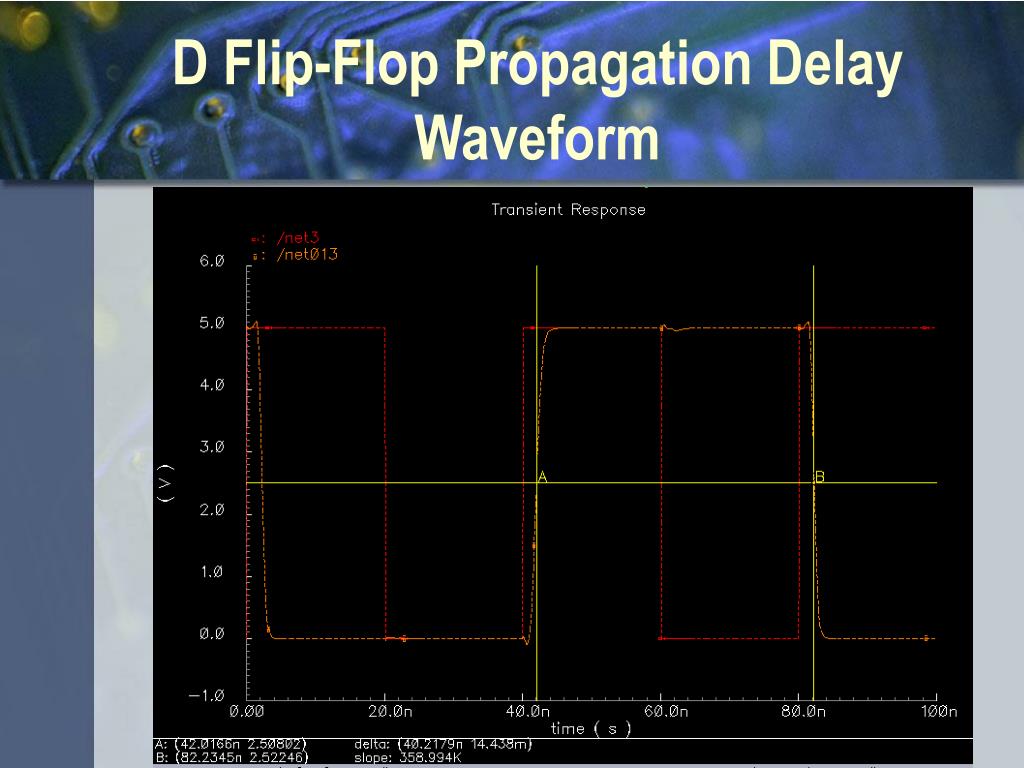

  • D Flip-Flop
    • WnCaclulated = 10.4m m WnActual = 23.2m m
    • WpCaclulated = 27.6m m WpActual = 27.6m m
      • Based on CLoad of Output = 179f F

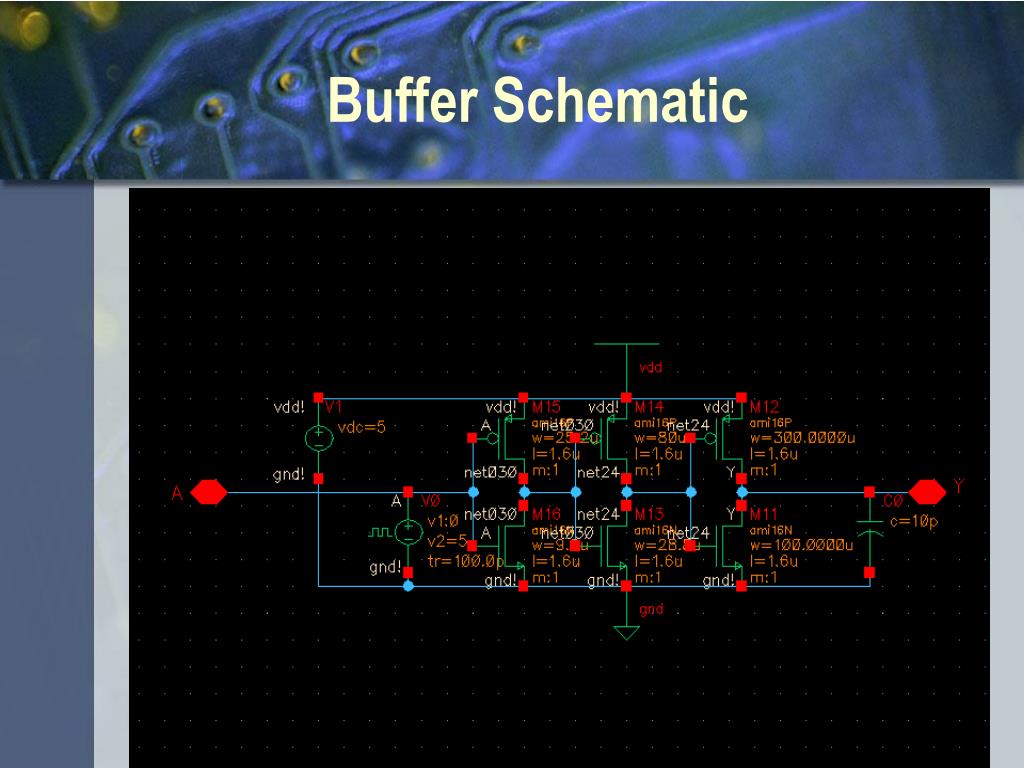

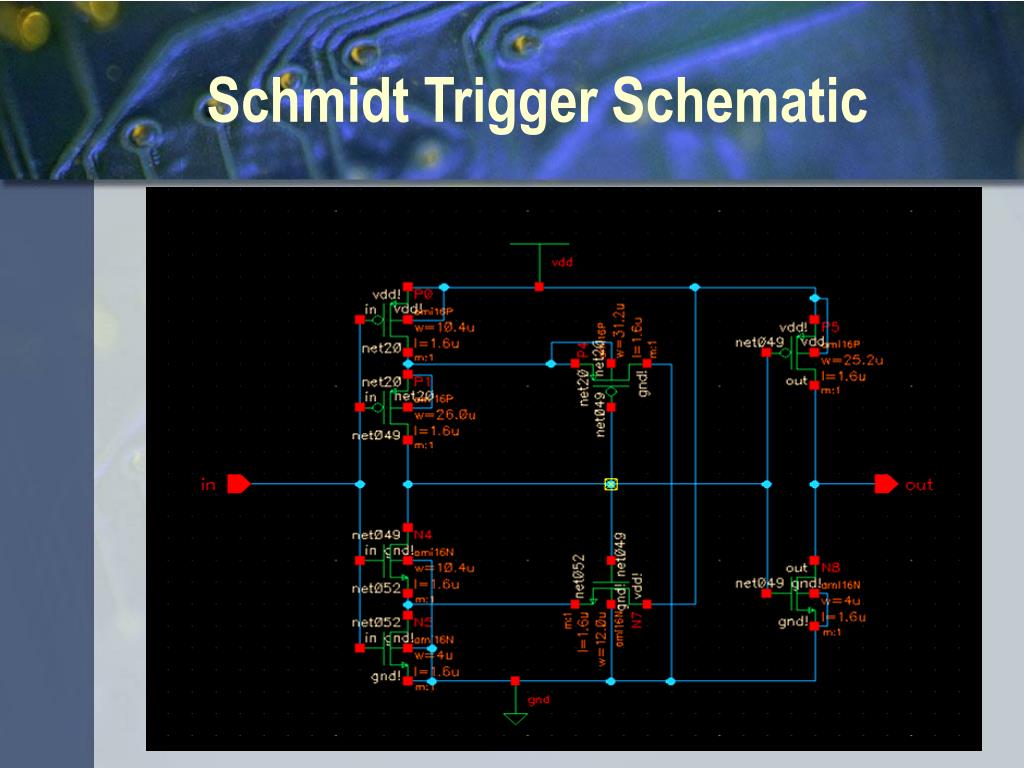

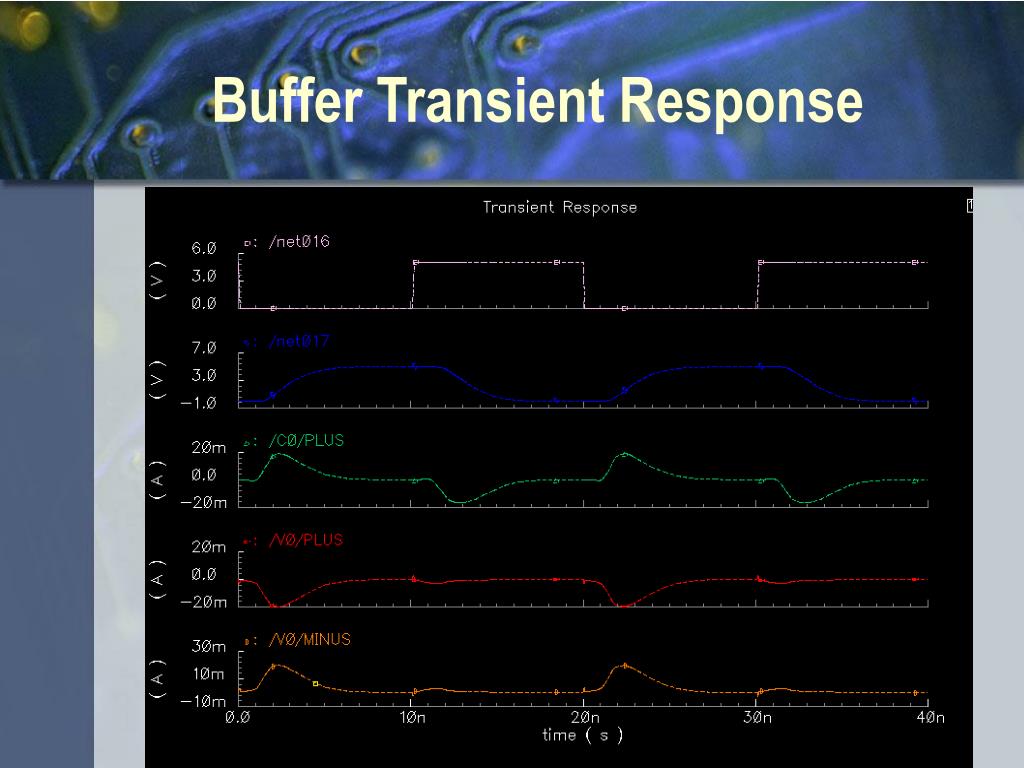

  • Buffer

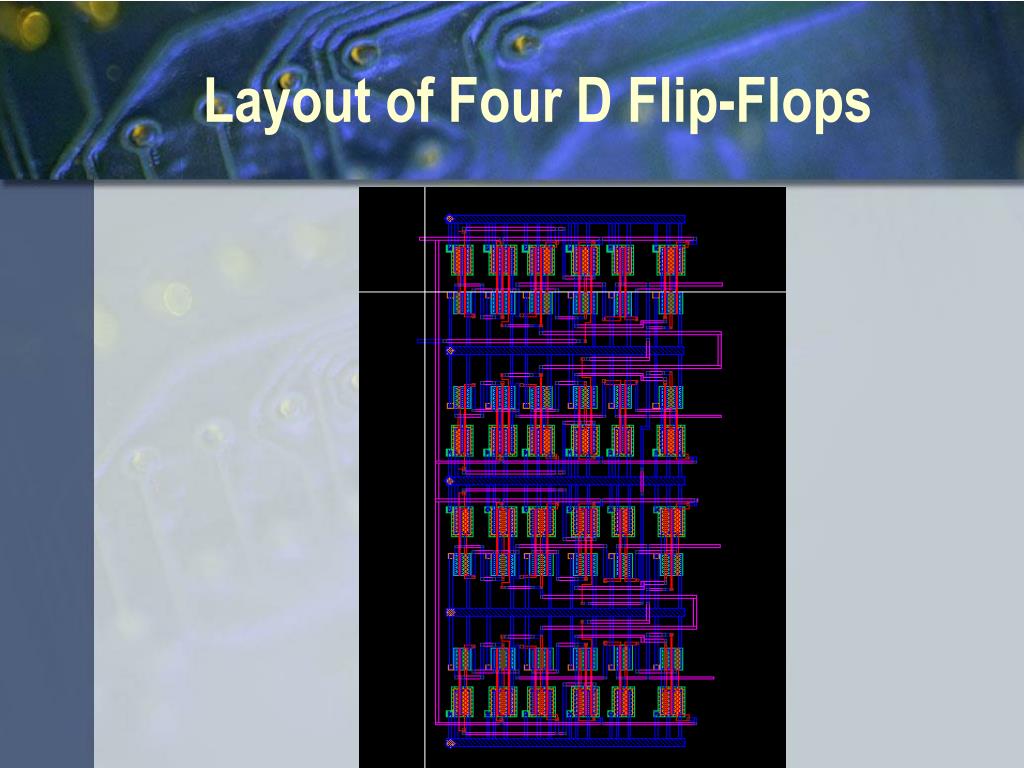

  • Total Area: 1750 x 600 mm Power: 400mW

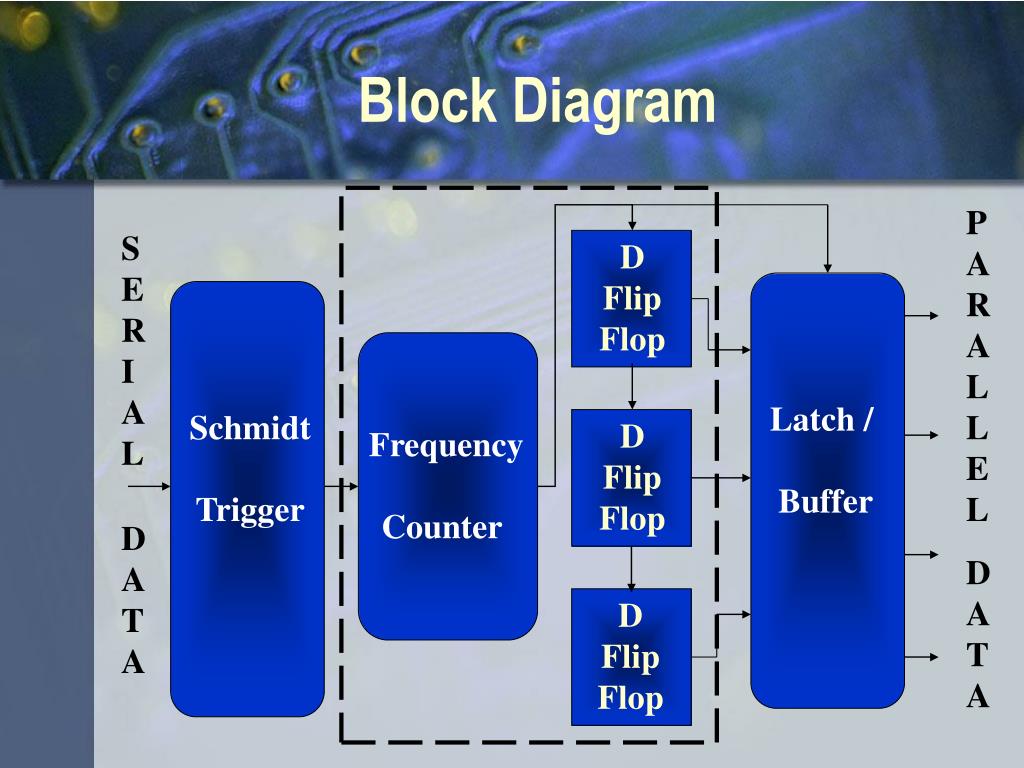

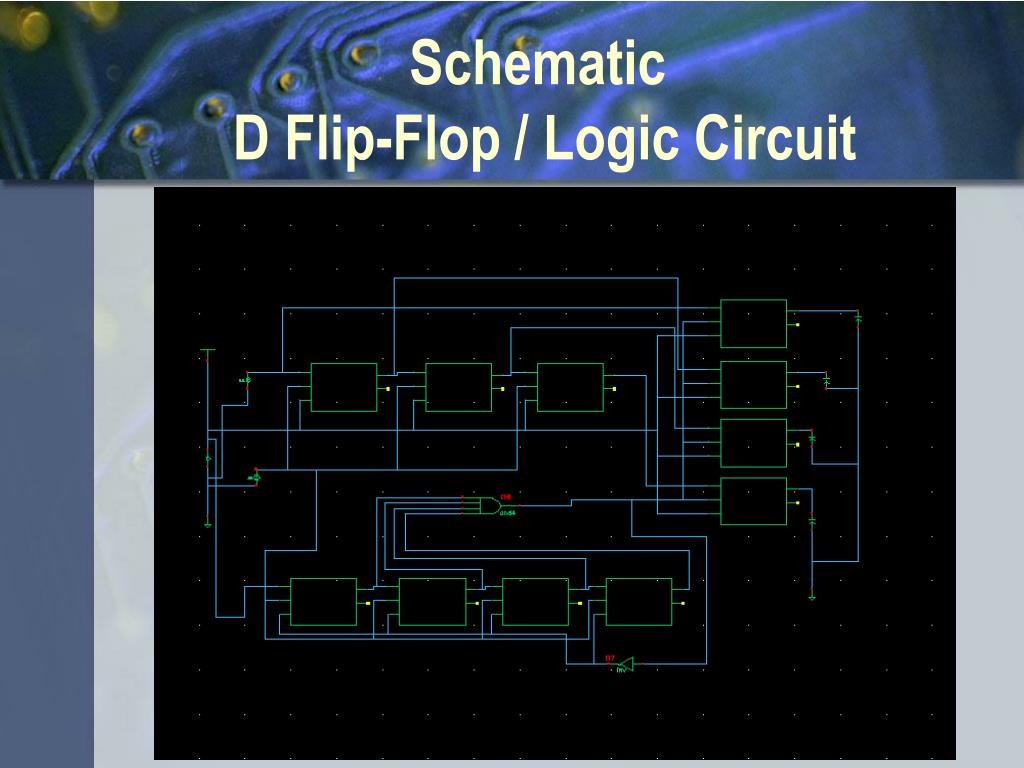

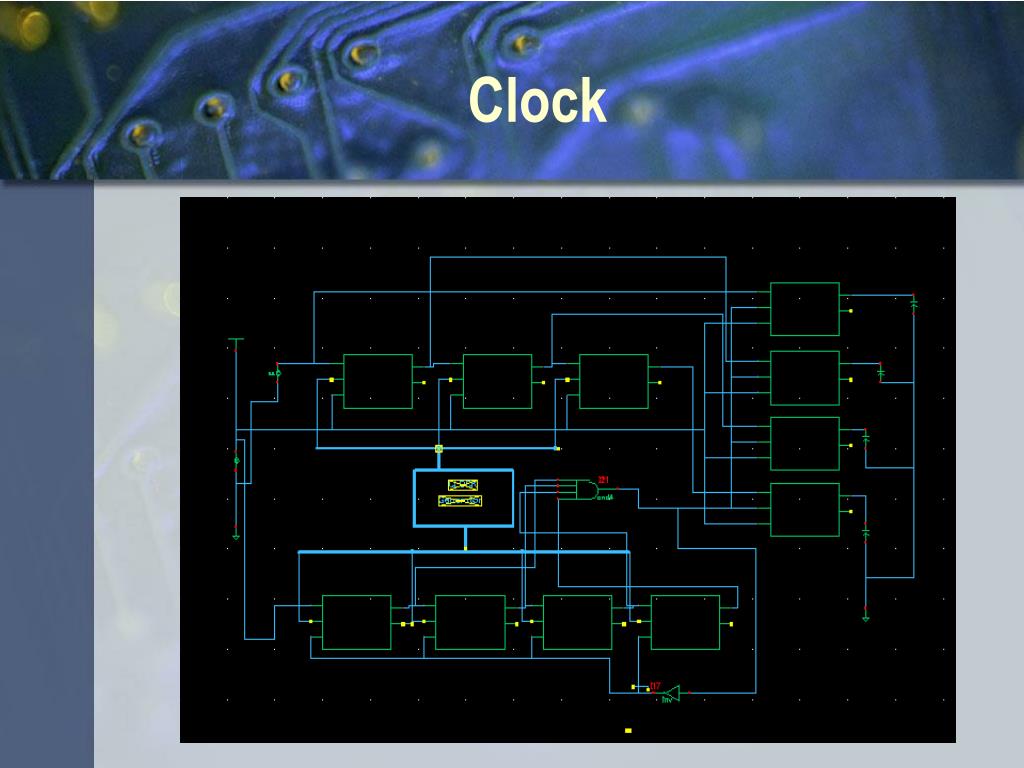

block diagram
