  1. GraphGamegg005-Cam Kamera, 3D, transzformációk SzécsiLászló

  2. Egg bővítése • Math.zip kibontása az Egg projectkönyvtárba • float2, foat3, float4 típusok, HLSL-ben megszokott műveletekkel • float4x4 típus • Cam.zip kibontása az Egg projectkönyvtárba • Egg::Cam::Base – kamera interface • Egg::Cam::FirstPerson – WASD + egér • Math, Cam filterek létrehozása, forrásfileok hozzáadása az Egg projecthez

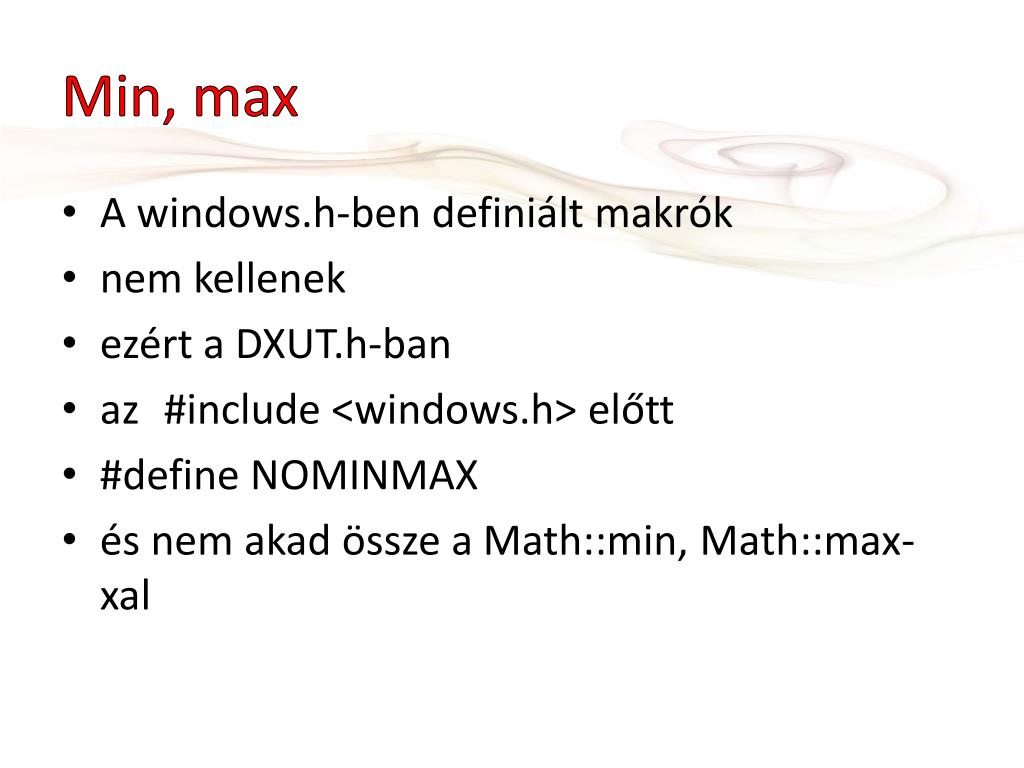

  3. Min, max • A windows.h-ben definiált makrók • nem kellenek • ezért a DXUT.h-ban • az #include <windows.h> előtt • #define NOMINMAX • és nem akad össze a Math::min, Math::max-xal

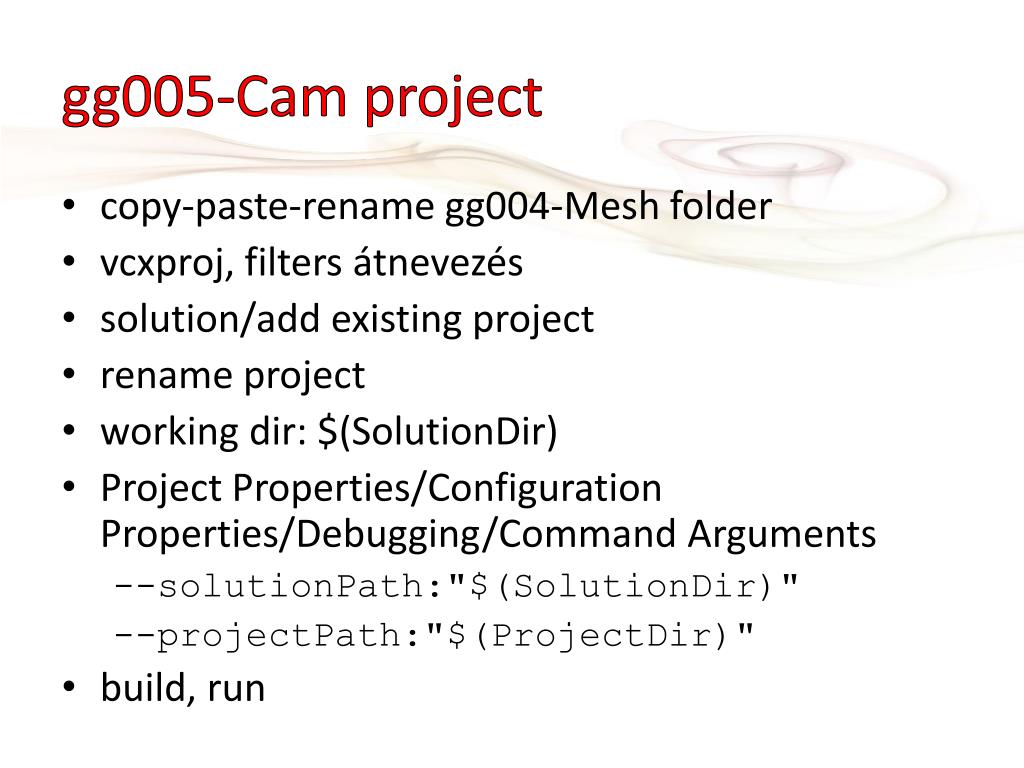

  4. gg005-Cam project • copy-paste-rename gg004-Mesh folder • vcxproj, filters átnevezés • solution/add existing project • rename project • working dir: $(SolutionDir) • Project Properties/ConfigurationProperties/Debugging/CommandArguments --solutionPath:"$(SolutionDir)" --projectPath:"$(ProjectDir)" • build, run

  5. Game osztályba • #include "Cam/FirstPerson.h" • Egg::Cam::FirstPerson::P firstPersonCam; • firstPersonCam = Egg::Cam::FirstPerson::create(); • void animate(double dt, double t); • boolprocessMessage( HWND hWnd, • UINT uMsg, WPARAM wParam, LPARAM lParam);

  6. Game.cpp void Game::animate(double dt, double t) { if(!firstPersonCam) return; firstPersonCam->animate(dt); } bool Game::processMessage( HWND hWnd, UINT uMsg, WPARAM wParam, LPARAM lParam) { if(!firstPersonCam) return false; firstPersonCam->processMessage(hWnd, uMsg, wParam, lParam); return false; }

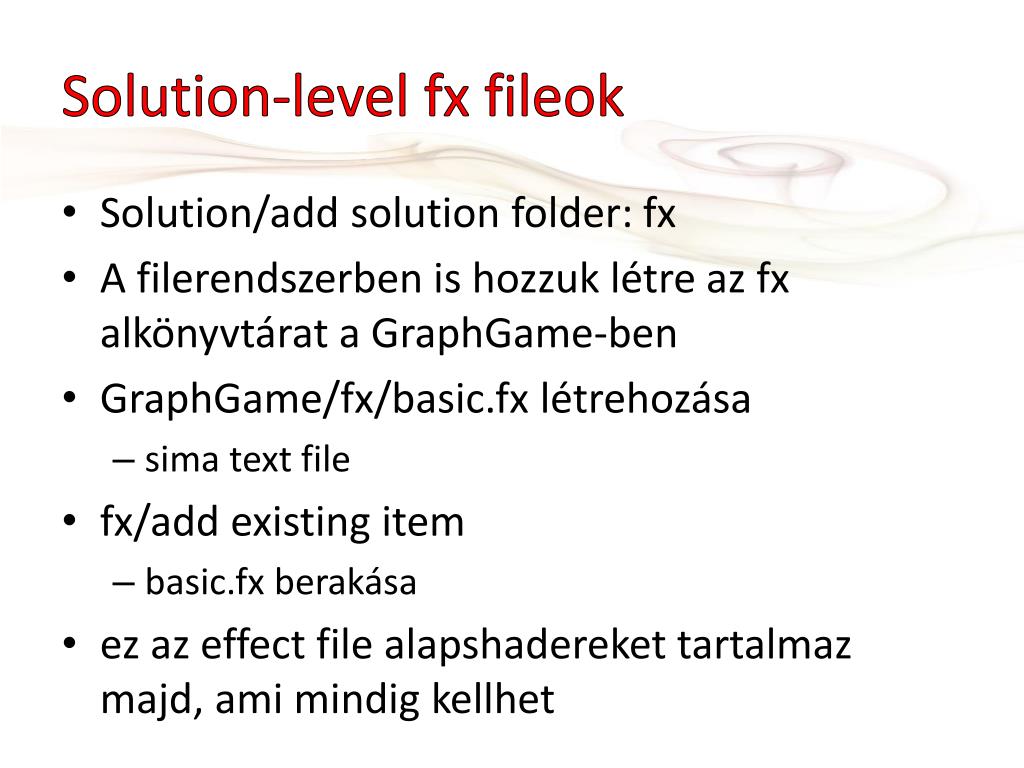

  7. Solution-level fxfileok • Solution/add solution folder: fx • A filerendszerben is hozzuk létre az fxalkönyvtárat a GraphGame-ben • GraphGame/fx/basic.fx létrehozása • sima text file • fx/add existingitem • basic.fx berakása • ez az effect file alapshadereket tartalmaz majd, ami mindig kellhet

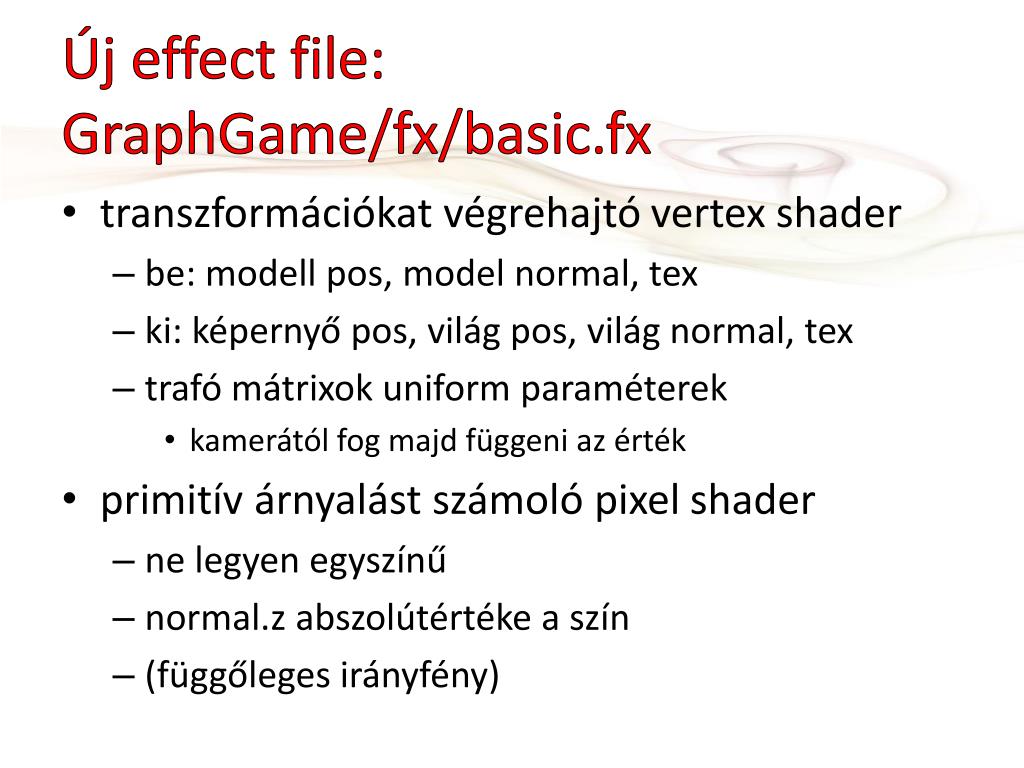

  8. Új effect file: GraphGame/fx/basic.fx • transzformációkat végrehajtó vertexshader • be: modell pos, modelnormal, tex • ki: képernyő pos, világ pos, világnormal, tex • trafó mátrixok uniform paraméterek • kamerától fog majd függeni az érték • primitív árnyalást számoló pixel shader • ne legyen egyszínű • normal.zabszolútértéke a szín • (függőleges irányfény)

  9. #5.0 fx/basic.fx float4x4 modelMatrix; float4x4 modelMatrixInverse; float4x4 modelViewProjMatrix;

  10. #5.1 fx/basic.fx structIaosTrafo { float4 pos: POSITION; float3 normal: NORMAL; float2 tex: TEXCOORD; }; structVsosTrafo { float4 pos: SV_POSITION; float4 worldPos: WORLDPOS; float3 normal: NORMAL; float2 tex: TEXCOORD; };

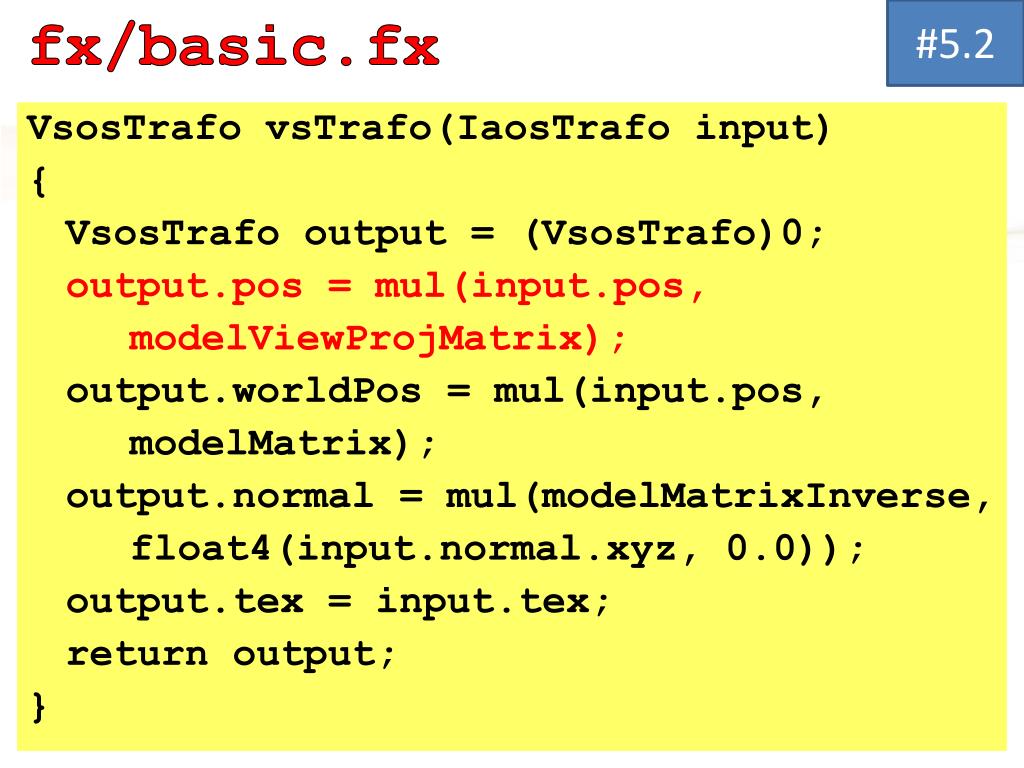

  11. #5.2 fx/basic.fx VsosTrafo vsTrafo(IaosTrafo input) { VsosTrafo output = (VsosTrafo)0; output.pos = mul(input.pos, modelViewProjMatrix); output.worldPos = mul(input.pos, modelMatrix); output.normal = mul(modelMatrixInverse, float4(input.normal.xyz, 0.0)); output.tex = input.tex; return output; }

  12. #5.2 fx/basic.fx float4 psBasic(VsosTrafo input) : SV_Target { return saturate(input.normal).y; }

  13. #5.3 fx/basic.fx technique11 basic { pass basic { SetVertexShader ( CompileShader( vs_5_0, vsTrafo() ) ); SetPixelShader( CompileShader( ps_5_0, psBasic() ) ); } }

  14. #5.3 main.fx #include <basic.fx> // and nothing else

  15. #6.0 Game.cpp ID3DX11EffectPass* idlePass = effect->GetTechniqueByName("idle")->GetPassByName("idle"); Egg::Mesh::Material::P idleMaterial = Egg::Mesh::Material::create(idlePass, 0); ID3DX11EffectPass* basicPass = effect->GetTechniqueByName("basic")->GetPassByName("basic"); Egg::Mesh::Material::P idleMaterial = Egg::Mesh::Material::create(basicPass, 0);

  16. #include "Math/math.h"

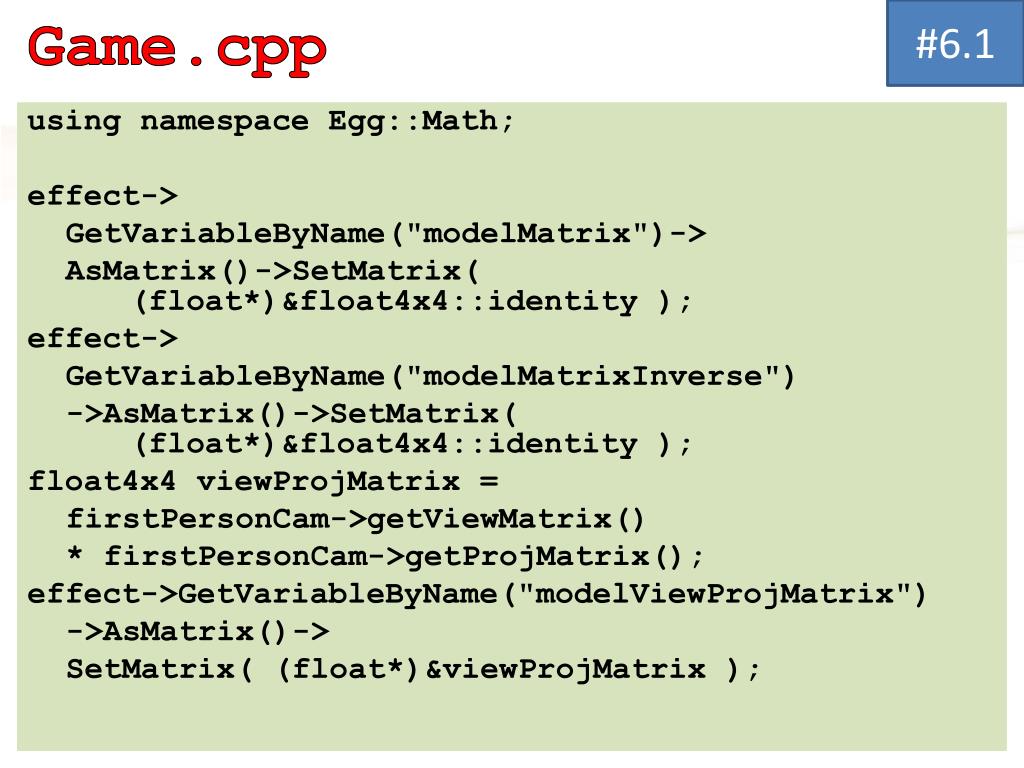

  17. #6.1 Game.cpp using namespace Egg::Math; effect-> GetVariableByName("modelMatrix")-> AsMatrix()->SetMatrix( (float*)&float4x4::identity ); effect-> GetVariableByName("modelMatrixInverse") ->AsMatrix()->SetMatrix( (float*)&float4x4::identity ); float4x4 viewProjMatrix = firstPersonCam->getViewMatrix() * firstPersonCam->getProjMatrix(); effect->GetVariableByName("modelViewProjMatrix") ->AsMatrix()-> SetMatrix( (float*)&viewProjMatrix );

  18. Itttartunk, kameramozgatható

  19. Torz a kép – átmeretezéskor camera proj frissítése kell

  20. #6.1 main.cpp HRESULT CALLBACK OnD3D11ResizedSwapChain( ID3D11Device* pd3dDevice, IDXGISwapChain* pSwapChain, const DXGI_SURFACE_DESC* pBackBufferSurfaceDesc, void* pUserContext ) { app->setSwapChain(pSwapChain, pBackBufferSurfaceDesc); app->createSwapChainResources(); return S_OK; }

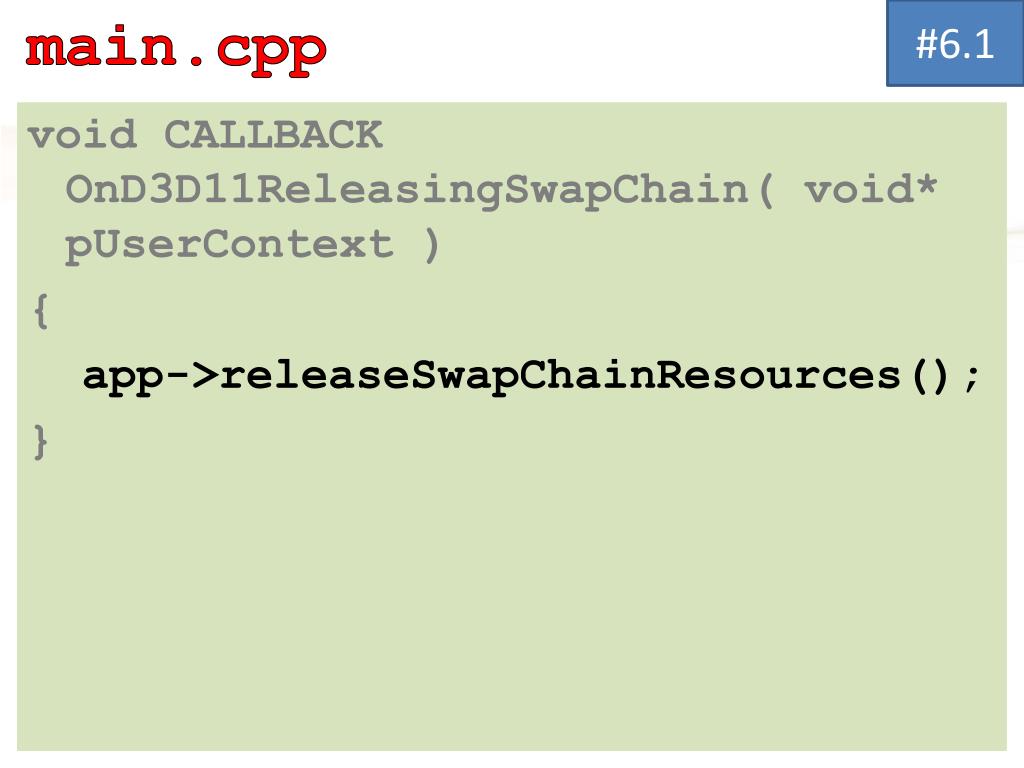

  21. #6.1 main.cpp void CALLBACK OnD3D11ReleasingSwapChain( void* pUserContext ) { app->releaseSwapChainResources(); }

  22. #6.1 Game.h HRESULT createSwapChainResources(); HRESULT releaseSwapChainResources();

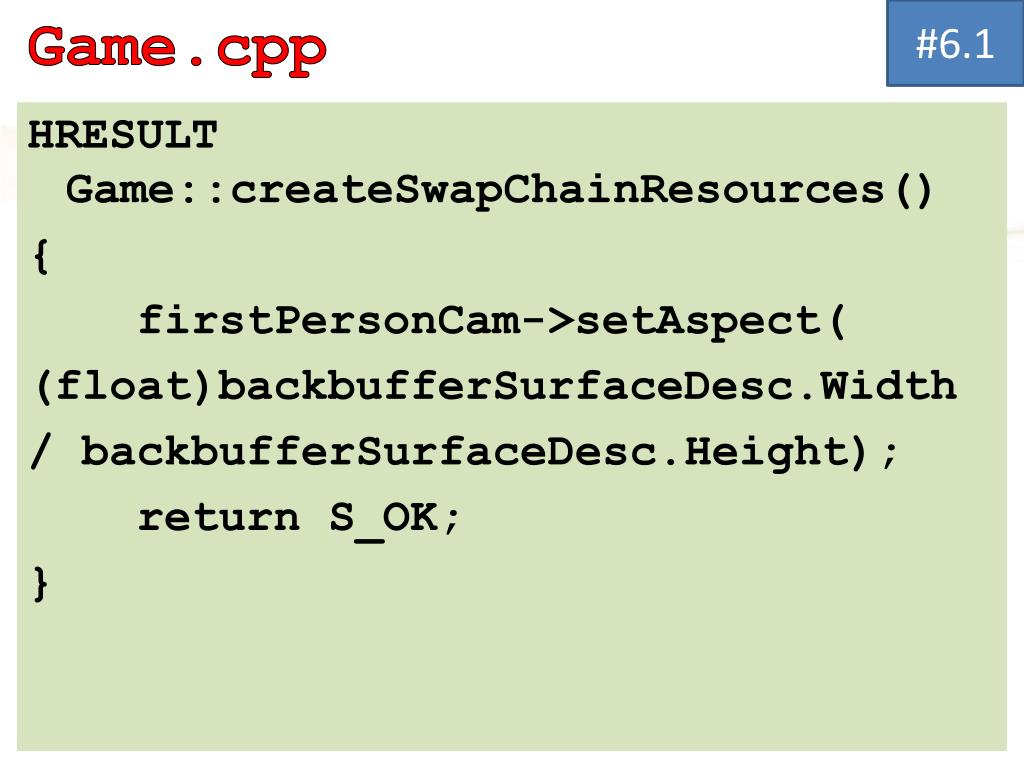

  23. #6.1 Game.cpp HRESULT Game::createSwapChainResources() { firstPersonCam->setAspect( (float)backbufferSurfaceDesc.Width / backbufferSurfaceDesc.Height); return S_OK; }

  24. #6.1 Game.cpp HRESULT Game::releaseSwapChainResources() { return S_OK; }

  25. Nemtorzul
