Presentation Transcript

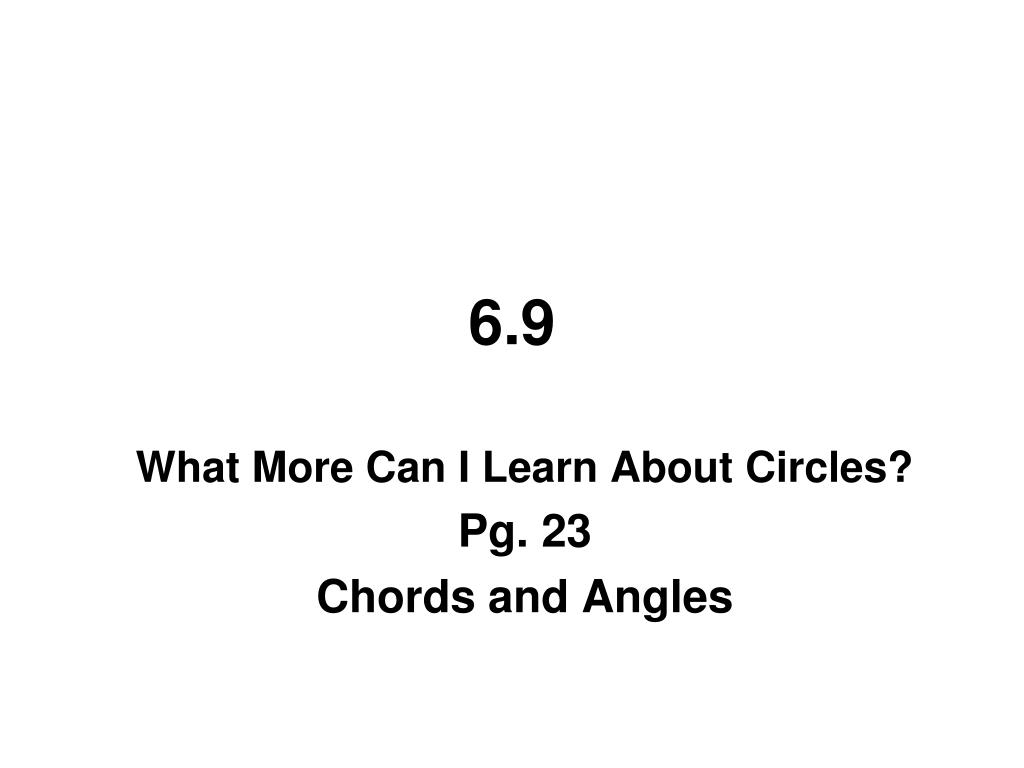

slide1

6.9

What More Can I Learn About Circles?

Pg. 23

Chords and Angles

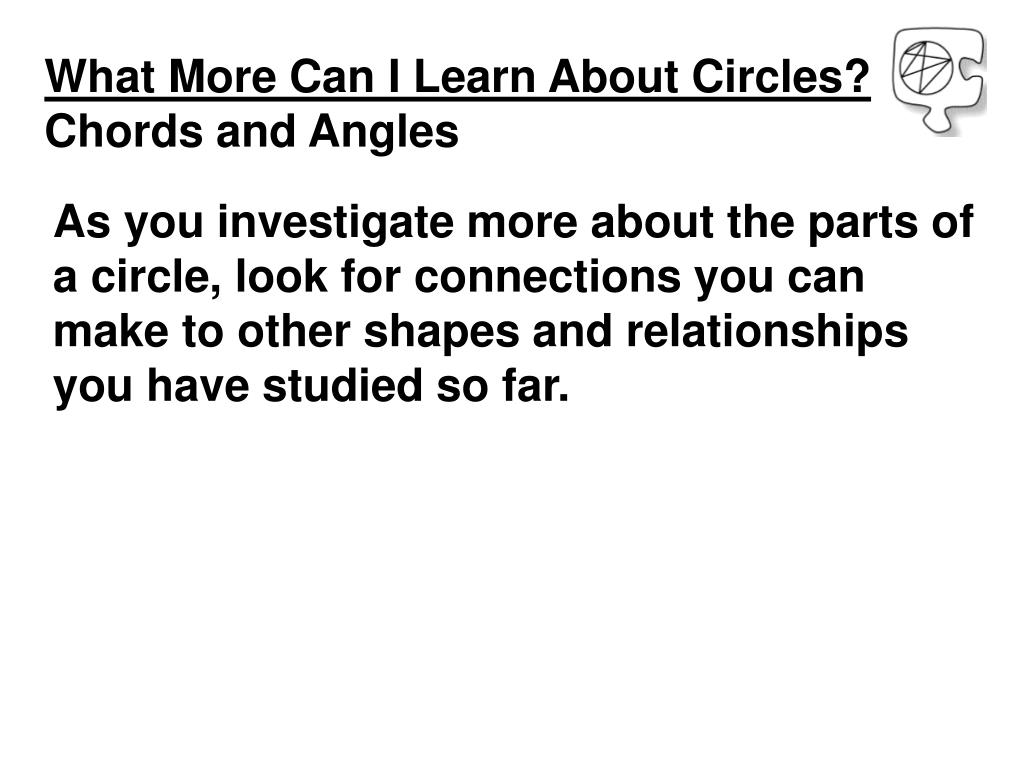

slide2

What More Can I Learn About Circles? Chords and Angles

As you investigate more about the parts of a circle, look for connections you can make to other shapes and relationships you have studied so far.

slide6

Similar

8

4

6

x

=

8

4

8x = 24

x

6

x = 3

slide7

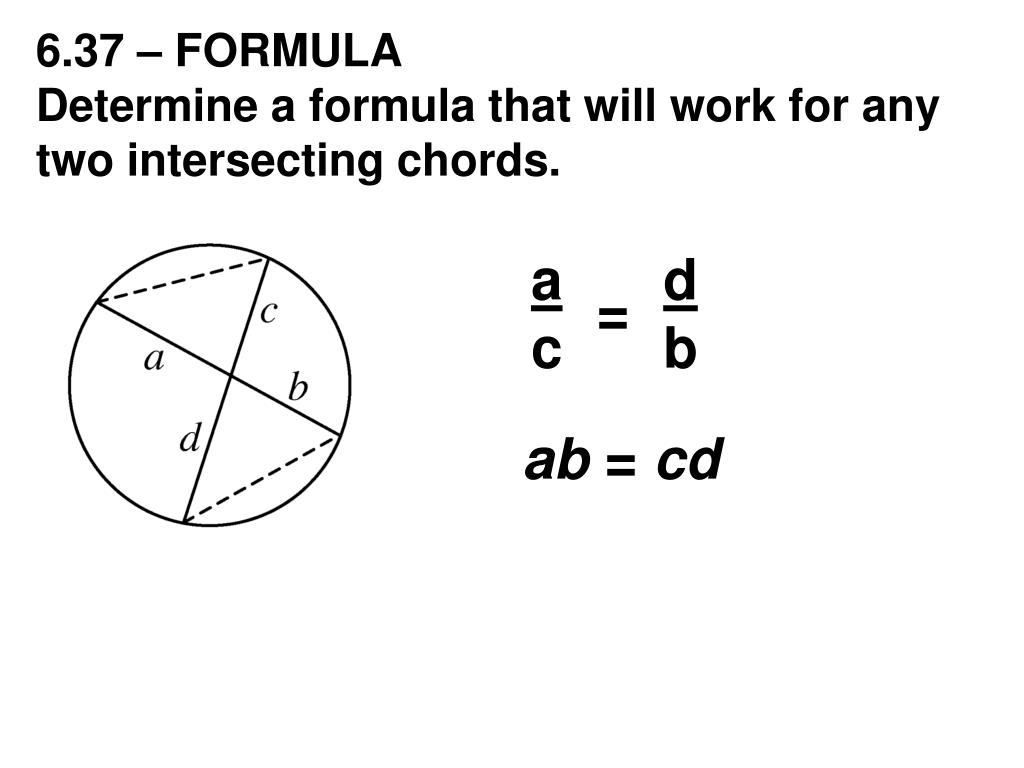

6.37 – FORMULA

Determine a formula that will work for any two intersecting chords.

a

c

d

b

=

ab = cd

slide9

6.38 – EXTRA PRACTICE

Use the relationships in the diagrams below to solve for the variable. Justify your solution.

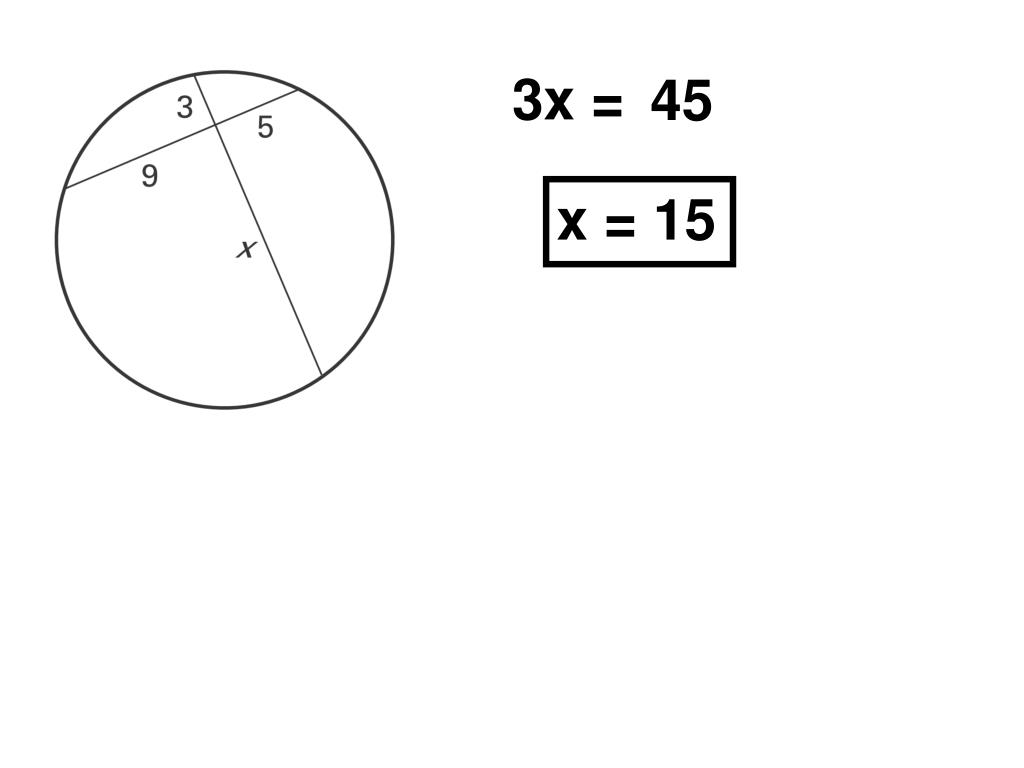

slide10

3x =

45

x = 15

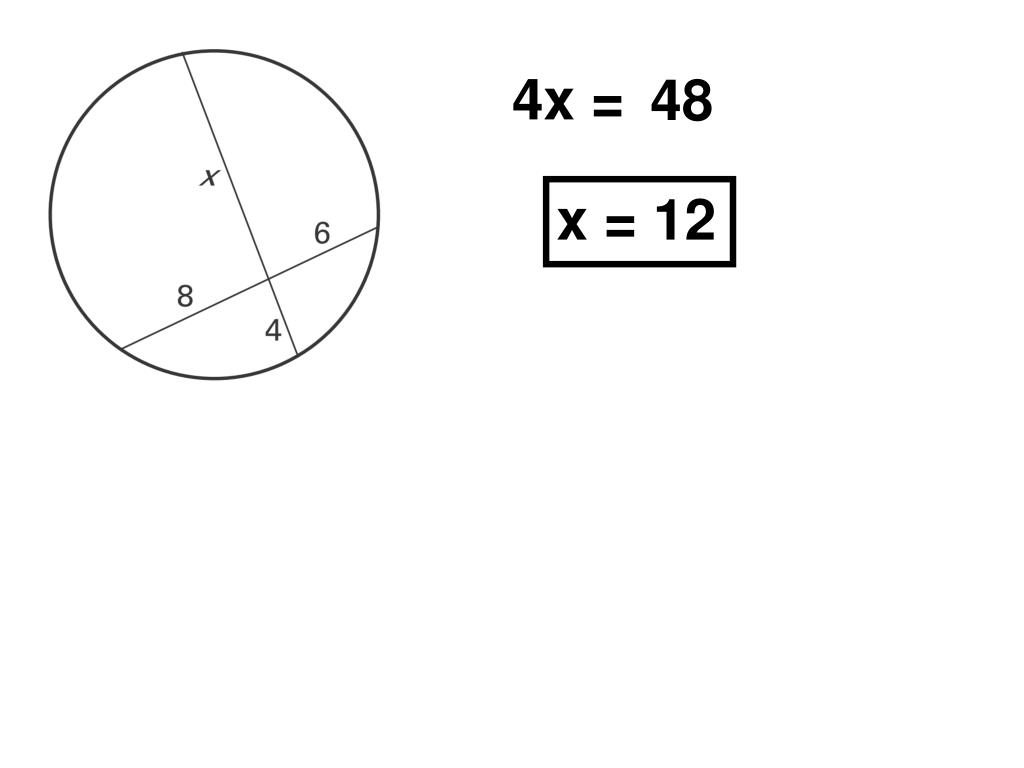

slide11

4x =

48

x = 12

slide12

6.39 – EVENTS IN THE SKY

Did you know that since 1997, over 8000 operating satellites orbited the Earth performing various functions such as taking photographs of our planet? One way scientists learn more about the Earth is to carefully examine photographs that are taken by an orbiting satellite.

slide13

a. Draw an angle from Satellite A that shows the portion of the Earth's equator that is visible from the satellite. Label the point of tangency points D and F.

D

F

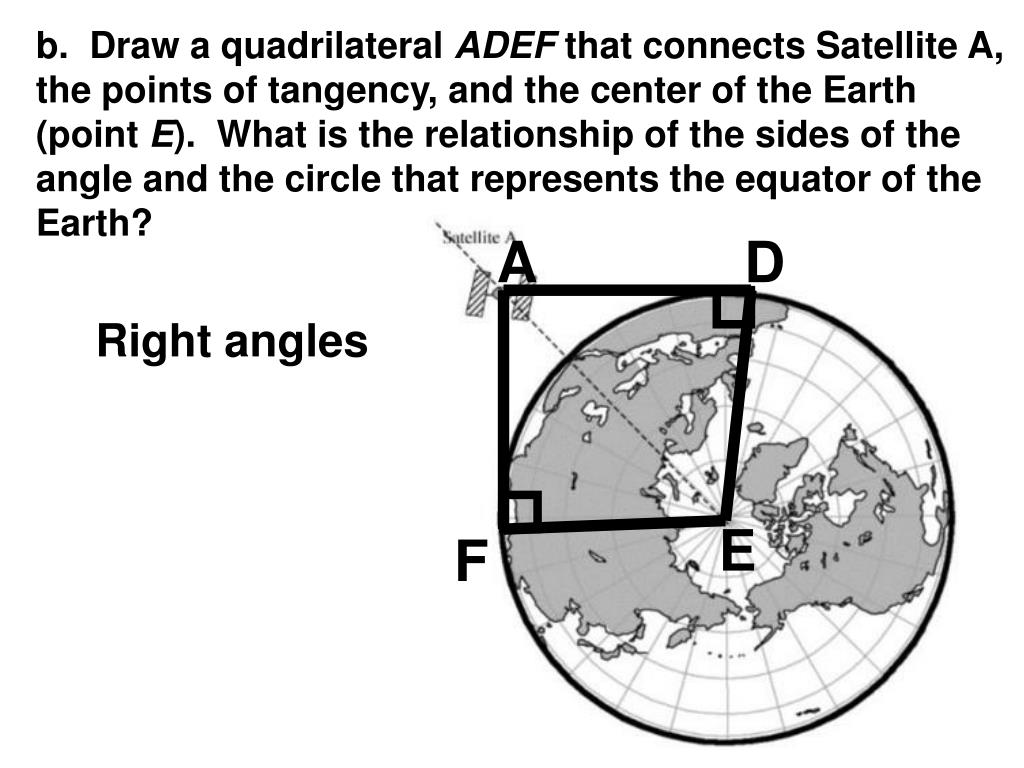

slide14

b. Draw a quadrilateral ADEF that connects Satellite A, the points of tangency, and the center of the Earth (point E). What is the relationship of the sides of the angle and the circle that represents the equator of the Earth?

A

D

Right angles

E

F

slide15

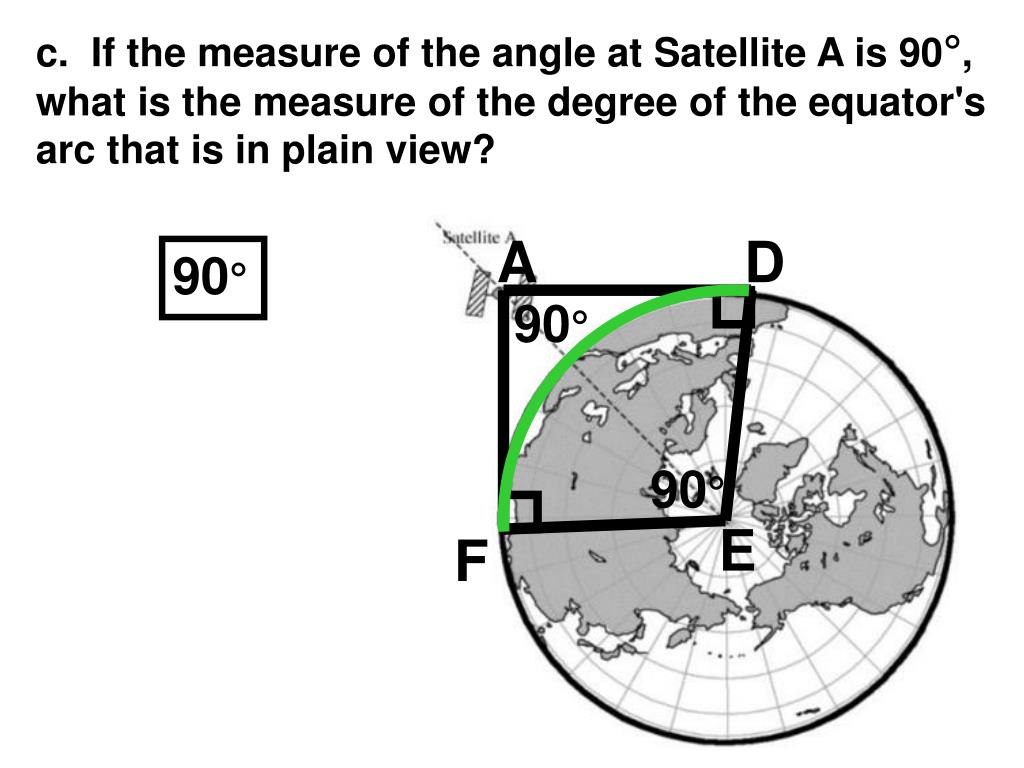

c. If the measure of the angle at Satellite A is 90°, what is the measure of the degree of the equator's arc that is in plain view?

A

D

90°

90°

90°

E

F

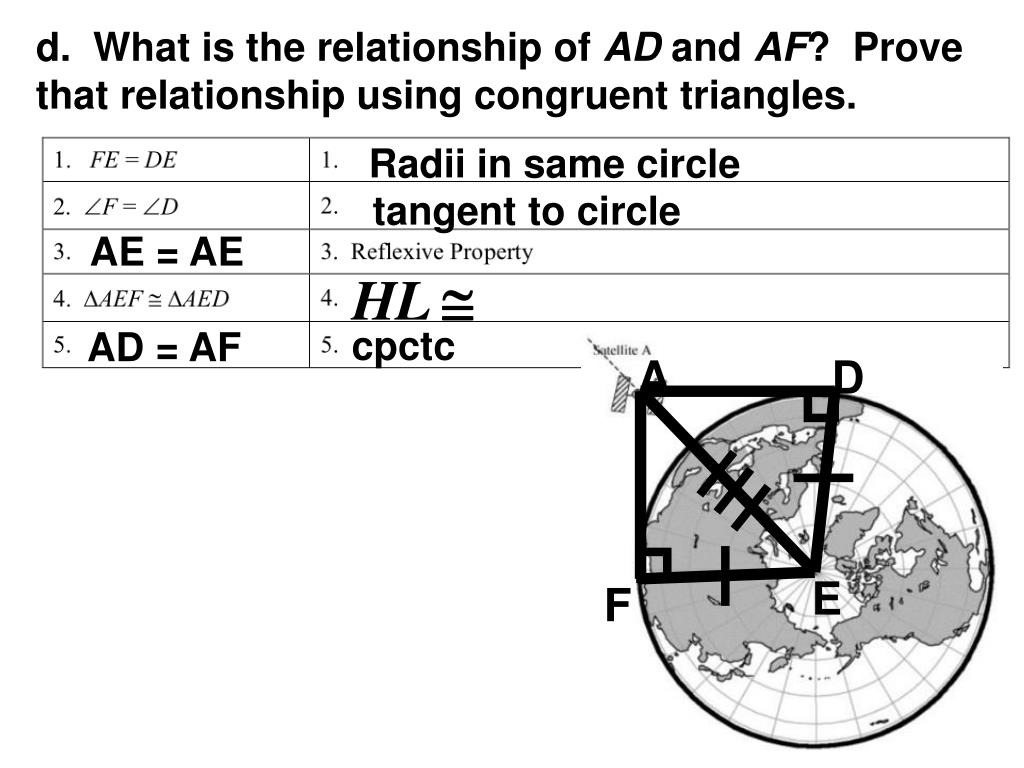

slide16

A

D

E

F

d. What is the relationship of AD and AF? Prove that relationship using congruent triangles.

Radii in same circle

tangent to circle

AE = AE

cpctc

AD = AF

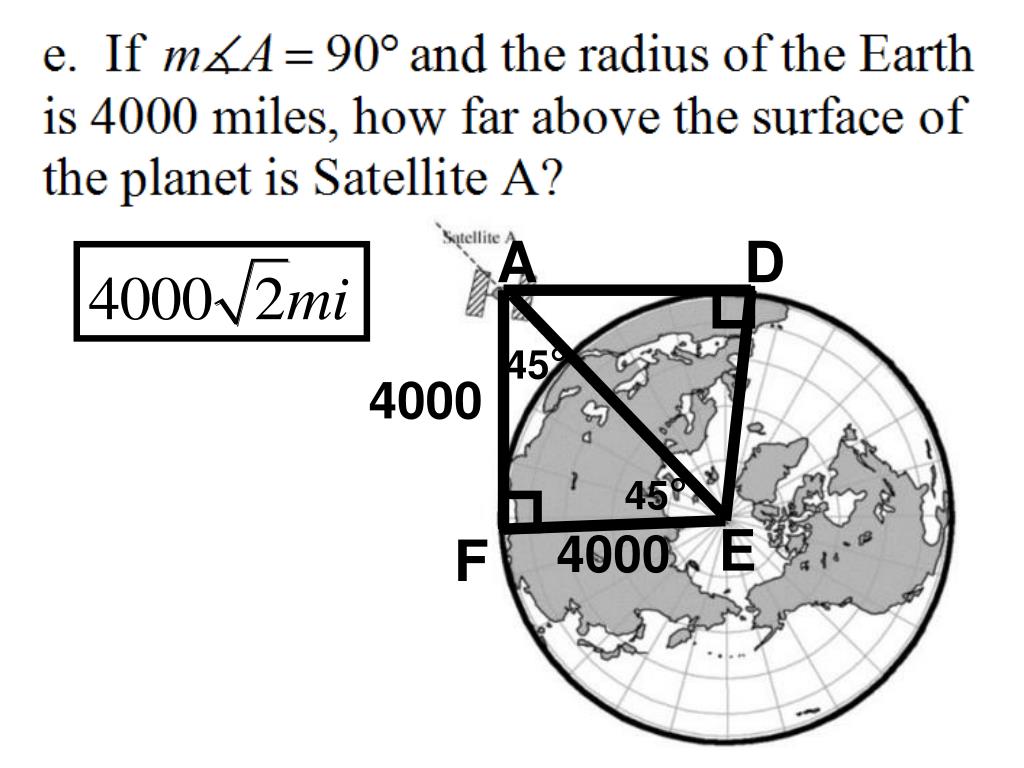

slide17

A

D

45°

4000

45°

E

4000

F

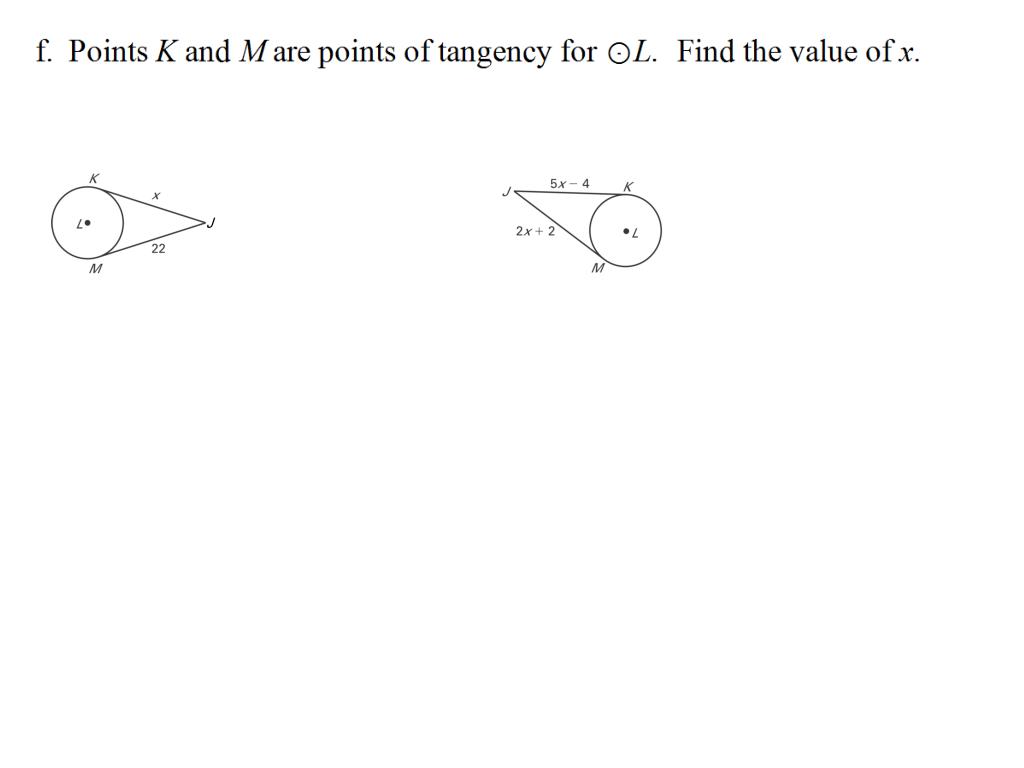

slide19

J

x = 22

slide20

5x – 4 = 2x + 2

3x – 4 = 2

3x = 6

x = 2
