  1. Dynamical Polarizationof neutron beams G. Badurek, C. Hartl, E. Jericha Atominstitut, Vienna University of Technology

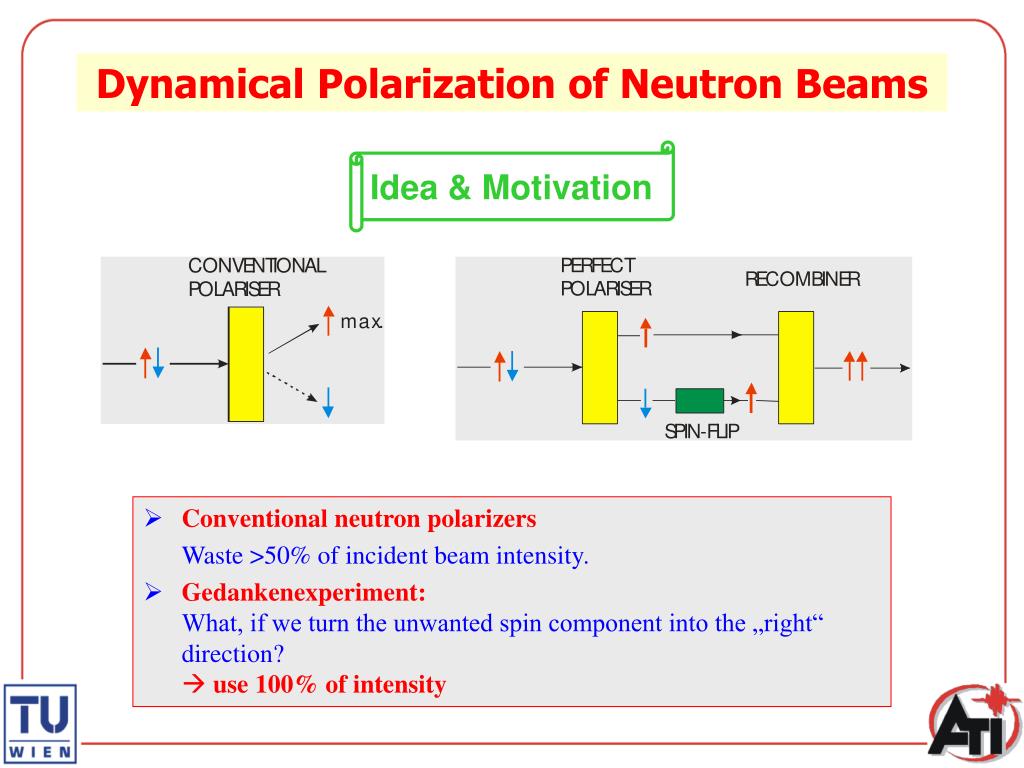

  2. Dynamical Polarization of Neutron Beams Idea & Motivation • Conventionalneutron polarizers Waste >50% of incident beam intensity. • Gedankenexperiment:What, if we turn the unwanted spin component into the „right“ direction?use 100% of intensity

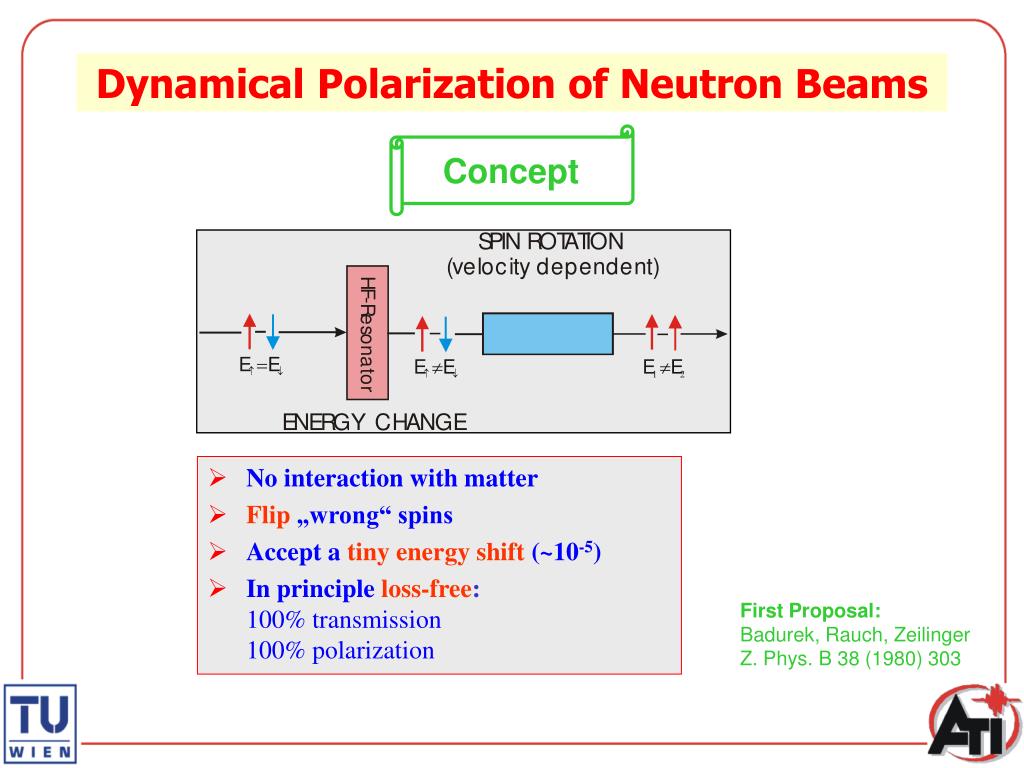

  3. Dynamical Polarization of Neutron Beams Concept • No interaction with matter • Flip„wrong“ spins • Accept atiny energy shift(~10-5) • In principleloss-free:100% transmission100% polarization First Proposal: Badurek, Rauch, Zeilinger Z. Phys. B 38 (1980) 303

  4. Dynamical Polarization of Neutron Beams Energy Change Spin-dependent engergy shift: • Spin flipeffectspotential energy only • 2 xkinetic energychange (same direction)at themagnet borders

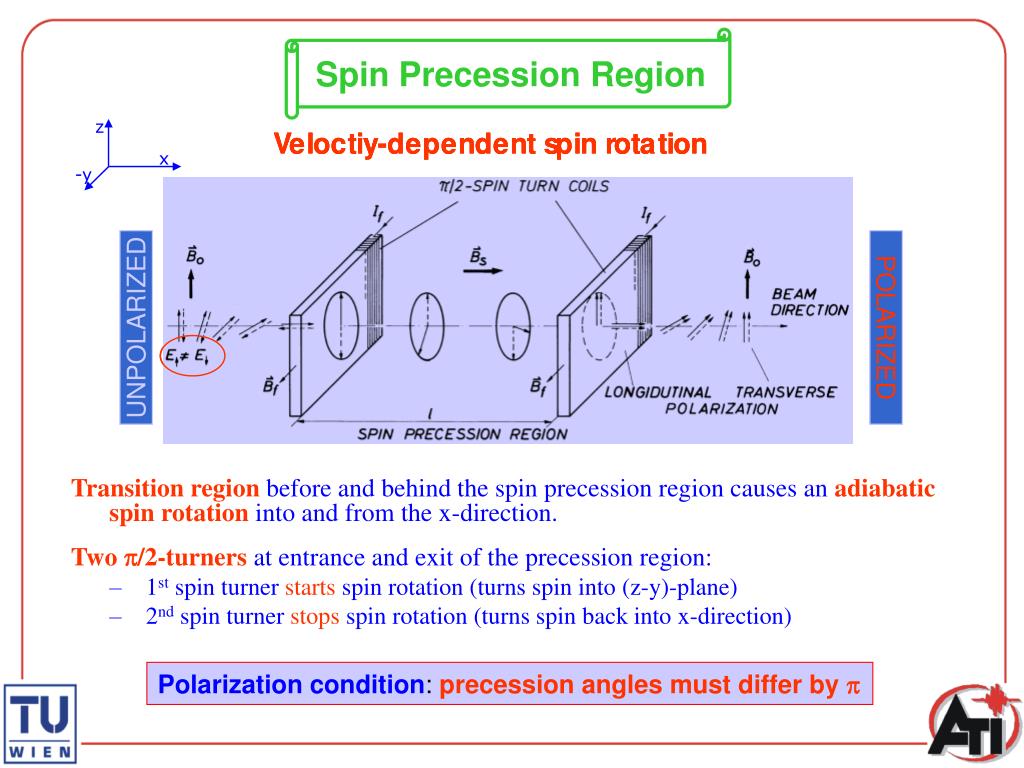

  5. z x -y Spin Precession Region Transition regionbefore and behind the spin precession region causes anadiabatic spin rotationinto and from the x-direction. Two /2-turnersat entrance and exit of the precession region: • 1st spin turnerstartsspin rotation (turns spin into (z-y)-plane) • 2nd spin turnerstopsspin rotation (turns spin back into x-direction)

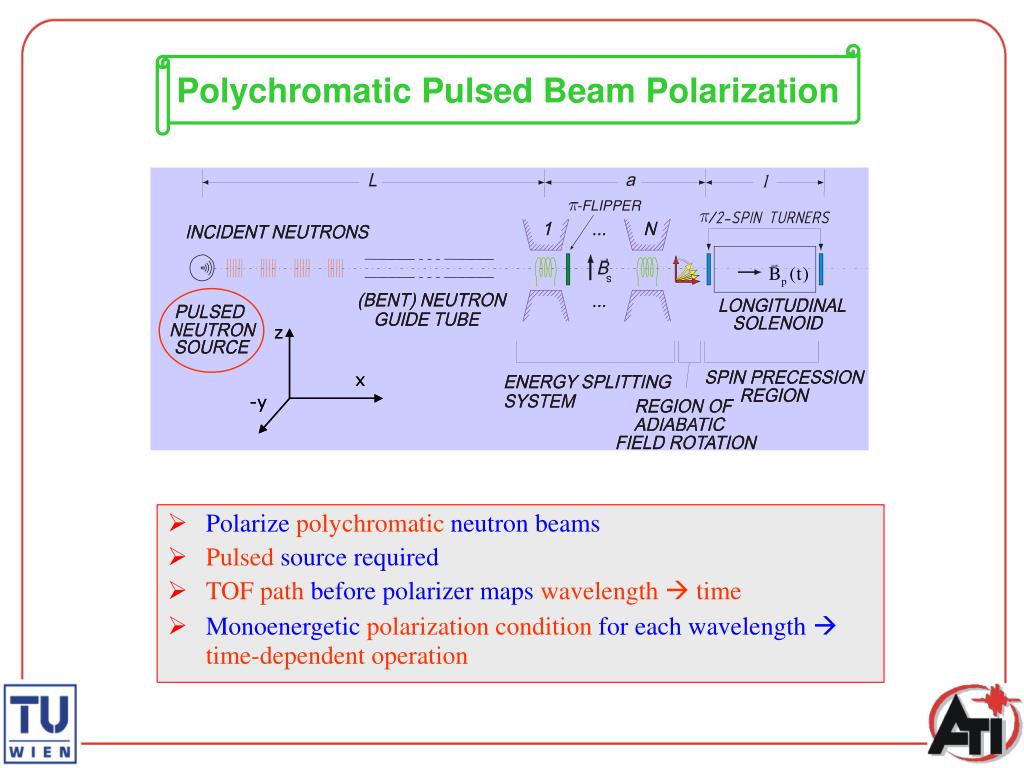

  6. Polychromatic Pulsed Beam Polarization • Polarizepolychromaticneutron beams • Pulsedsource required • TOFpathbefore polarizer mapswavelength  time • Monoenergeticpolarization conditionfor each wavelength time-dependent operation

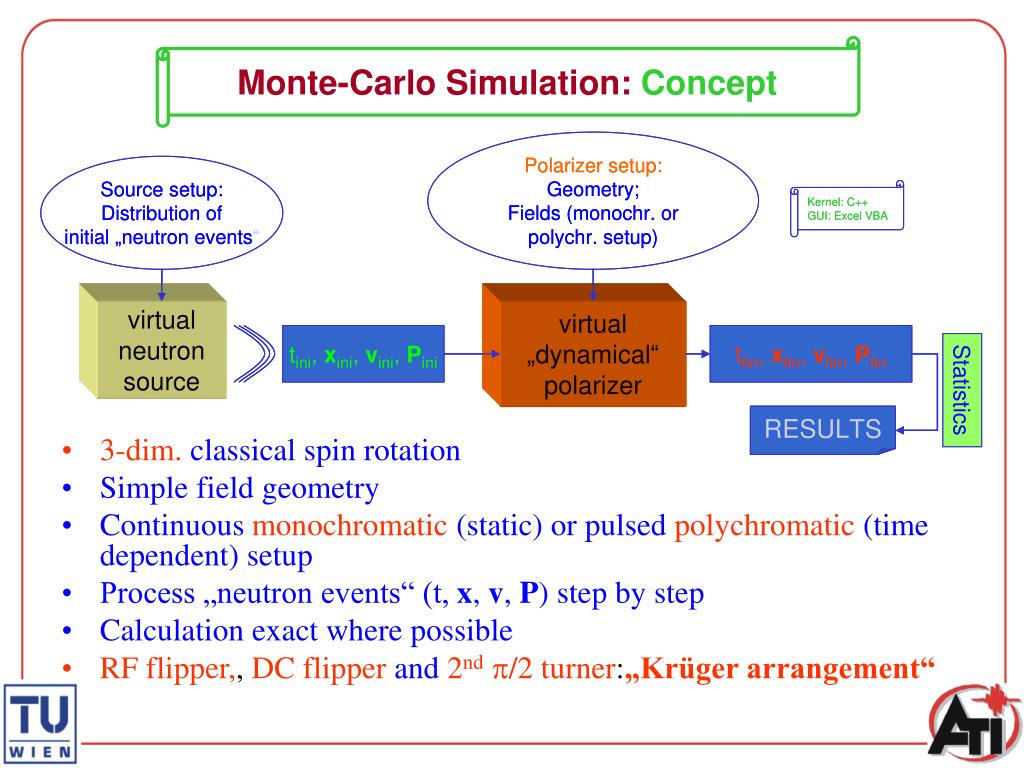

  7. Monte-Carlo Simulation: Concept • 3-dim.classical spin rotation • Simple field geometry • Continuousmonochromatic(static) or pulsedpolychromatic(time dependent) setup • Process „neutron events“ (t, x, v, P) step by step • Calculation exact where possible • RF flipper,, DC flipperand2nd/2 turner:„Krüger arrangement“

  8. Monte-Carlo Simulation: Geometry

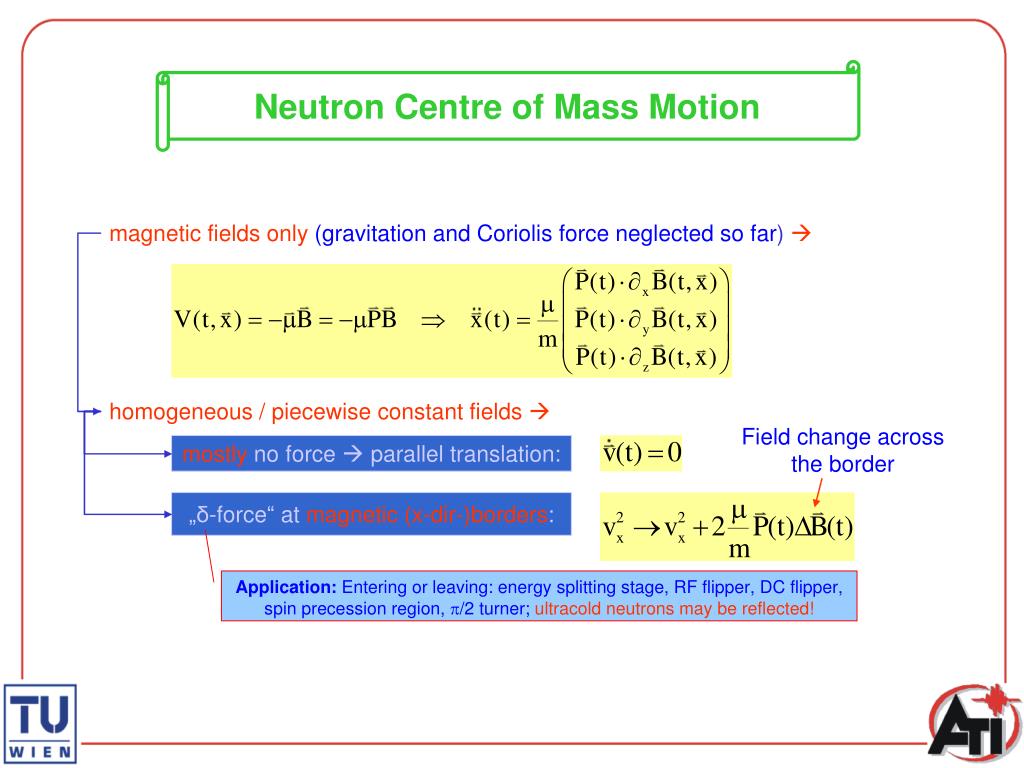

  9. Neutron Centre of Mass Motion

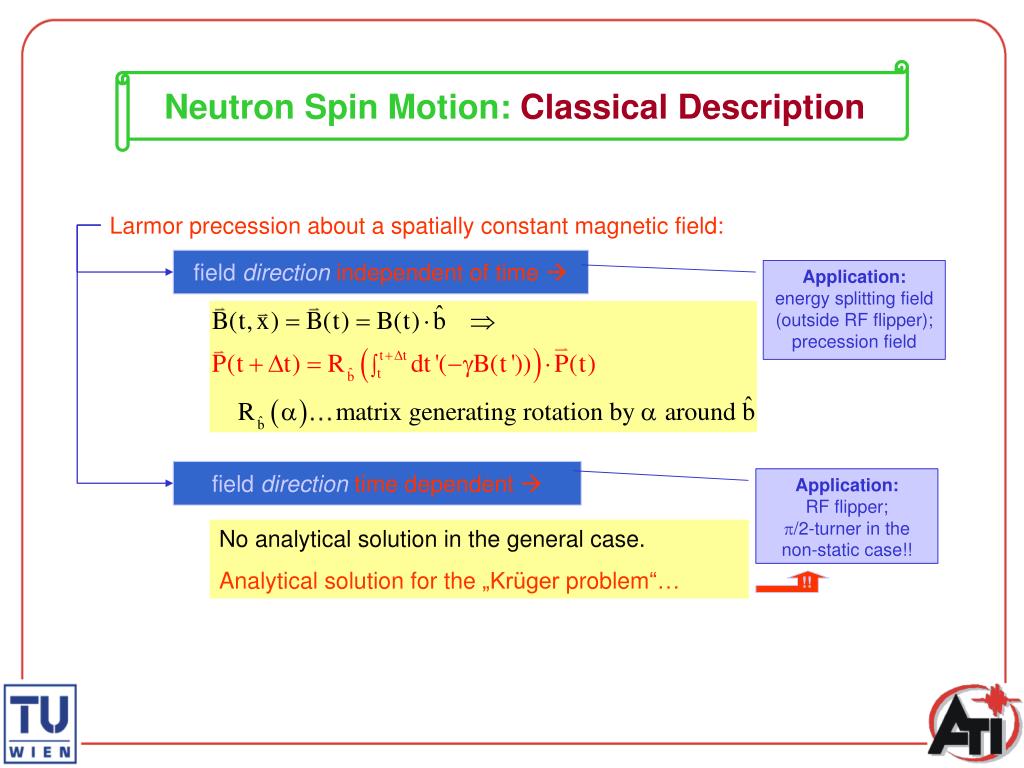

  10. Neutron Spin Motion: Classical Description

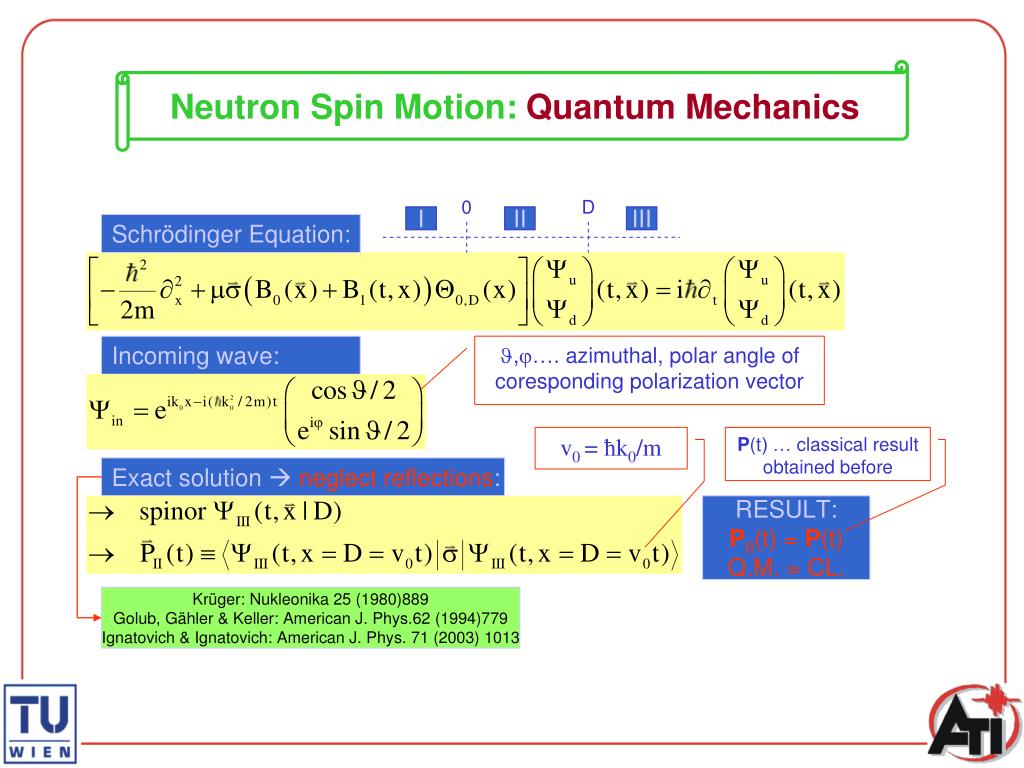

  11. Neutron Spin Motion: Quantum Mechanics

  12. z y x D t0 t1 = t0+D·v Neutron Spin Motion inside a “Krüger-arrangement“ parameters: RF field frequency Effective Larmor frequency vector:

  13. z y x D t0 t1 = t0+D·v Neutron Spin Motion inside a “Krüger-arrangement“ Equation of motion: S  S‘(t) : P(t)=G(t)·P’(t) In the primed system the rotation axis lies statically in the x’-axis! Solution:

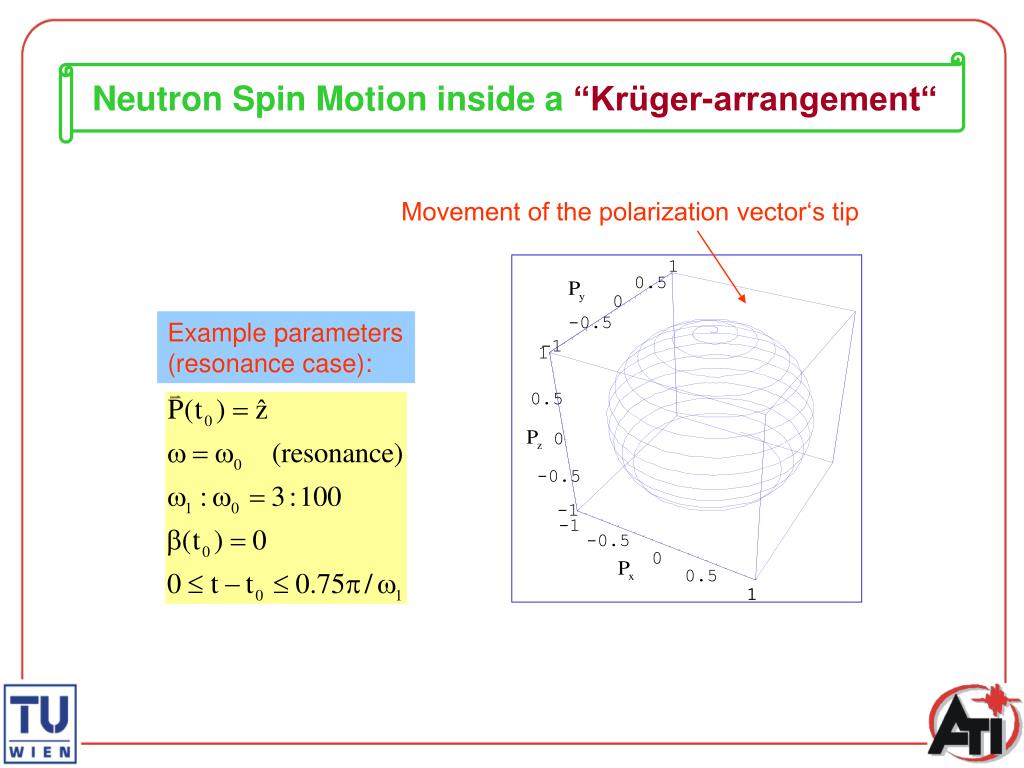

  14. 1 0.5 0 -0.5 -1 1 0.5 0 -0.5 -1 -1 -0.5 0 0.5 1 1 Neutron Spin Motion inside a “Krüger-arrangement“ Movement of the polarization vector‘s tip Example parameters (resonance case):

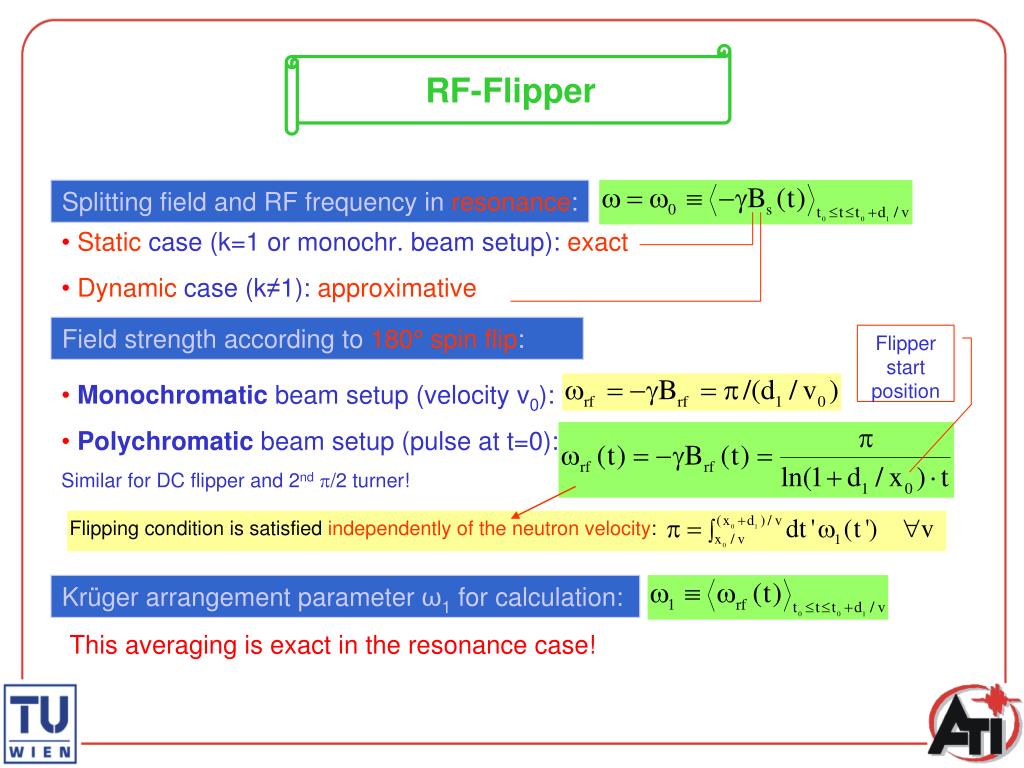

  15. RF-Flipper

  16. Rotating p/2 Spin-Turner

  17. Typical Result of Monte-Carlo Simulation

  18. Dynamical Polarization of Neutron Beams Typical Result of Monte-Carlo Simulation Source Pulse Duration Incident flight path: 60 m Splitting Field: 4 10 T Precession Length: 1 m

  19. Tensorial Neutron Tomography of magnetic samples G. Badurek, E. Jericha, H. Leeb, R. Szeywerth Atominstitut, Vienna University of Technology

  20. Tensorial Neutron Tomography Idea & Motivation • Determination of magnetic structures in bulk ferromagnetic materials Unique reconstruction by tomographic methods. • Path-ordering effects in neutron spin rotationDevelopment of novel reconstruction alogrithms.

  21. Tensorial Neutron Tomography Concept Perfect crystal neutron interferometer Set-up for neutron interferometric spinor tomography. • Combination of neutron depolarization concepts and neutron interferometry.

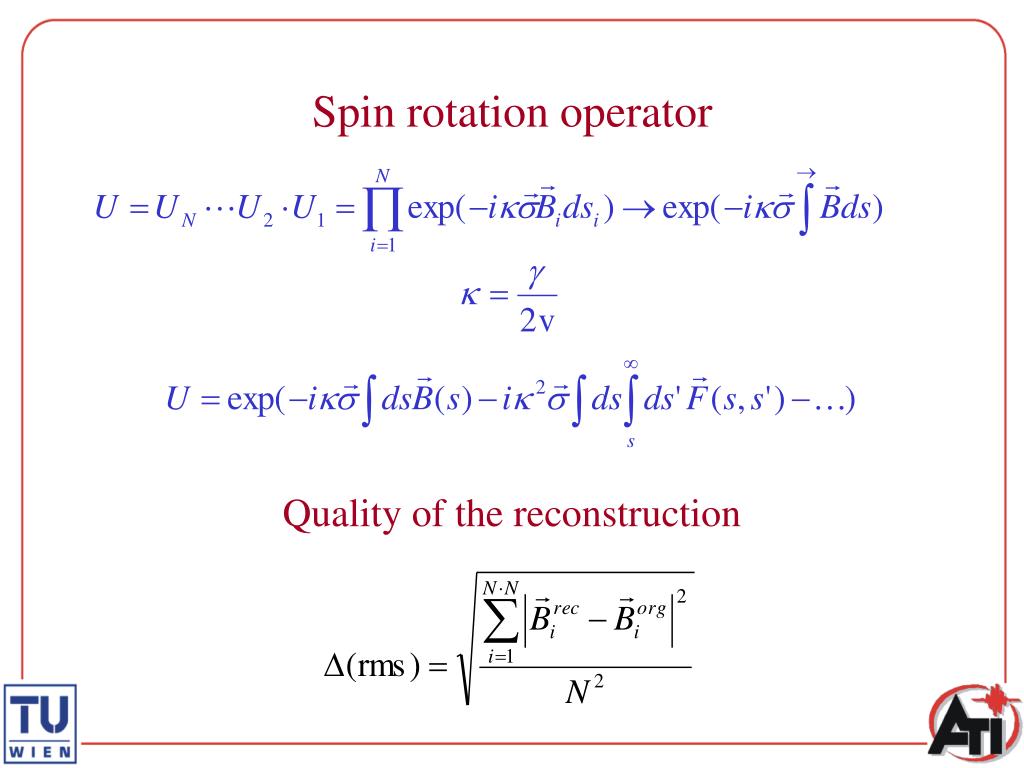

  22. Spin rotation operator Quality of the reconstruction

  23. Reconstruction quality – traditional methods 1 G. Badurek et al., Physica B 335 (2003) 114

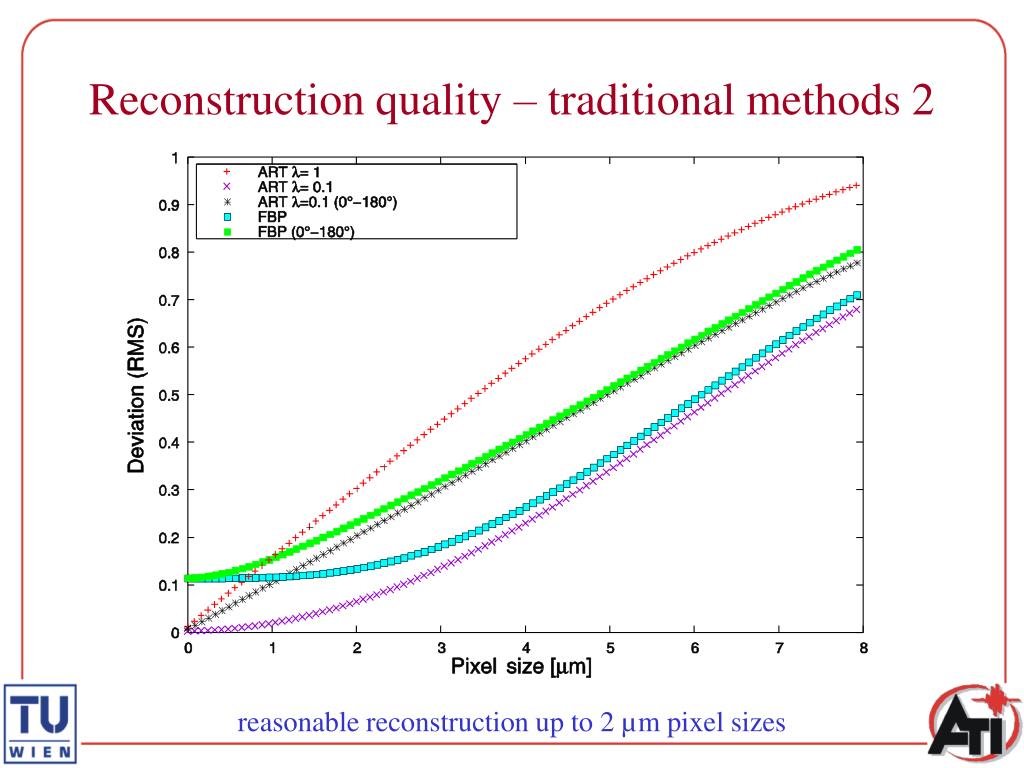

  24. Reconstruction quality – traditional methods 2 reasonable reconstruction up to 2 µm pixel sizes

  25. Summary of novel reconstruction algorithms • Elimination procedure • Separation procedure • (Sums of separated logarithms) • Modified algebraic reconstruction technique • ART with path ordering • ART with converging projections • Taylor series expansion

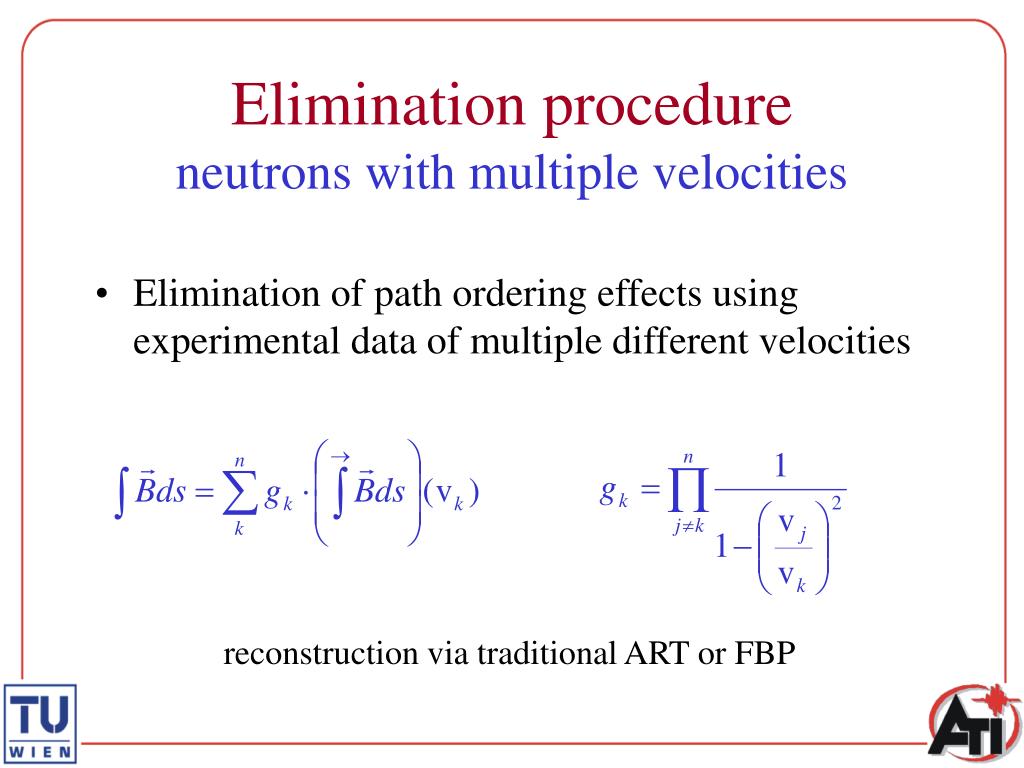

  26. Elimination procedureneutrons with multiple velocities • Elimination of path ordering effects using experimental data of multiple different velocities reconstruction via traditional ART or FBP

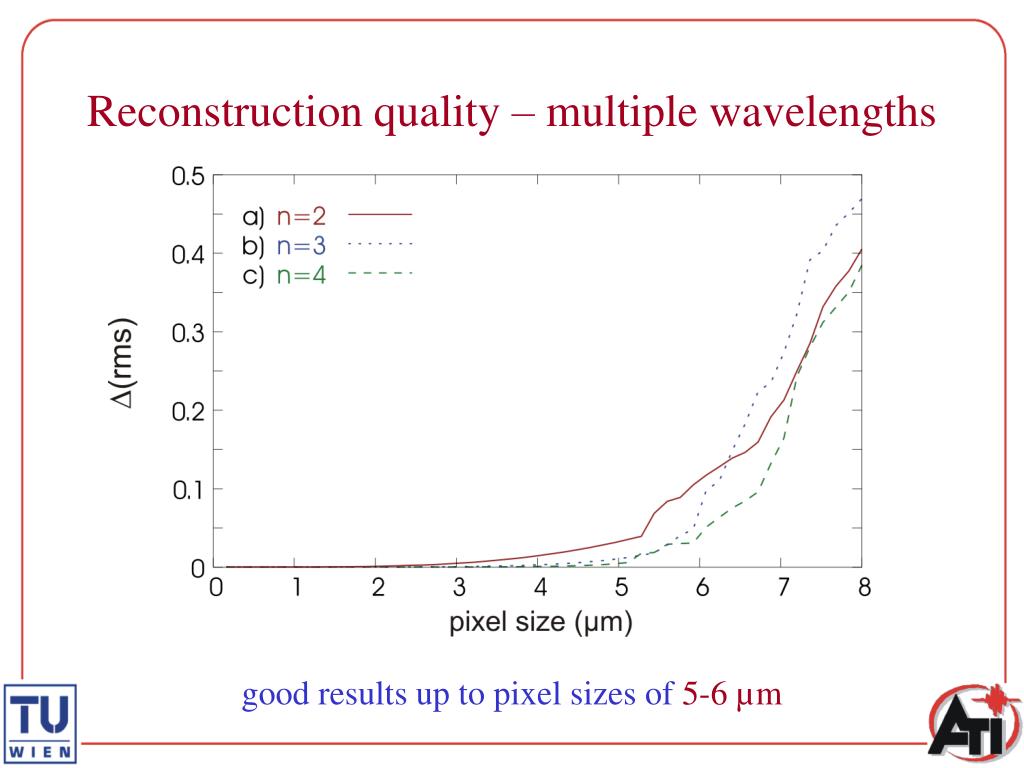

  27. Reconstruction quality – multiple wavelengths good results up to pixel sizes of 5-6 µm

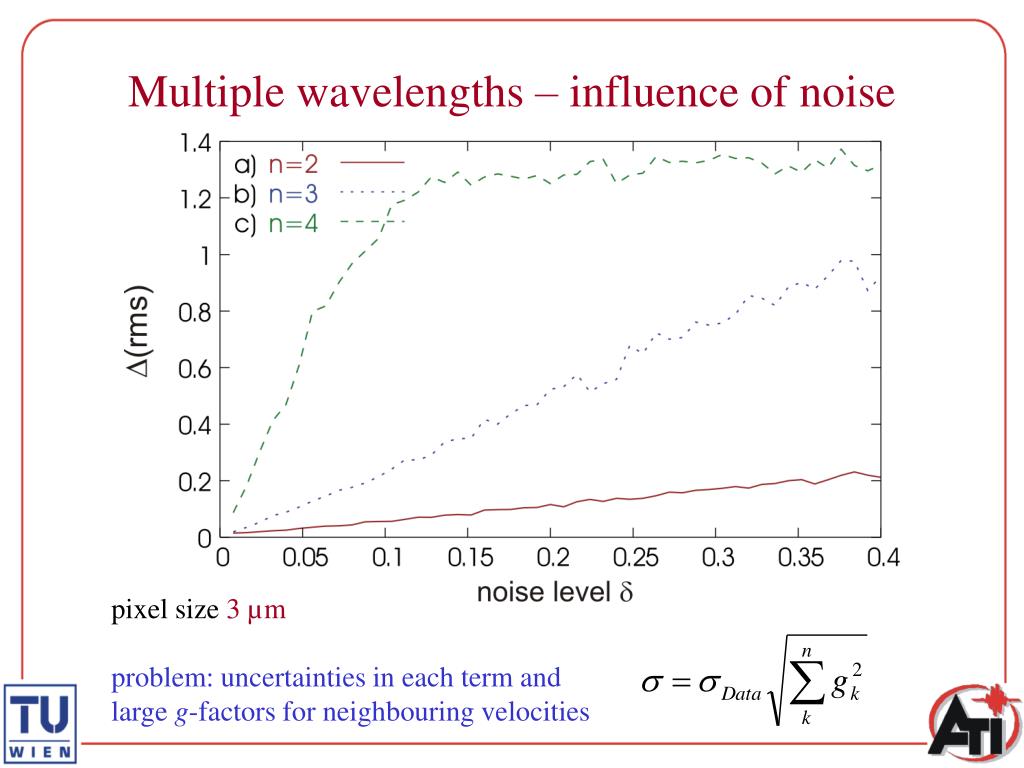

  28. Multiple wavelengths – influence of noise pixel size 3 µm problem: uncertainties in each term and large g-factors for neighbouring velocities

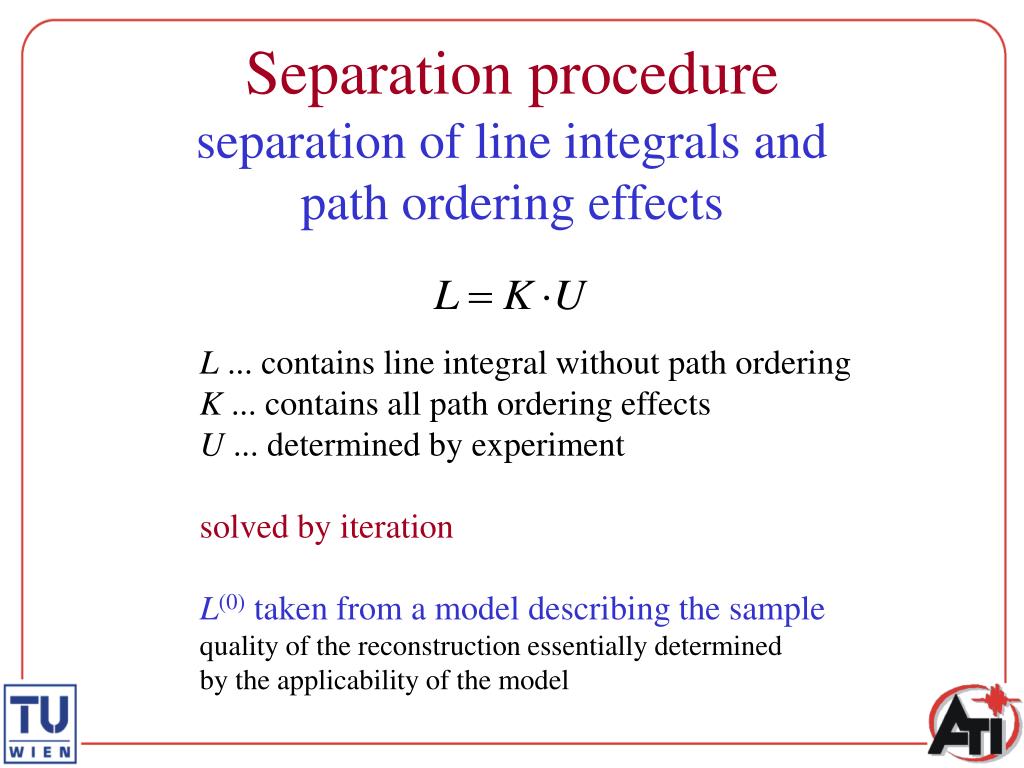

  29. Separation procedureseparation of line integrals andpath ordering effects L ... contains line integral without path ordering K ... contains all path ordering effects U ... determined by experiment solved by iteration L(0) taken from a model describing the sample quality of the reconstruction essentially determined by the applicability of the model

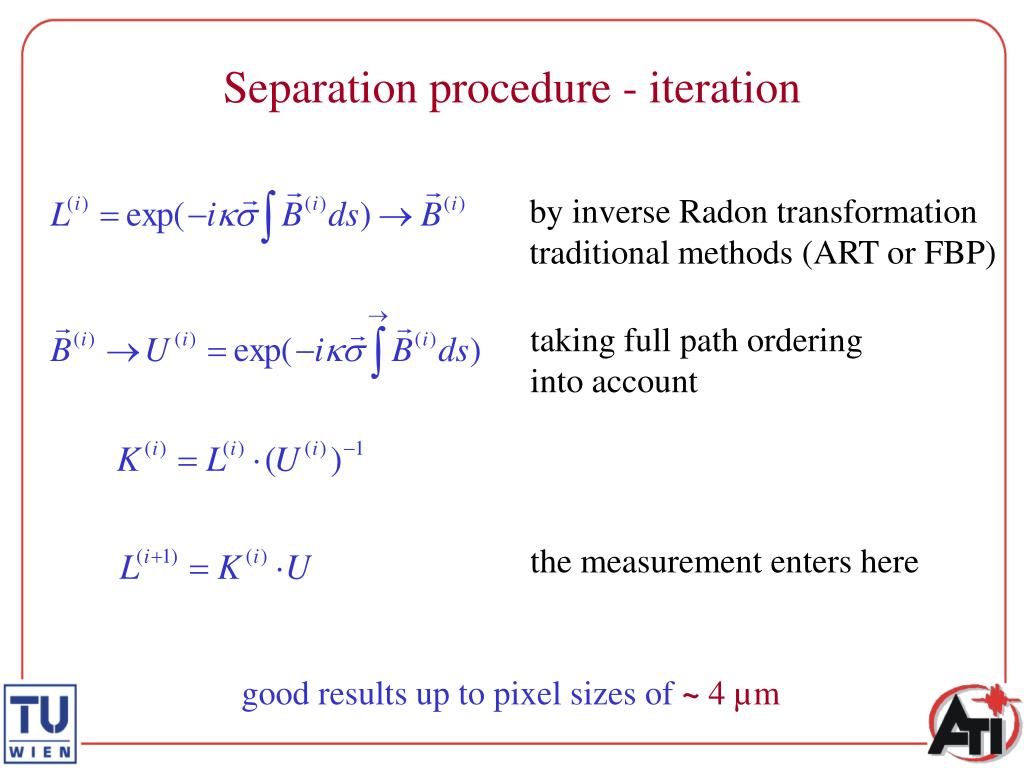

  30. Separation procedure - iteration by inverse Radon transformation traditional methods (ART or FBP) taking full path ordering into account the measurement enters here good results up to pixel sizes of ~ 4 µm

  31. Reconstruction quality – separation procedure a) individual projections from the angular range 0 – 2p b) averaged quantities from the projections q & q+p

  32. Modified ARTtaking path ordering into account • ART performs the inverse Radon transformation by solving a system of linear equations for discretized pixel structures • Path-ordered integrals also have to be written as linear equations to apply ART → linear approximation (with B(i) being the reconstruction for the current iteration):

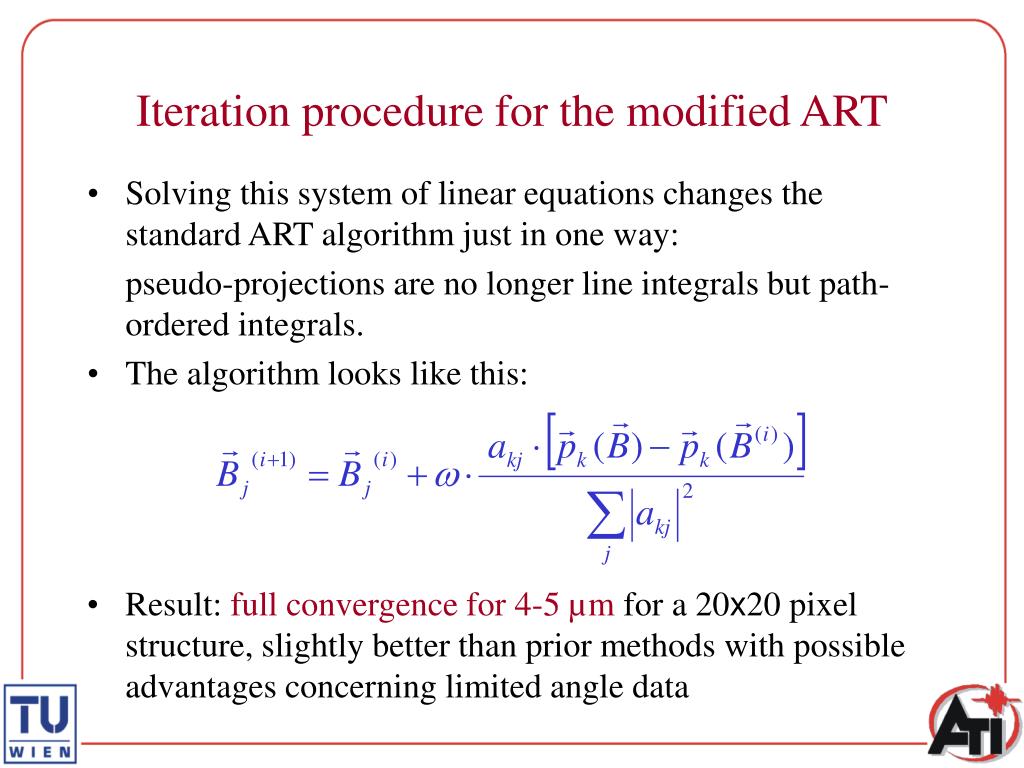

  33. Iteration procedure for the modified ART • Solving this system of linear equations changes the standard ART algorithm just in one way: pseudo-projections are no longer line integrals but path-ordered integrals. • The algorithm looks like this: • Result: full convergence for 4-5 µm for a 20x20 pixel structure, slightly better than prior methods with possible advantages concerning limited angle data

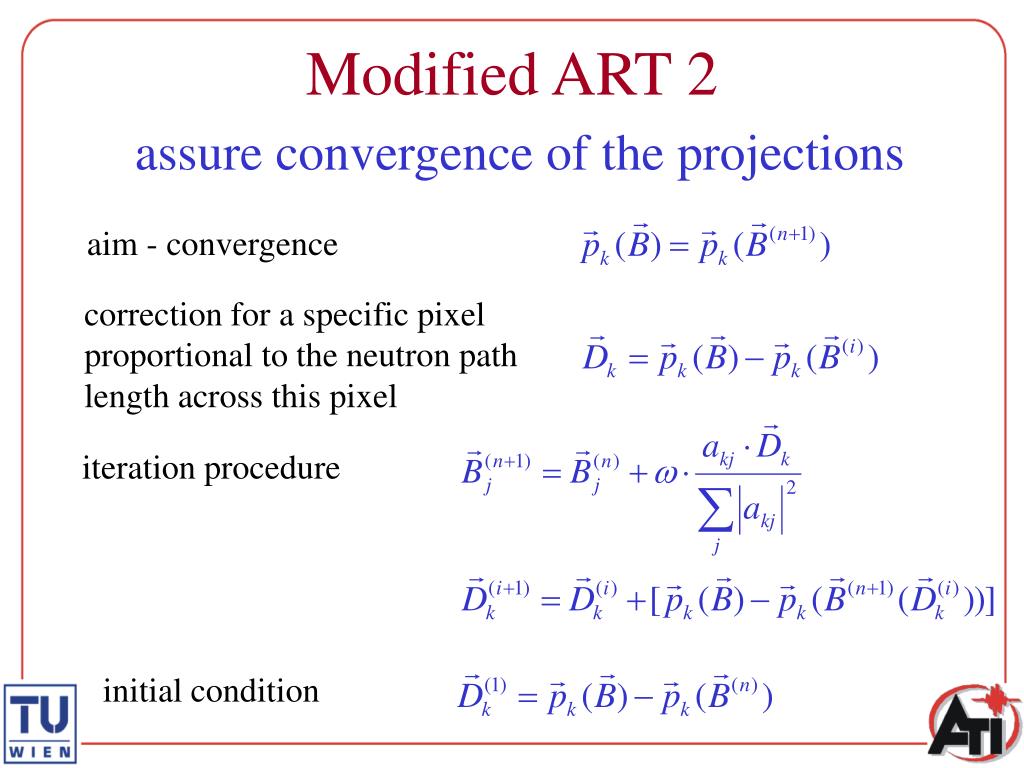

  34. Modified ART 2assure convergence of the projections aim - convergence correction for a specific pixel proportional to the neutron path length across this pixel iteration procedure initial condition

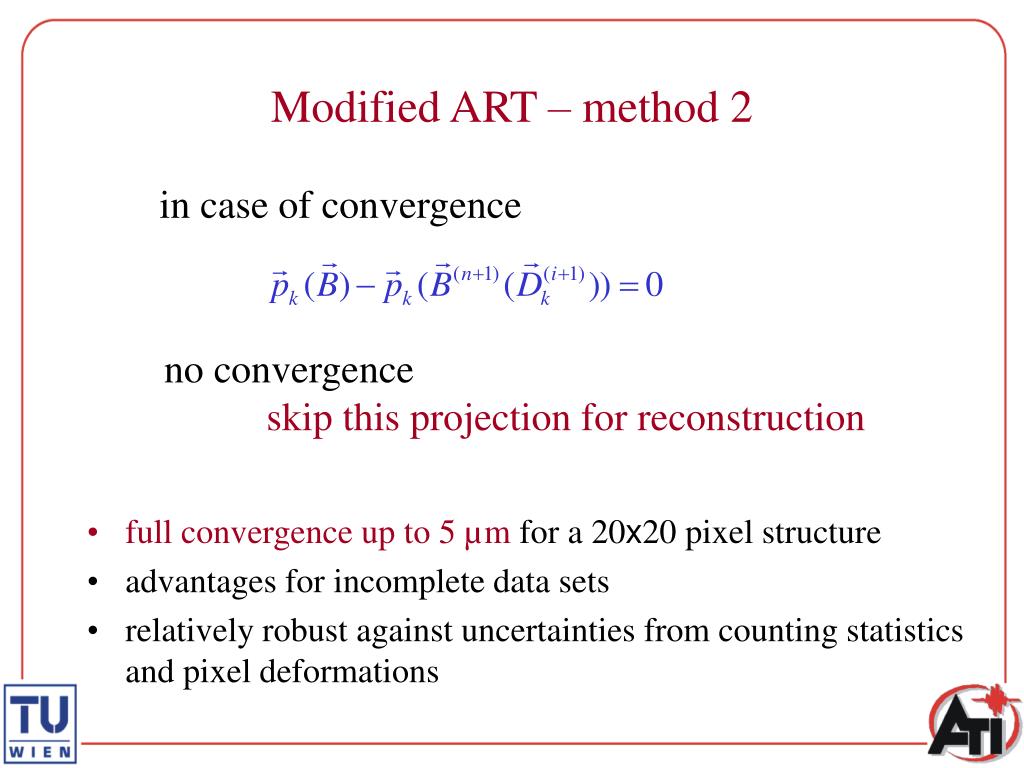

  35. Modified ART – method 2 in case of convergence no convergence skip this projection for reconstruction • full convergence up to 5 µm for a 20x20 pixel structure • advantages for incomplete data sets • relatively robust against uncertainties from counting statistics and pixel deformations

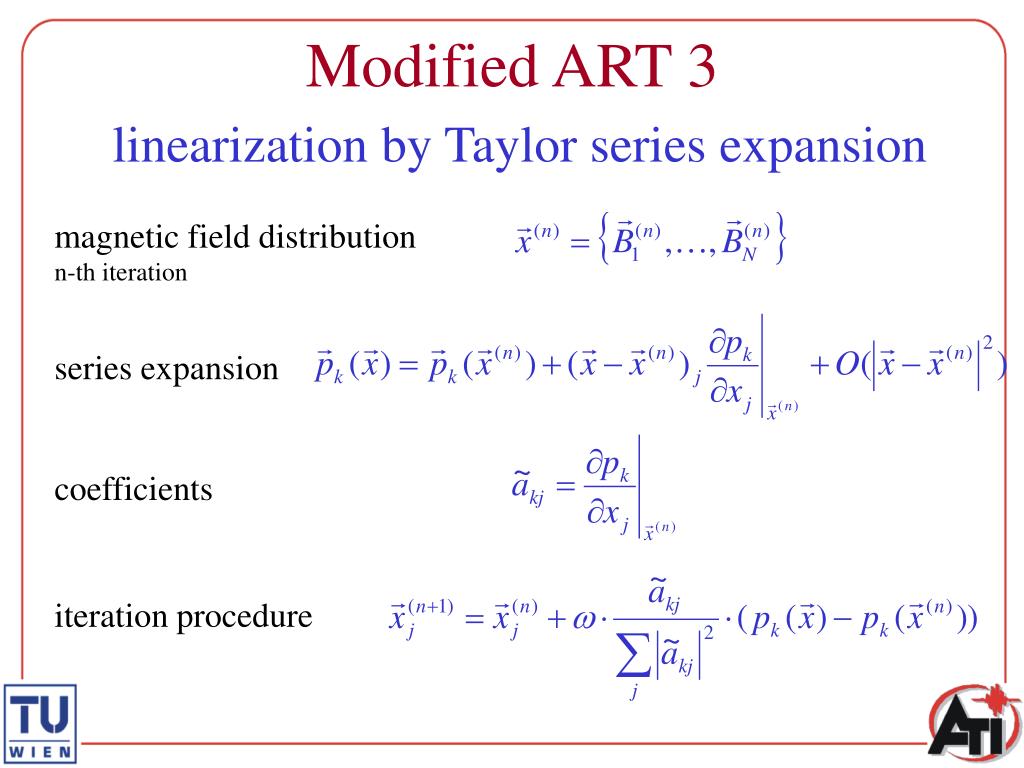

  36. Modified ART 3linearization by Taylor series expansion magnetic field distribution n-th iteration series expansion coefficients iteration procedure

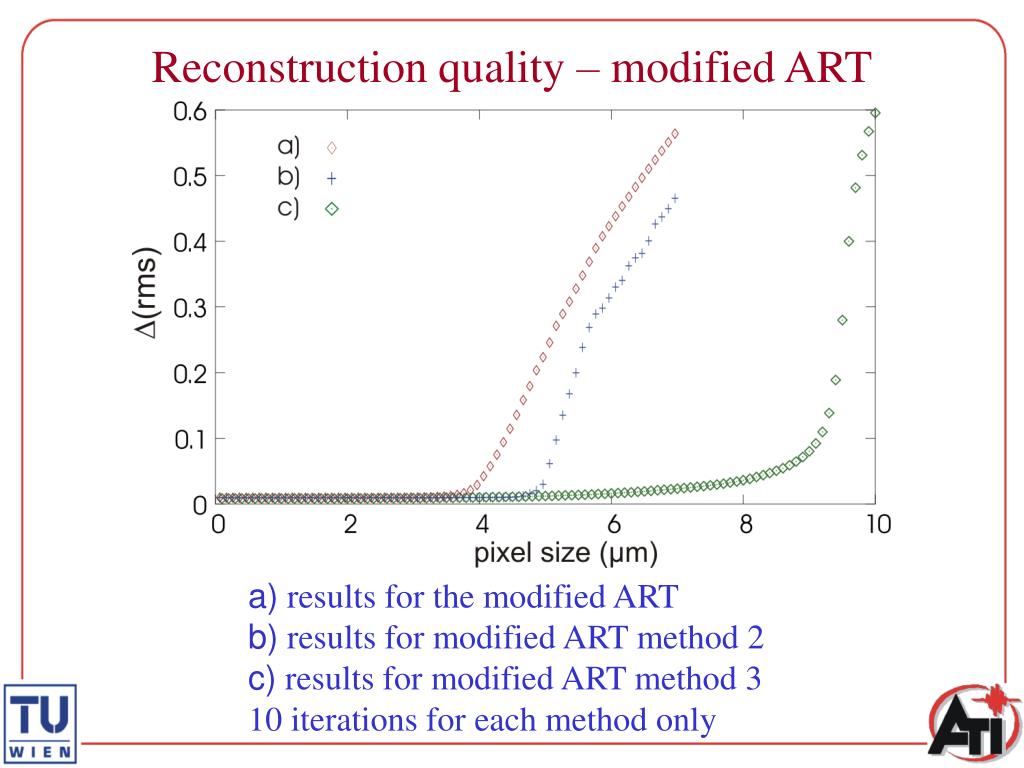

  37. Reconstruction quality – modified ART a) results for the modified ART b) results for modified ART method 2 c) results for modified ART method 3 10 iterations for each method only
