on chip at speed debug and dft support for ocp based socs heinz holzapfel

On-chip, at-speed debug and DFT support for OCP-based SOCsHeinz Holzapfel

November 27, 2014

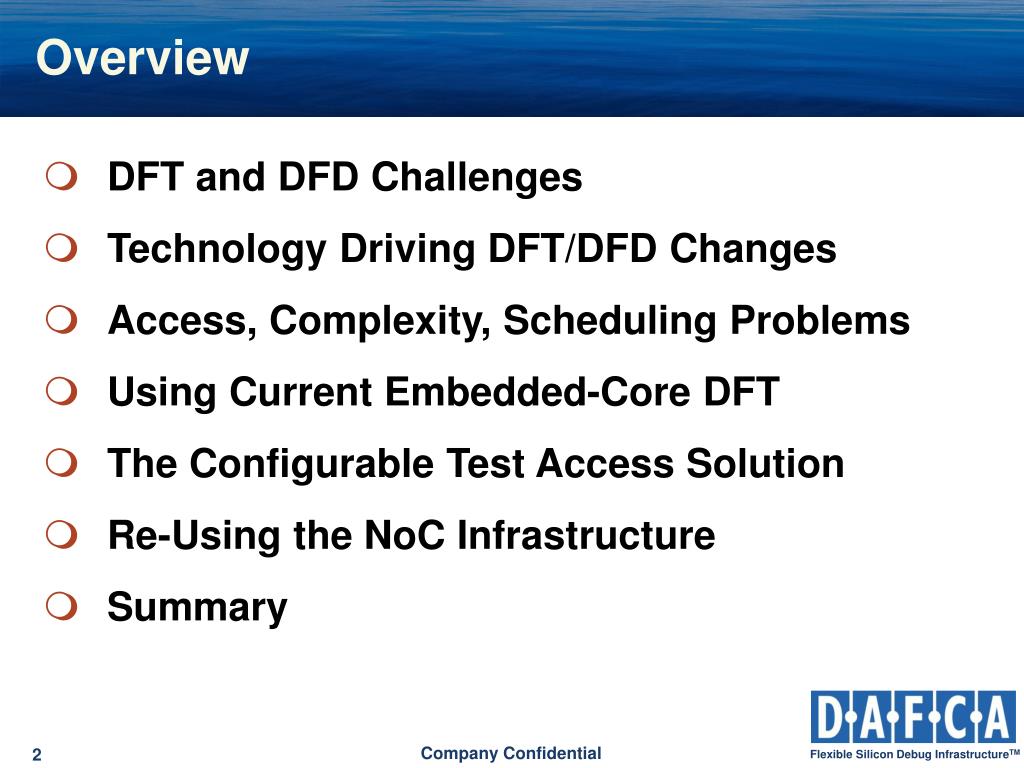

overview
Overview
  • DFT and DFD Challenges
  • Technology Driving DFT/DFD Changes
  • Access, Complexity, Scheduling Problems
  • Using Current Embedded-Core DFT
  • The Configurable Test Access Solution
  • Re-Using the NoC Infrastructure
  • Summary
silicon debug largest growing barrier to market entry
Silicon Debug: Largest & Growing Barrier to Market Entry

First siliconto finaltransfer tovolume mfg.

Specto startRTL

First netlistto finalnetlist

RTLto firstnetlist

Final netlistto firstsilicon

2002 (180nm)

-2%

-5%

-2%

+2%

+7%

2004 (130nm)

> 28% of TTM !

2006 (90nm)

> 35% of TTM ?

Traditional Debug Strategies Failing

Source: Collett ASIC/IC Verification Study

debug costs scale non linearly

Few signals observable

Slows emulation,

Most signalsnot observable

Very expensive,

Massive dump files

Observability/Debug Costs

Starts to impact

performance

Easy

Debug Costs Scale Non-Linearly

Post Silicon

Near Silicon

Emulation

Modulesimulation

Siliconvalidation

Sub-systemsimulation

Full-chip simulation

FPGA prototype

Observing enough signals for debug becomes

increasingly expensive and intrusive at each verification stage

typical problems slowing ramp to volume
Typical Problems Slowing Ramp to Volume
  • Silicon validation and debug takes too long
    • Lack of SoC-wide observability
  • Deep-state bugs difficult to isolate
    • Limited at-speed, in-system debug
  • Performance requirements not met
    • No on-chip performance monitoring
  • System integration takes too long
    • Inadequate pre-silicon validation and verification
technology advances driving dft problems

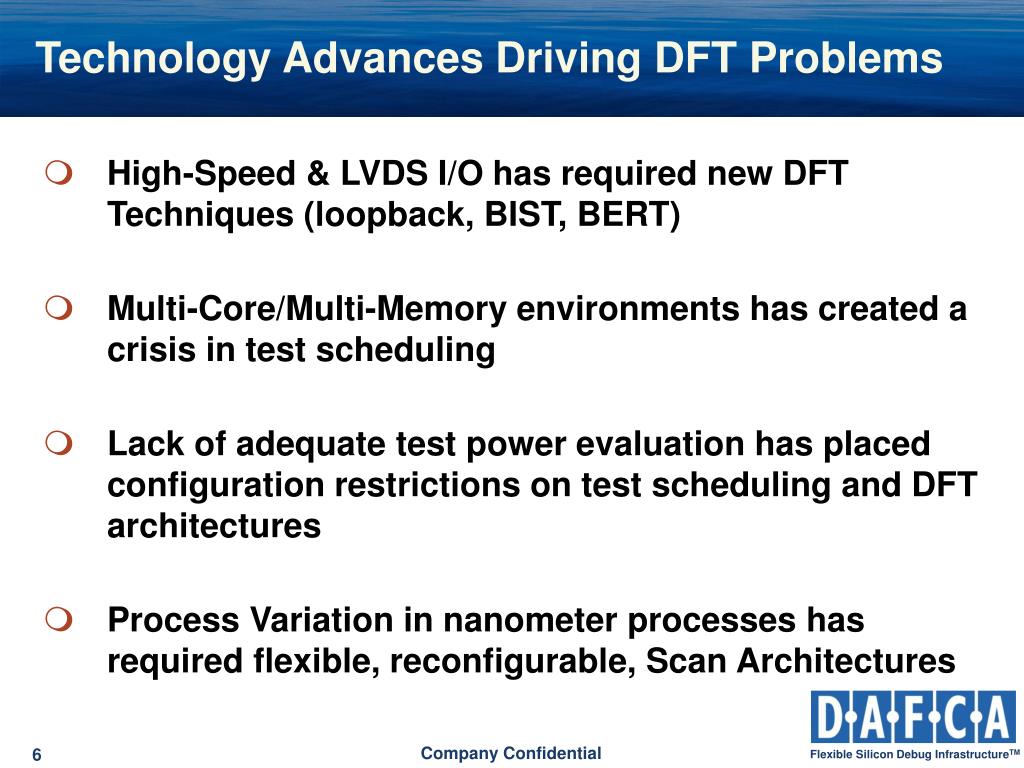

Technology Advances Driving DFT Problems
  • High-Speed & LVDS I/O has required new DFT Techniques (loopback, BIST, BERT)
  • Multi-Core/Multi-Memory environments has created a crisis in test scheduling
  • Lack of adequate test power evaluation has placed configuration restrictions on test scheduling and DFT architectures
  • Process Variation in nanometer processes has required flexible, reconfigurable, Scan Architectures
hi speed i o access test complexity problem

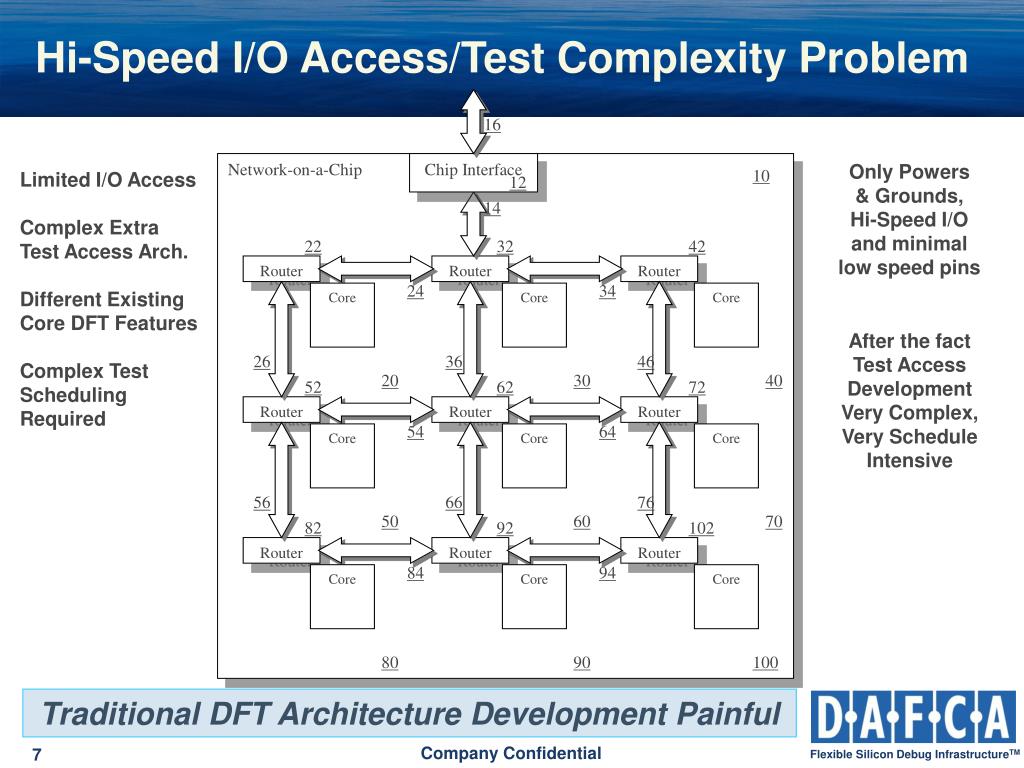

Hi-Speed I/O Access/Test Complexity Problem

16

Network-on-a-Chip

Chip Interface

Only Powers& Grounds,Hi-Speed I/Oand minimallow speed pins

10

Limited I/O Access

Complex ExtraTest Access Arch.

Different ExistingCore DFT Features

Complex TestSchedulingRequired

12

14

22

32

42

Router

Router

Router

24

34

Core

Core

Core

After the factTest AccessDevelopmentVery Complex,

Very ScheduleIntensive

26

36

46

20

30

40

52

62

72

Router

Router

Router

54

64

Core

Core

Core

56

66

76

50

60

70

82

92

102

Router

Router

Router

84

94

Core

Core

Core

80

90

100

Traditional DFT Architecture Development Painful

current core dft test architectures

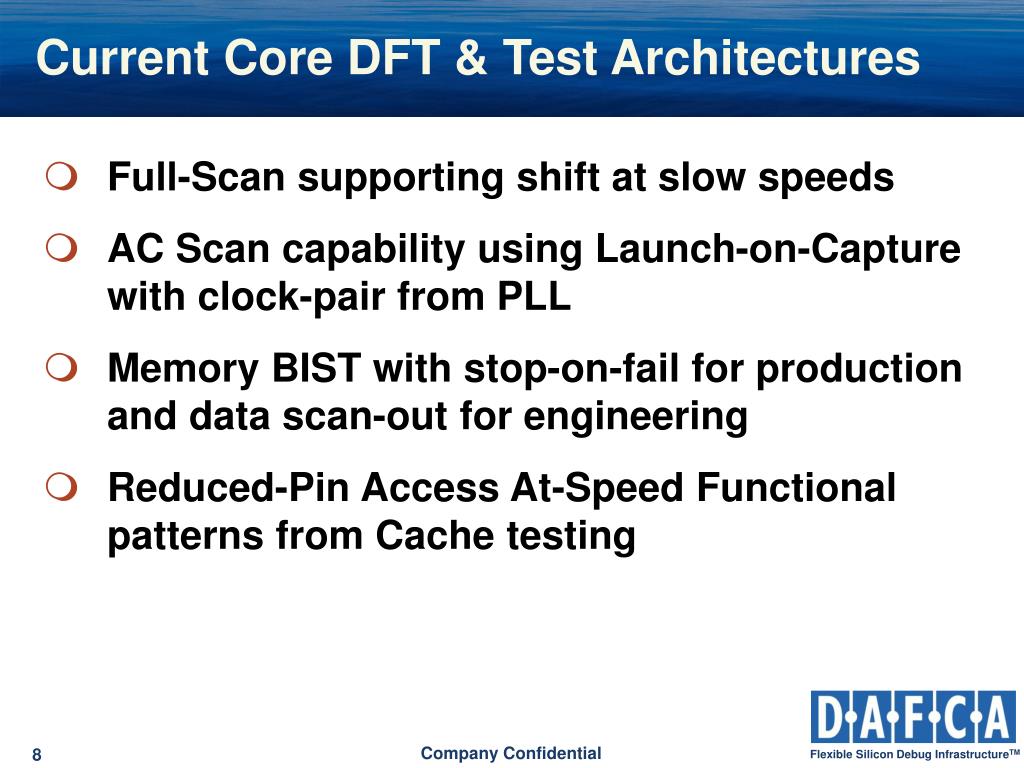

Current Core DFT & Test Architectures
  • Full-Scan supporting shift at slow speeds
  • AC Scan capability using Launch-on-Capture with clock-pair from PLL
  • Memory BIST with stop-on-fail for production and data scan-out for engineering
  • Reduced-Pin Access At-Speed Functional patterns from Cache testing

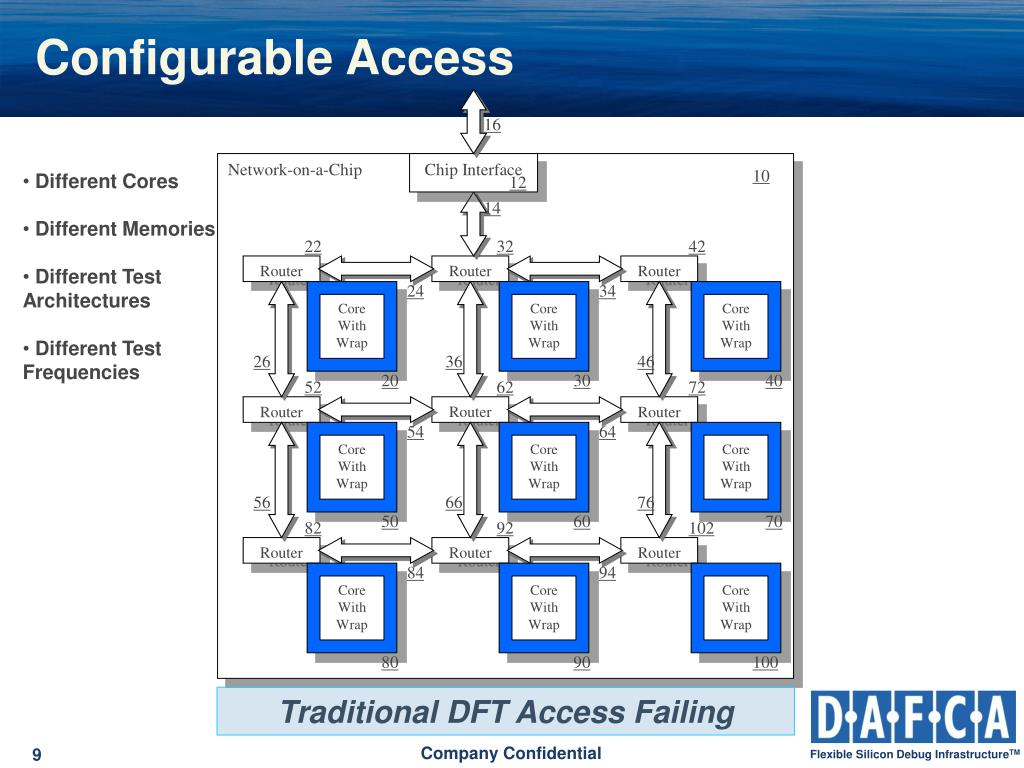

configurable access

16

Network-on-a-Chip

Chip Interface

10

12

Core

With

Wrap

Core

With

Wrap

Core

With

Wrap

Core

With

Wrap

Core

With

Wrap

Core

With

Wrap

Core

With

Wrap

Core

With

Wrap

Core

With

Wrap

14

22

32

42

Router

Router

Router

24

34

26

36

46

20

30

40

52

62

72

Router

Router

Router

54

64

56

66

76

50

60

70

82

92

102

Router

Router

Router

84

94

80

90

100

Configurable Access
  • Different Cores
  • Different Memories
  • Different TestArchitectures
  • Different TestFrequencies

Traditional DFT Access Failing

configurable access1

20

21

Configurable Fabric Wrapper

Core

28

High-SpeedInputs

High-Speed

Outputs

Input Convert

Output Convert

Internal

Logic

31

33

35

37

27

29

23

25

39

ScanProtocolGateway

Low-Speed Scan PortsUnbundler

ScanProtocol

Gateway

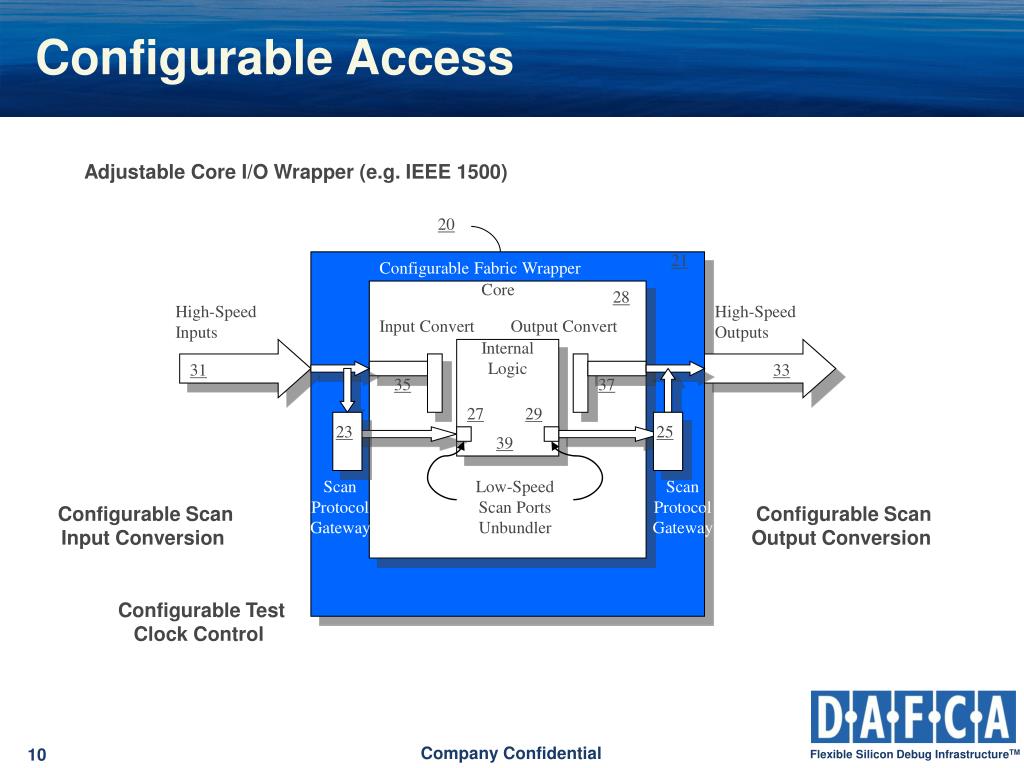

Configurable Access

Adjustable Core I/O Wrapper (e.g. IEEE 1500)

Configurable ScanInput Conversion

Configurable ScanOutput Conversion

Configurable TestClock Control

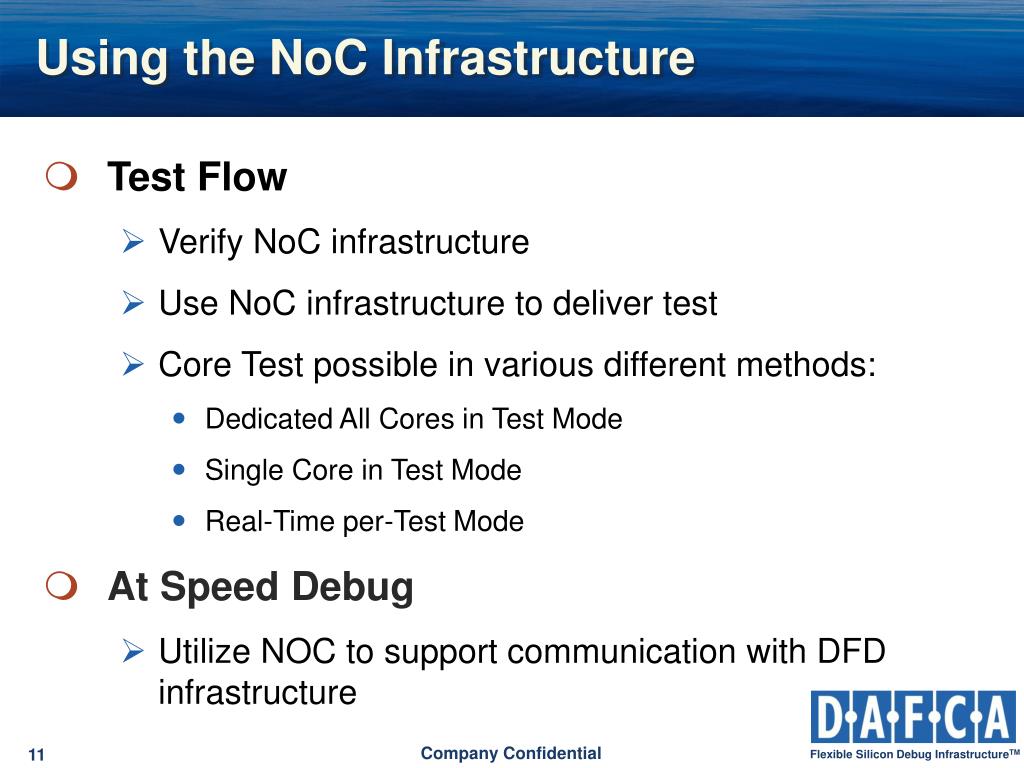

using the noc infrastructure
Using the NoC Infrastructure
  • Test Flow
    • Verify NoC infrastructure
    • Use NoC infrastructure to deliver test
    • Core Test possible in various different methods:
      • Dedicated All Cores in Test Mode
      • Single Core in Test Mode
      • Real-Time per-Test Mode
  • At Speed Debug
    • Utilize NOC to support communication with DFD infrastructure
reuse of noc infrastructure

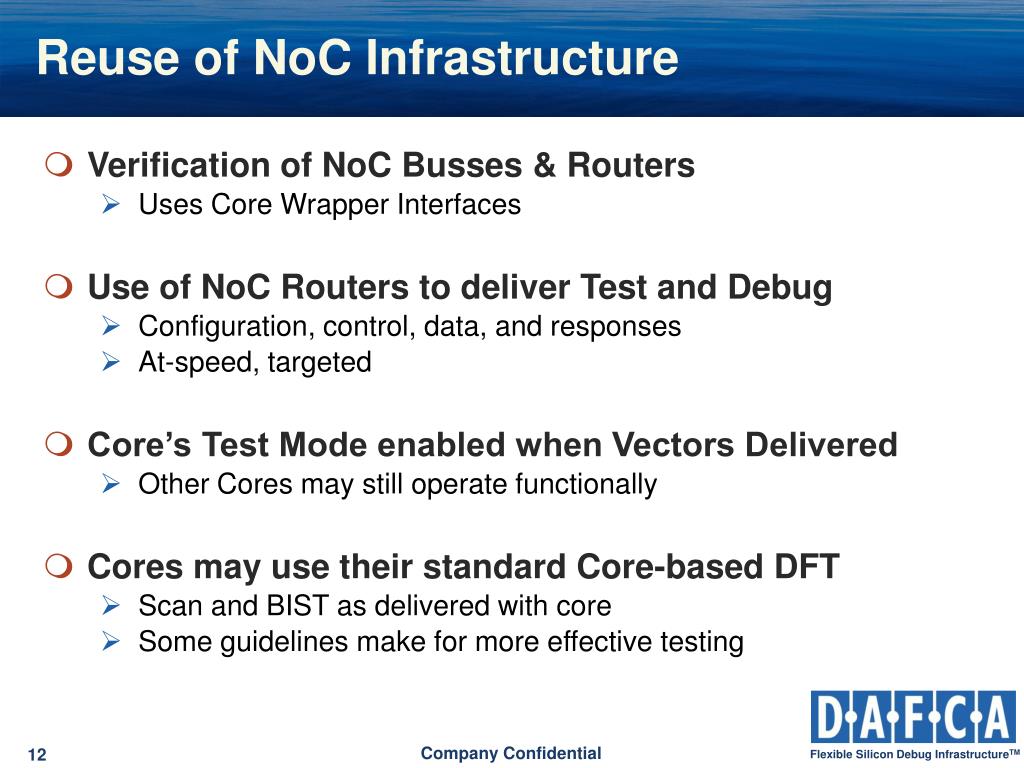

Reuse of NoC Infrastructure
  • Verification of NoC Busses & Routers
    • Uses Core Wrapper Interfaces
  • Use of NoC Routers to deliver Test and Debug
    • Configuration, control, data, and responses
    • At-speed, targeted
  • Core’s Test Mode enabled when Vectors Delivered
    • Other Cores may still operate functionally
  • Cores may use their standard Core-based DFT
    • Scan and BIST as delivered with core
    • Some guidelines make for more effective testing
possible test packets

410

408

406

404

402

Packet Tail

Functional Payload = Scan Test Packet

Functional Header

Functional Packet

410

408

406

404

402

Scan Data

Pattern Depth

Scan Depth

Scan Test

Core Test Address

430

428

426

424

422

End of Vector

Scan Data

Scan Depth

Scan Test

Core Test Address

428

427

426

424

422

Scan Data

Pattern #

Scan Depth

Scan Test

Core Test Address

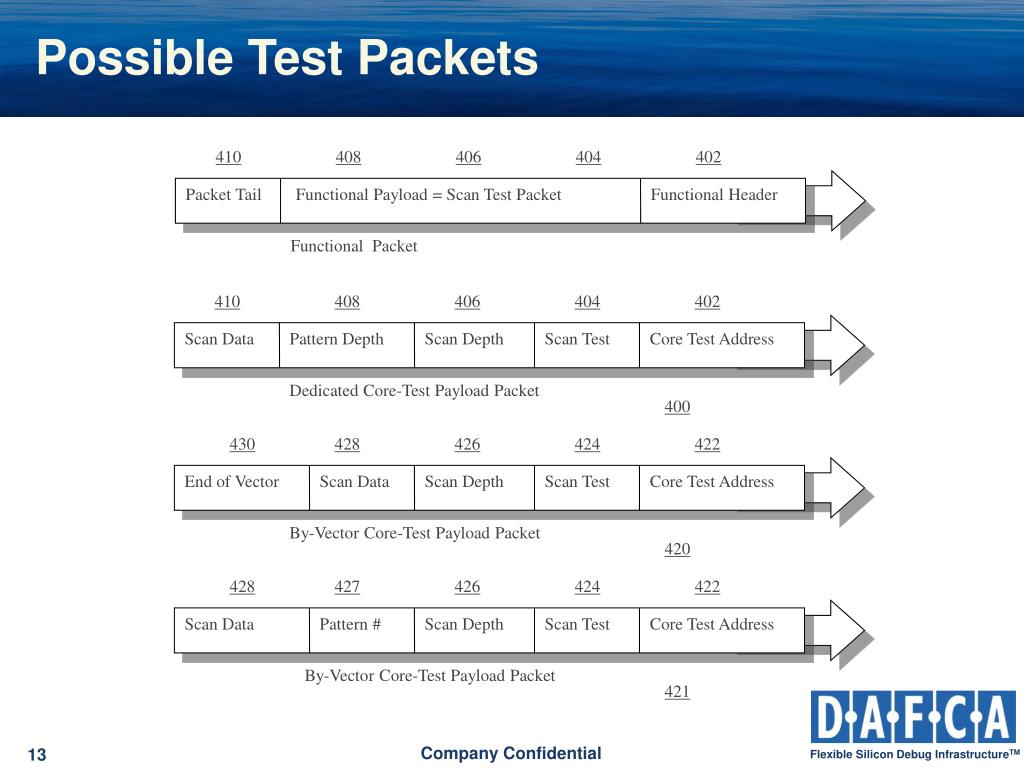

Possible Test Packets

Dedicated Core-Test Payload Packet

400

By-Vector Core-Test Payload Packet

420

By-Vector Core-Test Payload Packet

421

reconfigurable debug infrastructure

S

S

S

S

S

S

Monitor

PCON

JTAG

SoC

Reconfigurable Debug Infrastructure

Spare Link

Spare Link

Core

Spare Link

Core

Wrappers

dafca debug solution

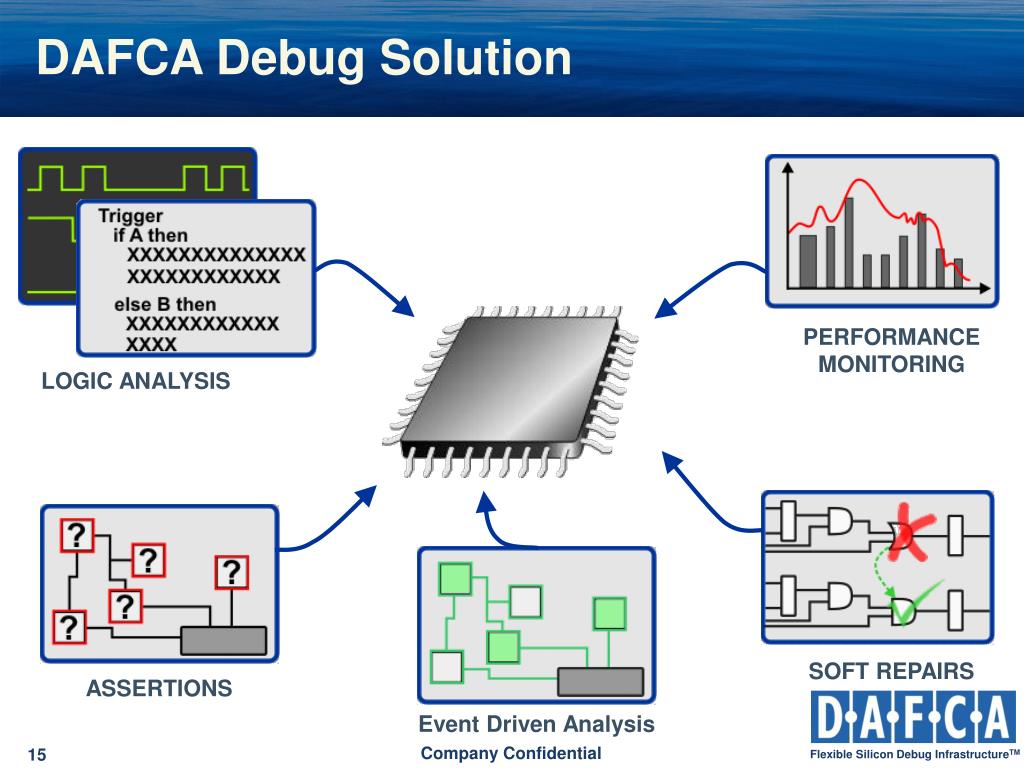

DAFCA Debug Solution

PERFORMANCE

MONITORING

LOGIC ANALYSIS

SOFT REPAIRS

ASSERTIONS

Event Driven Analysis

debug and test

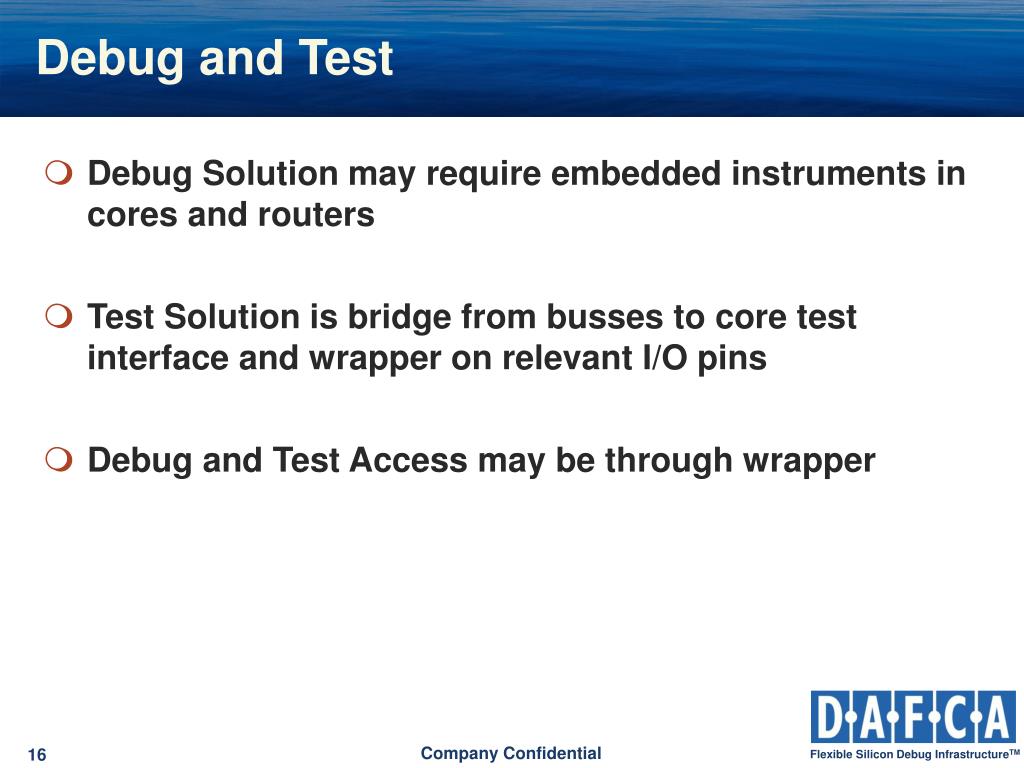

Debug and Test
  • Debug Solution may require embedded instruments in cores and routers
  • Test Solution is bridge from busses to core test interface and wrapper on relevant I/O pins
  • Debug and Test Access may be through wrapper
conclusion
Conclusion
  • DAFCA solution is generic configurable wrapper that fits between Cores and Busses/Routers
  • Configurability enables adjustment and scalability independent of Core-specific DFT and supports DFD
  • NoC Test Gateway reuses NoC infrastructure and makes test identical to all portions of the design and eliminates the separate test access routing
  • Per-Core Fabric makes Test Scheduling an at-test-time adjustable feature that allows different modes and types of testing
