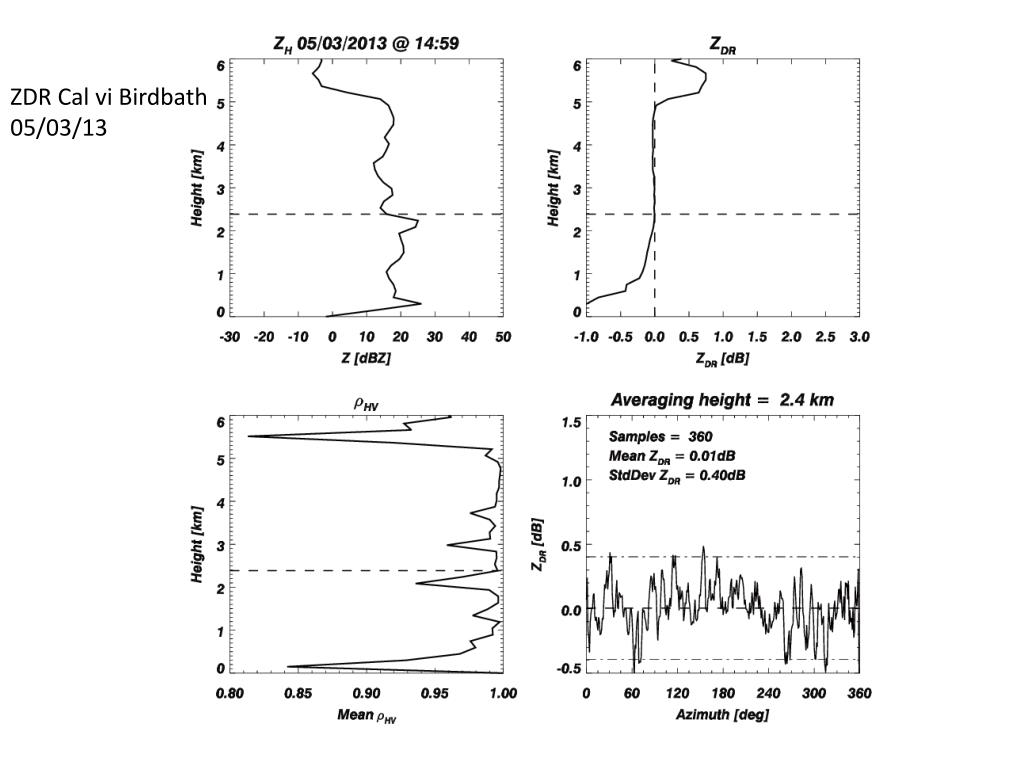

Z. RHOHV. S now to rain on morning of 5/3/2013. Snow/mix. Mix. Rain. Stratiform rain with mesoscale circulation enhancements. Reflectivity. Rainfall. ZDR Cal vi Birdbath 05/03/13. XPOL Locations 5/3/2013. Calmar. St. Olafs. NASA Dual rain gauge Network. Turkey Basin Gauges 26-45.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Snow/mix' - aladdin-delaney


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide1

Z

RHOHV

Snow to rain on morning of 5/3/2013

Snow/mix

Mix

Rain

slide5

NASA Dual rain gauge Network

Turkey Basin Gauges 26-45

Southfork

Gauges 46-50

slide6

05/03/2013 MRR at disdrometer cluster site located 47 km from NPOL(0020-0130 UTC): Mixed phase event, Z and Velocity

Per Patrick Gatlin: The MRR located about 47 km SE of the NPOL radar captured lowering and raising of the melting layer. Shown are time-height series of reflectivity (left) and Doppler velocity (right) between 00:20-01:30 UTC on 3 May, 2013. The melting layer intersected the surface twice in this image. Also, an increase in fall speed around the fringes of the reflectivity enhancements is evident. The 2DVD at that location indicated a rather variable DSD at the ground during these melting layer undulations.
