  1. Filament Winding Machine

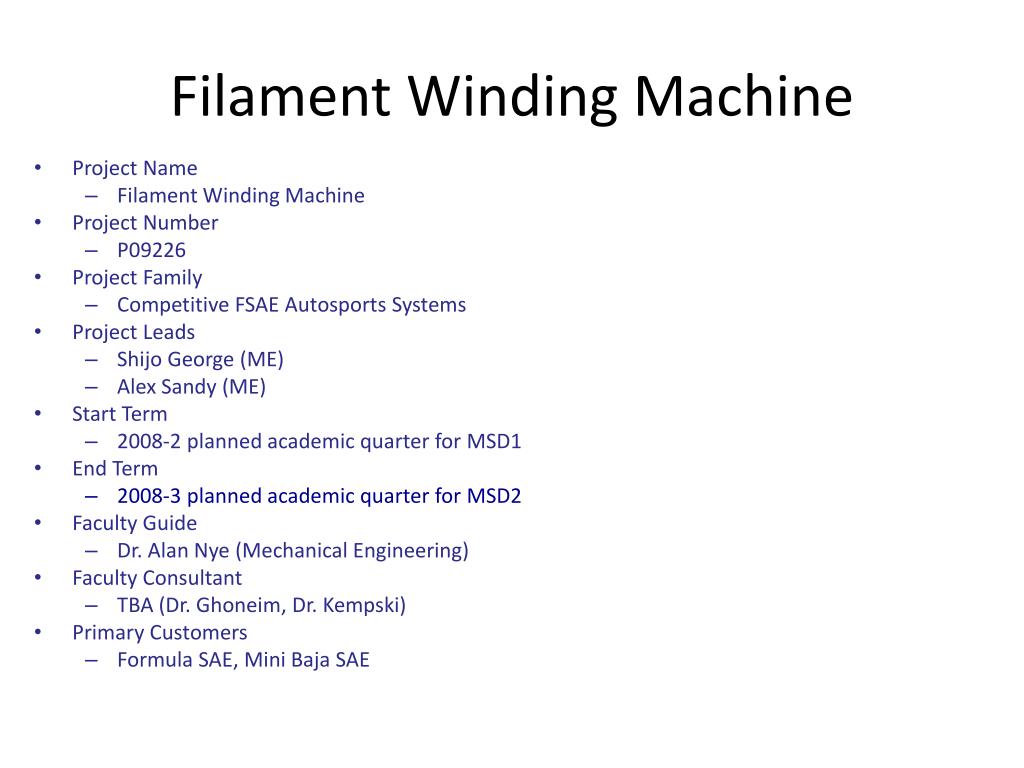

  2. Filament Winding Machine • Project Name • Filament Winding Machine • Project Number • P09226 • Project Family • Competitive FSAE Autosports Systems • Project Leads • Shijo George (ME) • Alex Sandy (ME) • Start Term • 2008-2 planned academic quarter for MSD1 • End Term • 2008-3 planned academic quarter for MSD2 • Faculty Guide • Dr. Alan Nye (Mechanical Engineering) • Faculty Consultant • TBA (Dr. Ghoneim, Dr. Kempski) • Primary Customers • Formula SAE, Mini Baja SAE

  3. Filament Winding Machine Mission Statement: To develop a low cost, first generation filament winding machine which produces simple composite tubing that can be further developed by future senior design teams Roadmap Objective: Fundamental step in developing carbon fiber tubing to be used in space frame of Formula Racing vehicles

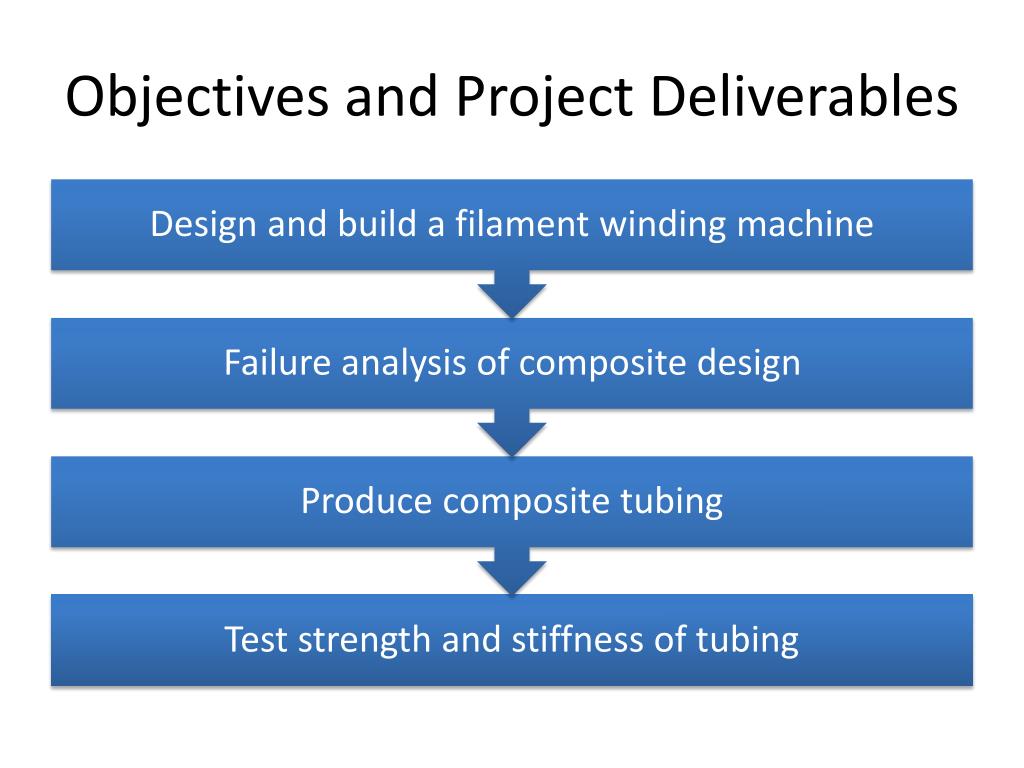

  4. Objectives and Project Deliverables

  5. Filament Winding • The process by which a continuous strand of impregnated fibers is wound onto a mandrel with specific fibers’ orientation which is controlled by computer. • After the resin has cured, the mandrel is withdrawn • Components produced include pipe work, pressure vessels, storage tanks, and helicopter blades

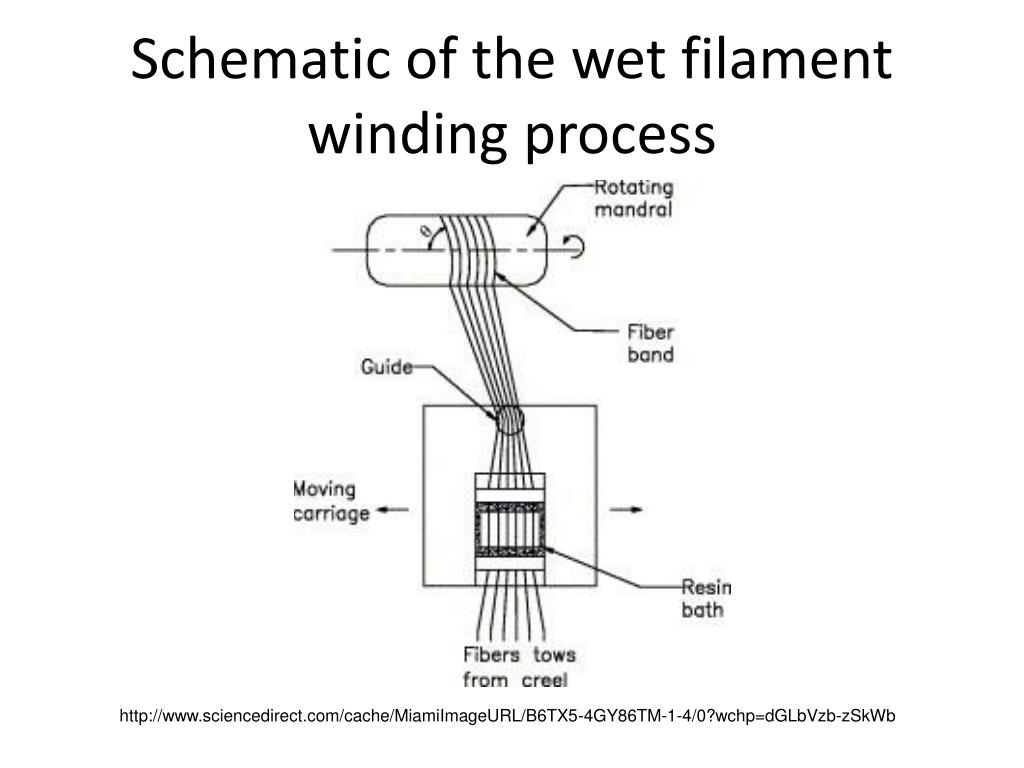

  6. Schematic of the wet filament winding process http://www.sciencedirect.com/cache/MiamiImageURL/B6TX5-4GY86TM-1-4/0?wchp=dGLbVzb-zSkWb

  7. Layout http://www.globalsecurity.org/wmd/library/report/2004/isg-final-report/ch4_img09.jpg

  8. Staffing 1 Computer Engineer • Design • Develop program/controls for relative speed of mandrel to feed eye (determines fiber orientation) • Build 4 Mechanical Engineers • Design • CAD Design • Determine speed, tension, machine layout • Determine fiber orientation, tube specifications (based on testing capabilities) • Build • Build set-up based on design (new machine system or off of existing lathe) • Test • Determine strength of tubing in tension, bending, torsion

  9. Preliminary Work Breakdown Structure

  10. Concerns and Constraints • Project • Sponsor(s) • Advisor(s) • Build Space for filament winding machine • Finalize Budget • Raw Mat’l $800-$900 • Motor and misc. $600-$700 • Design • Fiber/Resin/Mandrel material • Control of fiber orientation angle • Existing lathe vs. build from scratch
