Siemens Scalance X108 108-0Ba00-2Aa3 Simatic Net Industrial Ethernet Switch

The Siemens SCALANCE X108 108-0BA00-2AA3 SIMATIC NET Industrial Ethernet Switch is a rugged, managed switch for industrial networks, providing reliable, high-speed connectivity for a variety of automation applications. It has eight Ethernet ports and supports Gigabit speeds with redundancy protocols such as RSTP and MRP for increased network reliability.

aeliya_offpage
Download Presentation

Siemens Scalance X108 108-0Ba00-2Aa3 Simatic Net Industrial Ethernet Switch

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

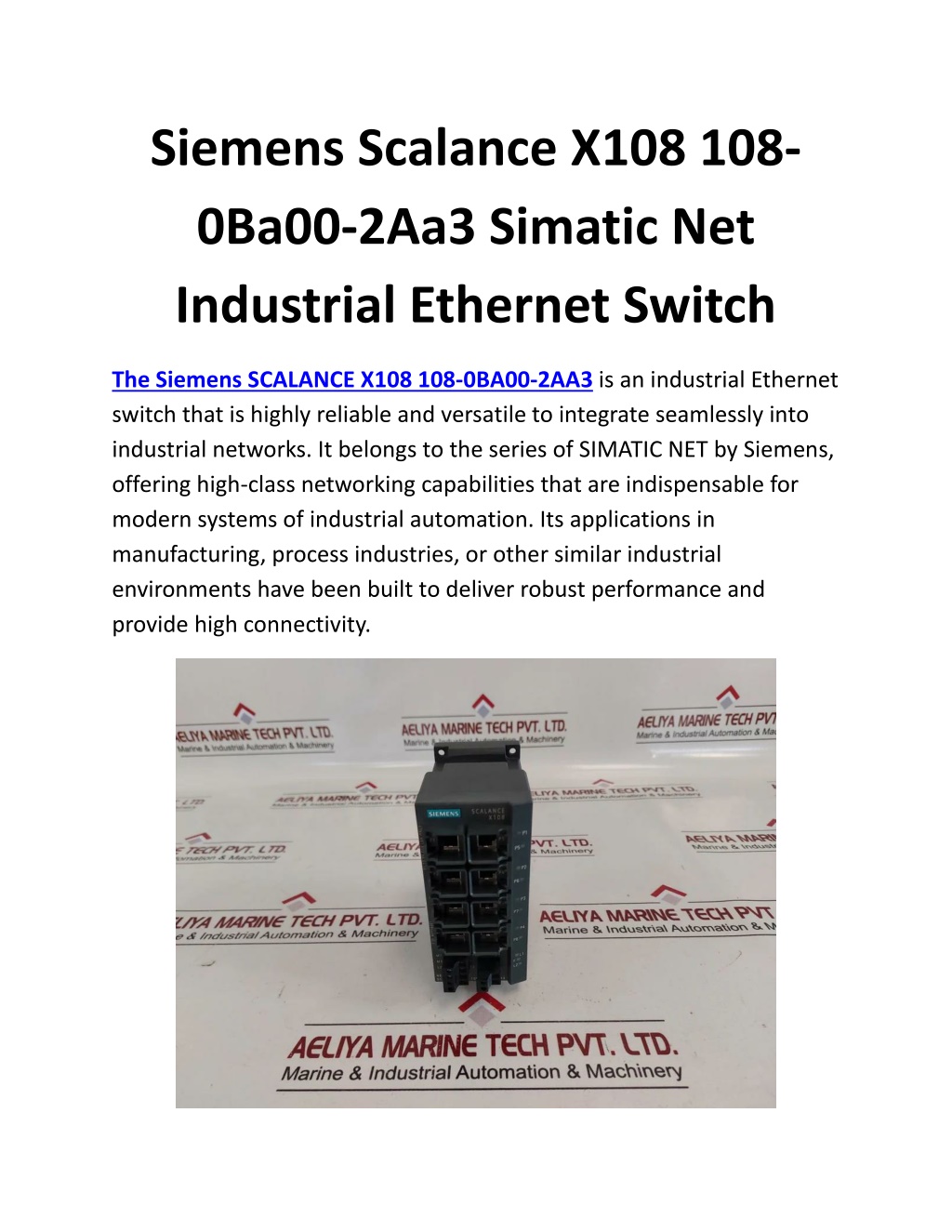

  1. Siemens Scalance X108 108- 0Ba00-2Aa3 Simatic Net Industrial Ethernet Switch The Siemens SCALANCE X108 108-0BA00-2AA3 is an industrial Ethernet switch that is highly reliable and versatile to integrate seamlessly into industrial networks. It belongs to the series of SIMATIC NET by Siemens, offering high-class networking capabilities that are indispensable for modern systems of industrial automation. Its applications in manufacturing, process industries, or other similar industrial environments have been built to deliver robust performance and provide high connectivity.

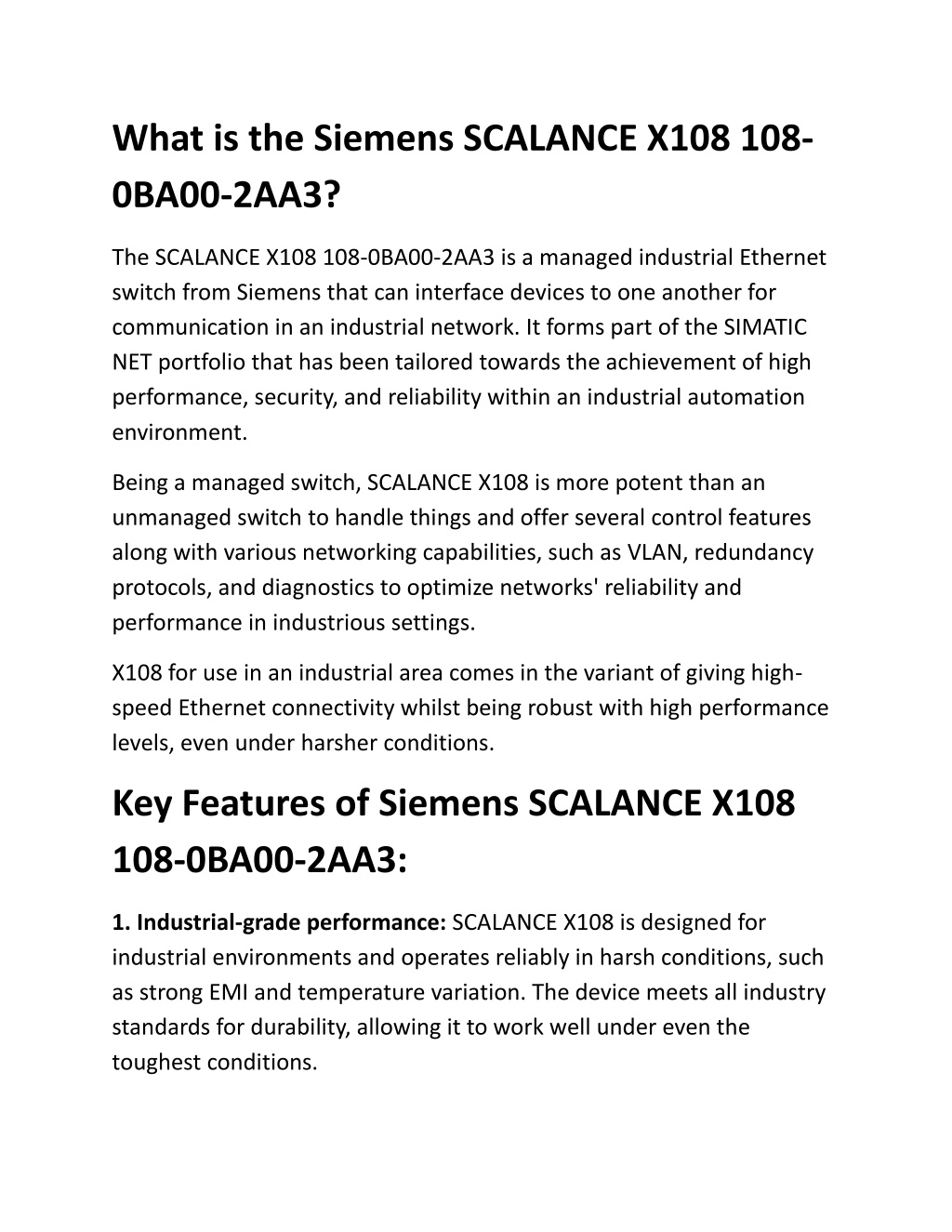

  2. What is the Siemens SCALANCE X108 108- 0BA00-2AA3? The SCALANCE X108 108-0BA00-2AA3 is a managed industrial Ethernet switch from Siemens that can interface devices to one another for communication in an industrial network. It forms part of the SIMATIC NET portfolio that has been tailored towards the achievement of high performance, security, and reliability within an industrial automation environment. Being a managed switch, SCALANCE X108 is more potent than an unmanaged switch to handle things and offer several control features along with various networking capabilities, such as VLAN, redundancy protocols, and diagnostics to optimize networks' reliability and performance in industrious settings. X108 for use in an industrial area comes in the variant of giving high- speed Ethernet connectivity whilst being robust with high performance levels, even under harsher conditions. Key Features of Siemens SCALANCE X108 108-0BA00-2AA3: 1. Industrial-grade performance: SCALANCE X108 is designed for industrial environments and operates reliably in harsh conditions, such as strong EMI and temperature variation. The device meets all industry standards for durability, allowing it to work well under even the toughest conditions.

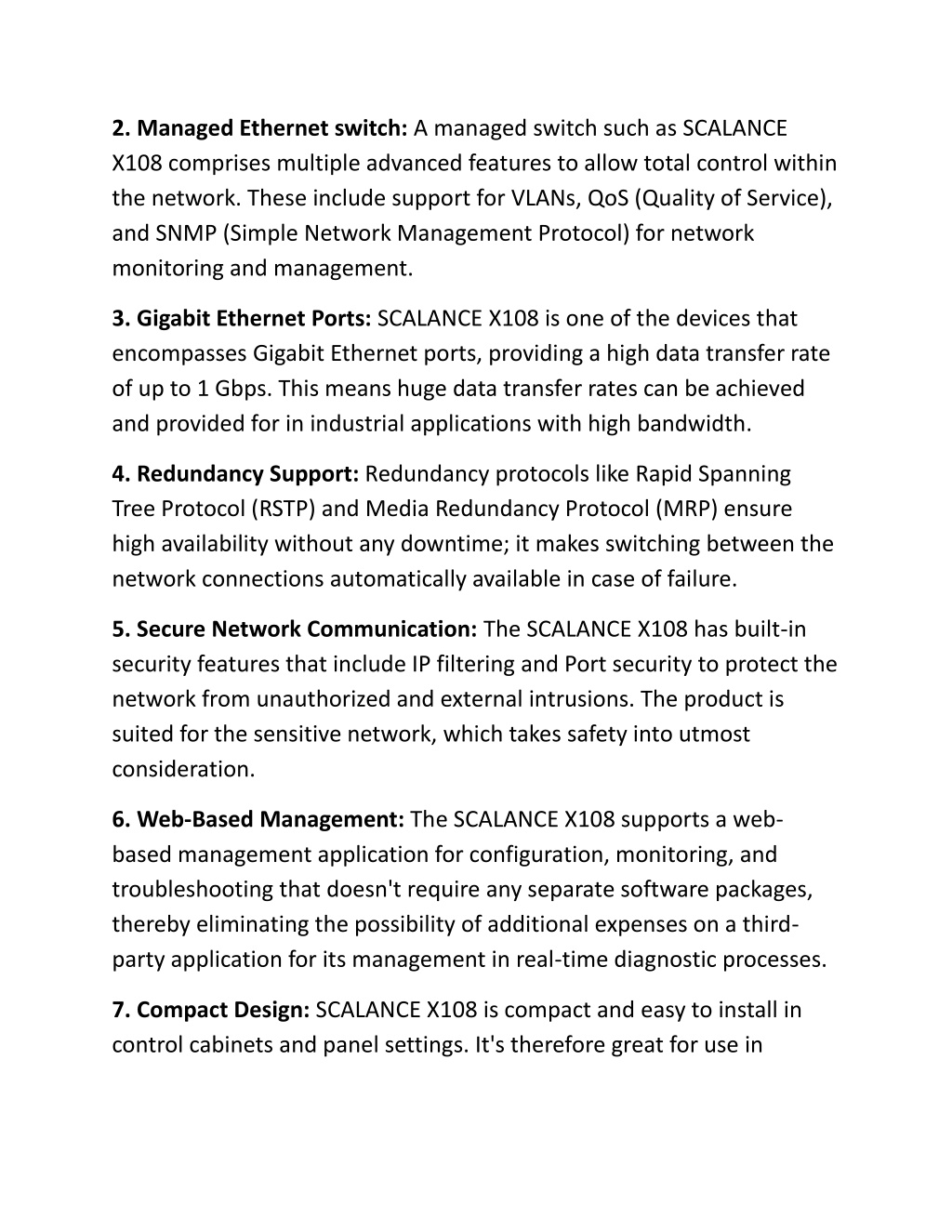

  3. 2. Managed Ethernet switch: A managed switch such as SCALANCE X108 comprises multiple advanced features to allow total control within the network. These include support for VLANs, QoS (Quality of Service), and SNMP (Simple Network Management Protocol) for network monitoring and management. 3. Gigabit Ethernet Ports: SCALANCE X108 is one of the devices that encompasses Gigabit Ethernet ports, providing a high data transfer rate of up to 1 Gbps. This means huge data transfer rates can be achieved and provided for in industrial applications with high bandwidth. 4. Redundancy Support: Redundancy protocols like Rapid Spanning Tree Protocol (RSTP) and Media Redundancy Protocol (MRP) ensure high availability without any downtime; it makes switching between the network connections automatically available in case of failure. 5. Secure Network Communication: The SCALANCE X108 has built-in security features that include IP filtering and Port security to protect the network from unauthorized and external intrusions. The product is suited for the sensitive network, which takes safety into utmost consideration. 6. Web-Based Management: The SCALANCE X108 supports a web- based management application for configuration, monitoring, and troubleshooting that doesn't require any separate software packages, thereby eliminating the possibility of additional expenses on a third- party application for its management in real-time diagnostic processes. 7. Compact Design: SCALANCE X108 is compact and easy to install in control cabinets and panel settings. It's therefore great for use in

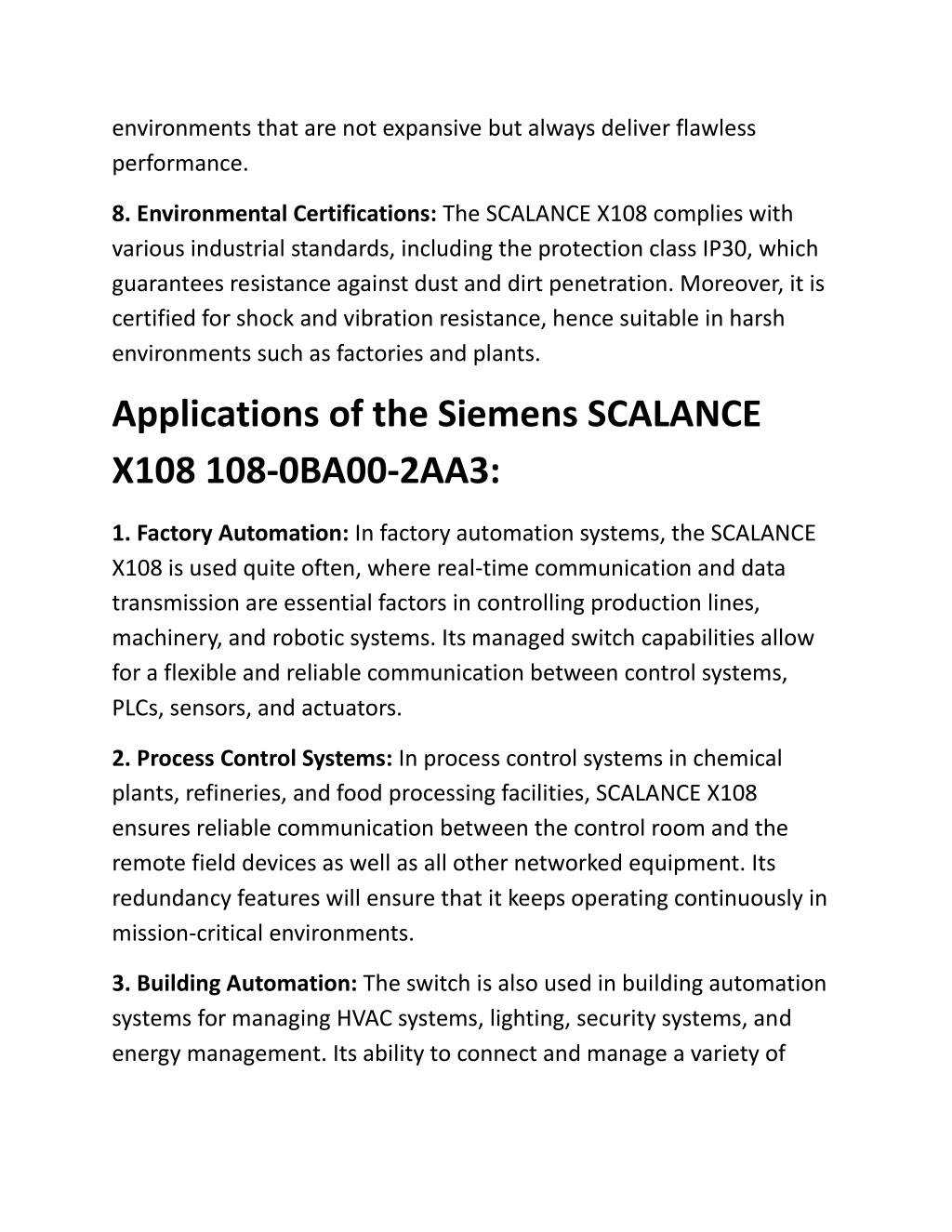

  4. environments that are not expansive but always deliver flawless performance. 8. Environmental Certifications: The SCALANCE X108 complies with various industrial standards, including the protection class IP30, which guarantees resistance against dust and dirt penetration. Moreover, it is certified for shock and vibration resistance, hence suitable in harsh environments such as factories and plants. Applications of the Siemens SCALANCE X108 108-0BA00-2AA3: 1. Factory Automation: In factory automation systems, the SCALANCE X108 is used quite often, where real-time communication and data transmission are essential factors in controlling production lines, machinery, and robotic systems. Its managed switch capabilities allow for a flexible and reliable communication between control systems, PLCs, sensors, and actuators. 2. Process Control Systems: In process control systems in chemical plants, refineries, and food processing facilities, SCALANCE X108 ensures reliable communication between the control room and the remote field devices as well as all other networked equipment. Its redundancy features will ensure that it keeps operating continuously in mission-critical environments. 3. Building Automation: The switch is also used in building automation systems for managing HVAC systems, lighting, security systems, and energy management. Its ability to connect and manage a variety of

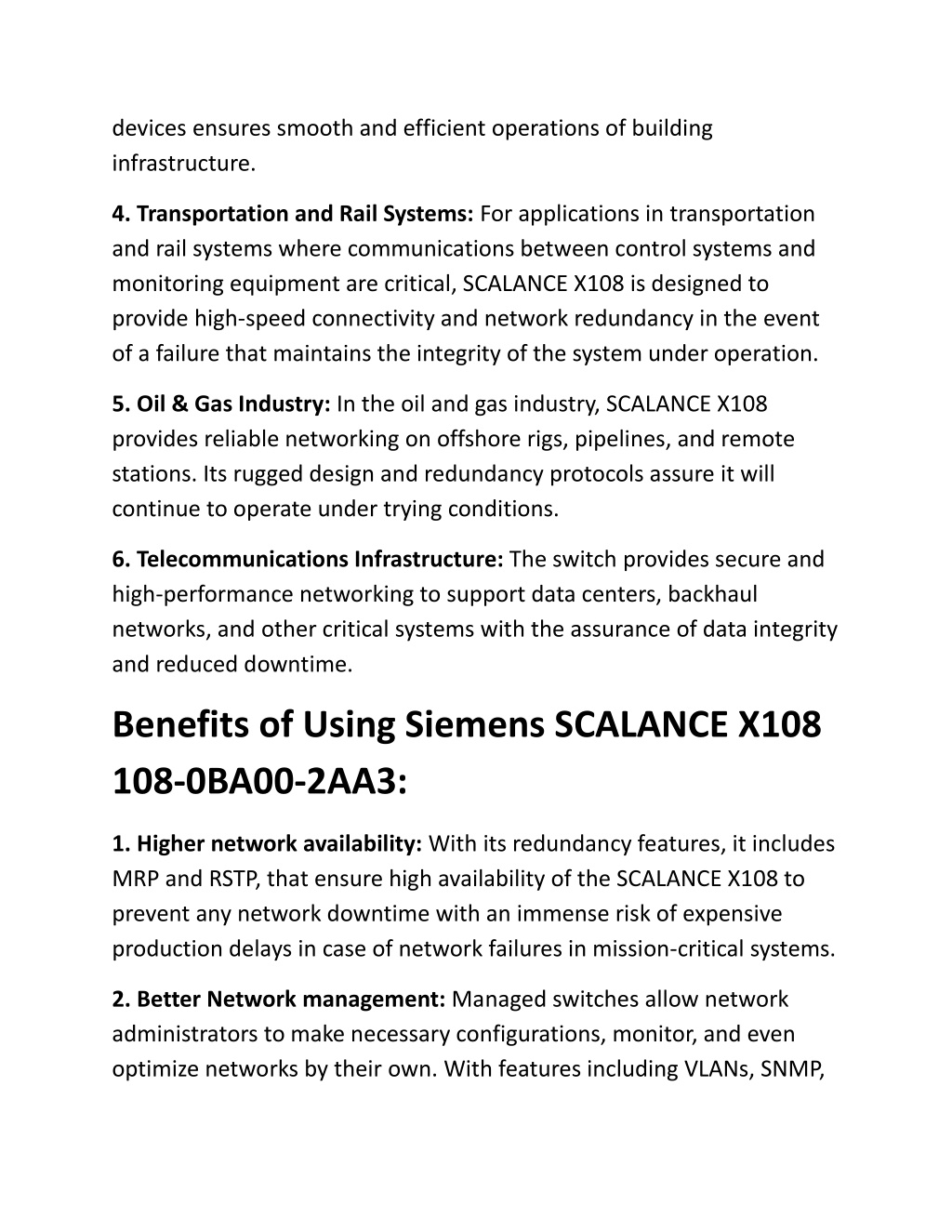

  5. devices ensures smooth and efficient operations of building infrastructure. 4. Transportation and Rail Systems: For applications in transportation and rail systems where communications between control systems and monitoring equipment are critical, SCALANCE X108 is designed to provide high-speed connectivity and network redundancy in the event of a failure that maintains the integrity of the system under operation. 5. Oil & Gas Industry: In the oil and gas industry, SCALANCE X108 provides reliable networking on offshore rigs, pipelines, and remote stations. Its rugged design and redundancy protocols assure it will continue to operate under trying conditions. 6. Telecommunications Infrastructure: The switch provides secure and high-performance networking to support data centers, backhaul networks, and other critical systems with the assurance of data integrity and reduced downtime. Benefits of Using Siemens SCALANCE X108 108-0BA00-2AA3: 1. Higher network availability: With its redundancy features, it includes MRP and RSTP, that ensure high availability of the SCALANCE X108 to prevent any network downtime with an immense risk of expensive production delays in case of network failures in mission-critical systems. 2. Better Network management: Managed switches allow network administrators to make necessary configurations, monitor, and even optimize networks by their own. With features including VLANs, SNMP,

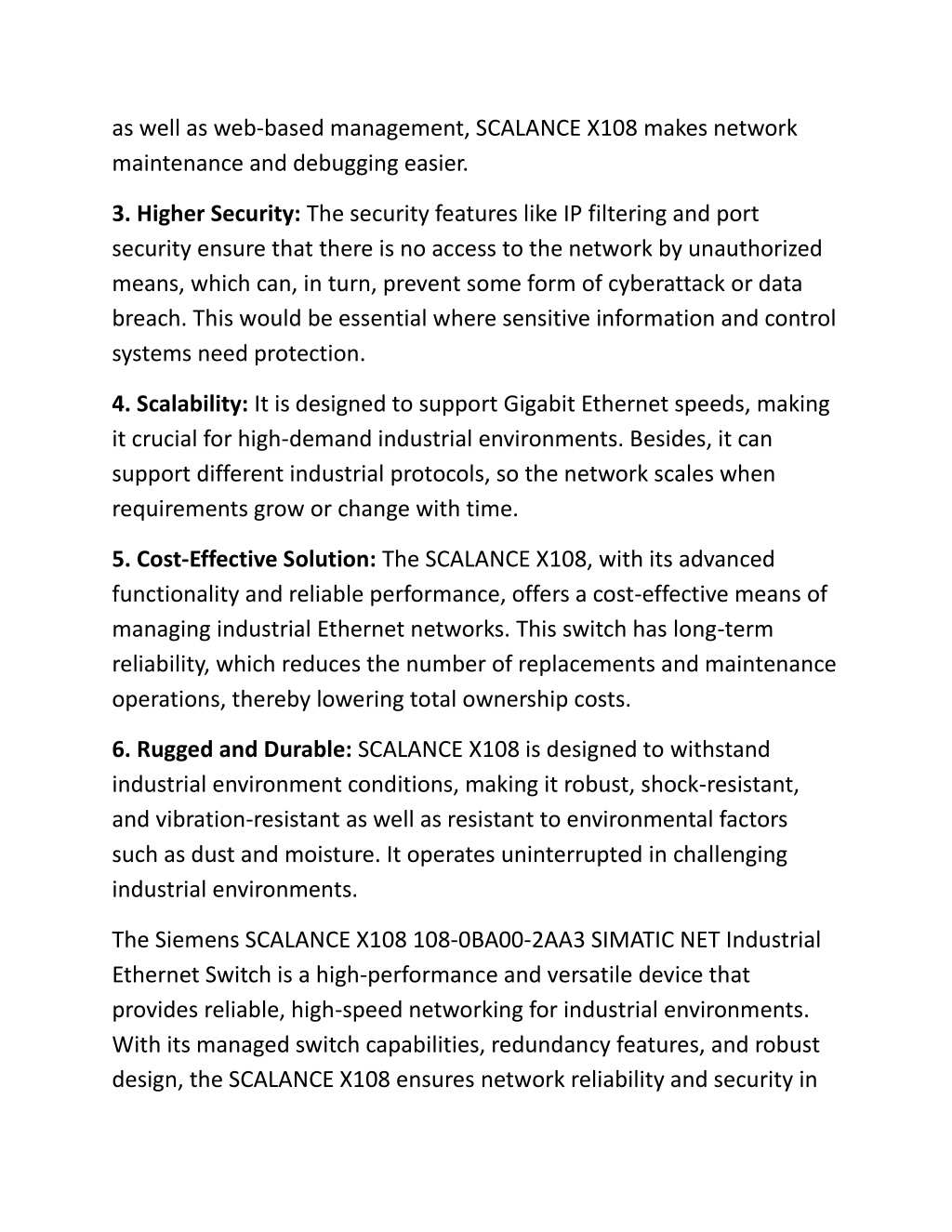

  6. as well as web-based management, SCALANCE X108 makes network maintenance and debugging easier. 3. Higher Security: The security features like IP filtering and port security ensure that there is no access to the network by unauthorized means, which can, in turn, prevent some form of cyberattack or data breach. This would be essential where sensitive information and control systems need protection. 4. Scalability: It is designed to support Gigabit Ethernet speeds, making it crucial for high-demand industrial environments. Besides, it can support different industrial protocols, so the network scales when requirements grow or change with time. 5. Cost-Effective Solution: The SCALANCE X108, with its advanced functionality and reliable performance, offers a cost-effective means of managing industrial Ethernet networks. This switch has long-term reliability, which reduces the number of replacements and maintenance operations, thereby lowering total ownership costs. 6. Rugged and Durable: SCALANCE X108 is designed to withstand industrial environment conditions, making it robust, shock-resistant, and vibration-resistant as well as resistant to environmental factors such as dust and moisture. It operates uninterrupted in challenging industrial environments. The Siemens SCALANCE X108 108-0BA00-2AA3 SIMATIC NET Industrial Ethernet Switch is a high-performance and versatile device that provides reliable, high-speed networking for industrial environments. With its managed switch capabilities, redundancy features, and robust design, the SCALANCE X108 ensures network reliability and security in

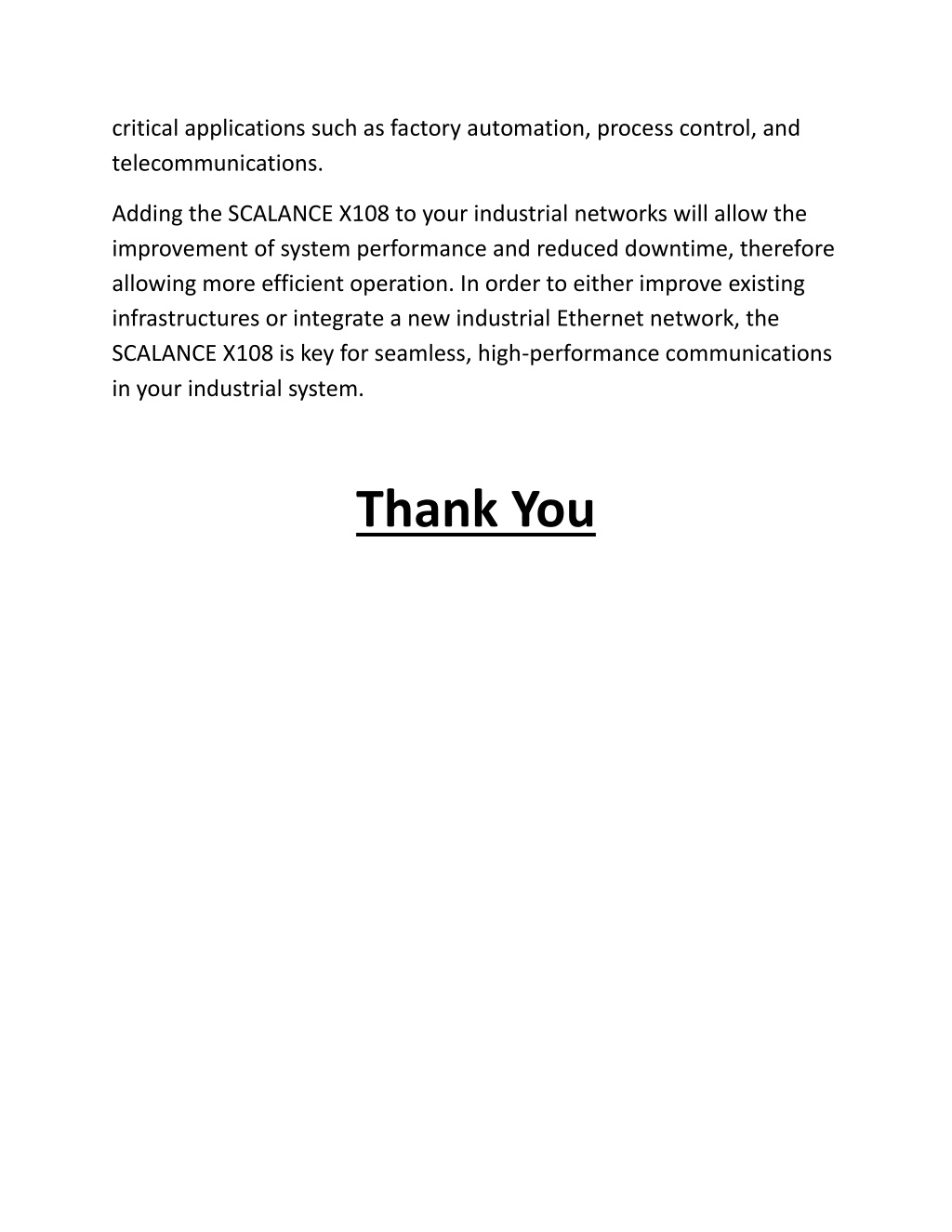

  7. critical applications such as factory automation, process control, and telecommunications. Adding the SCALANCE X108 to your industrial networks will allow the improvement of system performance and reduced downtime, therefore allowing more efficient operation. In order to either improve existing infrastructures or integrate a new industrial Ethernet network, the SCALANCE X108 is key for seamless, high-performance communications in your industrial system. Thank You
