  1. SCALANCE • SCALANCE - SCALableperformANCE • SCALANCE X – Switches • SCALANCE W – Wireless • SCALANCE S – Security

  2. Modular Gigabit Office feat. Redundancy X-400 X414-3E Isochronous real-time Managed Isochronousreal-time X208PRO X204IRT X202-2IRT X-200 X208 X204-2 X206-1 Performance range, feature set X108 X104-2 X106-1 X-100 Unmanaged SCALANCE X Portfolio Productstoday OSM / ESM ELS TP40M ELS TP40/ TP80

  3. Port Characteristics

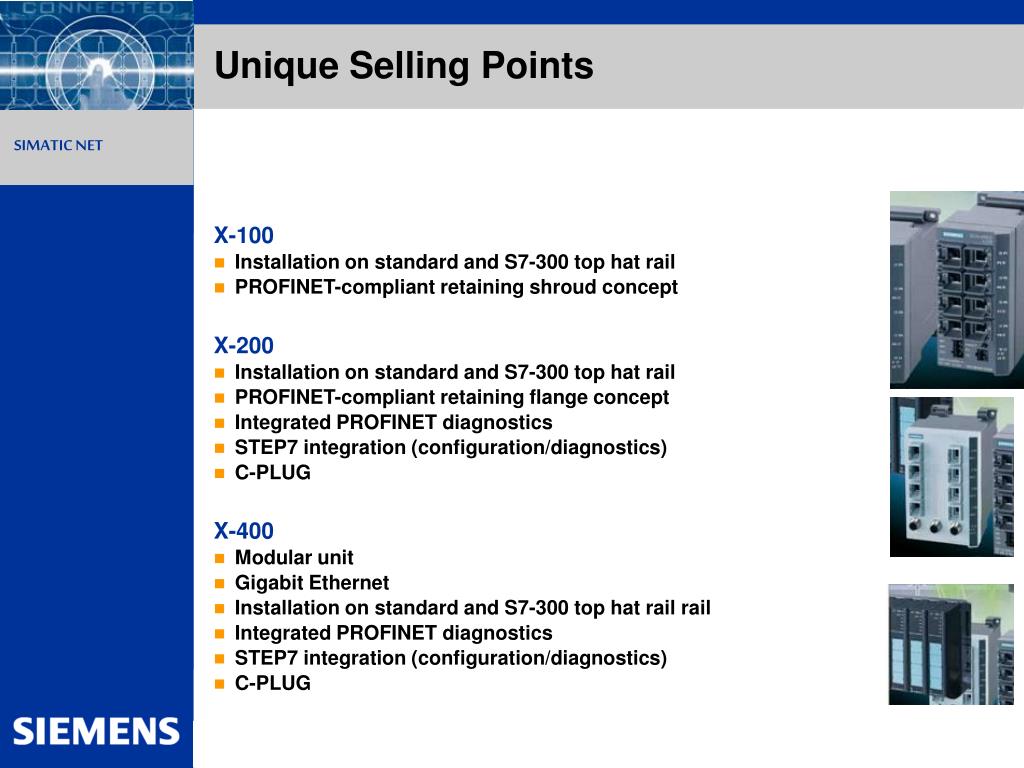

  4. Unique Selling Points • X-100 • Installation on standard and S7-300 top hat rail • PROFINET-compliant retaining shroud concept • X-200 • Installation on standard and S7-300 top hat rail • PROFINET-compliant retaining flange concept • Integrated PROFINET diagnostics • STEP7 integration (configuration/diagnostics) • C-PLUG • X-400 • Modular unit • Gigabit Ethernet • Installation on standard and S7-300 top hat rail rail • Integrated PROFINET diagnostics • STEP7 integration (configuration/diagnostics) • C-PLUG

  5. Access points Client products Accessories SCALANCE W Portfolio • Access Points • SCALANCE W788-1PRO • SCALANCE W788-2 PRO • Clients • SCALANCE W744-1PRO • CP 7515 • Accessories • ANT795-1MR • ANT795-6MR • ANT793-8DR • TI795-1R • Antenna Extension Cable FRNC • LP798-1PRO • PS791-1PRO (Power Supply).

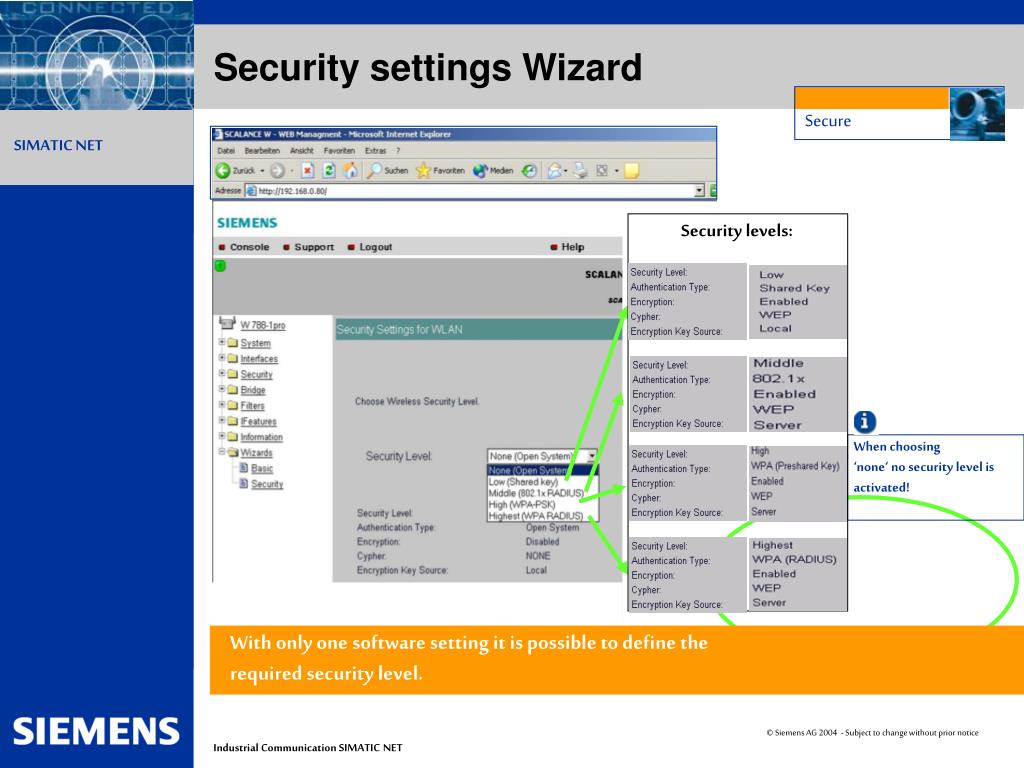

  6. Secure Security settings Wizard Security levels: When choosing‘none‘ no security level is activated! With only one software setting it is possible to define the required security level.

  7. Unique Selling Points • IP65 class of protection, sturdy metal housing • Suitable for indoor and outdoor applications • Shock and vibration-resistant • Ambient temperature range of  –20°C to +60°C, immunity against condensation • Quick replacement in the case of a fault with the optional C-PLUG (configuration plug). • Built in security (WPA with AES) • Supplied complete with radio module and antennas

  8. SCALANCE S Portfolio Infrastructure (hardware) Client products (software) SOFTNET Security Client VPN Software SCALANCE S612 SCALANCE S613

  9. Infrastructure - Features Standard security module SCALANCE S 61x • Degree of protection IP30 • 2x RJ45 10/100 Mbit/s Ethernet port • Data security through IPSec VPN tunneling • Integrated firewall • C PLUG (configuration plug) - Storage medium for fast device replacement without programming unit (optional) • Certified acc. to ISO/IEC 15408 Common Criteria (EAL4+)

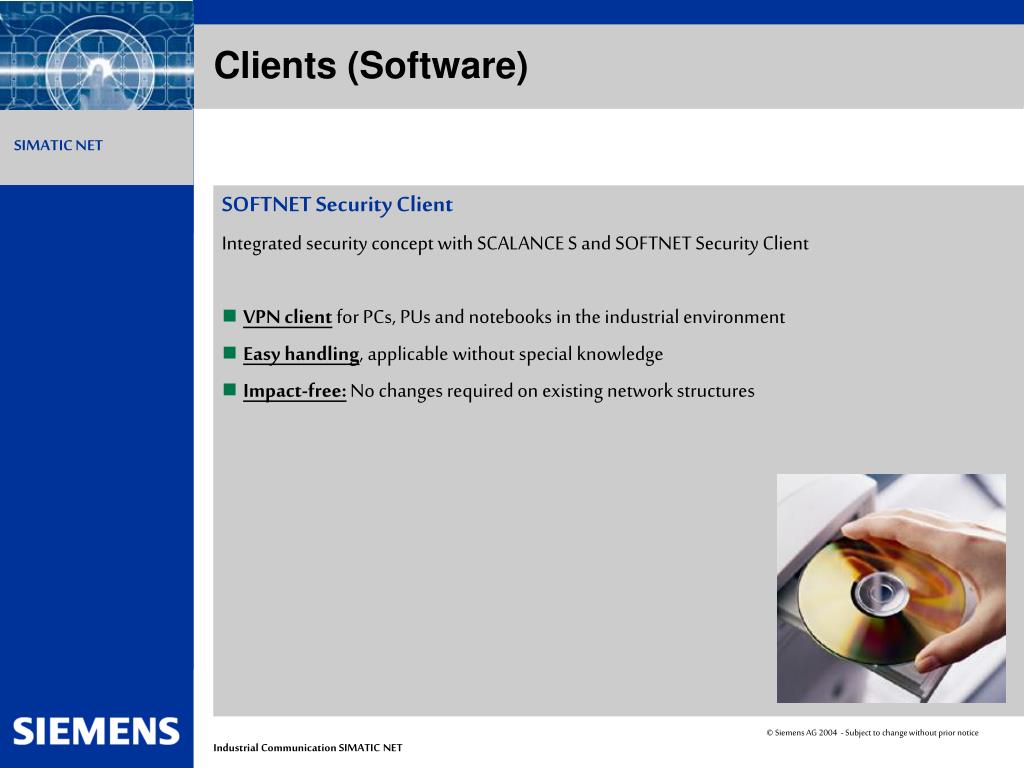

  10. Clients (Software) SOFTNET Security Client Integrated security concept with SCALANCE S and SOFTNET Security Client • VPN client for PCs, PUs and notebooks in the industrial environment • Easy handling, applicable without special knowledge • Impact-free: No changes required on existing network structures

  11. Configuration of the Security Modules • Intuitive configuration without special security knowledge • Automatic creation of the certificates through the configuration tool • Automatic learning of the nodes of the internal network and detection of other security modules in the external network

  12. Unique Selling Points • Easy handling through minimum configuration • No special IT securityknowledge required • Low configuration effortdue to automatic learningof other nodes • No changes or adaptationsof the existing networkstructure required • No changes or adaptations of existing applications or nodes required • Robust, industry-capable design
