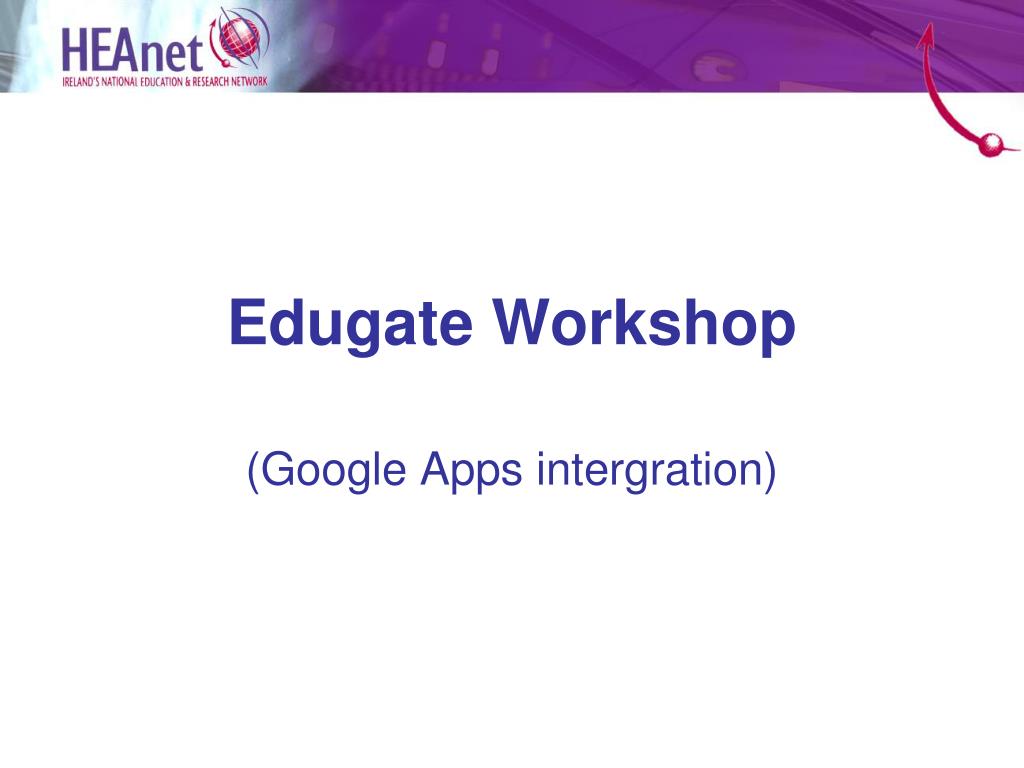

  1. Edugate Workshop (Google Apps intergration)

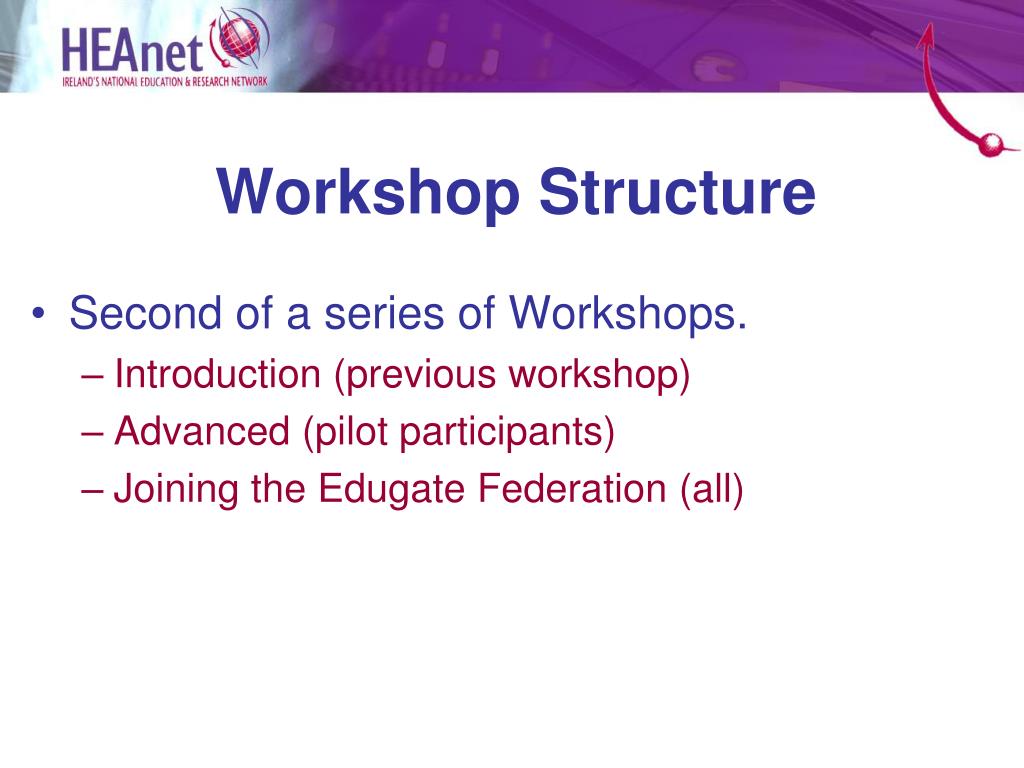

  2. Workshop Structure • Second of a series of Workshops. • Introduction (previous workshop) • Advanced (pilot participants) • Joining the Edugate Federation (all)

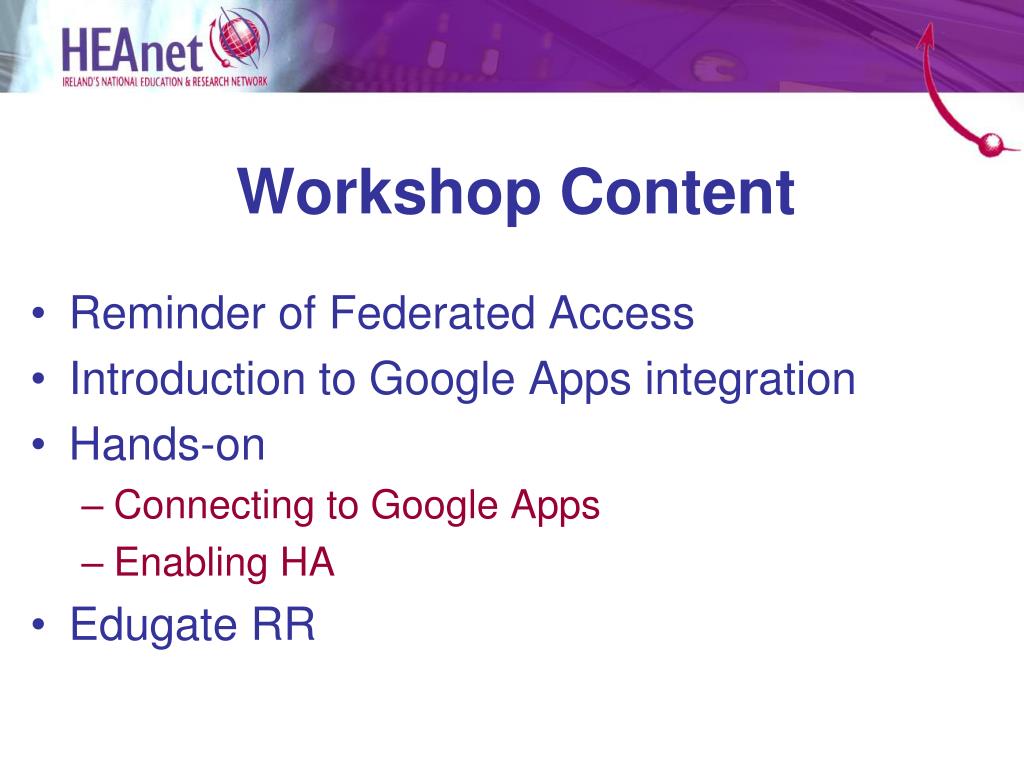

  3. Workshop Content • Reminder of Federated Access • Introduction to Google Apps integration • Hands-on • Connecting to Google Apps • Enabling HA • Edugate RR

  4. Objectives • Provide you with enough knowledge use your IdP to avail of SaaS. • Make your IdP part of your infrastructure

  5. Reminder Why federate? • SSO • Within the campus (with or without SAML) • Beyond the campus (bilaterally outside the campus) • Within a federation (with SAML) • Beyond a federation (inter-federation with SAML)

  6. Reminder Why federate? • Collaboration • VLE (LMS or eLearning) • Wiki • Portal • GRID / HPC • SaaS (Google Apps and others) • Other...

  7. Reminder Why federate? • Who are your federation partners? • Research Groups (cross institutional) • Shared Resources (NDLR, IReL) • Hospitals • Government R&D (ESRI, EPA) • Your campus libraries • Providers of student services (Travel Cards etc.)

  8. Reminder How to federate? • Bilaterally • Your IdP with Google’s SP My institution Google

  9. Reminder How to federate? • Multilaterally • Google • SalesForce CRM • Live@Edu Me (IdP) You (SP) Other (IdP & SP)

  10. Reminder How to federate? • As a member of a federation • This is Edugate

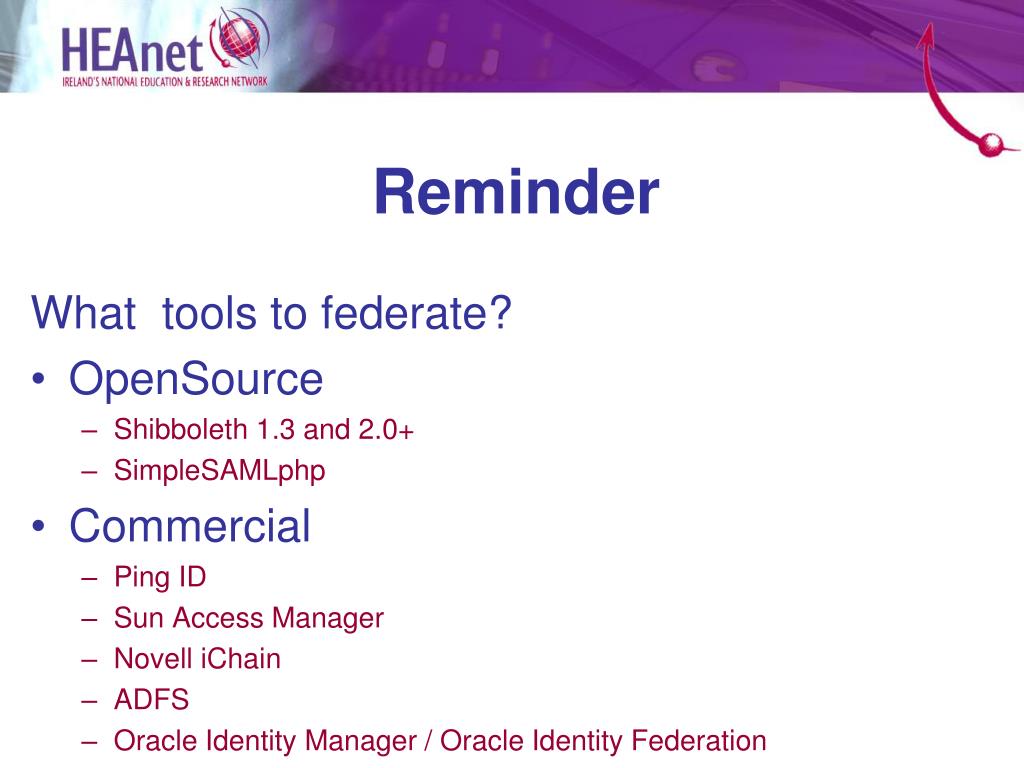

  11. Reminder What tools to federate? • OpenSource • Shibboleth 1.3 and 2.0+ • SimpleSAMLphp • Commercial • Ping ID • Sun Access Manager • Novell iChain • ADFS • Oracle Identity Manager / Oracle Identity Federation

  12. Reminder How to integrate? • Loose integration • Replace exisiting (Authentication) AutnN with Shibboleth AuthN. • Application adds group, role to Shibboleth ‘user’ later, and handles AuthZ

  13. Reminder • Authentication (AuthN) • Shibboleth Authentication • Web server or application • Campus SSO

  14. Reminder • Attribute handling • Attributes to release • Signed or encrypted attributes

  15. Reminder • Session Start • From portal • From target

  16. Reminder • High availability • Apache Load-balancing • DNS • Hardware device

  17. SaaS • How do avail of SaaS without adding to your identity management costs? • Synchronise accounts incl. Passwords • Synchronise accounts and use SSO • Let users ‘register’ for accounts

  18. Google Apps • How do avail of SaaS without adding to your identity management costs? • Synchronise accounts incl. Passwords or • Synchronise accounts and use SSO

  19. Google Apps • Synchronise accounts incl. Passwords 1. user logs in the web-based application using username and password issued set-up by you 2. User changes password and then confuses it with institutional password • Synchronise accounts and use SSO User logs in with institutional account on your portal, there is only one password (well almost!)

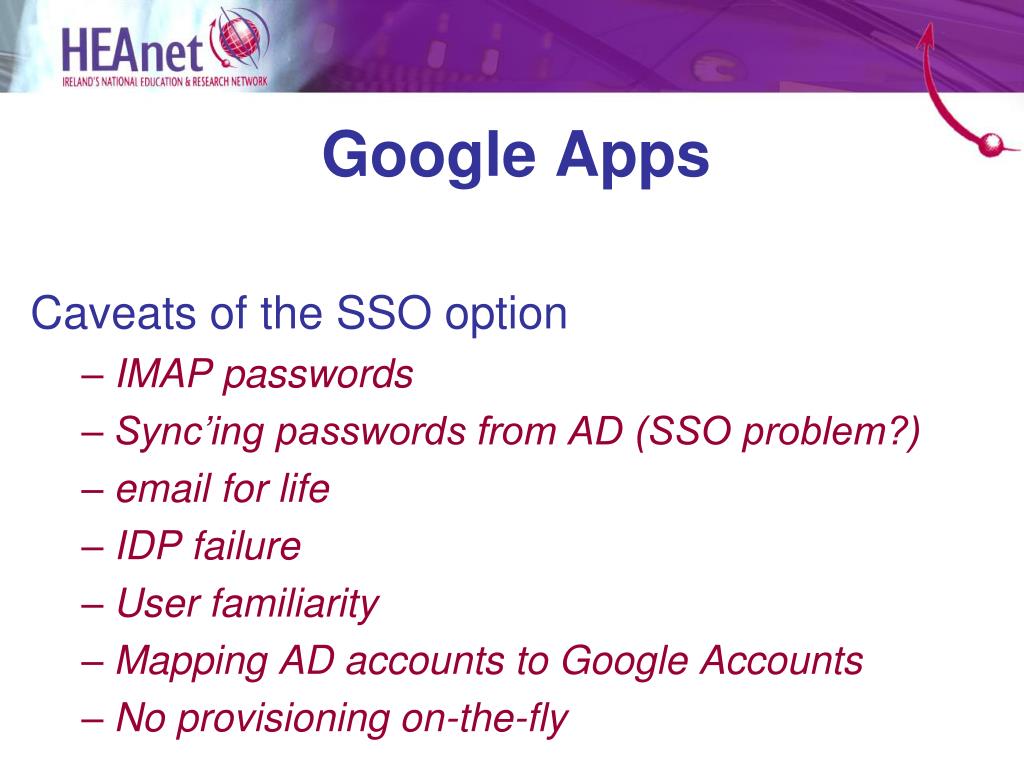

  20. Google Apps Caveats of the SSO option • IMAP passwords • Sync’ing passwords from AD (SSO problem?) • email for life • IDP failure • User familiarity • Mapping AD accounts to Google Accounts • No provisioning on-the-fly

  21. Google Apps Caveats of the SSO option • IMAP passwords • When accessing Gmail from an IMAP client, you will need an IMAP password, this can be seeded by you, but the user can change it. • IMAP users have two passwords

  22. Google Apps Caveats of the SSO option • Sync’ing passwords from AD (SSO problem?) • AD keeps passwords in binary, user can change his/her password by pressing CTRL+ALT+DEL • Changed passwords cannot be sent to Google Apps for IMAP users • This problem is not strictly an SSO problem

  23. Google Apps Caveats of the SSO option • Email for life • Google Account is accessed via SSO • Institution must maintain the users account somewhere (ideally not in the same location as staff/students)

  24. Google Apps Caveats of the SSO option • IDP failure • IdP fails –access to Google Apps stops! • Administrator disables SSO temporarily –but do users know their Google Apps password (seeded/changed) • IdP becomes a critical component –support?

  25. Google Apps Caveats of the SSO option • User familiarity • User might find it unusual to be sent to the IdP to access ‘Gmail’? • Is this phishing? • What credential do I enter, my institution or departments?

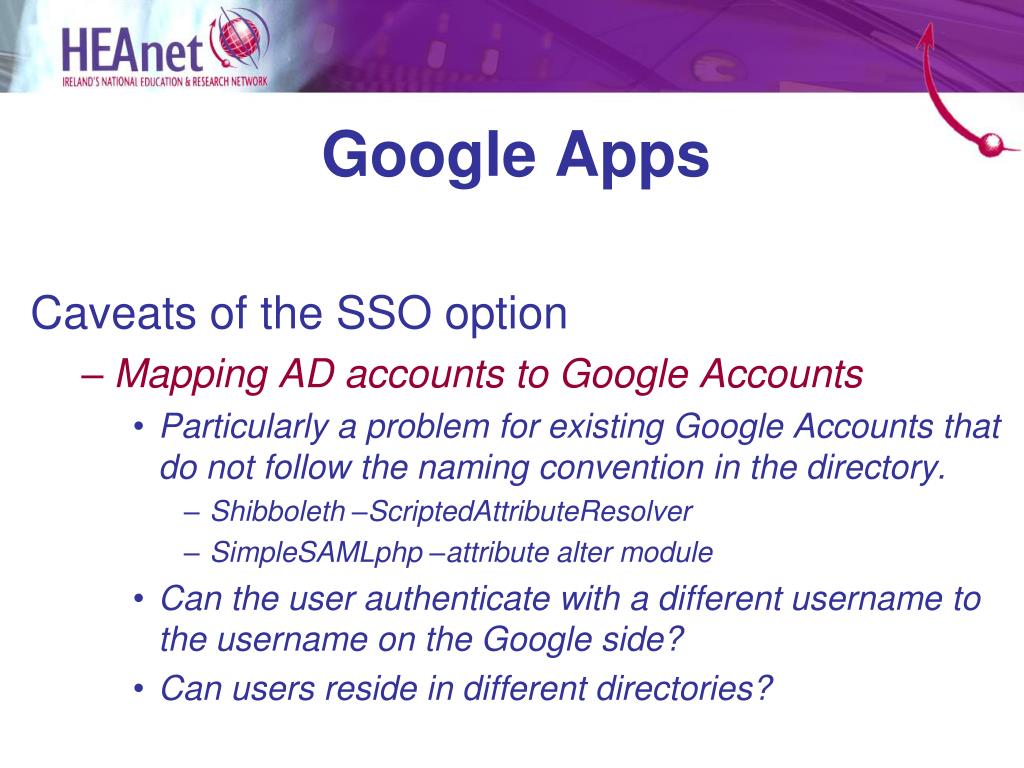

  26. Google Apps Caveats of the SSO option • Mapping AD accounts to Google Accounts • Particularly a problem for existing Google Accounts that do not follow the naming convention in the directory. • Shibboleth –ScriptedAttributeResolver • SimpleSAMLphp –attribute alter module • Can the user authenticate with a different username to the username on the Google side? • Can users reside in different directories?

  27. Google Apps Caveats of the SSO option • No provisioning on-the-fly • Accounts still have to be provisioned at Google • Wasted effort for unused accounts • Regular synchronisation needed –how often?

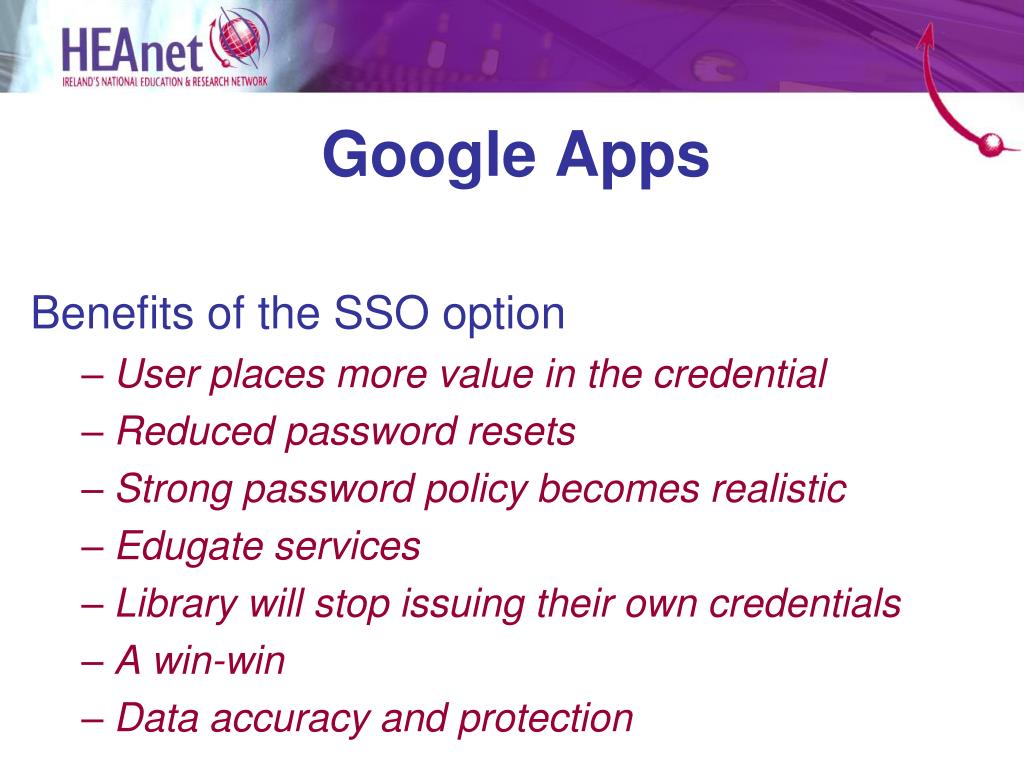

  28. Google Apps Benefits of the SSO option • User places more value in the credential • Reduced password resets • Strong password policy becomes realistic • Edugate services • Library will stop issuing their own credentials • A win-win • Data accuracy and protection

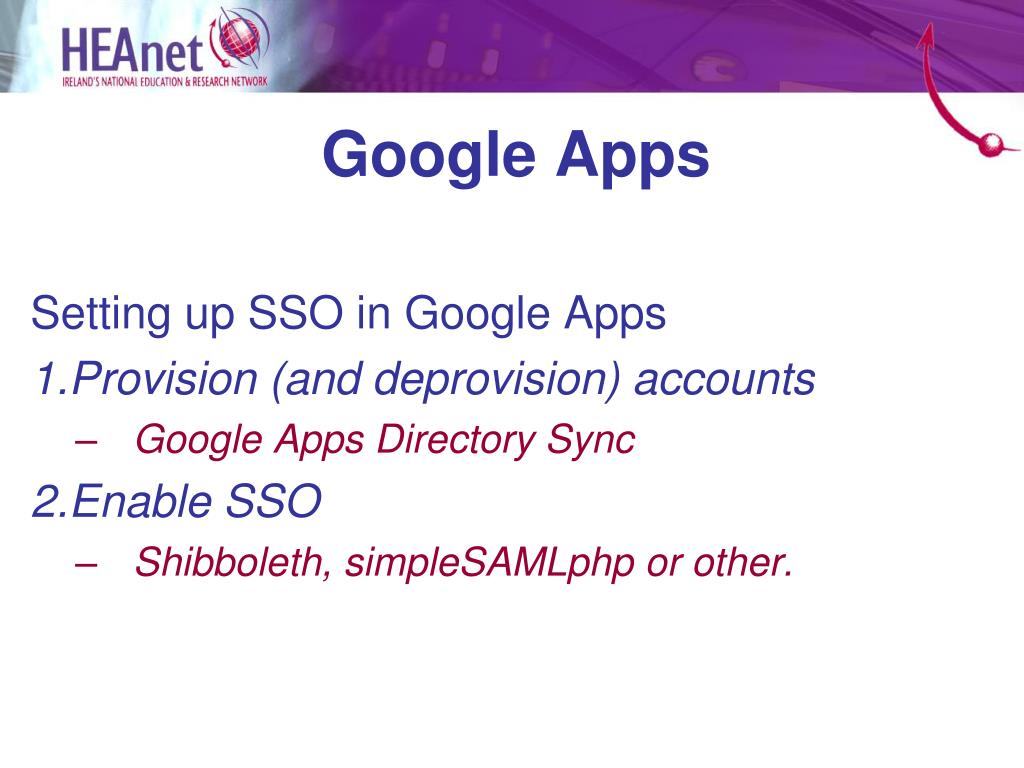

  29. Google Apps Setting up SSO in Google Apps • Provision (and deprovision) accounts • Google Apps Directory Sync • Enable SSO • Shibboleth, simpleSAMLphp or other.

  30. Google Apps • Provision (and deprovision) accounts • Google Apps Directory Sync Video: http://www.postini.com/webdocs/training/en/DirSync_GoogleApps/DirSync_GoogleApps.html

  31. Google Apps • Enable SSO • Shibboleth, simpleSAMLphp or other. • Shibboleth • https://shibboleth.usc.edu/docs/google-apps/ • simpleSAMLphp • http://rnd.feide.no/content/simplesamlphp-idp-google-apps-education • High Availability • Janusz Video: http://www.postini.com/webdocs/training/en/DirSync_GoogleApps/DirSync_GoogleApps.html
