1. Edugate Glenn Wearen HEAnet.

2. Summary • 1 year Pilot Project / 2 years in production • All IoT’s, Universities, Colleges, but only half of HEAnet’s members • Core service at some institutions but light use at others

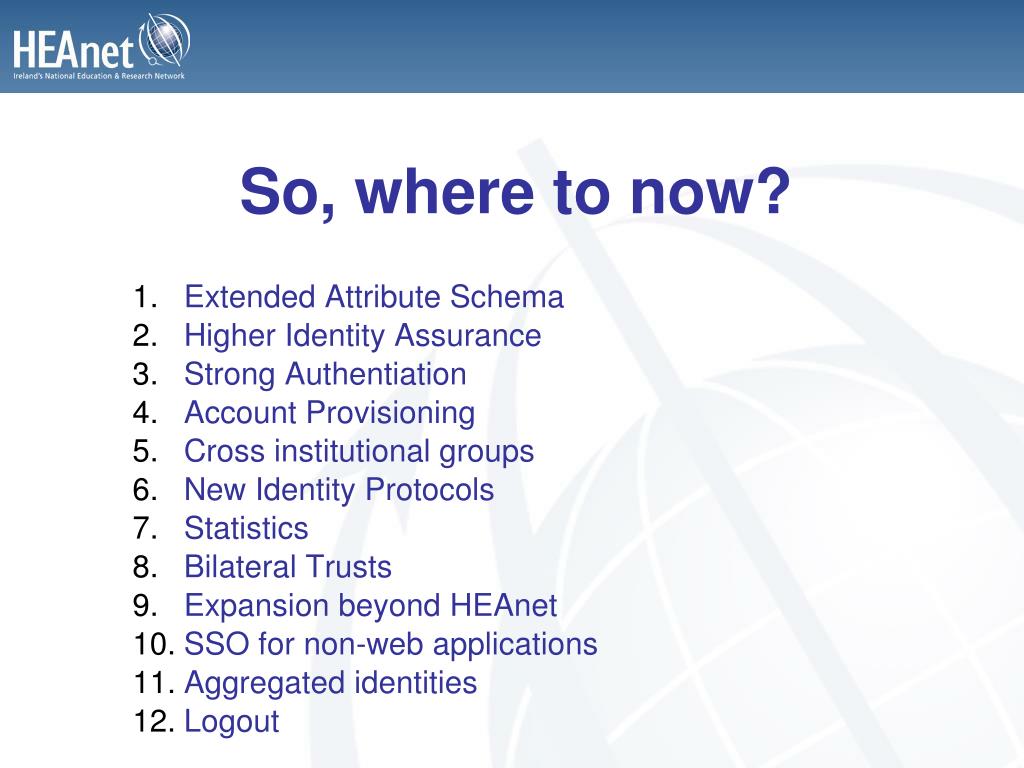

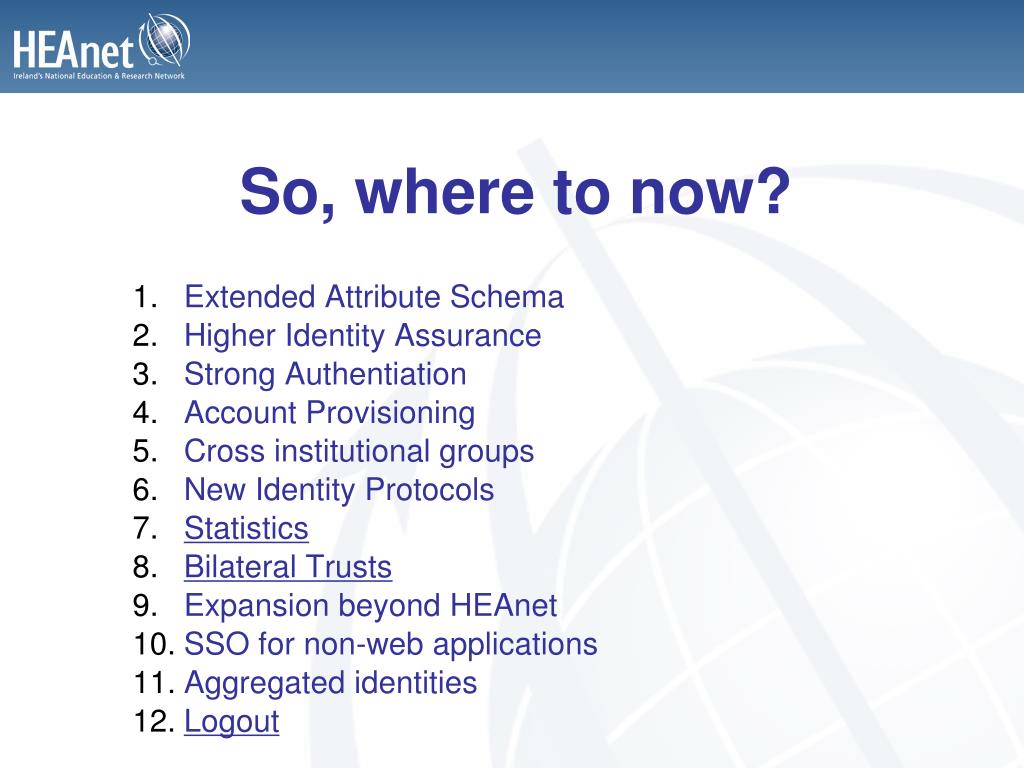

4. So, where to now? • Extended Attribute Schema • Higher Identity Assurance • Strong Authentiation • Account Provisioning • Cross institutional groups • New Identity Protocols • Statistics • Bilateral Trusts • Expansion beyond HEAnet • SSO for non-web applications • Aggregated identities • Logout

5. 1. Extended Attribute Schema Students • Do you have photos? • Can I tell if a user is part-time/full-time? • What course is the student pursuing? Staff • Cost-center code (for eProcurement) • ResearcherID AuthorID • Availability calendar • Telephone number

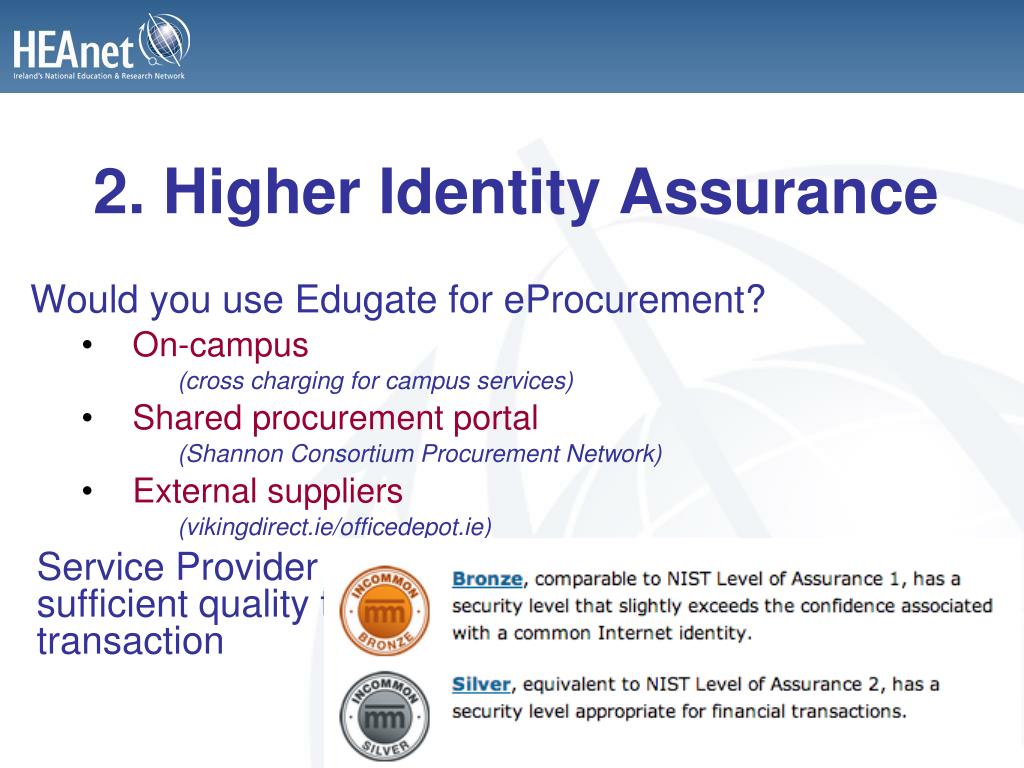

6. 2. Higher Identity Assurance Would you use Edugate for eProcurement? • On-campus (cross charging for campus services) • Shared procurement portal (Shannon Consortium Procurement Network) • External suppliers (vikingdirect.ie/officedepot.ie) Service Provider will seek assurances that the identity is sufficient quality to underpin a cardless financial transaction

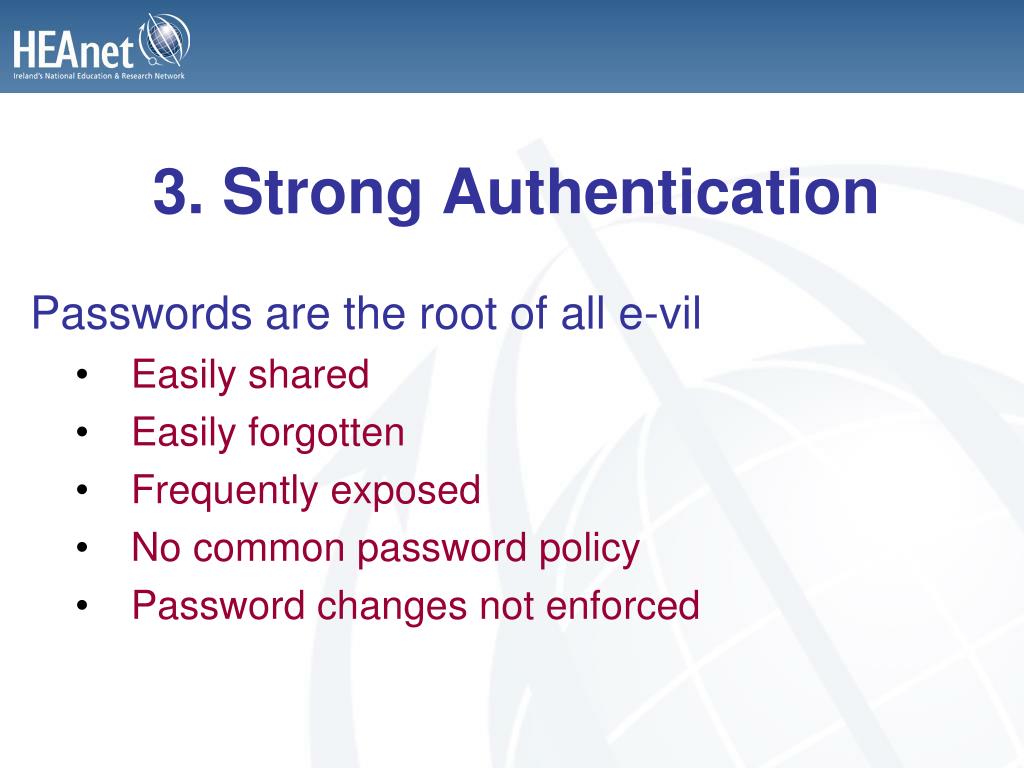

7. 3. Strong Authentication Passwords are the root of all e-vil • Easily shared • Easily forgotten • Frequently exposed • No common password policy • Password changes not enforced

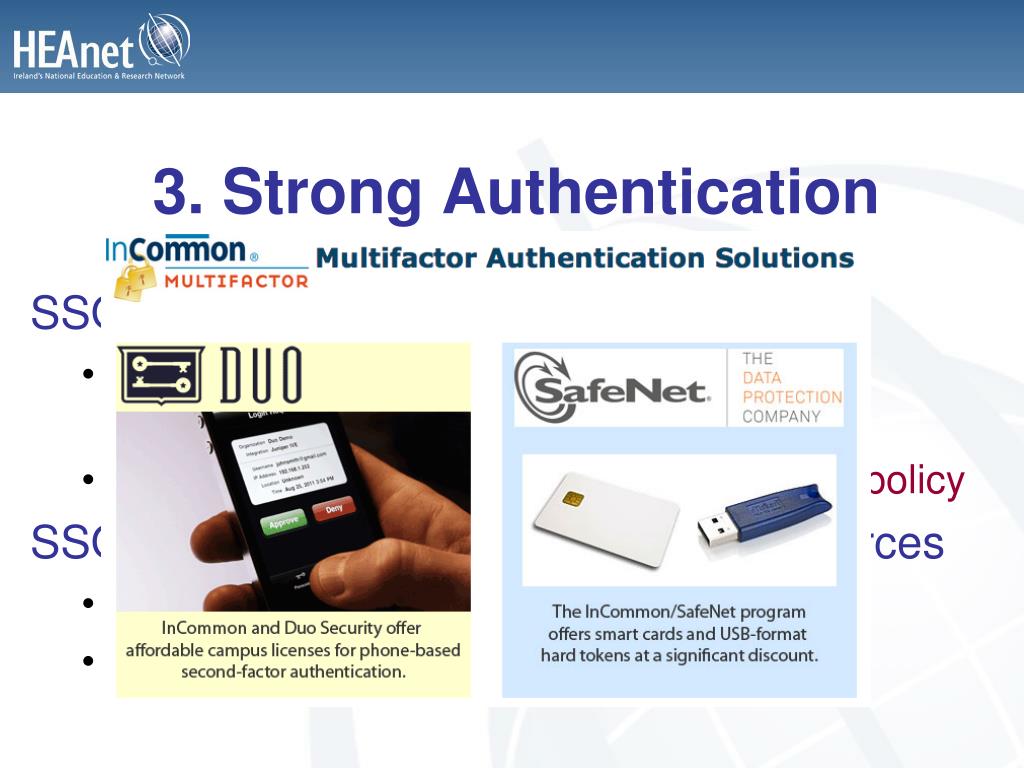

8. 3. Strong Authentication • SSO helps to eliminate passwords • Consolidating onto a single (or single+1) credential allows for strong authentication • 2-factor authentication / strong password policy • SSO systems can protect sensitive resources • re-authentication • ‘step-up’ authentication

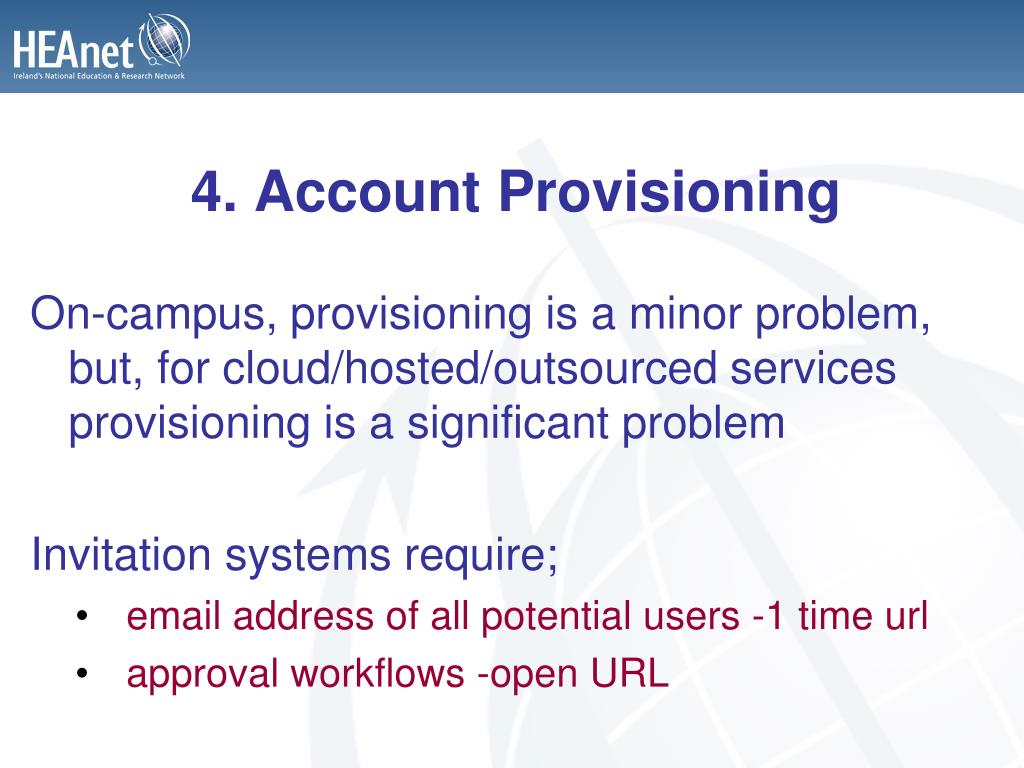

9. 4. Account Provisioning • On-campus, provisioning is a minor problem, but, for cloud/hosted/outsourced services provisioning is a significant problem • Invitation systems require; • email address of all potential users -1 time url • approval workflows -open URL

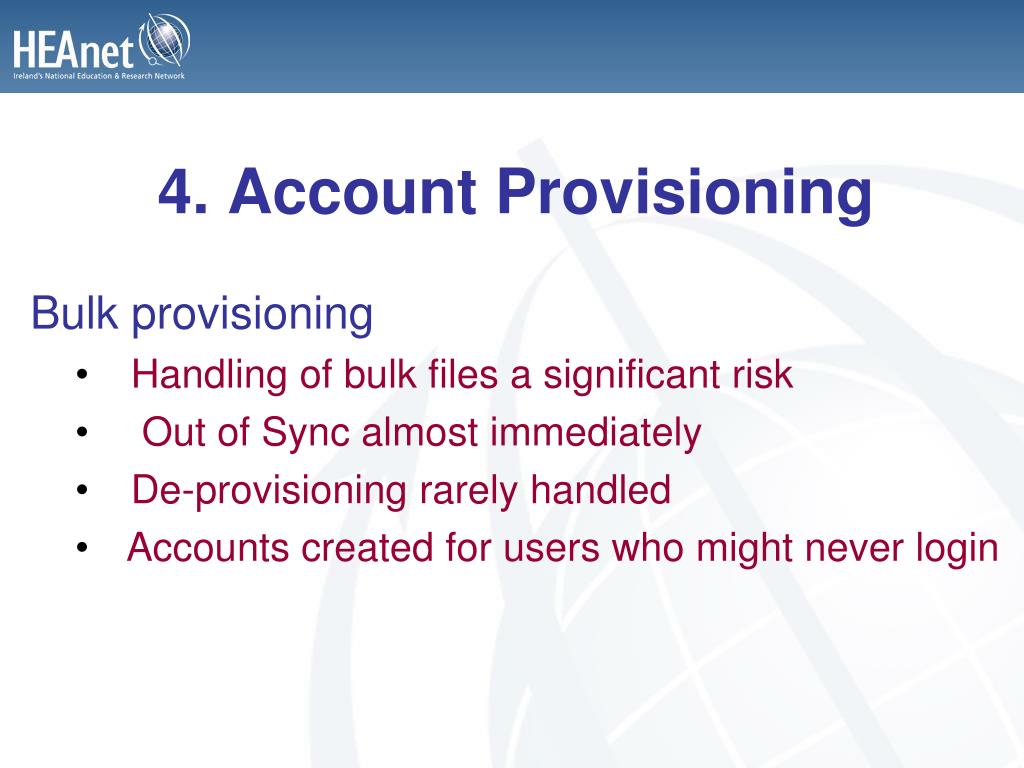

10. 4. Account Provisioning • Bulk provisioning • Handling of bulk files a significant risk • Out of Sync almost immediately • De-provisioning rarely handled • Accounts created for users who might never login

11. 4. Account Provisioning Just-in-Time provisioning Standards emerging • Simple Cloud Identity Management (SCIM) But, service Providers familiar with; • LDAP Enter username/password, authenticate, query for attributes • Oauth Enter user ID, authenticate, get token, query for attributes • API Enter a user identifier, query for attributes, forever

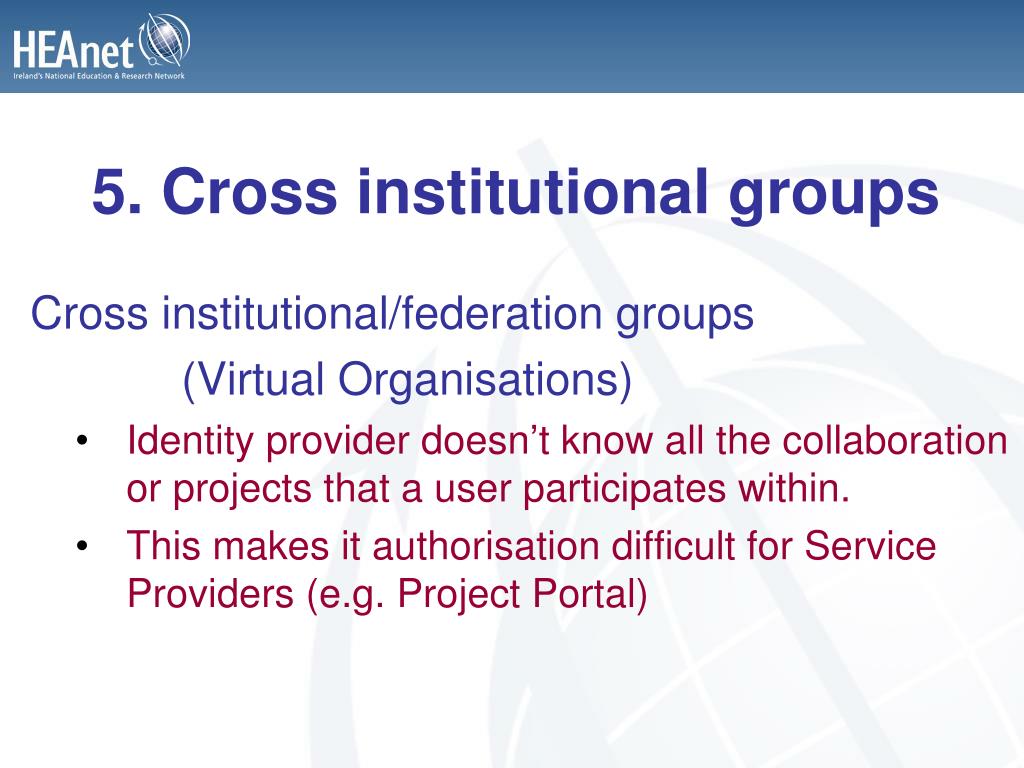

12. 5. Cross institutional groups • Cross institutional/federation groups • (Virtual Organisations) • Identity provider doesn’t know all the collaboration or projects that a user participates within. • This makes it authorisation difficult for Service Providers (e.g. Project Portal)

13. 5. Cross Institutional Groups • Establish an Edugate group repository; • this can be queried by IdP’s during the preparation of attributes for an assertion • this can be queried by SP’s provided the repository has a user identifier • Self-asserted group membership • Group membership approvals or invitations.

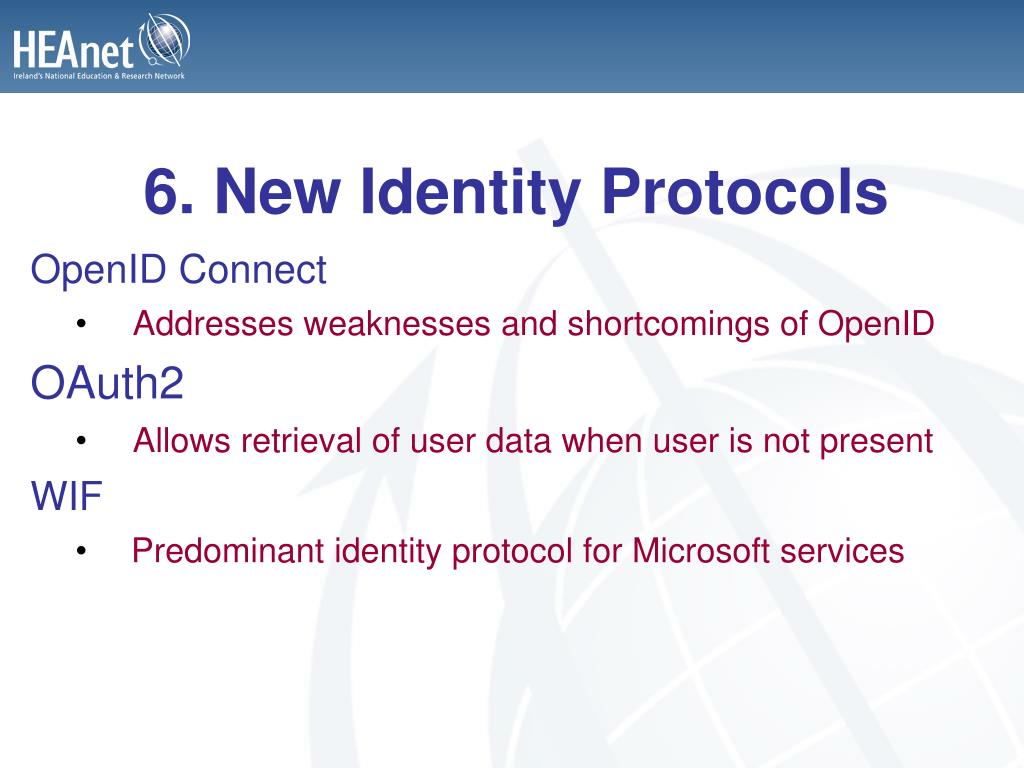

14. 6. New Identity Protocols OpenID Connect • Addresses weaknesses and shortcomings of OpenID OAuth2 • Allows retrieval of user data when user is not present WIF • Predominant identity protocol for Microsoft services

15. 6. New Identity Protocols • Should Edugate add new protocols? • Cost? • Benefit?

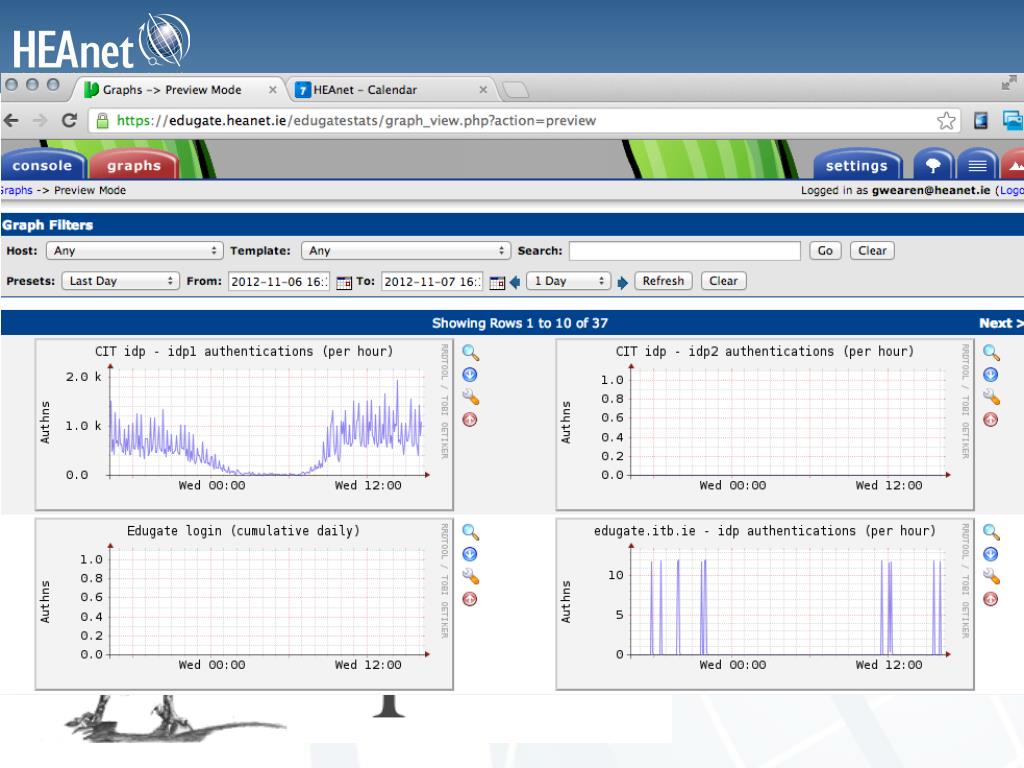

16. 7. Statistics and Monitoring • Are my users able to access service X? • Why are my users accessing service Y? • How come I’ve no users from institution A? • Why are we so popular with institution B? • What is the most widely used Edugate service? • What is the least most used service? • Is Edugate being used? or being used more?

17. 7. Statistics and Monitoring • Is IdP X up? • Are there high rates of attrition? • Are [staff|students] able to authenticate?

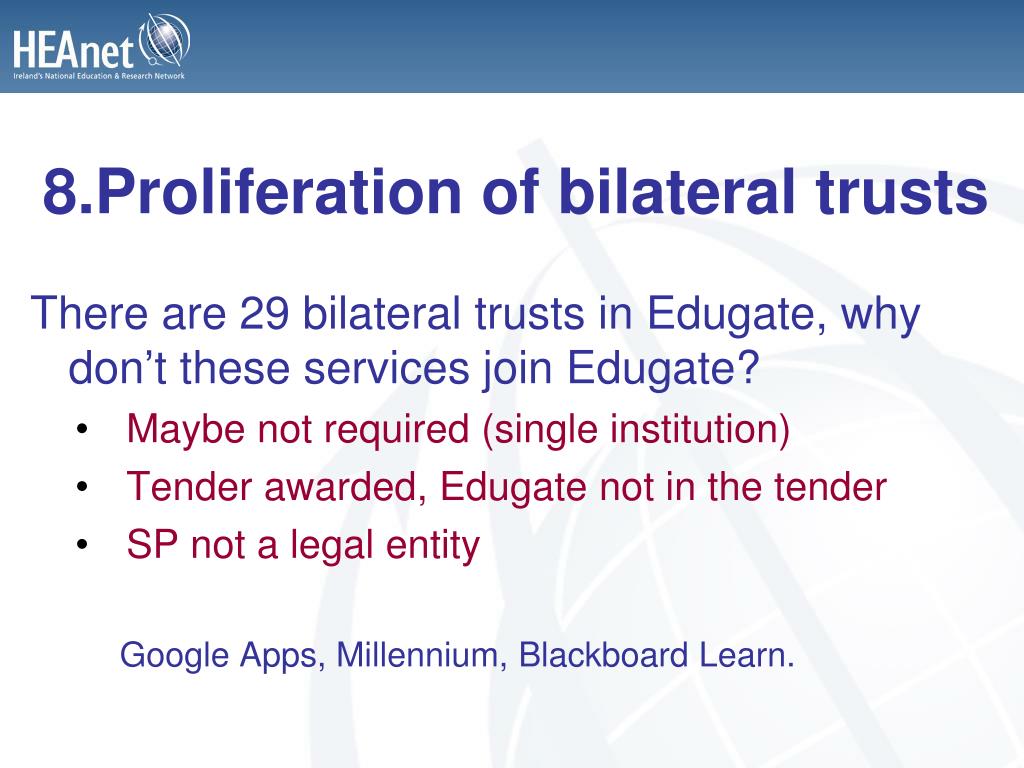

18. 8.Proliferation of bilateral trusts • There are 29 bilateral trusts in Edugate, why don’t these services join Edugate? • Maybe not required (single institution) • Tender awarded, Edugate not in the tender • SP not a legal entity • Google Apps, Millennium, Blackboard Learn.

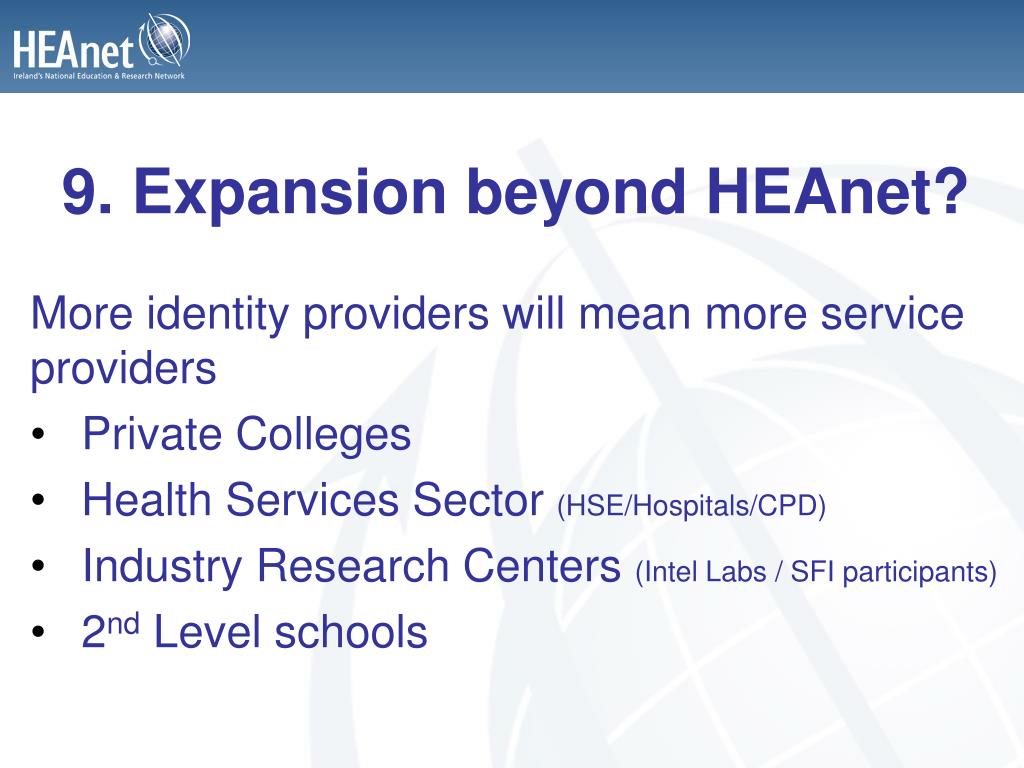

19. 9. Expansion beyond HEAnet? More identity providers will mean more service providers • Private Colleges • Health Services Sector (HSE/Hospitals/CPD) • Industry Research Centers (Intel Labs / SFI participants) • 2nd Level schools

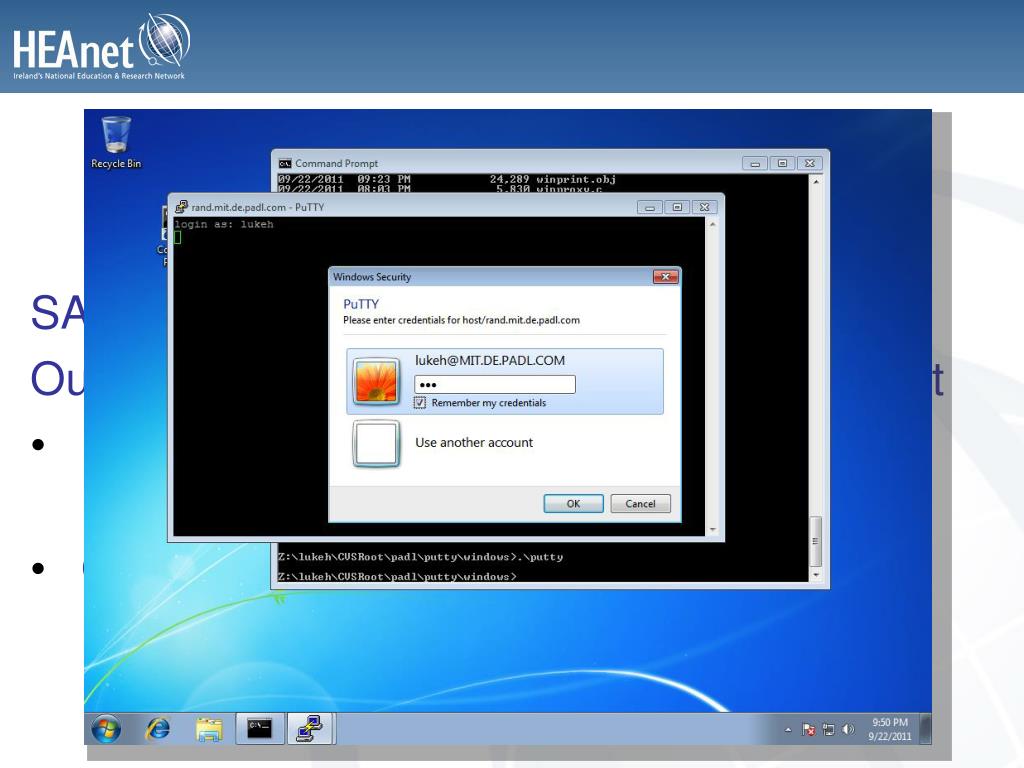

20. 10. SSO for non-web SAML works well within the browser, but, Outside the browser, it requires client support • Native client support Outlook Claims based authentication • Or, with Moonshot; Common library support (GSS/SASL/SSPI)

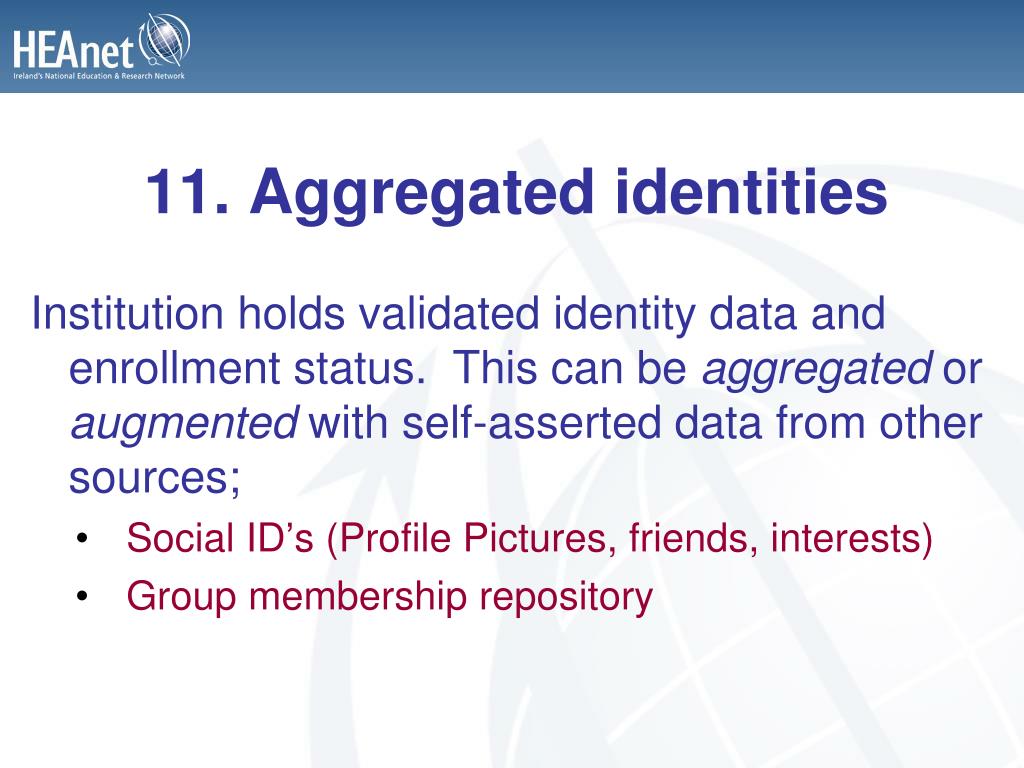

21. 11. Aggregated identities • Institution holds validated identity data and enrollment status. This can be aggregated or augmented with self-asserted data from other sources; • Social ID’s (Profile Pictures, friends, interests) • Group membership repository

22. 11. Aggregated identities • Facebook/Twitter/Google hold self-asserted identity data. This can be aggregated or augmented with verified user data from other sources • :-p

23. 12. Logout • Clicking on ‘Logout’ what should happen? • Logout of the application, but IdP session persists (Local Logout) • Logout of the application, redirect to IdP session killer page (partial logout) • Logout of the application, redirect to IdP session killer page, trigger logout of all services • (global logout)

24. 12. Logout • Or should the SP force re-authentication at the IdP after the logout button has been used (if the IdP supports it.

25. So, where to now? • Extended Attribute Schema • Higher Identity Assurance • Strong Authentiation • Account Provisioning • Cross institutional groups • New Identity Protocols • Statistics • Bilateral Trusts • Expansion beyond HEAnet • SSO for non-web applications • Aggregated identities • Logout
