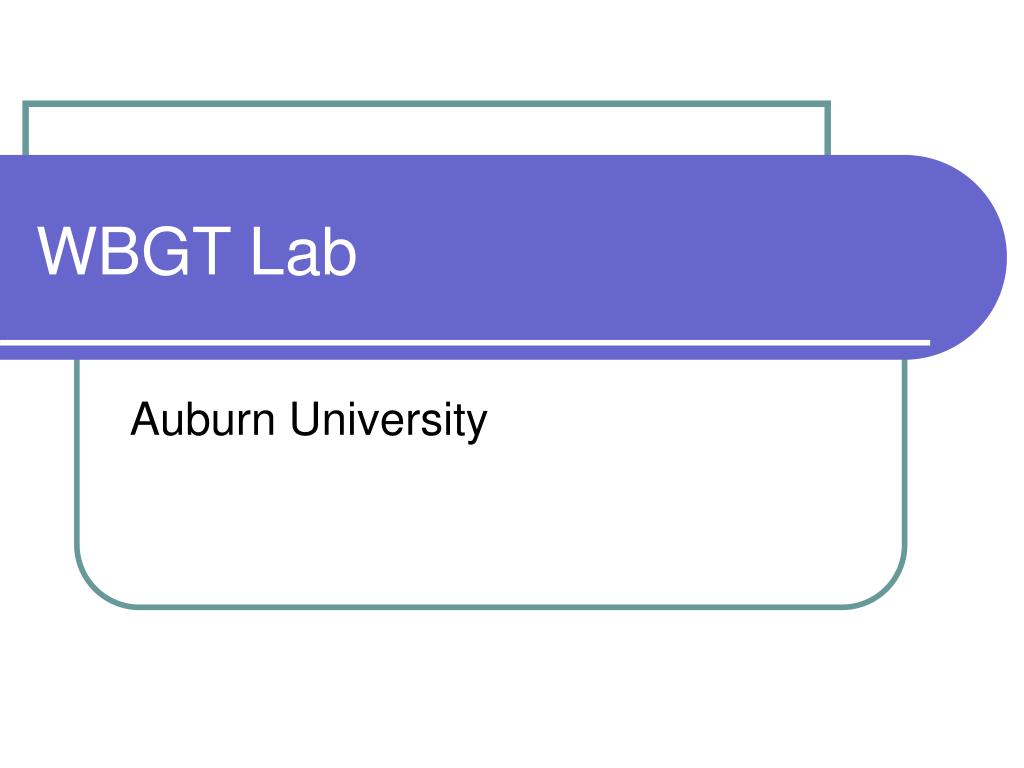

  1. WBGT Lab Auburn University

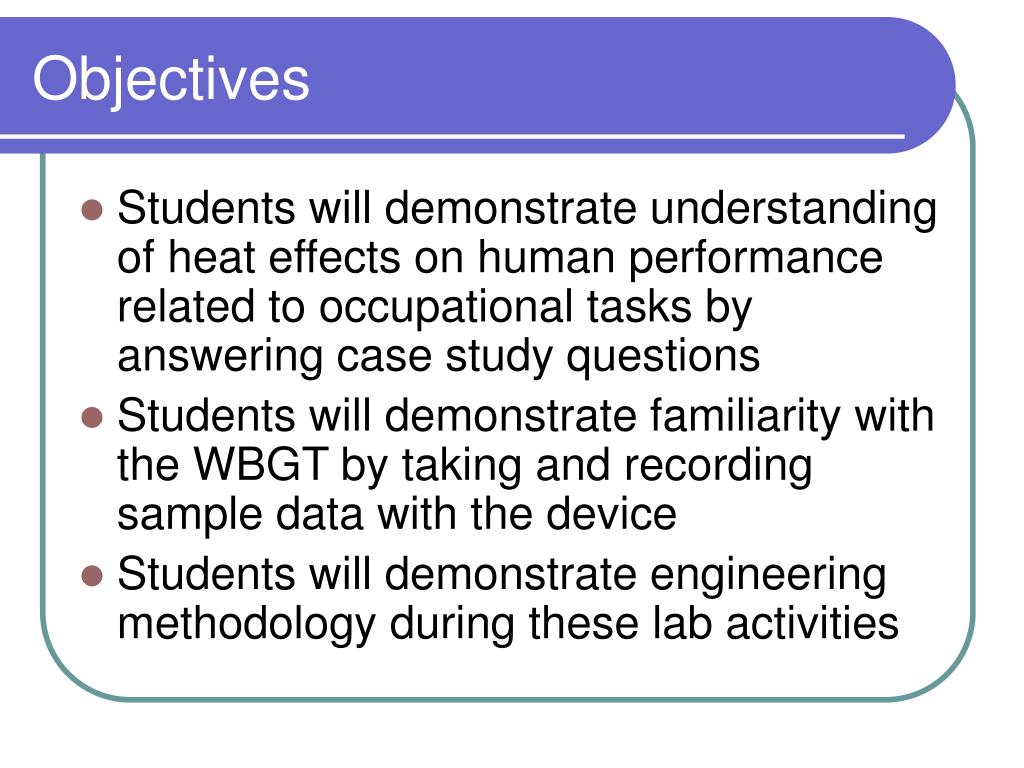

  2. Objectives • Students will demonstrate understanding of heat effects on human performance related to occupational tasks by answering case study questions • Students will demonstrate familiarity with the WBGT by taking and recording sample data with the device • Students will demonstrate engineering methodology during these lab activities

  3. Resources • Human Factors in Engineering and Design, Sanders and McCormick, 7th edition, Ch 17 • Safety and Health for Engineers, Brauer, 2nd edition, CH 18 • Engineering Physiology,Kroemer, Kroemer, Kroemer-Elbert, 3rd edition, CH 9

  4. Introduction • Humans have a limited capacity to tolerate extremes in temperature. • limited internal response to change blood flow • conserve or lose heat • can shiver or sweat • require clothing, shelters, conditioned air to tolerate other than most moderate environments • Generating excessive heat is more of a problem in most environments

  5. What is Cold? • Answer: absence of heat. • Cold objects absorb heat from warm ones. • A human body will absorb heat from a warmer environment. • A human body will lose heat to a colder environment.

  6. Heat Exchange Equation • Body Heat Stored: • BH(stored)=(M-W)+/-(R)+/-(C)-E • Where: • M=metabolism gain • W=work performed • R=radiative heat gain or loss • C=Convective gain or loss • E=evaporative loss

  7. Relevance for IEs • The physics of heat storage remain in effect at all times • Environmental conditions can significantly effect the ability of the individual to maintain body heat in the ideal range • homeostasis • Work performance can suffer if the individual’s heat equation is out of balance • Medical emergencies can result if significant imbalance exists

  8. The Problem • To identify an index and measurement system that predicts environmental effects of human performance and safety • Must be relatively: • Portable • Accurate • Simple • Quick

  9. A Solution • Wet Bulb Globe Temperature (WBGT) Index • Weighted average of: • Natural wet bulb Temp (NWB) • Globe Temp (GT) • Dry bulb Temp (DB) • Formulas for sunny or non-sunny conditions

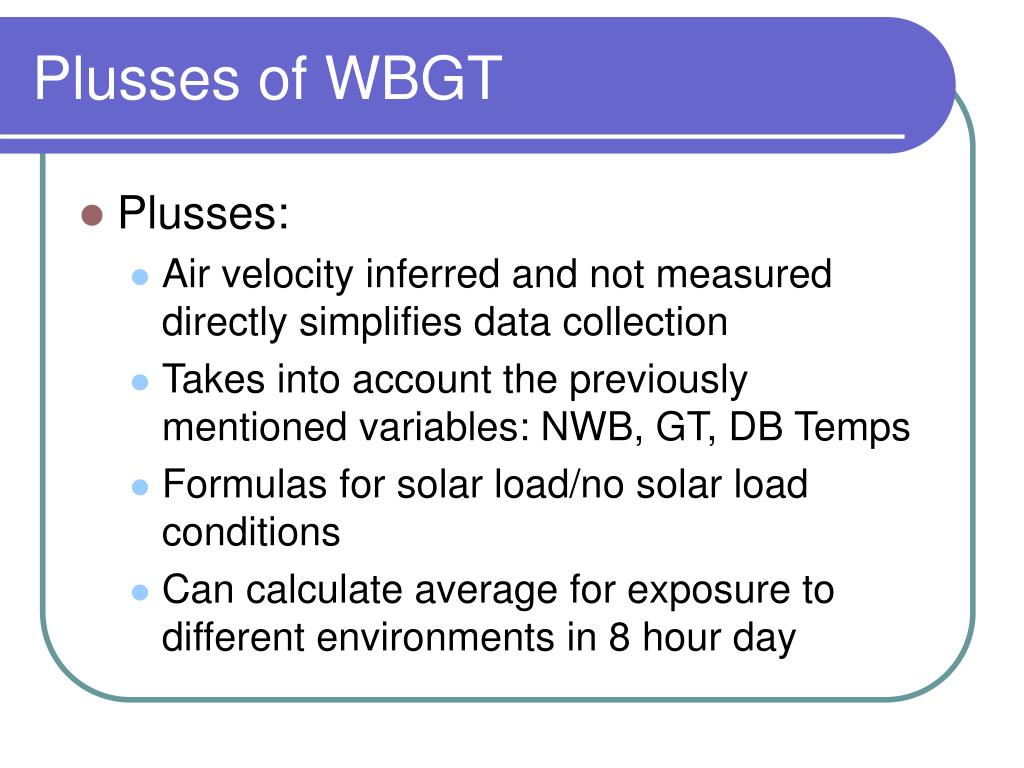

  10. Plusses of WBGT • Plusses: • Air velocity inferred and not measured directly simplifies data collection • Takes into account the previously mentioned variables: NWB, GT, DB Temps • Formulas for solar load/no solar load conditions • Can calculate average for exposure to different environments in 8 hour day

  11. Plusses and Minuses of WBGT • Negatives: • May not be adequate in accounting for air velocity • Similar scores (weighted averages) may have differing effects on human performance based on the ratios of the variables • Example: high humidity and low air velocity may be underestimated relative to effect on human performance yet may give a similar score as a more benign condition

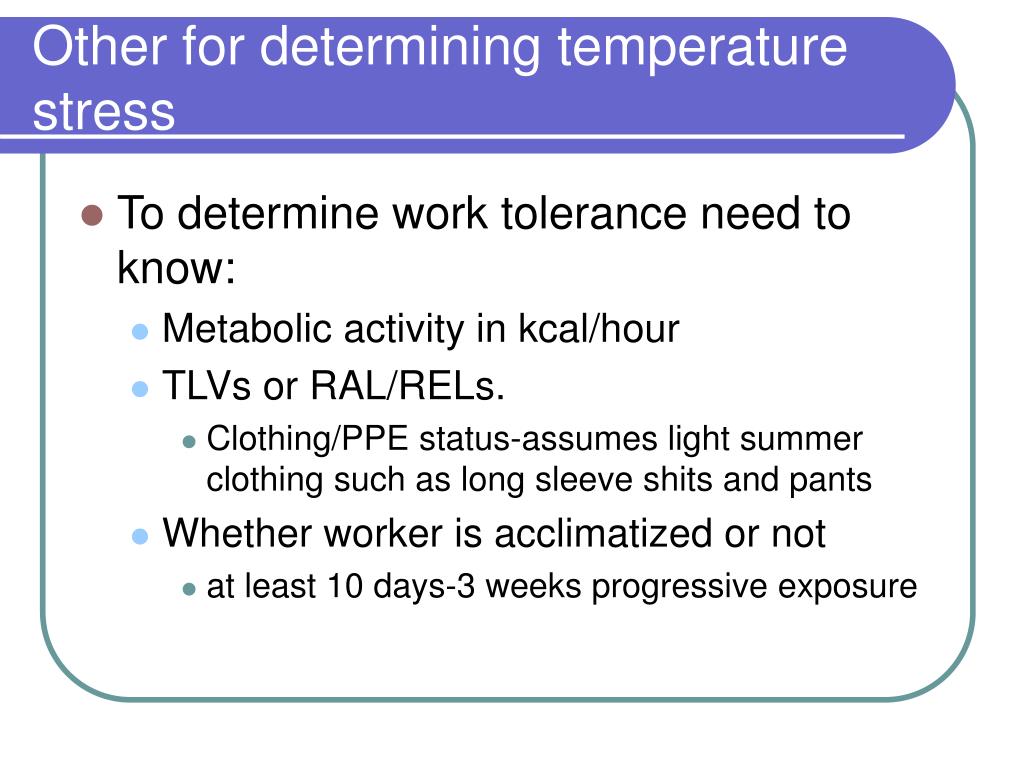

  12. Other for determining temperature stress • To determine work tolerance need to know: • Metabolic activity in kcal/hour • TLVs or RAL/RELs. • Clothing/PPE status-assumes light summer clothing such as long sleeve shits and pants • Whether worker is acclimatized or not • at least 10 days-3 weeks progressive exposure
