F. DELSAUX 28SEP09

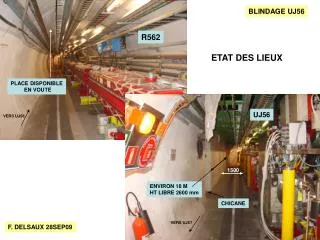

BLINDAGE UJ56. R562. ETAT DES LIEUX. PLACE DISPONIBLE EN VOUTE. UJ56. VERS UJ56. 1500. ENVIRON 18 M HT LIBRE 2600 mm. CHICANE. VERS UJ57. F. DELSAUX 28SEP09. BLINDAGE UJ56. COMPLEMENT BRIQUETTES ACIER HAUTEUR 600mm. MONORAIL. RAIL DE MANUTENTION DES BLOCS DE BLINDAGE.

adele
Download Presentation

F. DELSAUX 28SEP09

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. BLINDAGE UJ56 R562 ETAT DES LIEUX PLACE DISPONIBLE EN VOUTE UJ56 VERS UJ56 1500 ENVIRON 18 M HT LIBRE 2600 mm CHICANE VERS UJ57 F. DELSAUX 28SEP09

  2. BLINDAGE UJ56 COMPLEMENT BRIQUETTES ACIER HAUTEUR 600mm MONORAIL RAIL DE MANUTENTION DES BLOCS DE BLINDAGE 300mm MUR FIXE ACIER HAUTEUR 2000mm 300mm 400mm BLINDAGE ACIER DEMONTABLE EP. 400mm HAUTEUR 2000mm 800mm F. DELSAUX 28SEP09

  3. BLINDAGE UJ56 BLINDAGE DEMONTABLE ENLEVE POUR PERMETRE LE DEMONTAGE DE Q1, Q2 ET Q3 PARTIE FIXE DU BLINDAGE MOTEUR DES JACKS 1200mm F. DELSAUX 28SEP09

  4. BLINDAGE UJ56 PARTIE FIXE DU BLINDAGE EP. 300mm LONG. 17400mm RAIL DE MANUTENTION (AVEC PALANS) DES BLOCS DEMONTABLES FIXE AU MUR AVEC DES CORBEAUX UJ56 F. DELSAUX 28SEP09

  5. BLINDAGE UJ56 VOLUME TRANSPORT PARTIE FIXE DU BLINDAGE EP. 300mm LONG. 17400mm UJ56 F. DELSAUX 28SEP09

  6. BLINDAGE UJ56 RAIL DE MANUTENTION DES BLOCS DEMONTABLES FIXE EN VOUTE VOLUME TRANSPORT JEU 20 A 40mm ENVIRON ENTRE BLINDAGE FIXE ET VOLUME DE TRANSPORT F. DELSAUX 28SEP09

  7. BLINDAGE UJ56 EN BLEU = PARTIE FIXE DU BLINDAGE EP. 300mm LONG. 17400mm HAUT. 2600mm EN ROUGE = PARTIE DEMONTABLE DU BLINDAGE EP. 400mm LONG. 17400mm HAUT. 2000mm UJ56 F. DELSAUX 28SEP09

  8. BLINDAGE UJ56 UJ57 VERS RR57 PLACE DISPONIBLE POUR STOCKAGE TEMPORAIRE DES BLOCS EN UJ57 UL56 F. DELSAUX 28SEP09 R562
