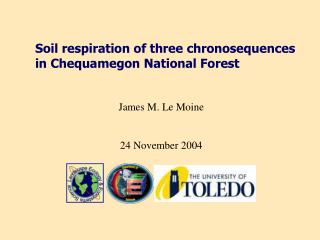

slide1

Soil respiration of three chronosequences in Chequamegon National Forest

James M. Le Moine

24 November 2004

slide2

Overview

  • Introduction to soil respiration
  • Soil respiration models
  • Study objectives
  • Study site, respiration measurements
  • Statistics
  • Results
  • Summary of key findings
  • Future work
slide3

CO2

  • Roots
  • Fungi
  • Bacteria
  • Soil Fauna

CO2

Soil Respiration

Respiration

Food

Energy + Waste

slide4

Soil Respiration and the Carbon cycle

Soil: 4th largest pool

2nd largest source to atmosphere

http://earthobservatory.nasa.gov

slide5

Empirical Relations with Microclimate

SRR (gCO2 m-2hr-1)

Soil Moisture (%)

Soil Temperature (oC)

  • Type of curve fitted depends on data range
  • SRRt=SRR0*e(q*t)
  • Q10= change in response for 10 Cº increase in temperature
slide6

NEE

Established Trends

GPP

Ra

Flux relative to GPP

Rh

Time Since Disturbance

Redrawn from Barnes et al 1980

  • Autotrophic and heterotrophic respiration change with maturation.
  • Soil respiration is comprised of Rh and Ra.
slide7

Unanswered Questions

Does soil respiration have a trend with maturation?

Do different ecosystems have different trends in soil respiration with maturation?

Are soil respiration—temperature relationships consistent across maturation classes?

slide8

Objectives

  • Model SRR from temperature in clearcuts and three age classes of hardwood, jack pines, and red pines
  • Compare SRR, and its temperature sensitivity across forest types, age classes, and age class within forest types.
  • Correlate SRR and its temperature sensitivity to common, easily obtained, vegetation and soil metrics
  • Compare the above correlations across forest types, age classes, and age classes within forest types
slide9

Study site

Chequamegon National Forest

  • Heavily managed forest
  • 34—200 m of outwash sands and loamy sands
  • Growing season—
  • 120 to 140 days
  • Precipitation—
    • 66 to 70 cm rain and 106—150cm snow

Figure adapted from Steve Mather

slide10

Vegetation Types and Age Classes

  • Recent Clear Cuts: 1, 2, and 4 years since cut
  • Mixed hardwoods
    • 12, 14, 17,19 years 21, 22, 26 years 71, 74, 79 years
  • Jack Pine Plantations and naturally regenerated
    • 11,11,13 years 19, 19, 21, 29 years 68, 68, 69 years
  • Red Pine Plantations
    • 11,12,14,14 years 23, 24, 24, 31, 32 years 71, 72, 74 years
slide11

5 m

Soil Respiration Measurements

  • 8 soil respiration collars
  • Soil respiration rate
  • Soil temperature (5cm)
  • Gravimetric soil moisture
  • Measurements every 2 wks
  • mid June—early September ’02
  • late April—late October ’03
slide12

Statistical Analysis

  • Shapiro-Wilk (α=0.01)—verification of normality
  • Nonlinear regression—SRRt=SRR0*e(q*t)
  • Analyses of Variance (ANOVAs) on SRR0, Q10, SRR15
      • Vegetation Type and Age Class(Vegetation)
      • Vegetation Type
      • Age Class
slide14

Model fits

Predicted SRR (g CO2 m-2 h-1)

Predicted =0.9408*Actual R2 =0.6776

Actual SRR (g CO2 m-2 h-1)

Average model had n=15,SRR0= 0.14, Q10=2.91, R2=0.94

slide15

Temperature and Moisture Correlation

Spearman=-0.4930, p=0.0001

SRR (g CO2 m-2 h-1)

Gravimetric soil moisture (%)

Individual plot correlations ranged from -0.59 to -0.80

slide16

SRR = 0.0975*e 0.1224*T5

R2 = 0.8783

SRR (gCO2 m-2hr-1)

T5 (oC)

Temperature Data Range

slide17

SRR (gCO2 m-2hr-1)

SRR = 0.2093*e 0.0835*T5

R2 = 0.8316

T5 (oC)

Temperature Data Range

  • No data prior to 15 May or post 23 August
slide18

Effects on Q10

  • Given SRRt=SRR0*e q*t
  • Q10=e10*q
  • Q10 all data= e 10*0.1224
  • = 3.40
  • Q10 parsed= 2.30
slide20

Vegetation type and age class

Q10 by Age within Vegetation Type

  • Nested Age not significant
  • Young and intermediate hardwoods greater than other groups
slide21

Q10 by Vegetation Type

Q10 by Age Class

a

a

a

a

  • Hardwood SRR is more temperature sensitive than others
  • There is no consistent age effect on Q10
slide22

SRR15 by Age within Vegetation Type

Vegetation type and age class

  • Nested Age not significant
  • Young and intermediate SRR15 greater than other groups
slide23

SRR15 by Vegetation Type

SRR15 by Age Class

  • Hardwood SRR15 is more temperature sensitive than others
  • There is no consistent age effect on SRR15
slide24

Summary

  • Temperature alone explains 94% of variation in SRR. Temperature and moisture strongly negatively correlated.
  • All SRR0 similar. Reflects severe temperature limitation.
  • Mean Q10 similar to global average of 2.4. As is the range of values (Raich and Schlesinger, 1992)
  • Considerable variation between replicates.
  • Statistically only need 1 model for hardwoods and 1 model for all other ecosystems.
slide25

Objectives

  • Model SRR from temperature in clearcuts and three age classes of hardwood, jack pines, and red pines
  • Compare SRR, and its temperature sensitivity across forest types, age classes, and age class within forest types.
  • Correlate SRR and its temperature sensitivity to common, easily obtained, vegetation and soil metrics
  • Compare the above correlations across forest types, age classes, and age classes within forest types
slide26

Vegetation and Soils

  • Age (Ewel, 1987; Field & Fung, 1999; Law et al 2001; Pypker & Fredeen, 2003; and others)
  • Basal Area (BA)
  • Foliage Mass (FL)
  • Canopy Cover (Cover)
  • Down Woody Debris (CWD, IWD, FWD) Mallik &Hu 2001
  • Litter Depth (LD) Euskirchen 2003
  • Depth of Organic layer (OD)
slide27

LD

Ts

10 cm

30 cm

SRR

LD

LD

Ms

5 m

LD OD

12.5 m

Vegetation and Soils

slide28

Foliage Mass

  • H=a*D^b
  • FL=(c*D^d)*(H^e)
  • D=diameter at breast height
  • H=Height
  • FL=Foliage mass
  • a, b, c, d, e= species specific coefficients
  • Crow and Erdman, 1983; Perala & Alban, 1994; Ter-Mikaelian and Korzukhin, 1997; and Young et al. 1980
slide29

Linear Correlation

  • Three steps:
    • Overall
    • By Vegetation Type
    • By Age Class
  • Pearson correlation for normally distributed data
  • Spearman correlation for non-normal
  • Significance = 0.05
  • Marginal Significance= 0.05 to 0.10
slide30

SRR0 Correlation

  • Negatively correlated with Q10at all levels
  • No correlation with vegetation or soil variables
slide31

Q10 Correlation with Vegetation

  • Overall: BA, FL, Cover
  • Vegetation Type
  • Hardwood: Cover
    • Jack Pine: none
    • Red Pine: -FWD
  • Age Class
    • Young: marginal BA
    • Intermediate: none
    • Mature: Cover
slide32

Q10 Correlation with Soils

  • Overall: Positive correlation with OD
  • Vegetation Type
  • Hardwood: Positive with LD, OD
    • Jack Pine: none
    • Red Pine: none
  • Age Class
    • Young: none
    • Intermediate: OD
    • Mature: none
slide33

SRR15 Correlation with Vegetation

  • Overall: Age, BA, FL, Cover
  • Vegetation Type
  • Hardwood: Cover, marginal CWD
    • Jack Pine: none
    • Red Pine: Cover, marginally BA
  • Age Class
    • Young: BA, FL, Cover
    • Intermediate: none
    • Mature: none
slide34

SRR15 Correlation with Soils

  • Overall: LD, OD
  • Vegetation Type
  • Hardwood: OD
  • Jack Pine: none
    • Red Pine: none
  • Age Class
    • Young: LD, OD
    • Intermediate: none
    • Mature: OD
slide35

Correlation Summary

  • SRR15 had more correlations with vegetation and soil variables than did Q10
  • Canopy cover has most correllates of vegetation variables. Depth of the organic layer is a better correlate than litter depth.
  • Hardwoods had more correlations than did pines
  • The young age class had more correlations than did inermediate or mature
slide36

Future work

  • SRR flux source partitioning
  • SRR as related to stand GPP and NEE
  • Improve landscape level estimates of CO2 efflux
  • SRR as related to soil C:N, root abundance, root turnover, and differences in microbial community.
