requirements based testing

Requirements-Based Testing

Dr. Mats P. E. Heimdahl

University of Minnesota Software Engineering Center

Dr. Steven P. Miller

Dr. Michael W. Whalen

Advanced Computing Systems

Rockwell Collins

400 Collins Road NE, MS 108-206

Cedar Rapids, Iowa 52498

spmiller@rockwellcollins.com

outline of presentation
Outline of Presentation

Motivation

Validation Testing

Conformance Testing

What’s Next

how we develop software
How We Develop Software

SW High-Level Reqs. Development

HW/SW Integration Testing

SW Design Description Dev. (SW Low-Level Reqs. & SW Arch.

SW Integration Testing

SW Source Code Dev.

SW Low-Level Testing

SW Integration (Executable Code Production)

how we will develop software from v to a y
How we Will Develop Software(From V to a Y)

SW High-Level Reqs. Development

HW/SW Integration Testing

Software Model

SW Integration Testing

How do we know our model is correct?

Validation Testing

Formal Verification

Can we trust the code generator?

Conformance Testing

SW Integration (Executable Code Production)

outline of presentation5
Outline of Presentation

Motivation

Validation Testing

Conformance Testing

What’s Next

how we will develop software from v to a y6
How we Will Develop Software(From V to a Y)

SW High-Level Reqs. Development

HW/SW Integration Testing

Software Model

SW Integration Testing

How do we know our model is correct?

SW Integration (Executable Code Production)

modeling process

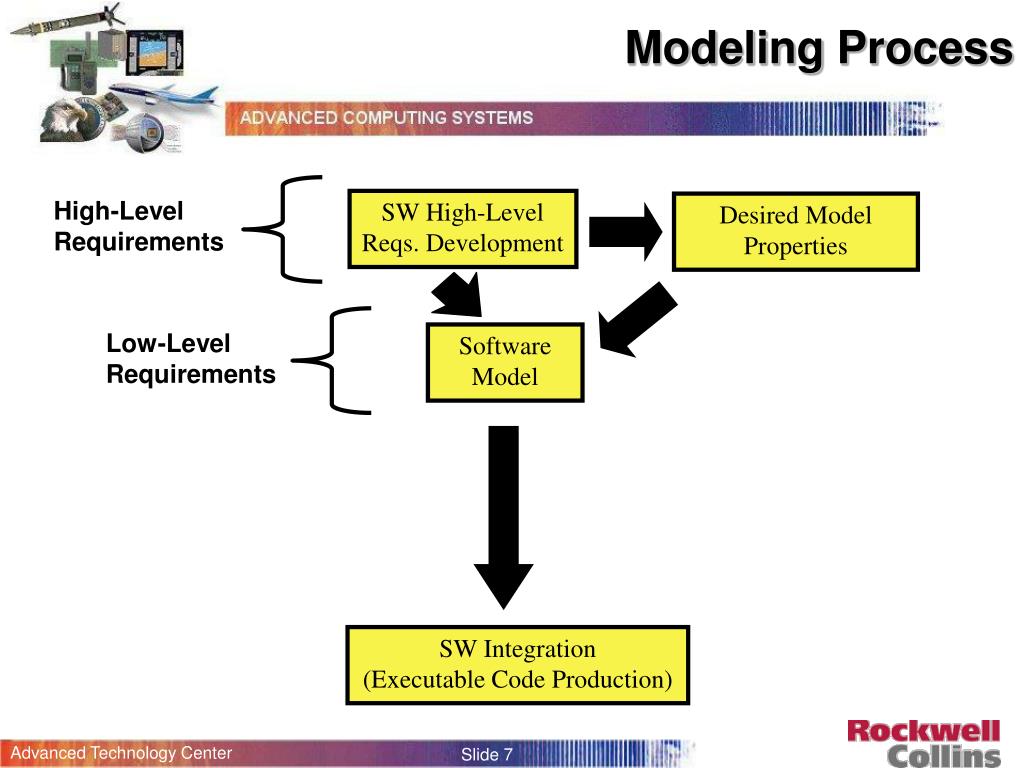

Modeling Process

Desired Model Properties

High-Level Requirements

Software Model

Low-Level Requirements

SW Integration (Executable Code Production)

SW High-Level Reqs. Development

problem modeling frenzy

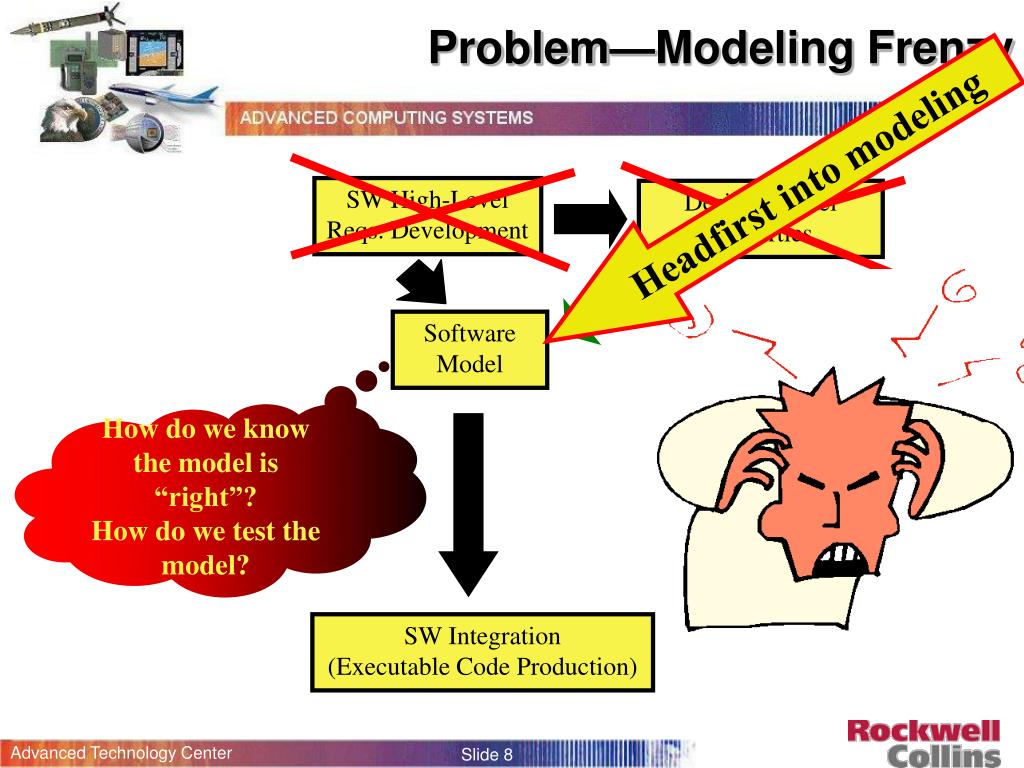

Problem—Modeling Frenzy

Headfirst into modeling

SW High-Level Reqs. Development

Desired Model Properties

Software Model

How do we know the model is “right”?

How do we test the model?

SW Integration (Executable Code Production)

one solution redefine requirements

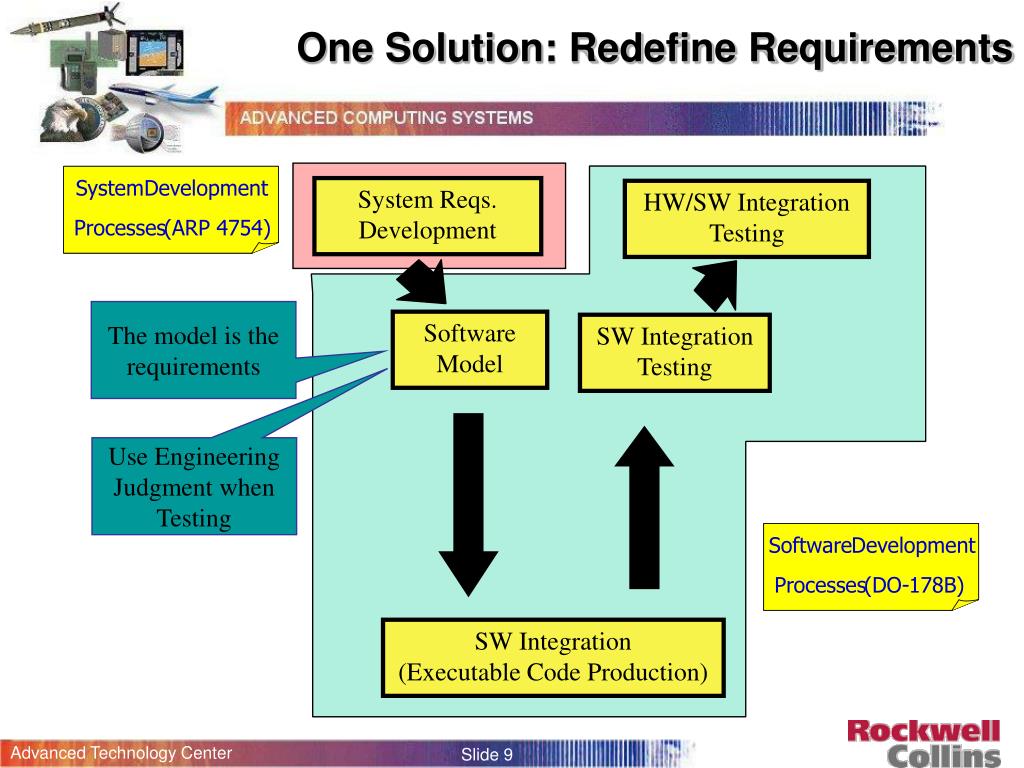

One Solution: Redefine Requirements

System

System

Development

Development

Processes

Processes

(ARP 4754)

(ARP4754)

Software

Software

Development

Development

Processes

Processes

(DO

(DO

-

-

178B)

178B)

System Reqs. Development

HW/SW Integration Testing

The model is the requirements

Software Model

SW Integration Testing

Use Engineering Judgment when Testing

SW Integration (Executable Code Production)

one solution redefine requirements10
One Solution: Redefine Requirements

System

System

Development

Development

My Comment

Processes

Processes

(ARP 4754)

(ARP4754)

Software

Software

Development

Development

Processes

Processes

(DO

(DO

-

-

178B)

178B)

System Reqs. Development

HW/SW Integration Testing

The model is the requirements

Software Model

SW Integration Testing

Use Engineering Judgment when Testing

SW Integration (Executable Code Production)

testing does not go away

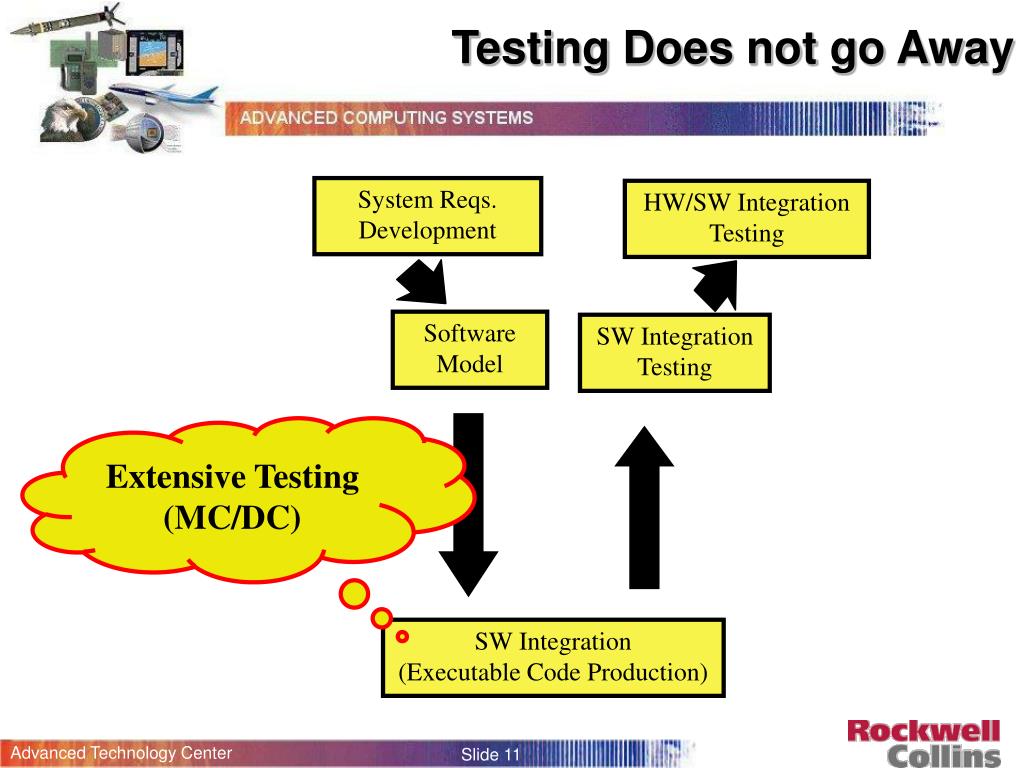

Testing Does not go Away

System Reqs. Development

HW/SW Integration Testing

Software Model

SW Integration Testing

Extensive Testing (MC/DC)

SW Integration (Executable Code Production)

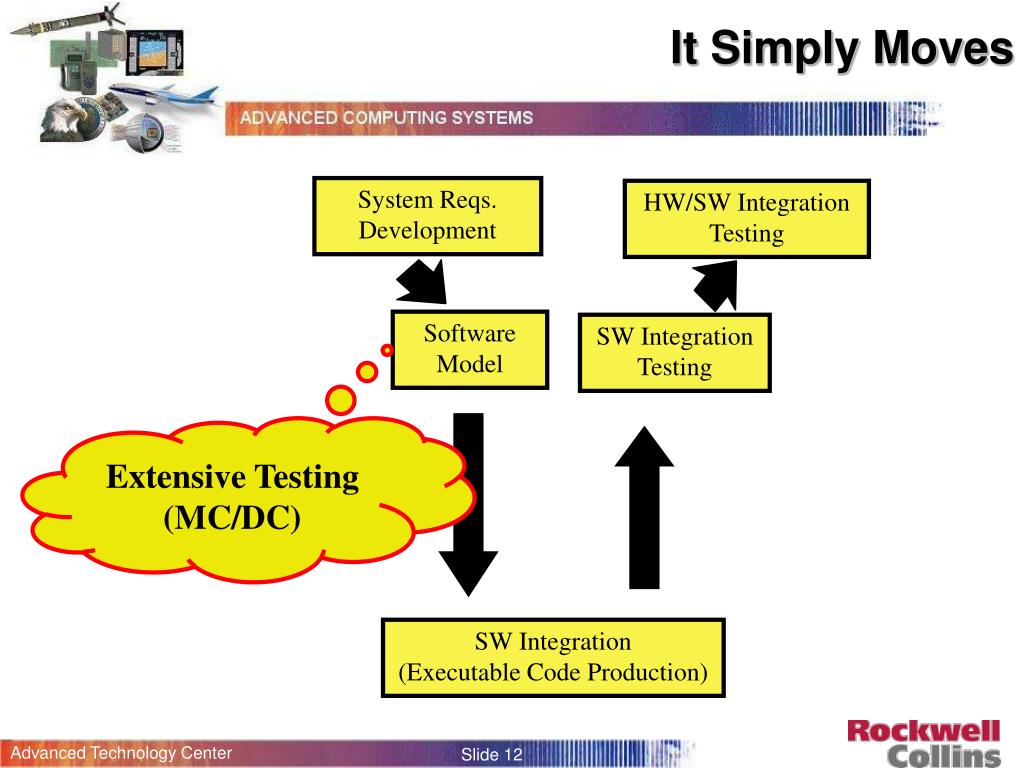

it simply moves
It Simply Moves

System Reqs. Development

HW/SW Integration Testing

Software Model

SW Integration Testing

Extensive Testing (MC/DC)

SW Integration (Executable Code Production)

do it right

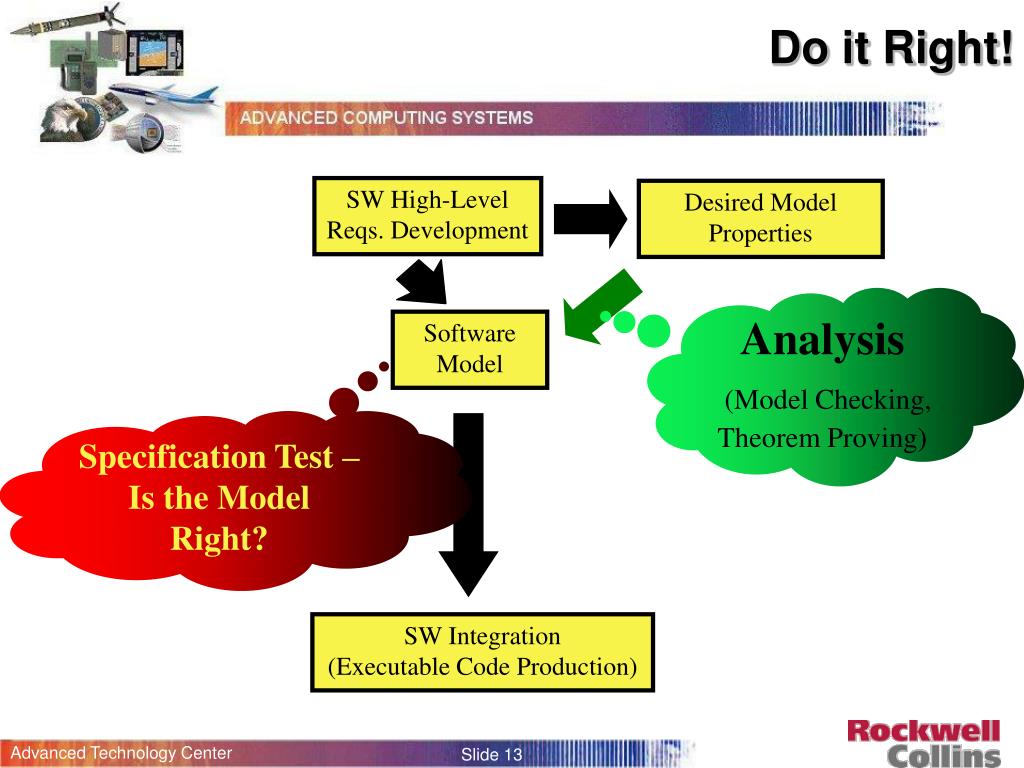

Do it Right!

Desired Model Properties

Analysis(Model Checking,Theorem Proving)

Software Model

SW Integration (Executable Code Production)

SW High-Level Reqs. Development

Specification Test – Is the Model Right?

how much to test
How Much to Test?

State Coverage

Masking MC/DC?

MC/DC

Decision Coverage?

Transition Coverage?

Something New??

Def-Use Coverage?

Where Do the TestsCome From?

requirements based testing15
Requirements Based Testing

Properties are Requirements…

Desired Model Properties

Software Model

SW Integration (Executable Code Production)

SW High-Level Reqs. Development

Cover the Properties!

requirements based testing advantages

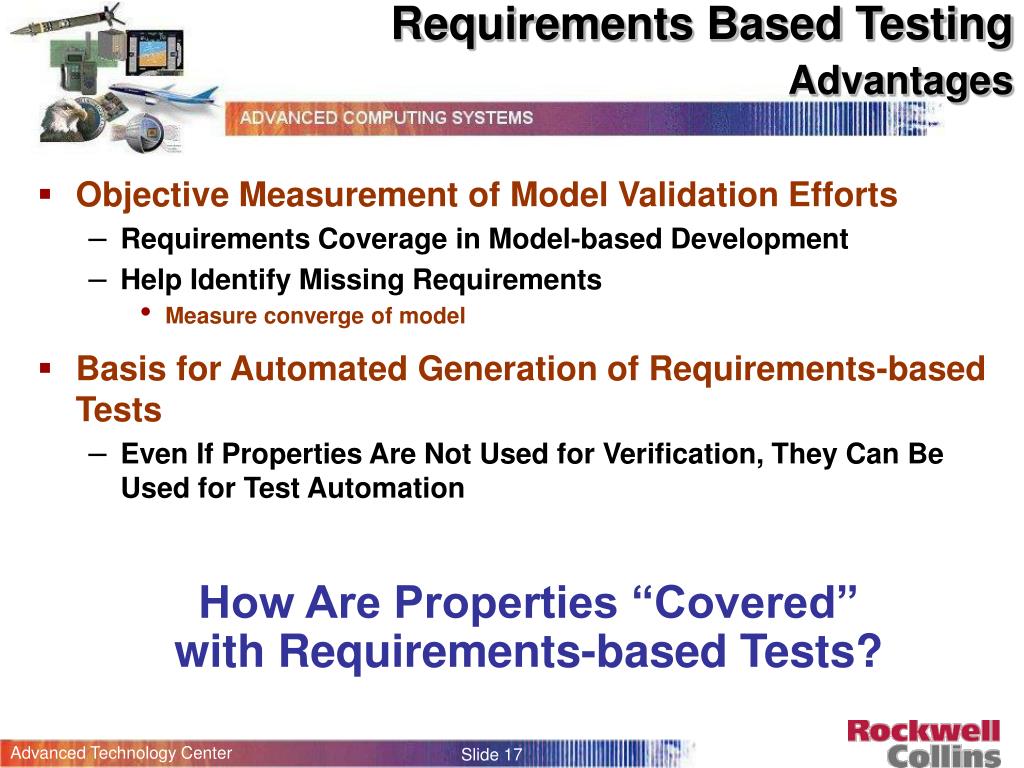

Requirements Based Testing Advantages
  • Objective Measurement of Model Validation Efforts
    • Requirements Coverage in Model-based Development
    • Help Identify Missing Requirements
      • Measure converge of model
  • Basis for Automated Generation of Requirements-based Tests
    • Even If Properties Are Not Used for Verification, They Can Be Used for Test Automation

How Are Properties “Covered” with Requirements-based Tests?

property coverage

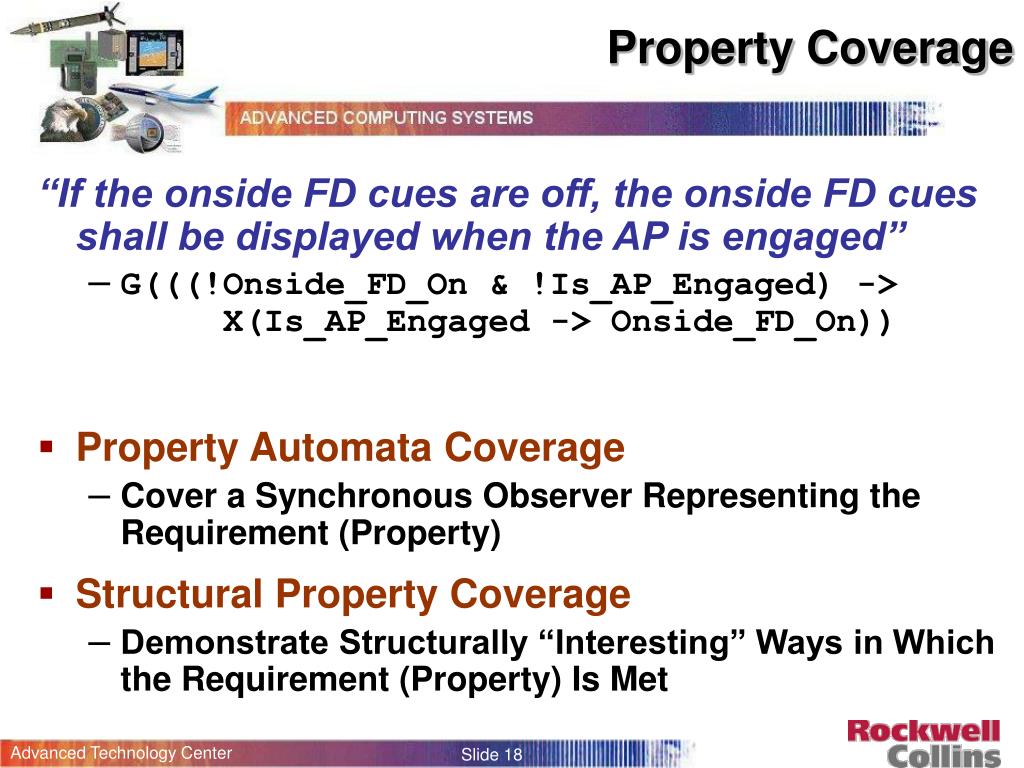

Property Coverage

“If the onside FD cues are off, the onside FD cues shall be displayed when the AP is engaged”

    • G(((!Onside_FD_On & !Is_AP_Engaged) -> X(Is_AP_Engaged -> Onside_FD_On))
  • Property Automata Coverage
    • Cover a Synchronous Observer Representing the Requirement (Property)
  • Structural Property Coverage
    • Demonstrate Structurally “Interesting” Ways in Which the Requirement (Property) Is Met
property automata coverage

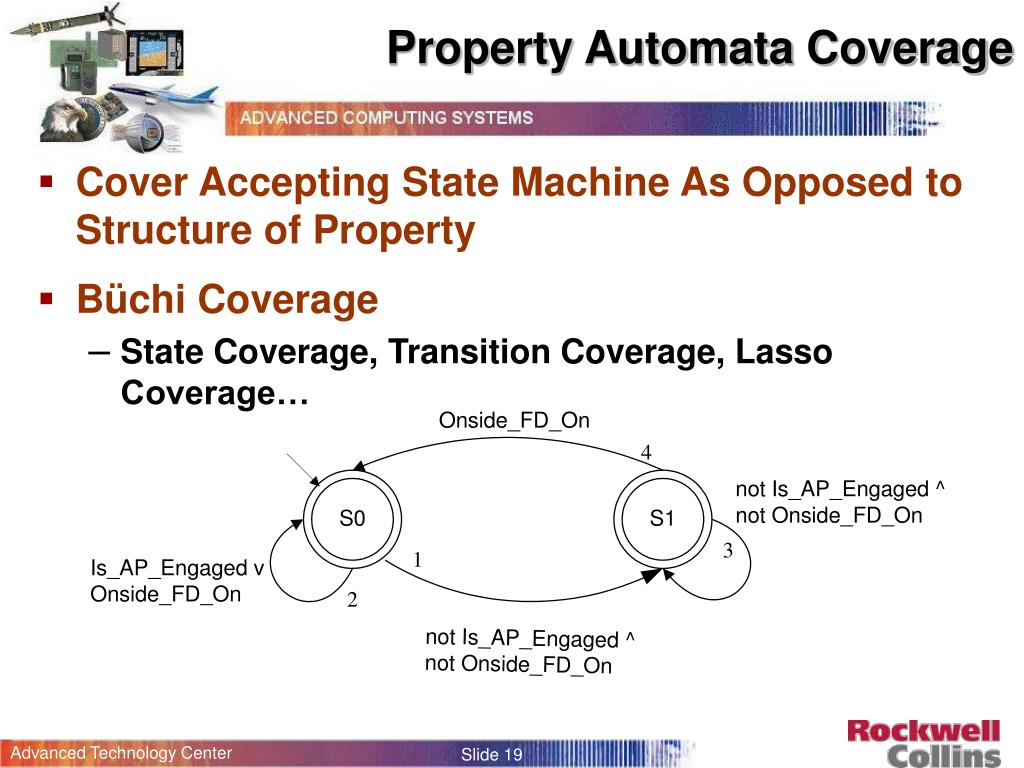

Property Automata Coverage
  • Cover Accepting State Machine As Opposed to Structure of Property
  • Büchi Coverage
    • State Coverage, Transition Coverage, Lasso Coverage…
alternative machine

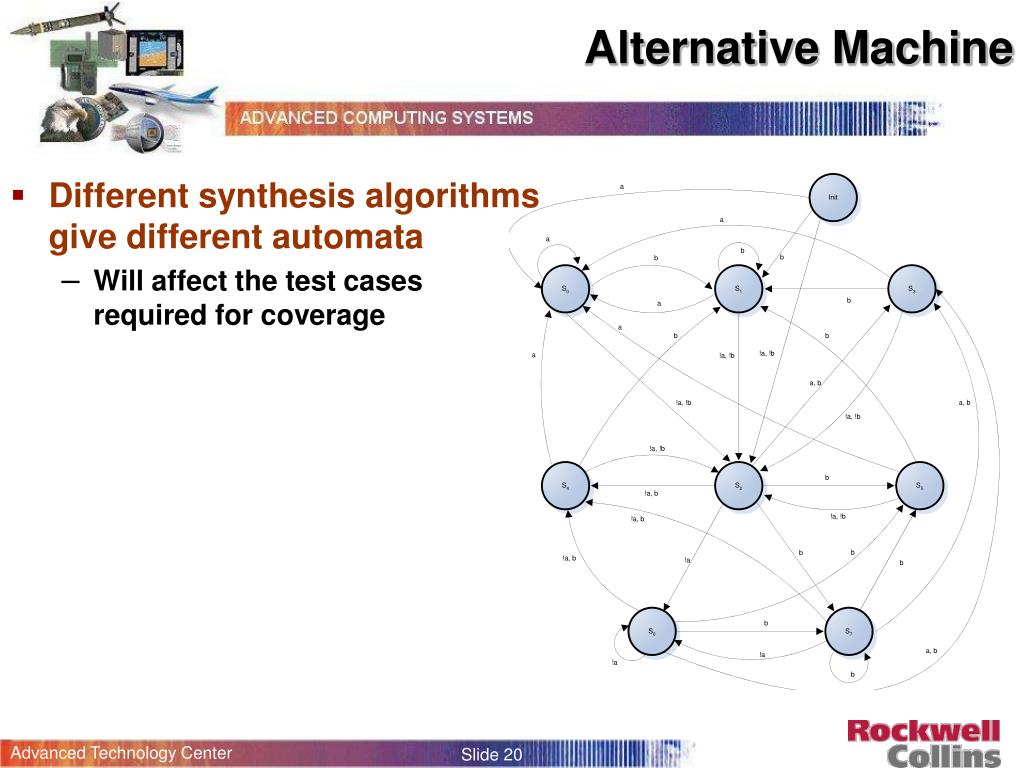

Alternative Machine
  • Different synthesis algorithms give different automata
    • Will affect the test cases required for coverage
structural property coverage
Structural Property Coverage
  • Define Structural Coverage Criteria for the Property Specification
    • Traditional Condition-based Criteria such as MC/DC Prime Candidates
  • Property Coverage Different than Code Coverage
    • Coverage of Code and Models
      • Evaluate a decision with a specific combination of truth values in the decision
    • Coverage of Properties
      • Run an execution scenario that illustrates a specific way a requirement (temporal property) is satisfied
example
Example
    • G(((!Onside_FD_On & !Is_AP_Engaged) -> X(Is_AP_Engaged -> Onside_FD_On))
  • Demonstrate That Somewhere Along Some Execution Trace Each MC/DC Case Is Met
    • Only the “positive” MC/DC cases
      • The negative cases should have no traces
  • In the Case of G(p)—Globally p Holds—we Need to Find a Test Where
    • in the prefix the requirement p is met
    • we reach a state of the trace where the requirement p holds because of the specific MC/DC case of interest – let us call this case a
    • then the requirement p keeps on holding through the remainder of the trace
  • p U ( a U X(G p))

p

p

a

p

p

p

summary

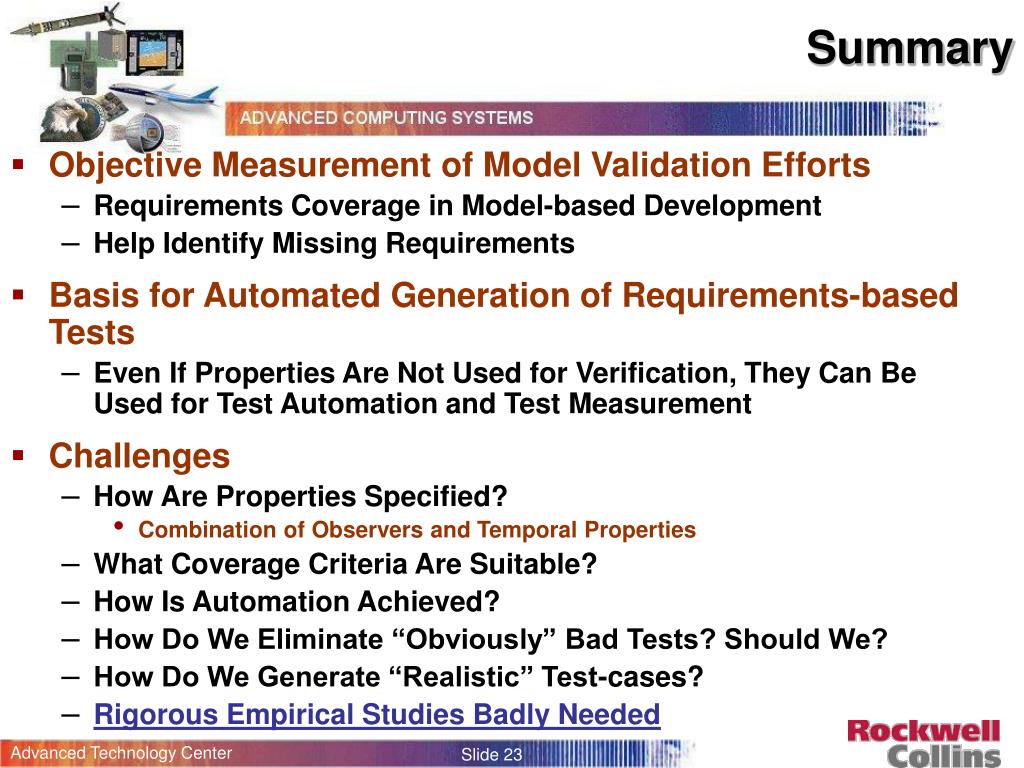

Summary
  • Objective Measurement of Model Validation Efforts
    • Requirements Coverage in Model-based Development
    • Help Identify Missing Requirements
  • Basis for Automated Generation of Requirements-based Tests
    • Even If Properties Are Not Used for Verification, They Can Be Used for Test Automation and Test Measurement
  • Challenges
    • How Are Properties Specified?
      • Combination of Observers and Temporal Properties
    • What Coverage Criteria Are Suitable?
    • How Is Automation Achieved?
    • How Do We Eliminate “Obviously” Bad Tests? Should We?
    • How Do We Generate “Realistic” Test-cases?
    • Rigorous Empirical Studies Badly Needed
outline of presentation24
Outline of Presentation

Motivation

Validation Testing

Conformance Testing

What’s Next

how we will develop software from v to a y25
How we Will Develop Software(From V to a Y)

SW High-Level Reqs. Development

HW/SW Integration Testing

Software Model

SW Integration Testing

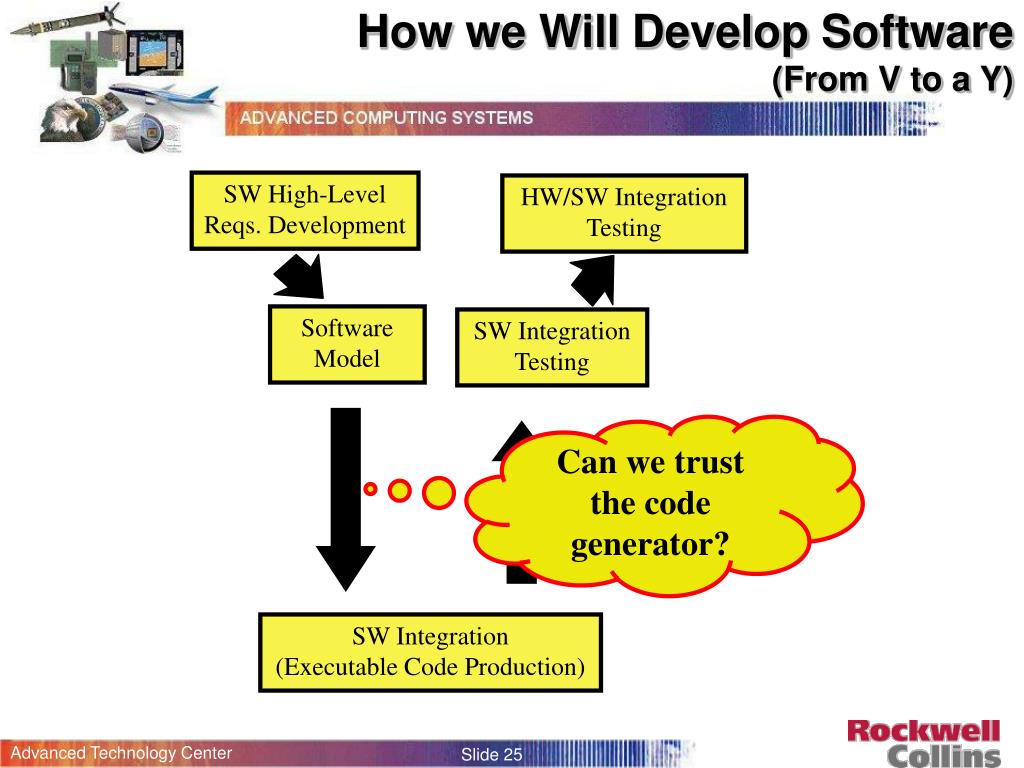

Can we trust the code generator?

SW Integration (Executable Code Production)

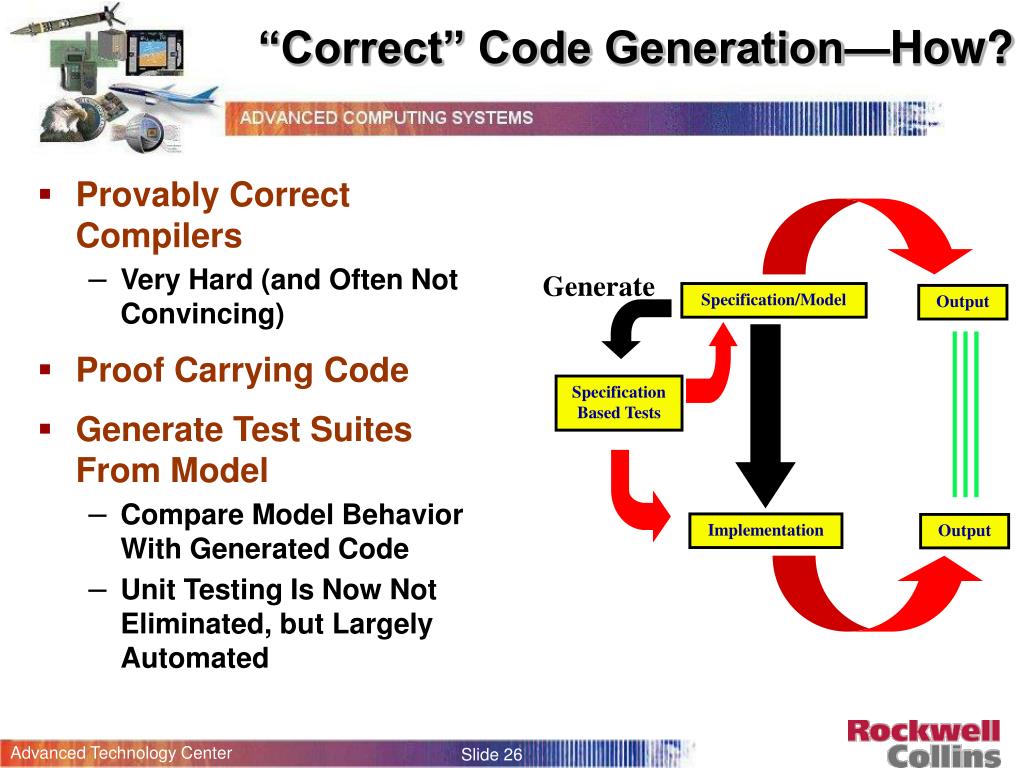

correct code generation how
Provably Correct Compilers

Very Hard (and Often Not Convincing)

Proof Carrying Code

Generate Test Suites From Model

Compare Model Behavior With Generated Code

Unit Testing Is Now Not Eliminated, but Largely Automated

“Correct” Code Generation—How?

Generate

Specification/Model

Output

Specification Based Tests

Implementation

Output

existing capabilities

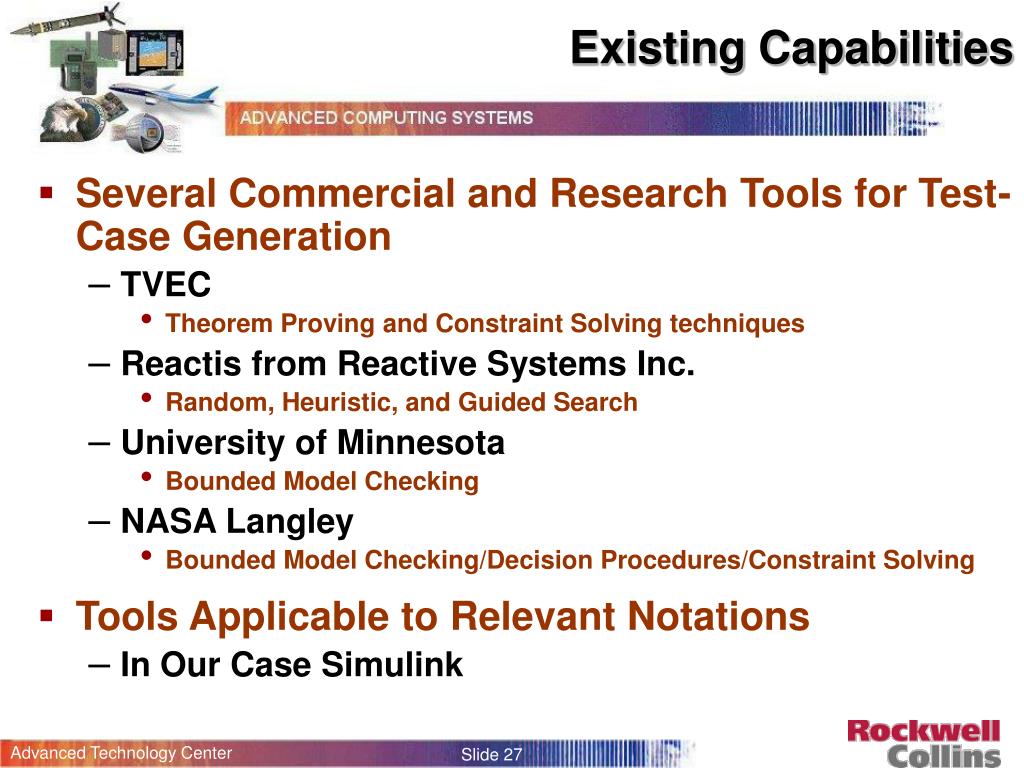

Existing Capabilities
  • Several Commercial and Research Tools for Test-Case Generation
    • TVEC
      • Theorem Proving and Constraint Solving techniques
    • Reactis from Reactive Systems Inc.
      • Random, Heuristic, and Guided Search
    • University of Minnesota
      • Bounded Model Checking
    • NASA Langley
      • Bounded Model Checking/Decision Procedures/Constraint Solving
  • Tools Applicable to Relevant Notations
    • In Our Case Simulink
an initial experiment

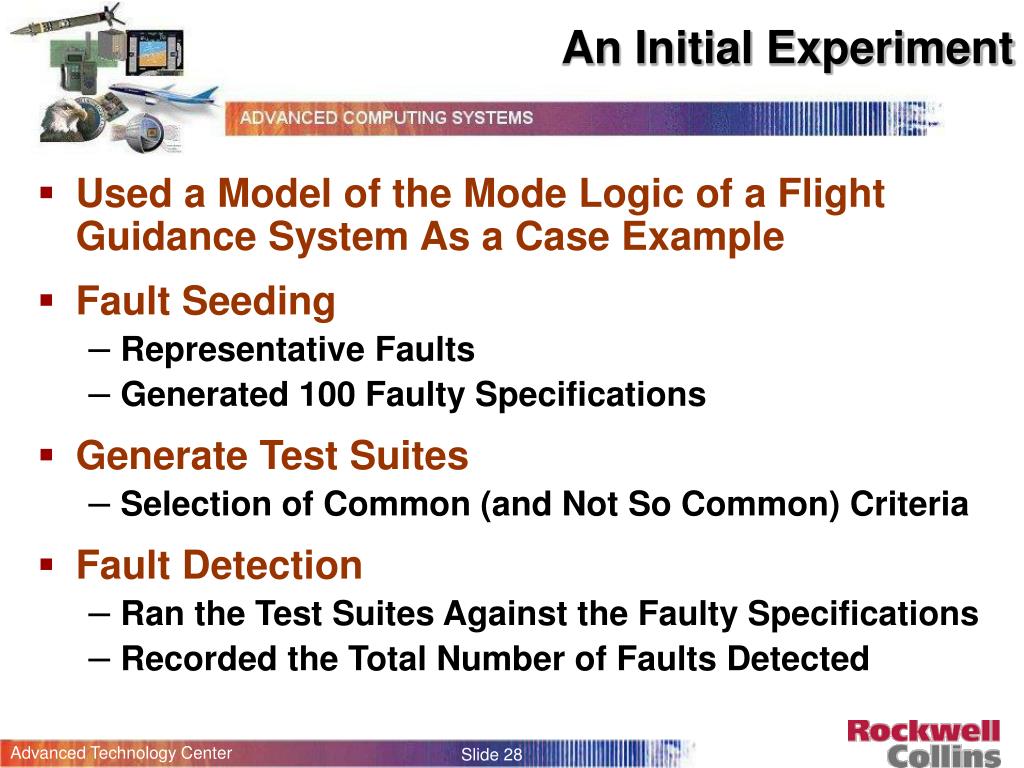

An Initial Experiment
  • Used a Model of the Mode Logic of a Flight Guidance System As a Case Example
  • Fault Seeding
    • Representative Faults
    • Generated 100 Faulty Specifications
  • Generate Test Suites
    • Selection of Common (and Not So Common) Criteria

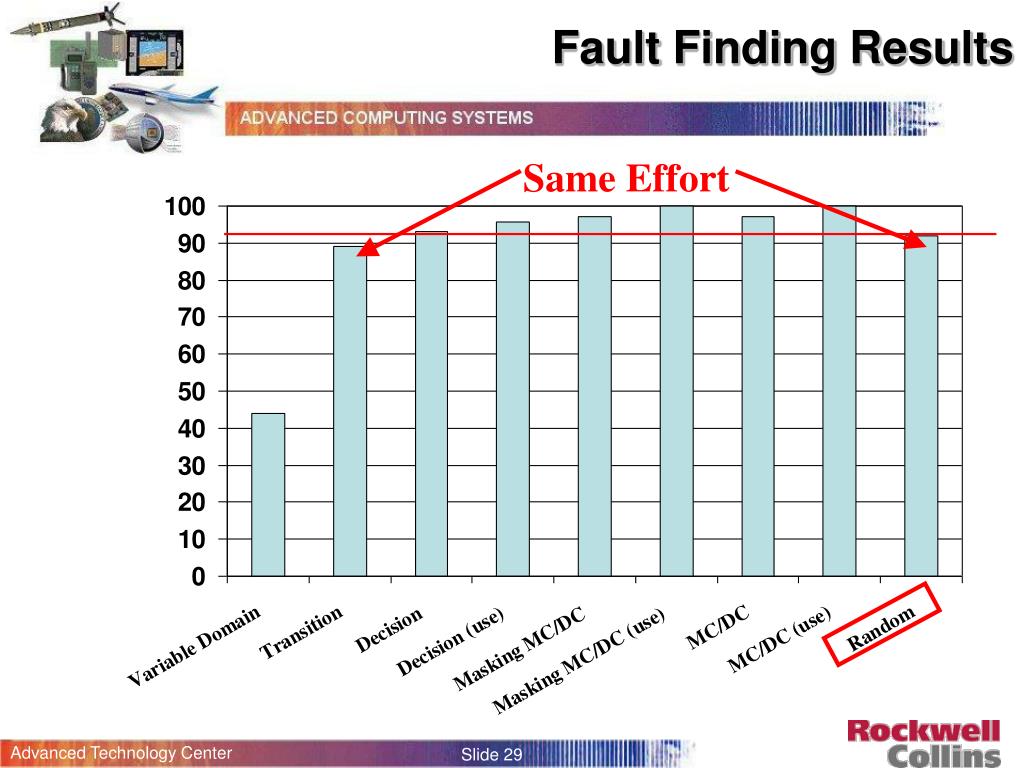

  • Fault Detection
    • Ran the Test Suites Against the Faulty Specifications
    • Recorded the Total Number of Faults Detected
summary32
Summary
  • Automated Generation of Conformance Tests
    • Current Technology Largely Allows This Automation
  • Challenges
    • Development of Suitable Coverage Criteria

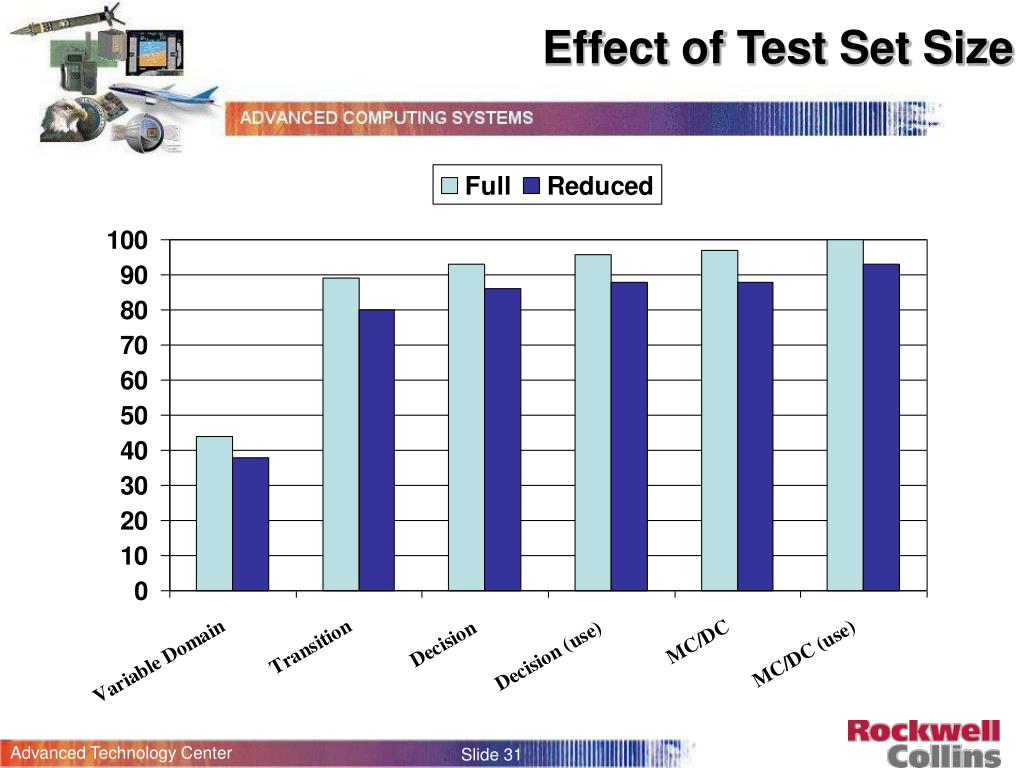

    • Effect of Test Set Size on Test Set Effectiveness
    • Effect of Model Structure on Coverage Criteria Effectiveness
    • Traceability of Tests to Constructs Tested
    • Empirical Studies of Great Importance
outline of presentation33
Outline of Presentation

Motivation

Conformance Testing

Validation Testing

What’s Next

new challenges for testing

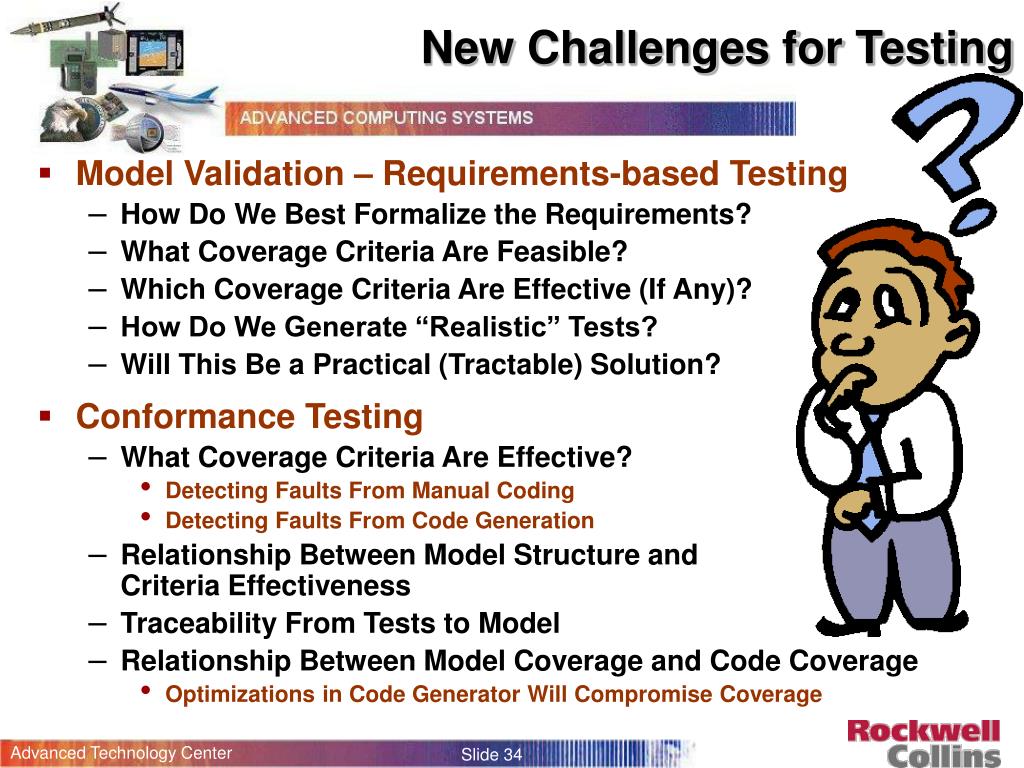

New Challenges for Testing
  • Model Validation – Requirements-based Testing
    • How Do We Best Formalize the Requirements?
    • What Coverage Criteria Are Feasible?
    • Which Coverage Criteria Are Effective (If Any)?
    • How Do We Generate “Realistic” Tests?
    • Will This Be a Practical (Tractable) Solution?
  • Conformance Testing
    • What Coverage Criteria Are Effective?
      • Detecting Faults From Manual Coding
      • Detecting Faults From Code Generation
    • Relationship Between Model Structure and Criteria Effectiveness
    • Traceability From Tests to Model
    • Relationship Between Model Coverage and Code Coverage
      • Optimizations in Code Generator Will Compromise Coverage
perfection is not necessary
Perfection is Not Necessary

Missed Faults

  • Tools and Models Only Need To Be Better Than Manual Processes…
    • How Do We Demonstrate This?
      • Empirical Studies Are of Great Importance

I Think Many Already Are

do 178b test objectives
DO-178B Test Objectives

Requirements-Based Testing

Conformance Testing

  • The executable code complies with the high-level requirements.
  • The executable code complies with the specification (low-level requirements).
  • Test coverage of high-level requirements is achieved
  • Test coverage of specification (low-level requirements) is achieved
  • Test coverage of the executable code is achieved
