  1. Advancing Requirements-Based Testing Models to Reduce Software Defects Craig Hale, Process Improvement Manager and Presenter Mara Brunner, B&M Lead Mike Rowe, Principal Engineer Esterline Control Systems - AVISTA

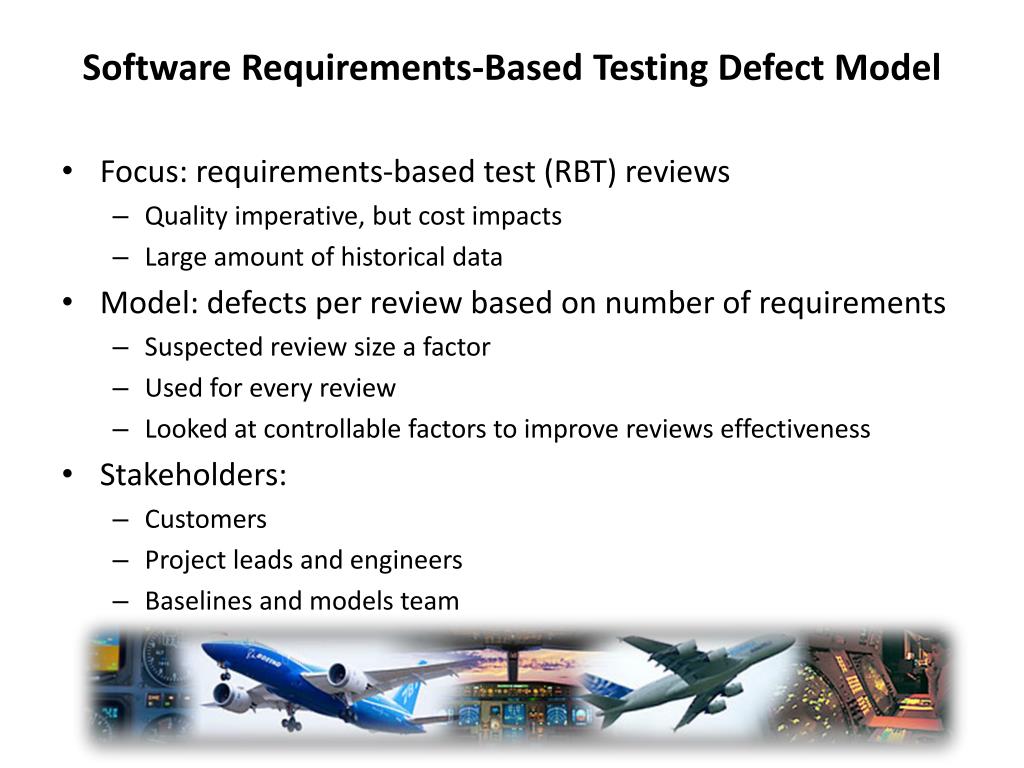

  2. Software Requirements-Based Testing Defect Model • Focus: requirements-based test (RBT) reviews • Quality imperative, but cost impacts • Large amount of historical data • Model: defects per review based on number of requirements • Suspected review size a factor • Used for every review • Looked at controllable factors to improve reviews effectiveness • Stakeholders: • Customers • Project leads and engineers • Baselines and models team

  3. Model Goals • Improve overall quality of safety-critical systems • Focus on improving review process • Maximize defect detection rate • Minimize defect escapes • Reduce defect injection rate • Reduce cost of poor quality • Defect process performance baselines split • Application type – avionics, medical, etc. • Embedded vs. non • Complexity level

  4. Factors • 2011 Metrics • 738 reviews over three years • 19,201 requirements • Customers: 10, projects: 21, jobs: 36 • 2012 Metrics • 337 reviews over one year • 2,940 requirements • Customers: 5, projects: 7, jobs: 11 • Y Variables • Number of defects per review (D/R) - discrete: ratio data type • Defects per requirement (D/Rq) - continuous: ratio data type

  5. Predicted Outcomes • Expected defects in the review per number of requirements • Important to understand if exceeding expected defects • Valuable to understand if all defects were detected • Inverse relationship of defects/requirement detected and review size

  6. Modeling Techniques • Non-linear regression vs. linear regression vs. power function • Standard of error estimate varied considerably • Partitioned into nine intervals • Monte Carlo simulation • Standard of error estimate did not change by more than 0.000001 for ten iterations • Determined standard of error estimate for each partition

  7. Factors and Correlation Tables D = Defects PT = Preparation Time R = Review Rq= Requirement

  8. Data Collection: Requirements Count 2011

  9. Data Collection: Partitioning of Reviews 2011

  10. Output from Model 2011 4 Requirements 20 Requirements

  11. Pilot Results 2011 • Determined to automate model • Needed statistical formula for variance • More guidance on what to do when out of range

  12. Results, Benefits and Challenges • Points to decreasing variation in defects • Provides early indicator to fix processes and reduce defect injection rate • Indicates benefits for small reviews and grouping • Challenged with gaining buy-in, training and keeping it simple

  13. Hypothesis Test for Defects/Rqmt and Review Size

  14. Potential New Model Element – Years of Experience • Purpose: Investigate the relationship between a reviewer’s years of experience and the quality of reviews that they perform • Expected Results: Engineers with more experience would be better reviewers • Factors: Data studied from 1-Jun-2011 through 25-May-2012 • 337 internal reviews • 11 jobs • 7 projects • 5 different customers

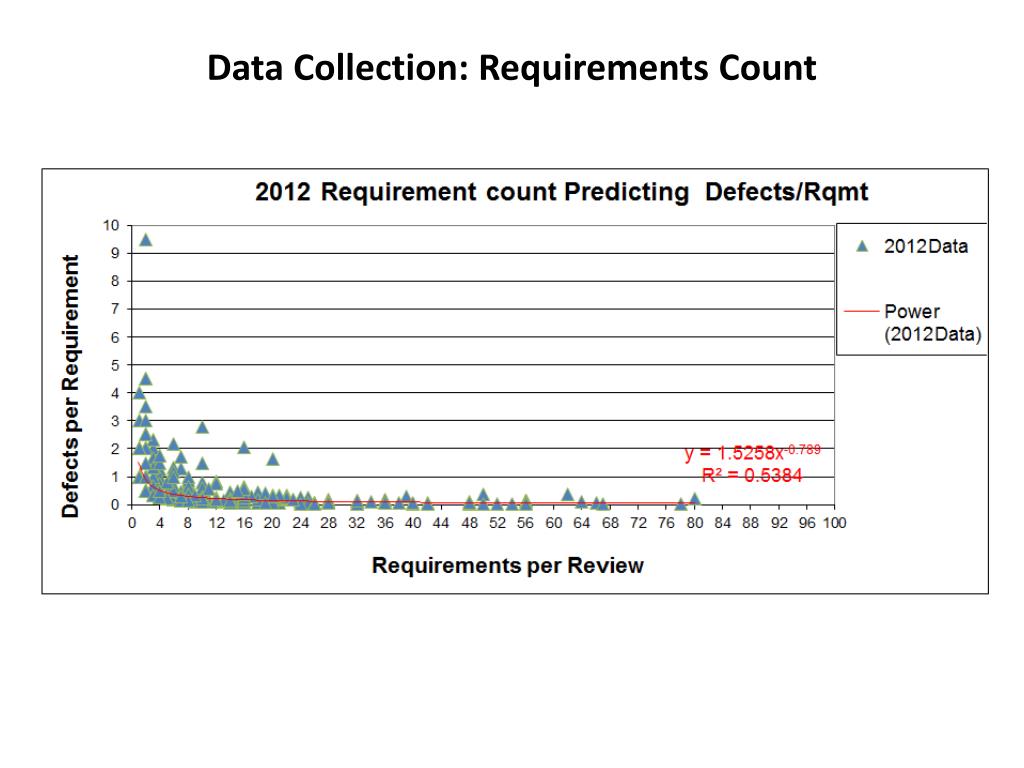

  15. Data Collection: Requirements Count

  16. Data Collection: Defects per Review

  17. Data Collection: Review Prep Time per Review

  18. Data Collection: Review Prep Time per Rqmt per Defect

  19. Potential New Model Element – Years of Experience • Findings: • Analyzed trend between the independent variable and total years of experience • The review process showed stability with no significant impact per years of experience

  20. Summary • What worked well • Utilizing historical data to predict outcomes • Encouragement of smaller data item reviews • Improving the defect detection rate of data item reviews • Future plans: Continue to enhance the model • Requirement complexity • Expand lifecycles • Expand activities • Safety criticality
