oxford university particle physics unix overview

Oxford University Particle Physics Unix Overview

Pete Gronbech

Senior Systems Manager and

SouthGrid Technical Co-ordinator

Graduate Lectures

slide2
Strategy
  • Local Cluster Overview
  • Connecting to it
  • Grid Cluster
  • Computer Rooms

Graduate Lectures

particle physics strategy the server desktop divide

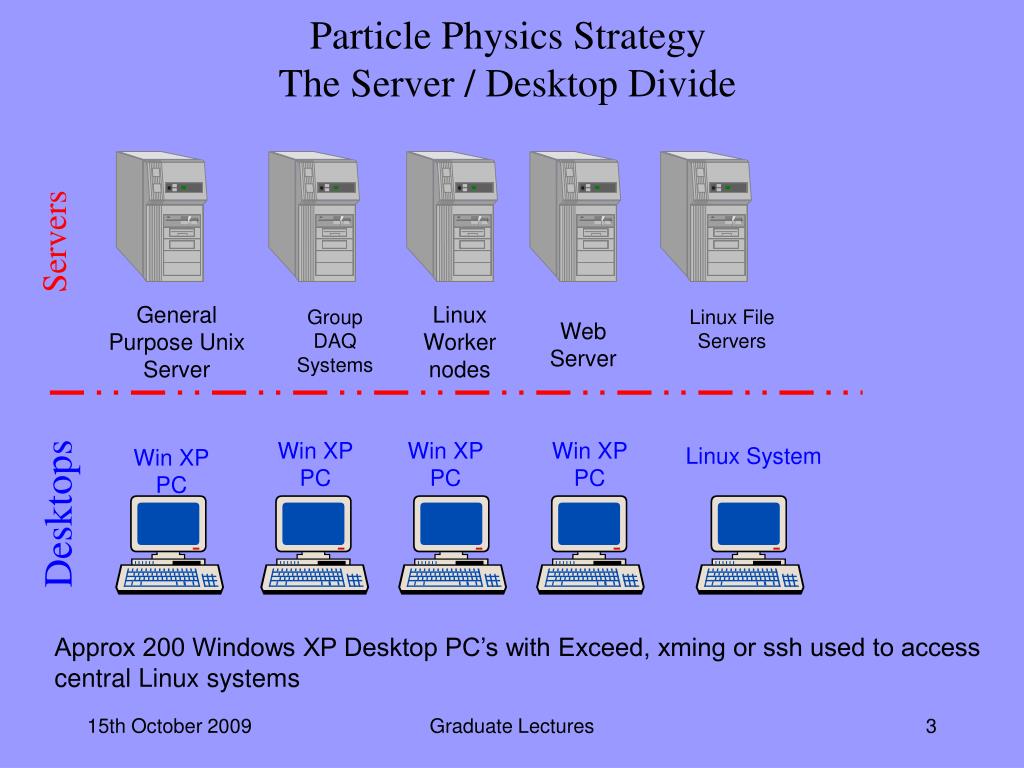

Particle Physics Strategy The Server / Desktop Divide

Servers

General Purpose Unix Server

Linux Worker nodes

Group DAQ Systems

Linux FileServers

Web Server

Win XP PC

Win XP PC

Win XP PC

Linux System

Win XP PC

Desktops

Approx 200 Windows XP Desktop PC’s with Exceed, xming or ssh used to access central Linux systems

Graduate Lectures

particle physics linux

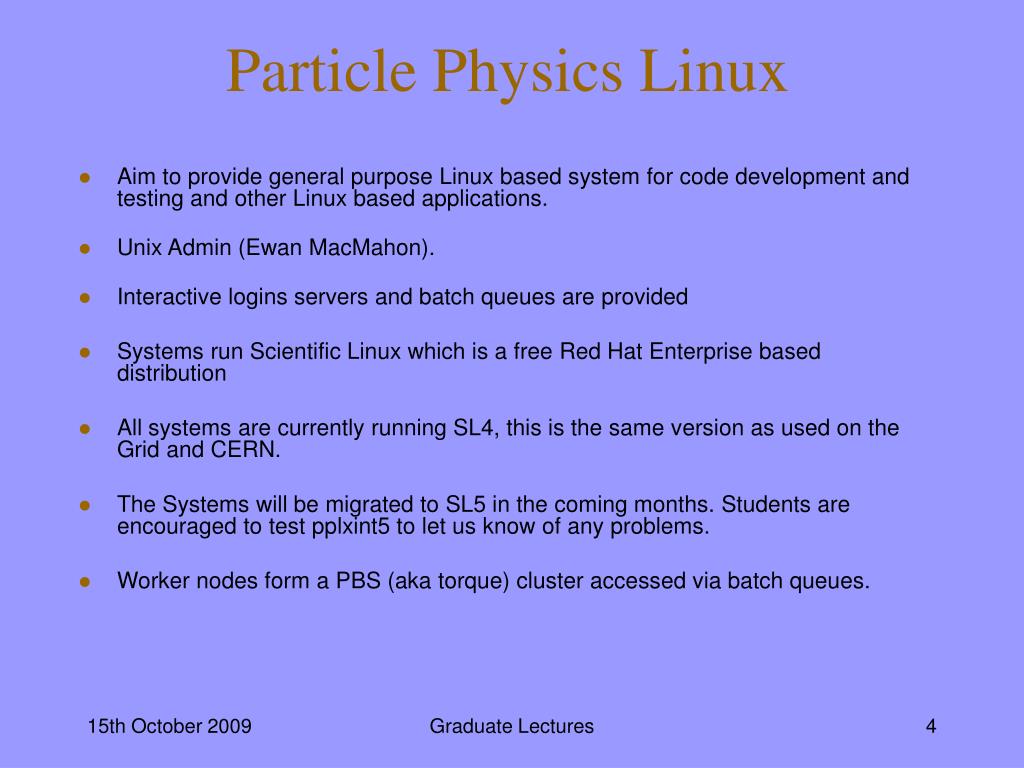

Particle Physics Linux
  • Aim to provide general purpose Linux based system for code development and testing and other Linux based applications.
  • Unix Admin (Ewan MacMahon).
  • Interactive logins servers and batch queues are provided
  • Systems run Scientific Linux which is a free Red Hat Enterprise based distribution
  • All systems are currently running SL4, this is the same version as used on the Grid and CERN.
  • The Systems will be migrated to SL5 in the coming months. Students are encouraged to test pplxint5 to let us know of any problems.
  • Worker nodes form a PBS (aka torque) cluster accessed via batch queues.

Graduate Lectures

current clusters

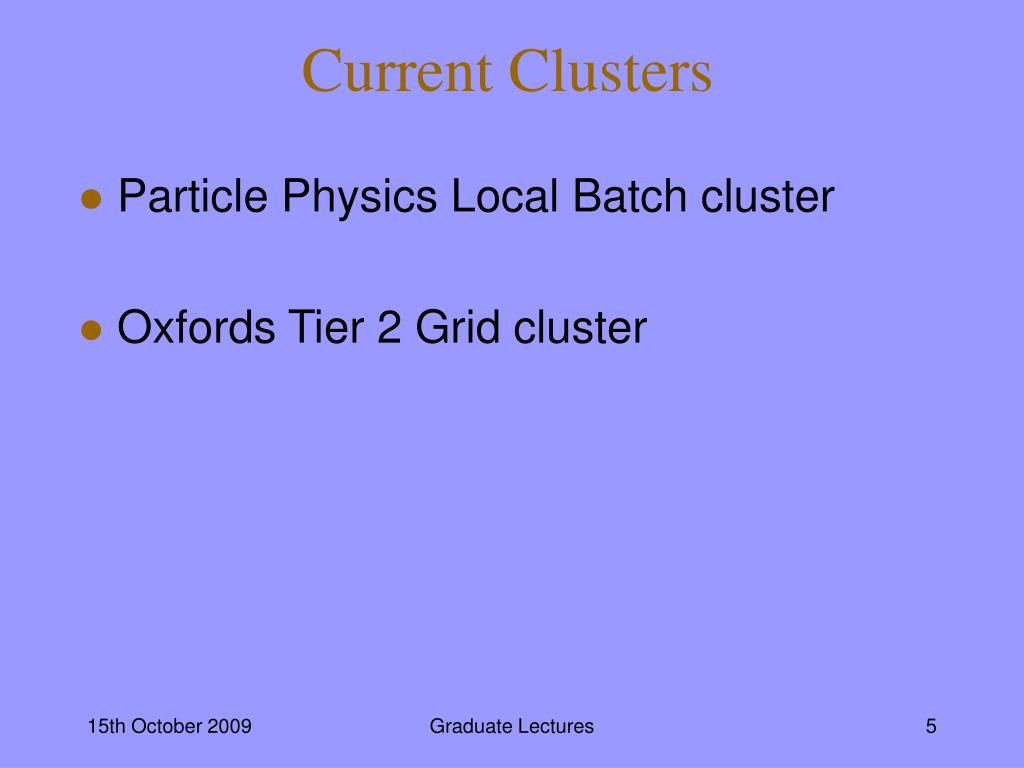

Current Clusters
  • Particle Physics Local Batch cluster
  • Oxfords Tier 2 Grid cluster

Graduate Lectures

slide6

pplxgenng

AMD 285 2.6GHz

PP Linux Batch Farm

(Upgrade Nov/Dec 08)

Scientific Linux 4

160 active slots

pplxwn

8 * Intel 5420 cores

pplxwn

8 * Intel 5420 cores

pplxwn

8 * Intel 5420 cores

6TB

pplxwn

8 * Intel 5420 cores

pplxwn

8 * Intel 5420 cores

4TB

pplxwn

8 * Intel 5420 cores

pplxwn

8 * Intel 5420 cores

10TB

pplxwn

8 * Intel 5420 cores

pplxwn

8 * Intel 5420 cores

pplxwn

8 * Intel 5420 cores

pplxwn

8 * Intel 5420 cores

pplxfs2

pplxwn

8 * Intel 5420 cores

pplxwn

8 * Intel 5420 cores

pplxwn

8 * Intel 5420 cores

9TB

pplxwn

8 * Intel 5420 cores

CDF Data

pplxwn

8 * Intel 5420 cores

pplxwn21

8 * Intel 5345 cores

pplxfs3

19TB

pplxwn20

8 * Intel 5345 cores

8 * Intel 5345 cores

19TB

pplxwn19

pplxfs6

8 * Intel 5345 cores

pplxwn18

pplxfs4

{

19TB

pplxint3

8 * Intel 5420 cores

pplxint

pplxfs7

pplxint2

8 * Intel 5420 cores

19TB

ATLAS Data

pplxint1

Interactive login nodes

19TB

pplxfs5

Hacked

pplxfs8

strong passwords etc
Strong Passwords etc
  • Use a strong password not open to dictionary attack!
    • fred123 – No good
    • Uaspnotda!09 – Much better
  • Better to use ssh with a passphrased key stored on your desktop.

Graduate Lectures

slide8

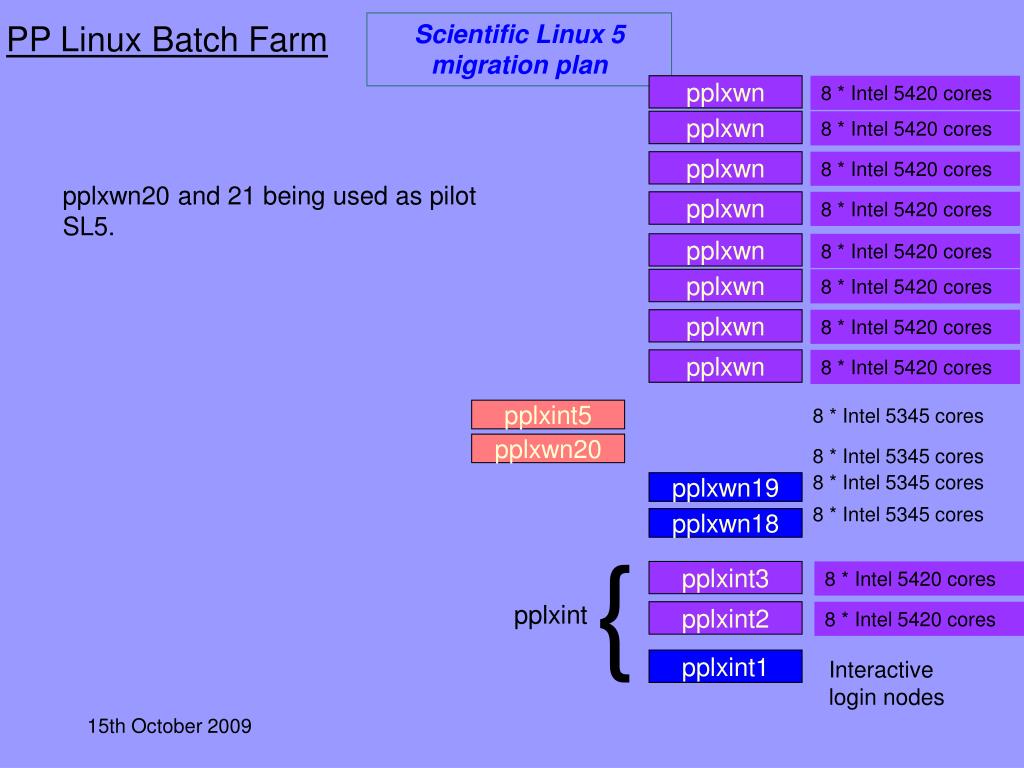

PP Linux Batch Farm

Scientific Linux 5

migration plan

pplxwn

8 * Intel 5420 cores

pplxwn

8 * Intel 5420 cores

pplxwn

8 * Intel 5420 cores

pplxwn20 and 21 being used as pilot SL5.

pplxwn

8 * Intel 5420 cores

pplxwn

8 * Intel 5420 cores

pplxwn

8 * Intel 5420 cores

pplxwn

8 * Intel 5420 cores

pplxwn

8 * Intel 5420 cores

8 * Intel 5345 cores

pplxint5

pplxwn20

8 * Intel 5345 cores

8 * Intel 5345 cores

pplxwn19

8 * Intel 5345 cores

pplxwn18

{

pplxint3

8 * Intel 5420 cores

pplxint

pplxint2

8 * Intel 5420 cores

pplxint1

Interactive login nodes

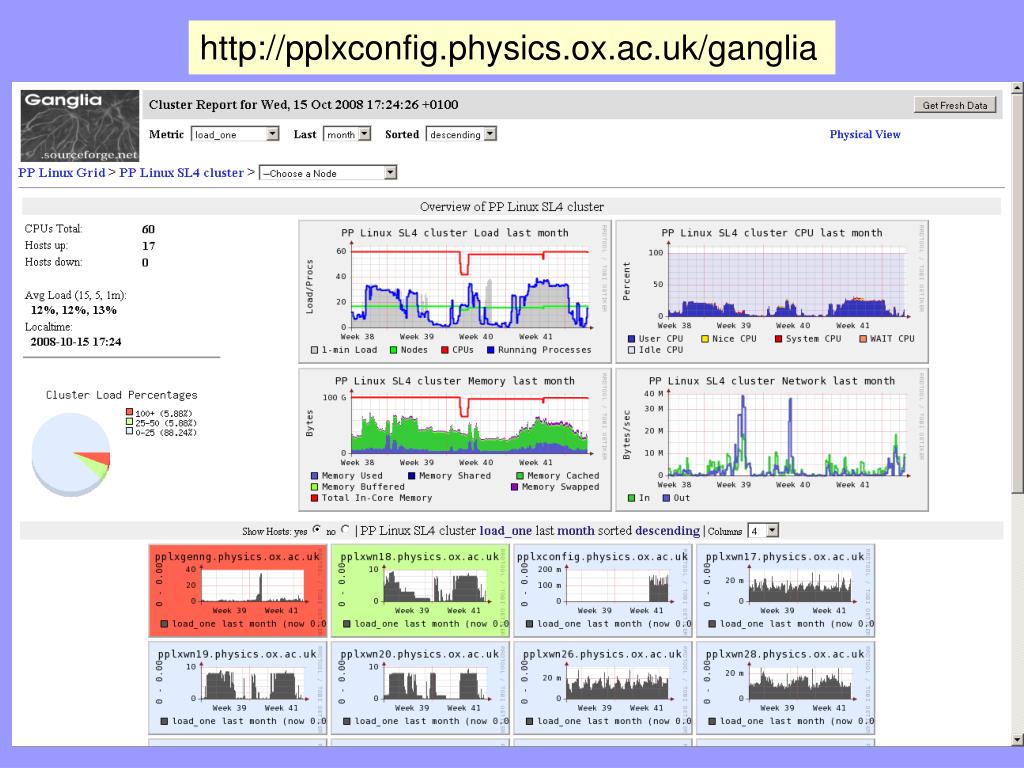

connecting with putty

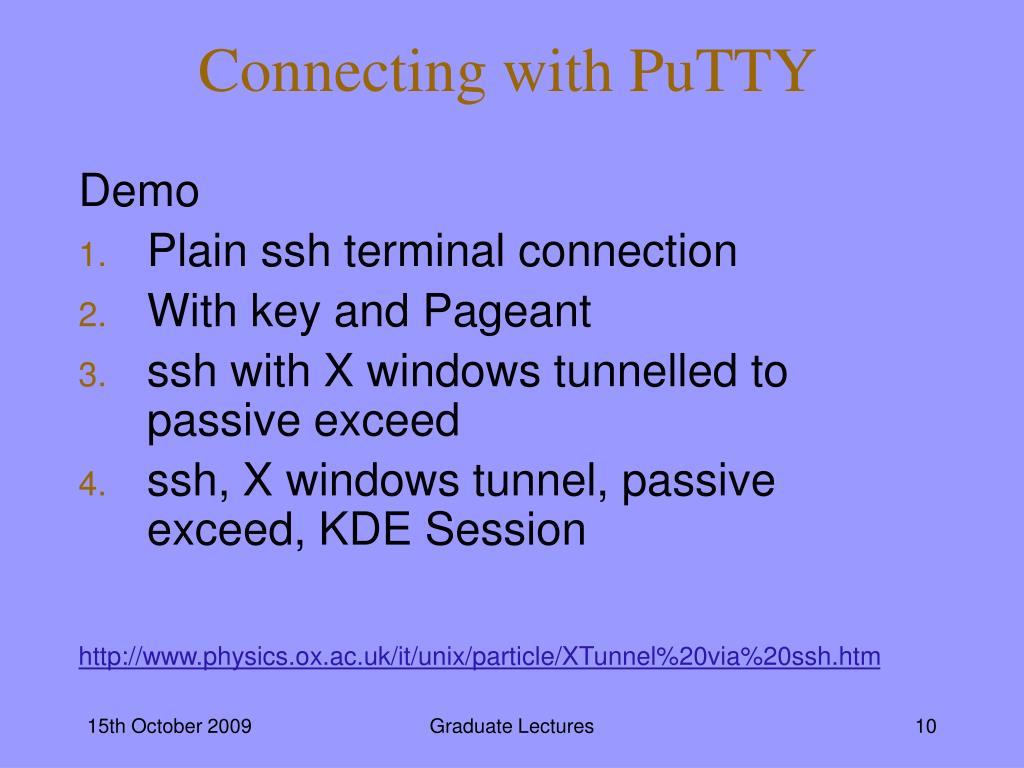

Connecting with PuTTY

Demo

  • Plain ssh terminal connection
  • With key and Pageant
  • ssh with X windows tunnelled to passive exceed
  • ssh, X windows tunnel, passive exceed, KDE Session

http://www.physics.ox.ac.uk/it/unix/particle/XTunnel%20via%20ssh.htm

Graduate Lectures

southgrid member institutions

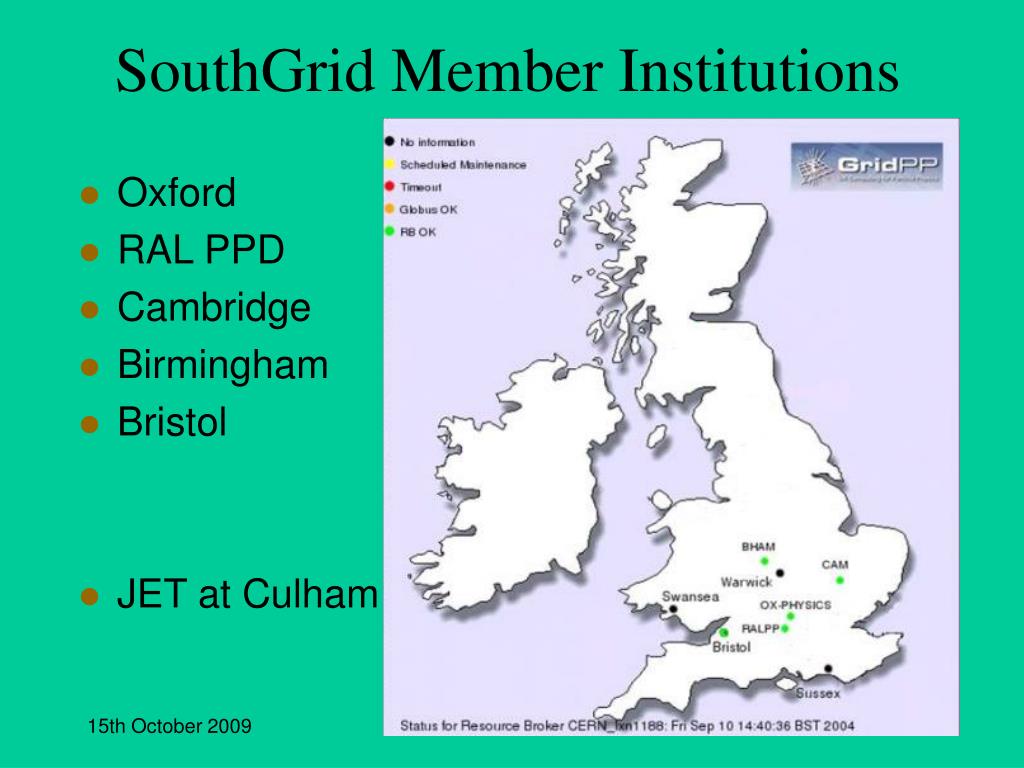

SouthGrid Member Institutions
  • Oxford
  • RAL PPD
  • Cambridge
  • Birmingham
  • Bristol
  • JET at Culham

Graduate Lectures

oxford tier 2 grid upgrade 2008

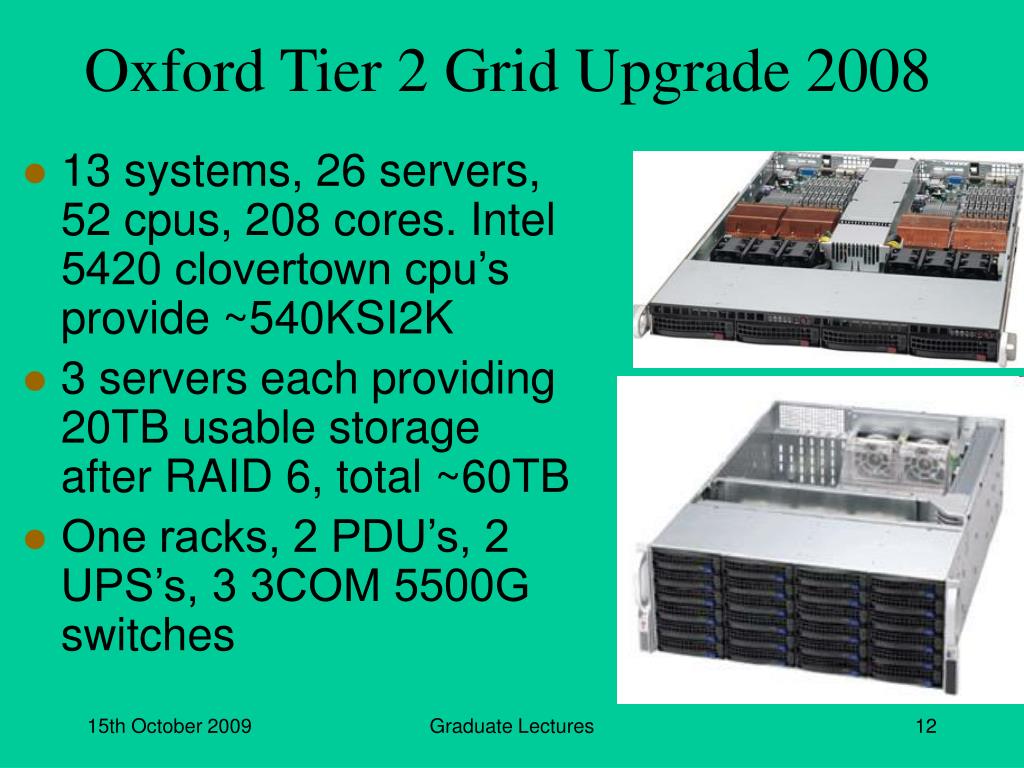

Oxford Tier 2 Grid Upgrade 2008
  • 13 systems, 26 servers, 52 cpus, 208 cores. Intel 5420 clovertown cpu’s provide ~540KSI2K
  • 3 servers each providing 20TB usable storage after RAID 6, total ~60TB
  • One racks, 2 PDU’s, 2 UPS’s, 3 3COM 5500G switches

Graduate Lectures

get a grid certificate
Get a Grid Certificate

Must remember to use the same web browser to request and retrieve the Grid Certificate.

Once you have it in your browser you can export it to the Linux Cluster to run grid jobs.

Details of these steps and how to request membership of the SouthGrid VO (if you do not belong to an existing group such as ATLAS, LHCb) are here:

http://www.gridpp.ac.uk/southgrid/VO/instructions.html

Graduate Lectures

two new computer rooms provide excellent infrastructure for the future

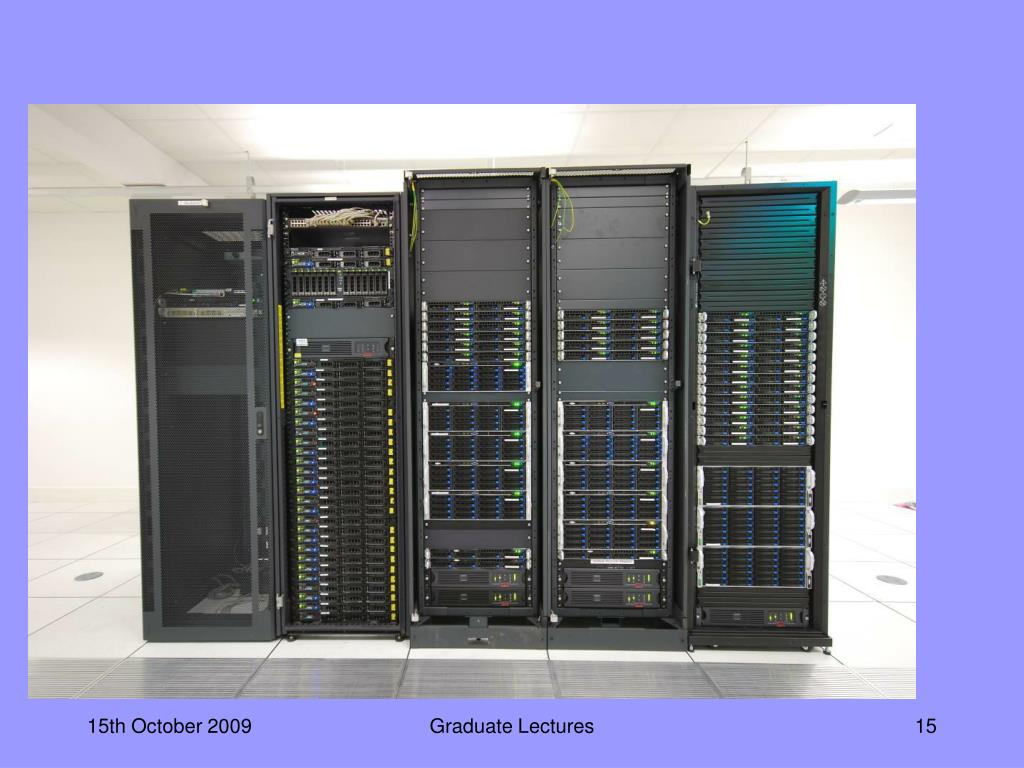

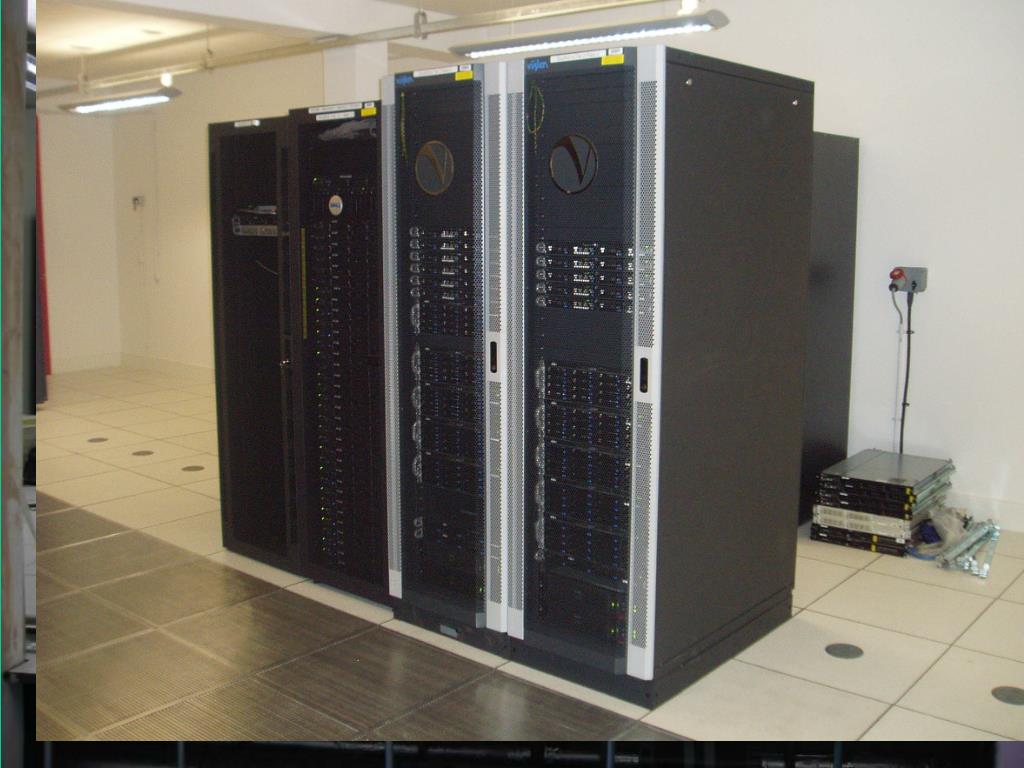

Two New Computer Rooms provide excellent infrastructure for the future

The New Computer room built at Begbroke Science Park jointly for the Oxford Super Computer and the Physics department, provides space for 55 (11KW) computer racks. 22 of which will be for Physics. Up to a third of these can be used for the Tier 2 centre. This £1.5M project is funded by SRIF and a contribution of ~£200K from Oxford Physics.

The room was ready in December 2007. Oxford Tier 2 Grid cluster was moved there during spring 2008. All new Physics High Performance Clusters will be installed here.

Graduate Lectures

local oxford dwb physics infrastructure computer room
Local Oxford DWB Physics Infrastructure Computer Room

Completely separate from the Begbroke Science park a computer room with 100KW cooling and >200KW power has been built. ~£150K Oxford Physics money.

Local Physics department Infrastructure computer room.

Completed September 2007.

This allowed local computer rooms to be refurbished as offices again and racks that were in unsuitable locations to be re housed.

Graduate Lectures

the end for now

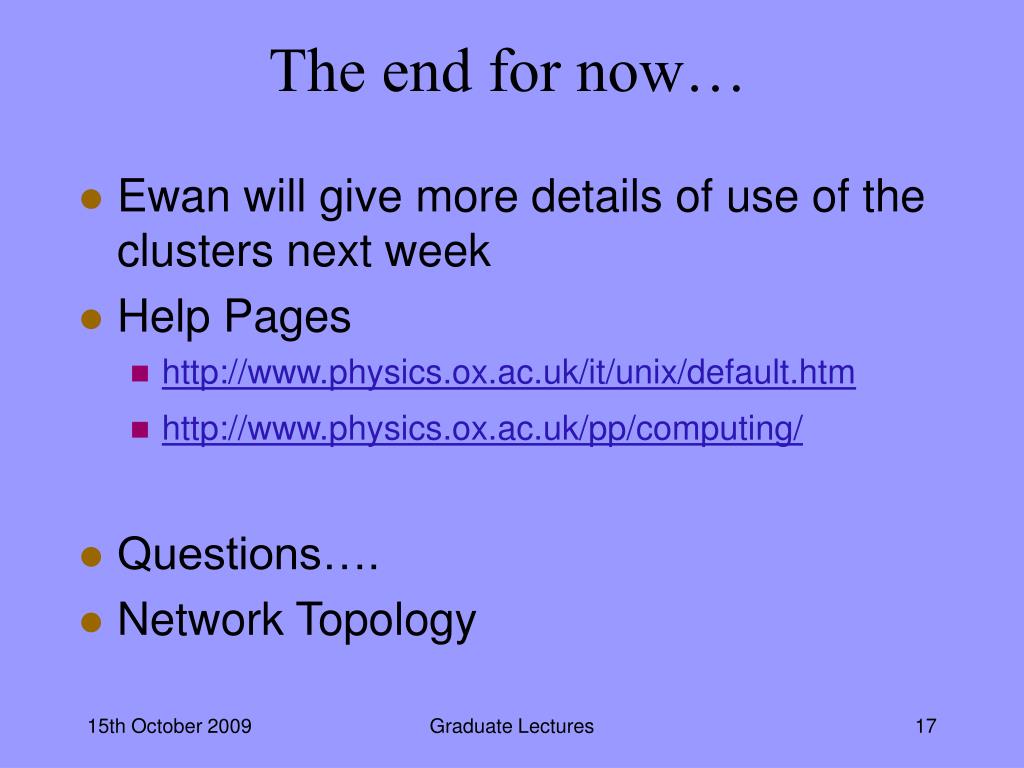

The end for now…
  • Ewan will give more details of use of the clusters next week
  • Help Pages
    • http://www.physics.ox.ac.uk/it/unix/default.htm
    • http://www.physics.ox.ac.uk/pp/computing/
  • Questions….
  • Network Topology

Graduate Lectures

network
Network
  • Gigabit connection to campus operational since July 2005.
  • Second gigabit connection installed Sept 2007.
  • Dual 10 gigabit links installed August 2009
  • Gigabit firewall installed for Physics. Purchased commercial unit to minimise manpower required for development and maintenance. Juniper ISG 1000 running netscreen.
  • Firewall also supports NAT and VPN services which is allowing us to consolidate and simplify the network services.
  • Moving to the firewall NAT has solved a number of problems we were having previously, including unreliability of videoconferencing connections.
  • Physics-wide wireless network. Installed in DWB public rooms, Martin Wood,AOPP and Theory. New firewall provides routing and security for this network.

Graduate Lectures

network access
Network Access

Super Janet 4

2* 10Gb/s with Super Janet 5

Physics Firewall

Physics

Backbone

Router

1Gb/s

OUCS

Firewall

1Gb/s

10Gb/s

Backbone

Edge

Router

10Gb/s

100Mb/s

Campus

Backbone

Router

1Gb/s

10Gb/s

depts

Backbone

Edge

Router

depts

100Mb/s

depts

100Mb/s

depts

Graduate Lectures

physics backbone
Physics Backbone

Linux

Server

1Gb/s

Physics

Firewall

Server

switch

1Gb/s

Win 2k

Server

1Gb/s

1Gb/s

Particle

Physics

1Gb/s

100Mb/s

Physics

Backbone

Router

100Mb/s

1Gb/s

desktop

Clarendon

Lab

100Mb/s

1Gb/s

desktop

1Gb/s

1Gb/s

100Mb/s

Astro

Atmos

Theory

Graduate Lectures
