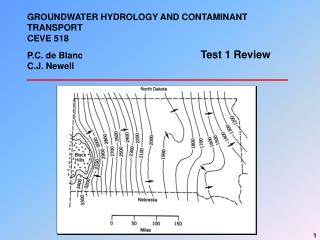

GROUNDWATER HYDROLOGY AND CONTAMINANT TRANSPORT CEVE 518 P.C. de Blanc C.J. Newell PowerPoint Presentation
Download Presentation
GROUNDWATER HYDROLOGY AND CONTAMINANT TRANSPORT CEVE 518 P.C. de Blanc C.J. Newell

Loading in 2 Seconds...

play fullscreen
1 / 21

GROUNDWATER HYDROLOGY AND CONTAMINANT TRANSPORT CEVE 518 P.C. de Blanc C.J. Newell - PowerPoint PPT Presentation


  • 328 Views
  • Uploaded on

GROUNDWATER HYDROLOGY AND CONTAMINANT TRANSPORT CEVE 518 P.C. de Blanc C.J. Newell. Test 1 Review. Administrative. Test 1 Next lecture (Thursday, October 6). Covers material through steady-state flow (Theim equation).

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'GROUNDWATER HYDROLOGY AND CONTAMINANT TRANSPORT CEVE 518 P.C. de Blanc C.J. Newell' - adamdaniel


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide2

Administrative

  • Test 1
    • Next lecture (Thursday, October 6).
    • Covers material through steady-state flow (Theim equation).
    • Can bring in one 8.5 x 11 sheet of notes and page issued by instructor at exam.
    • Review lecture hand-out will be made available for cutting/pasting.
  • Homework No. 4
    • Will be issued Thursday, October 6.
    • Well be due Tuesday, October 18.
    • Transient flow problems, pump test analysis.
  • Papers for critical review available Thursday, October 13.
    • Reviews due last day of class.
    • Guidance on reviews will be issued next week.
  • Field Exercise and Project No. 1
    • Thursday, October 13.
slide3

Basin Hydrologic Cycle

Charbeneau, 2000.

slide4

Basin Hydrologic Cycle – Quantitative Representation

Basin

I

Surface/

Soil

Aquifer

Domenico and Schwartz, 1990.

slide6

Example Layered Aquifer System

Bedient et al., 1999.

slide8

REV – Scale Effect

Freeze and Cherry, 1979.

slide10

Pressure and Elevation Heads - Laboratory

 = pressure head

z = elevation head

h = total head

Freeze and Cherry, 1979.

slide11

Pressure and Elevation Heads - Field

 = pressure head

z = elevation head

h = total head

Freeze and Cherry, 1979.

slide12

Capillary Rise in a Tube

Domenico and Schwartz, 1992.

slide13

Soil Water Characteristic Curve is

a Function of pore size

Capillary forces hold water tightly in small clay pores.

Larger sand pores produce lower capillary pressures.

r,and

r,lay

0

nsand

nclay

Charbeneau, 2000.

slide14

Soil Water Characteristic Curve is a Function of

Sorting (Pore Size Distribution)

Relatively wide range of pore sizes from small to large results in widely varying capillary pressures.

Narrow range of particle sizes results in relatively small range of capillary pressures.

Fetter, 1999.

slide15

Who Was Darcy?

  • Henry Philibert Gaspard Darcy was born June 10, 1803 in Dijon, France.
  • Admitted to the French School of Bridges and Roads in Paris, part of the Corps of Bridges and Roads. After graduation, he was eventually assigned by the Corps to a position in Dijon.
  • In 1828, Darcy designed a 12.7 km system of aqueducts to supply the city of Dijon with surface water. The system included 28,000 m of pressurized surface lines and required no pumps or filters.
  • Made important contributions to flow and friction loss in pipes, created an improved pitot tube design, and was the first to postulate the existance of a boundary layer in fluid flow.
  • In 1856, carried out experiments while researching sand filters that lead to Darcy’s Law.
  • Died unexpectedly January 3, 1858 from pneumonia during a trip to Paris.
slide19

Radial Flow to a Well

s

sw

(“cone of depression”)

S = Drawdown

Ur = Radial flow per unit width

Todd, 1980.
