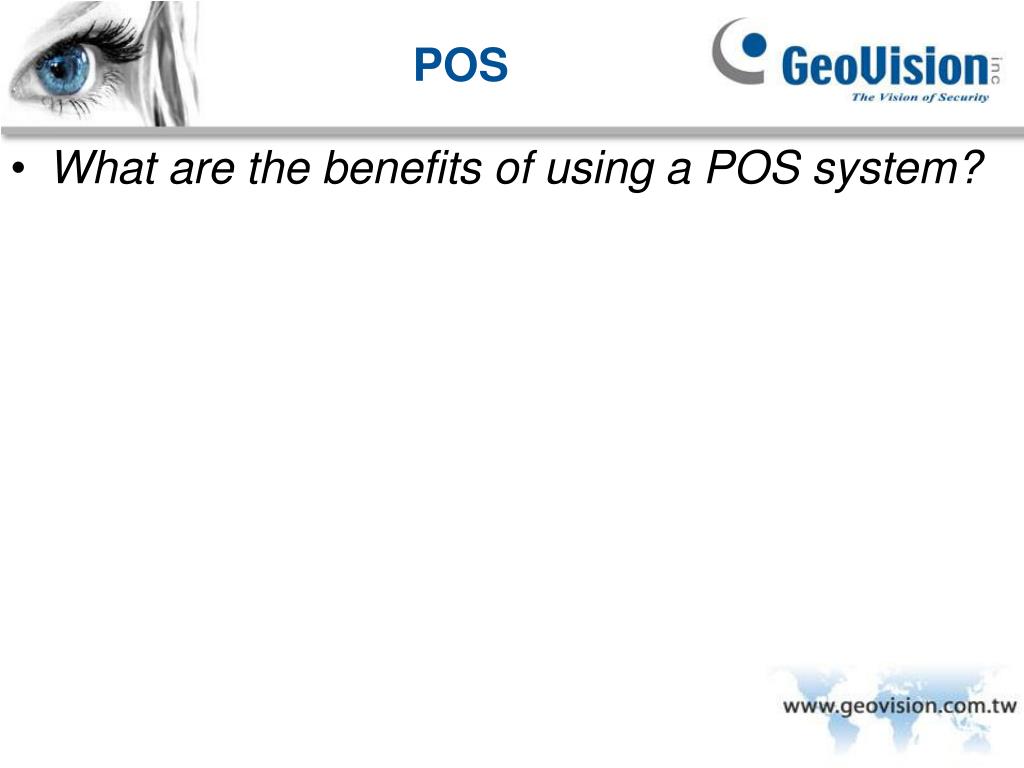

POS • What are the benefits of using a POS system?
POS + = + PC POS Software POS machine Printer • What is a POS machine/unit?
POS Sales, inventory reports Sales data Sales data Shop owner HQ Inventory Control, Purchasing, product transfer, buying analysis • What is a POS system? • The “Back-office” Shop

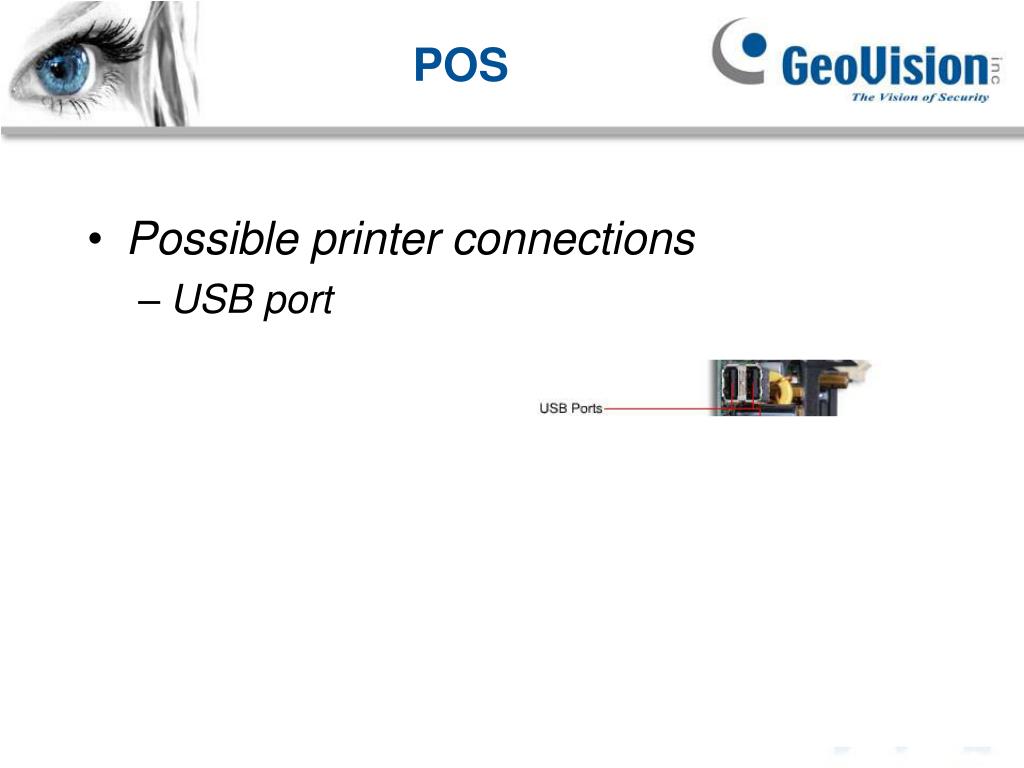

POS • Possible printer connections • USB port • Serial port (DB9)
POS • Possible printer connections • USB port • Serial port (DB9) • Parallel port (DB25)
POS • Possible printer connections • USB port • Serial port (DB9) • Parallel port (DB25) • Ethernet port (RJ45)
POS • Possible printer connections • USB port • Serial port (DB9) • Parallel port (DB25) • Ethernet port (RJ45)
POS • Data Capture Box V3/V3E • POS Data Sender • POS Text Sender
POS • Data capture box V3/V3E spec • Serial “Text” data grabber • Serial & parallel printer support • 4 POS systems maximum with RS232 serial (From data capture box to DVR) • Maximum 16 POS systems with TCP/IP. • RS232 + TCP/IP combination: 4 * RS232 + 12 * TCP/IP = 16

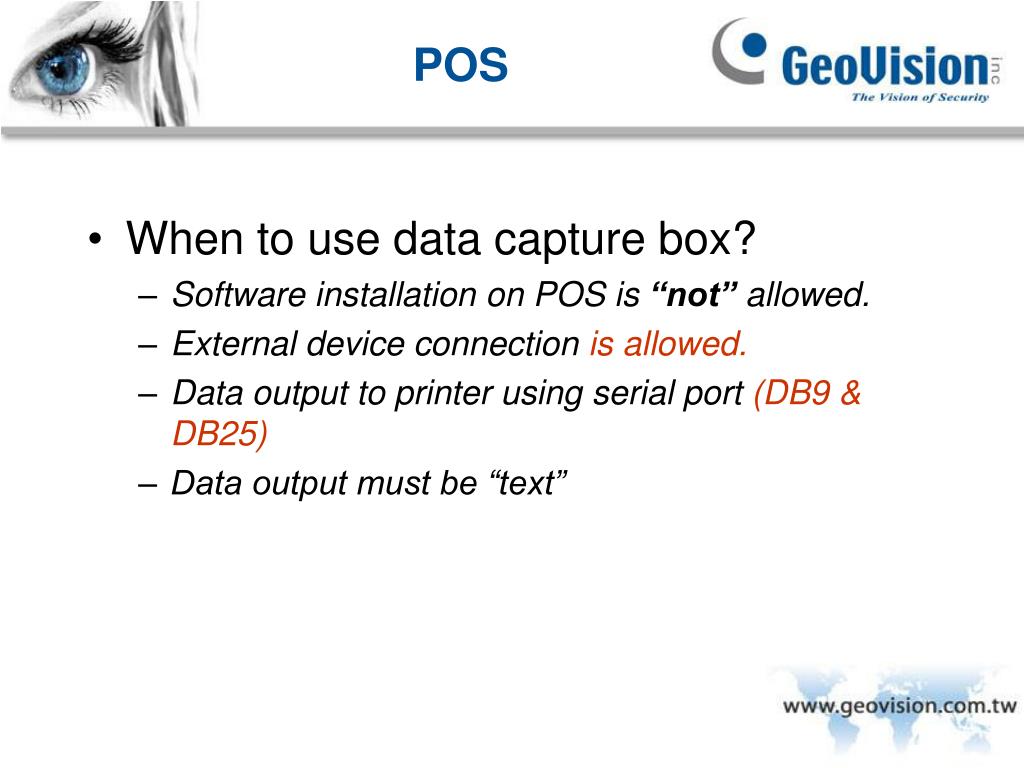

POS • When to use data capture box? • Software installation on POS is “not” allowed. • External device connection is allowed. • Data output to printer using serial port (DB9 & DB25) • Data output must be “text”
POS • Data capture box connections • Serial port (RS232/DB9) • Parallel port (DB25)
POS DVR • Data capture box integration flow. Before After Serial/RS485/TCPIP Serial/Parallel Serial/Parallel Serial/Parallel
POS • POS Text Sender Spec: • Additional USB dongle at DVR • RS232 cross-over cable or TCP/IP • 4 POS systems max (RS232 spec) • 16 POS system max (TCP/IP)
POS POS Data Sender Software • How POS Text Sender works • Install into any PC Install PC
POS POS Data Sender Software • How POS Text Sender works • Install into any PC Install POS machine
POS POS Data Sender Software • How POS Text Sender works • Install into any PC Install DVR
POS DVR Monitor & grab data update Text file POS Text Sender POS machine • How POS Text Sender works Save transaction data to text file Sender sends the new data update to DVR
POS • When to use POS Text sender: • Software installation on POS unit is “not” allowed. • External device connection is “not” allowed. • POS unit supports data output to text file • POS unit has network connection

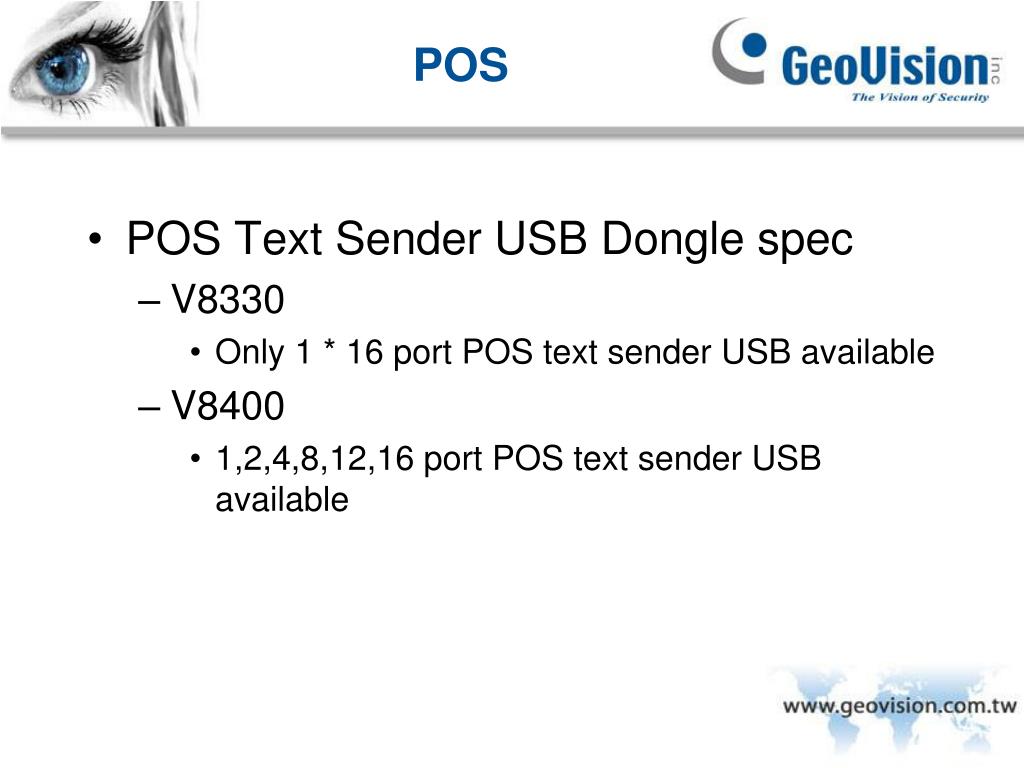

POS • POS Text Sender USB Dongle spec • V8330 • Only 1 * 16 port POS text sender USB available • V8400 • 1,2,4,8,12,16 port POS text sender USB available
POS • What are the main features of POS integration in Geovision software? • Video verification of the POS event in live viewing. • Specific item or transaction event search & playback • Remote POS event live viewing & search playback support • Abnormal transaction detection • Special item highlight
POS • What other GV applications allow us to see POS data in live?
