Full HD Digital Signage Player

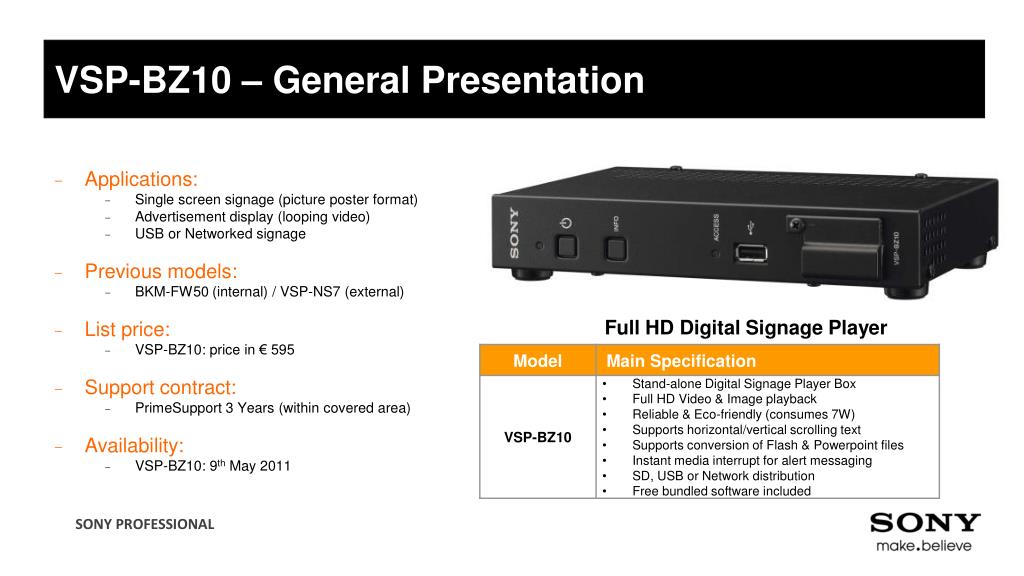

vsp bz10 general presentation
VSP-BZ10 – General Presentation
  • Applications:
    • Single screen signage (picture poster format)
    • Advertisement display (looping video)
    • USB or Networked signage
  • Previous models:
    • BKM-FW50 (internal) / VSP-NS7 (external)
  • List price:
    • VSP-BZ10: price in € 595
  • Support contract:
    • PrimeSupport 3 Years (within covered area)
  • Availability:
    • VSP-BZ10: 9th May 2011

Full HD Digital Signage Player

vsp bz10 positioning
VSP-BZ10 – Positioning

HD Player Ziris Lite Ziris Pro Ziris Canvas

+ + + +

+ VSP-BZ10 + Low Spec PC + High Spec PC + PlayStation 3

vsp bz10 market target
VSP-BZ10 – Market - Target
  • Small retailer (Bakery, Grocery shop)
  • USP 1
    • « Stand-alone operation from SD card »
  • USP 2
    • « Easy to use, free software included »
    • « USB copy mode – no network required »
  • Example
    • « Small corner shop: network & servers not required. A laptop with the software and a USB stick will do. »
  • Large volume retailers with simple needs
  • USP 1
    • « Strong management & content distribution when networked with the Ziris suite »
  • USP 2
    • « Very low power consumption 8W – cost saving »
    • « Reliability: No moving parts, No OS, No Virus »
  • Example
    • « Mall / Supermarket chain – many sites with simple content requirements: full screen video is sufficient »
vsp bz10 key specifications

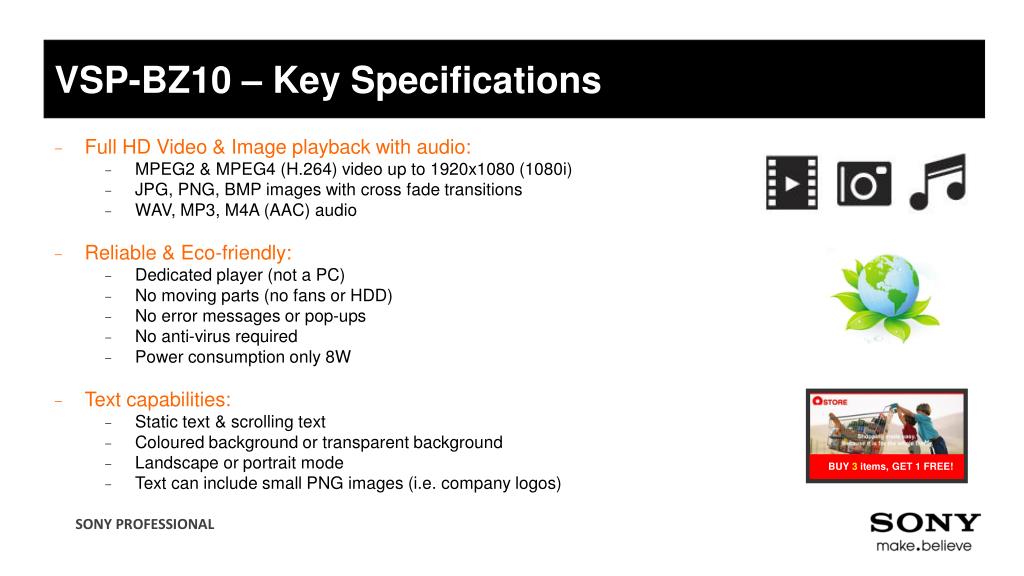

VSP-BZ10 – Key Specifications
  • Full HD Video & Image playback with audio:
    • MPEG2 & MPEG4 (H.264) video up to 1920x1080 (1080i)
    • JPG, PNG, BMP images with cross fade transitions
    • WAV, MP3, M4A (AAC) audio
  • Reliable & Eco-friendly:
    • Dedicated player (not a PC)
    • No moving parts (no fans or HDD)
    • No error messages or pop-ups
    • No anti-virus required
    • Power consumption only 8W
  • Text capabilities:
    • Static text & scrolling text
    • Coloured background or transparent background
    • Landscape or portrait mode
    • Text can include small PNG images (i.e. company logos)

BUY 3 items,GET 1 FREE!

vsp bz10 key specifications1

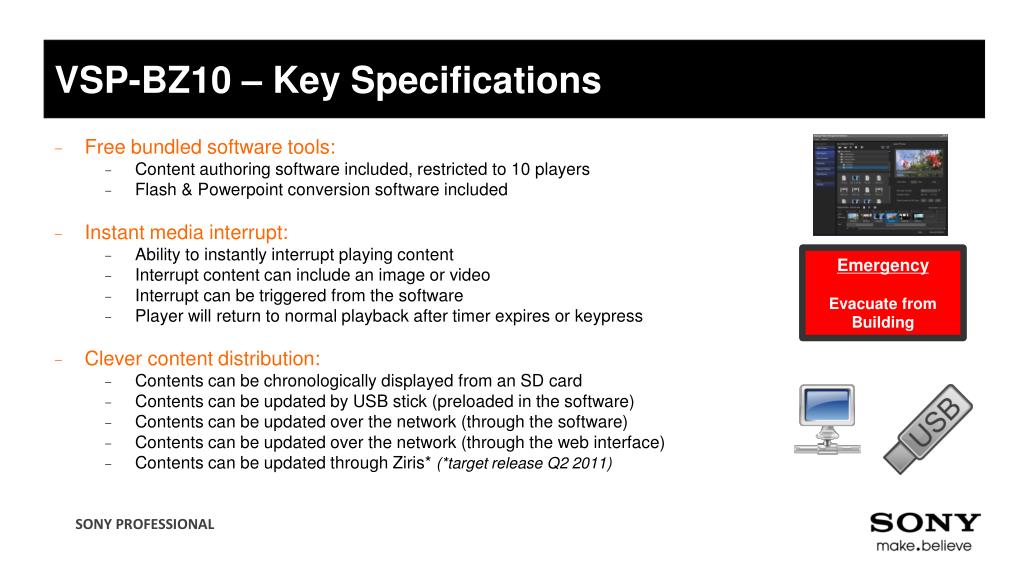

VSP-BZ10 – Key Specifications
  • Free bundled software tools:
    • Content authoring software included, restricted to 10 players
    • Flash & Powerpoint conversion software included
  • Instant media interrupt:
    • Ability to instantly interrupt playing content
    • Interrupt content can include an image or video
    • Interrupt can be triggered from the software
    • Player will return to normal playback after timer expires or keypress
  • Clever content distribution:
    • Contents can be chronologically displayed from an SD card
    • Contents can be updated by USB stick (preloaded in the software)
    • Contents can be updated over the network (through the software)
    • Contents can be updated over the network (through the web interface)
    • Contents can be updated through Ziris* (*target release Q2 2011)


Evacuate from Building

vsp bz10 configuration solution with ziris

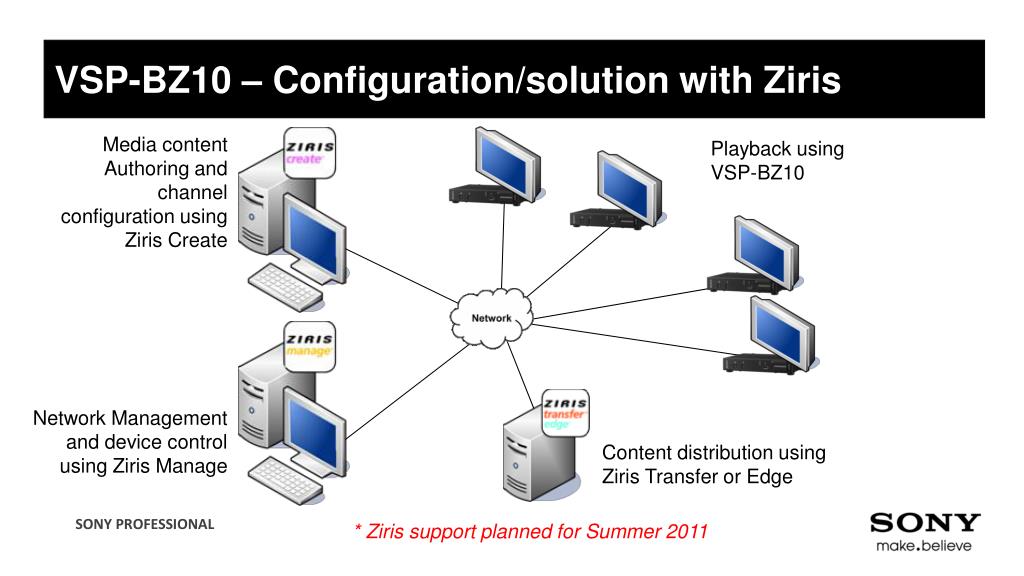

VSP-BZ10 – Configuration/solution with Ziris

Media content

Authoring and channel configuration using Ziris Create

Playback using VSP-BZ10

Network Management and device control using Ziris Manage

Content distribution using Ziris Transfer or Edge

* Ziris support planned for Summer 2011

vsp bz10 display control

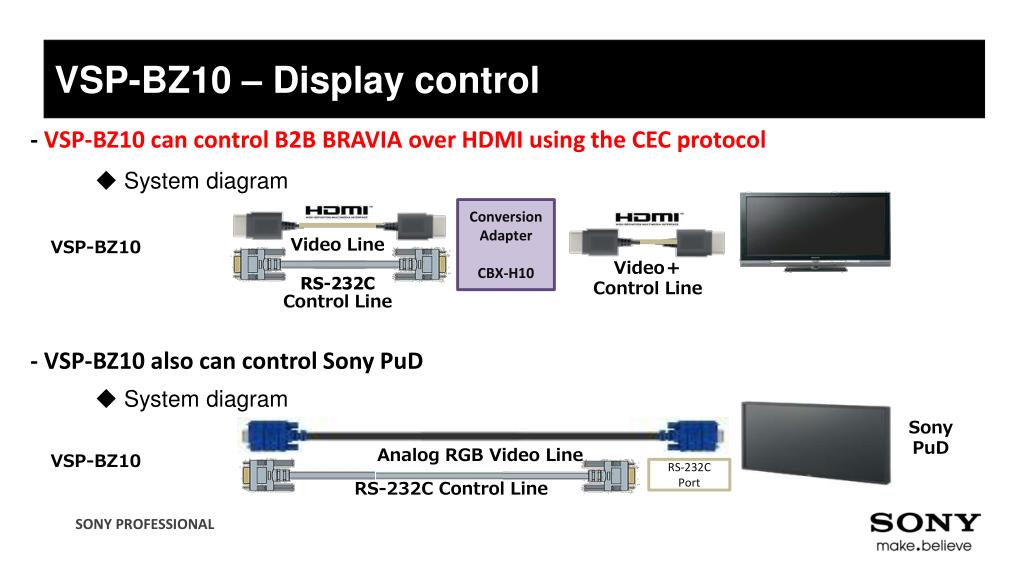

VSP-BZ10 – Display control

- VSP-BZ10 can control B2B BRAVIAover HDMI using the CEC protocol

- VSP-BZ10 also can control Sony PuD

◆ System diagram

Conversion Adapter


Video Line



Control Line


Control Line

◆ System diagram



Analog RGB Video Line




RS-232C Control Line

vsp bz10 inputs outputs

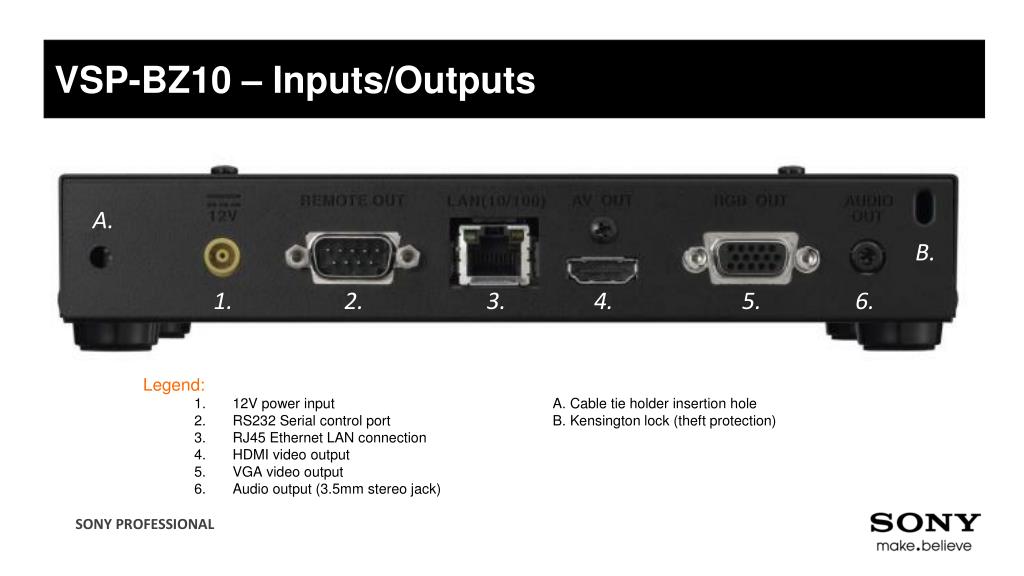

VSP-BZ10 – Inputs/Outputs



1. 2. 3. 4. 5. 6.

  • Legend:
    • 12V power input A. Cable tie holder insertion hole
    • RS232 Serial control port B. Kensington lock (theft protection)
    • RJ45 Ethernet LAN connection
    • HDMI video output
    • VGA video output
    • Audio output (3.5mm stereo jack)
vsp bz10 optional accessories
VSP-BZ10 – Optional Accessories

WBPM1 wall mount for PuD

Fits a VSP-BZ10

(attach with Velcro or remove feet & drill holes)

(please mind to keep air holes free)


RS232 to HDMI adaptor

(no external power required)

vsp bz10 warranty service
VSP-BZ10 – Warranty/Service

Warranty Description:

• 3 Years of PrimeSupport bundled on all sales within the EU, Switzerland & Norway

• Multilingual Telephone Helpdesk

• Replacement unit if the product can’t be repaired remotely through the helpdesk

vsp bz10 box contents
VSP-BZ10 – Box contents
  • VSP-BZ10 Box
  • Vertical stand
  • AC Adapter
  • Power cord
  • Cable holder clamp
  • CD-ROM with free software
  • Manuals in:
    • English
    • French
    • German
    • Spanish
    • Italian
  • Warranty flyer

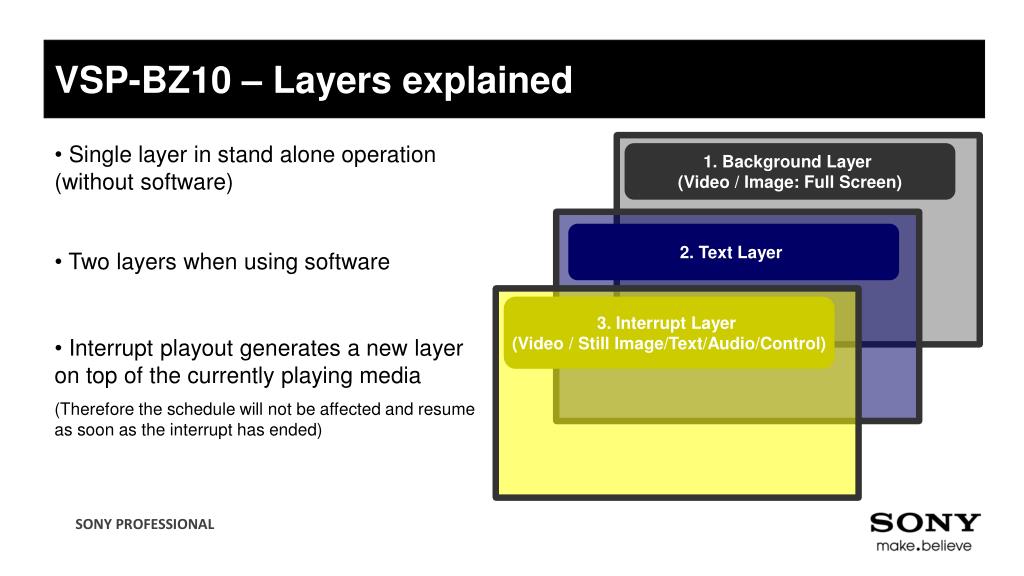

vsp bz10 layers explained

1. Background Layer (Video / Image: Full Screen)

2. Text Layer

3. Interrupt Layer (Video / Still Image/Text/Audio/Control)

VSP-BZ10 – Layers explained
  • Single layer in stand alone operation (without software)
  • Two layers when using software
  • Interrupt playout generates a new layer on top of the currently playing media
  • (Therefore the schedule will not be affected and resume as soon as the interrupt has ended)

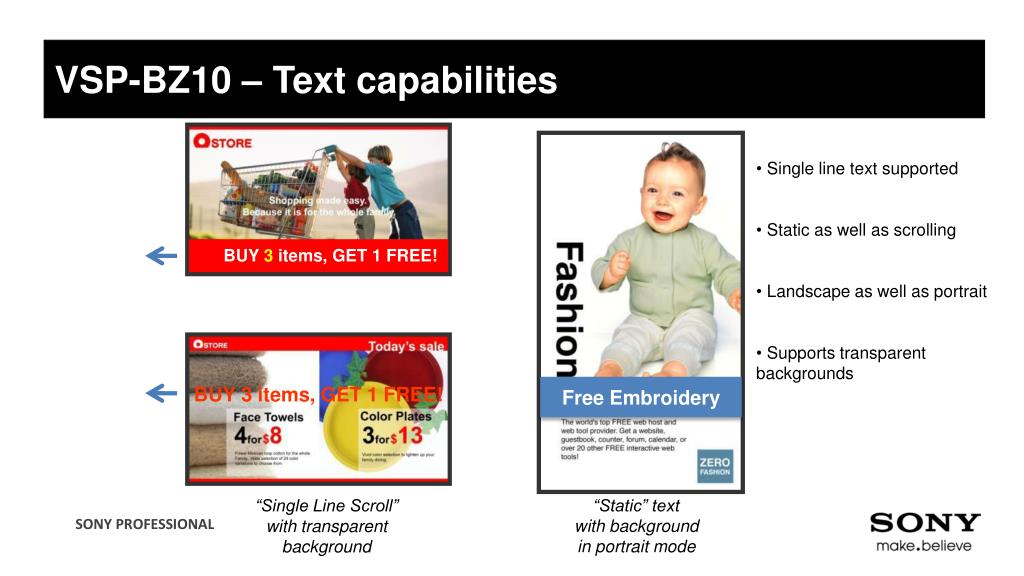

vsp bz10 text capabilities
VSP-BZ10 – Text capabilities
  • Single line text supported
  • Static as well as scrolling
  • Landscape as well as portrait
  • Supports transparent backgrounds

BUY 3 items,GET 1 FREE!

BUY 3 items, GET 1 FREE!

Free Embroidery

“Static” textwith backgroundin portrait mode

“Single Line Scroll” with transparent background

vsp bz10 full screen text capabilities

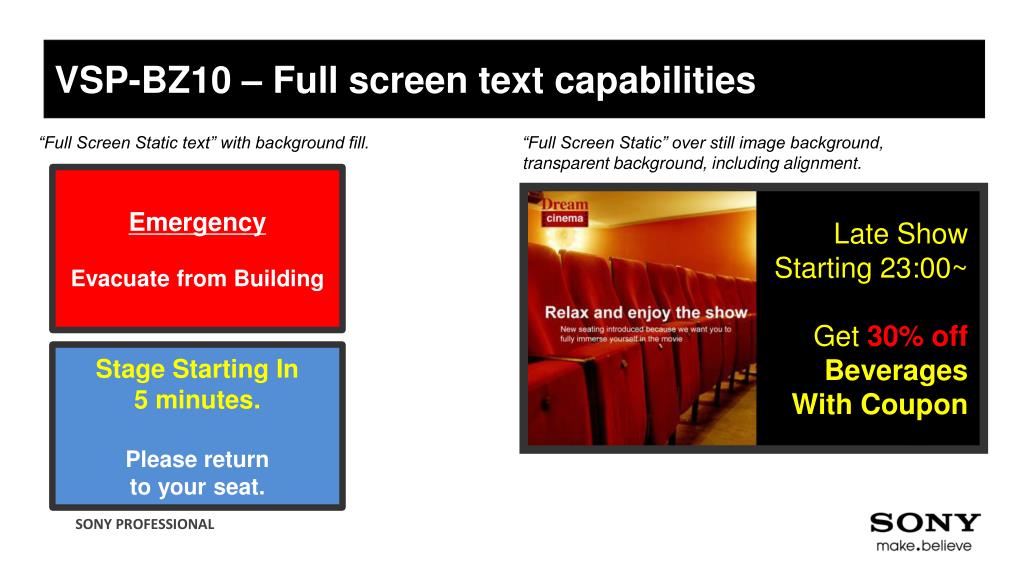

VSP-BZ10 – Full screen text capabilities

“Full Screen Static text” with background fill.

“Full Screen Static” over still image background, transparent background, including alignment.


Evacuate from Building

Late Show

Starting 23:00~

Get 30% off

Beverages With Coupon

Stage Starting In

5 minutes.

Please return to your seat.

vsp bz10 scrolling text capabilities

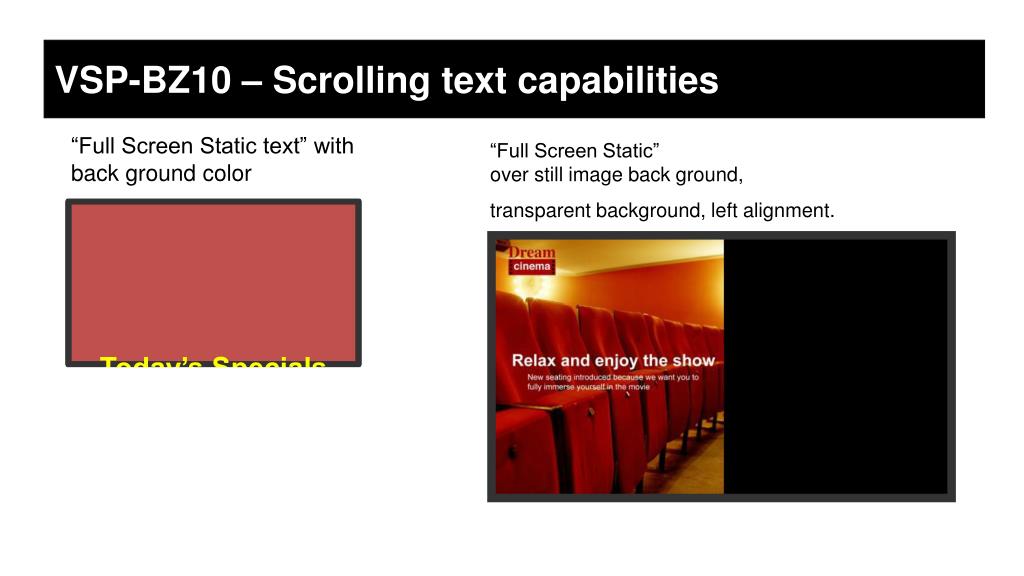

VSP-BZ10 – Scrolling text capabilities

“Full Screen Static text” with back ground color

“Full Screen Static”over still image back ground,

transparent background, left alignment.

Today’s Specials


Salmon Salad

Shrimp Sate

Mixed Pizza

DinnerPork Ribs


Late Show

Starting 23:00~

Cinema1: Zombee1Cinema2 : Taxi 5 Cinema3: Time Traveler

Get 30% off

Beverages With Coupon

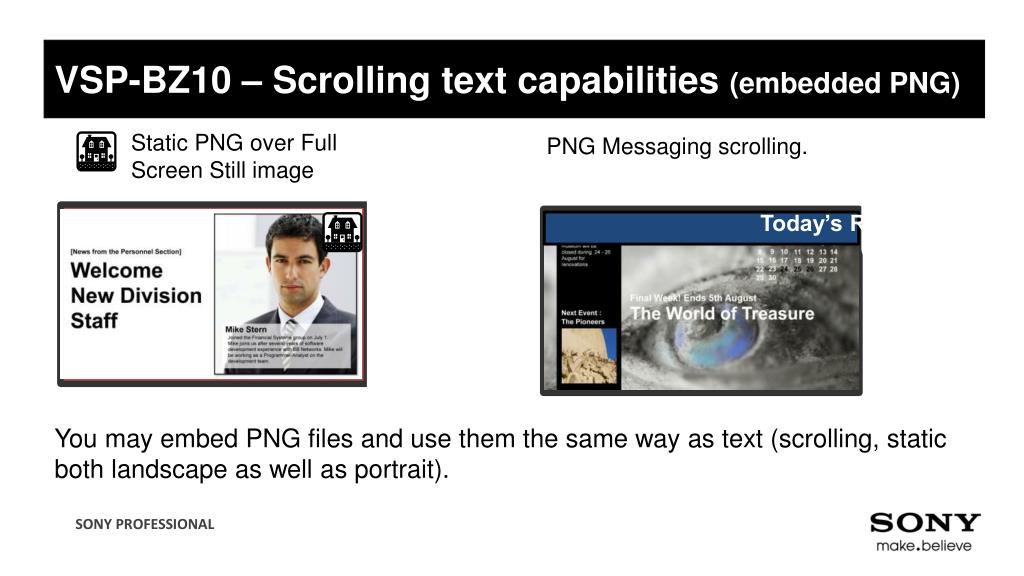

vsp bz10 scrolling text capabilities embedded png
VSP-BZ10 – Scrolling text capabilities (embedded PNG)

Static PNG over Full Screen Still image

PNG Messaging scrolling.

Today’s Rate 0.95EU 0.60 EU 1.30 EU

You may embed PNG files and use them the same way as text (scrolling, static both landscape as well as portrait).
