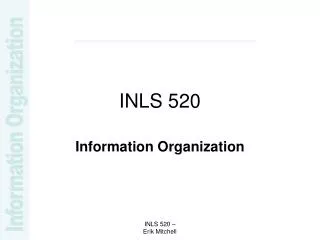

  1. INLS 520 Information Organization INLS 520 – Erik Mitchell

  2. Review • Controlled vocabularies • Term Lists, Hierarchies, Trees, Paradigms, Facets, Folksonomies • Knowledge organization systems • Term Lists, Thesauri, Taxonomies, Ontologies INLS 520 – Erik Mitchell

  3. Today • Poster topic review • Poster creation concepts • Automation in metadata & organization • RDF • OWL • Guest Speaker – Barrie Hayes INLS 520 – Erik Mitchell

  4. Creating poster presentations • Content • Methodological approach • Title, question, overview, methods, findings, observations • Conceptual approach • Title, question, model or framework • Structure • Balancing words & images • Document flow • Examples - 1, 2, 3, 4 INLS 520 – Erik Mitchell

  5. Creating poster presentations • Technology • Creation tools • PowerPoint Templates in blackboard • An image editor • HTML • Display • Flickr, Printed • Some guidelines 1, 2, 3, 4 INLS 520 – Erik Mitchell

  6. Automation • Group discussion • Based on the articles by Hlava, Hearst, and Stearns what are some of the primary uses of automation in information organization? • Is automation primarily a tool to create representations of resources or to enable retrieval of resources? INLS 520 – Erik Mitchell

  7. Automatic Indexing • Automatic Extraction/representation • Lancaster calls this: “Words or phrases appearing in a text are extracted and used to represent the content of the text as a whole” (Lancaster 284) • Automatic Classification/Categorization • The computer compares terms in the document against thesauri or controlled vocabularies to map a word in the resource to an accepted index term (Lancaster 287) • Automatic Abstract/Surrogate Generation • The extraction of sentences from documents to create an abstract (Lancaster 298) • Automatic index/tool Generation • Creating spelling dictionaries, word lists, indexes, etc to be used for other automation techniques • Latent Semantic Indexing - Concepts are extracted and analyzed to detect relationships. These relationships are then used to help identify & rank documents (overview) INLS 520 – Erik Mitchell

  8. Automatic metadata use • Metadata Harvesting • Using automated techniques to discover and extract metadata from documents • OAI/PMH • Knowledge representation & discovery • Using structured ontologies to make statements and inferences about resources • OWL Ontologies • Metadata interoperability • Using structured metadata to automatically connect with other metadata systems • OpenURL, XML Schema • Transformation • Creating new documents through the automatic extraction, analysis, and processing of resources • XML/XSL INLS 520 – Erik Mitchell

  9. Metadata standards • XML • Structure & syntax but no ‘semantic constraints’ • XML Schema • Restrict structure of XML, extend XML with datatypes • RDF • Data-model showing relationships among resources • RDF Schema • ‘Vocabulary for describing properties and classes of RDF resources’ • OWL • Added vocabulary for describing properties & classes • Relationships, cardinality, equality, charicteristics INLS 520 – Erik Mitchell

  10. RDF • Subject, property, object triples • Transmitted in xml • RDFS extends RDF with an ontology language • Properties, specialization • OWL • More powerful extension of RDFS • Uses same syntax of RDF INLS 520 – Erik Mitchell

  11. RDF Model Author Webpage: http://www.stuff.com “Saki Knafo” (Value) Object (Resource) Subject (Property type) Predicate • “The author of the stuff webpage is Saki Knafo” • A literal, a triple, a statement INLS 520 – Erik Mitchell

  12. How is RDF different? • RDF is a descriptive model that • Allows variable contextualized description • Deconstructs the descriptive process • Allows more granular automated processing of data • Uses exact markup to indicate the context of values (namespaces, schemas) • Bags, Sequences, Alternative values, parseType INLS 520 – Erik Mitchell

  13. Encoding RDF in XML <rdf:RDF xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#" xmlns:dcterms="http://purl.org/dc/terms/" xmlns:dc="http://purl.org/dc/elements/1.1/" xmlns:rdfs="http://www.w3.org/2000/01/rdf-schema#"> <rdf:Description rdf:about="http://www.stuff.com/">   <dc:title>The Hang: The Island of Black Jeans</dc:title>   <dc:creator>SAKI KNAFO</dc:creator>   <dc:date>Sun, 16 Sep 2007 01:04:40 GMT</dc:date>   <dc:description>descriptive content</dc:description>   </rdf:Description> </rdf:RDF> INLS 520 – Erik Mitchell

  14. Iterative RDF description <rdf:RDF xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#" xmlns:vcard="http://dli.grainger.uiuc.edu/publications/metadatacasestudy/dc_schemas/vcard.xsd" xmlns:dc="http://purl.org/dc/elements/1.1/" xmlns:rdfs="http://www.w3.org/2000/01/rdf-schema#"> <rdf:Description rdf:about=“http://www.stuff.com">   <dc:title>The Hang: The Island of Black Jeans</dc:title> <dc:creator rdf:href = "#Creator_001"/>   <dc:identifier>http://www.stuff.com</dc:identifier>   <dc:date>Sun, 16 Sep 2007 01:04:40 GMT</dc:date>   <dc:description>descriptive content</dc:description>   </rdf:Description> <rdf:Description ID="Creator_001"> rdf:about="http://dli.grainger.uiuc.edu/publications/metadatacasestudy/dc_,,,">   <vcard:given>Saki</vcard:given> <vcard:family>Knafo</vcard:family> <vcard:email> <vcard:userid>knafo@www.nytimes.com</vcard:userid> </vcard:email>   </rdf:Description> </rdf:RDF> INLS 520 – Erik Mitchell

  15. RDFS • RDF Schema • Defines additional rdf elements that help type relationships • Special Classes • Based on RDF Classes / Properties / Attributes with additional • http://www.w3schools.com/rdf/rdf_reference.asp • Allows the creation of vocabularies / ontologies INLS 520 – Erik Mitchell

  16. Ontology Definitions • “The study of being or existence” • “A conceptualization of a specification” (Gruber) • “An ontology formally defines a common set of terms that are used to describe and represent a domain.” (OWL) INLS 520 – Erik Mitchell

  17. Ontology Concepts • Classes • Names of objects in the domain • Relationships between classes • Connections between classes • Properties of classes • Background or identifying knowledge of these objects • Constraints on these properties & relationships • Limits and parameters of the relationships INLS 520 – Erik Mitchell

  18. A good ontology has • Features: • Meaningful – all classes have instances • Accurate / correct • Non-redundant – each class/instance is represented in a single way • Rich in description – context, content • Enabled functionality: • Able to use queries to connect new pieces of information • Use XML & definitions to integrate knowledge across domains INLS 520 – Erik Mitchell

  19. Ontology Continuum • Keyword Lists • Basic Thesauri • Complex Thesauri • Taxonomies • Simple Ontologies (wordnet) • Complex Ontologies (OWL) INLS 520 – Erik Mitchell

  20. SHOE Ontology project – • Possible to build an ontology for anything • Simple HTML Ontology Extensions (SHOE) Project • http://www.cs.umd.edu/projects/plus/SHOE/ • http://www.cs.umd.edu/projects/plus/SHOE/html-pages.html • Sample projects • Beer Ontology • http://www.cs.umd.edu/projects/plus/SHOE/onts/index.html#beer • Document Ontology • http://www.cs.umd.edu/projects/plus/SHOE/onts/docmnt1.0.html INLS 520 – Erik Mitchell

  21. Ontology Concepts • Multiple inheritance • Vertical and horizontal relationships • Decomposed subject/object • Predicate based description (isRelatedto, hasVersion) INLS 520 – Erik Mitchell

  22. Creating an Ontology • Determine Scope of field, define boundaries • Check for existing ontologies, vocabularies • Select a top-down/bottom-up approach • Identify concepts, vocabulary, parameters, constraints • Identify relationships • Multiple hierarchies, inheritance • Build, test, maintain INLS 520 – Erik Mitchell

  23. OWL (Web Ontology Language) • An ontolgy that is geared towards representing information on the web • Classes, properties, and relationships that describe URIs and their facets. • Based on the Triple concept • Subject, Predicate, Object • 3 versions: OWL-Lite, OWL-DL, OWL-Full • Formatted in RDF/XML • Uses RDF and RDFS as a foundation • Adds new elements in the owl namespace INLS 520 – Erik Mitchell

  24. OWL Versions • OWL-Lite • Simple hierarchies, constraints • OWL-DL • Uses description logics • Logic-based semantic markup based on first-order predicate logic • Still guarantees finite relationship processing • Adds ‘reasoning’ capacity to infer information/relaitonships • OWL-Full • Most complex • Open ended, possible to get into infinite processing INLS 520 – Erik Mitchell

  25. OWL Example <?xml version="1.0"?> <rdf:RDF xmlns:rdf=http://www.w3.org/1999/02/22-rdf-syntax-ns# xmlns:rdfs="http://www.w3.org/2000/01/rdfschema#" xmlns:owl=http://www.w3.org/2002/07/owl# xmlns=http://www.w3.org/2001/sw/BestPractices/OEP/SimplePartWhole/part.owl# xml:base="http://www.w3.org/2001/sw/BestPractices/OEP/SimplePartWhole/part.owl"> <owl:Ontology rdf:about=“> <owl:versionInfo rdf:datatype="http://www.w3.org/2001/X...">1.0</owl:versionInfo> <rdfs:comment rdf:datatype="http://www.w3.org/2001/XMLSchema#string" > An ontology containing the basic part relations: partOf, hasPart, partOf_directly, and hasPart_directly. These are described in the accompanying note. Author: Chris Welty </rdfs:comment> </owl:Ontology> <owl:TransitiveProperty rdf:ID="partOf"> <owl:inverseOf> <owl:TransitiveProperty rdf:ID="hasPart"/> </owl:inverseOf> </owl:TransitiveProperty> <owl:ObjectProperty rdf:ID="hasPart_directly"> <rdfs:subPropertyOf rdf:resource="#hasPart"/> <owl:inverseOf> <owl:ObjectProperty rdf:ID="partOf_directly"> <rdfs:subPropertyOf rdf:resource="#partOf"/> </owl:ObjectProperty> </owl:inverseOf> </owl:ObjectProperty> </rdf:RDF> (Chris Welty) INLS 520 – Erik Mitchell

  26. OWL – Lite features • Class • A collection of things related to each other by properties • rdfs:subClassOf • A way of showing hierarchical class relationships • rdf:Property • A stated relationship between an thing and a value (hasChild, hasRelative, hasSibling, hasAge) • Bi-directional, Transitive (hasAncestor), • Rdf:subPropertyOf • Similar to subClassOf, a way of showing property hierarchies • Individual • Instances of classes (objects) INLS 520 – Erik Mitchell

  27. OWL relationships Practical guide to OWL ontologies INLS 520 – Erik Mitchell

  28. Some OWL Examples • Airport • Pizza INLS 520 – Erik Mitchell

  29. Next Week(s) • 10/28 – No class • 11/4 – Metadata based services, guest speaker • 11/11 – no class • 11/18 – no class • 11/25 – semantic web • 12/2 – final projects due INLS 520 – Erik Mitchell
