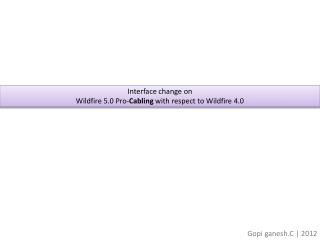

  1. Interface change on Wildfire 5.0 Pro-Cabling with respect to Wildfire 4.0 Gopi ganesh.C | 2012

  2. Creating Harness part Modifying Harness part Logical Reference Component Designation / Auto designation WF 4.0 WF 4.0 WF 4.0 WF 4.0 WF 5.0 WF 5.0 WF 5.0 WF 5.0 In sub menu > Designate CLICK TO MODIFY Component Modify Parameter Network options Route Cables WF 4.0 WF 5.0 WF 4.0 WF 4.0 Sub Menu Main Menu > Route Main Menu WF 5.0 Edit > Component operations Route/Modify the Network path Add location For Sub Menu Go to Edit > Network

  3. Editing a Cable / Wire locations Term Table Creating Bundle , Tie – Wrap, Tape & Marker WF 4.0 WF 5.0 WF 4.0 Feature > Create > Sub Menu Insert > Bundle Route > Incomplete > Find & select the wire / cable > in sub menu >Delete portion WF 4.0 WF 5.0 Insert > Cosmetic > Sub Menu Setup > Term table Tools > Terminator Table Fixing Length Terminator Creation WF 5.0 WF 4.0 Edit > Delete>Locations WF 4.0 Creating Additions to a Bundle WF 4.0 WF 5.0 WF 5.0 Edit > cable>Sub Menu Insert > Terminators WF 5.0 Edit > Cable Additions > Modify Bundle
