Tube-Furnace

Tube Furnace is a split-able furnace designed optimally for various purposes, to create a precise <br>temperature control for horizontal use up to 1200u00b0C with a continuous operating temperature of 1000u00b0C. <br>The precision temperature controller can provide 32 segments of heating or cooling with 1u00b0C accuracy having <br>quartz tube diameter range of 60 mm and thermocouple of K type is equipped according to temperature <br>variations. It is equipped with a working tube, which also serves as support for heating the wires.<br>

Zola2
Download Presentation

Tube-Furnace

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

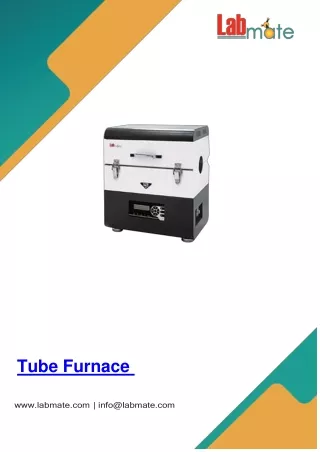

  1. Tube Furnace www.labmate.com | info@labmate.com

  2. Overview Tube Furnace is a split-able furnace designed optimally for various purposes, to create a precise temperature control for horizontal use up to 1200°C with a continuous operating temperature of 1000°C. The precision temperature controller can provide 32 segments of heating or cooling with 1°C accuracy having quartz tube diameter range of 60 mm and thermocouple of K type is equipped according to temperature variations. It is equipped with a working tube, which also serves as support for heating the wires. Specifications: Tube Range 60ɸ Maximum Temperature Range 1200°C Operating Temperature Range 1000°C Temperaturue Control Digital PID controller (program type) Timer 99Hr 59Min Sensor CA, K-type Insulation Ceramic fiber Heater Kanthal A1 Power AC 220V, 50/60Hz, 1-phase Heater Power 1.8 Kw Dimension (mm) ɸ80×300 ExternalDimension(W×D×H) 400×310×470 mm

  3. Features : -Intelligent sensor alarm function -Durable molded ceramic fiber insulation -Embedded heating element -Exhausted gas outlet port -Digital PID program controller -Auto-tuning function -Intuitive and easy to use operating menu -Excellent temperature accuracy -Simple to use and maintain -Over-temperature limit function -Less and low noise operation with gentle air currents Applications : These furnaces are used for various purposes such as development of new materials, including industrial and biotechnology products are being used as the basis of a common laboratory equipment. They are used for heat treatment, melting of glass, melting the metal and casting molding.

  4. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
