PETROLOGICAL MICROSCOPE pl-40

Weswox Is The Leading Supplier Manufacturer Exporter Of BINOCULAR PETROLOGICAL MICROSCOPE Based In Ambala India. We Are One Of The Leading Manufacturers And Suppliers Of Centrifuge Machines, Pathological Instruments.

Weswox
Download Presentation

PETROLOGICAL MICROSCOPE pl-40

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

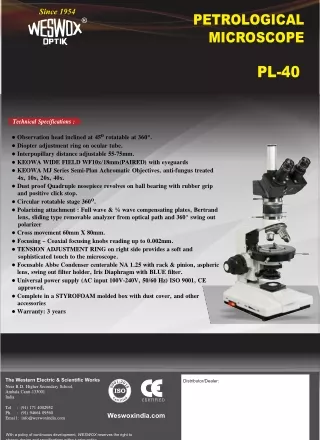

  1. Since 1954 PETROLOGICAL MICROSCOPE ® PL-40 Technical Specifications : o l Observation head inclined at 45 rotatable at 360º. l Diopter adjustment ring on ocular tube. l Interpupillary distance adjustable 55-75mm. l KEOWA WIDE FIELD WF10x/18mm(PAIRED) with eyeguards l KEOWA MJ Series Semi-Plan Achromatic Objectives, anti-fungus treated 4x, 10x, 20x, 40x. l Dust proof Quadruple nosepiece revolves on ball bearing with rubber grip and positive click stop. o l Circular rotatable stage 360 . l Polarizing attachment : Full wave & ¼ wave compensating plates, Bertrand lens, sliding type removable analyzer from optical path and 360° swing out polarizer l Cross movement 60mm X 80mm. l Focusing – Coaxial focusing knobs reading up to 0.002mm. l TENSION ADJUSTMENT RING on right side provides a soft and sophisticated touch to the microscope. l Focusable Abbe Condenser centerable NA 1.25 with rack & pinion, aspheric lens, swing out filter holder, Iris Diaphragm with BLUE filter. l Universal power supply (AC input 100V-240V, 50/60 Hz) ISO 9001, CE approved. l Complete in a STYROFOAM molded box with dust cover, and other accessories l Warranty: 3 years The Western Electric & Scientific Works Near B.D. Higher Secondary School, Ambala Cantt-133001 India Distributor/Dealer: :2 1 0 0 1 5 0 9 Tel : (91) 171 4002952 Ph. : (91) 94664 09560 Emai l: info@weswoxindia.com Weswoxindia.com With a policy of continuous development, WESWOX reserves the right to change design and specifications without prior notice.
