CLINICAL MICROSCOPE BXL

1.Bright white light illumination<br>2.High performance & crisp sharp<br>3.Optics and prisms<br>4.Wide field of view with wide prisms

Weswox
Download Presentation

CLINICAL MICROSCOPE BXL

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

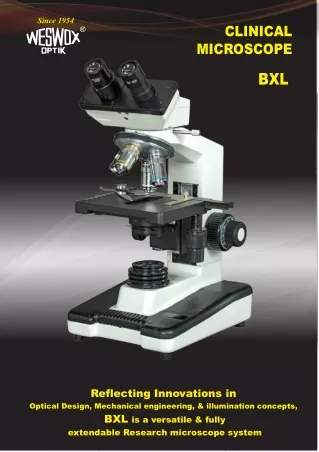

  1. Since 1954 CLINICAL MICROSCOPE ® BXL Reflecting Innovations in Optical Design, Mechanical engineering, & illumination concepts, BXL is a versatile & fully extendable Research microscope system

  2. CLINICAL MICROSCOPE ® BXL BXL TR Technical Specifications : 0 0 OBSERVATION HEAD : Binocular/Trinocular head Inclined at 45 rotatable 360 lockable at any angle.Diopter adjustment on one eyepiece tube & interpupillary distance adjustments provided. Trinocular head available. Lockable anti-fungal KEOWAExtra WF 10x / FOV 18mm(PAIRED) A.R. Coated eyepiece with high eyepoint and foldable eyeguards offers maximum resolution and high colour fidelity and perfectly designed for a FLAT FIELD. EYEPIECE : NOSEPIECE : Quadruple nosepiece precisely built- on ball bearing, provides lifelong smooth rotation through a built- in positive click stop and rubber grip. Totally, dust proof design. KEOWA S-PlanDIN Achromatic objectives 4x/NA 0.10, 10x/NA 0.25, 40x/NA 0.65 (SL) and 100x/NA 1.25 (SL) oil immersion,anti-fungal. OBJECTIVES :  MECHANICAL STAGE : Double PlatedRectangular stage(Ball Bearing Type) with a surface of 140 mm x 120mm having low positioned co-axial controls on right hand side. Cross movement range 76X50mm. Both X & Y axis having graduated scale & verniers reading to 0.1 mm.  CO-AXIAL FOCUSING : Co-axial fine and coarse focusing control with ball bearing guideways based on four stage gear reduction system, Fine motion, graduated to 0.002mm.  TENSION CONTROL RING :Enable you to adjust the tension on coarse focusing knobs.  CONDENSER : A focusable Abbe two lens type NA 1.25 condenser with iris diaphragm and swing out filter holder with Blue filter. Rack& pinion movement on metal guides.  EXTRA LARGE BASE : Single mold sturdy stand with anti rust materials.  ILLUMINATION : Built-inbase illumination special quality HALOGEN bulb 6V-30Wor 3W LED lamp with battery back up of 2hrs(optional) and intensity controlled power supply. Upto 100,000 hours of LED life. STANDARD ACCESSORIES : Dust Cover, Instruction Manual, thermo cool box, OPTIONAL ACCESSORIES : Dark field kit, Polarizing kit, phase contrast kit, high resolution digital camera. POWER : Power input 220V or 110V AC as per ISO 9001 & CE standards. The Western Electric & Scientific Works Near B.D. Higher Secondary School, Ambala Cantt-133001 India Distributor/Dealer: :2 1 0 0 1 5 0 9 Tel : (91) 171 4002952 Ph. : (91) 94664 09560 Emai l: info@weswoxindia.com Weswoxindia.com With a policy of continuous development, WESWOX reserves the right to change design and specifications without prior notice.
