Unitile, Adjustable Pedestal.

Outdoor spaces are evolving the way they appeal with a modernized touch to it. It is substantial for a flooring system to withstand weather changes as well as the functionality of an outdoor space, for a longer life-span.<br>Unitile Ajustable Pedestal is geared towards giving the specifier not just a product that meets and exceeds the required specification but also technical and on-site support that ensures the on-time installation. This solution offers a practical passage for pipes and the open gaps between the outdoor tiles allow the water to drain-off into the cavity created under the panels.

UNITILE
Download Presentation

Unitile, Adjustable Pedestal.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

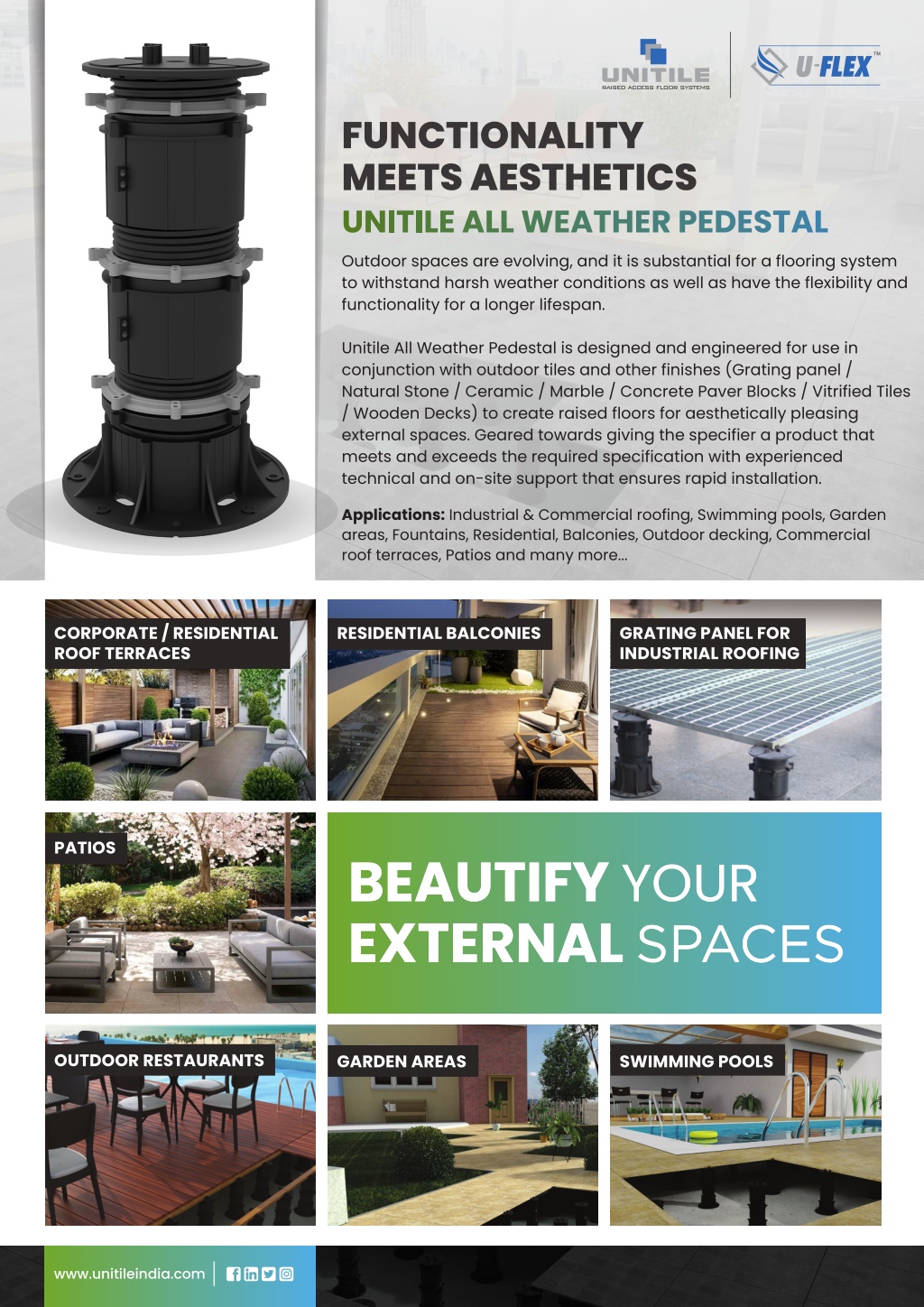

  1. FUNCTIONALITY MEETS AESTHETICS Outdoor spaces are evolving, and it is substantial for a flooring system to withstand harsh weather conditions as well as have the flexibility and functionality for a longer lifespan. Unitile All Weather Pedestal is designed and engineered for use in conjunction with outdoor tiles and other finishes (Grating panel / Natural Stone / Ceramic / Marble / Concrete Paver Blocks / Vitrified Tiles / Wooden Decks) to create raised floors for aesthetically pleasing external spaces. Geared towards giving the specifier a product that meets and exceeds the required specification with experienced technical and on-site support that ensures rapid installation. Applications: Industrial & Commercial roofing, Swimming pools, Garden areas, Fountains, Residential, Balconies, Outdoor decking, Commercial roof terraces, Patios and many more... CORPORATE / RESIDENTIAL ROOF TERRACES RESIDENTIAL BALCONIES GRATING PANEL FOR INDUSTRIAL ROOFING PATIOS BEAUTIFY YOUR BEAUTIFY YOUR EXTERNAL SPACES EXTERNAL SPACES OUTDOOR RESTAURANTS GARDEN AREAS SWIMMING POOLS www.unitileindia.com

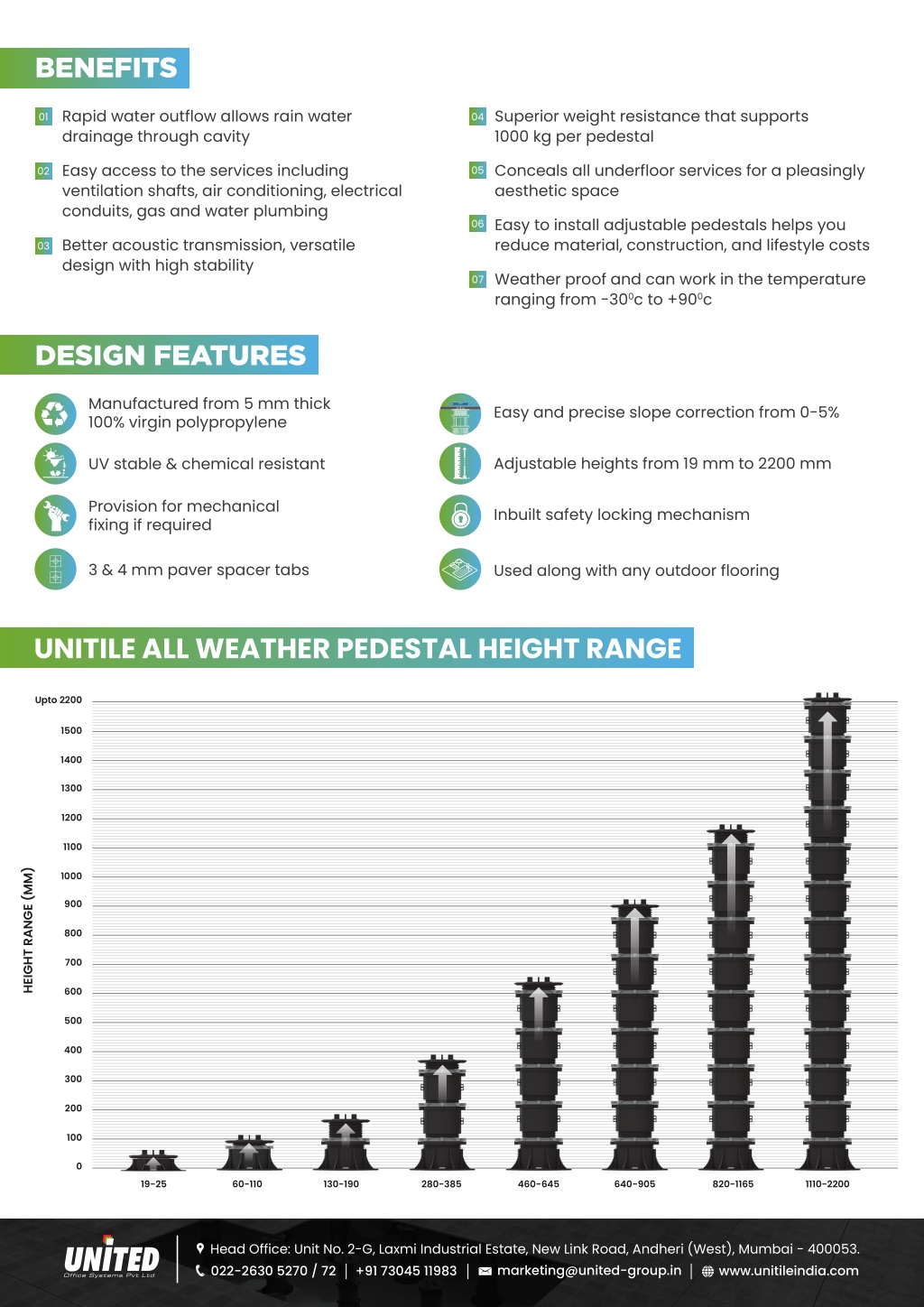

  2. BENEFITS BENEFITS Rapid water outflow allows rain water drainage through cavity Superior weight resistance that supports 1000 kg per pedestal 01 04 Easy access to the services including ventilation shafts, air conditioning, electrical conduits, gas and water plumbing Conceals all underfloor services for a pleasingly aesthetic space 05 02 Easy to install adjustable pedestals helps you reduce material, construction, and lifestyle costs 06 Better acoustic transmission, versatile design with high stability 03 Weather proof and can work in the temperature ranging from -300c to +900c 07 DESIGN FEATURES DESIGN FEATURES Manufactured from 5 mm thick 100% virgin polypropylene Easy and precise slope correction from 0-5% Adjustable heights from 19 mm to 2200 mm UV stable & chemical resistant Provision for mechanical fixing if required Inbuilt safety locking mechanism 3 & 4 mm paver spacer tabs Used along with any outdoor flooring UNITILE ALL WEATHER PEDESTAL HEIGHT RANGE Upto 2200 1500 1400 1300 1200 1100 HEIGHT RANGE (MM) 1000 900 800 700 600 500 400 300 200 100 0 19-25 60-110 130-190 280-385 460-645 640-905 820-1165 1110-2200 Head Office: Unit No. 2-G, Laxmi Industrial Estate, New Link Road, Andheri (West), Mumbai - 400053. marketing@united-group.in 022-2630 5270 / 72 +91 73045 11983 www.unitileindia.com
