Continuous Tube Coil Dryer

Continuous Tube Coil Dryer is perfect for the continuous drying of raw material with low-fat content. For instance: blood, feathers, and fish meal. It is ideal for use in the production of high-quality and high-protein meals. Drier can heat not only by the shell but also by the rotor improving the thermal efficiency of the machine. The machine consist of a horizontal stator and a rotor. This dryer is designed with several rotary coils heated by steam to dry the passing charge. Each heating coil is equipped with paddles which are pushing the material from inlet to outlet of the machine. Accord

TGMachines
Download Presentation

Continuous Tube Coil Dryer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

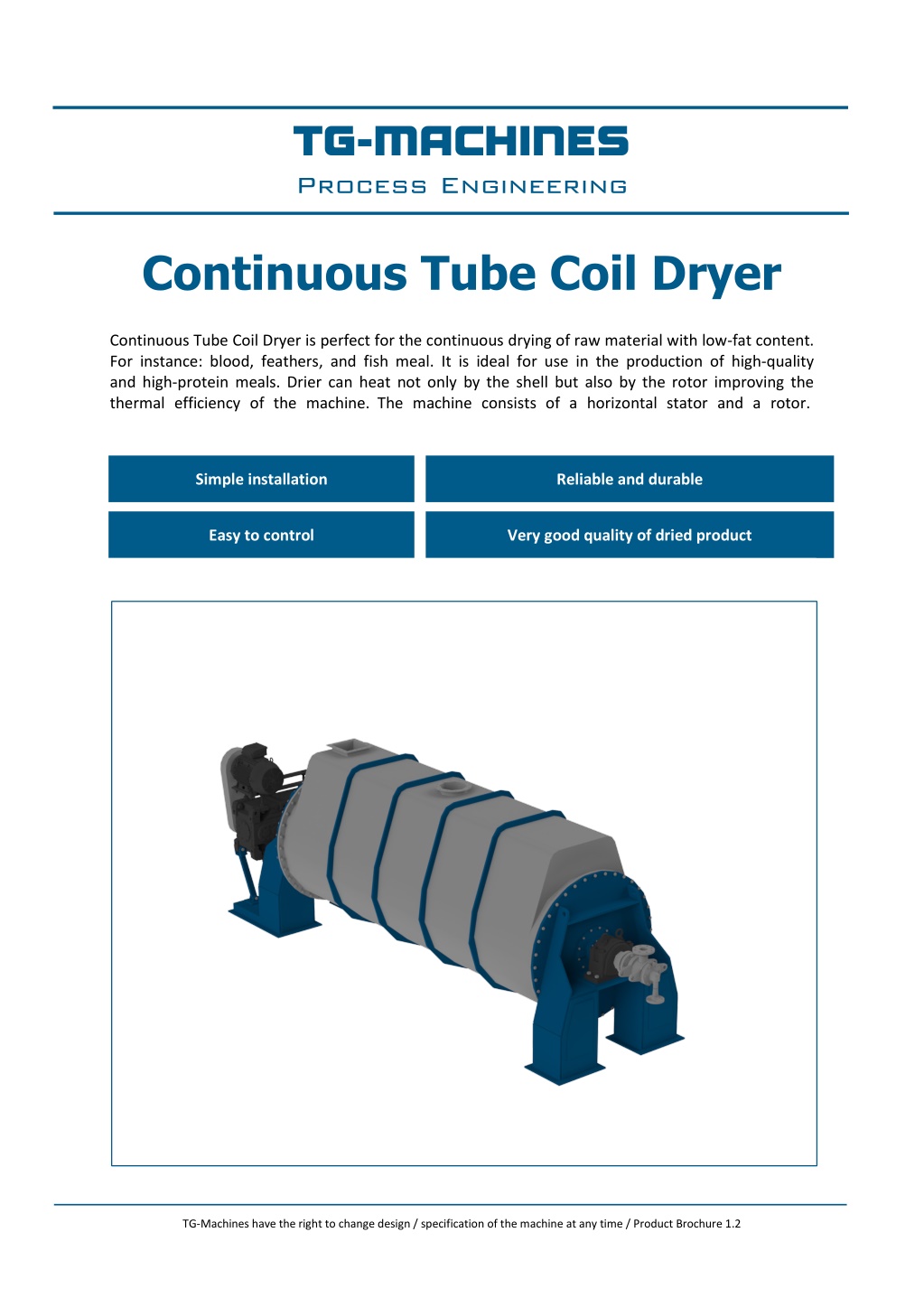

  1. TG-MACHINES Process Engineering Continuous Tube Coil Dryer Continuous Tube Coil Dryer is perfect for the continuous drying of raw material with low-fat content. For instance: blood, feathers, and fish meal. It is ideal for use in the production of high-quality and high-protein meals. Drier can heat not only by the shell but also by the rotor improving the thermal efficiency of the machine. The machine consists of a horizontal stator and a rotor. Simple installation Reliable and durable Easy to control Very good quality of dried product TG-Machines have the right to change design / specification of the machine at any time / Product Brochure 1.2

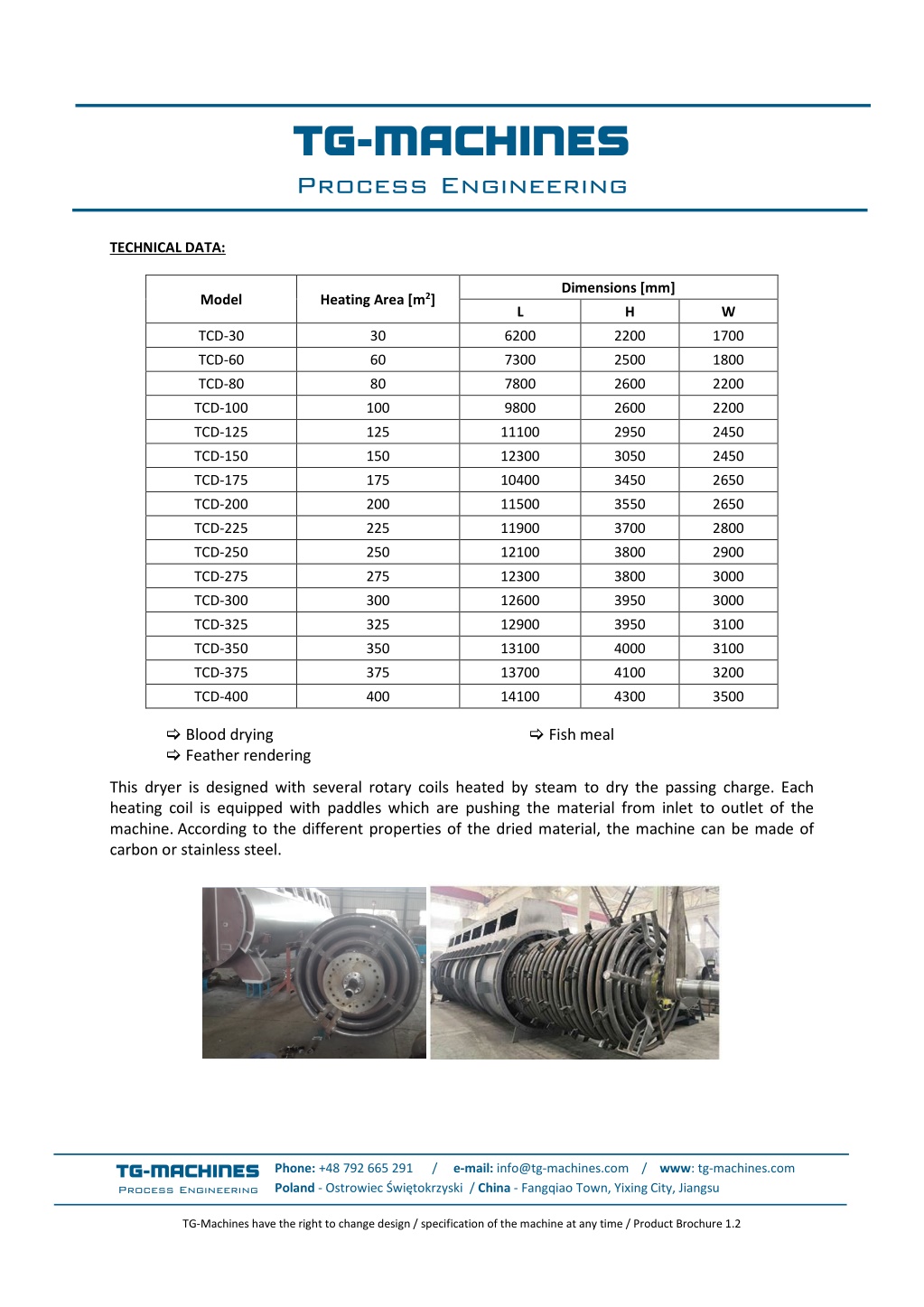

  2. TG-MACHINES Process Engineering TECHNICAL DATA: Dimensions [mm] Heating Area [m2] Model L H W TCD-30 30 6200 2200 1700 TCD-60 60 7300 2500 1800 TCD-80 80 7800 2600 2200 TCD-100 100 9800 2600 2200 TCD-125 125 11100 2950 2450 TCD-150 150 12300 3050 2450 TCD-175 175 10400 3450 2650 TCD-200 200 11500 3550 2650 TCD-225 225 11900 3700 2800 TCD-250 250 12100 3800 2900 TCD-275 275 12300 3800 3000 TCD-300 300 12600 3950 3000 TCD-325 325 12900 3950 3100 TCD-350 350 13100 4000 3100 TCD-375 375 13700 4100 3200 TCD-400 400 14100 4300 3500  Blood drying  Feather rendering  Fish meal This dryer is designed with several rotary coils heated by steam to dry the passing charge. Each heating coil is equipped with paddles which are pushing the material from inlet to outlet of the machine. According to the different properties of the dried material, the machine can be made of carbon or stainless steel. TG-MACHINES Process Engineering Phone: +48 792 665 291 / e-mail: info@tg-machines.com / www: tg-machines.com Poland - Ostrowiec Świętokrzyski / China - Fangqiao Town, Yixing City, Jiangsu TG-Machines have the right to change design / specification of the machine at any time / Product Brochure 1.2
