Flashback Arrestor Testing_ Do You Need to Check Both Ends_

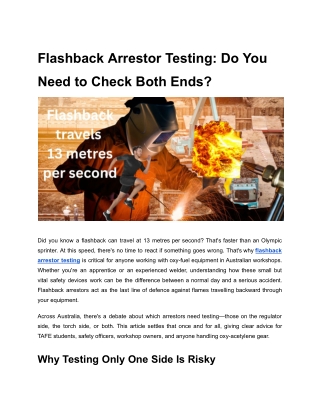

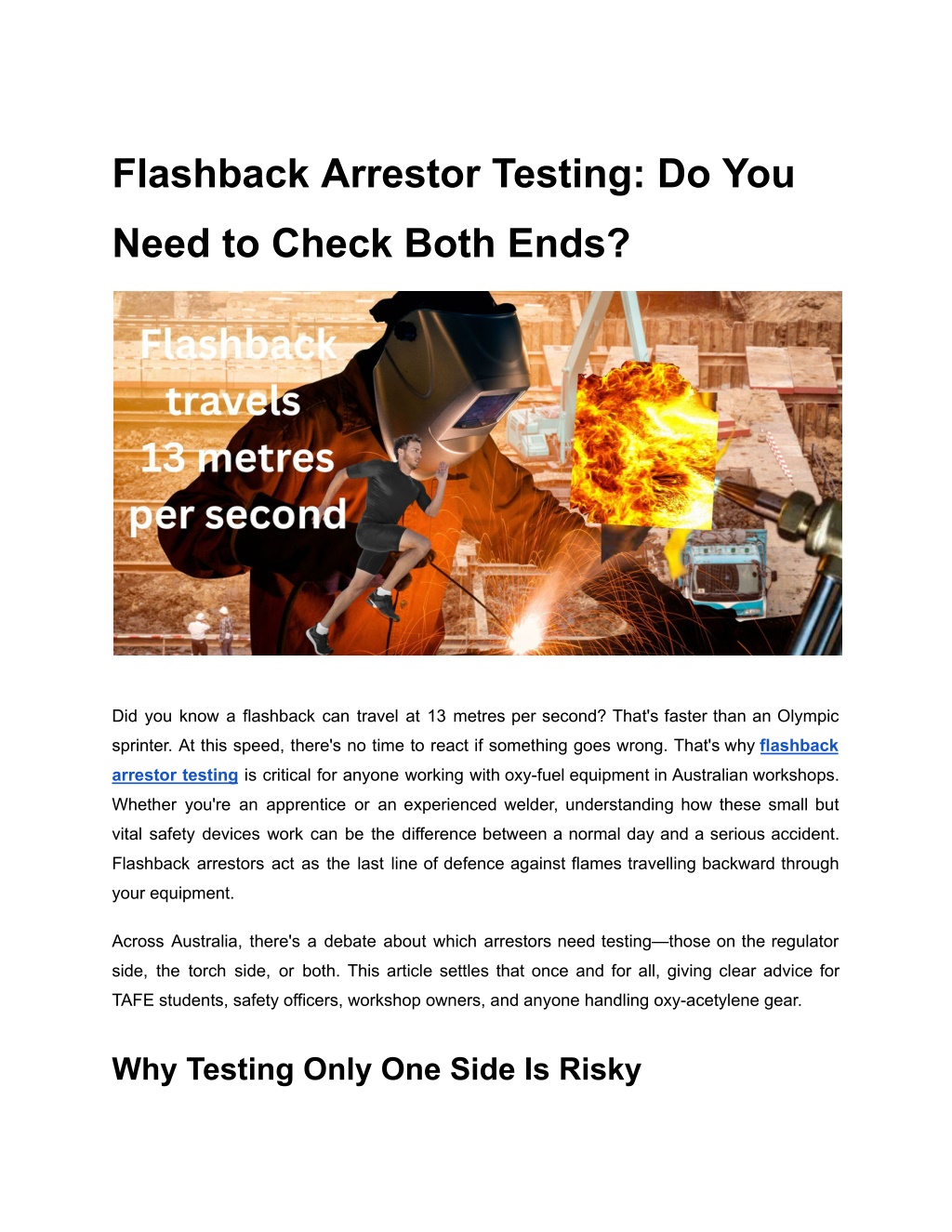

1. Flashback Arrestor Testing: Do You Need to Check Both Ends? Did you know a flashback can travel at 13 metres per second? That's faster than an Olympic sprinter. At this speed, there's no time to react if something goes wrong. That's why flashback arrestor testing is critical for anyone working with oxy-fuel equipment in Australian workshops. Whether you're an apprentice or an experienced welder, understanding how these small but vital safety devices work can be the difference between a normal day and a serious accident. Flashback arrestors act as the last line of defence against flames travelling backward through your equipment. Across Australia, there's a debate about which arrestors need testing—those on the regulator side, the torch side, or both. This article settles that once and for all, giving clear advice for TAFE students, safety officers, workshop owners, and anyone handling oxy-acetylene gear. Why Testing Only One Side Is Risky

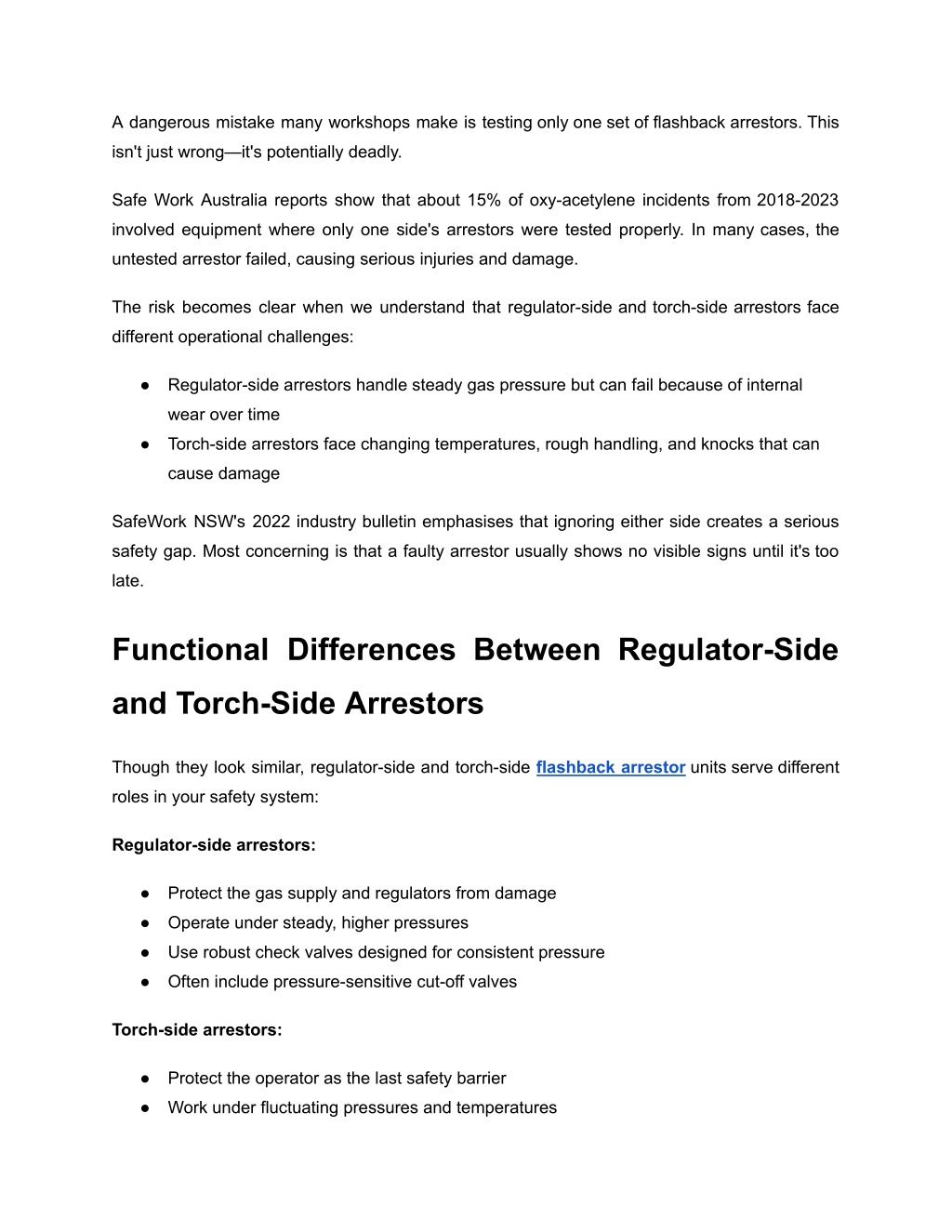

2. A dangerous mistake many workshops make is testing only one set of flashback arrestors. This isn't just wrong—it's potentially deadly. Safe Work Australia reports show that about 15% of oxy-acetylene incidents from 2018-2023 involved equipment where only one side's arrestors were tested properly. In many cases, the untested arrestor failed, causing serious injuries and damage. The risk becomes clear when we understand that regulator-side and torch-side arrestors face different operational challenges: ● Regulator-side arrestors handle steady gas pressure but can fail because of internal wear over time ● Torch-side arrestors face changing temperatures, rough handling, and knocks that can cause damage SafeWork NSW's 2022 industry bulletin emphasises that ignoring either side creates a serious safety gap. Most concerning is that a faulty arrestor usually shows no visible signs until it's too late. Functional Differences Between Regulator-Side and Torch-Side Arrestors Though they look similar, regulator-side and torch-side flashback arrestorunits serve different roles in your safety system: Regulator-side arrestors: ● Protect the gas supply and regulators from damage ● Operate under steady, higher pressures ● Use robust check valves designed for consistent pressure ● Often include pressure-sensitive cut-off valves Torch-side arrestors: ● Protect the operator as the last safety barrier ● Work under fluctuating pressures and temperatures

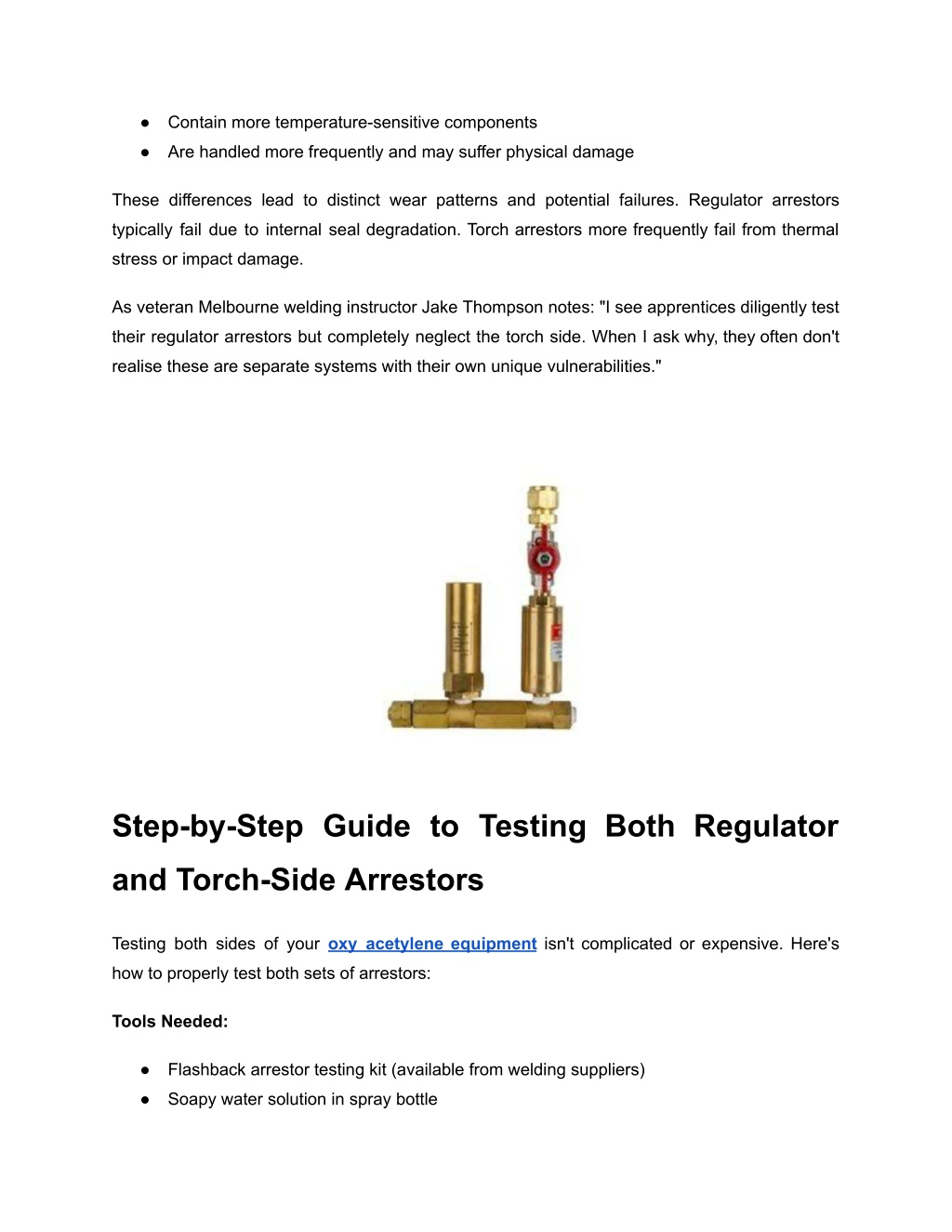

3. ● Contain more temperature-sensitive components ● Are handled more frequently and may suffer physical damage These differences lead to distinct wear patterns and potential failures. Regulator arrestors typically fail due to internal seal degradation. Torch arrestors more frequently fail from thermal stress or impact damage. As veteran Melbourne welding instructor Jake Thompson notes: "I see apprentices diligently test their regulator arrestors but completely neglect the torch side. When I ask why, they often don't realise these are separate systems with their own unique vulnerabilities." Step-by-Step Guide to Testing Both Regulator and Torch-Side Arrestors Testing both sides of your oxy acetylene equipmentisn't complicated or expensive. Here's how to properly test both sets of arrestors: Tools Needed: ● Flashback arrestor testing kit (available from welding suppliers) ● Soapy water solution in spray bottle

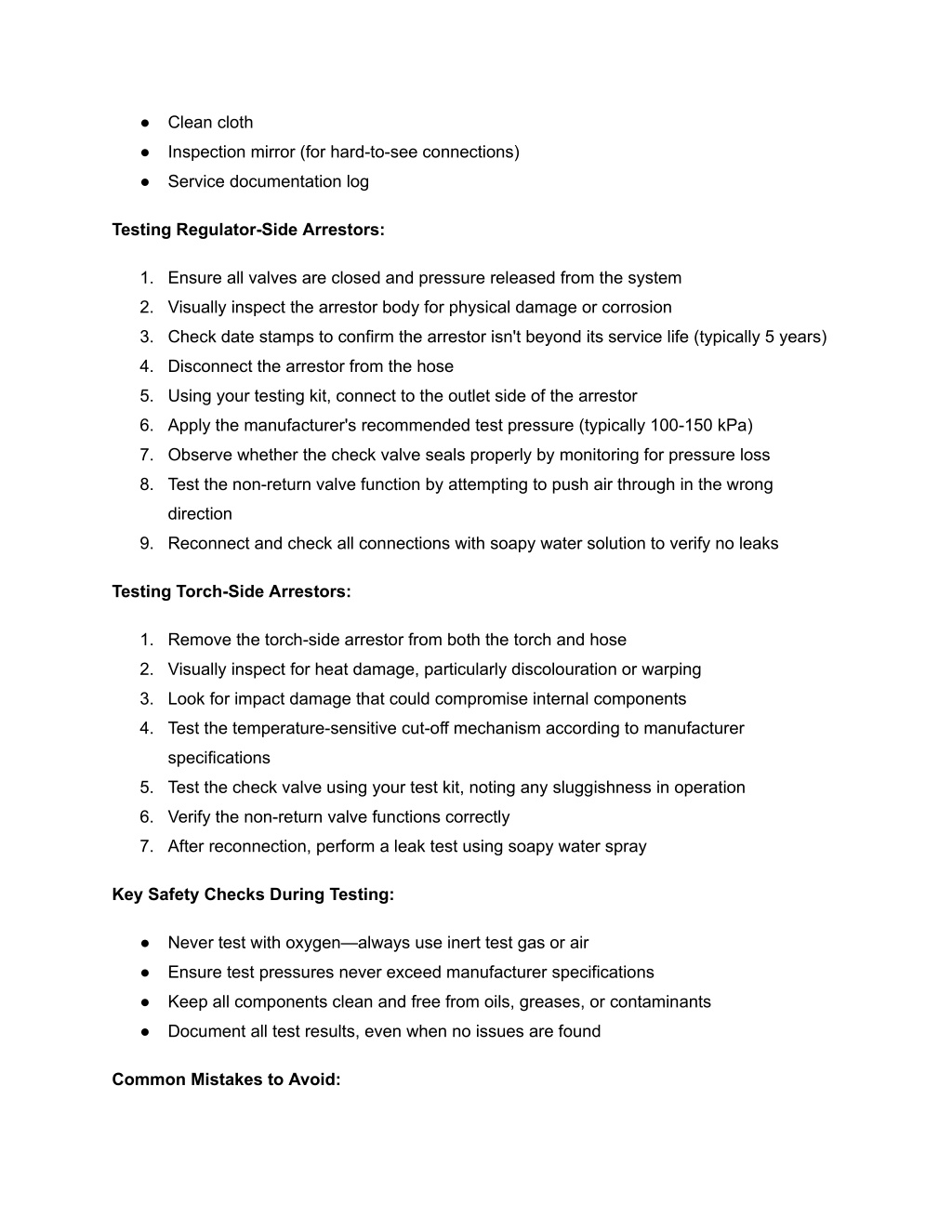

4. ● Clean cloth ● Inspection mirror (for hard-to-see connections) ● Service documentation log Testing Regulator-Side Arrestors: 1. Ensure all valves are closed and pressure released from the system 2. Visually inspect the arrestor body for physical damage or corrosion 3. Check date stamps to confirm the arrestor isn't beyond its service life (typically 5 years) 4. Disconnect the arrestor from the hose 5. Using your testing kit, connect to the outlet side of the arrestor 6. Apply the manufacturer's recommended test pressure (typically 100-150 kPa) 7. Observe whether the check valve seals properly by monitoring for pressure loss 8. Test the non-return valve function by attempting to push air through in the wrong direction 9. Reconnect and check all connections with soapy water solution to verify no leaks Testing Torch-Side Arrestors: 1. Remove the torch-side arrestor from both the torch and hose 2. Visually inspect for heat damage, particularly discolouration or warping 3. Look for impact damage that could compromise internal components 4. Test the temperature-sensitive cut-off mechanism according to manufacturer specifications 5. Test the check valve using your test kit, noting any sluggishness in operation 6. Verify the non-return valve functions correctly 7. After reconnection, perform a leak test using soapy water spray Key Safety Checks During Testing: ● Never test with oxygen—always use inert test gas or air ● Ensure test pressures never exceed manufacturer specifications ● Keep all components clean and free from oils, greases, or contaminants ● Document all test results, even when no issues are found Common Mistakes to Avoid:

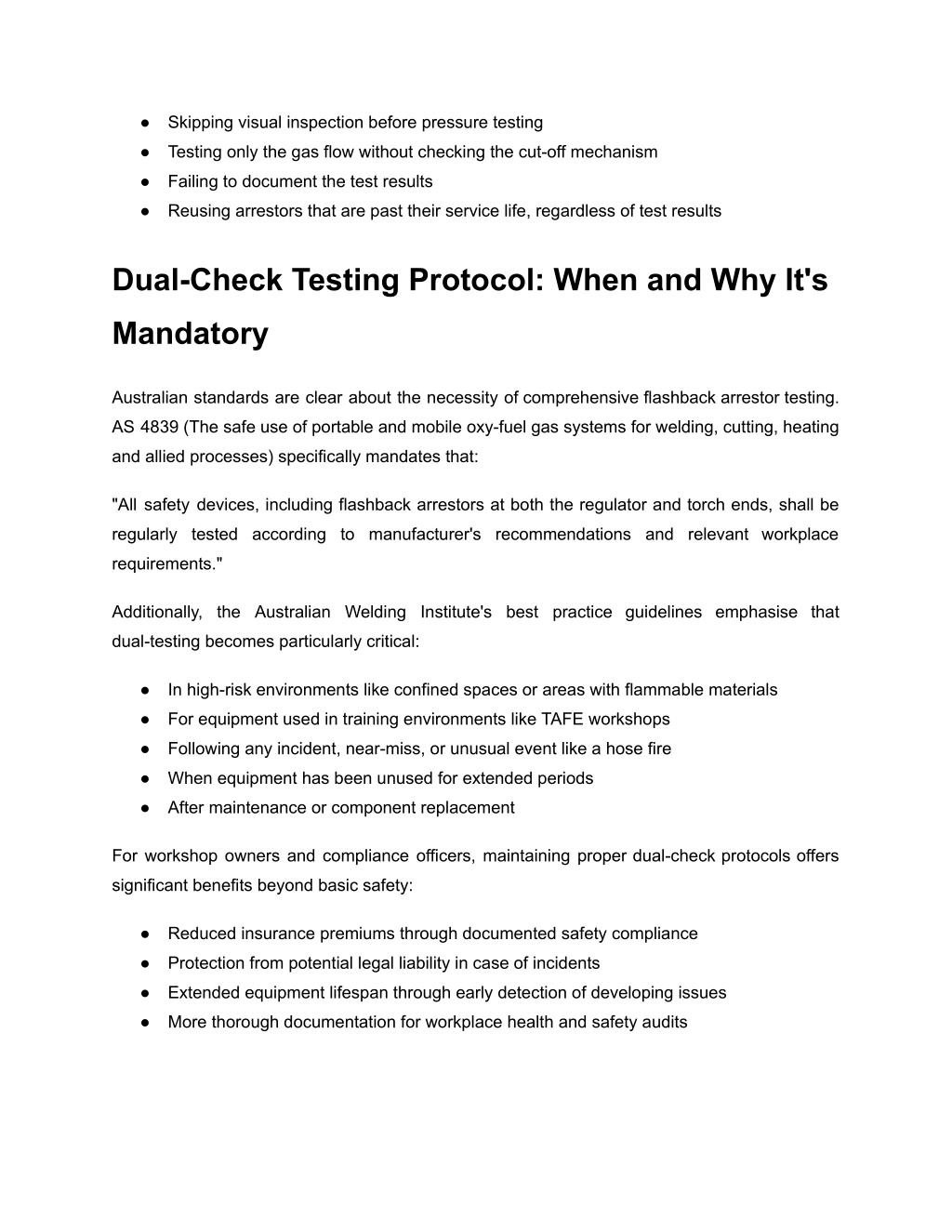

5. ● Skipping visual inspection before pressure testing ● Testing only the gas flow without checking the cut-off mechanism ● Failing to document the test results ● Reusing arrestors that are past their service life, regardless of test results Dual-Check Testing Protocol: When and Why It's Mandatory Australian standards are clear about the necessity of comprehensive flashback arrestor testing. AS 4839 (The safe use of portable and mobile oxy-fuel gas systems for welding, cutting, heating and allied processes) specifically mandates that: "All safety devices, including flashback arrestors at both the regulator and torch ends, shall be regularly tested according to manufacturer's recommendations and relevant workplace requirements." Additionally, the Australian Welding Institute's best practice guidelines emphasise that dual-testing becomes particularly critical: ● In high-risk environments like confined spaces or areas with flammable materials ● For equipment used in training environments like TAFE workshops ● Following any incident, near-miss, or unusual event like a hose fire ● When equipment has been unused for extended periods ● After maintenance or component replacement For workshop owners and compliance officers, maintaining proper dual-check protocols offers significant benefits beyond basic safety: ● Reduced insurance premiums through documented safety compliance ● Protection from potential legal liability in case of incidents ● Extended equipment lifespan through early detection of developing issues ● More thorough documentation for workplace health and safety audits

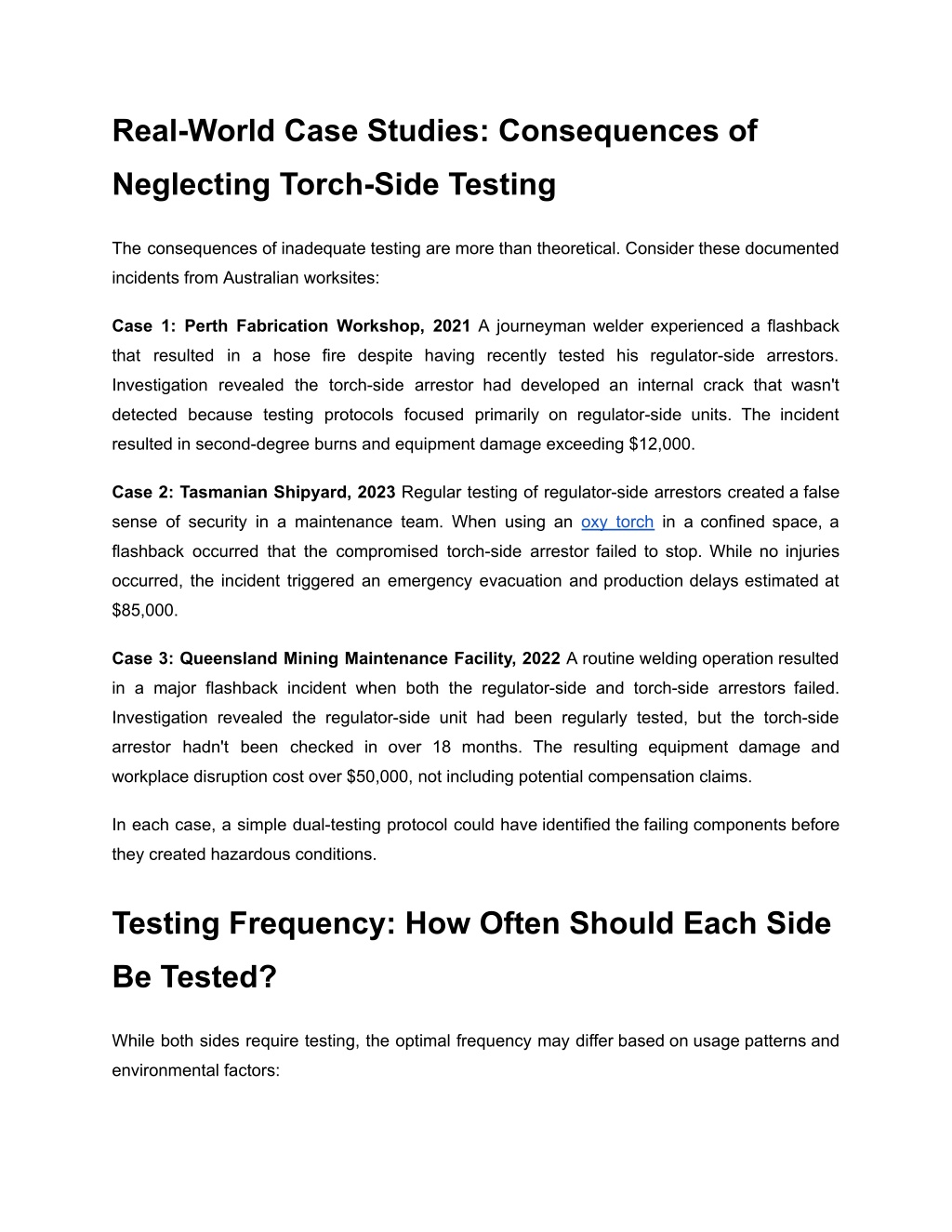

6. Real-World Case Studies: Consequences of Neglecting Torch-Side Testing The consequences of inadequate testing are more than theoretical. Consider these documented incidents from Australian worksites: Case 1: Perth Fabrication Workshop, 2021 A journeyman welder experienced a flashback that resulted in a hose fire despite having recently tested his regulator-side arrestors. Investigation revealed the torch-side arrestor had developed an internal crack that wasn't detected because testing protocols focused primarily on regulator-side units. The incident resulted in second-degree burns and equipment damage exceeding $12,000. Case 2: Tasmanian Shipyard, 2023 Regular testing of regulator-side arrestors created a false sense of security in a maintenance team. When using an oxy torch in a confined space, a flashback occurred that the compromised torch-side arrestor failed to stop. While no injuries occurred, the incident triggered an emergency evacuation and production delays estimated at $85,000. Case 3: Queensland Mining Maintenance Facility, 2022 A routine welding operation resulted in a major flashback incident when both the regulator-side and torch-side arrestors failed. Investigation revealed the regulator-side unit had been regularly tested, but the torch-side arrestor hadn't been checked in over 18 months. The resulting equipment damage and workplace disruption cost over $50,000, not including potential compensation claims. In each case, a simple dual-testing protocol could have identified the failing components before they created hazardous conditions. Testing Frequency: How Often Should Each Side Be Tested? While both sides require testing, the optimal frequency may differ based on usage patterns and environmental factors:

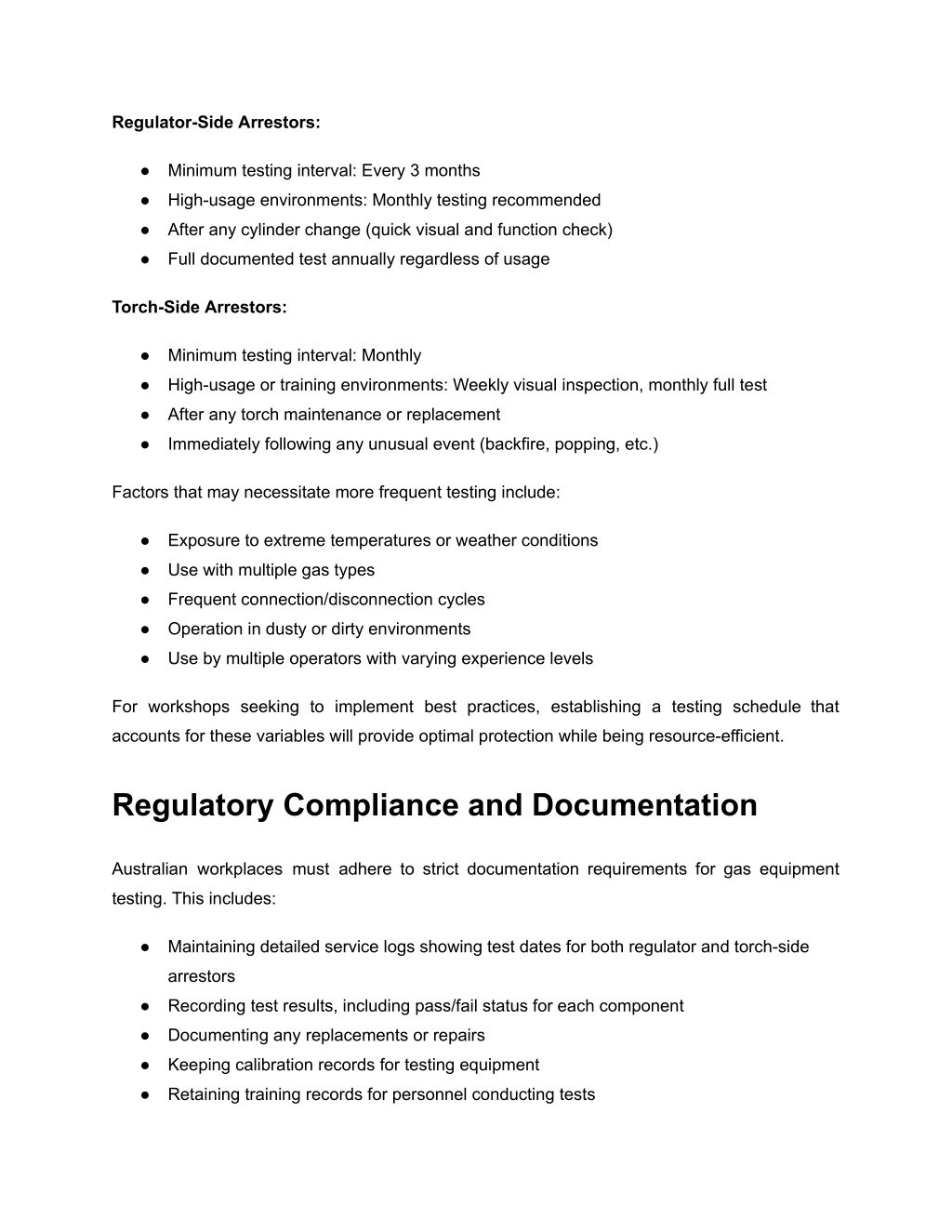

7. Regulator-Side Arrestors: ● Minimum testing interval: Every 3 months ● High-usage environments: Monthly testing recommended ● After any cylinder change (quick visual and function check) ● Full documented test annually regardless of usage Torch-Side Arrestors: ● Minimum testing interval: Monthly ● High-usage or training environments: Weekly visual inspection, monthly full test ● After any torch maintenance or replacement ● Immediately following any unusual event (backfire, popping, etc.) Factors that may necessitate more frequent testing include: ● Exposure to extreme temperatures or weather conditions ● Use with multiple gas types ● Frequent connection/disconnection cycles ● Operation in dusty or dirty environments ● Use by multiple operators with varying experience levels For workshops seeking to implement best practices, establishing a testing schedule that accounts for these variables will provide optimal protection while being resource-efficient. Regulatory Compliance and Documentation Australian workplaces must adhere to strict documentation requirements for gas equipment testing. This includes: ● Maintaining detailed service logs showing test dates for both regulator and torch-side arrestors ● Recording test results, including pass/fail status for each component ● Documenting any replacements or repairs ● Keeping calibration records for testing equipment ● Retaining training records for personnel conducting tests

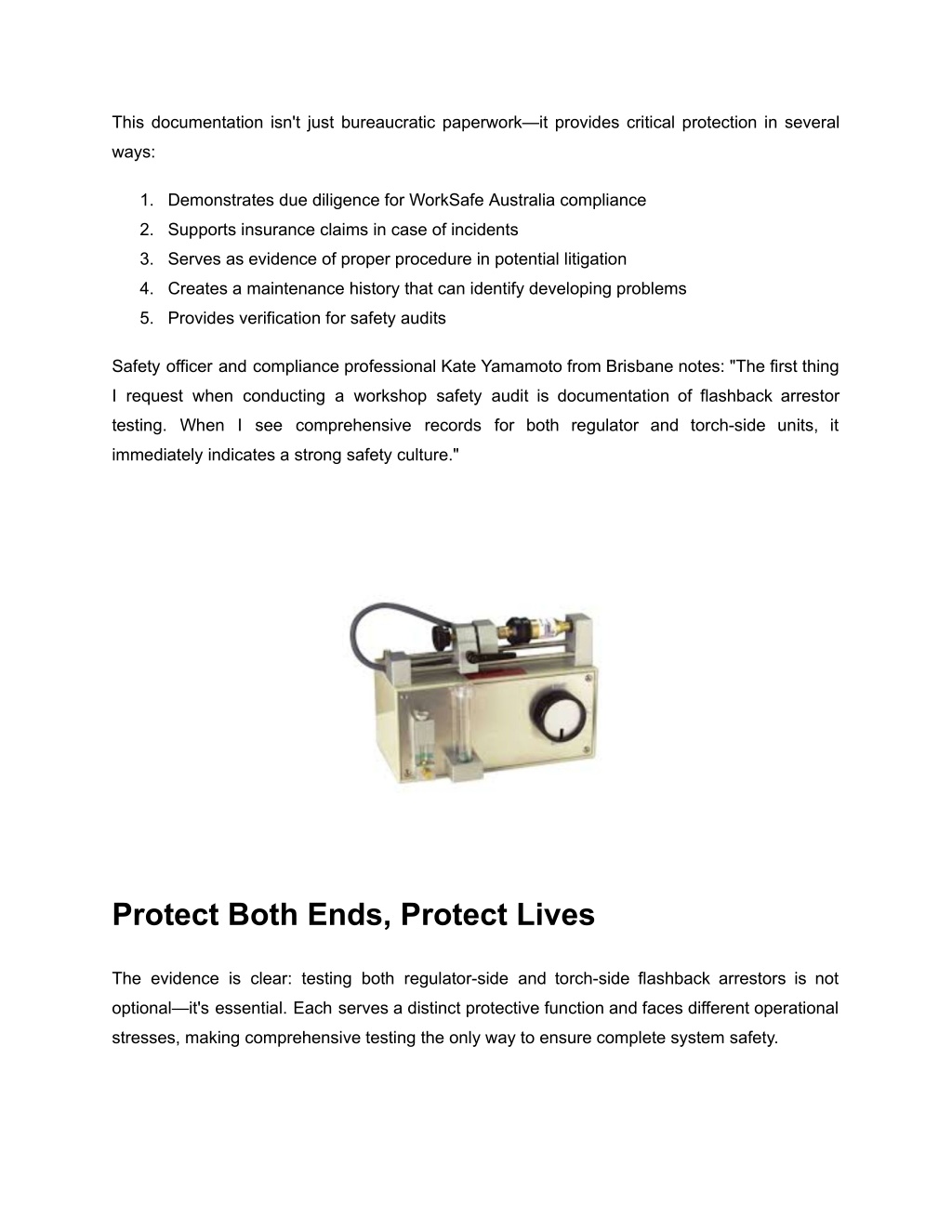

8. This documentation isn't just bureaucratic paperwork—it provides critical protection in several ways: 1. Demonstrates due diligence for WorkSafe Australia compliance 2. Supports insurance claims in case of incidents 3. Serves as evidence of proper procedure in potential litigation 4. Creates a maintenance history that can identify developing problems 5. Provides verification for safety audits Safety officer and compliance professional Kate Yamamoto from Brisbane notes: "The first thing I request when conducting a workshop safety audit is documentation of flashback arrestor testing. When I see comprehensive records for both regulator and torch-side units, it immediately indicates a strong safety culture." Protect Both Ends, Protect Lives The evidence is clear: testing both regulator-side and torch-side flashback arrestors is not optional—it's essential. Each serves a distinct protective function and faces different operational stresses, making comprehensive testing the only way to ensure complete system safety.

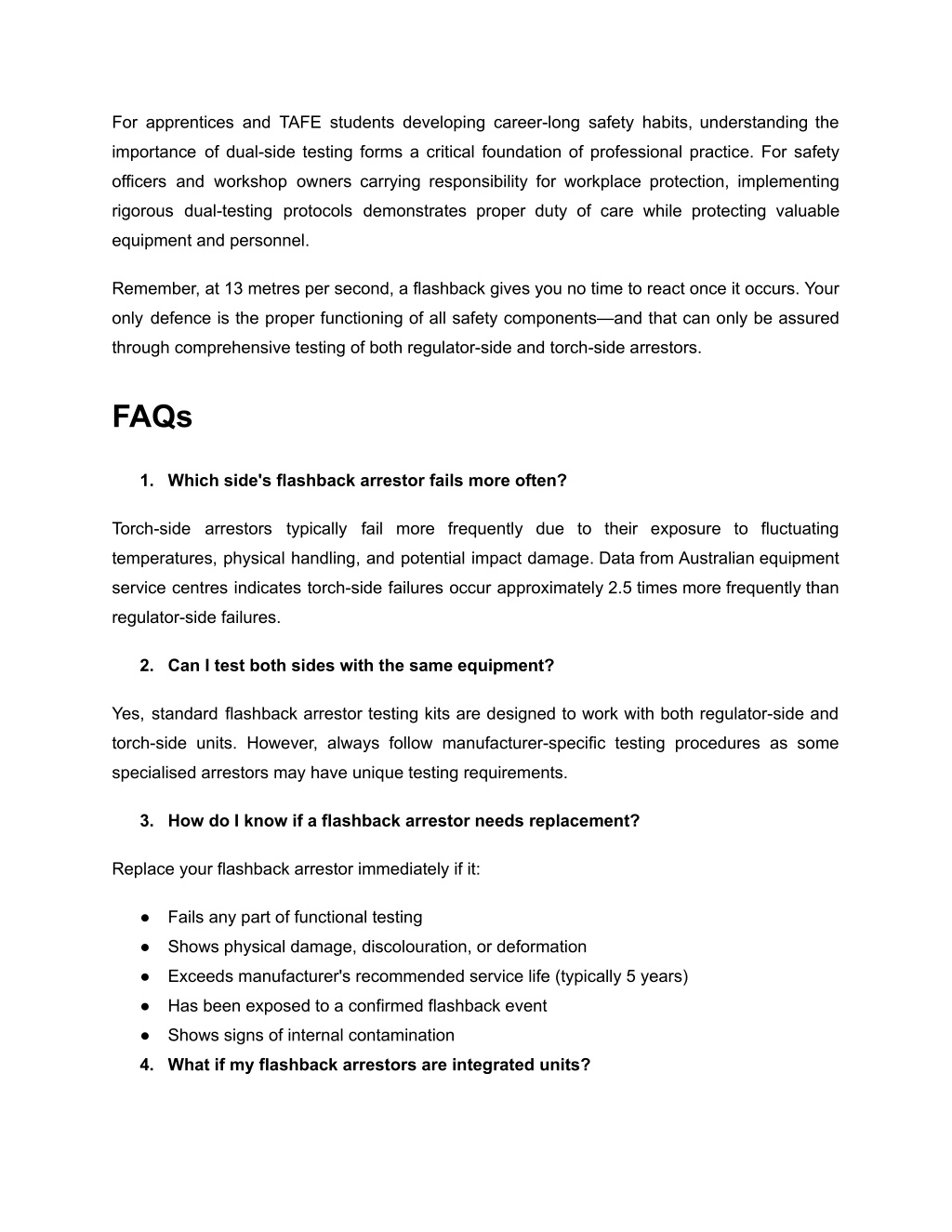

9. For apprentices and TAFE students developing career-long safety habits, understanding the importance of dual-side testing forms a critical foundation of professional practice. For safety officers and workshop owners carrying responsibility for workplace protection, implementing rigorous dual-testing protocols demonstrates proper duty of care while protecting valuable equipment and personnel. Remember, at 13 metres per second, a flashback gives you no time to react once it occurs. Your only defence is the proper functioning of all safety components—and that can only be assured through comprehensive testing of both regulator-side and torch-side arrestors. FAQs 1. Which side's flashback arrestor fails more often? Torch-side arrestors typically fail more frequently due to their exposure to fluctuating temperatures, physical handling, and potential impact damage. Data from Australian equipment service centres indicates torch-side failures occur approximately 2.5 times more frequently than regulator-side failures. 2. Can I test both sides with the same equipment? Yes, standard flashback arrestor testing kits are designed to work with both regulator-side and torch-side units. However, always follow manufacturer-specific testing procedures as some specialised arrestors may have unique testing requirements. 3. How do I know if a flashback arrestor needs replacement? Replace your flashback arrestor immediately if it: ● Fails any part of functional testing ● Shows physical damage, discolouration, or deformation ● Exceeds manufacturer's recommended service life (typically 5 years) ● Has been exposed to a confirmed flashback event ● Shows signs of internal contamination 4. What if my flashback arrestors are integrated units?

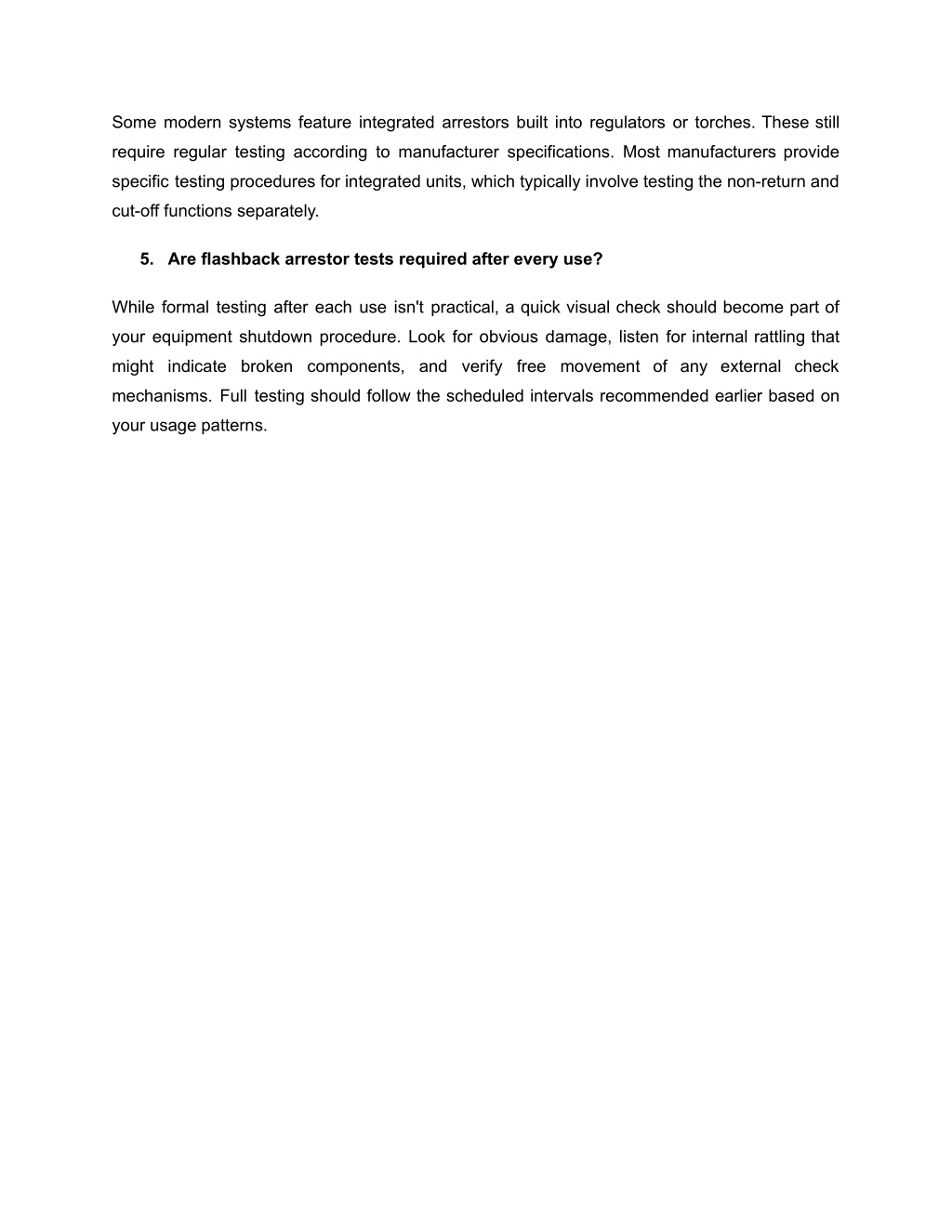

10. Some modern systems feature integrated arrestors built into regulators or torches. These still require regular testing according to manufacturer specifications. Most manufacturers provide specific testing procedures for integrated units, which typically involve testing the non-return and cut-off functions separately. 5. Are flashback arrestor tests required after every use? While formal testing after each use isn't practical, a quick visual check should become part of your equipment shutdown procedure. Look for obvious damage, listen for internal rattling that might indicate broken components, and verify free movement of any external check mechanisms. Full testing should follow the scheduled intervals recommended earlier based on your usage patterns.
