sign signal and luminaire supports utility poles trees and similar roadside features
Sign, Signal, and Luminaire Supports, Utility Poles, Trees, and Similar Roadside Features

RDG Chapter 4

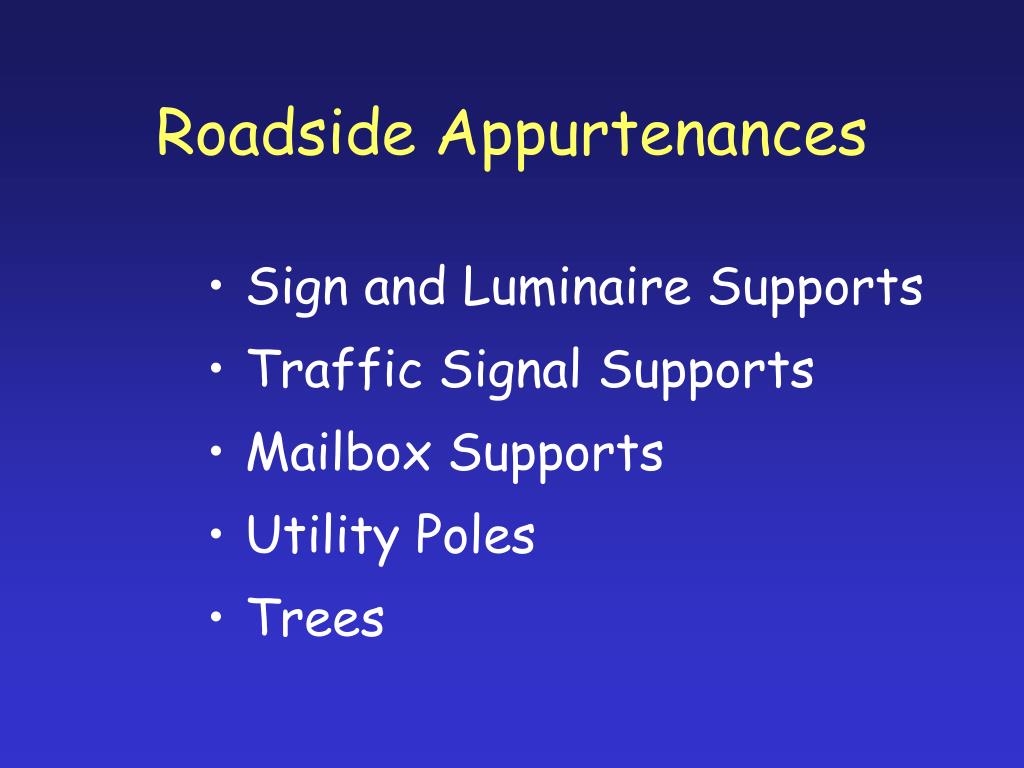

roadside appurtenances
Roadside Appurtenances
  • Sign and Luminaire Supports
  • Traffic Signal Supports
  • Mailbox Supports
  • Utility Poles
  • Trees

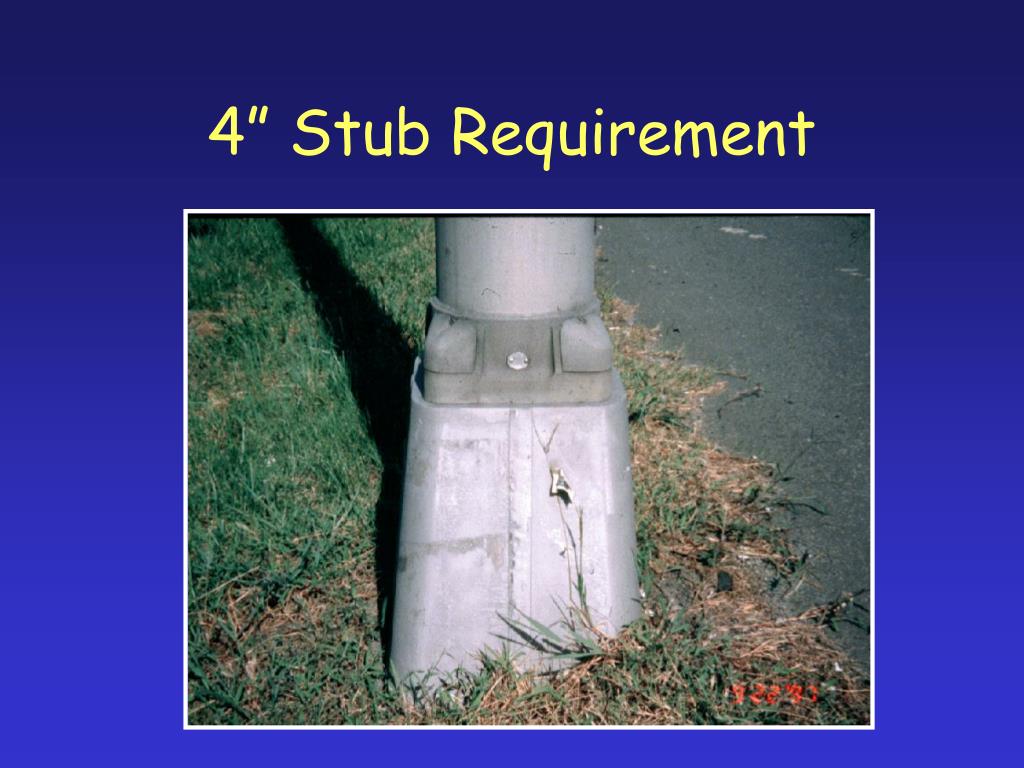

stub height criteria
Stub Height Criteria

Stub

4” max.

5’ min.

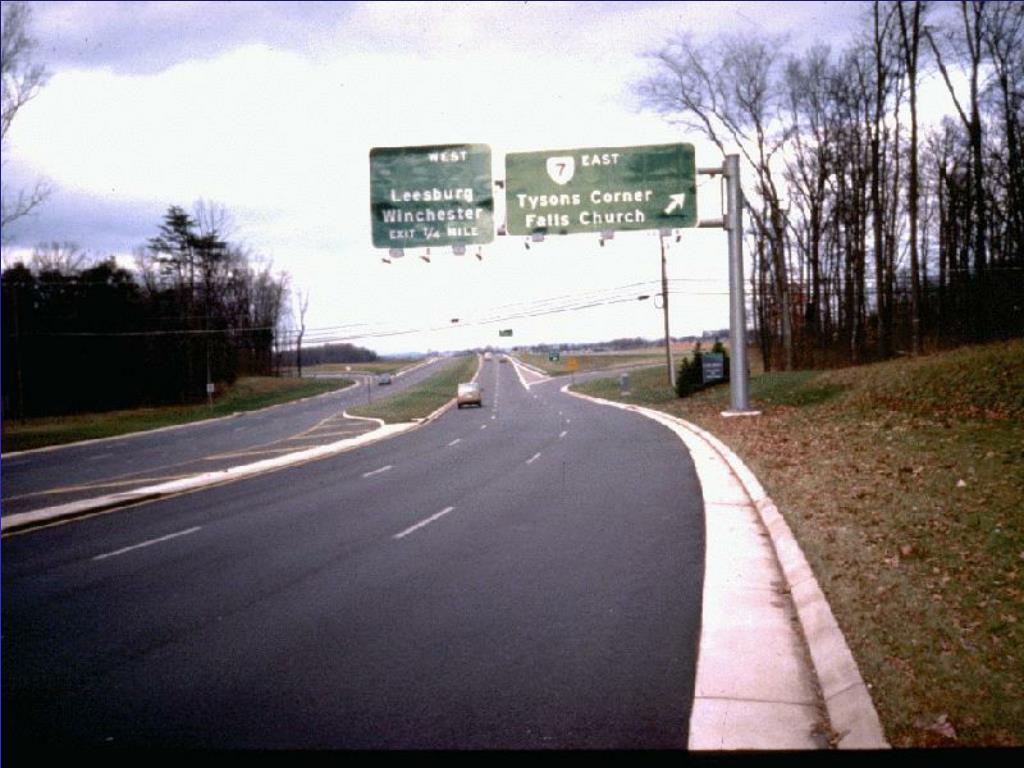

types of sign supports
Types of Sign Supports
  • Overhead Signs
  • Large Roadside Signs
  • Small Roadside Signs
ground mounted breakaway signs

Wind

Vehicle Impact

Weak in Shear

Ground-Mounted Breakaway Signs

Strong in Moment

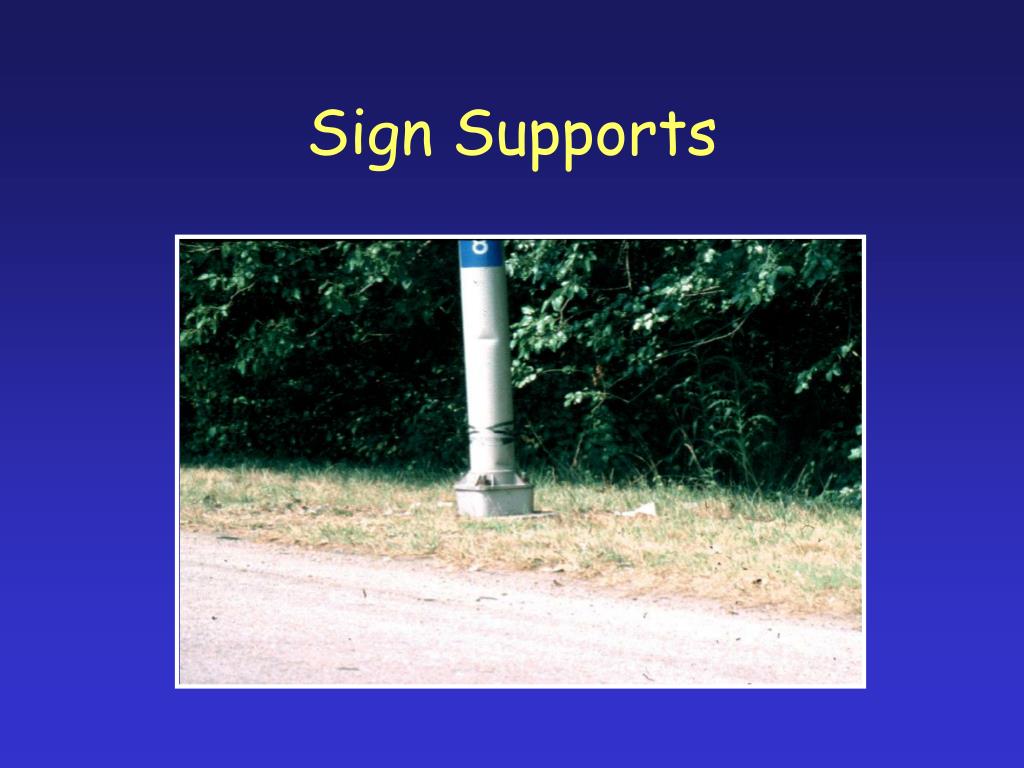

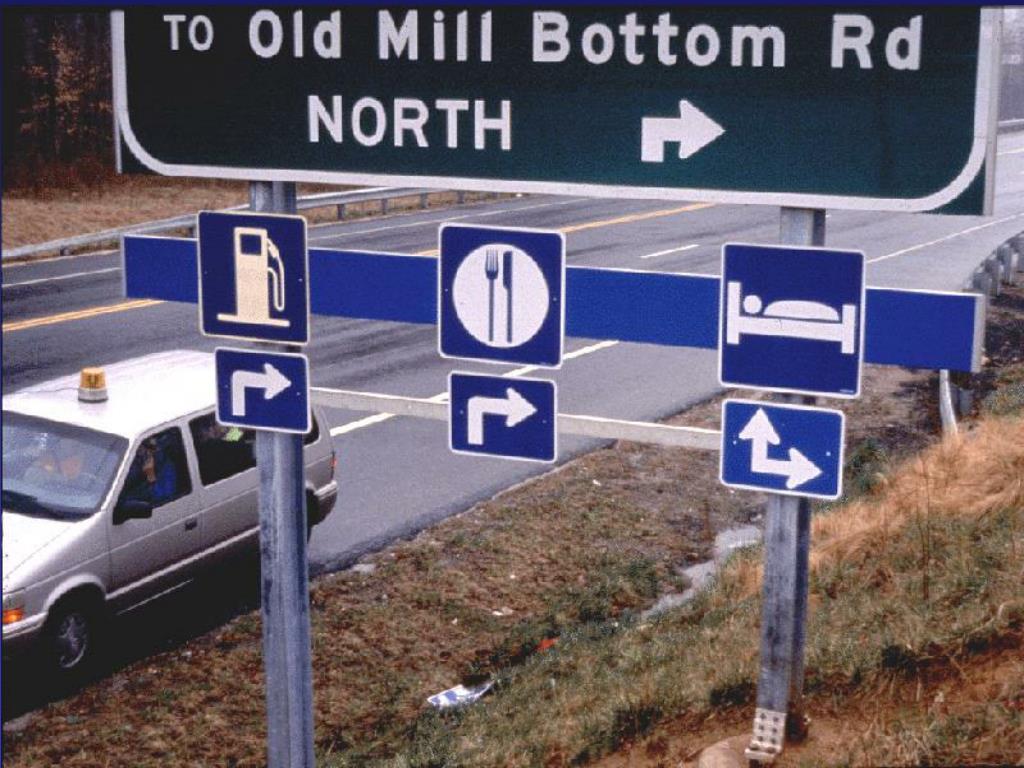

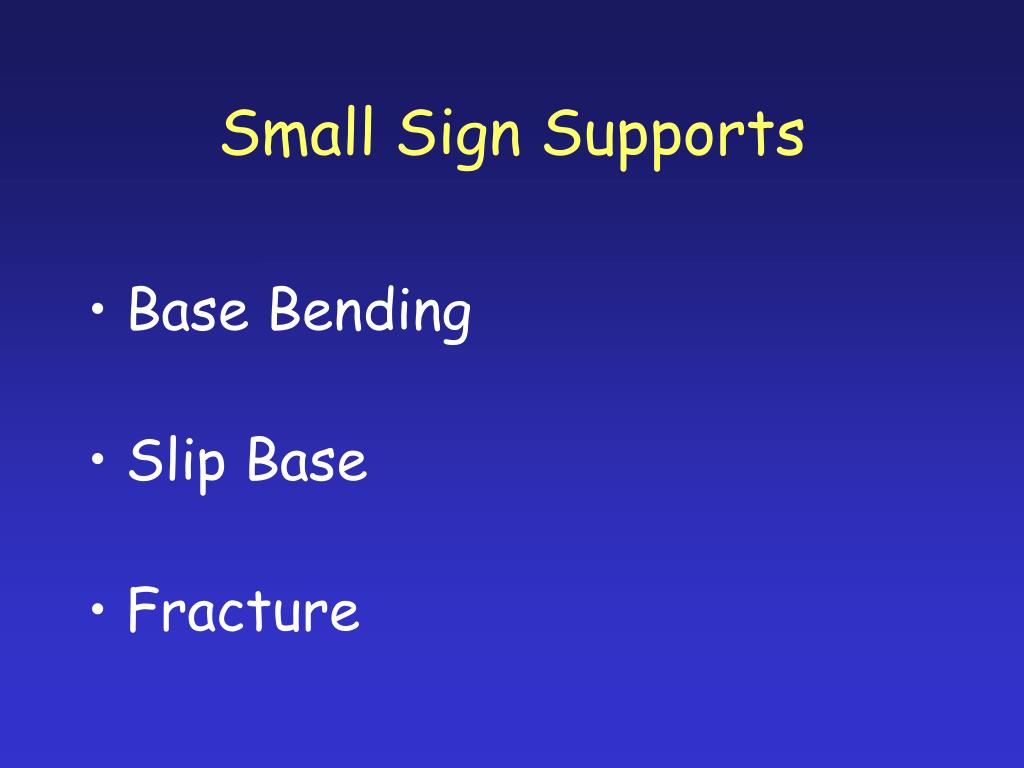

small sign supports
Small Sign Supports
  • Base Bending
  • Slip Base
  • Fracture
breakaway hinge point on slopes

1

4

Breakaway Hinge Point on Slopes

Safer Roads

Roadway

7’

20’

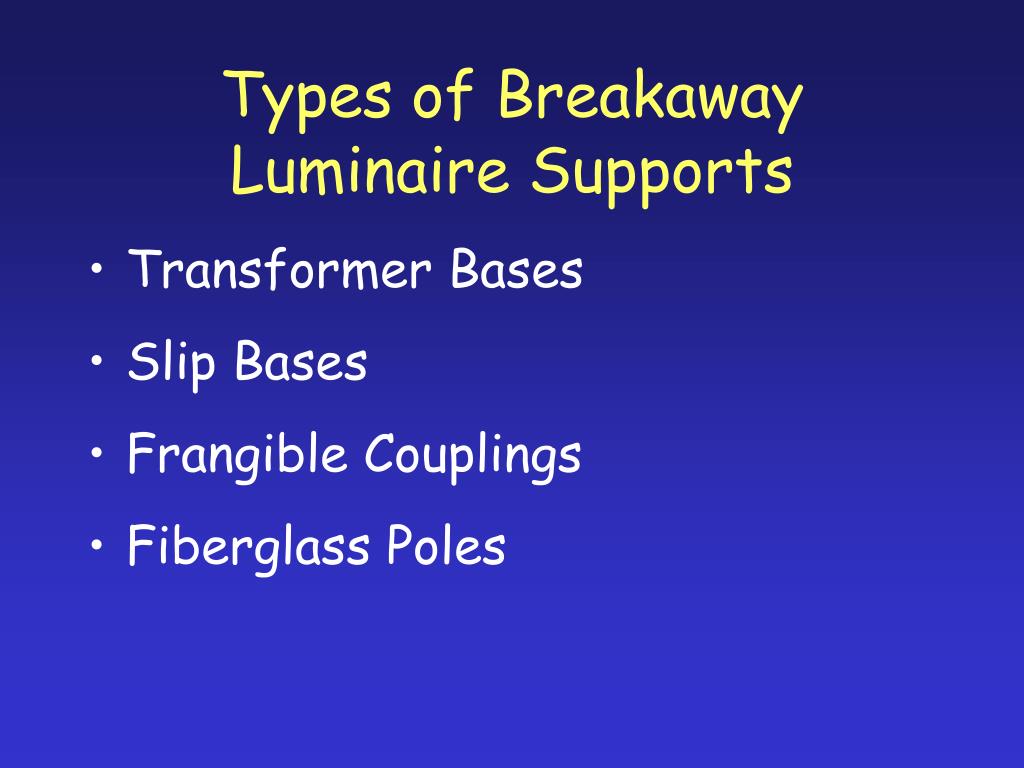

types of breakaway luminaire supports
Types of Breakaway Luminaire Supports
  • Transformer Bases
  • Slip Bases
  • Frangible Couplings
  • Fiberglass Poles
