Flap Barrier Entrance Management System

A Flap Barrier Entrance Management System is a security and access control system commonly used in various facilities such as offices, airports, train stations, and other public areas. It consists of a set of barriers or gates that restrict access to authorized individuals while ensuring smooth entry and exit flow. Flap barriers are physical barriers usually made of metal or durable materials. They are designed to prevent unauthorized access while allowing authorized individuals to pass through. https://www.novusapl.com/flapbarrier-economy-series.php

Siddharth28
Download Presentation

Flap Barrier Entrance Management System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

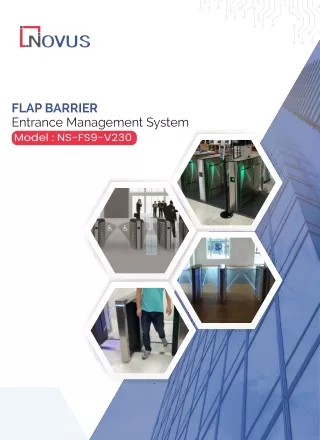

  1. FLAP BARRIER Entrance Management System Model : NS-FS9-V230

  2. Flap Barrier NS-FS9-V230 Overview Flap Barrier is a pioneer entrance control device. It consists of flaps that permit or restrict entry. Flap barrier is widely used in secure environ- ments like office buildings, airports, and transportation stations. Owing to its sleek design and top notch quality, the offered gate is one of the most sought-after products for crowd management. ???????? ???????? Elegant design enhances aesthetics with a modern Thickness: Top: 1.2mm, Body: 1.2mm for robustness. Supports single and bi-directional movement. Standard 550mm channel width for easy access. 4 pairs of active infrared intrusion detectors. AC110~220V±10% power input accepted. Triple-color LED and buzzer for guidance. appearance. Constructed from sturdy SUS 304 steel ensures durability. Dual thickness ensures structural strength. Nominal maintenance cost and easy to install design. Build to stand tough atmospheric conditions. www.novusapl.com 01

  3. Technical Specifications Product Size 1600*300*980mm Material SUS 304 stainless steel Thinkness Top:1.2mm+body1.2mm Passage Direction Single directional/Bidirectional Standard Channel Width 550mm Sensor 4 pairs of active infrared intrusion detector Throughput Rate Reaction Time 30~35p/m 0.2S Driving Voltage DC24V 4.2A Working Temperature -20~+70 C Power Input AC110~220V±10% -20~+70 C 3 pairs of active infrared intrusion detector Brushless DC Motor Full Height Flap Gate Mechanism Supercapacitor (12V/3A) Buzzer Alarm 60 kg Working Temperature Sensor Motor Mechanism Back up power Acoustic Alarm Weight LED Triple Color LED IP Rating MCBF Tourque motor 44 6 + Million Higher Disclaimer: Brief product specifications are mentioned, that may change without prior notice, please check with OEM before purchase. Images are shown for reference only; the actual product may differ due to product enhancement. www.novusapl.com 02
