Flap Barrier Entrance Management System

A flap barrier is another type of access control system used to regulate pedestrian traffic. Unlike boom barriers that control vehicular access, flap barriers are designed for controlling the movement of individuals through a secured entrance or exit. These barriers are commonly found in areas such as office buildings, public transportation facilities, airports, and other places where pedestrian access needs to be monitored and controlled.<br>https://www.novusapl.com/Flap-Barrier-Turnstile-NS-FS9-V210.php<br>

Siddharth28
Download Presentation

Flap Barrier Entrance Management System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

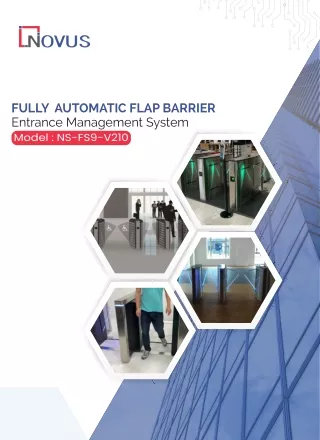

  1. FULLY AUTOMATIC FLAP BARRIER Entrance Management System Model : NS-FS9-V210

  2. Flap Barrier NS-FS9-V210 Overview Flap Barrier System is a securi- ty entrance control system commonly used in high-end buildings, corporate offices, and public area. It helps allow authorized individuals to gain access. The flap barrier en- hances security, prevents un- authorized entry, and effi- ciently manages pedestrian traffic in high footfall areas. Flap Barrier system is easy to install and maintain. ???????? ???????? Ensures controlled and secure access points. Compact design for efficient space utilization. Long-lasting build with stainless steel materials. Adaptable to single or bi-directional traffic flow. Swift handling of a high number of individuals. Rapid reaction time enhances overall efficiency. Spacious passageway with a 550mm width (optional 900 mm). Flexible options: Single or Bi-directional passage. Crafted with SUS 304 stainless steel. Durable build with 1.5mm top thickness. High efficiency with a Throughput rate of 40p/m. Swift response time of 0.2 seconds. www.novusapl.com 01

  3. Technical Specifications Product Dimensions 1400*300*1000mm Material SUS 304 stainless steel Material Thickness Top:1.5mm+body1.2mm Pass Width 550mm Passage Direction Single directional / Bi-directional Throughput Rate 30 p/m Reaction Time Acoustic Alarm 0.2S Buzzer Alarm LED Triple Color LED Driving Voltage DC24V 6.25A Power Input AC110~220V±10% -20~+70 C 3 pairs of active infrared intrusion detector Brushless DC Motor Half Height Flap Gate Mechanism Supercapacitor (12V/3A) LED direction indication 60 kg Working Temperature Sensor Motor Mechanism Back up power Indication Weight IP Rating MCBF Tourque motor 44 6 + Million Higher Disclaimer: Brief product specifications are mentioned, that may change without prior notice, please check with OEM before purchase. Images are shown for reference only; the actual product may differ due to product enhancement. www.novusapl.com 02
