  1. networking SHARDUL GOSAWI www.pskitservices.com

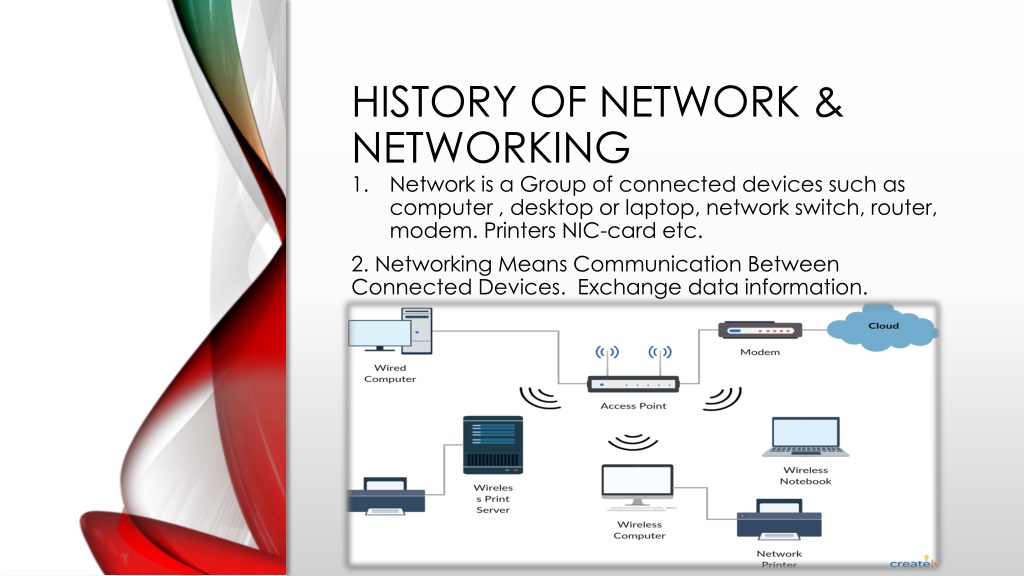

  2. History of Network & Networking • Network is a Group of connected devices such as computer , desktop or laptop, network switch, router, modem. Printers NIC-card etc. 2. Networking Means Communication Between Connected Devices. Exchange data information.

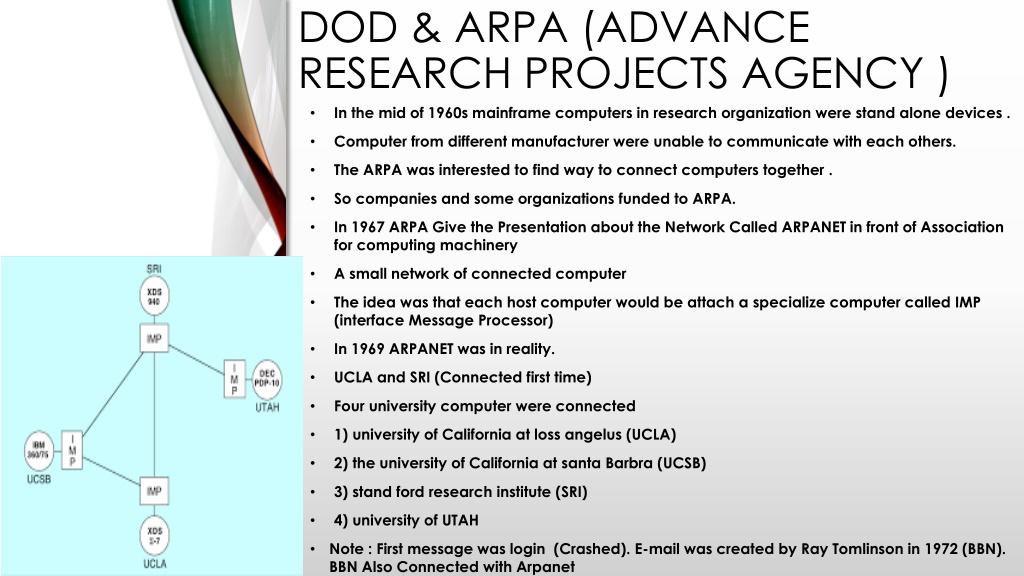

  3. DOD & ARPA (Advance Research Projects Agency ) • In the mid of 1960s mainframe computers in research organization were stand alone devices . • Computer from different manufacturer were unable to communicate with each others. • The ARPA was interested to find way to connect computers together . • So companies and some organizations funded to ARPA. • In 1967 ARPA Give the Presentation about the Network Called ARPANET in front of Association for computing machinery • A small network of connected computer • The idea was that each host computer would be attach a specialize computer called IMP (interface Message Processor) • In 1969 ARPANET was in reality. • UCLA and SRI (Connected first time) • Four university computer were connected • 1) university of California at loss angelus (UCLA) • 2) the university of California at santa Barbra (UCSB) • 3) stand ford research institute (SRI) • 4) university of UTAH • Note : First message was login (Crashed). E-mail was created by Ray Tomlinson in 1972 (BBN). BBN Also Connected with Arpanet

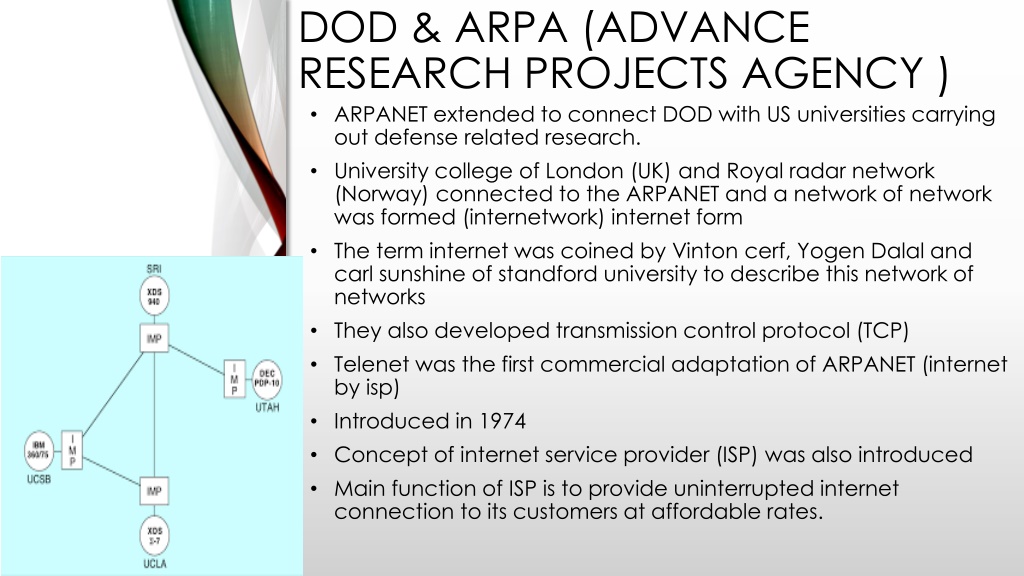

  4. DOD & ARPA (Advance Research Projects Agency ) • ARPANET extended to connect DOD with US universities carrying out defense related research. • University college of London (UK) and Royal radar network (Norway) connected to the ARPANET and a network of network was formed (internetwork) internet form • The term internet was coined by Vinton cerf, Yogen Dalal and carl sunshine of standford university to describe this network of networks • They also developed transmission control protocol (TCP) • Telenet was the first commercial adaptation of ARPANET (internet by isp) • Introduced in 1974 • Concept of internet service provider (ISP) was also introduced • Main function of ISP is to provide uninterrupted internet connection to its customers at affordable rates.

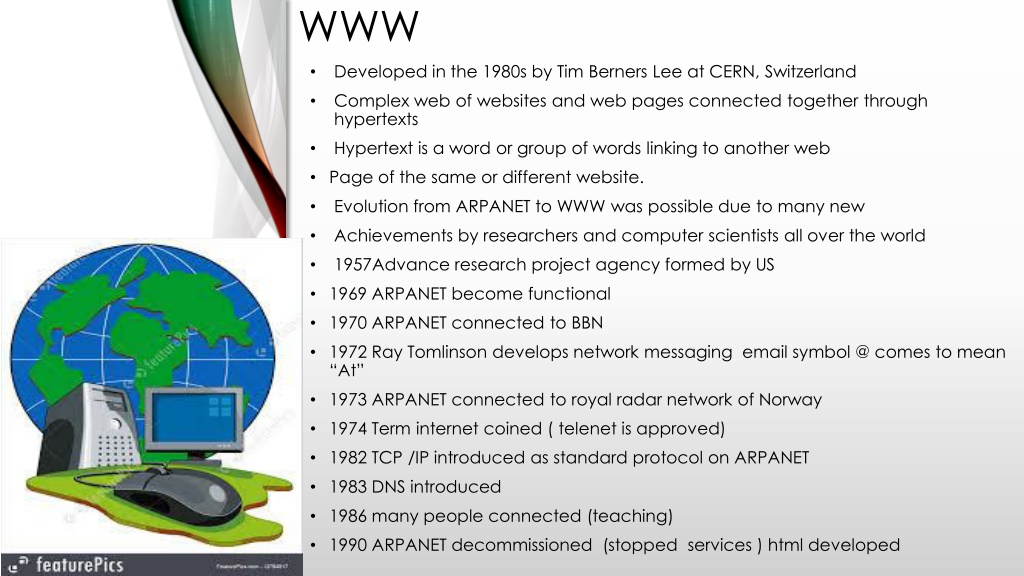

  5. www • Developed in the 1980s by Tim Berners Lee at CERN, Switzerland • Complex web of websites and web pages connected together through hypertexts • Hypertext is a word or group of words linking to another web • Page of the same or different website. • Evolution from ARPANET to WWW was possible due to many new • Achievements by researchers and computer scientists all over the world • 1957Advance research project agency formed by US • 1969 ARPANET become functional • 1970 ARPANET connected to BBN • 1972 Ray Tomlinson develops network messaging email symbol @ comes to mean “At” • 1973 ARPANET connected to royal radar network of Norway • 1974 Term internet coined ( telenet is approved) • 1982 TCP /IP introduced as standard protocol on ARPANET • 1983 DNS introduced • 1986 many people connected (teaching) • 1990 ARPANET decommissioned (stopped services ) html developed

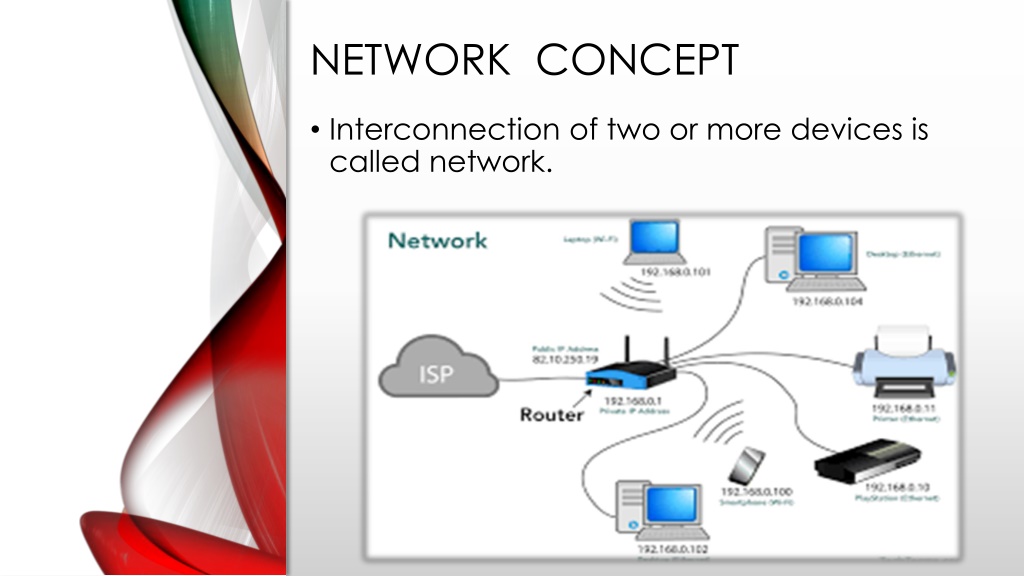

  6. Network Concept • Interconnection of two or more devices is called network.

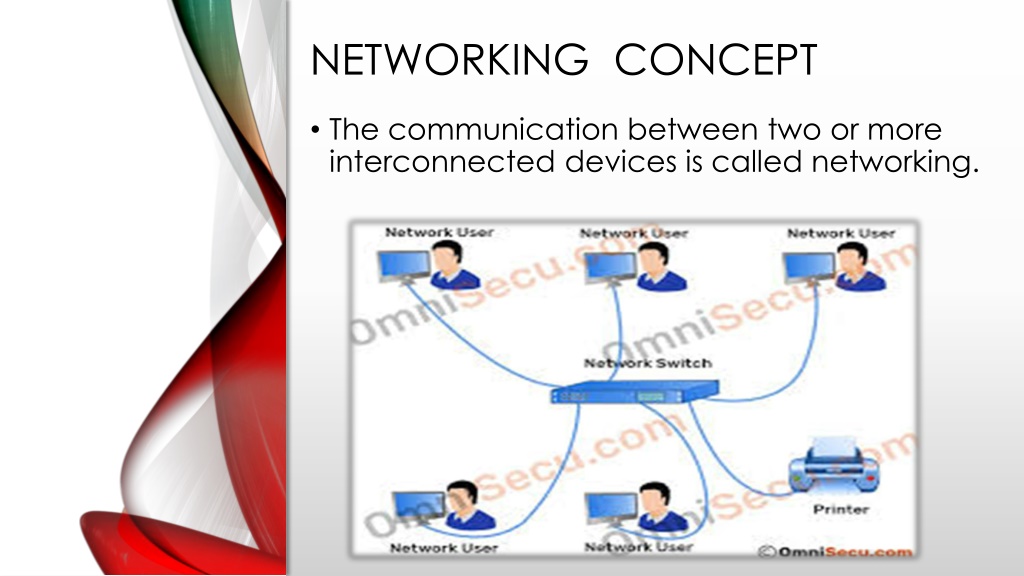

  7. Networking Concept • The communication between two or more interconnected devices is called networking.

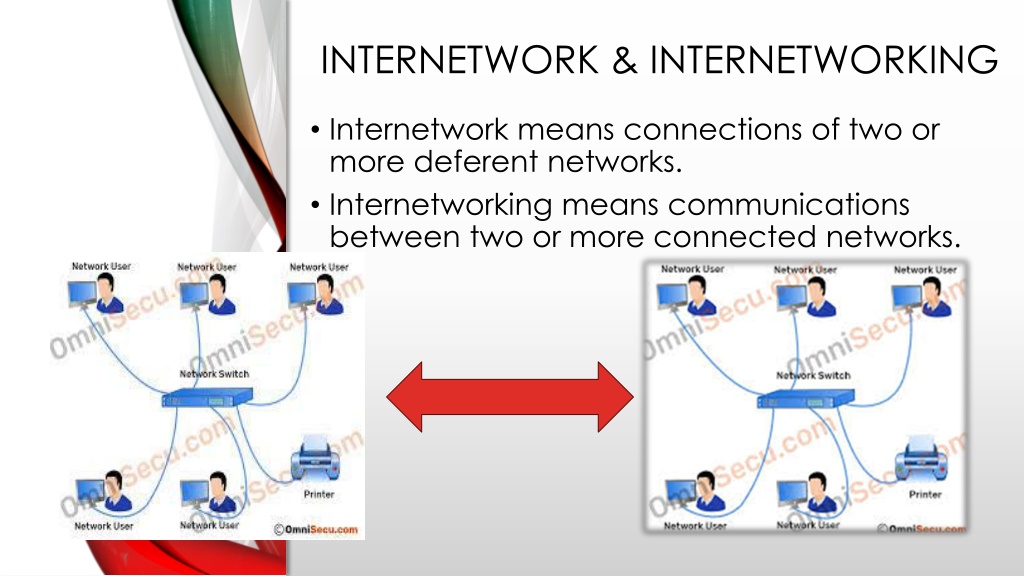

  8. Internetwork & Internetworking • Internetwork means connections of two or more deferent networks. • Internetworking means communications between two or more connected networks.

  9. Internetwork & Internetworking • Internetwork means connections of two or more deferent networks. • Internetworking means communications between two or more connected networks.

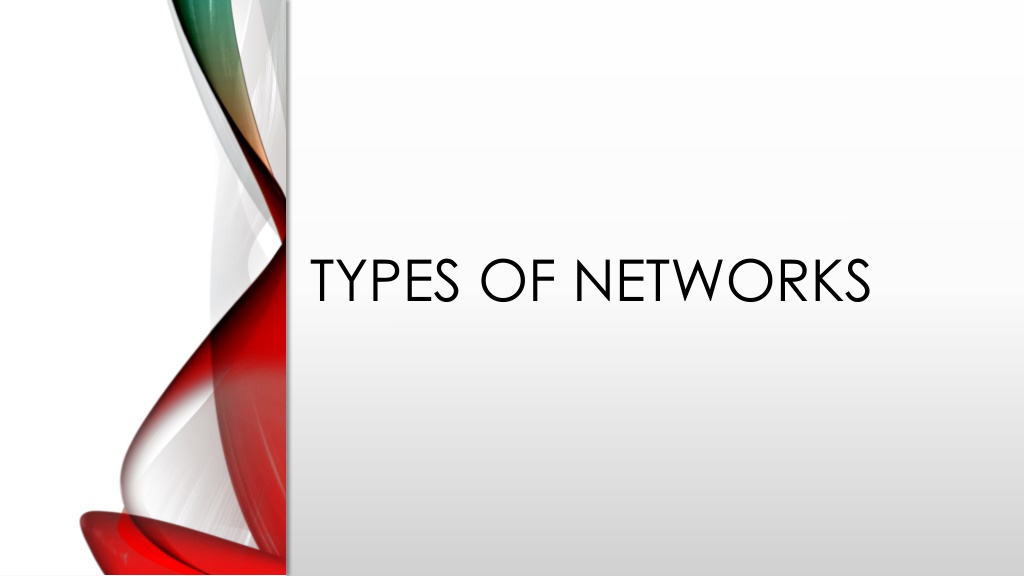

  10. Types of networks

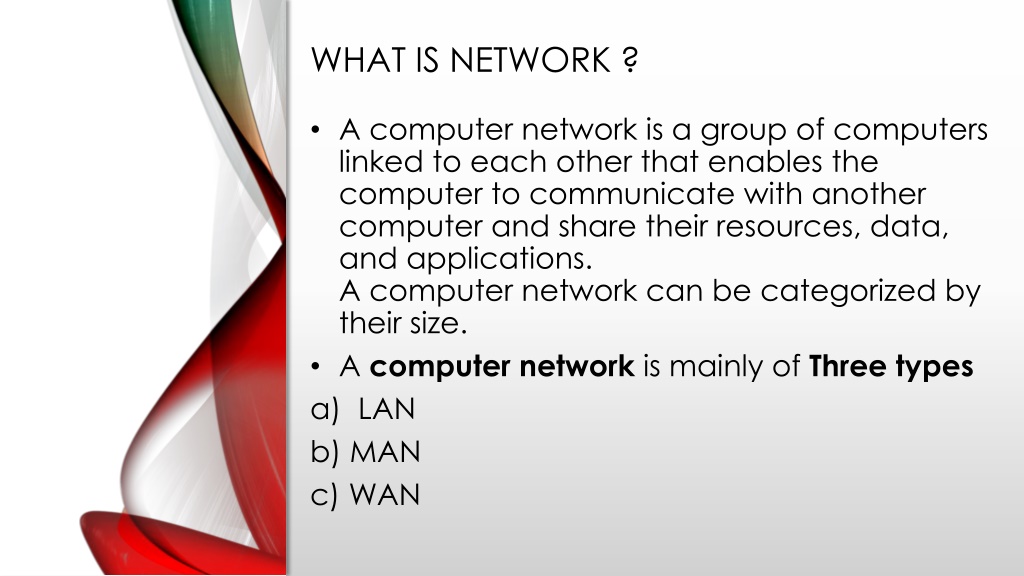

  11. WHAT IS NETWORK ? • A computer network is a group of computers linked to each other that enables the computer to communicate with another computer and share their resources, data, and applications.A computer network can be categorized by their size. • A computer network is mainly of Three types a) LAN b) MAN c) WAN

  12. LAN • Local Area Network is a group of computers connected to each other in a small area such as building, office , home etc.. • 2) LAN is used for connecting two or more personal computers through a communication medium such as twisted pair, coaxial cable, Ofc etc. • 3) It is less costly as it is built with inexpensive hardware such as hubs, Switch , network adapters, and Ethernet cables. • 4) The data is transferred at an extremely faster rate in Local Area Network. • 5) Local Area Network provides higher security.

  13. mAN • A metropolitan area network is a network that covers a larger geographic area by interconnecting a different LAN to form a larger network. • Government agencies use MAN to connect to the citizens and private industries. • In MAN, various LANs are connected to each other through a telephone exchange line. • The most widely used protocols in MAN are RS-232, Frame Relay, ATM, ISDN, OC-3, ADSL, etc. • 3) It has a higher range than Local Area Network(LAN).

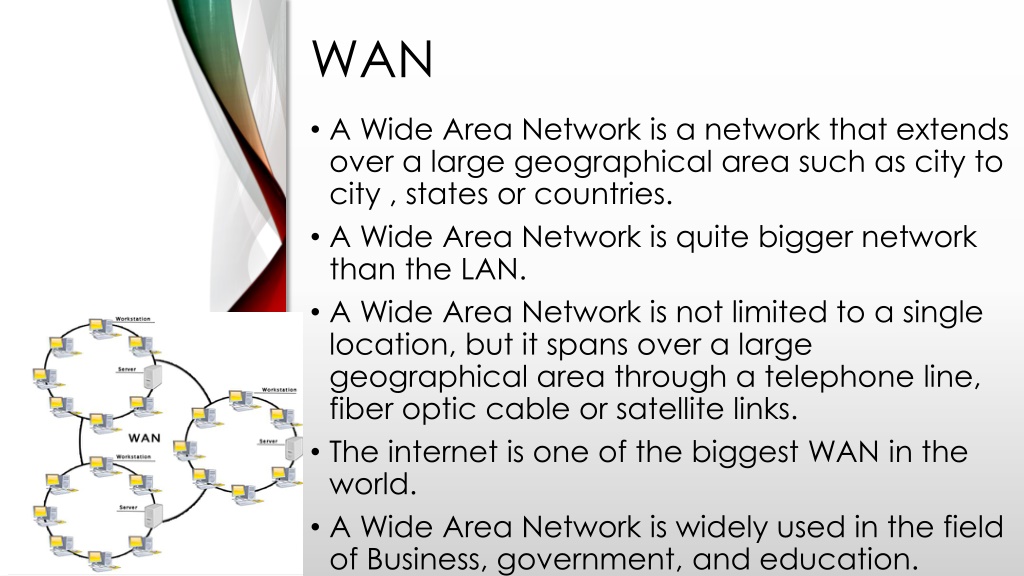

  14. WAN • A Wide Area Network is a network that extends over a large geographical area such as city to city , states or countries. • A Wide Area Network is quite bigger network than the LAN. • A Wide Area Network is not limited to a single location, but it spans over a large geographical area through a telephone line, fiber optic cable or satellite links. • The internet is one of the biggest WAN in the world. • A Wide Area Network is widely used in the field of Business, government, and education.

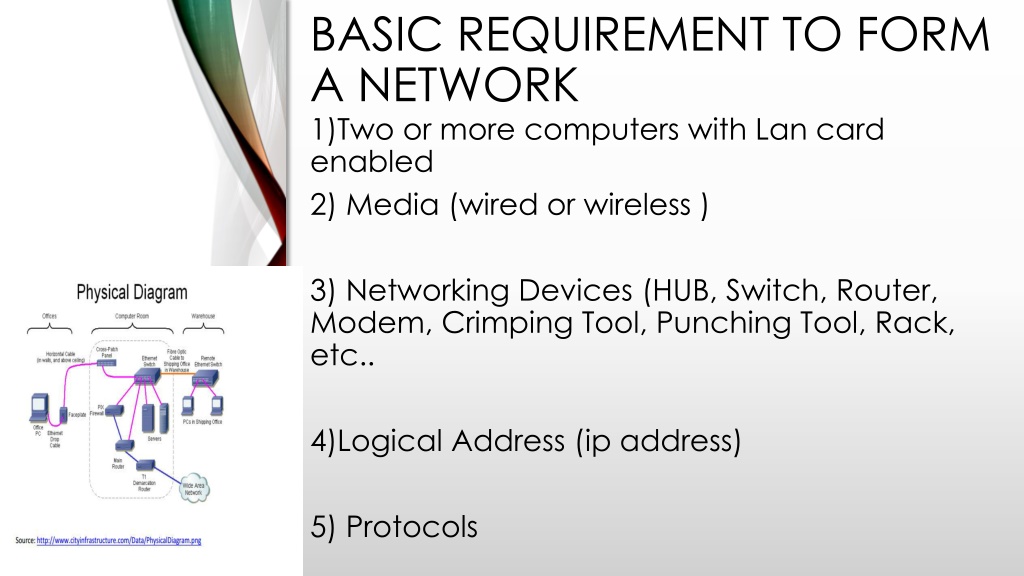

  15. Basic Requirement to form a Network 1)Two or more computers with Lan card enabled 2) Media (wired or wireless ) 3) Networking Devices (HUB, Switch, Router, Modem, Crimping Tool, Punching Tool, Rack, etc.. 4)Logical Address (ip address) 5) Protocols

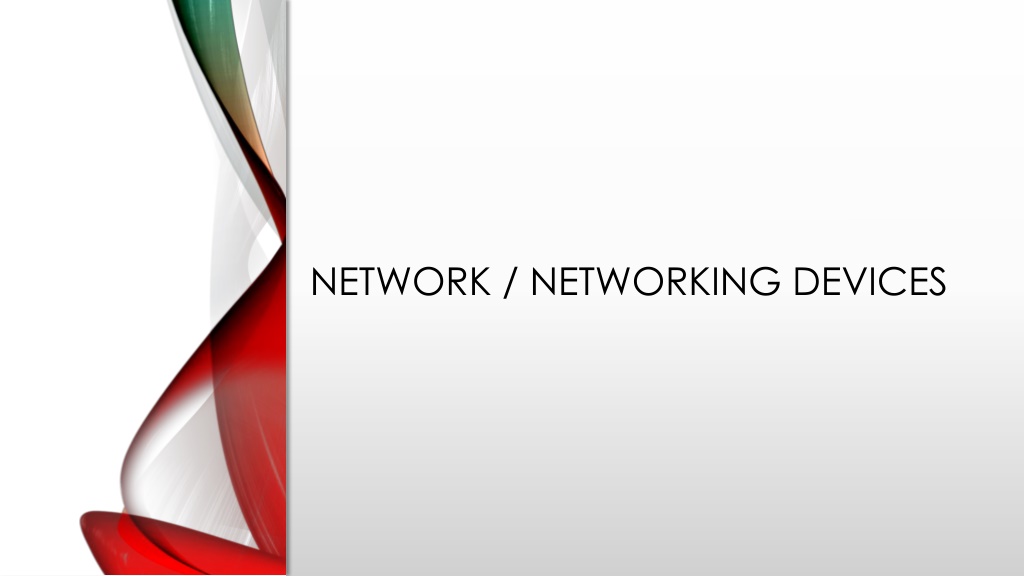

  16. Network / networking devices

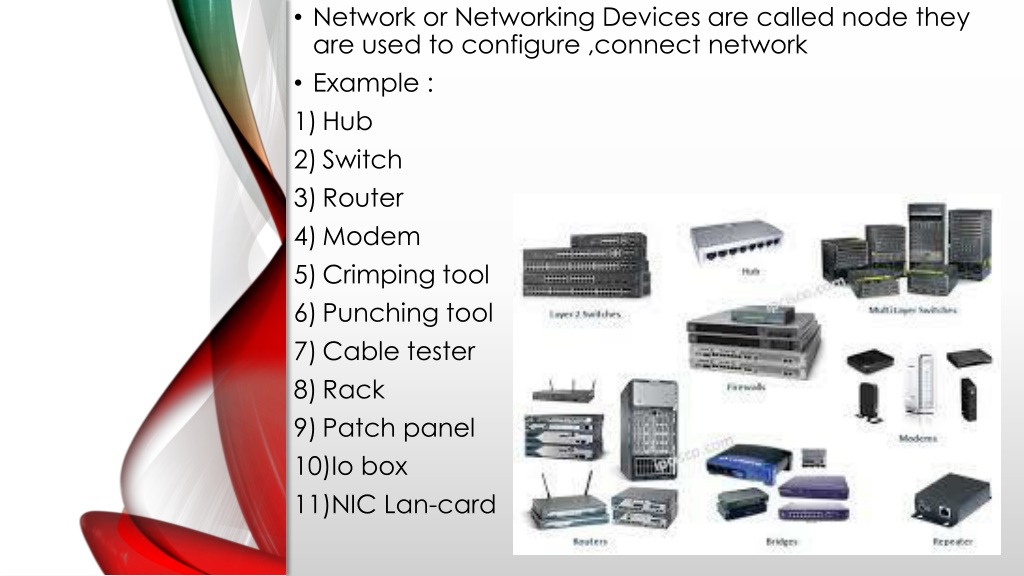

  17. Network or Networking Devices are called node they are used to configure ,connect network • Example : • Hub • Switch • Router • Modem • Crimping tool • Punching tool • Cable tester • Rack • Patch panel • Io box • NIC Lan-card

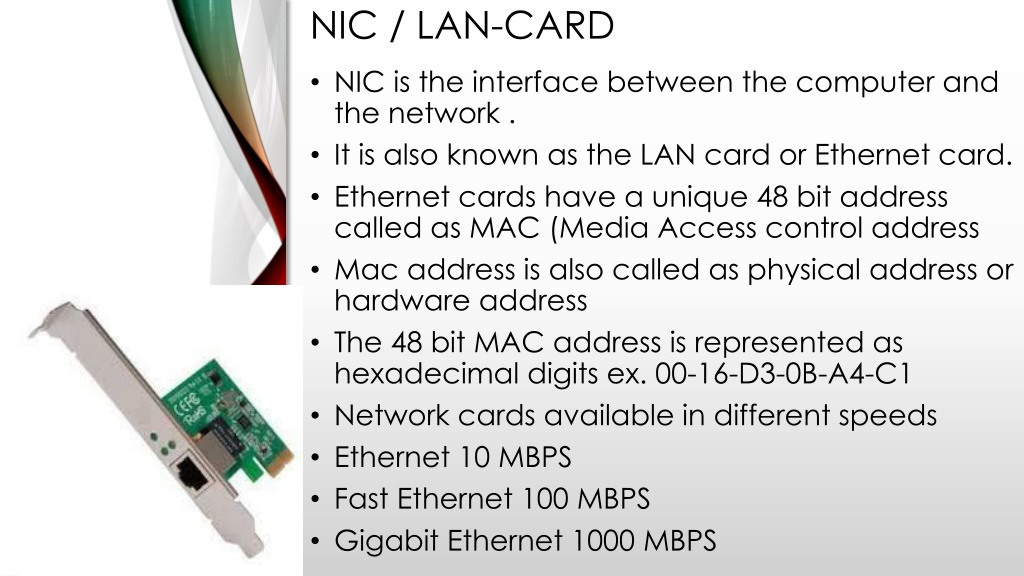

  18. Nic / lan-card • NIC is the interface between the computer and the network . • It is also known as the LAN card or Ethernet card. • Ethernet cards have a unique 48 bit address called as MAC (Media Access control address • Mac address is also called as physical address or hardware address • The 48 bit MAC address is represented as hexadecimal digits ex. 00-16-D3-0B-A4-C1 • Network cards available in different speeds • Ethernet 10 MBPS • Fast Ethernet 100 MBPS • Gigabit Ethernet 1000 MBPS

  19. Nic / lan-card • NIC is the interface between the computer and the network . • It is also known as the LAN card or Ethernet card. • Ethernet cards have a unique 48 bit address called as MAC (Media Access control address • Mac address is also called as physical address or hardware address • The 48 bit MAC address is represented as hexadecimal digits ex. 00-16-D3-0B-A4-C1 • Network cards available in different speeds • Ethernet 10 MBPS • Fast Ethernet 100 MBPS • Gigabit Ethernet 1000 MBPS

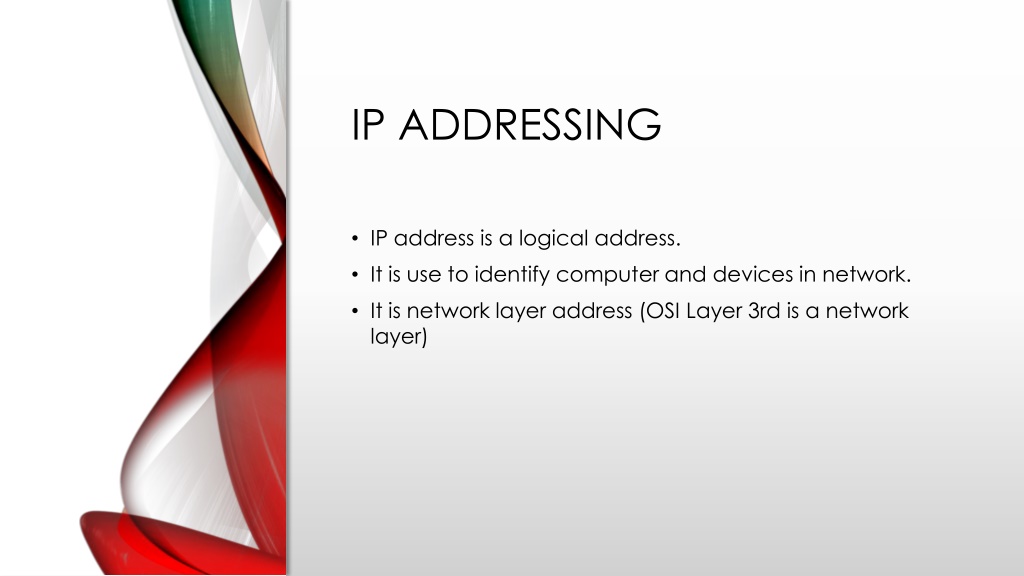

  20. IP ADDRESSING • IP address is a logical address. • It is use to identify computer and devices in network. • It is network layer address (OSI Layer 3rd is a network layer)

  21. IP ADDRESSING

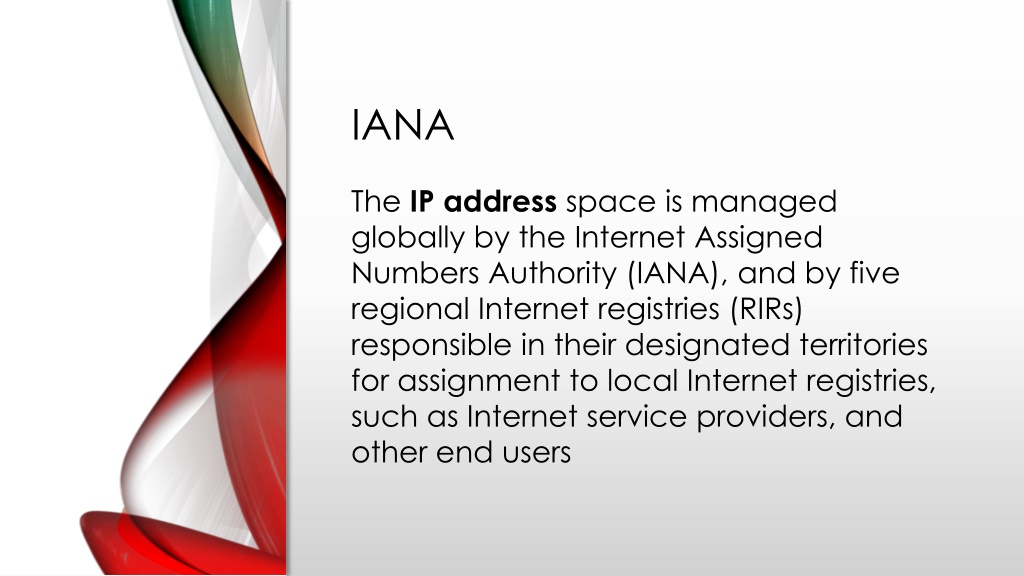

  22. IANA The IP address space is managed globally by the Internet Assigned Numbers Authority (IANA), and by five regional Internet registries (RIRs) responsible in their designated territories for assignment to local Internet registries, such as Internet service providers, and other end users

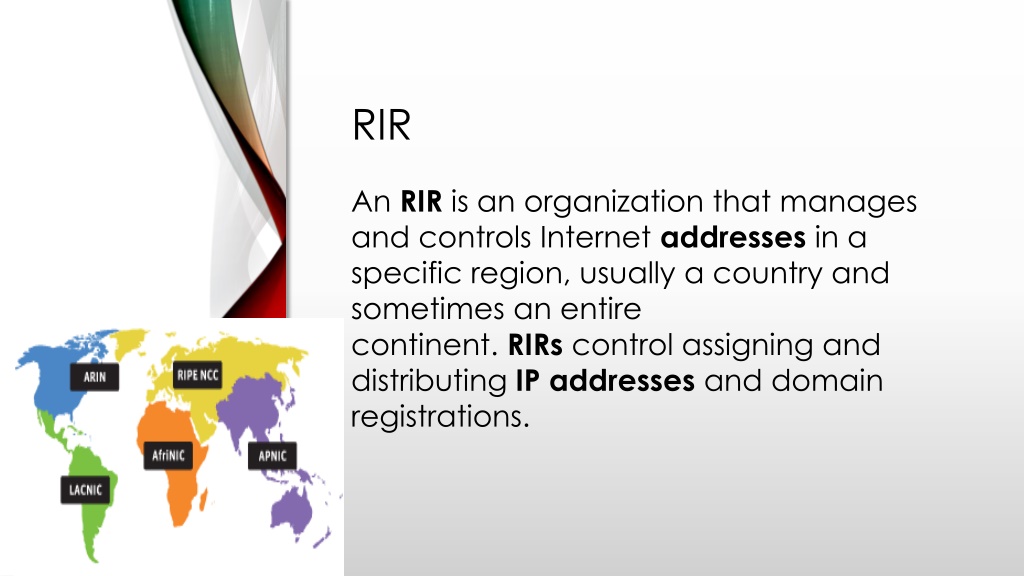

  23. RIR An RIR is an organization that manages and controls Internet addresses in a specific region, usually a country and sometimes an entire continent. RIRs control assigning and distributing IP addresses and domain registrations.

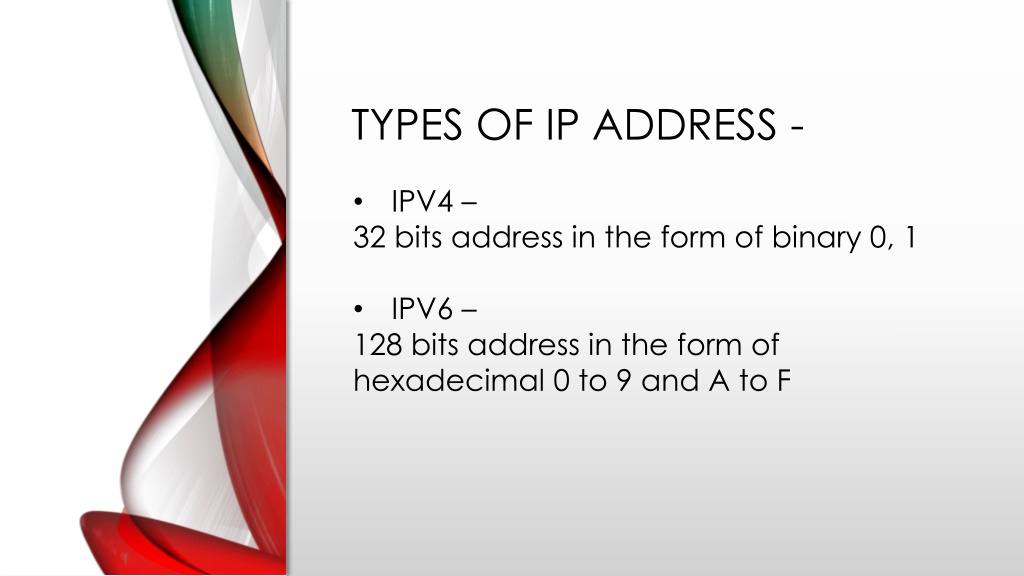

  24. TYPES OF IP ADDRESS - • IPV4 – • 32 bits address in the form of binary 0, 1 • IPV6 – • 128 bits address in the form of hexadecimal 0 to 9 and A to F

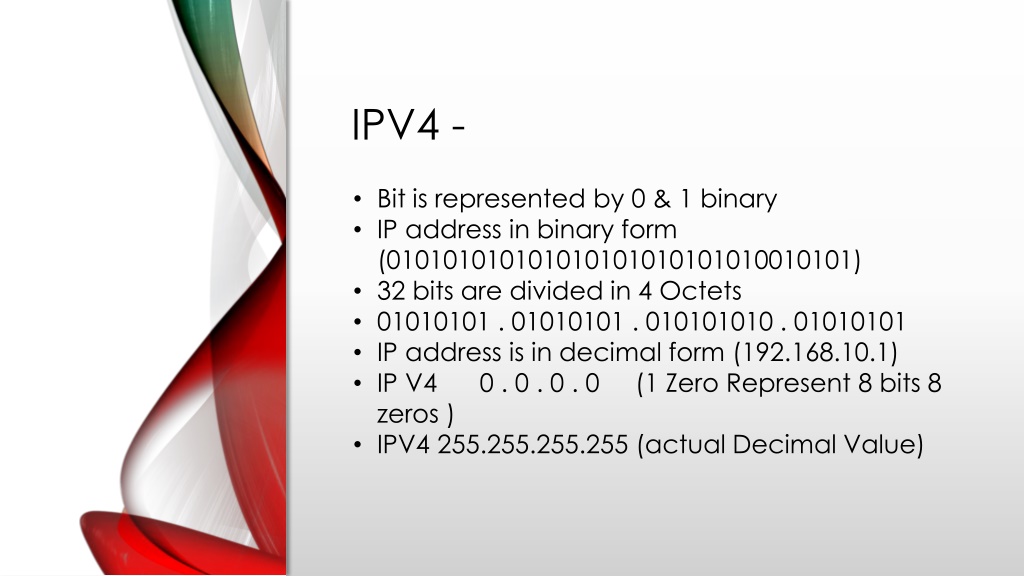

  25. Ipv4 - • Bit is represented by 0 & 1 binary • IP address in binary form (010101010101010101010101010010101) • 32 bits are divided in 4 Octets • 01010101 . 01010101 . 010101010 . 01010101 • IP address is in decimal form (192.168.10.1) • IP V4 0 . 0 . 0 . 0 (1 Zero Represent 8 bits 8 zeros ) • IPV4 255.255.255.255 (actual Decimal Value)

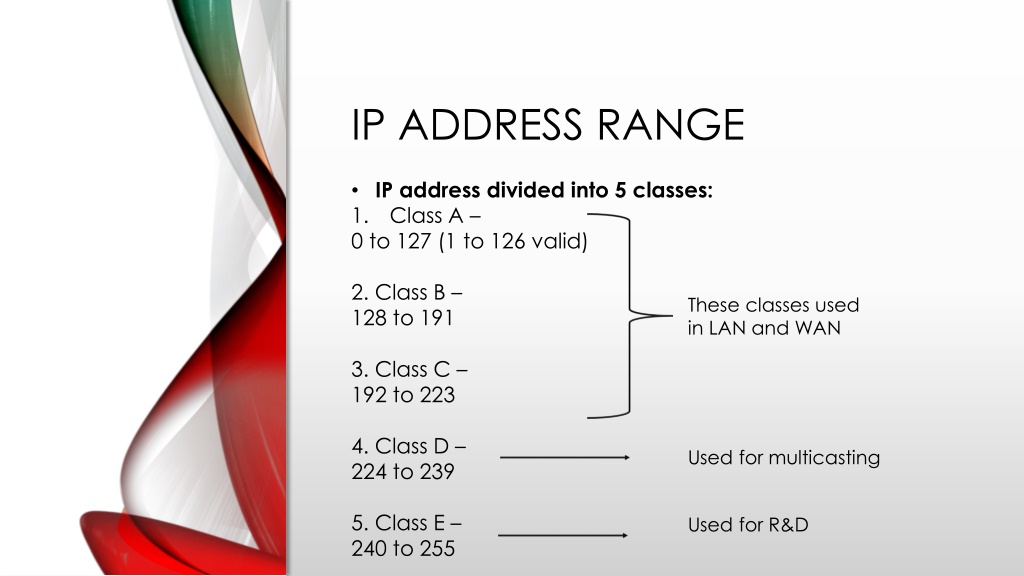

  26. Ip address range • IP address divided into 5 classes: • Class A – • 0 to 127 (1 to 126 valid) • 2. Class B – • 128 to 191 • 3. Class C – • 192 to 223 • 4. Class D – • 224 to 239 • 5. Class E – • 240 to 255 These classes used in LAN and WAN Used for multicasting Used for R&D

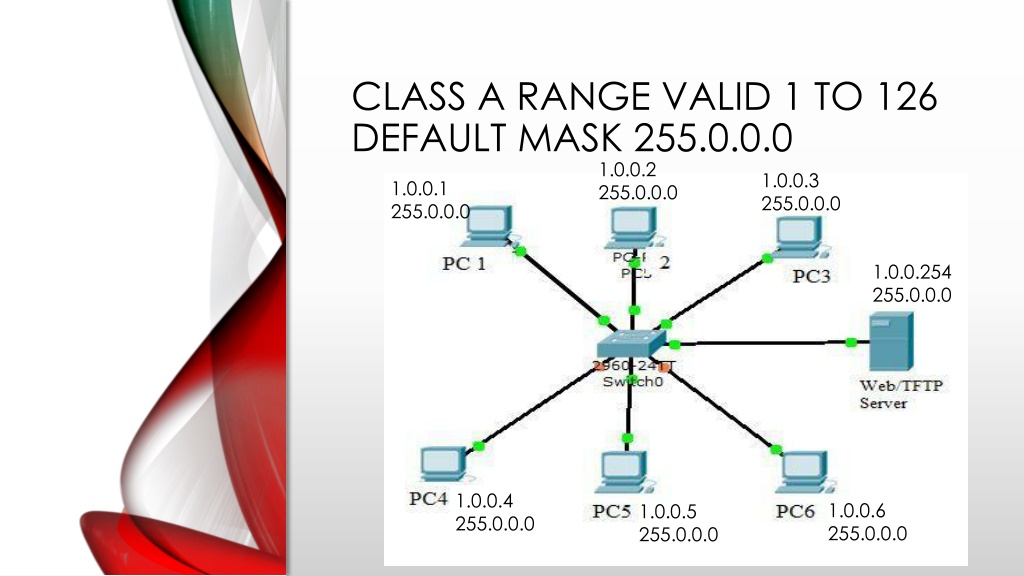

  27. Class A range Valid 1 to 126 Default Mask 255.0.0.0 1.0.0.2 255.0.0.0 1.0.0.3 255.0.0.0 1.0.0.1 255.0.0.0 1.0.0.254 255.0.0.0 1.0.0.4 255.0.0.0 1.0.0.6 255.0.0.0 1.0.0.5 255.0.0.0

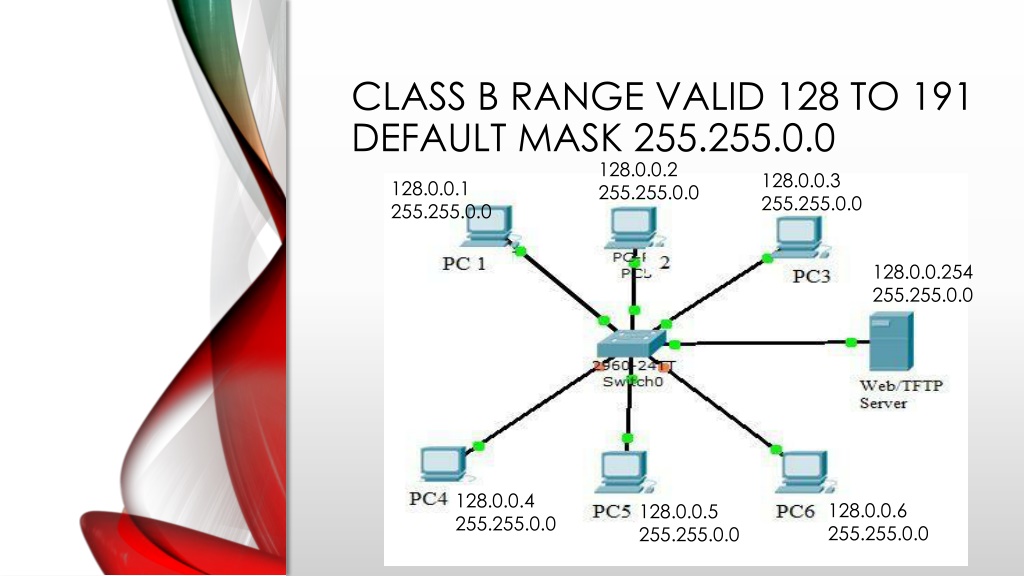

  28. Class b range Valid 128 to 191Default Mask 255.255.0.0 128.0.0.2 255.255.0.0 128.0.0.3 255.255.0.0 128.0.0.1 255.255.0.0 128.0.0.254 255.255.0.0 128.0.0.4 255.255.0.0 128.0.0.6 255.255.0.0 128.0.0.5 255.255.0.0

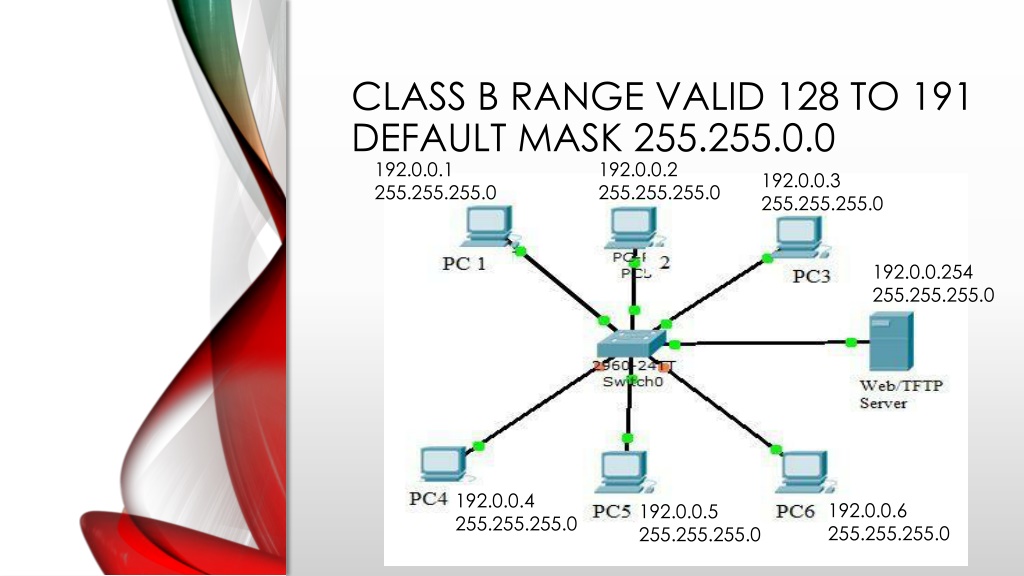

  29. Class b range Valid 128 to 191Default Mask 255.255.0.0 192.0.0.1 255.255.255.0 192.0.0.2 255.255.255.0 192.0.0.3 255.255.255.0 192.0.0.254 255.255.255.0 192.0.0.4 255.255.255.0 192.0.0.6 255.255.255.0 192.0.0.5 255.255.255.0

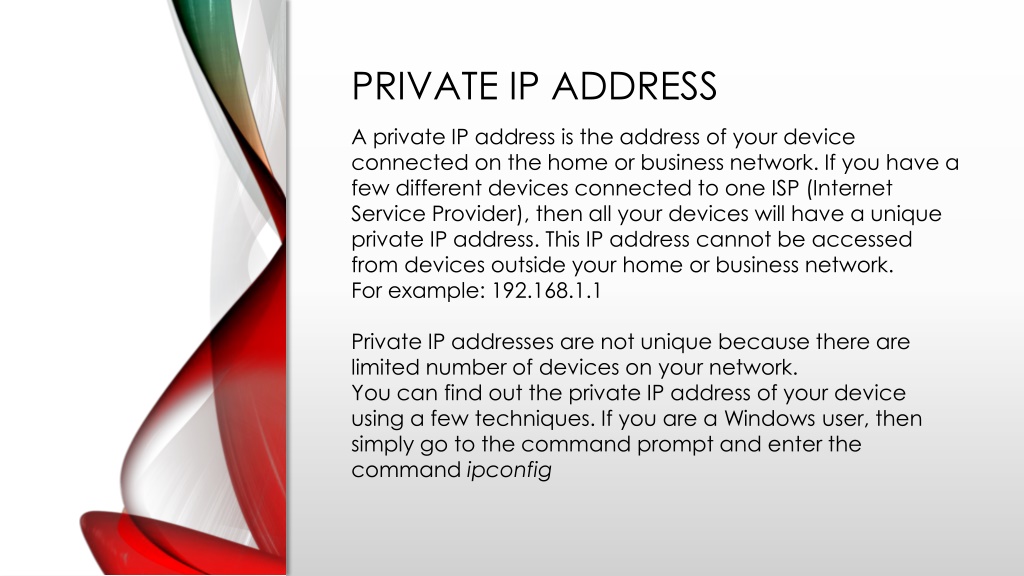

  30. Private ip address A private IP address is the address of your device connected on the home or business network. If you have a few different devices connected to one ISP (Internet Service Provider), then all your devices will have a unique private IP address. This IP address cannot be accessed from devices outside your home or business network. For example: 192.168.1.1 Private IP addresses are not unique because there are limited number of devices on your network. You can find out the private IP address of your device using a few techniques. If you are a Windows user, then simply go to the command prompt and enter the command ipconfig

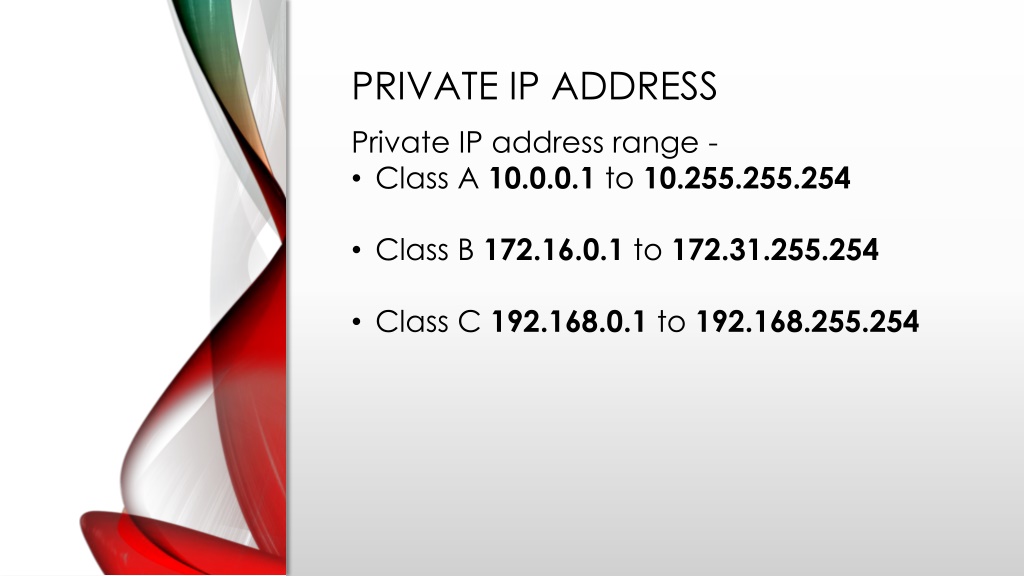

  31. Private ip address • Private IP address range - • Class A 10.0.0.1 to 10.255.255.254 • Class B 172.16.0.1 to 172.31.255.254 • Class C 192.168.0.1 to 192.168.255.254

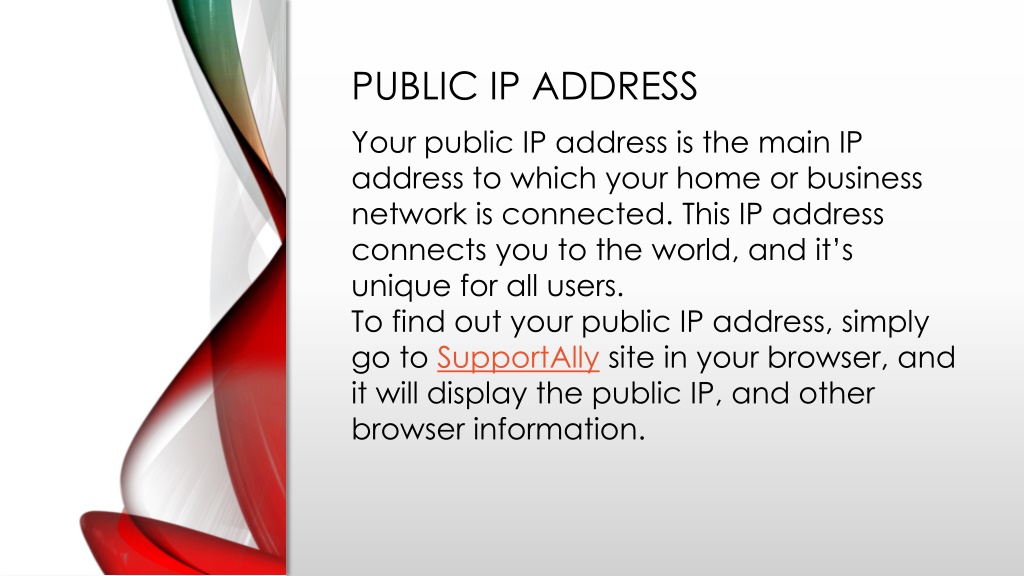

  32. public ip address Your public IP address is the main IP address to which your home or business network is connected. This IP address connects you to the world, and it’s unique for all users. To find out your public IP address, simply go to SupportAlly site in your browser, and it will display the public IP, and other browser information.

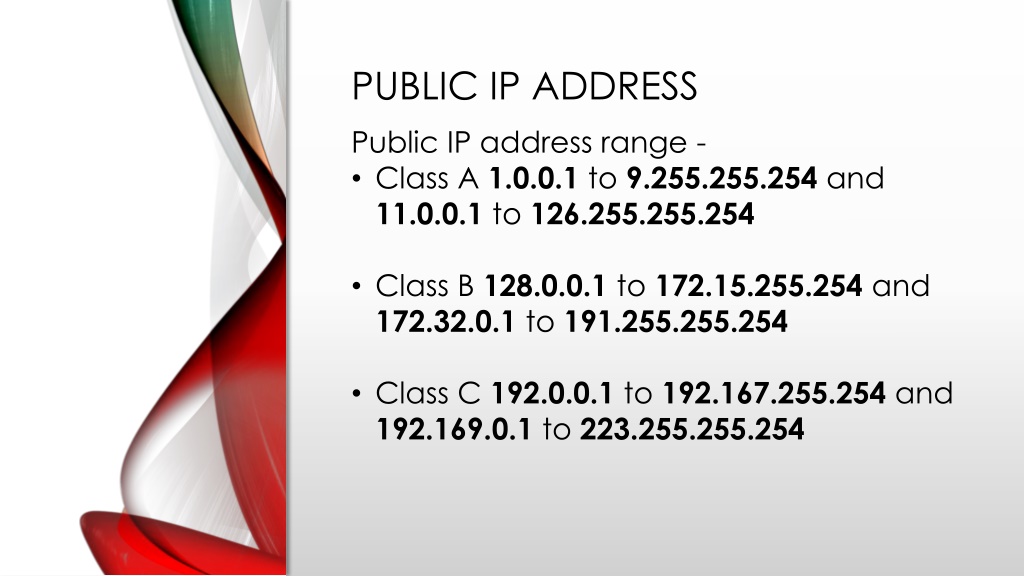

  33. public ip address • Public IP address range - • Class A 1.0.0.1 to 9.255.255.254 and 11.0.0.1 to 126.255.255.254 • Class B 128.0.0.1 to 172.15.255.254 and 172.32.0.1 to 191.255.255.254 • Class C 192.0.0.1 to 192.167.255.254 and 192.169.0.1 to 223.255.255.254

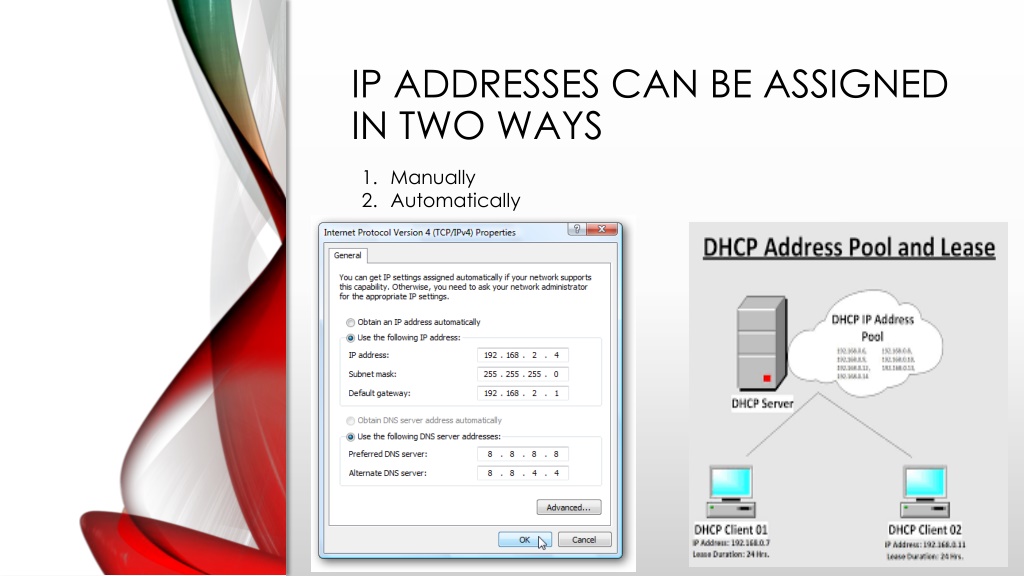

  34. Ip addresses can be assigned in two ways Manually Automatically

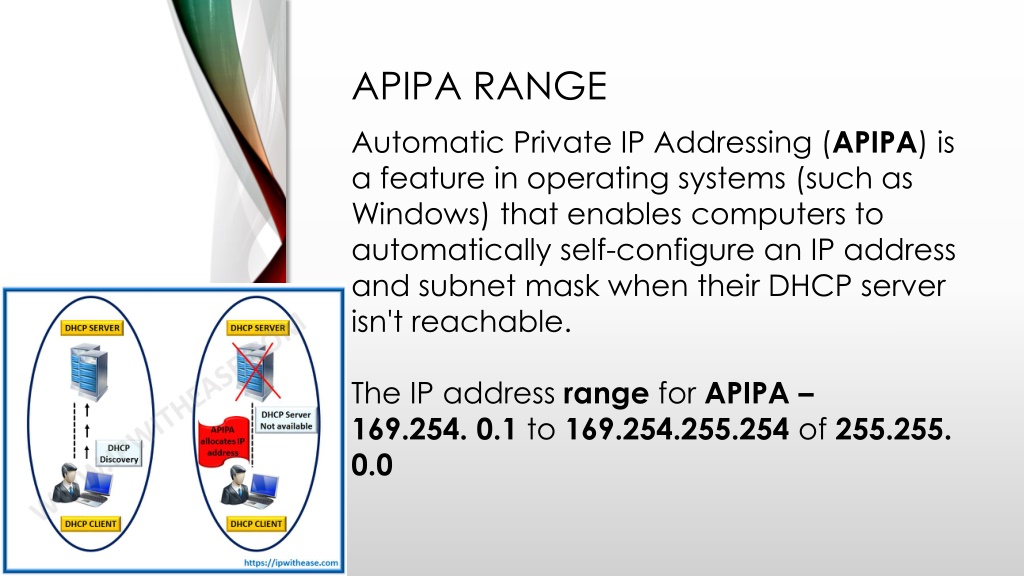

  35. Apipa range Automatic Private IP Addressing (APIPA) is a feature in operating systems (such as Windows) that enables computers to automatically self-configure an IP address and subnet mask when their DHCP server isn't reachable. The IP address range for APIPA – 169.254. 0.1 to 169.254.255.254 of 255.255. 0.0
