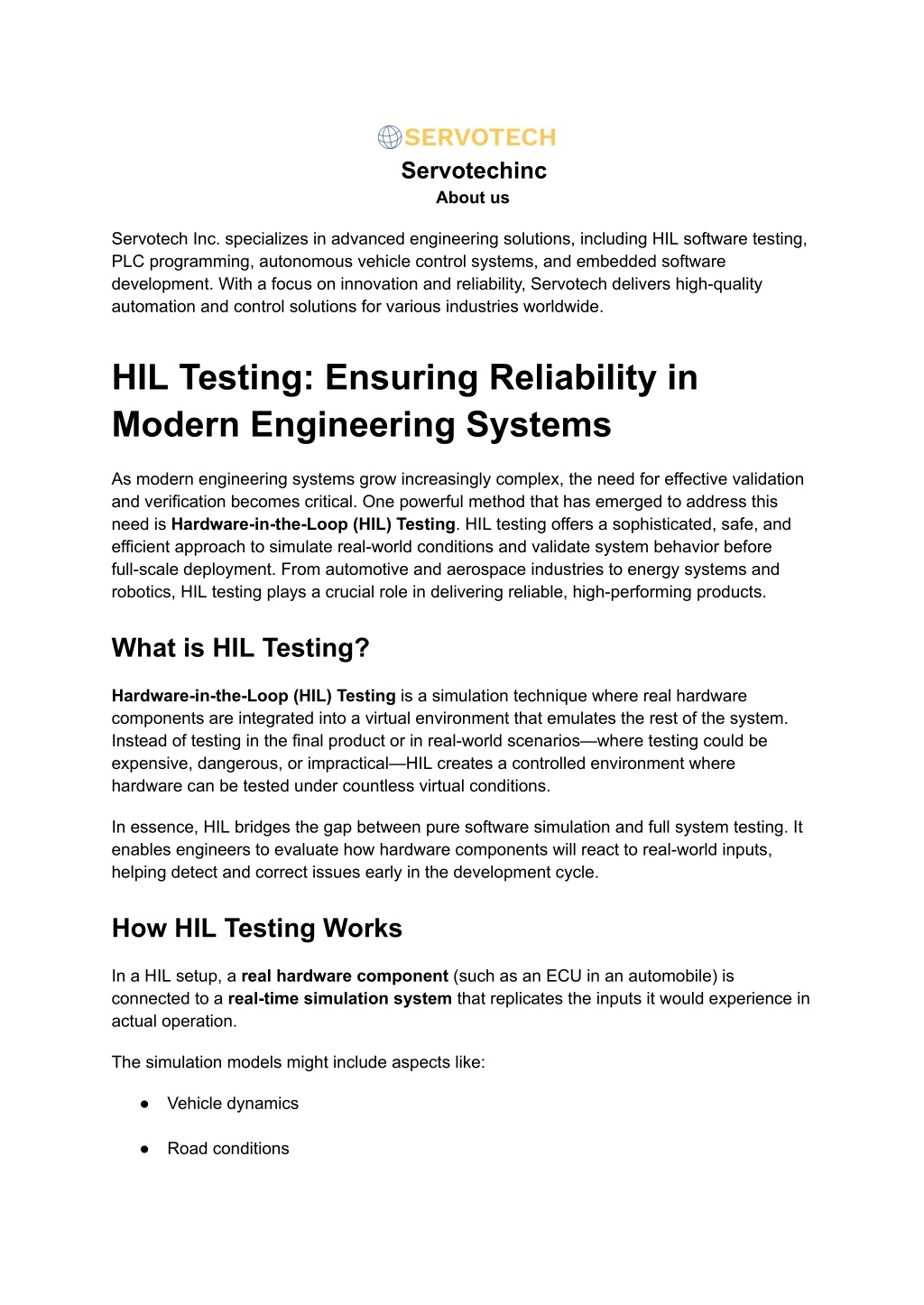

  1. Servotechinc About us Servotech Inc. specializes in advanced engineering solutions, including HIL software testing, PLC programming, autonomous vehicle control systems, and embedded software development. With a focus on innovation and reliability, Servotech delivers high-quality automation and control solutions for various industries worldwide. HIL Testing: Ensuring Reliability in Modern Engineering Systems As modern engineering systems grow increasingly complex, the need for effective validation and verification becomes critical. One powerful method that has emerged to address this need is Hardware-in-the-Loop (HIL) Testing. HIL testing offers a sophisticated, safe, and efficient approach to simulate real-world conditions and validate system behavior before full-scale deployment. From automotive and aerospace industries to energy systems and robotics, HIL testing plays a crucial role in delivering reliable, high-performing products. What is HIL Testing? Hardware-in-the-Loop (HIL) Testing is a simulation technique where real hardware components are integrated into a virtual environment that emulates the rest of the system. Instead of testing in the final product or in real-world scenarios—where testing could be expensive, dangerous, or impractical—HIL creates a controlled environment where hardware can be tested under countless virtual conditions. In essence, HIL bridges the gap between pure software simulation and full system testing. It enables engineers to evaluate how hardware components will react to real-world inputs, helping detect and correct issues early in the development cycle. How HIL Testing Works In a HIL setup, a real hardware component (such as an ECU in an automobile) is connected to a real-time simulation system that replicates the inputs it would experience in actual operation. The simulation models might include aspects like: ● Vehicle dynamics ● Road conditions

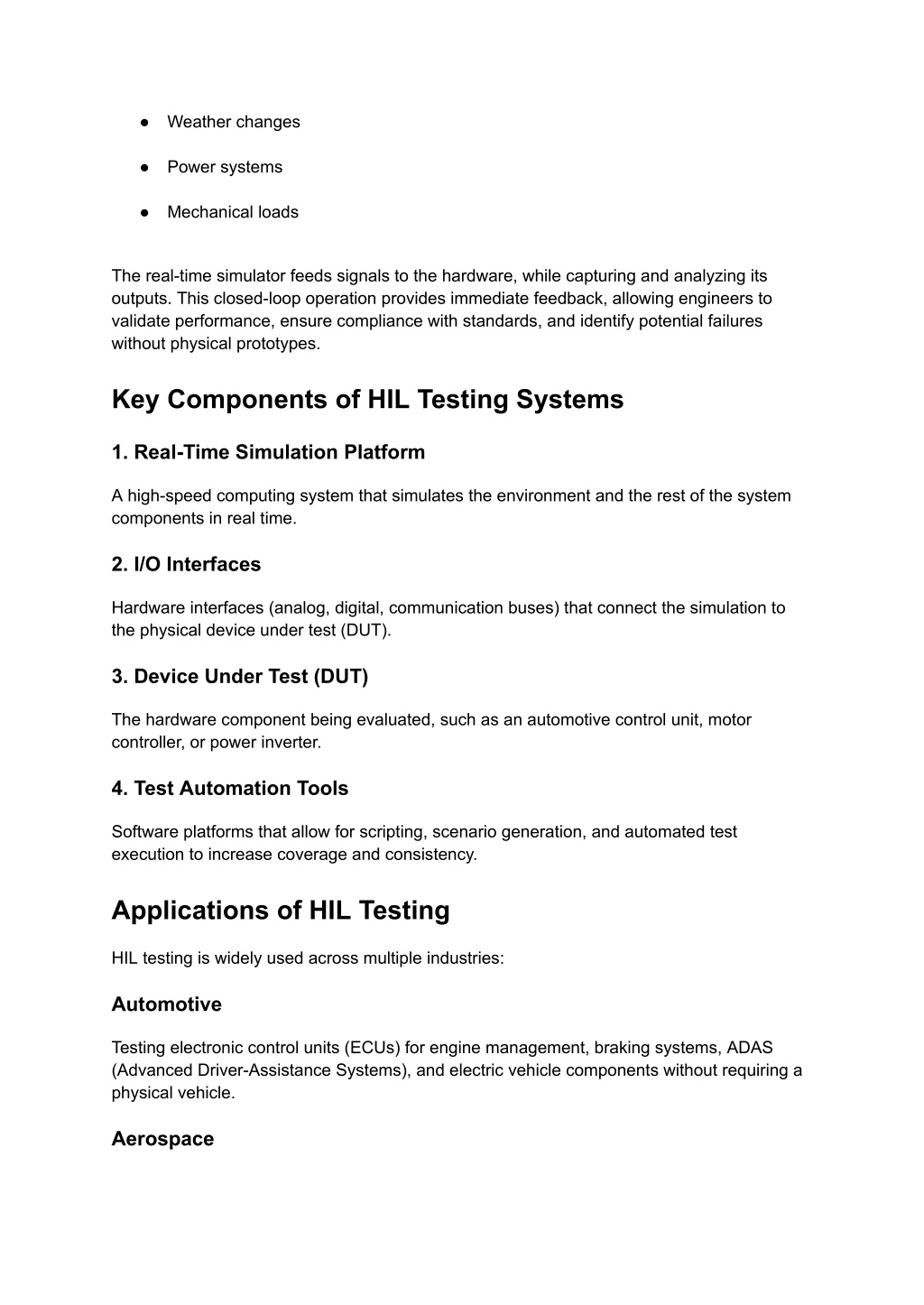

  2. ● Weather changes ● Power systems ● Mechanical loads The real-time simulator feeds signals to the hardware, while capturing and analyzing its outputs. This closed-loop operation provides immediate feedback, allowing engineers to validate performance, ensure compliance with standards, and identify potential failures without physical prototypes. Key Components of HIL Testing Systems 1. Real-Time Simulation Platform A high-speed computing system that simulates the environment and the rest of the system components in real time. 2. I/O Interfaces Hardware interfaces (analog, digital, communication buses) that connect the simulation to the physical device under test (DUT). 3. Device Under Test (DUT) The hardware component being evaluated, such as an automotive control unit, motor controller, or power inverter. 4. Test Automation Tools Software platforms that allow for scripting, scenario generation, and automated test execution to increase coverage and consistency. Applications of HIL Testing HIL testing is widely used across multiple industries: Automotive Testing electronic control units (ECUs) for engine management, braking systems, ADAS (Advanced Driver-Assistance Systems), and electric vehicle components without requiring a physical vehicle. Aerospace

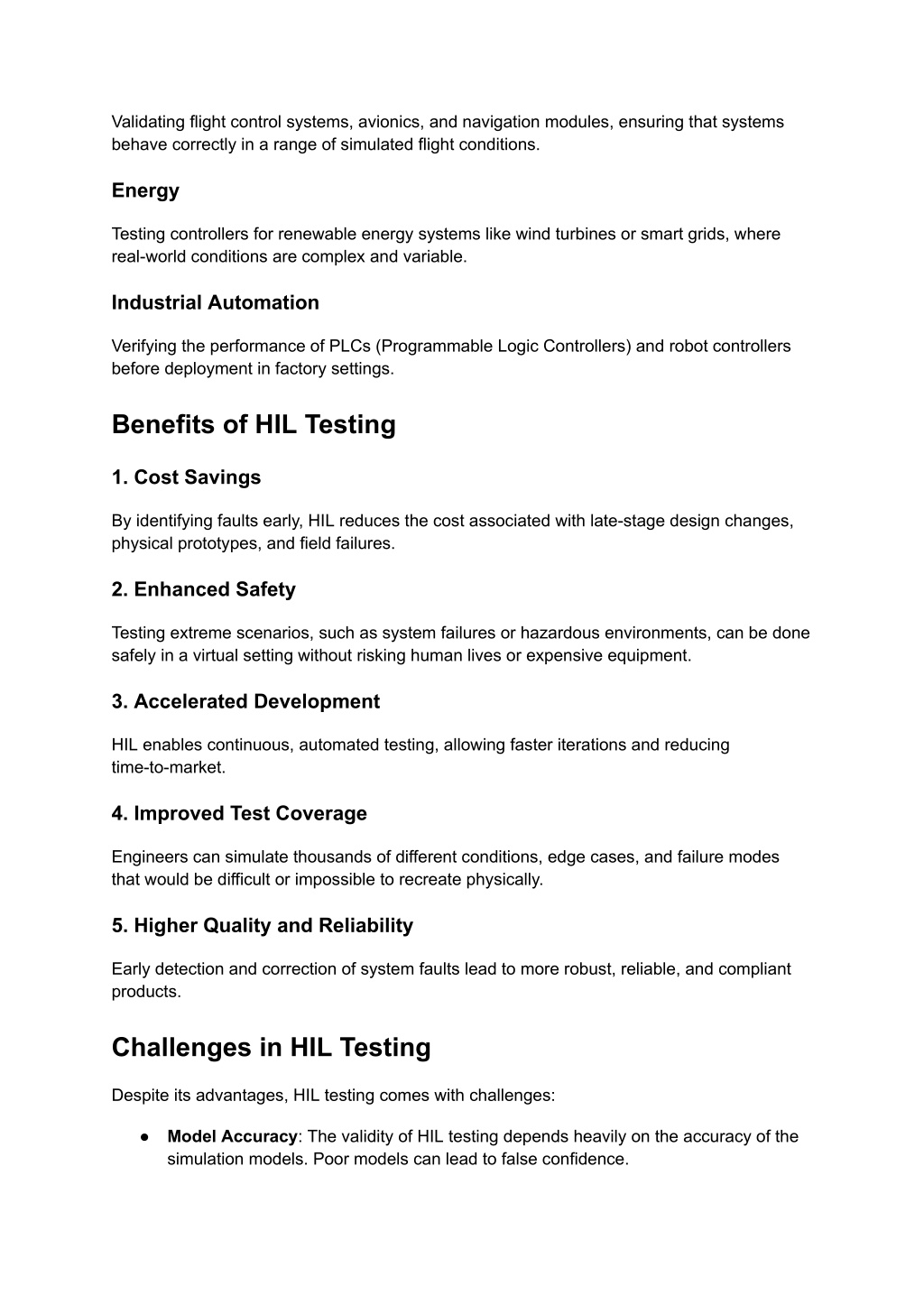

  3. Validating flight control systems, avionics, and navigation modules, ensuring that systems behave correctly in a range of simulated flight conditions. Energy Testing controllers for renewable energy systems like wind turbines or smart grids, where real-world conditions are complex and variable. Industrial Automation Verifying the performance of PLCs (Programmable Logic Controllers) and robot controllers before deployment in factory settings. Benefits of HIL Testing 1. Cost Savings By identifying faults early, HIL reduces the cost associated with late-stage design changes, physical prototypes, and field failures. 2. Enhanced Safety Testing extreme scenarios, such as system failures or hazardous environments, can be done safely in a virtual setting without risking human lives or expensive equipment. 3. Accelerated Development HIL enables continuous, automated testing, allowing faster iterations and reducing time-to-market. 4. Improved Test Coverage Engineers can simulate thousands of different conditions, edge cases, and failure modes that would be difficult or impossible to recreate physically. 5. Higher Quality and Reliability Early detection and correction of system faults lead to more robust, reliable, and compliant products. Challenges in HIL Testing Despite its advantages, HIL testing comes with challenges: ● Model Accuracy: The validity of HIL testing depends heavily on the accuracy of the simulation models. Poor models can lead to false confidence.

  4. ● System Complexity: Setting up a realistic and reliable HIL test system for very complex hardware can be challenging and time-consuming. ● Cost of Initial Setup: While HIL reduces costs long-term, initial investments in simulation hardware and software can be significant. ● Skill Requirements: Engineers must have expertise in real-time simulation, control systems, and embedded software development to fully utilize HIL systems. The HIL Testing Process A typical HIL testing workflow involves: 1. Model Development: Create simulation models representing the environment and system behavior. 2. System Integration: Connect the DUT with the HIL simulator through appropriate I/O interfaces. 3. Test Planning: Define testing objectives, scenarios, and success criteria. 4. Test Execution: Run tests either manually or through automated scripts. 5. Data Analysis: Analyze outputs, compare results against expected behavior, and identify anomalies. 6. Reporting and Debugging: Document findings, fix detected issues, and retest until requirements are satisfied. Future Trends in HIL Testing The demand for HIL testing continues to grow alongside the complexity of modern engineering systems. Key trends shaping the future of HIL include: ● Integration with AI and Machine Learning: Using AI to generate realistic test scenarios and optimize simulation models. ● Cloud-Based HIL Testing: Running HIL simulations on the cloud to improve scalability and remote collaboration. ● Increased Use in Autonomous Systems: As autonomous vehicles, drones, and robots become mainstream, HIL will be crucial in validating their control algorithms and ensuring safety.

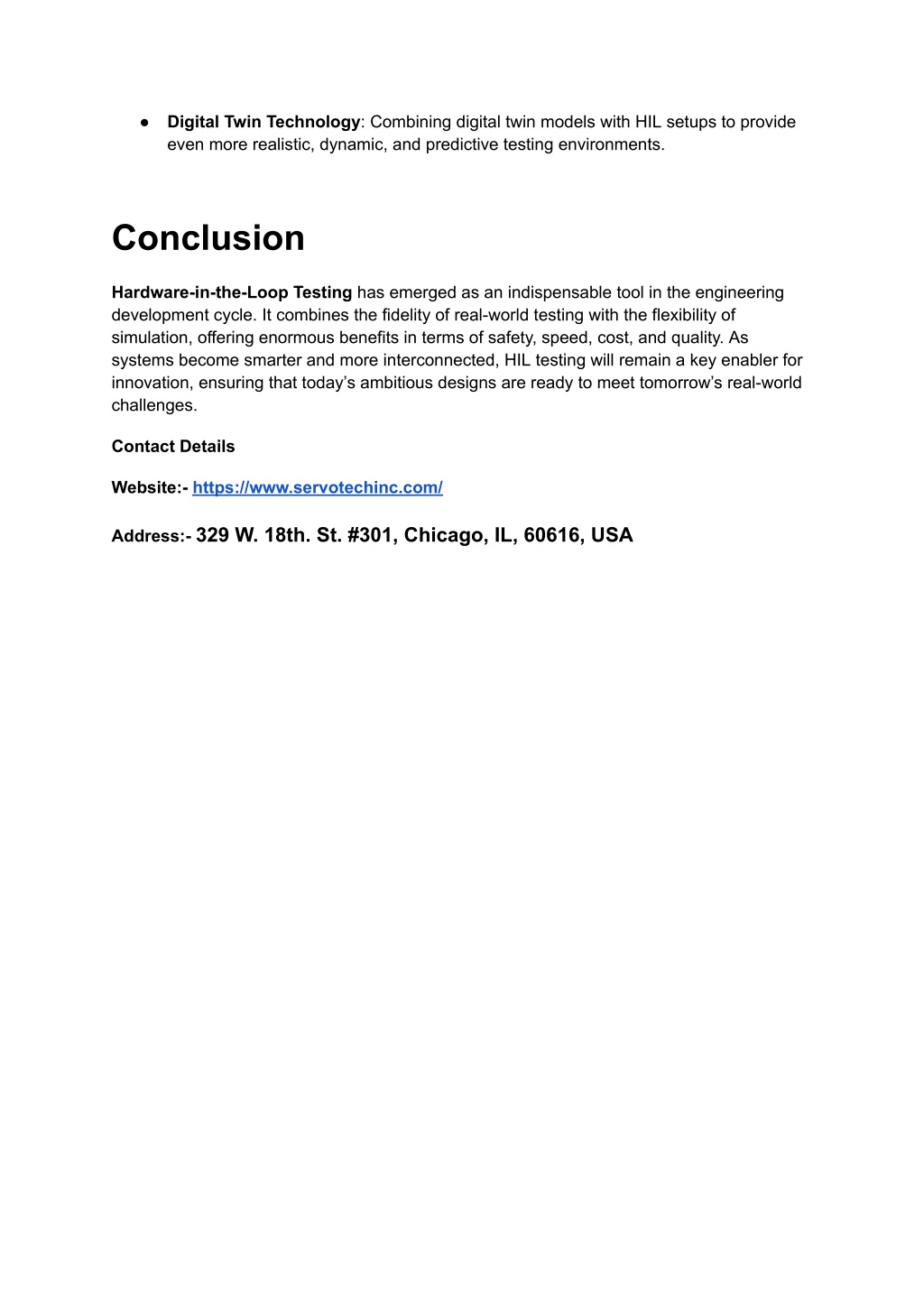

  5. ● Digital Twin Technology: Combining digital twin models with HIL setups to provide even more realistic, dynamic, and predictive testing environments. Conclusion Hardware-in-the-Loop Testing has emerged as an indispensable tool in the engineering development cycle. It combines the fidelity of real-world testing with the flexibility of simulation, offering enormous benefits in terms of safety, speed, cost, and quality. As systems become smarter and more interconnected, HIL testing will remain a key enabler for innovation, ensuring that today’s ambitious designs are ready to meet tomorrow’s real-world challenges. Contact Details Website:- https://www.servotechinc.com/ Address:- 329 W. 18th. St. #301, Chicago, IL, 60616, USA
