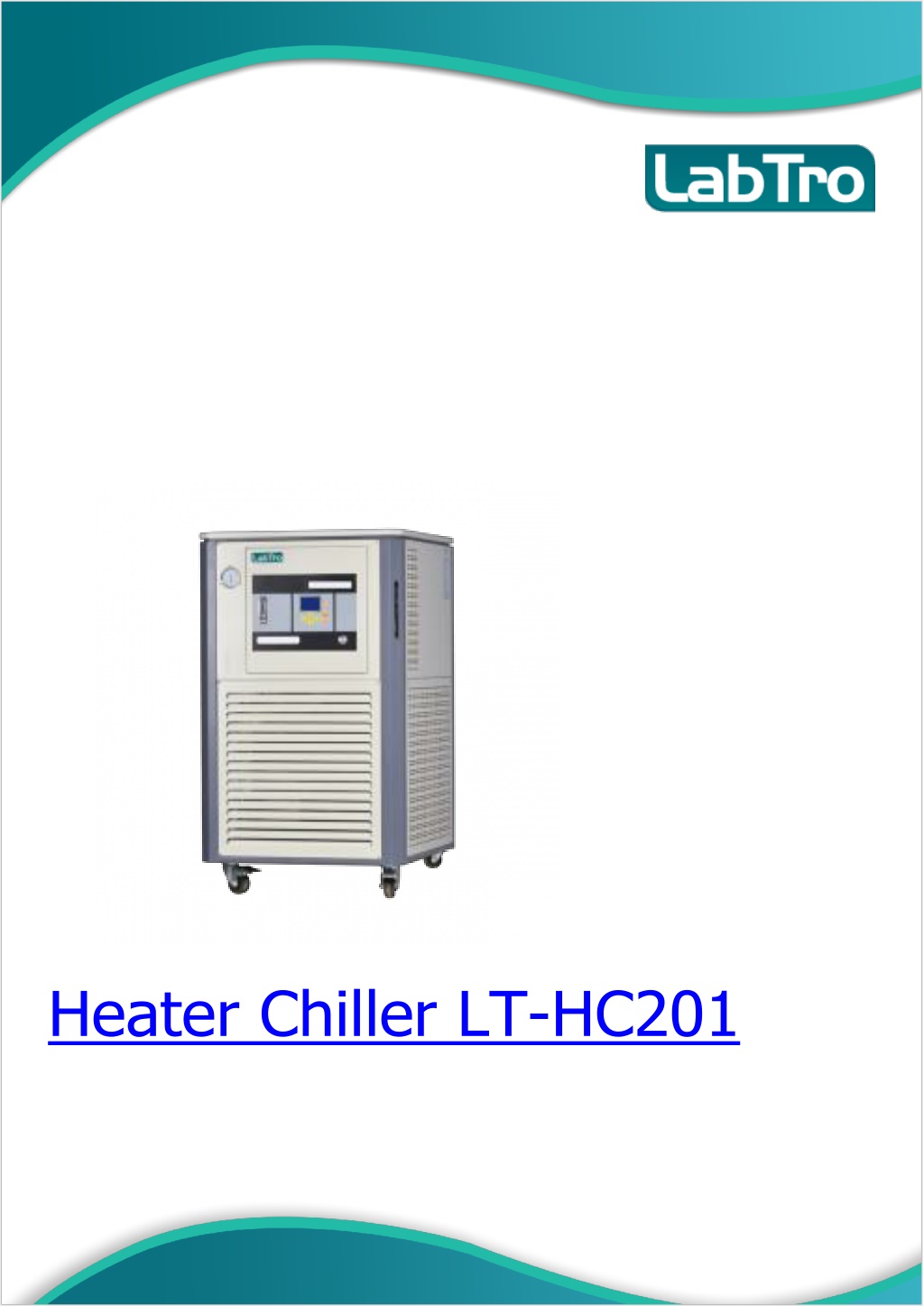

  1. Heater Chiller LT-HC201

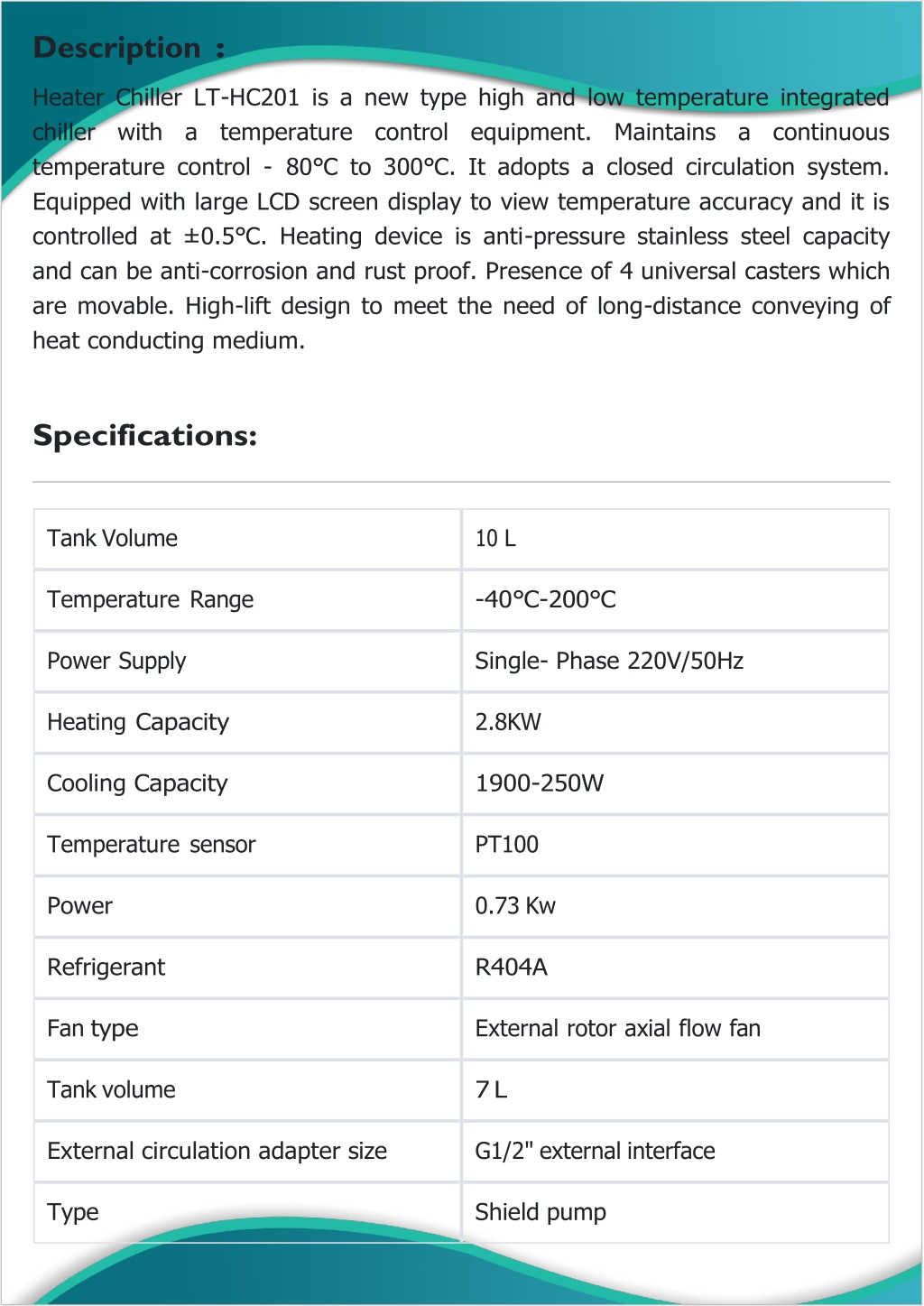

  2. Description : Heater Chiller LT-HC201 is a new type high and low temperature integrated chiller with a temperature control equipment. Maintains a continuous temperature control - 80℃ to 300℃. It adopts a closed circulation system. Equipped with large LCD screen display to view temperature accuracy and it is controlled at ±0.5℃. Heating device is anti-pressure stainless steel capacity and can be anti-corrosion and rust proof. Presence of 4 universal casters which are movable. High-lift design to meet the need of long-distance conveying of heat conducting medium. Specifications: Tank Volume 10 L Temperature Range -40℃-200℃ Power Supply Single- Phase 220V/50Hz Heating Capacity 2.8KW Cooling Capacity 1900-250W Temperature sensor PT100 Power 0.73 Kw Refrigerant R404A Fan type External rotor axial flow fan Tank volume 7 L External circulation adapter size G1/2" external interface Type Shield pump

  3. Voltage 220 V Heating Current 13.6 Heating Power 3 kW Cooling Power 1300 Weight 80 Kg Chiller Size Length Width Height 540 mm 420 mm 800 mm Packing Size Length Width Height 610 mm 510 mm 870 mm Control system Siemens S7-200 smart PLC Programming 5 programs can be written, each with up to 40 steps Control panel 7-inch Siemens color touch screen (optional 10 inch) Features: It is adaptable to the size of reactor Equipped with external rotor motor It has the characteristics of high efficiency, low noise and light weight

  4. Multi-functional device with heating, refrigeration and circulation Over-heating and over voltage protection function Fully closed system and prolong the life of heat conducting fluid It adopts self-developed circulation pump with low heat, withstanding high and low temperature Applications: It is widely used in colleges, universities, environmental protection, biochemical, scientific research and chemical industry Labtro Scientific Labtro Scientific 201 Spear Street, San Francisco, CA 94105 USA Email: info@labtro.com |Website: www.labtro.com |Phone: +1 934-470-6122
