Sect. 12-6: Sound Wave Interference & Beats

Sect. 12-6: Sound Wave Interference & Beats. Like any other waves, sound waves can interfere with each other. Example 12-12 Can lead to beats. Interference. Beats. An interesting & important example of interference is BEATS .

Samuel
Download Presentation

Sect. 12-6: Sound Wave Interference & Beats

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

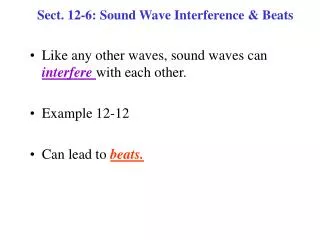

  1. Sect. 12-6: Sound Wave Interference & Beats • Like any other waves, sound waves can interfere with each other. • Example 12-12 • Can lead to beats.

  2. Interference

  3. Beats • An interesting & important example of interference is BEATS. • Beats Two sound waves are close in frequency. They interfere with each other (Interference in time, instead of space!)  The sound level (intensity) alternately rises & falls.  “Eerie” Sounds!

  4. As a function of time, the two interfering waves (frequencies f2 & f1) alternately go through constructive & destructive interference. • Beat Frequency fB = f2 - f1

  5. Sect. 12-7: Doppler Effect • Observation: Pitch (frequency) of a sound changes when the source is moving & when the observer is moving. • Different effects when the source & the observer are moving away or coming towards each other.  THE DOPPLER EFFECT

  6. Doppler Effect

  7. In air, at rest, source frequency  f = 1/T, period T Speed of sound  v. Distance between crests: d = λ = vT . T = (λ/v) • Source movingTOWARDSobserver, speed  vs • In time T =1/f, source moves a distance ds = vsT  Wave crests are a distance λ´ = d - dsapart: Wavelength seen by observer: λ´ = λ - vsT = λ - (vs/v)λ = λ[1 - (vs/v)]  Frequency seen by observer: f´ = (v/λ´) = (v/λ)/[1 - (vs/v)] Or: f´ = f/[1 - (vs/v)] > f Observer hears a frequency higher than f

  8. In air, at rest, source frequency  f = 1/T, period T Speed of sound  v. Distance between crests: d = λ = vT . T = (λ/v) • Source movingAWAY FROM observer, speed vs • In time T =1/f, source moves a distance ds = vsT  Wave crests are a distance λ´ = d + dsapart:Wavelength seen by observer: λ´ = λ + vsT = λ + (vs/v)λ = λ[1 + (vs/v)] Frequency seen by observer:f´ = (v/λ´) = (v/ λ)/[1 + (vs/v)] Or: f´ = f/[1 + (vs/v)] < fObserver hears a frequency lower than f

  9. Stationary source, moving observer. Sound speed  v. Distance between crests: d = λ = vT, T = (λ/v), f = (v/ λ) Observer movesTOWARDS the source, speed vo. Relative velocity of source & observer: v´ = v + vo  Frequency seen by observer: f´ = (v´/λ) = (v + vo)/λ = (v + vo)(f/v) Or: f ´ = f[1 + (vo/v)] > f Observer hears a frequency higher than f

  10. Stationary source, moving observer. Sound speed v. Distance between crests: d = λ= vT, T = (λ/v), f = (v/ λ) Observer movesAWAY FROM source, speed vo Relative velocity of source & observer: v´ = v - vo  Frequency seen by observer: f´ = (v´/λ) = (v - vo)/λ = (v - vo)(f/v) Or: f ´ = f[1 - (vo/v)] < f Observer hears a frequency lower than f

  11. If BOTH observer AND source are moving. Observer velocity = vo . Source velocity = vs  Combine the two effects just discussed. f ´ = f[1  (vo/v)]/[1 -/+ (vs/v)] Top signs  Motion towards Bottom signs  Motion away from Example 12-14

  12. Example 12-15 • Sound reflected by a moving object. Need Doppler effect with BOTH observer AND source moving. • Initial wave: Object is “Observer” • Reflected wave: Object is “Source”
