Slide1 l.jpg

RESISTIVE CIRCUITS

  • SINGLE NODE-PAIR CIRCUIT ANALYSIS


Slide2 l.jpg

IN PRACTICE NODES MAY ASSUME STRANGE

FORMS

THIS ELEMENT IS INACTVE (SHORT-CIRCUITED)

LOW DISTORTION POWER AMPLIFIER

SINGLE NODE-PAIR CIRCUITS

THESE CIRCUITS ARE CHARACTERIZED BY ALL

THE ELMENTS HAVING THE SAME VOLTAGE

ACROSS THEM - THEY ARE IN PARALLEL


Slide3 l.jpg

LOW VOLTAGE POWER SUPPLY FOR CRT - PARTIAL VIEW

SAMPLE PHYSICAL NODES

COMPONENT SIDE

CONNECTION SIDE


Slide4 l.jpg

THE CURRENT DIVISION

APPLY KCL

USE OHM’S LAW TO REPLACE CURRENTS

DEFINE “PARALLEL RESISTANCE COMBINATION”

BASIC CURRENT DIVIDER

THE CURRENT i(t) ENTERS THE NODE AND

SPLITS - IT IS DIVIDED BETWEEN THE

CURRENTS i1(t) AND i2(t)


Slide5 l.jpg

WHEN IN DOUBT… REDRAW THE CIRCUIT TO

HIGHLIGHT ELECTRICAL CONNECTIONS!!

IS EASIER

TO SEE THE

DIVIDER


Slide6 l.jpg

POWER PER SPEAKER

LEARNING EXTENSION - CURRENT DIVIDER

CAR STEREO AND CIRCUIT MODEL

THERE IS MORE THAN ONE

OPTION TO COMPUTE I2


Slide7 l.jpg

APPLY KCL TO THIS NODE

DEFINE “PARALLEL RESISTANCE COMBINATION”

FIRST GENERALIZATION: MULTIPLE SOURCES


Slide9 l.jpg

APPLY KCL TO THIS NODE

Ohm’s Law at every resistor

General current divider

SECOND GENERALIZATION: MULTIPLE RESISTORS


Slide10 l.jpg

20k||5k

General current divider


Slide11 l.jpg

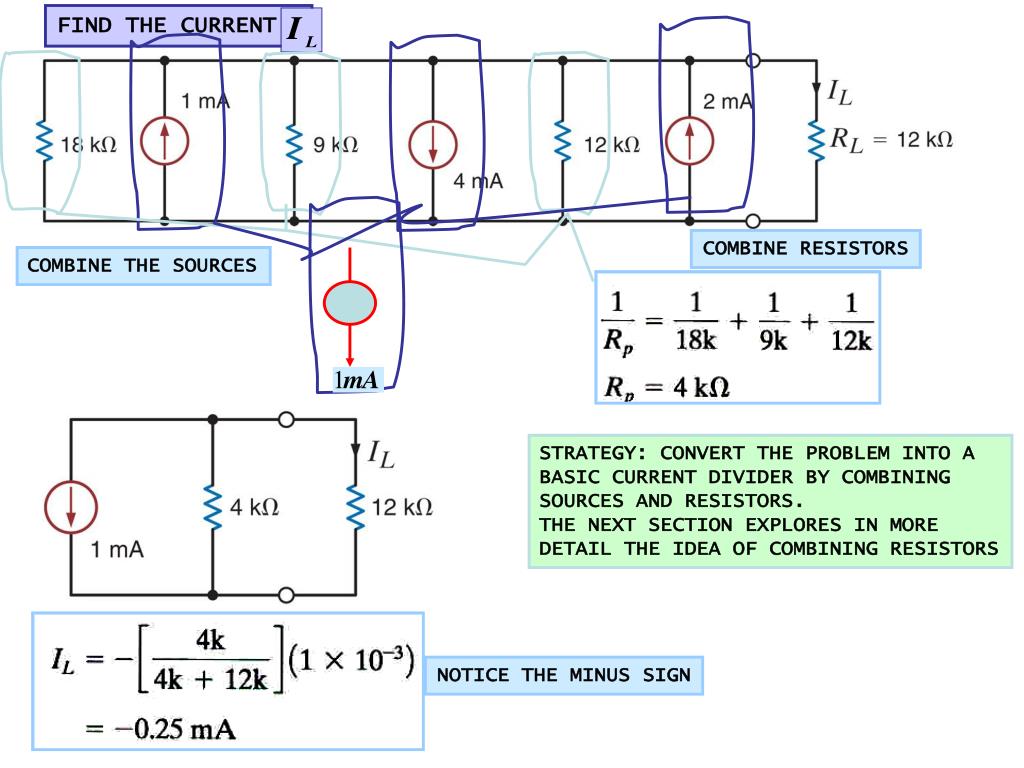

FIND THE CURRENT

NOTICE THE MINUS SIGN

COMBINE RESISTORS

COMBINE THE SOURCES

STRATEGY: CONVERT THE PROBLEM INTO A

BASIC CURRENT DIVIDER BY COMBINING

SOURCES AND RESISTORS.

THE NEXT SECTION EXPLORES IN MORE

DETAIL THE IDEA OF COMBINING RESISTORS


Slide12 l.jpg

I2

I1

9mA

I1

I1

I2

I2

DIFFERENT LOOKS FOR THE SAME

ELECTRIC CIRCUIT


Slide13 l.jpg

I1

I2

I1

REDRAWING A CIRCUIT

MAY, SOMETIMES, HELP TO

VISUALIZE BETTER THE

ELECTRICAL CONNECTIONS

I2


Slide14 l.jpg

Determine power

delivered by source

+

V

_
